DACIA DUSTER 2016 1.G Owners Manual

JauneNoir Noir texte
3.13
ENG_UD32156_1
Pare-soleil - Poignée de maintien (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Grab handle 4
This offers support and can be held
when the vehicle is being driven.
Do not use these for getting into or out
of the vehicle.
SUN VISOR/GRAB HANDLE
4
132
Sun visor
Lower the sun visor 1 or 3 over the
windscreen or unclip it and turn it over
the side window.
Courtesy mirrors 2
Depending on the vehicle, the sun
visors are fitted with a courtesy mirror.

JauneNoir Noir texte
3.14
ENG_UD39258_2
Cendriers - Allume-cigares (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Cigarette lighter 3
With the ignition on, push in the ciga-
rette lighter 3.
It will spring back with a click when it is
ready. Pull it out to use. After use, re-
place it without pushing it all the way in.
Accessories sockets 3 and 5
These sockets are designed for connec-
ting accessories which have been ap-
proved by our Technical Department.
Their power level should not exceed
120 Watts (12V).
ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCKET
Ashtray
It can be housed in either position 1
or 4.
Lift the cover 2 to open.
Remove the ashtray to empty it.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
12
4
3
5

JauneNoir Noir texte
3.15
ENG_UD32112_1
Appuis-tête arrière (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
REAR HEADRESTS
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
C
1
To remove the headrests A or B
Raise the headrest as far as it will go,
then press button 1 and remove the
headrest.
To adjust the height of the
headrest A
(depending on vehicle)
Press the button 1 and simultaneously
slide the headrest to the desired height.
To reinstall the headrests A or B
Insert the rods in the holes, press
button 1, lower the headrest and check
that it is securely in place.Position for using the headrest B
(depending on vehicle)
Lift the headrest to maximum height,
then lower it until it locks.
Storage position for the headrest B
(depending on vehicle)
Press the button 1 and lower the head-
rest completely.
When the headrest is set at the
lowest position (position C), this is
for storage only: it should not be in
this position when a seat is occupied.
BAA
B

JauneNoir Noir texte
3.16
ENG_UD39257_3
Rangements / aménagements habitacle (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Dashboard upper storage
compartment 2
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/4)
Front door storage
compartments 1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
2
Mobile phone storage
compartment 3
(depending on the vehicle)
Do not hang any heavy and/
or sharp objects which may
fall whilst driving.
Risk of injury.
3

JauneNoir Noir texte
3.17
ENG_UD39257_3
Rangements / aménagements habitacle (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Centre console storage
compartment 5
(or location of the 4x2 (2WD) and 4X4
(4WD) mode selector)
Locations for cup holder or
ashtray 6.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/4)
Centre console storage
compartment 4
(or radio location)
When cornering, accelera-
ting or braking, ensure that
the cup does not spill.
There is a risk of burning if
hot liquid escapes.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
64
5

JauneNoir Noir texte
3.18
ENG_UD39257_3
Rangements / aménagements habitacle (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
This glove box can be used to store A4
format documents.
Inside the cover, a section 8 has been
provided for pens, maps, etc.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Passenger side glove box
Pull handle 7 to open it.
Precautions during use
Cover A in the bottom of the glove
box protects a socket reserved ex-
clusively for operations by the ap-
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
Nothing should be placed on the floor area in front of the driver as such
objects may slide under the pedal during braking manoeuvres, thus obs-
tructing its use.
A
7
8

JauneNoir Noir texte
3.19
ENG_UD39257_3
Rangements / aménagements habitacle (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
10
9

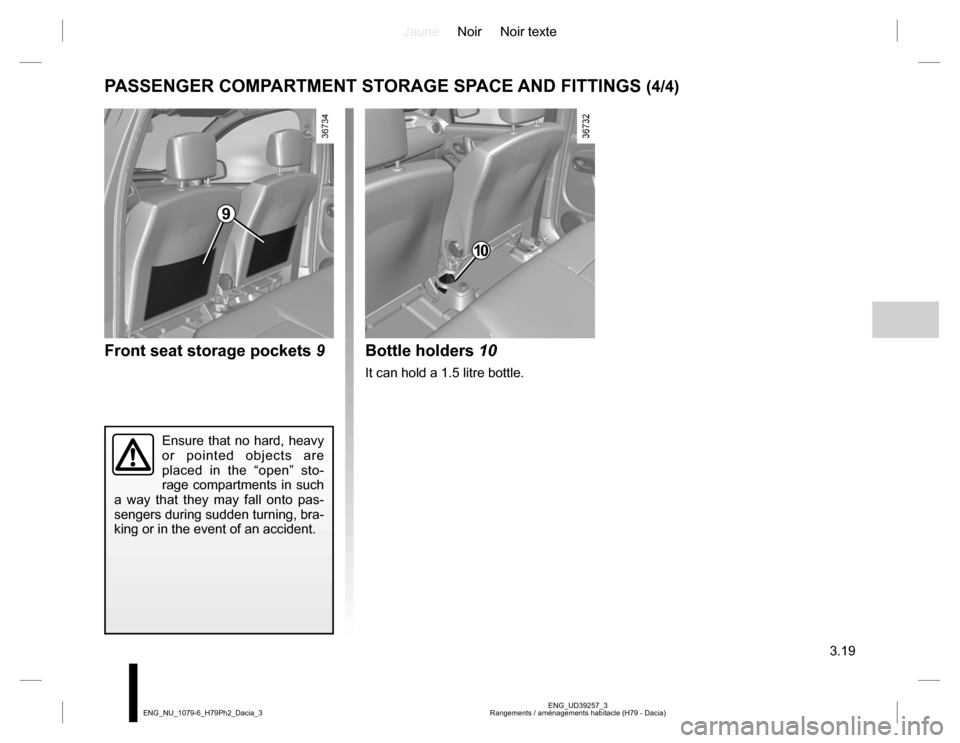

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Front seat storage pockets 9
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
Bottle holders 10
It can hold a 1.5 litre bottle.

JauneNoir Noir texte
3.20
ENG_UD39324_3
Banquette arrière (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
Lower the rear headrests completely
(refer to the information on the “Rear
headrests” in Section 3).
Lower handle(s) 3.
Lower the seatback B or C.Depending on the vehicle, the seat A
and the seatback B or C may be folded
away to allow bulky objects to be car-
ried.
To fold the back B or C
Ensure that the front seats are far
enough forward.
Insert buckles 1 into housings 2 before
moving the seatback(s).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
REAR BENCH SEAT (1/3)
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
B
C3
1
2
A
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.

JauneNoir Noir texte
3.21
ENG_UD39324_3
Banquette arrière (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3
REAR BENCH SEAT (2/3)
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
To reposition the seat back B or C
Lift the seatback(s).
Check the seatbacks are correctly
locked in position.
Refit the rear headrests (refer to the
information on the “Rear headrests” in
Section 3).
To fold away the seat base
Tilt the seat base A against the front
seats.
To fold the back B or C
Press the tab and lift the headrest to
remove it.
Proceed as described above.
A
B
C

JauneNoir Noir texte
3.22
ENG_UD39324_3
Banquette arrière (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_3

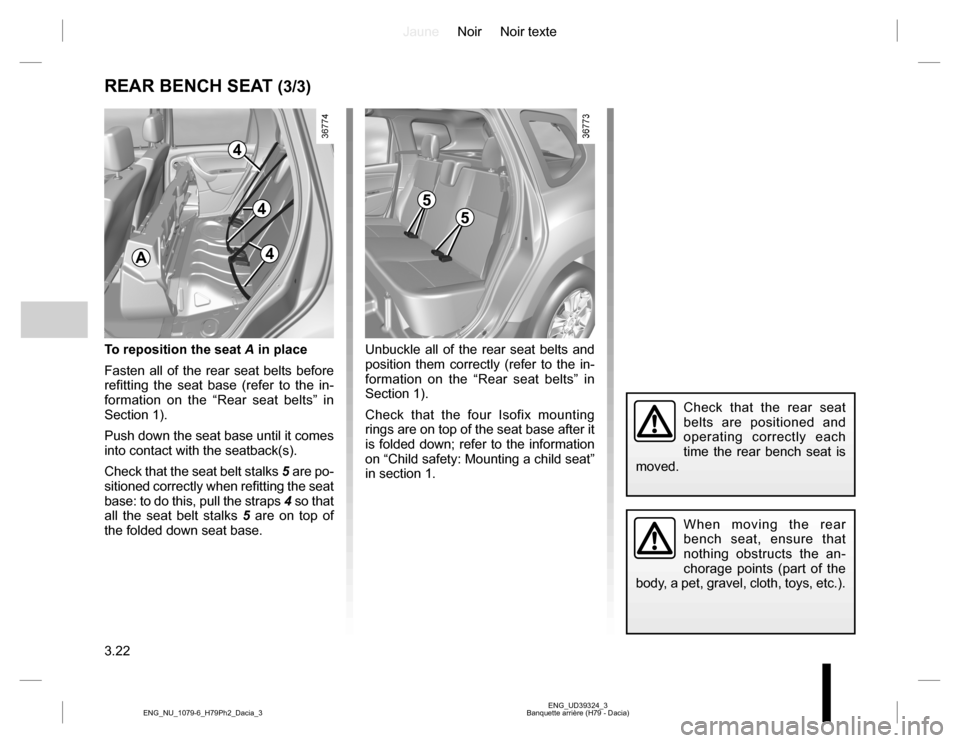

REAR BENCH SEAT (3/3)
To reposition the seat A in place
Fasten all of the rear seat belts before
refitting the seat base (refer to the in-
formation on the “Rear seat belts” in
Section 1).
Push down the seat base until it comes
into contact with the seatback(s).
Check that the seat belt stalks 5 are po-
sitioned correctly when refitting the seat
base: to do this, pull the straps 4 so that
all the seat belt stalks 5 are on top of
the folded down seat base.Unbuckle all of the rear seat belts and
position them correctly (refer to the in-
formation on the “Rear seat belts” in
Section 1).
Check that the four Isofix mounting
rings are on top of the seat base after it
is folded down; refer to the information
on “Child safety: Mounting a child seat”
in section 1.
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
5
5
4
4
4
A
