DACIA DUSTER 2016 1.G Owners Manual

JauneNoir Noir texte
5.3
ENG_UD38515_4
Crevaison (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
PUNCTURE (1/2)
Emergency spare wheel 4x2
version (2WD)
This is placed in cage 4 underneath
the vehicle.
To take out the emergency spare
wheel:
– Open the tailgate;
– undo bolt 2 using wheelbrace 1
(refer to the information on “Tools” in
this section);
– detach the cage 4 ;
– remove the emergency spare
wheel 3.
In the event of a puncture,
depending on the vehicle,
you will have:
An emergency spare wheel or tyre in-
flation kit (refer to the information on the
following pages).
If the emergency spare
wheel has been stored
for several years, have it
checked by your Dealer to
ensure that it is safe to use.
To store the wheel in the cage:
– Place the punctured tyre in the sub-
frame 4;
– reattach the cage 4 and retighten the
screw using wheelbrace 1 to refit the
assembly;
– make sure it is correctly locked.
1
2
34

JauneNoir Noir texte
5.4
ENG_UD38515_4
Crevaison (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
PUNCTURE (2/2)
Emergency spare wheel 4x4
version (4WD)
This is located in the luggage compart-
ment.
To access it:
– Open the tailgate;
– fold the luggage compartment mat 5;
– unscrew the central mounting 7;
– remove the emergency spare
wheel 6.
Note: ensure that the emergency spare
wheel or punctured wheel and the
wheel tray are correctly positioned so
that the luggage compartment carpet
can be properly fitted.
7
6
5
6
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure, etc.), the warning light

lights up on the instrument panel. See
“Tyre pressure loss warning” in
Section 2.
If the emergency spare wheel has been stored for several years, have it
checked by your Dealer to ensure that it is safe to use.
Vehicles fitted with an emergency spare wheel which is different to
the four other wheels:
– Never fit more than one emergency spare wheel to the same vehicle.
– Replace the emergency spare wheel as soon as possible with a wheel identi-
cal to the original one.
– When this is fitted to the vehicle, which must only be a temporary measure, the
driving speed must not exceed the speed indicated on the label on the wheel.
– Fitting an emergency spare wheel may alter the way the vehicle usually runs.
Avoid sudden acceleration or deceleration and reduce your speed when cor-
nering.
– If you need to use snow chains, fit the emergency spare wheel to the rear axle
and check the tyre pressure.
– The warning light
 on the instrument panel flashes for several seconds,
then stays on.

JauneNoir Noir texte
5.5
ENG_UD38373_2
Kit de gonflage des pneumatiques (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
TYRE INFLATION KIT (1/4)
The kit is only approved
for inflating the tyres of the
vehicle initially fitted with the
kit. It must never be used to
inflate the tyres of another vehicle,
or any other inflatable object (rubber
ring, rubber boat, etc.).
Avoid spillage on skin when hand-
ling the repair liquid bottle. If drop-
lets do leak out, rinse them off with
plenty of water.
Keep the repair kit away from chil-
dren.
Do not dispose of the empty bottle
in the countryside. Return it to your
approved dealer or to a recycling or-
ganisation.
The bottle has a limited service
life which is indicated on its label.
Check the expiry date.
Contact an approved dealer to re-
place the inflation tube and repair
product bottle.
A
B

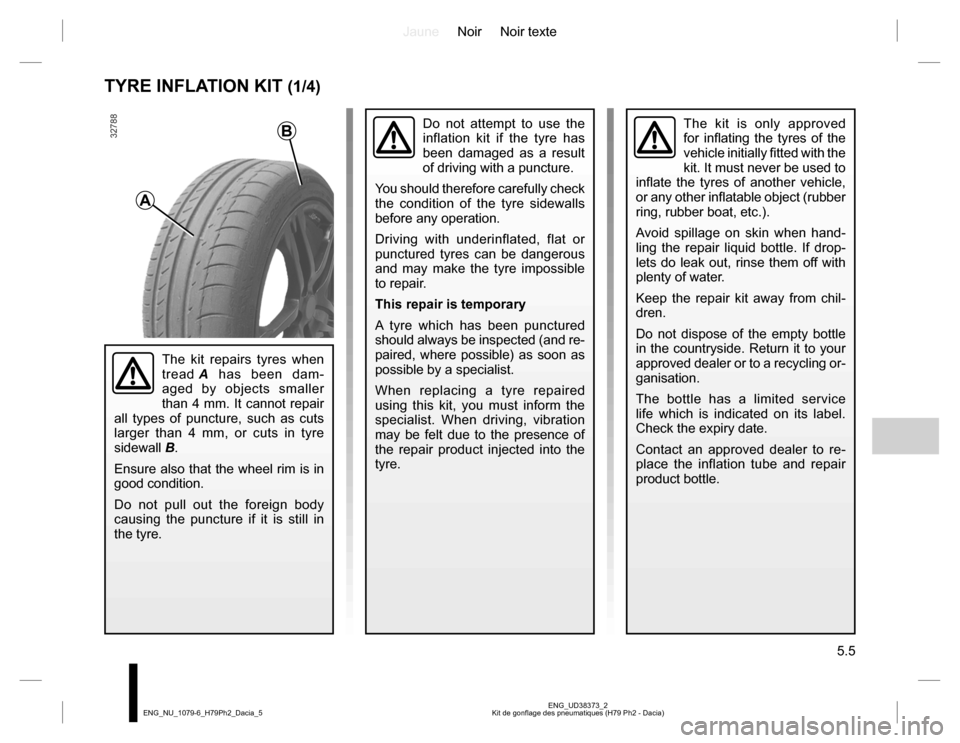

The kit repairs tyres when
tread A has been dam-
aged by objects smaller
than 4 mm. It cannot repair
all types of puncture, such as cuts
larger than 4 mm, or cuts in tyre
sidewall B.
Ensure also that the wheel rim is in
good condition.
Do not pull out the foreign body
causing the puncture if it is still in
the tyre.
Do not attempt to use the
inflation kit if the tyre has
been damaged as a result
of driving with a puncture.
You should therefore carefully check
the condition of the tyre sidewalls
before any operation.
Driving with underinflated, flat or
punctured tyres can be dangerous
and may make the tyre impossible
to repair.
This repair is temporary
A tyre which has been punctured
should always be inspected (and re-
paired, where possible) as soon as
possible by a specialist.
When replacing a tyre repaired
using this kit, you must inform the
specialist. When driving, vibration
may be felt due to the presence of
the repair product injected into the
tyre.

JauneNoir Noir texte
5.6
ENG_UD38373_2
Kit de gonflage des pneumatiques (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
TYRE INFLATION KIT (2/4)
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure, etc.), the warning light

lights up on the instrument panel. See
“Tyre pressure loss warning” in
Section 2.
45
1
Before using this kit, park the vehicle at a sufficient distance from traffic,
switch on the hazard warning lights, apply the handbrake, ask all passen-
gers to leave the vehicle and keep them away from traffic.
8
2
3
7
6
In the event of a puncture, use the kit C
located in the luggage compartment in
the 4x2 version or in the emergency
spare wheel tray under the luggage
compartment carpet in the 4x4 version.
C
C
D
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
On 4x2 versions, unclip flap D.

JauneNoir Noir texte
5.7
ENG_UD38373_2
Kit de gonflage des pneumatiques (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
For all vehicles, with the engine run-
ning and the handbrake applied,
– unroll the hose from the container;
– connect the compressor hose 3 to
the container’s inlet 8;
– depending on the vehicle, connect
the container 8 to the compressor
from the container recess 7;
– unscrew the valve cap on the rel-
evant wheel and screw on the con-
tainer’s inflation adapter 1;
– adapter 2 must be connected to the
vehicle accessories socket;
– press switch 4 to inflate the tyre to
the recommended pressure (please
refer to the information in the section
on “Tyre pressure”);
– after a maximum of 15 minutes, stop
inflating and read the pressure (on
pressure gauge 5).Note: while the container is empty-
ing (approximately 30 seconds), the
pressure gauge 5 will briefly indicate
a pressure of up to 6 bar. The pres-
sure will then drop.
– adjust the pressure: to increase
it, continue inflation with the kit; to
reduce it, press button 6.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.Nothing should be placed
around the driver’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
Please be aware that a
poorly tightened or missing
valve cap can make the
tyres less airtight and lead
to pressure loss. Always use valve
caps identical to the original ones
and ensure they are tightly screwed
on.
TYRE INFLATION KIT (3/4)

JauneNoir Noir texte
5.8
ENG_UD38373_2
Kit de gonflage des pneumatiques (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
TYRE INFLATION KIT (4/4)
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in-
flation adapter 1 to prevent any repair
product from escaping and store the
container in plastic packaging to pre-
vent the product from escaping.
– Affix the driving recommendation
label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation op-
eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at be-
tween 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar
but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it. Otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
1
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.

JauneNoir Noir texte
5.9
ENG_UD33473_3
Enjoliveurs - Jantes (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
WHEEL TRIM/WHEELS
Central wheel trim with
visible wheel bolts
(example: wheel trim 1)
The bolts are directly accessible.
Central wheel trim with
visible wheel bolts
(example: wheel trim 2)
Remove it using the hubcap tool, by in-
serting the hook near a wheel bolt.
To put it back, position hooks 4 in rela-
tion to bolts 3.
Push in the wheel trim’s retaining
hooks.
2
4
3
1

JauneNoir Noir texte
5.10
ENG_UD38376_6
Changement de roue (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
CHANGING A WHEEL (1/2)
Switch on the hazard war-
ning lights.
Park the vehicle away from
traffic on flat ground with a
good level of grip. Engage the hand-
brake and put into gear (first or re-
verse).
Ask the passengers to leave the
vehicle and to keep away from traf-
fic.
If you have a puncture, re-
place the wheel as soon as
possible.
A tyre which has been
punctured should always be inspec-
ted (and repaired, where possible)
by a specialist.
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the wheel trim,
refer to the information on “Wheel trims
- Wheels” in this Section. Undo the
wheel bolts using wheelbrace 4. Fit it
so that you press downwards rather
than pulling upwards.Mark hole 1, which is the nearest to
the wheel in question. The jack must
be fitted in this location. Offer up jack 3
horizontally and position jack head 2
under the sill.
Start cranking the jack up by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Turn the wheelbrace until the wheel lifts
off the ground.
Remove the bolts.
Take off the wheel.
Fit the emergency spare wheel on
the central hub and turn it to align the
mounting holes in the wheel and the
hub.
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation ap-
plying to the country you are in.
1
2
3
4

JauneNoir Noir texte
5.11
ENG_UD38376_6
Changement de roue (H79 - H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_5
CHANGING A WHEEL (2/2)
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation ap-
plying to the country you are in.
Note: ensure that the emergency
spare wheel or punctured wheel and
the wheel tray are correctly positio-
ned so that the luggage compart-
ment carpet can be properly fitted.
Tighten the bolts, checking that the
wheel is correctly positioned on its hub
and lower the jack.
With the wheels on the ground, tighten
the bolts firmly, beginning on side 5,
then 7, 9, 6, and finishing with 8. Check
the tightness (tightening torque 105
Nm), and the pressure of the emer-
gency spare wheel’s tyre as soon as
possible.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.
5
6
78
9
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure, etc.), the warning light

lights up on the instrument panel. See
“Tyre pressure loss warning” in
Section 2.

JauneNoir Noir texte
5.12
ENG_UD38377_5
Pneumatiques (H79 - H79 Ph2 - Dacia)ENG_NU_1079-6_H79Ph2_Dacia_5
TYRES (1/4)
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition. You
must make sure that your tyres con- -
form to local road traffic regulations.
For your safety, please re-
spect the speed limit.
When they need to be re-
placed, only tyres of the
same make, size, type and profile
should be used on a single axle.
They must: either have a load ca-
pacity and a speed capacity at
least equal to the original tyres,
or correspond to those recom-
mended by your authorised
dealer.
Failure to heed these instructions
could endanger your safety and
affect your vehicle’s roadworthiness.
Risk of loss of control of the ve-
hicle.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
which are indicators moulded into
the tread at several points.When the tyre tread has been worn
to the level of the warning strips, they
become visible 2: it is then necessary
to replace your tyres because the tread
rubber is now only 1.6 mm deep at
most, resulting in poor road holding
on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. If such
incidents occur, have the condition
of these parts checked by an appro-
ved dealer.
1
2
