Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
oPERATING FAUl Ts (5/5)
Electrical equipment PossIBlE CAUsEs WHAT To Do
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly. Bulb blown.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved dealer
Traces of condensation in the lights. This is not a fault. Traces of condensa-
tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.
Page 172 of 196
Downloaded from www.Manualslib.com manuals search engine 6.1
ENG_UD28068_3
Sommaire 6 (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Weights (in kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.15
Page 173 of 196
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
vehicle identification ............................. (up to the end of the DU)
paintwork reference .......................................................... (current page)
vehicle identification plates ................... (up to the end of the DU)
6.2
ENG_UD28934_2
Plaques identification (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6

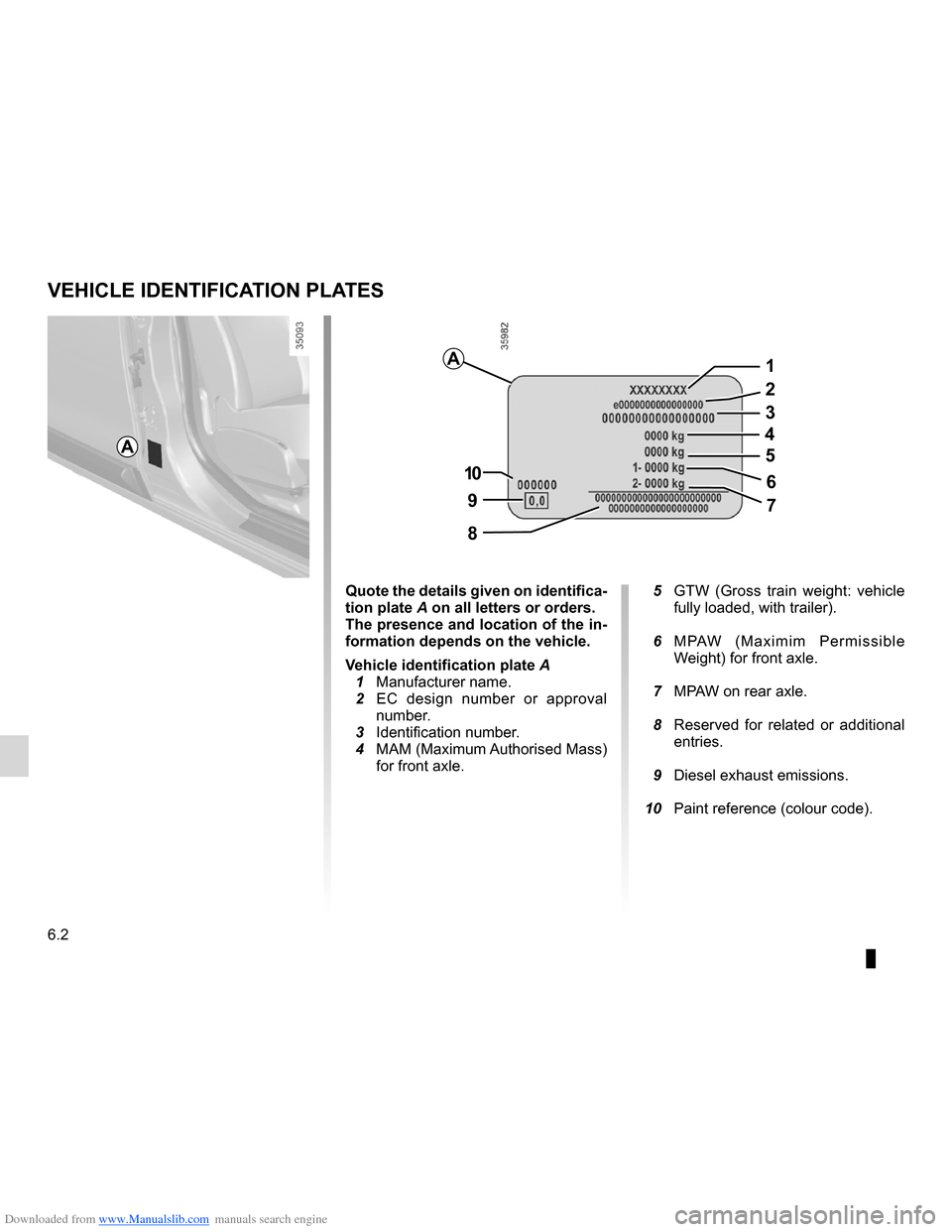

Vehicle identification plates
VEHICLE IDENTIFICATION PLATES
Quote the details given on identifica-
tion plate A on all letters or orders.
The presence and location of the in-
formation depends on the vehicle.
Vehicle identification plate A
1 Manufacturer name.
2 EC design number or approval
number.
3 Identification number.
4 MAM (Maximum Authorised Mass)
for front axle.
A
5 GTW (Gross train weight: vehicle
fully loaded, with trailer).
6 MPAW (Maximim Permissible
Weight) for front axle.
7 MPAW on rear axle.
8 Reserved for related or additional
entries.
9 Diesel exhaust emissions.
10 Paint reference (colour code).
A1
3
4
2
5
6
7
8
9
10
Page 174 of 196
Downloaded from www.Manualslib.com manuals search engine vehicle identification plates .................................... (current page)
6.3
ENG_UD26639_2
Plaque d\’identification moteur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6

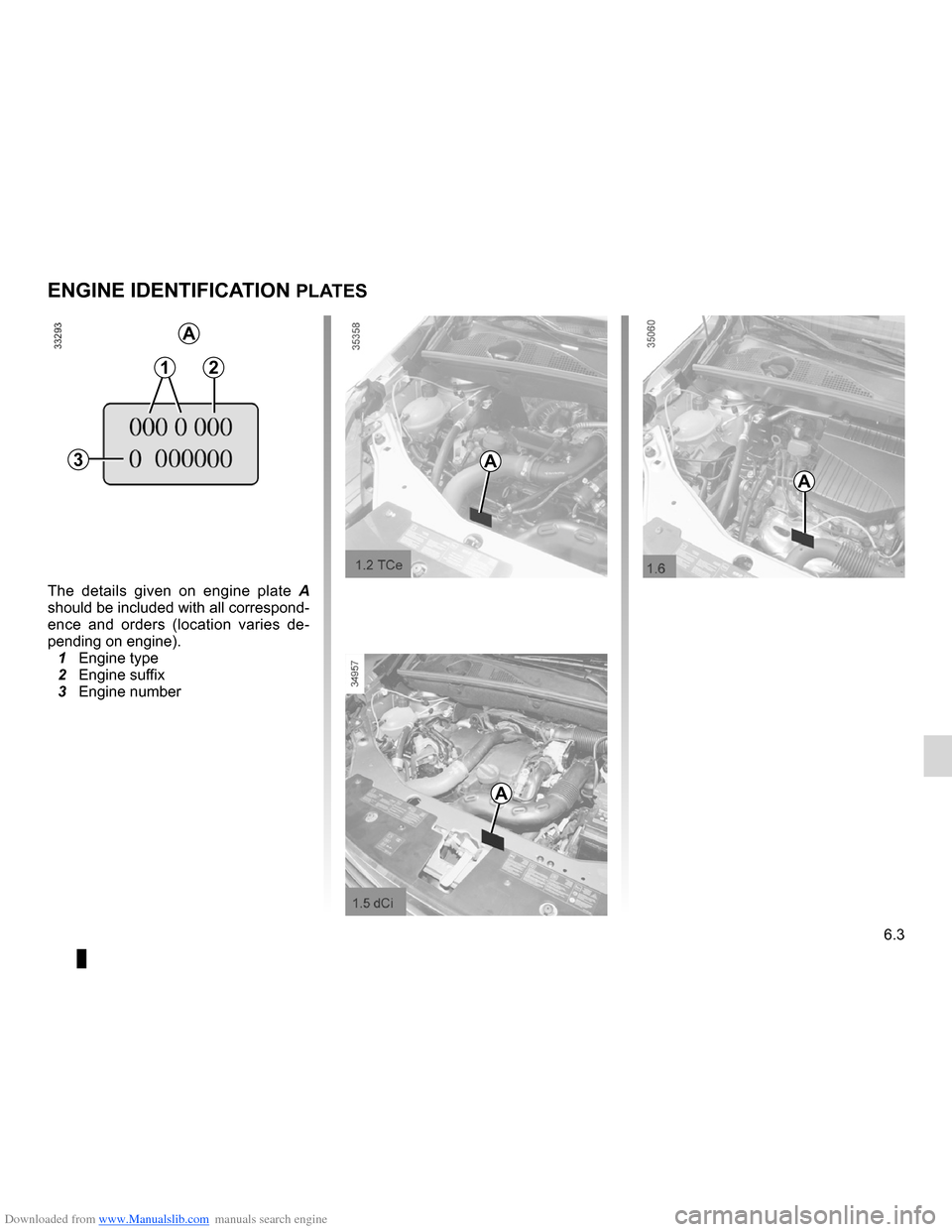

Engine identification plate
ENGINE IDENTIFICATION PLATES
The details given on engine plate A
should be included with all correspond -
ence and orders (location varies de -
pending on engine).
1 Engine type
2 Engine suffix
3 Engine number
A
A
A
12
3A
Page 175 of 196
Downloaded from www.Manualslib.com manuals search engine engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD26641_2
Caractéristiques moteur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6

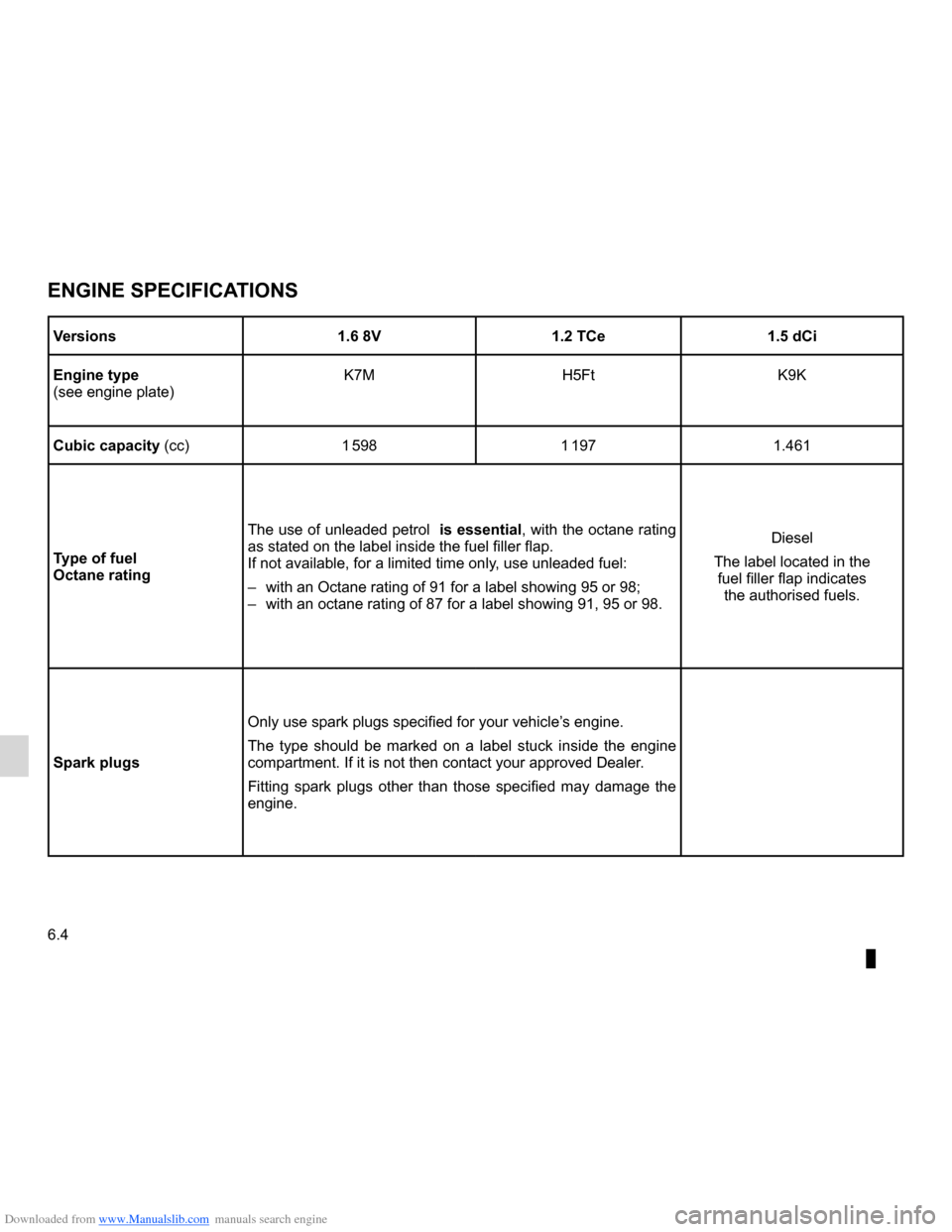

Engine specifications
ENGINE SPECIFICATIONS
Versions 1.6 8V1.2 TCe 1.5 dCi
Engine type
(see engine plate) K7M
H5FtK9K
Cubic capacity (cc) 1 598 1 197 1.461
Type of fuel
Octane rating The use of unleaded petrol
is essential, with the octane rating
as stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an Octane rating of 91 for a label showing 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates the authorised fuels.
Spark plugs Only use spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine
compartment. If it is not then contact your approved Dealer.
Fitting spark plugs other than those specified may damage the
engine.
Page 176 of 196
Downloaded from www.Manualslib.com manuals search engine dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD24490_1
Dimensions (en mètre) (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6
Dimensions
DIMENSIONS (in metres)
0,822 2,810 0,866
4,498
1,492
2,004
1,478
1,679/1,682 (1)
(1) Empty (three and five door versions).
Page 177 of 196
Downloaded from www.Manualslib.com manuals search engine weights ................................................. (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
load permitted on the roof .....................(up to the end of the DU)
6.6
ENG_UD29273_3
Masses (en kg) (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6
Jaune NoirNoir texte

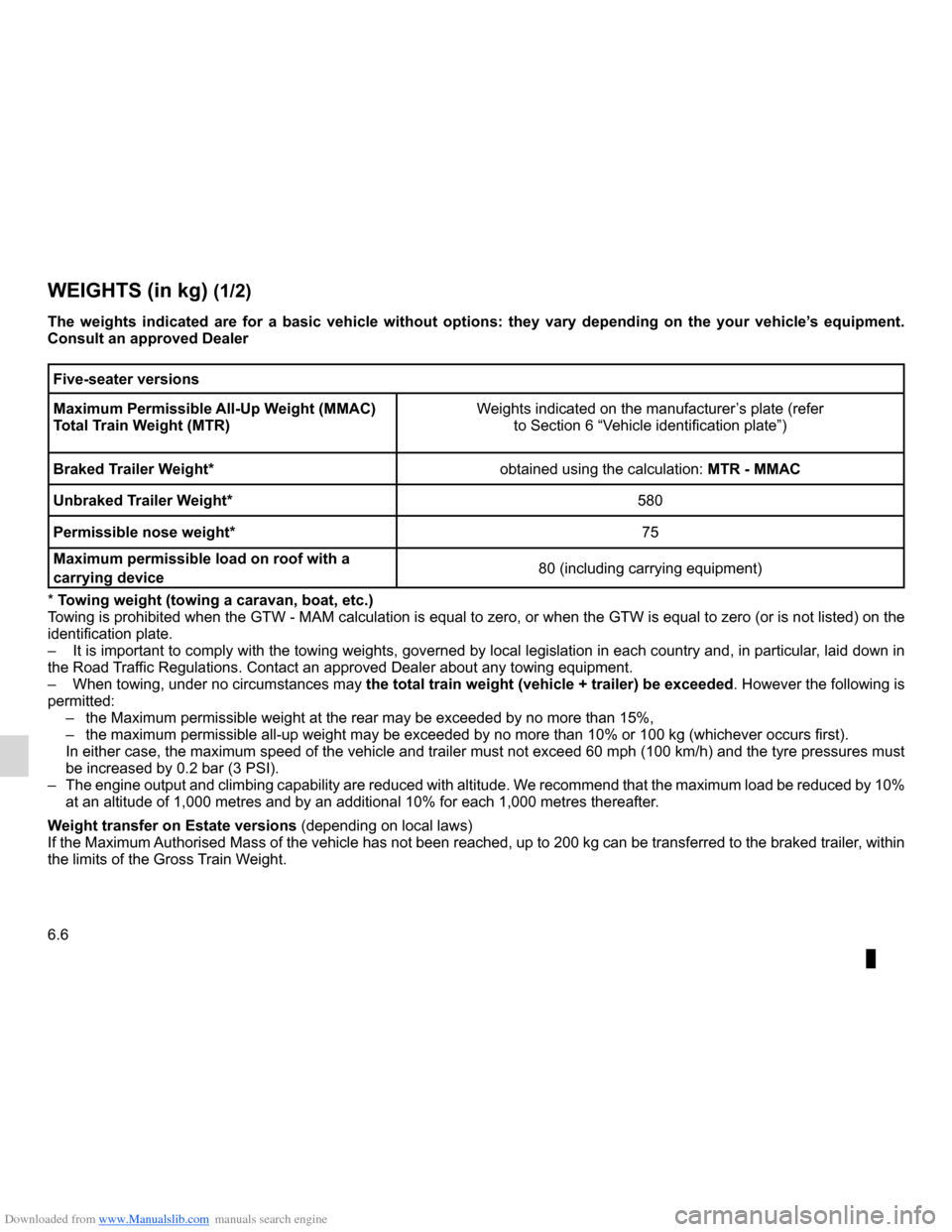

Weights (in kg)
WEIGHTS (in kg) (1/2)
The weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Consult an approved Dealer
Five-seater versions
Maximum Permissible All-Up Weight (MMAC)
Total Train Weight (MTR) Weights indicated on the manufacturer’s plate (refer
to Section 6 “Vehicle identification plate”)
Braked Trailer Weight* obtained using the calculation: MTR - MMAC
Unbraked Trailer Weight* 580
Permissible nose weight* 75
Maximum permissible load on roof with a
carrying device 80 (including carrying equipment)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted: – the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weight transfer on Estate versions (depending on local laws)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be transferred to the braked trailer, within
the limits of the Gross Train Weight.
Page 178 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
6.7
ENG_UD29273_3
Masses (en kg) (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6

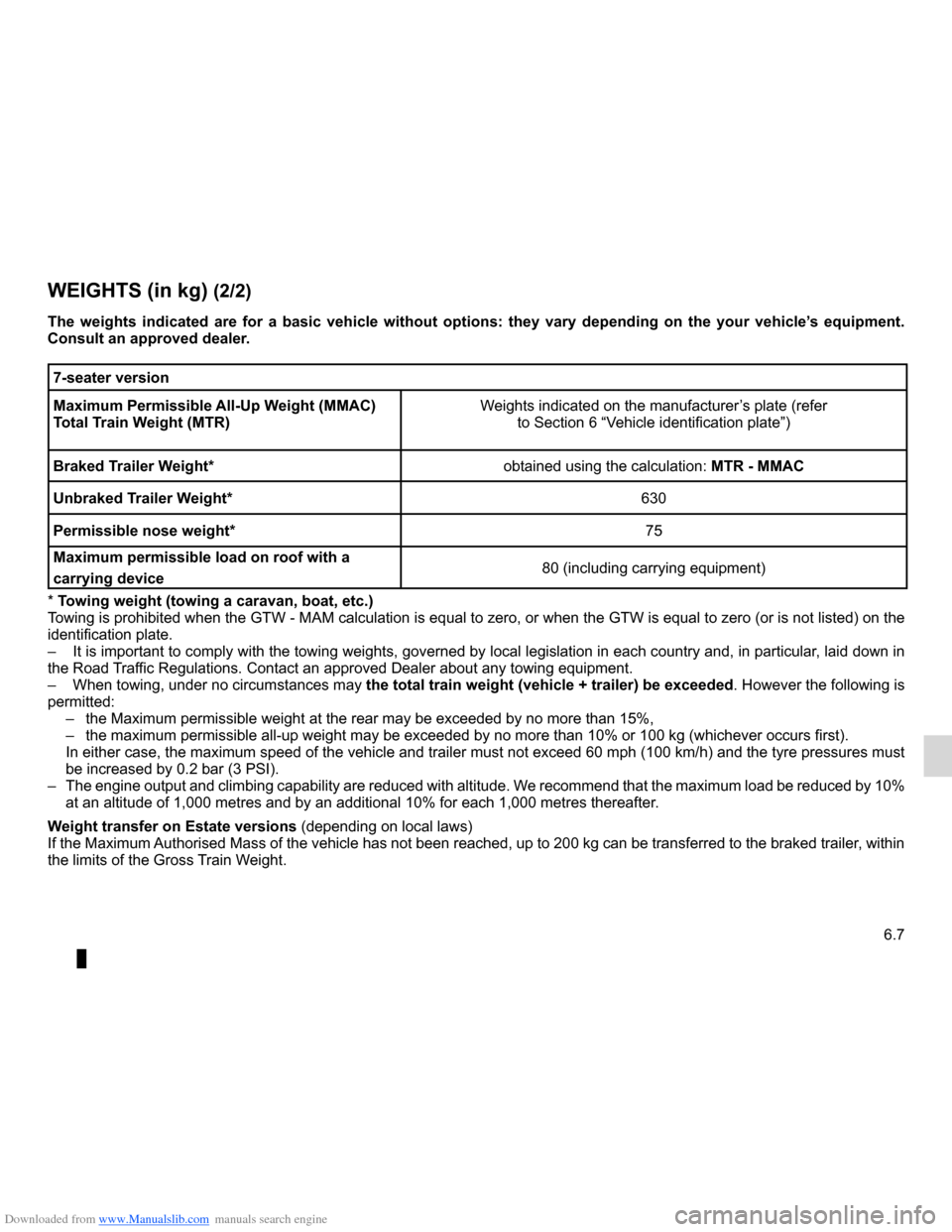

WEIGHTS (in kg) (2/2)
The weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Consult an approved dealer.
7-seater version
Maximum Permissible All-Up Weight (MMAC)
Total Train Weight (MTR) Weights indicated on the manufacturer’s plate (refer
to Section 6 “Vehicle identification plate”)
Braked Trailer Weight* obtained using the calculation: MTR - MMAC
Unbraked Trailer Weight* 630
Permissible nose weight* 75
Maximum permissible load on roof with a
carrying device 80 (including carrying equipment)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted: – the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weight transfer on Estate versions (depending on local laws)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be transferred to the braked trailer, within
the limits of the Gross Train Weight.
Page 179 of 196
Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.8
ENG_UD21022_2
Pi ces de rechange et r parations (X35 - X44 - X45 - H45 - X65 - X77 \
- X81 - J81 - X85 - X91 - B91 - K91 - D91 - X76 - X83 - X95 - B95 - D95 \
- E95 - K95 - J95 - R95 -
ENG_NU_975-3_X92_Dacia_6

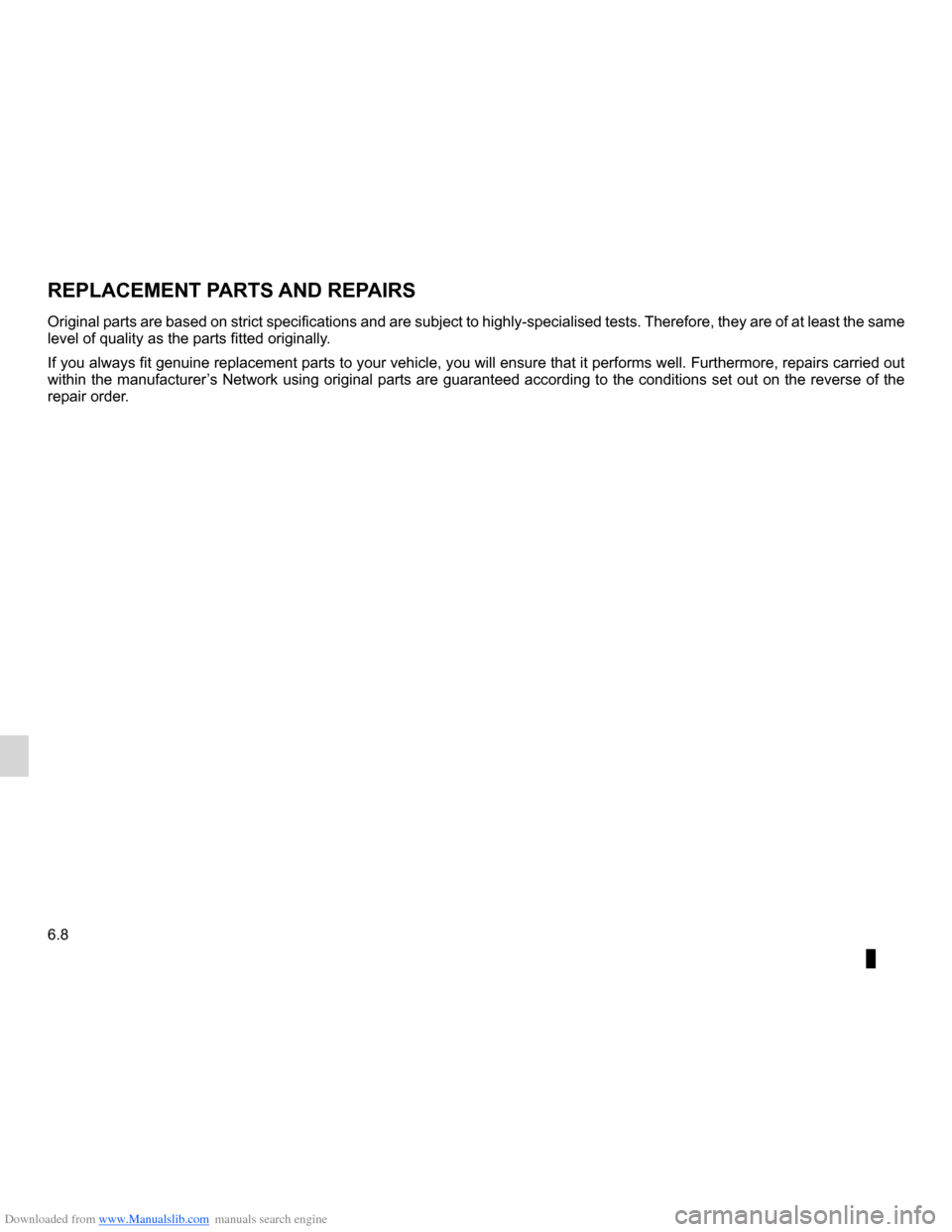

Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
REPLACEMENT PARTS AND REPAIRS
Page 180 of 196
Downloaded from www.Manualslib.com manuals search engine service sheets....................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
6.9
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - \
X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L4\
7 - X33 - X47 - X43 - X38 - H79
ENG_NU_975-3_X92_Dacia_6
Service sheets
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
VIN: .......................................................................\
...........
SERVICE SHEETS (1/6)
