Batterie : dépannage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
BATTERY: troubleshooting (2/2)
Connect the positive cable (+) A to the
(+) terminal 1 of the discharged battery,
then to the (+) terminal 2 of the battery
supplying the current.
Connect the negative cable (–) B to the
(–) 3 terminal of the battery supplying
the current and then to the (–) 4 termi-
nal of the discharged battery.
Start the engine as normal. As soon as
it starts, disconnect cables A and B in
reverse order (4-3-2-1).
starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al -
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply -
ing the current and run it at an interme-
diate engine speed.
Check that there is no con-
tact between leads A and B
and that the positive lead A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of serious injury and/or damage
to the vehicle.
14
B
32
A1
Page 162 of 196
Downloaded from www.Manualslib.com manuals search engine wiper blades ......................................... (up to the end of the DU)
wipers ................................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.27
ENG_UD24481_1
Balais d’essuie-vitres (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Wiper blades
WIPER BlADEs
Replacing windscreen wiper
blades 1
– With the ignition switched off, lift
wiper arm 3;
– turn the blade horizontally (move -
ment A);
– press tab 2 and slide the wiper blade
downwards (movement D ) until
hook 4 on the wiper arm is released.
– slide the blade (movement C ) then
lift it (movement B) to release it.
12
3
4
Replacing the rear screen
wiper blade 6
– With the ignition switched off, lift
wiper arm 5;
– pivot the blade 6 until some resist -
ance is met;
– pull the blade to release it (move -
ment E).
Refitting a front or rear wiper
blade
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
A
D
C
B
5
6E
Page 163 of 196
Downloaded from www.Manualslib.com manuals search engine towing hitch........................................... (up to the end of the DU)
towing breakdown ...................................... (up to the end of the DU)
5.28
ENG_UD24482_1
Remorquage: dépannage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
The steering wheel must be un -
locked and the ignition key must be
in position M (ignition on) to provide
brake lights and hazard warning
lights on the towed vehicle. At night
the vehicle must have its lights on.
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact an approved Dealer.

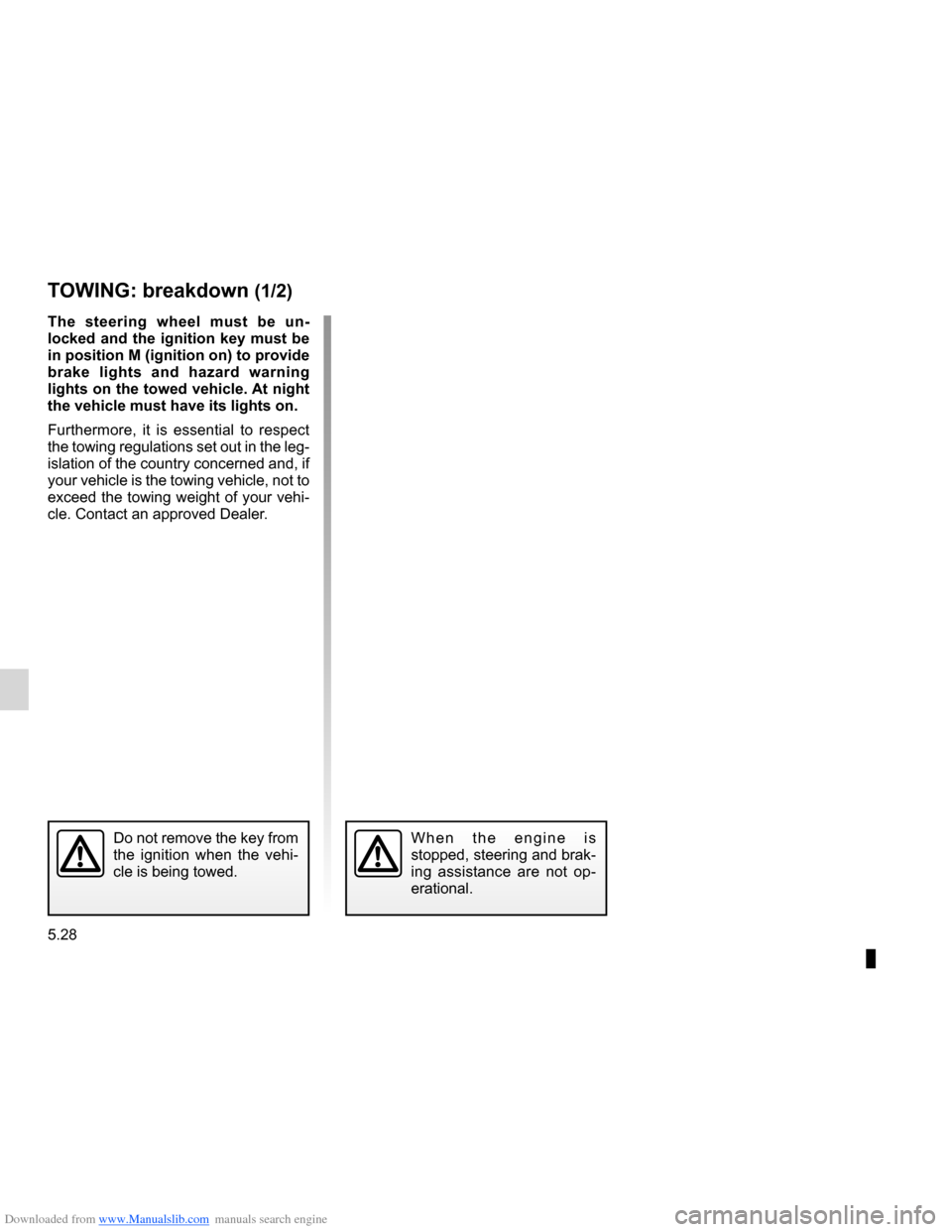

Towing: troubleshooting
T oWING: breakdown (1/2)
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op -
erational.Do not remove the key from
the ignition when the vehi -
cle is being towed.
Page 164 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.29
ENG_UD24482_1
Remorquage: dépannage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
o nly use the front 1 and rear 4
towing points.
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.Access to towing points
Unclip cover 3 or 5 by inserting a flat -
blade screwdriver or similar under the
cover.
Tighten towing hitch 2 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace.
Use only towing hitch 2 and the wheel-
brace located under the luggage com -
partment carpet in the tool kit (please
refer to the information on the “Tool kit”
in Section 5).
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.

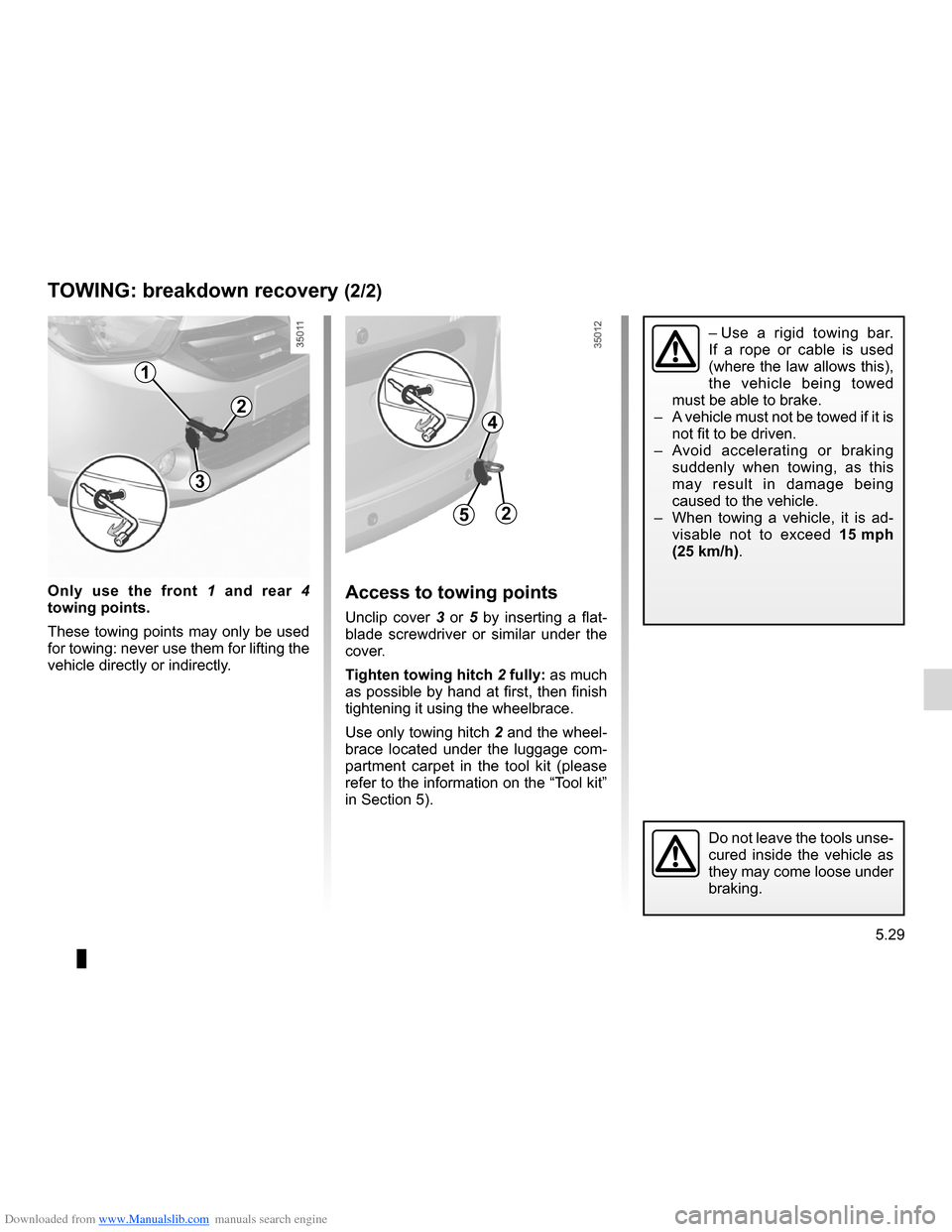

T oWING: breakdown recovery (2/2)
1
4
3
5
2
2
Page 165 of 196
Downloaded from www.Manualslib.com manuals search engine speakerslocation ........................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
radio fitting a radio ................................... (up to the end of the DU)
5.30
ENG_UD28686_2
Prééquipement radio (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Fitted audio equipment

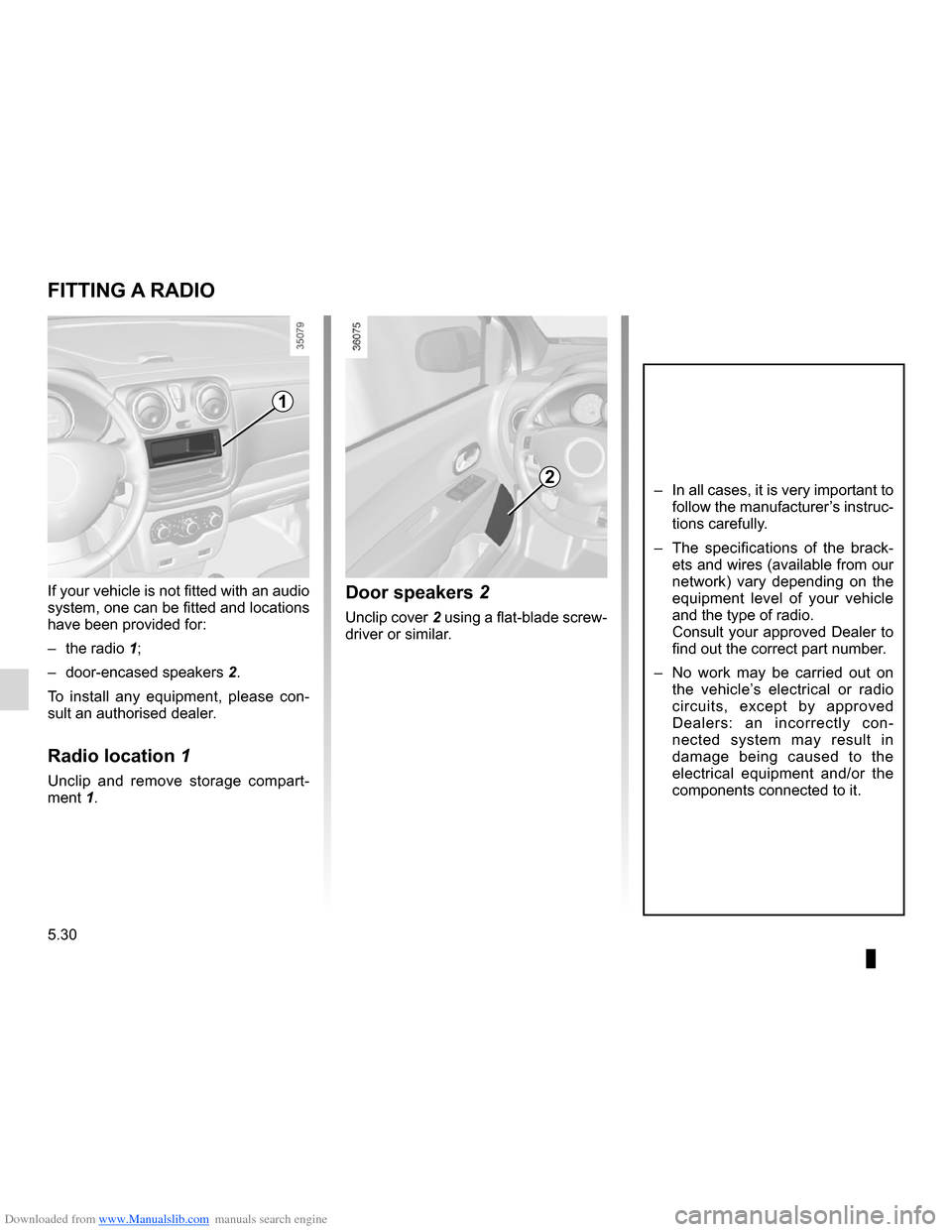

FITTING A RADIo
If your vehicle is not fitted with an audio
system, one can be fitted and locations
have been provided for:
– the radio 1;
– door-encased speakers 2.
To install any equipment, please con -
sult an authorised dealer.
Radio location 1
Unclip and remove storage compart -
ment 1.
1
– In all cases, it is very important to
follow the manufacturer’s instruc-
tions carefully.
– The specifications of the brack -
ets and wires (available from our
network) vary depending on the
equipment level of your vehicle
and the type of radio.
Consult your approved Dealer to
find out the correct part number.
– No work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
Dealers: an incorrectly con -
nected system may result in
damage being caused to the
electrical equipment and/or the
components connected to it.
Door speakers 2
Unclip cover 2 using a flat-blade screw-
driver or similar.
2
Page 166 of 196
Downloaded from www.Manualslib.com manuals search engine accessories...........................................(up to the end of the DU)
5.31
ENG_UD27824_1
Accessoires VT (X06 - X35 - X44 - X45 - X77 - X81 - X85 - X90 - X91 - X70 - X76 - X83\
- X61 - TEST - X95 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X09 - X67 - X92 -
ENG_NU_975-3_X92_Dacia_5
Accessories
ACCEssoRIEs
Electrical and electronic accessoriesBefore installing this type of accessory, make sure it is compatible with your vehicle. You can get advice from an au-
thorised dealer.
Connect accessories with a maximum power of 120 watts only. Fire hazard.
No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and\
/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
Use of transmission/receiving devices (telephones, CB equipment etc.).\
Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessoriesIf you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will \
provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal\
.
obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals
Page 167 of 196
Downloaded from www.Manualslib.com manuals search engine operating faults ..................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.32
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
Operating faults
oPERATING FAUl Ts (1/5)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
The starter is activated PossIBlE CAUsEsWHAT To Do
Warning lights dim or fail to come on;
the starter does not run. Battery terminals disconnected,
oxidised or incorrectly secured.Retighten them, reconnect them or clean
them if they are oxidised.
Battery discharged or worn. Connect another battery to the faulty bat -
tery. Refer to the information on “Battery:
troubleshooting” in Section 5 or replace the
battery if necessary.
Do not push the vehicle if the steering
column is locked.
The engine will not start. Starting conditions are not fulfilled.Please refer to the information on “Starting,
stopping the engine” in Section 2.
The steering column remains locked. Steering wheel locked.To unlock, gently move the key and the
steering wheel (refer to the information on
the “Ignition switch” in Section 2).
Page 168 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.33
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
oPERATING FAUl Ts (2/5)
on the road PossIBlE CAUsEs WHAT To Do
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or
damaged. Check the tyre pressures; if this is not the cause, have
their condition checked by an approved dealer.
Coolant boiling in the coolant
reservoir. Mechanical fault: cylinder head
gasket damaged, faulty coolant
pump. Stop the engine.
Contact an approved dealer.
Engine cooling fan not working. Contact an approved dealer.
Smoke under the bonnet. Short circuit or cooling system
leak. Stop, switch off the ignition, move away from the vehi-
cle and contact an approved dealer.
The oil pressure warning light
comes on: on a bend or under braking The engine oil level is too low. Top up the engine oil level (refer to the information on
“Engine oil level: topping up/filling” in Section 4).
at idle speed Low oil pressure. Go to your nearest approved dealer.
The oil pressure warning
light takes a long time to
go out or remains lit during
acceleration. Loss of oil pressure.
Stop the vehicle: contact an approved dealer.
Page 169 of 196
Downloaded from www.Manualslib.com manuals search engine 5.34
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
oPERATING FAUl Ts (3/5)
on the road PossIBlE CAUsEs WHAT To Do
Abnormal white smoke from the ex-
haust Mechanical fault: damaged cylinder
head gasket.
or Stop the engine.
Contact an approved dealer.
This is not necessarily a fault.
Smoke may be caused by
regeneration of the particle filter. Please refer to the information on “Special
features of diesel versions” in Section 2.
The power-assisted steering be -
comes heavy. Belt broken.
Have the belt replaced.
No power-assisted steering oil For maintenance operations on the power-
assisted steering, contact an authorised
dealer.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.
Page 170 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.35
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
oPERATING FAUl Ts (4/5)
on the road PossIBlE CAUsEs WHAT To Do
Whistling Roof aerial poorly positioned. Position the aerial.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and
check the coolant reservoir: it should con -
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change.
Reset the warning after changing the oil;
refer to the information in the paragraph on
the “On-board computer” in Section 1.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.
