Back and side lights: changing bulbs

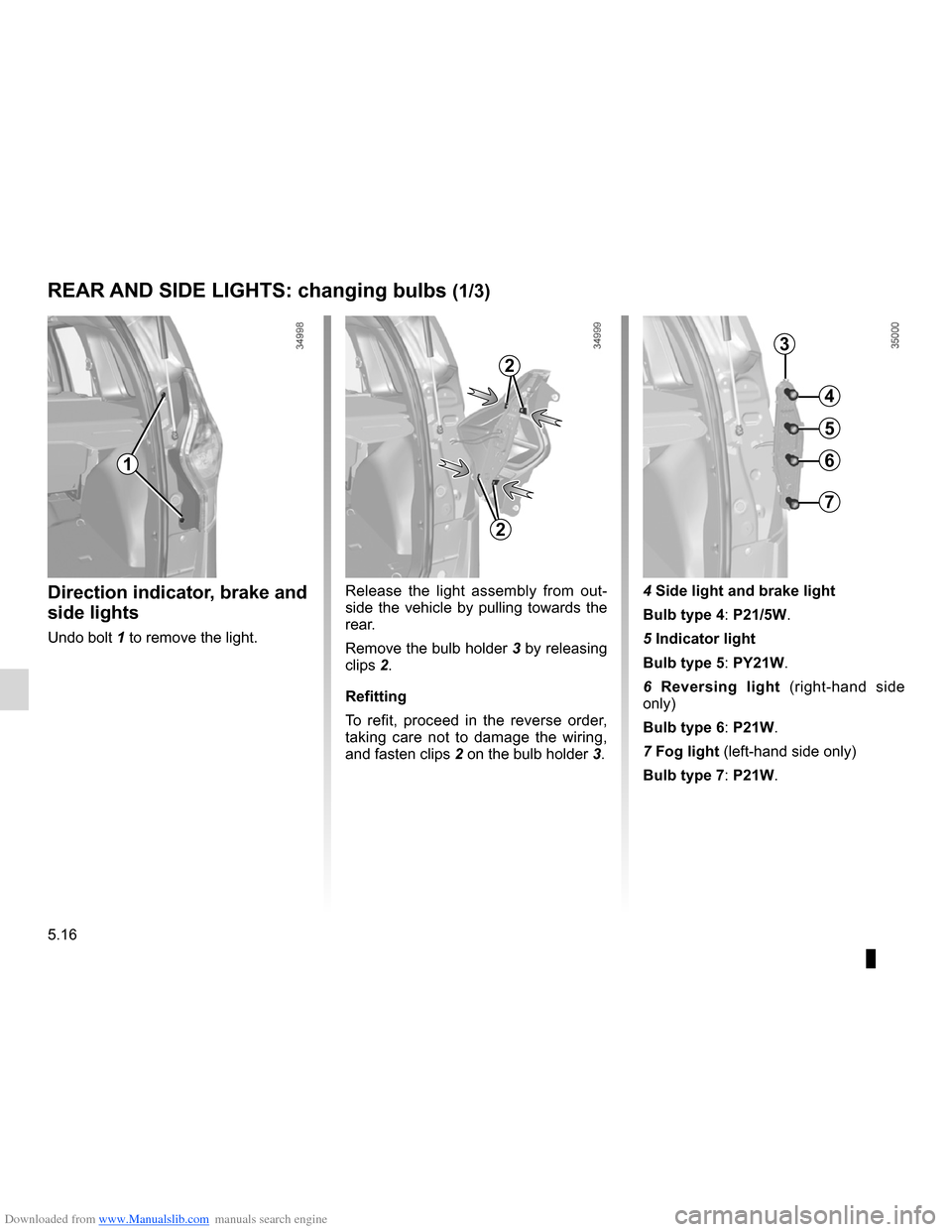

REAR AND sIDE lIGHTs: changing bulbs (1/3)
Direction indicator, brake and
side lights
Undo bolt 1 to remove the light. Release the light assembly from out
-
side the vehicle by pulling towards the
rear.
Remove the bulb holder 3 by releasing
clips 2.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring,
and fasten clips 2 on the bulb holder 3.4 side light and brake light
Bulb type 4: P21/5W.
5 Indicator light
Bulb type 5: PY21W.
6
Reversing light (right-hand side
only)
Bulb type 6: P21W.
7 Fog light (left-hand side only)
Bulb type 7: P21W.
3
4
5
61
7
2
2

Downloaded from www.Manualslib.com manuals search engine lights:brake lights ...................................................... (current page)
JauneNoirNoir texte
5.17
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
REAR AND sIDE lIGHTs: changing bulbs (2/3)
High-level brake light
– Remove the two plastic blanking
covers 6 from the inside.
– Unclip the light using a screwdriver,
by releasing the metal clips from
their housings.
– Remove light from the outside.
Replace the bulb without disconnect-
ing the wiring.
Bulb type 7: W16W.
Refitting
To return it, proceed in the reverse
order to removal.
Check the tabs are correctly locked in
position.
The bulbs are under pres -
sure and may break when
replaced.
Risk of injury.
7
6

Downloaded from www.Manualslib.com manuals search engine lights:reversing lights ................................................. (current page)
side indicator lights changing bulbs ................................ (up to the end of the DU)
5.18
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5

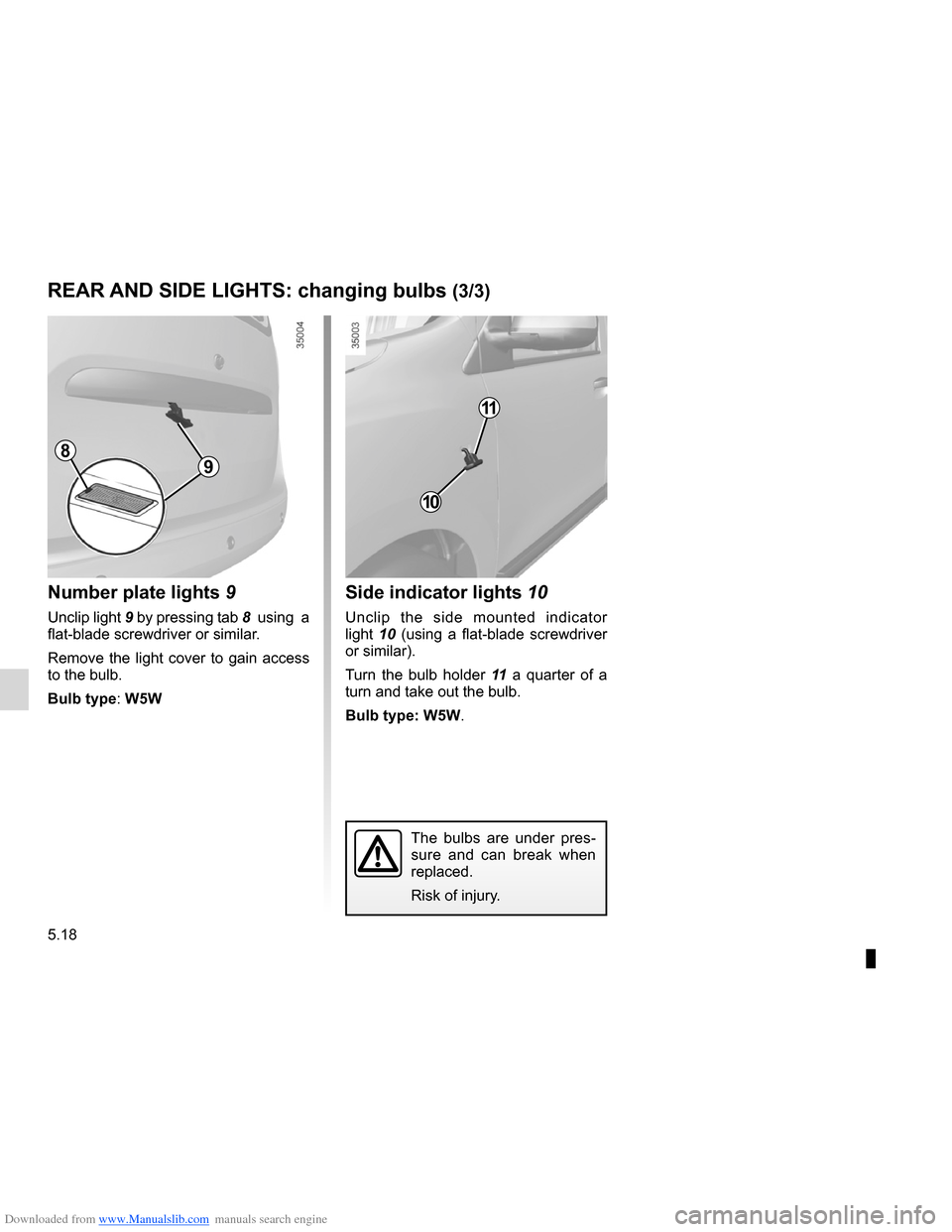

REAR AND sIDE lIGHTs: changing bulbs (3/3)
Number plate lights 9
Unclip light 9 by pressing tab 8 using a
flat-blade screwdriver or similar.
Remove the light cover to gain access
to the bulb.
Bulb type: W5W
98
side indicator lights 10
Unclip the side mounted indicator
light 10 (using a flat-blade screwdriver
or similar).
Turn the bulb holder 11 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
11
10
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine lighting:interior ............................................. (up to the end of the DU)
5.19
ENG_UD24477_1
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Interior lights: changing bulbs

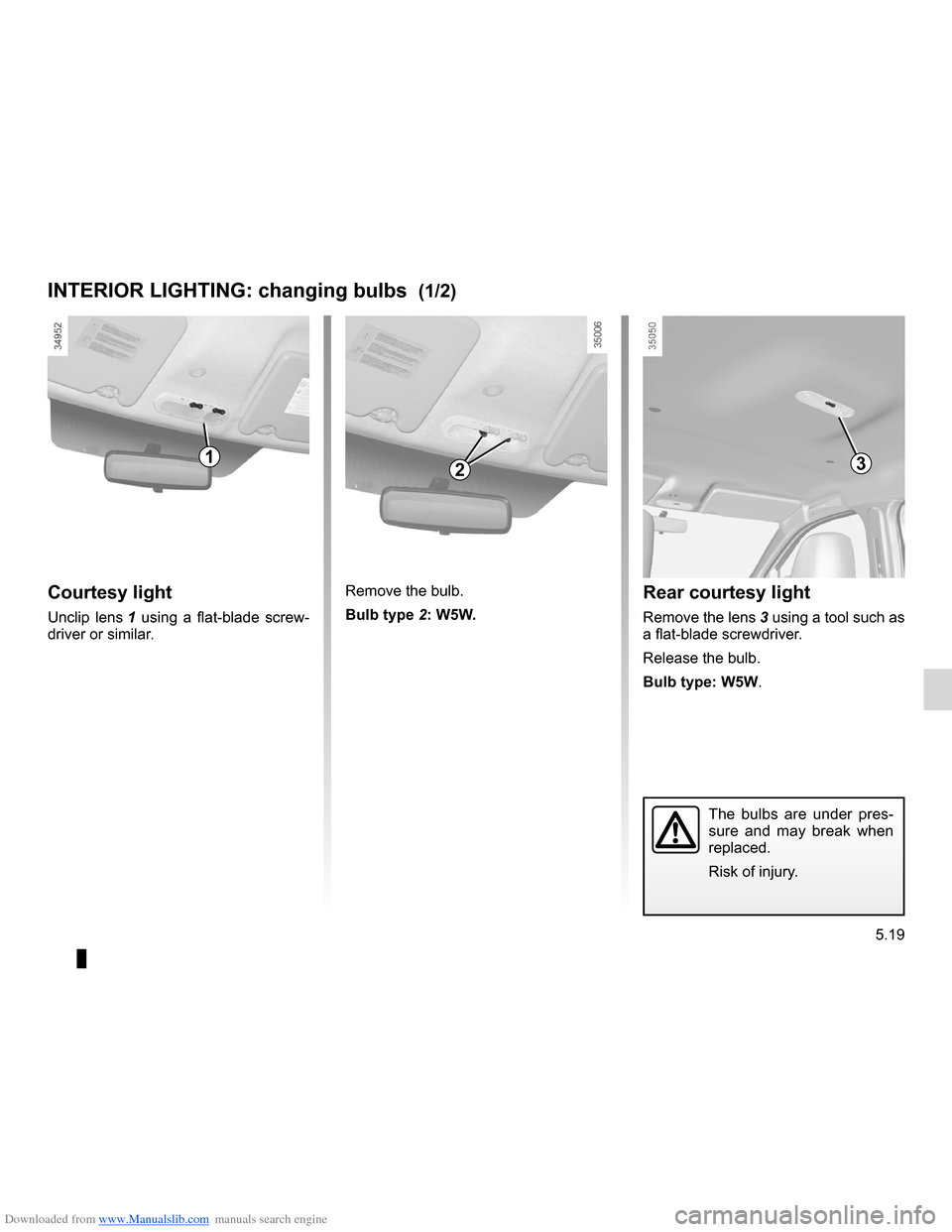

INTERIoR lIGHTING: changing bulbs (1/2)
Courtesy light
Unclip lens 1 using a flat-blade screw -
driver or similar. Remove the bulb.
Bulb type 2: W5W.
Rear courtesy light
Remove the lens
3 using a tool such as
a flat-blade screwdriver.
Release the bulb.
Bulb type: W5W.
123
The bulbs are under pres -
sure and may break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine 5.20
ENG_UD24477_1
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5

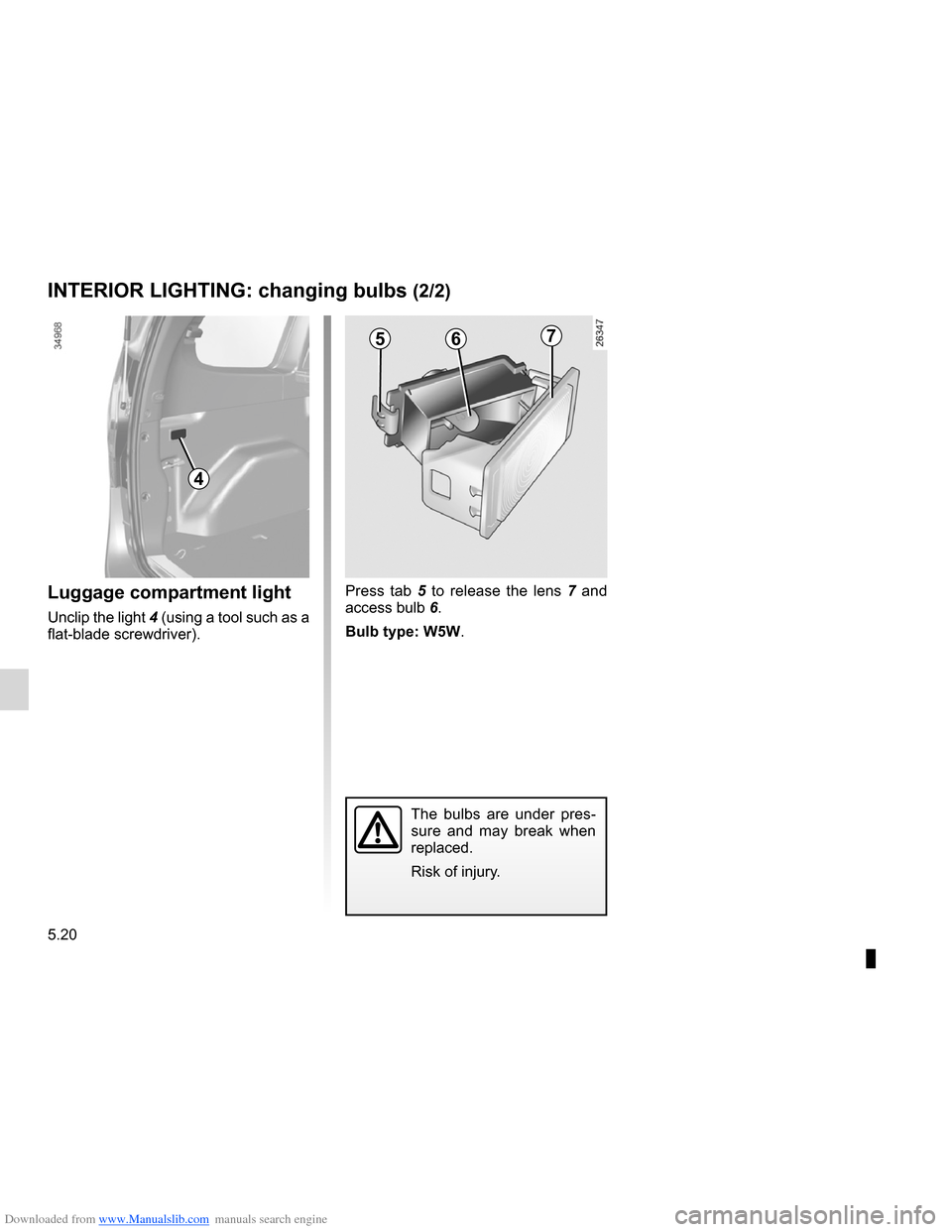

INTERIoR lIGHTING: changing bulbs (2/2)
luggage compartment light
Unclip the light 4 (using a tool such as a
flat-blade screwdriver). Press tab
5 to release the lens 7 and
access bulb 6.
Bulb type: W5W.
The bulbs are under pres -
sure and may break when
replaced.
Risk of injury.
567
4

Downloaded from www.Manualslib.com manuals search engine fuses ..................................................... (up to the end of the DU)
5.21
ENG_UD28040_2
Fusibles (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Fuses
Fuses in passenger compartment A
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Check the fuse in question and replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
FUsEs (1/3)
CORRECT INCORRECT
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Clip
1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations. Fuses in engine compartment
B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
1
B

Downloaded from www.Manualslib.com manuals search engine 5.22
ENG_UD28040_2
Fusibles (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte

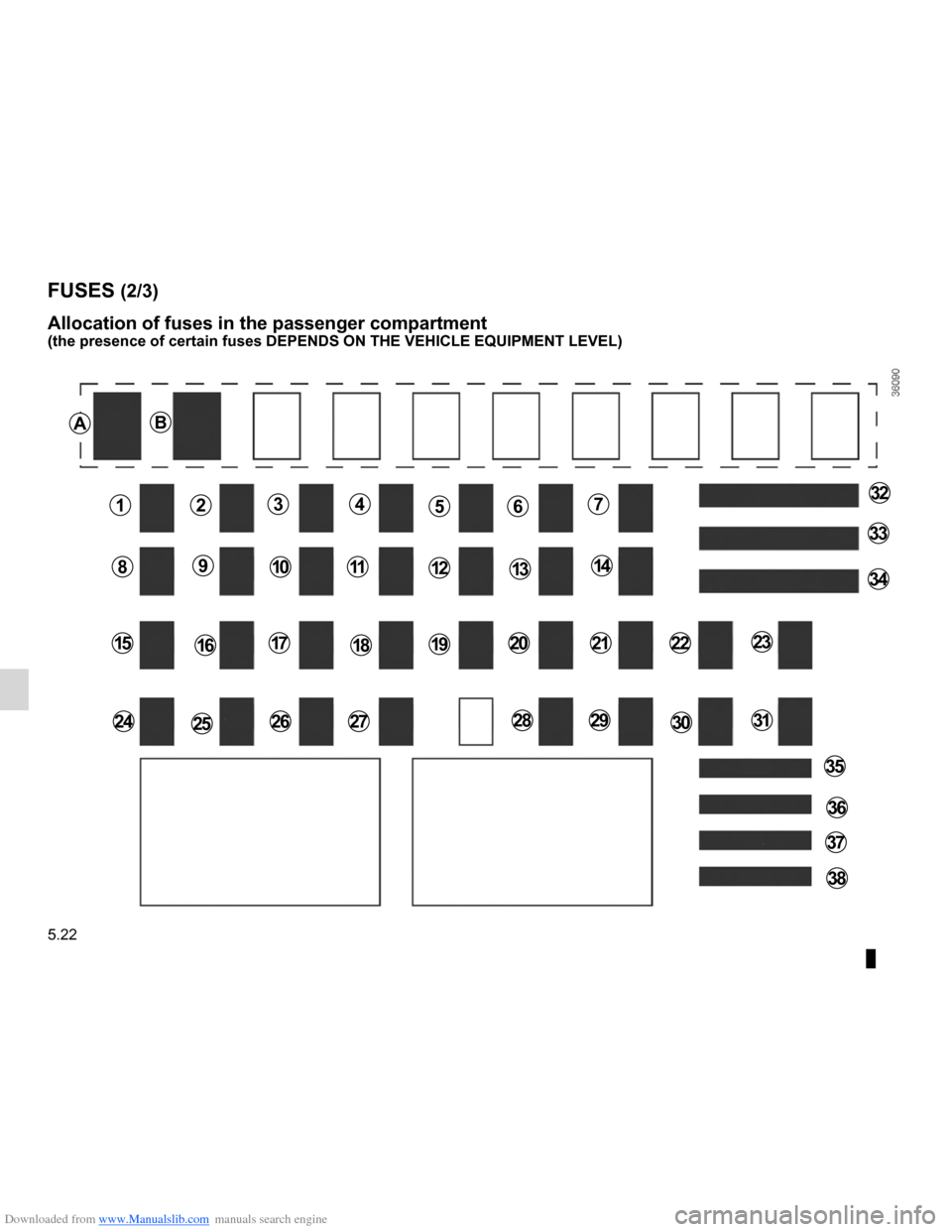

FUsEs (2/3)
Allocation of fuses in the passenger compartment
(the presence of certain fuses DEPENDs oN THE VEHIClE EQUIPMENT lEVEl)
AB
1
8
15
24
2
9
16
3
10
17
26
4
11
18
27
5
12
19
67
1413
20
28
21
29
22
30
23
31
35
36
37
38
32
33
34
25

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.23
ENG_UD28040_2
Fusibles (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5

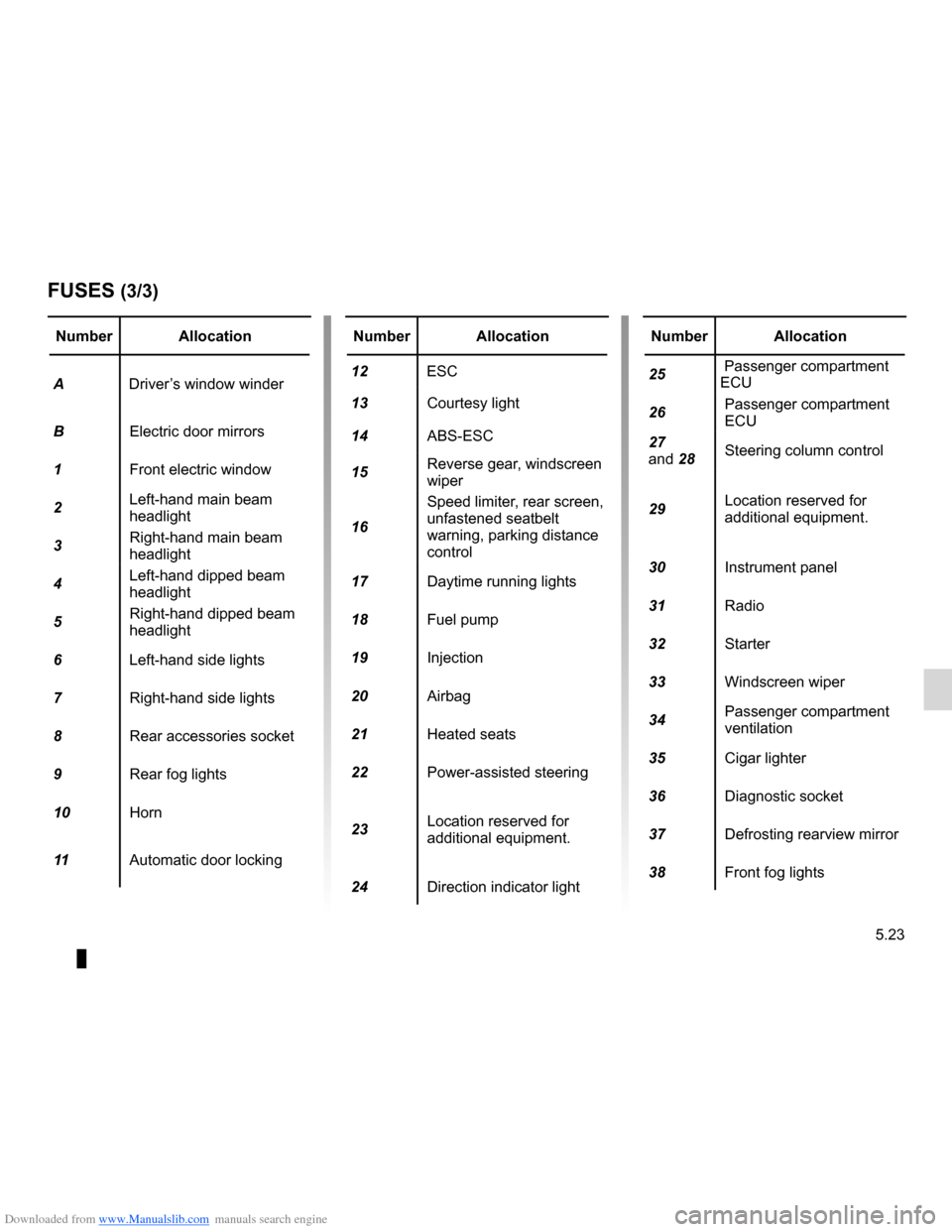

FUsEs (3/3)
Number Allocation
A Driver’s window winder
B Electric door mirrors
1 Front electric window
2 Left-hand main beam
headlight
3 Right-hand main beam
headlight
4 Left-hand dipped beam
headlight
5 Right-hand dipped beam
headlight
6 Left-hand side lights
7 Right-hand side lights
8 Rear accessories socket
9 Rear fog lights
10 Horn
11 Automatic door lockingNumber Allocation
12 ESC
13 Courtesy light
14 ABS-ESC
15 Reverse gear, windscreen
wiper
16 Speed limiter, rear screen,
unfastened seatbelt
warning, parking distance
control
17 Daytime running lights
18 Fuel pump
19 Injection
20 Airbag
21 Heated seats
22 Power-assisted steering
23 Location reserved for
additional equipment.
24 Direction indicator lightNumber Allocation
25 Passenger compartment
ECU
26 Passenger compartment
ECU
27
and 28 Steering column control
29 Location reserved for
additional equipment.
30 Instrument panel
31 Radio
32 Starter
33 Windscreen wiper
34 Passenger compartment
ventilation
35 Cigar lighter
36 Diagnostic socket
37 Defrosting rearview mirror
38 Front fog lights

Downloaded from www.Manualslib.com manuals search engine 5.24
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Re\
nault)
ENG_NU_975-3_X92_Dacia_5
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di -
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Radio frequency remote control: batteries
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIo FREQUENCY REMoTE CoNTRol: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.

Downloaded from www.Manualslib.com manuals search engine batterytroubleshooting ............................... (up to the end of the DU)
5.25
ENG_UD24479_1
Batterie : dépannage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Battery

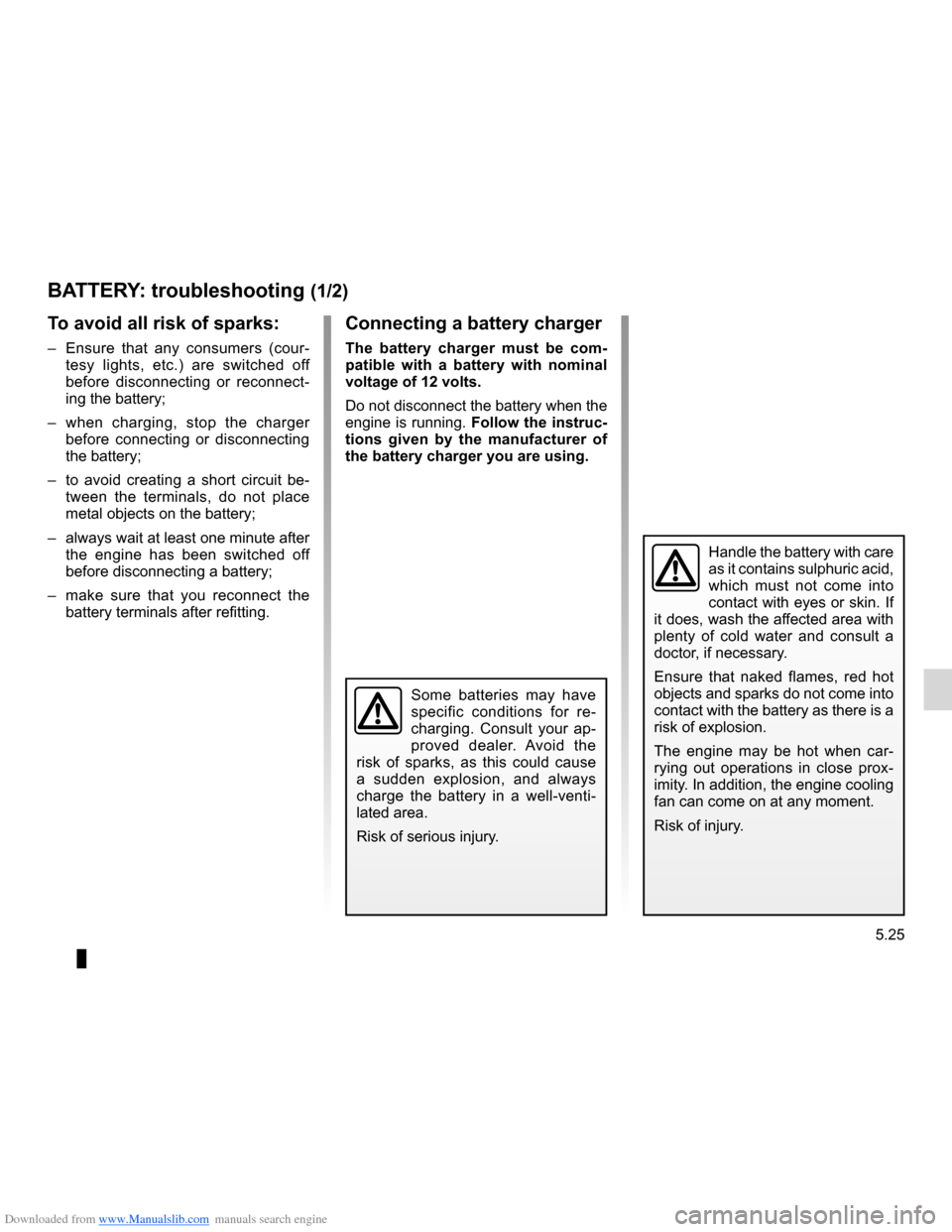

BATTERY: troubleshooting (1/2)
To avoid all risk of sparks:
– Ensure that any consumers (cour -
tesy lights, etc.) are switched off
before disconnecting or reconnect -
ing the battery;
– when charging, stop the charger
before connecting or disconnecting
the battery;
– to avoid creating a short circuit be -
tween the terminals, do not place
metal objects on the battery;
– always wait at least one minute after
the engine has been switched off
before disconnecting a battery;
– make sure that you reconnect the
battery terminals after refitting.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water and consult a
doctor, if necessary.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car -
rying out operations in close prox -
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Connecting a battery charger
The battery charger must be com -
patible with a battery with nominal
voltage of 12 volts.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
Some batteries may have
specific conditions for re -
charging. Consult your ap -
proved dealer. Avoid the
risk of sparks, as this could cause
a sudden explosion, and always
charge the battery in a well-venti -
lated area.
Risk of serious injury.
