Page 50 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.45
ENG_UD24415_1
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
™Seat belt reminder light
Displayed on the central dis -
play of the dashboard.
It remains on when the engine is
started, if the driver's seat belt is not
fastened. A beep sounds for approxi -
mately 2 minutes until the seat belt is
fastened.
E l e c t r o n i c S t a b i l i t y
Program (ESP) and
traction control system (ASR) warn-
ing lights
There are several reasons for the warn-
ing light to come on: please refer to the
information on the “Electronic stability
program (ESP) with understeer control
and traction control (ASR)” in Section 2.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit has
discharged. Stop and consult an ap -
proved Dealer as soon as possible.
2 Door(s) open warning light
Refer to “Opening/closing the doors” in
Section 1.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
W ARNING LIGHTS (4/4)
ÐSpeed limiter warning light
Refer to the information on the
“Speed limiter” in Section 2.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
]Front passenger air bag de-
activated warning light
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
ECONot used
Not used
Page 79 of 196
Downloaded from www.Manualslib.com manuals search engine driving ................................................... (up to the end of the DU)
ABS ...................................................... (up to the end of the DU)
anti-lock braking system: ABS ..............(up to the end of the DU)
ASR (traction control) ........................... (up to the end of the DU)
traction control: ASR .............................(up to the end of the DU)
ESP: Electronic Stability Program ........ (up to the end of the DU)
traction control: ASR .............................(up to the end of the DU)
emergency braking ............................... (up to the end of the DU)
Electronic Stability Program: ESP ........ (up to the end of the DU)
2.12
ENG_UD24436_1
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-3_X92_Dacia_2
Jaune NoirNoir texte
Driver correction devices and aids
DRIvER CORRECTION DEvICES/AIDS (1/3)
ABS (Anti-lock Braking
System)
Under heavy braking, the ABS prevents
the wheels from locking, allowing the
stopping distance to be managed and
keeping control of the vehicle.
Under these circumstances, the vehi -
cle can be steered to avoid an obstacle
whilst braking. In addition, this system
can increase stopping distances, par -
ticularly on roads with low surface grip
(wet ground etc.).
You will feel a pulsation through the
brake pedal each time the system is
activated. The ABS does not in any way
improve the vehicle’s physical perform-
ance relating to the road surface and
roadholding. It is still essential to follow
the rules of good driving practice (such
as driving at a safe distance from the
vehicle in front, etc.). Operating faults:
–
If the
x warning light on the in-
strument panel comes on while driv-
ing, braking is still operational ;
– If the
x and D warning
lights on the instrument panel come
on when driving, this indicates a
fault with the braking system.
ABS, ESP and emergency brake assist
are deactivated.
Consult an approved dealer.
Depending on the vehicle, this is com-
posed of:
– ABS (anti-lock braking system);
– electronic stability program (ESP)
with understeer control and trac -
tion control (ASR);
– emergency brake assist with, de -
pending on the vehicle, braking
anticipation;
In an emergency, apply firm and
continuous pressure to the brake
pedal. There is no need to pump
it repeatedly. The ABS will modu -
late the force applied in the braking
system.
These functions are an ad-
ditional aid in the event of
critical driving conditions,
enabling the vehicle behav -
iour to be adapted to suit the driving
conditions.
However, the functions do not take
the place of the driver. They do
not increase the vehicle’s limits
and should not encourage you
to drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibil -
ity of the driver when manoeuvring
the vehicle (the driver must always
be ready for sudden incidents which
may occur when driving).
Yo u r b r a k i n g s y s t e m s
are partially operational.
However, it is dangerous
to brake suddenly and
it is essential to stop immediately,
as soon as traffic conditions allow.
Contact an approved dealer.
Page 80 of 196
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
2.13
ENG_UD24436_1
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-3_X92_Dacia_2
DRIvER CORRECTION DEvICES/AIDS (2/3)
Electronic stability program
(ESP) with understeer control
and traction control (ASR)
Electronic stability control ESC
This system helps you to keep control
of the vehicle in critical driving condi -
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
flashes on the instrument panel. Operating faults
When the system detects an operating
fault, the
and/or warning
lights on the instrument panel come on.
In this case, the ESP and traction con-
trol are deactivated.
Consult an approved dealer.
Understeer control
This system optimises the action of the
ESP in the case of pronounced unders-
teering (loss of front axle grip).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au
-
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.
Page 192 of 196
Downloaded from www.Manualslib.com manuals search engine 7.1
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7

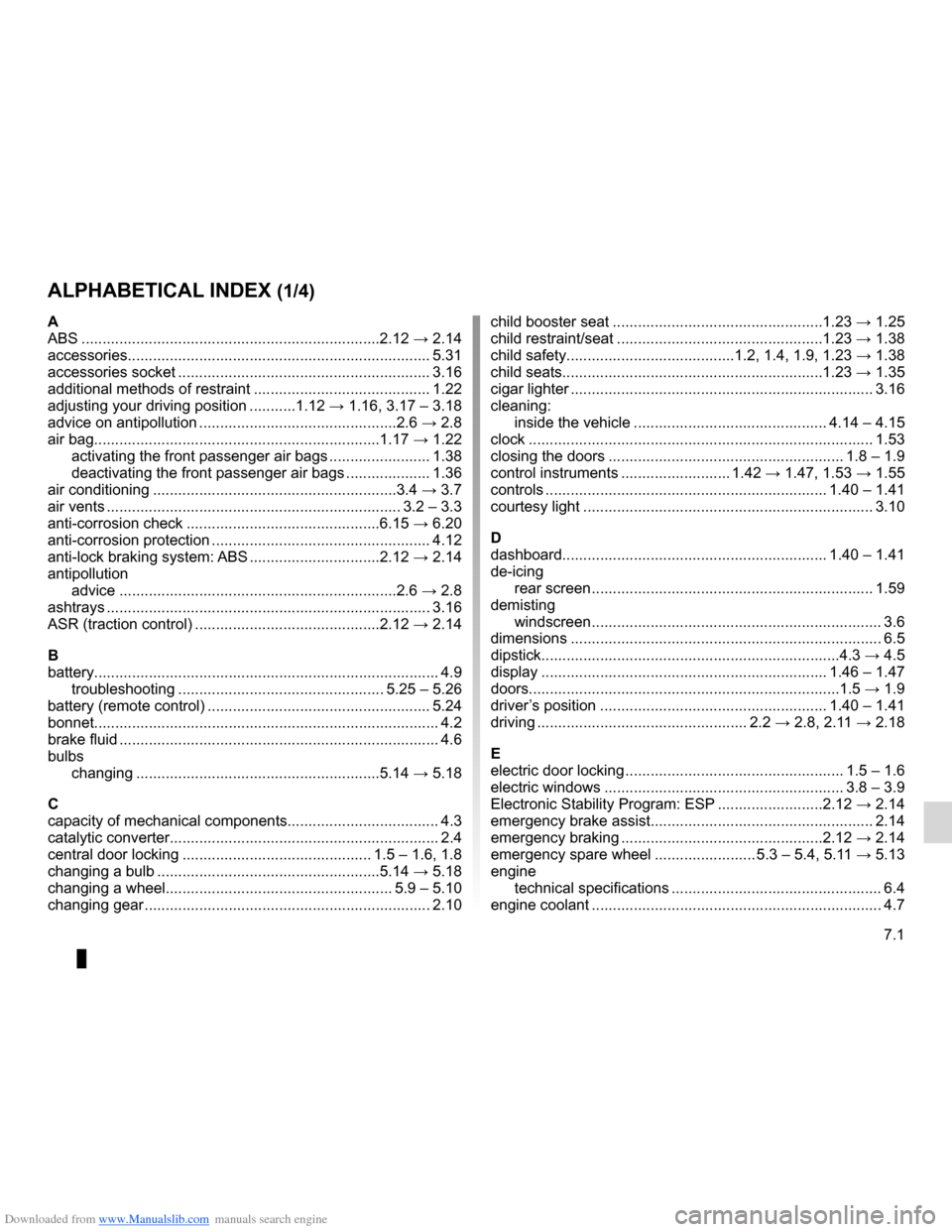

AlphAbeticAl index (1/4)
A
ABS ....................................................................... 2.12 → 2.14
accessories........................................................................\
5.31
accessories socket ............................................................ 3.16
additional methods of restraint .......................................... 1.22
adjusting your driving position ........... 1.12 → 1.16, 3.17 – 3.18
advice on antipollution ............................................... 2.6 → 2.8
air bag .................................................................... 1.17 → 1.22
activating the front passenger air bags ........................ 1.38
deactivating the front passenger air bags .................... 1.36
air conditioning .......................................................... 3.4 → 3.7
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.20
anti-corrosion protection .................................................... 4.12
anti-lock braking system: ABS ...............................2.12 → 2.14
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.16
ASR (traction control) ............................................ 2.12 → 2.14
b
battery ........................................................................\
.......... 4.9
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.24
bonnet ........................................................................\
.......... 4.2
brake fluid ........................................................................\
.... 4.6
bulbs changing .......................................................... 5.14 → 5.18
c
capacity of mechanical components ....................................4.3
catalytic converter ................................................................ 2.4
central door locking ............................................. 1.5 – 1.6, 1.8
changing a bulb ..................................................... 5.14 → 5.18
changing a wheel ...................................................... 5.9 – 5.10
changing gear .................................................................... 2.10child booster seat
.................................................. 1.23 → 1.25
child restraint/seat ................................................. 1.23 → 1.38
child safety ........................................ 1.2, 1.4, 1.9, 1.23 → 1.38
child seats .............................................................. 1.23 → 1.35
cigar lighter ........................................................................\
3.16
cleaning: inside the vehicle .............................................. 4.14 – 4.15
clock ........................................................................\
.......... 1.53
closing the doors ........................................................ 1.8 – 1.9
control instruments .......................... 1.42 → 1.47, 1.53 → 1.55
controls ................................................................... 1.40 – 1.41
courtesy light ..................................................................... 3.10
d
dashboard ............................................................... 1.40 – 1.41
de-icing rear screen ................................................................... 1.59
demisting windscreen ..................................................................... 3.6
dimensions ........................................................................\
.. 6.5
dipstick....................................................................... 4.3 → 4.5
display .................................................................... 1.46 – 1.47
doors ........................................................................\
.. 1.5 → 1.9
driver’s position ...................................................... 1.40 – 1.41
driving .................................................. 2.2 → 2.8, 2.11 → 2.18
e
electric door locking .................................................... 1.5 – 1.6
electric windows ......................................................... 3.8 – 3.9
Electronic Stability Program: ESP .........................2.12 → 2.14
emergency brake assist ..................................................... 2.14
emergency braking ................................................ 2.12 → 2.14
emergency spare wheel ........................ 5.3 – 5.4, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.7
Page 193 of 196
Downloaded from www.Manualslib.com manuals search engine 7.2
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine immobiliser (switch) ................................................. 2.2
engine oil ................................................................... 4.3 → 4.5
engine oil level ............................................................ 4.4 – 4.5
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
ESP: Electronic Stability Program .........................2.12 → 2.14
F
faults operating faults ................................................ 5.32 → 5.36
filter diesel filter .................................................................... 1.62
particle filter ................................................................... 2.5
fitting a radio ...................................................................... 5.30
fittings .................................................................... 3.12 → 3.15
fog lights ........................................................................\
.... 1.55
front passenger air bag deactivation ................................. 1.36
front seat adjustment ......................................................... 1.11
front seats ........................................................................\
.. 1.11
adjustment ................................................................... 1.11
fuel advice on fuel economy ....................................... 2.6 → 2.8
filling ............................................................................. 1.61
grade ..................................................................... 1.60, 6.4
fuel economy ............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.60
fuel grade ........................................................................\
... 1.60
fuel level ........................................................................\
.... 1.47
fuel priming bulb ................................................................ 1.62
fuel tank ................................................................. 1.60 → 1.62
fuel tank capacity ............................................................... 1.60
fuses ...................................................................... 5.21 → 5.23
G
gear lever ........................................................................\
... 2.10
glove box ........................................................................\
... 3.12grab handle
........................................................................\
3.11
h
handbrake ........................................................................\
.. 2.11
hands-free telephone integrated control ............................ 3.34
hazard warning lights signal .............................................. 1.57
headlight beam adjustment ............................................... 1.56
headlight flashers .............................................................. 1.57
headrest ......................................................... 1.10, 3.17 – 3.18
heated seats ...................................................................... 1.11
heating and air conditioning system .......................... 3.2 → 3.7
heating system .......................................................... 3.2 → 3.7
horn ........................................................................\
........... 1.57
hubcap tool ........................................................................\
.. 5.2
i
ignition switch ...................................................................... 2.2
indicators .................................................................. 1.57, 5.14
indicators: direction indicators ....................................................... 1.57
instrument panel ............................................... 1.46 – 1.47
instrument panel .................................................... 1.42 → 1.52
instrument panel messages ...................................1.48 → 1.52
interior trim maintenance ..................................................... 4.14 – 4.15
Isofix ...................................................................... 1.26 → 1.35
J
jack .................................................................... 5.2, 5.9 – 5.10
K
keys ........................................................................\
... 1.2 → 1.4
l
levels .................................................................. 4.3, 4.6 → 4.8
