Rear seats:
second row

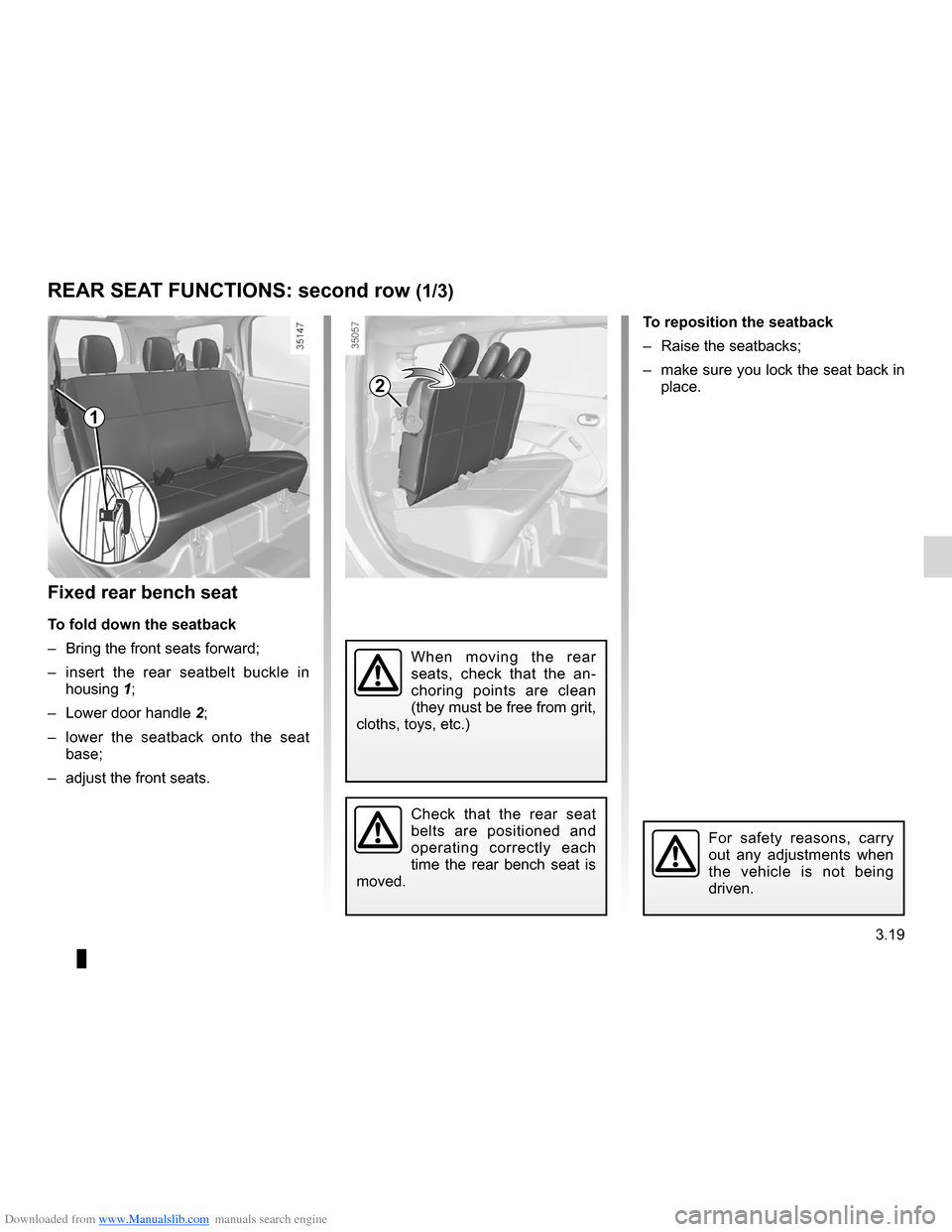

REAR SEAT FUNCTIONS: second row (1/3)
Fixed rear bench seat
To fold down the seatback
– Bring the front seats forward;
– insert the rear seatbelt buckle in
housing 1;
– Lower door handle 2;
– lower the seatback onto the seat
base;
– adjust the front seats. To reposition the seatback
–
Raise the seatbacks;
– make sure you lock the seat back in
place.
When moving the rear
seats, check that the an -
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
1

Downloaded from www.Manualslib.com manuals search engine 3.20
ENG_UD26885_2
Sièges arrière de deuxième rangée: fonctionnalité (X92 -\
Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
Rear bench seat with folding
seat back and seat cushion
To fold down the seat A or bench
seat B
– Bring the front seats forward;
– insert the rear seatbelt buckle in
housing 1;
– lower the headrests (refer to the in-
formation on the “Rear headrests” in
Section 3);
– lower handle 2;
– lower the seatback onto the seat
base;
– raise the seat until vertical;
– adjust the front seats, making sure
they are properly locked in place. To reposition the seat
A or bench
seat B
– Lower the bench seat until it locks in
position;
– Fold the seatbacks up again;
– make sure that the seat bases and
seatbacks lock into position cor -
rectly.When moving the rear
seats, check that the an -
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
A
B
REAR SEAT FUNCTIONS: second row (2/3)
A
B
1

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.21
ENG_UD26885_2
Sièges arrière de deuxième rangée: fonctionnalité (X92 -\
Renault)
ENG_NU_975-3_X92_Dacia_3
REAR SEAT FUNCTIONS: second row (3/3)
Accessing the third row rear
seats
– Lower handle 2;
– lower the seatback onto the seat
base;
– raise the seat until vertical.
To put the seat back into its initial po -
sition, perform the same procedure in
reverse.Restriction of use
If a passenger is occupying one of
the second row seats, do not drive
with the other second row seat
folded down.
Make sure that the seat -
back is correctly locked. If
necessary, remove any ob-
stacles behind the seats.
Repeat the above until the seat is
locked correctly.To avoid all risk of injury,
ensure that nobody is close
to the moving parts.
2
When refitting the seat -
back , make sure it is cor -
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

Downloaded from www.Manualslib.com manuals search engine rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.22
ENG_UD26888_2
Sièges arrière de troisième rangée: fonctionnalité (X92 \
- Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
third row
REAR SEAT FUNCTIONS: third row (1/3)
The third row rear seats can be folded
down or removed for transporting bulky
objects.To fold down the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– lower the headrests (refer to the in-
formation on the “Rear headrests” in
Section 3);
– unlock controls 2, press on the
middle of the seat backs and lower
the seatbacks onto the base;
– pull strap 3 to release the bench seat
and lift the seat base until it is verti-
cal.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1
Ensure that strap 3 is securely fixed
in its ring 4.
Risk of damage.
3
2
3
4

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.23
ENG_UD26888_2
Sièges arrière de troisième rangée: fonctionnalité (X92 \
- Renault)
ENG_NU_975-3_X92_Dacia_3

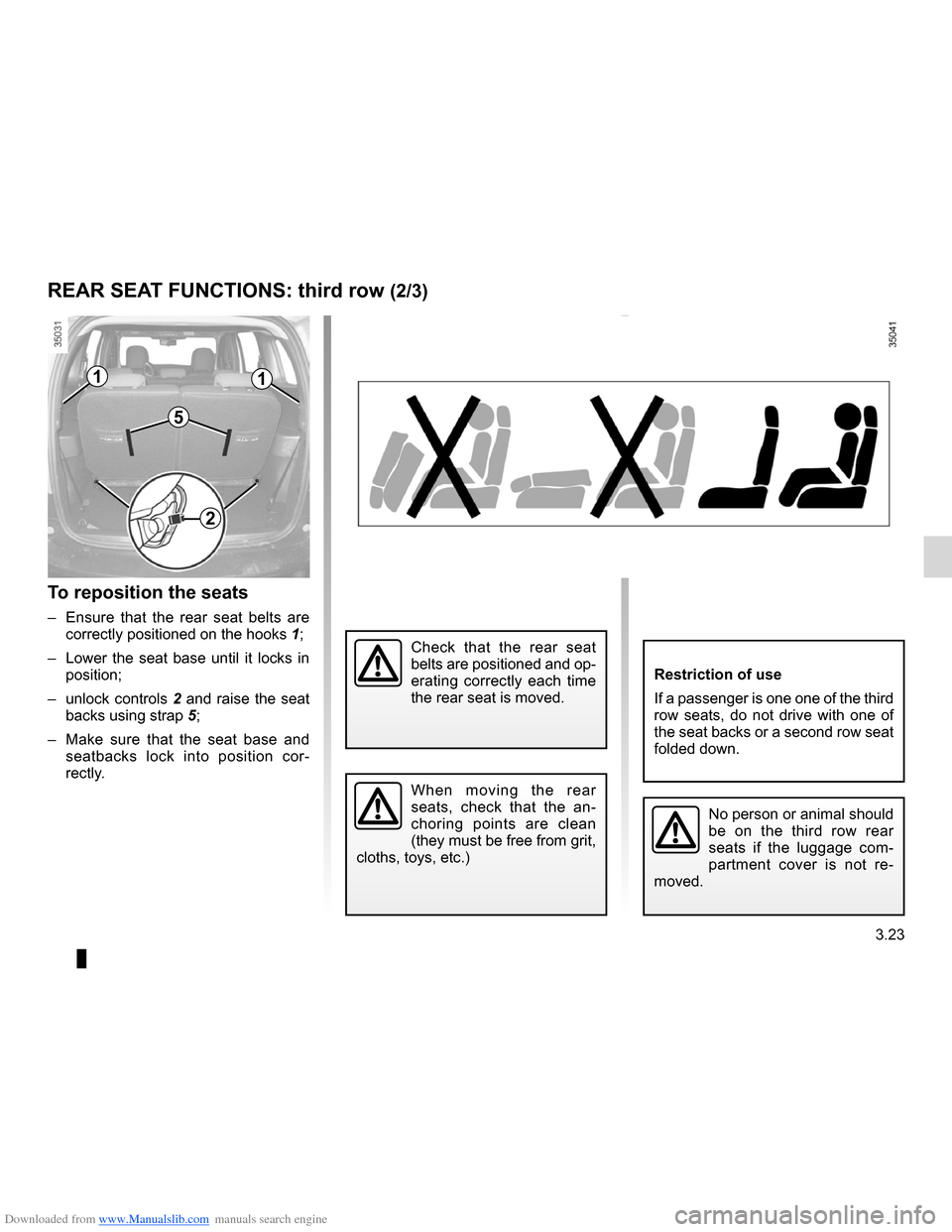

REAR SEAT FUNCTIONS: third row (2/3)
To reposition the seats
– Ensure that the rear seat belts are
correctly positioned on the hooks 1;
– Lower the seat base until it locks in
position;
– unlock controls 2 and raise the seat
backs using strap 5;
– Make sure that the seat base and
seatbacks lock into position cor -
rectly.
When moving the rear
seats, check that the an -
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seat is moved.
2
11
No person or animal should
be on the third row rear
seats if the luggage com -
partment cover is not re -
moved.
Restriction of use
If a passenger is one one of the third
row seats, do not drive with one of
the seat backs or a second row seat
folded down.
5

Downloaded from www.Manualslib.com manuals search engine 3.26
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
REAR SEAT FUNCTIONS: grouping of seats (2/3)
To group together the two
rows of rear seats
Fold down the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
Remove the third row rear seats Refer
to the information on the “Third row rear
seats” in Section 3.
Return the third row rear seats (seat
forwards and headrest upwards).
Position them against the second row
rear seats, with the hook 1 on the bar 2.
Fold down the third row rear seats
against the second row rear seats. Take the adjustable attachment straps
3
out of the storage pockets 5 and pass
them around the front headrest rods 4.
Pull on the attachment straps 3 to
ensure everything is attached.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
1
2
3
5
4

Downloaded from www.Manualslib.com manuals search engine towing rings .......................................... (up to the end of the DU)
transporting objects in the luggage compartment ........... (up to the end of the DU)
3.30
ENG_UD25338_1
Transport d\’objet dans le coffre/Remorquage (attelage) (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Transporting objects in the boot

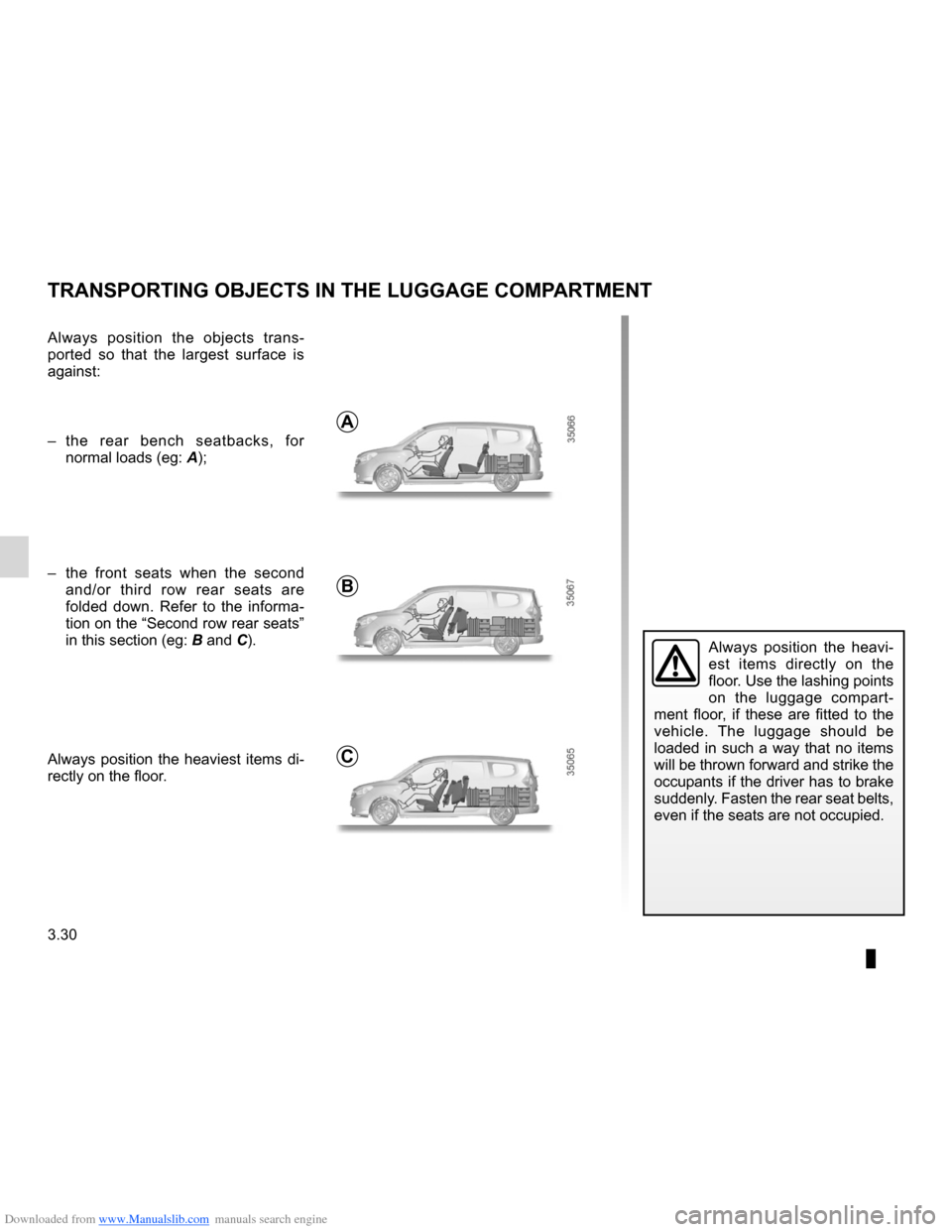

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT
Always position the objects trans -
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads (eg: A);
– the front seats when the second
and/or third row rear seats are
folded down. Refer to the informa -
tion on the “Second row rear seats”
in this section (eg: B and C).
Always position the heaviest items di-
rectly on the floor.
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the luggage compart -
ment floor, if these are fitted to the
vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
A
B
C
