oil capacity DACIA LODGY 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine trip computer and warning system........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.48
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
On-board computer
ON-BOARD COMPUTER (1/5)
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing the
reset key you will notice that the range
increases as you travel. This range
takes into account the average fuel con-
sumption since the last time the reset
button was pressed. Therefore, the fuel
consumption may decrease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Resetting is automatic when the maxi-
mum capacity of any of the memories
is exceeded.
1
On-board computer 1
Display selection key 2
The display depends on the vehicle and
the country.
Scroll through the following information
by pressing the button 2:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current fuel consumption,
2
f) estimated range,
g) distance travelled,
h) average speed,
c) Oil change interval,
j) speed limiter,
k) time.
Refer to the table on the following
pages showing display examples.
Resetting the trip mileage
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button 2.

Downloaded from www.Manualslib.com manuals search engine capacity of mechanical components......................(current page)
engine oil .............................................. (up to the end of the DU)
dipstick.................................................. (up to the end of the DU)
levels .................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.3
ENG_UD27007_2
Niveau huile moteur : généralités (X92 - Renault)
ENG_NU_975-3_X92_Dacia_4
An engine uses oil to lubricate and cool
moving parts and it is normal to top up
the oil between oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
o il change frequency: check the oil
level from time to time and certainly
before any long journey to avoid the
risk of damaging your engine.

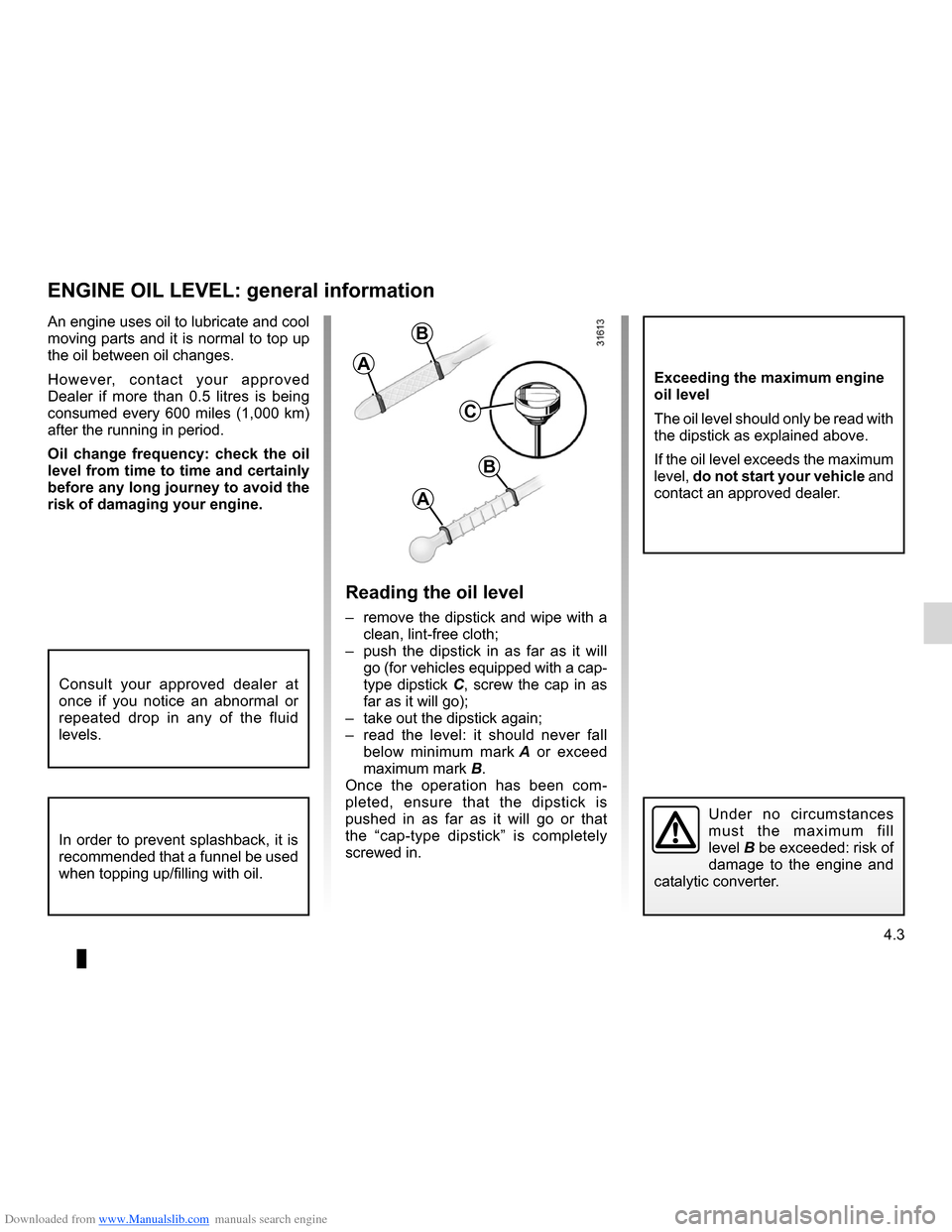

Engine oil level: general information
enGIne oIL LeVeL: general information
Reading the oil level
– remove the dipstick and wipe with a
clean, lint-free cloth;
– push the dipstick in as far as it will
go (for vehicles equipped with a cap-
type dipstick C, screw the cap in as
far as it will go);
– take out the dipstick again;
– read the level: it should never fall
below minimum mark A or exceed
maximum mark B.
Once the operation has been com -
pleted, ensure that the dipstick is
pushed in as far as it will go or that
the “cap-type dipstick” is completely
screwed in.
exceeding the maximum engine
oil level
The oil level should only be read with
the dipstick as explained above.
If the oil level exceeds the maximum
level, do not start your vehicle and
contact an approved dealer.
Under no circumstances
must the maximum fill
level B be exceeded: risk of
damage to the engine and
catalytic converter.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
In order to prevent splashback, it is
recommended that a funnel be used
when topping up/filling with oil.
C
A
B
A
B

Downloaded from www.Manualslib.com manuals search engine 7.2
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine immobiliser (switch) ................................................. 2.2
engine oil ................................................................... 4.3 → 4.5
engine oil level ............................................................ 4.4 – 4.5
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
ESP: Electronic Stability Program .........................2.12 → 2.14
F
faults operating faults ................................................ 5.32 → 5.36
filter diesel filter .................................................................... 1.62
particle filter ................................................................... 2.5
fitting a radio ...................................................................... 5.30
fittings .................................................................... 3.12 → 3.15
fog lights ........................................................................\
.... 1.55
front passenger air bag deactivation ................................. 1.36
front seat adjustment ......................................................... 1.11
front seats ........................................................................\
.. 1.11
adjustment ................................................................... 1.11
fuel advice on fuel economy ....................................... 2.6 → 2.8
filling ............................................................................. 1.61
grade ..................................................................... 1.60, 6.4
fuel economy ............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.60
fuel grade ........................................................................\
... 1.60
fuel level ........................................................................\
.... 1.47
fuel priming bulb ................................................................ 1.62
fuel tank ................................................................. 1.60 → 1.62
fuel tank capacity ............................................................... 1.60
fuses ...................................................................... 5.21 → 5.23
G
gear lever ........................................................................\
... 2.10
glove box ........................................................................\
... 3.12grab handle
........................................................................\
3.11
h
handbrake ........................................................................\
.. 2.11
hands-free telephone integrated control ............................ 3.34
hazard warning lights signal .............................................. 1.57
headlight beam adjustment ............................................... 1.56
headlight flashers .............................................................. 1.57
headrest ......................................................... 1.10, 3.17 – 3.18
heated seats ...................................................................... 1.11
heating and air conditioning system .......................... 3.2 → 3.7
heating system .......................................................... 3.2 → 3.7
horn ........................................................................\
........... 1.57
hubcap tool ........................................................................\
.. 5.2
i
ignition switch ...................................................................... 2.2
indicators .................................................................. 1.57, 5.14
indicators: direction indicators ....................................................... 1.57
instrument panel ............................................... 1.46 – 1.47
instrument panel .................................................... 1.42 → 1.52
instrument panel messages ...................................1.48 → 1.52
interior trim maintenance ..................................................... 4.14 – 4.15
Isofix ...................................................................... 1.26 → 1.35
J
jack .................................................................... 5.2, 5.9 – 5.10
K
keys ........................................................................\
... 1.2 → 1.4
l
levels .................................................................. 4.3, 4.6 → 4.8
