Sécurité enfants : fixation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

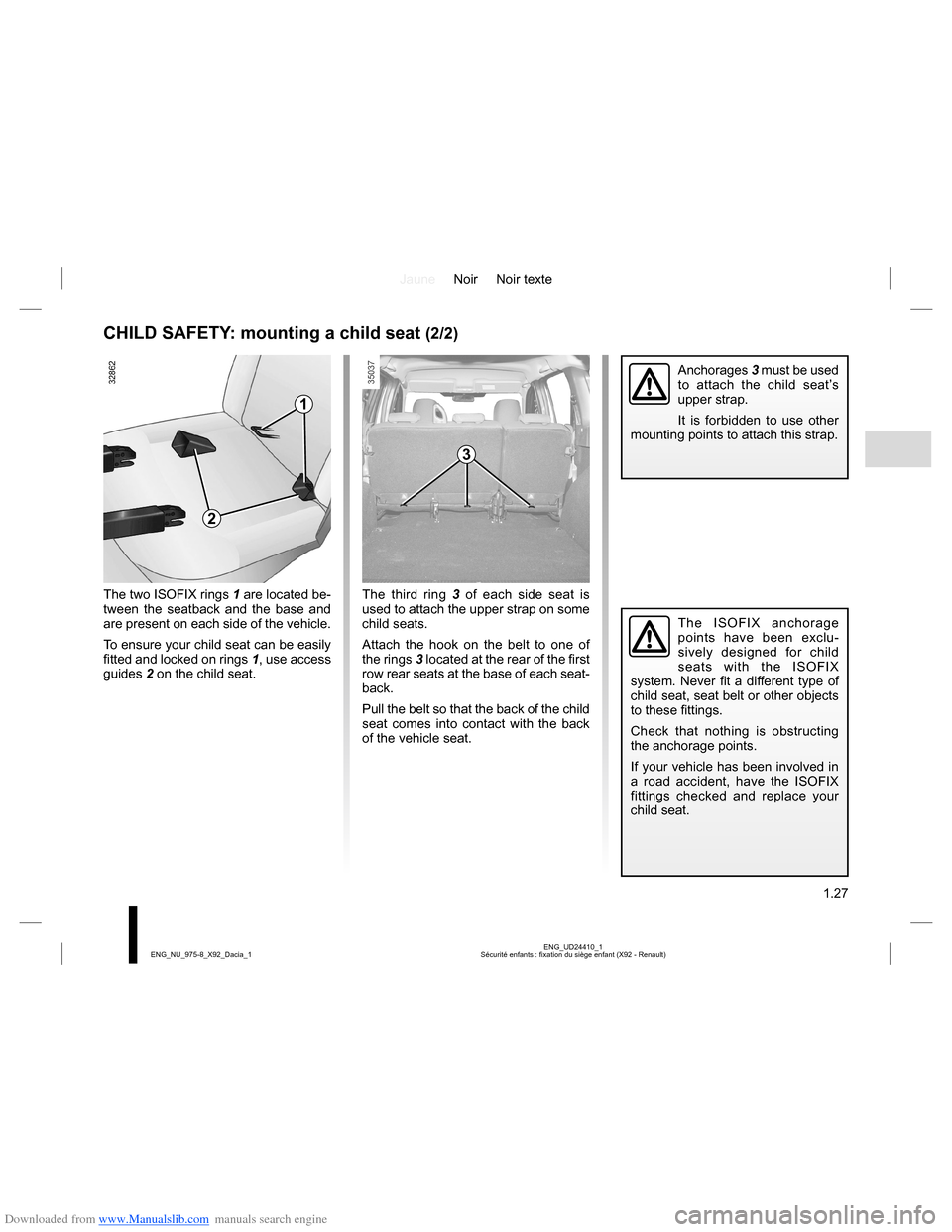

CHILD SAFETY: mounting a child seat (2/2)
The two ISOFIX rings 1 are located be-
tween the seatback and the base and
are present on each side of the vehicle.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat.The third ring 3 of each side seat is
used to attach the upper strap on some
child seats.
Attach the hook on the belt to one of
the rings 3 located at the rear of the first
row rear seats at the base of each seat-
back.
Pull the belt so that the back of the child
seat comes into contact with the back
of the vehicle seat.
The ISOFIX anchorage
points have been exclu-
sively designed for child
seats with the ISOFIX
system. Never fit a different type of
child seat, seat belt or other objects
to these fittings.
Check that nothing is obstructing
the anchorage points.
If your vehicle has been involved in
a road accident, have the ISOFIX
fittings checked and replace your
child seat.
Anchorages 3 must be used
to attach the child seat’s
upper strap.
It is forbidden to use other
mounting points to attach this strap.
1
2
3
Page 32 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.28
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

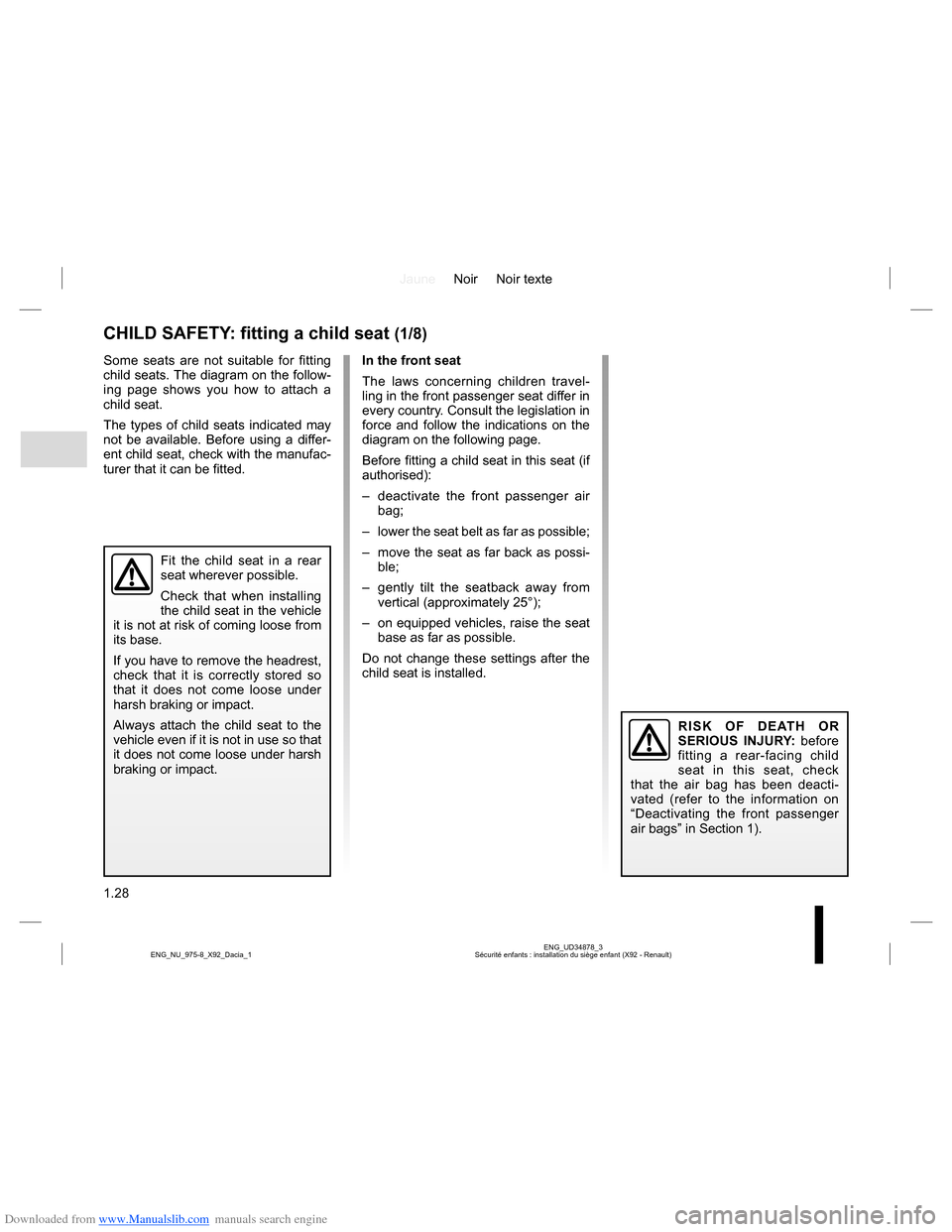

CHILD SAFETY: fitting a child seat (1/8)
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
– deactivate the front passenger air
bag;
– lower the seat belt as far as possible;
– move the seat as far back as possi-
ble;
– gently tilt the seatback away from
vertical (approximately 25°);
– on equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, check
that the air bag has been deacti-
vated (refer to the information on
“Deactivating the front passenger
air bags” in Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
Page 33 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.29
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
CHILD SAFETY: fitting a child seat (2/8)

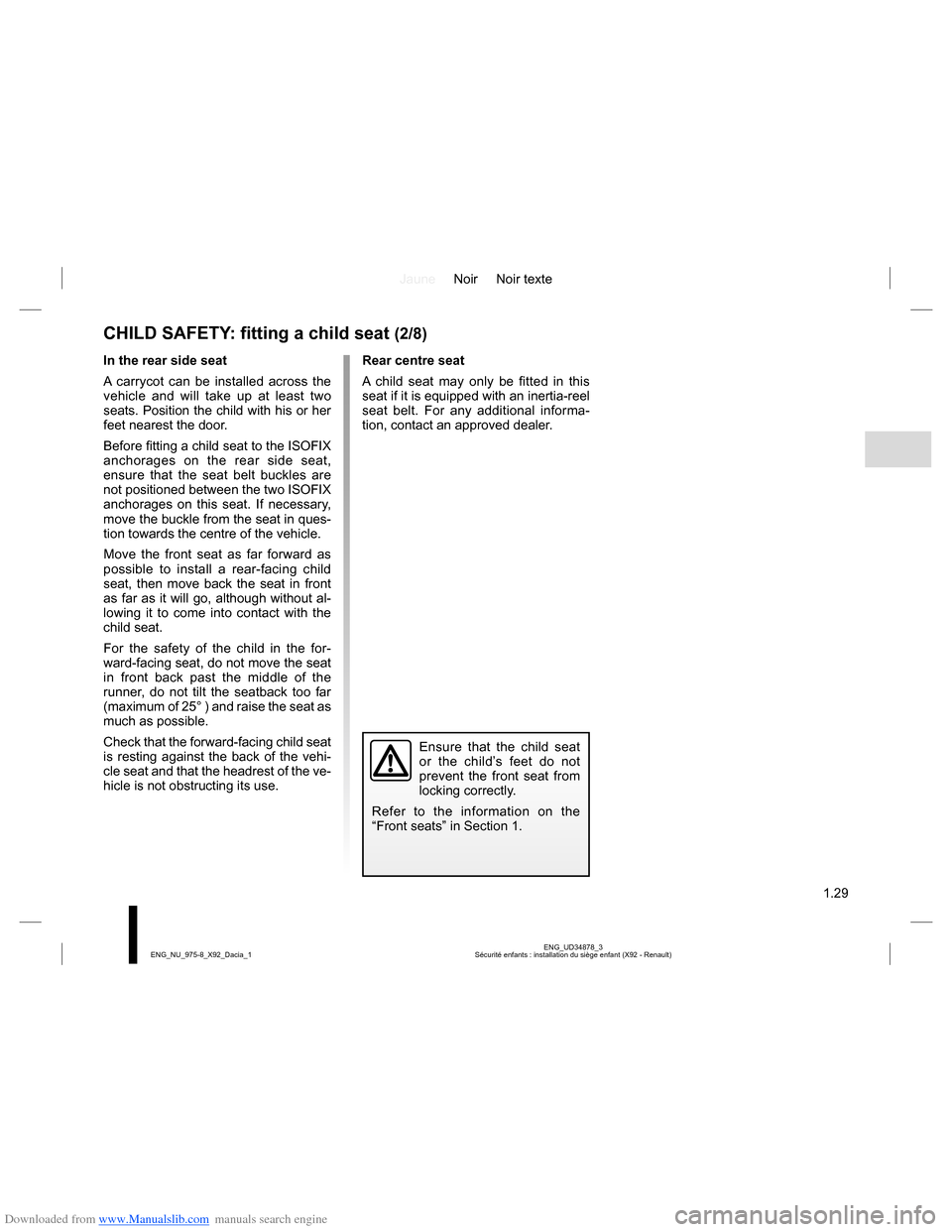

In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Before fitting a child seat to the ISOFIX
anchorages on the rear side seat,
ensure that the seat belt buckles are
not positioned between the two ISOFIX
anchorages on this seat. If necessary,
move the buckle from the seat in ques-
tion towards the centre of the vehicle.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.Rear centre seat
A child seat may only be fitted in this
seat if it is equipped with an inertia-reel
seat belt. For any additional informa-
tion, contact an approved dealer.
Ensure that the child seat
or the child’s feet do not
prevent the front seat from
locking correctly.
Refer to the information on the
“Front seats” in Section 1.
Page 34 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.30
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

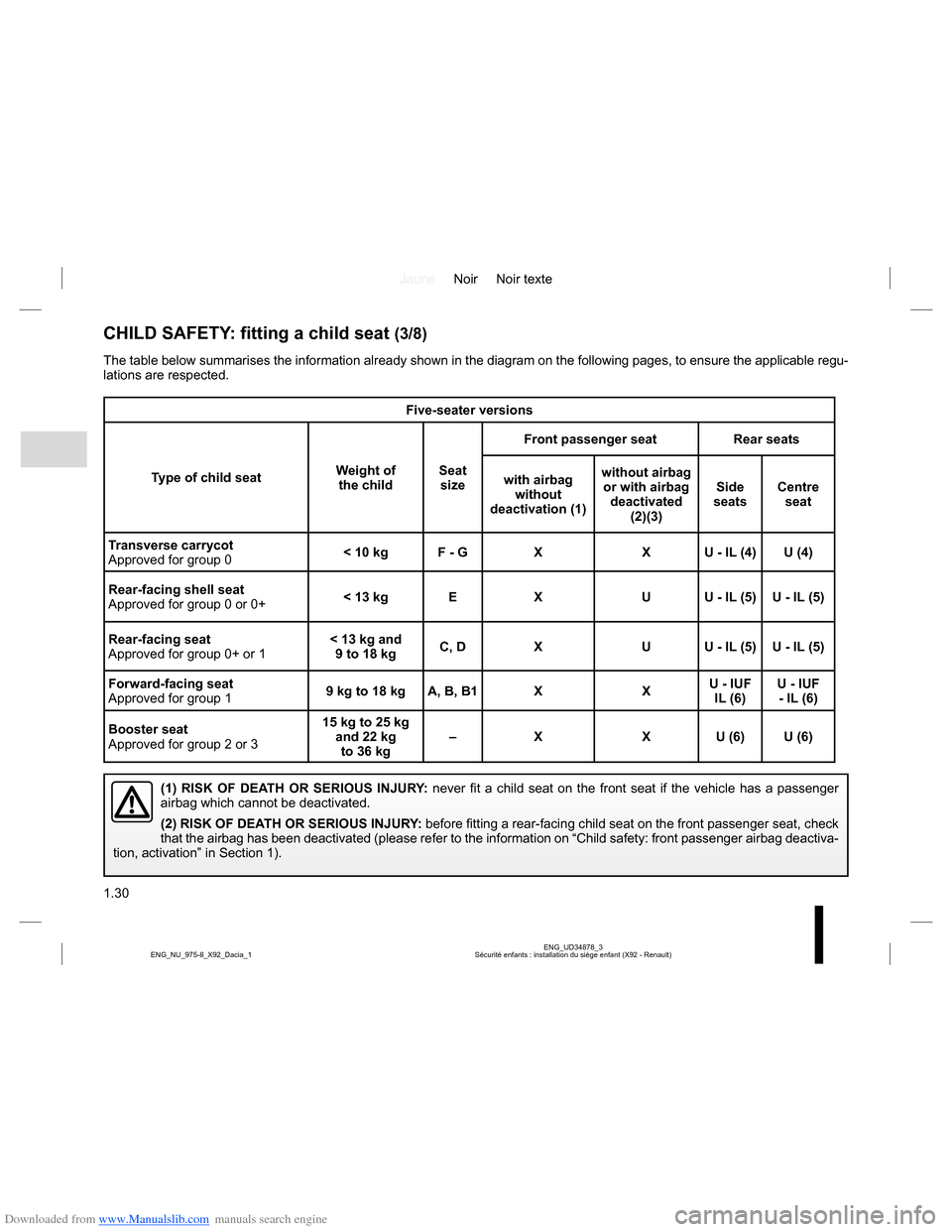

CHILD SAFETY: fitting a child seat (3/8)
Five-seater versions
Type of child seatWeight of
the childSeat
sizeFront passenger seat Rear seats
with airbag
without
deactivation (1)without airbag
or with airbag
deactivated
(2)(3)Side
seatsCentre
seat
Transverse carrycot
Approved for group 0< 10 kg F - G X X U - IL (4) U (4)
Rear-facing shell seat
Approved for group 0 or 0+< 13 kg E X U U - IL (5) U - IL (5)
Rear-facing seat
Approved for group 0+ or 1< 13 kg and
9 to 18 kgC, D X U U - IL (5) U - IL (5)
Forward-facing seat
Approved for group 19 kg to 18 kg A, B, B1 X XU - IUF
IL (6)U - IUF
- IL (6)
Booster seat
Approved for group 2 or 315 kg to 25 kg
and 22 kg
to 36 kg– X X U (6) U (6) The table below summarises the information already shown in the diagram on the following pages, to ensure the applicable regu-
lations are respected.
(1) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat on the front seat if the vehicle has a passenger
airbag which cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check
that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva-
tion, activation” in Section 1).
Page 35 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.31
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
CHILD SAFETY: fitting a child seat (4/8)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF = Seat which allows forward facing child seats with “Universal” approval to be attached by the ISOFIX device; check that it
can be fitted correctly.
IL = Seat which allows child seats with “Semi-universal” or “vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted correctly.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°. Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.
Page 36 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.32
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
CHILD SAFETY: fitting a child seat (5/8)

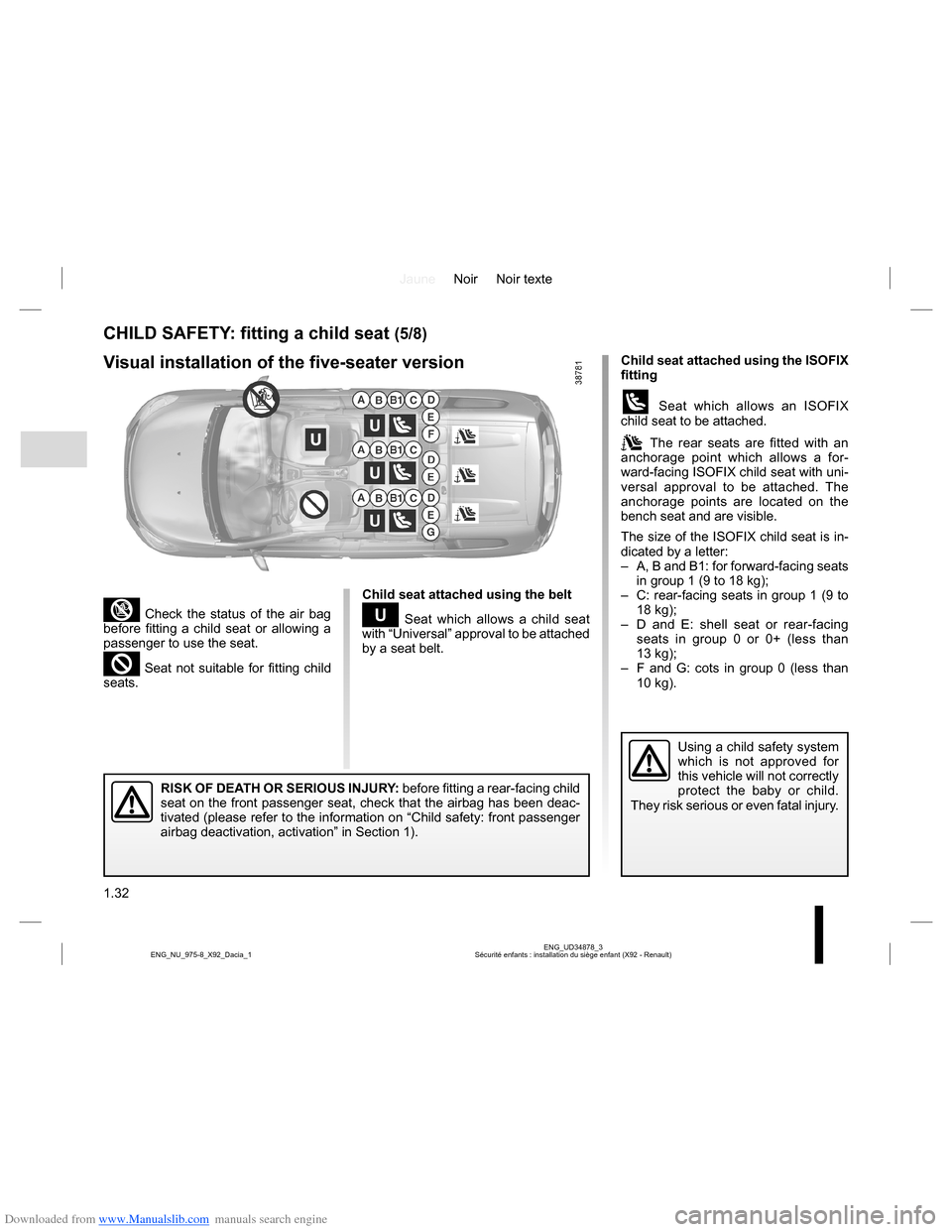

³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat on the front passenger seat, check that the airbag has been deac-
tivated (please refer to the information on “Child safety: front passenger
airbag deactivation, activation” in Section 1).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
The rear seats are fitted with an
anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be attached. The
anchorage points are located on the
bench seat and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Visual installation of the five-seater version
Page 37 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.33
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
CHILD SAFETY: fitting a child seat (6/8)
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat on the front passenger seat, check that the airbag has been deac-
tivated (please refer to the information on “Child safety: front passenger
airbag deactivation, activation” in Section 1).
Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
The rear seats are fitted with an
anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be attached. The
anchorage points are located on the
bench seat and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Visual installation, 7-seater version
Page 38 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.34
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

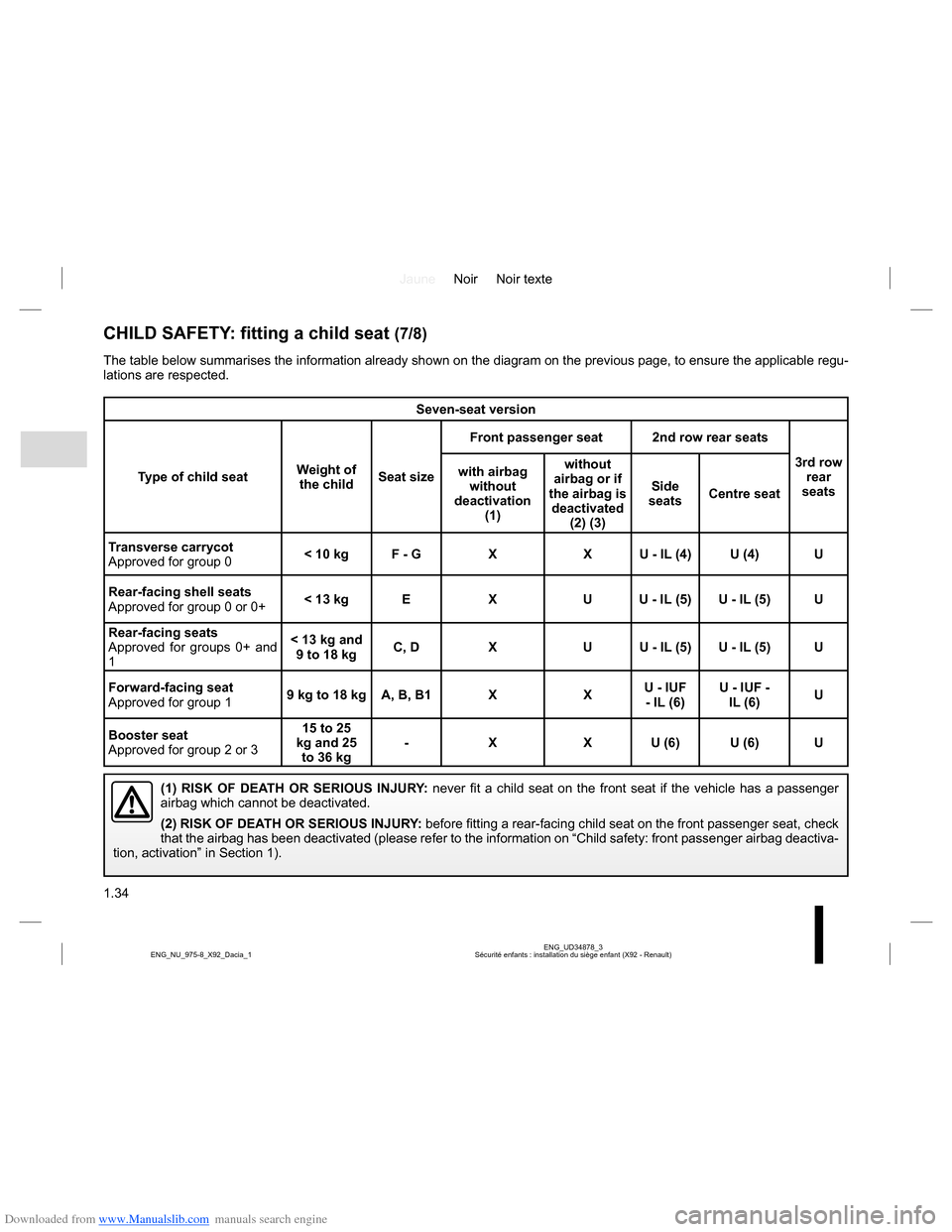

CHILD SAFETY: fitting a child seat (7/8)
Seven-seat version
Type of child seatWeight of
the childSeat sizeFront passenger seat 2nd row rear seats
3rd row
rear
seats with airbag
without
deactivation
(1)without
airbag or if
the airbag is
deactivated
(2) (3)Side
seatsCentre seat
Transverse carrycot
Approved for group 0< 10 kg F - G X X U - IL (4) U (4) U
Rear-facing shell seats
Approved for group 0 or 0+ < 13 kg E X U U - IL (5) U - IL (5) U
Rear-facing seats
Approved for groups 0+ and
1< 13 kg and
9 to 18 kgC, D X U U - IL (5) U - IL (5) U
Forward-facing seat
Approved for group 19 kg to 18 kg A, B, B1 X XU - IUF
- IL (6)U - IUF -
IL (6)U
Booster seat
Approved for group 2 or 315 to 25
kg and 25
to 36 kg- X X U (6) U (6) U
(1) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat on the front seat if the vehicle has a passenger
airbag which cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check
that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva-
tion, activation” in Section 1).
The table below summarises the information already shown on the diagram on the previous page, to ensure the applicable regu-
lations are respected.
Page 39 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.35
ENG_UD34878_3
Sécurité enfants : installation du siège enfant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
CHILD SAFETY: fitting a child seat (8/8)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted correctly.
IUF = Seat which allows a forward-facing child seat with “Universal” approval to be attached by the ISOFIX device; check that
it can be fitted.
IL = Seat which allows child seats with “Semi-universal” or “Vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°. Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.
Page 40 of 258
Downloaded from www.Manualslib.com manuals search engine 1.36
ENG_UD36364_3
Sécurité enfants : désactivation/activation airbag passager avant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
CHILD SAFETY: deactivating/activating the front passenger air bag (1/3)
The passenger air bag must
be activated or deactivated
with the ignition off.
If handled when the igni-
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
With the ignition on, it is essential to
check that the 2
] warning light is
lit up.
This warning light remains continu-
ously lit to let you know that you can
fit a child seat.
Deactivating the front
passenger air bags
In order to be able to install a rear-
facing child seat on the front passen-
ger seat, you must deactivate the front
passenger seat belt additional restraint
systems.
To deactivate the passenger airbag,
with the ignition off, press and turn
button 1 to the OFF position.
2
1
