2.1
ENG_UD38221_8
Sommaire 2 (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in, Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Starting, Stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
stop and start function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Special features of LPG versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Driving advice, Eco-driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.13
Maintenance and anti-pollution advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.17
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.18
Tyre pressure loss warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.19
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.22
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.23
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.23
Driver correction devices and aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.30
Parking sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.34
Reversing camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.36
Automatic gearbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.38

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

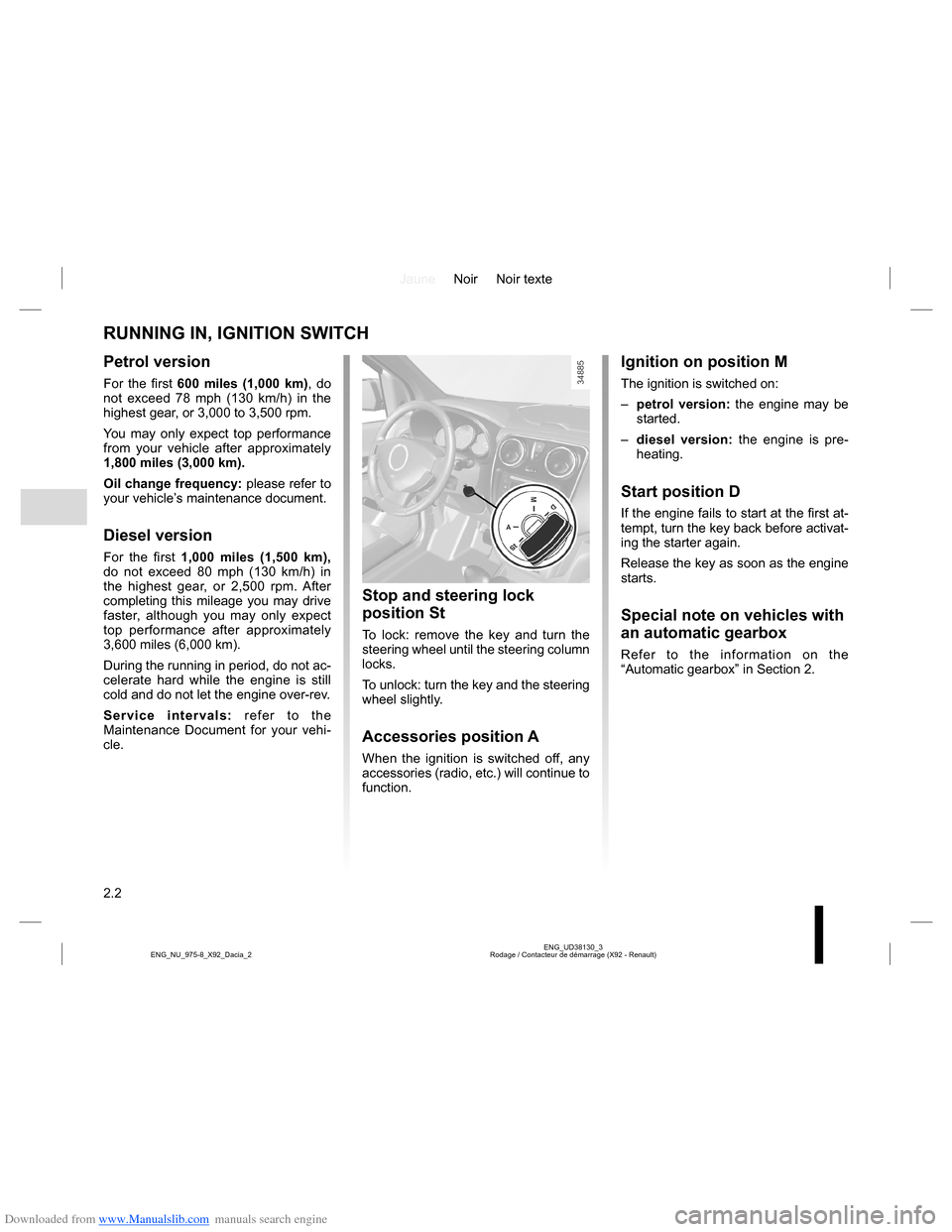

2.2
ENG_UD38130_3
Rodage / Contacteur de démarrage (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
RUNNING IN, IGNITION SWITCH
Petrol version
For the first 600 miles (1,000 km), do
not exceed 78 mph (130 km/h) in the
highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
Oil change frequency: please refer to
your vehicle’s maintenance document.
Diesel version
For the first 1,000 miles (1,500 km),
do not exceed 80 mph (130 km/h) in
the highest gear, or 2,500 rpm. After
completing this mileage you may drive
faster, although you may only expect
top performance after approximately
3,600 miles (6,000 km).
During the running in period, do not ac-
celerate hard while the engine is still
cold and do not let the engine over-rev.
Service intervals: refer to the
Maintenance Document for your vehi-
cle.
Stop and steering lock
position St
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
Accessories position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
Ignition on position M
The ignition is switched on:
– petrol version: the engine may be
started.
– diesel version: the engine is pre-
heating.
Start position D
If the engine fails to start at the first at-
tempt, turn the key back before activat-
ing the starter again.
Release the key as soon as the engine
starts.
Special note on vehicles with
an automatic gearbox
Refer to the information on the
“Automatic gearbox” in Section 2.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

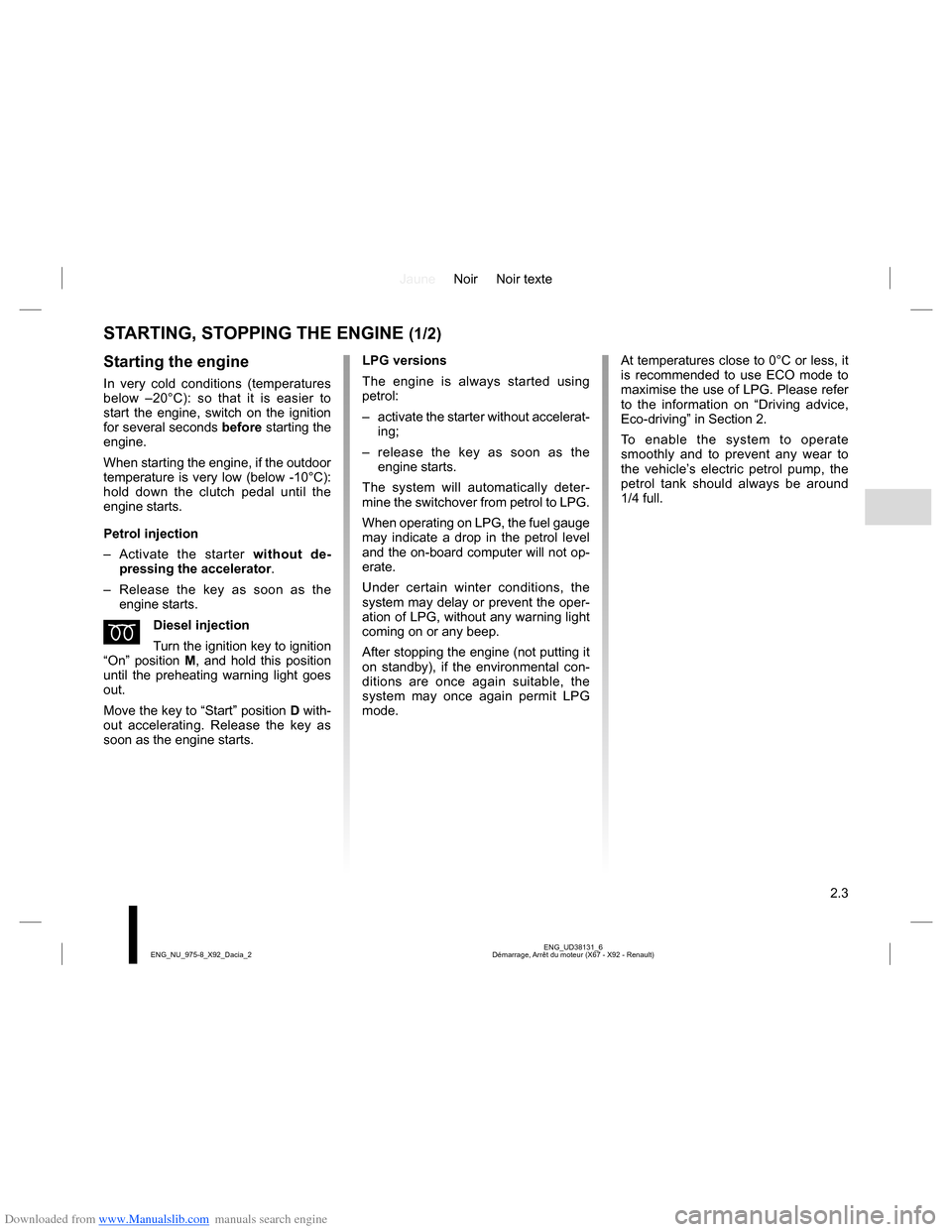

2.3
ENG_UD38131_6
Démarrage, Arrêt du moteur (X67 - X92 - Renault) ENG_NU_975-8_X92_Dacia_2
At temperatures close to 0°C or less, it
is recommended to use ECO mode to
maximise the use of LPG. Please refer
to the information on “Driving advice,
Eco-driving” in Section 2.
To enable the system to operate
smoothly and to prevent any wear to
the vehicle’s electric petrol pump, the
petrol tank should always be around
1/4 full. LPG versions
The engine is always started using
petrol:
– activate the starter without accelerat-
ing;
– release the key as soon as the
engine starts.
The system will automatically deter-
mine the switchover from petrol to LPG.
When operating on LPG, the fuel gauge
may indicate a drop in the petrol level
and the on-board computer will not op-
erate.
Under certain winter conditions, the
system may delay or prevent the oper-
ation of LPG, without any warning light
coming on or any beep.
After stopping the engine (not putting it
on standby), if the environmental con-
ditions are once again suitable, the
system may once again permit LPG
mode.Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
When starting the engine, if the outdoor
temperature is very low (below -10°C):
hold down the clutch pedal until the
engine starts.
Petrol injection
– Activate the starter without de-
pressing the accelerator.
– Release the key as soon as the
engine starts.
ÉDiesel injection
Turn the ignition key to ignition
“On” position M, and hold this position
until the preheating warning light goes
out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
STARTING, STOPPING THE ENGINE (1/2)

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

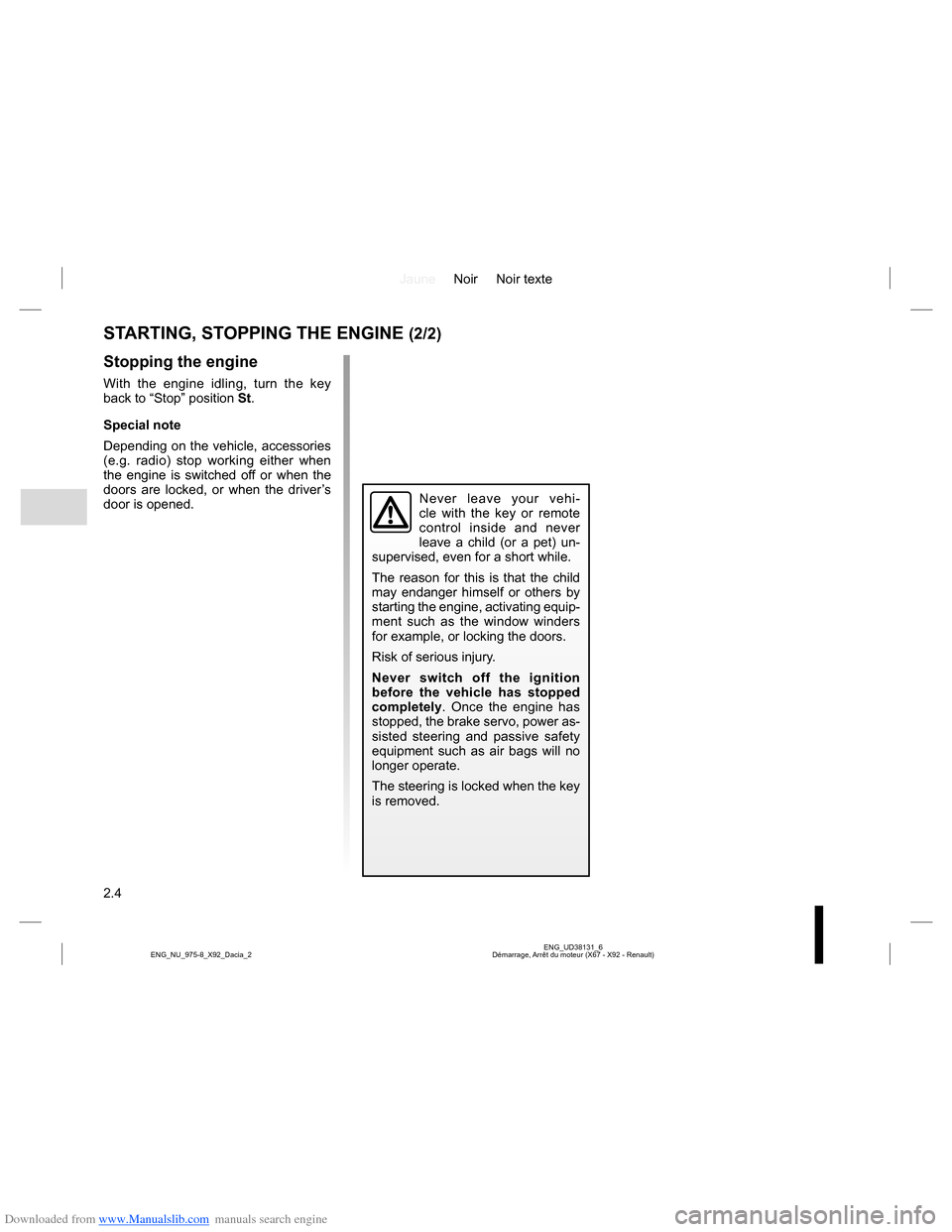

2.4
ENG_UD38131_6
Démarrage, Arrêt du moteur (X67 - X92 - Renault) ENG_NU_975-8_X92_Dacia_2
STARTING, STOPPING THE ENGINE (2/2)
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Special note
Depending on the vehicle, accessories
(e.g. radio) stop working either when
the engine is switched off or when the
doors are locked, or when the driver’s
door is opened.
Never leave your vehi-
cle with the key or remote
control inside and never
leave a child (or a pet) un-
supervised, even for a short while.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition
before the vehicle has stopped
completely. Once the engine has
stopped, the brake servo, power as-
sisted steering and passive safety
equipment such as air bags will no
longer operate.
The steering is locked when the key
is removed.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.5
ENG_UD38132_1
Fonction Stop and Start (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
STOP AND START function (1/3)
For manual gearboxes:
– the gearbox is in neutral;
and
– the clutch pedal is released.
If warning light
 flashes, this
means that the clutch pedal is not
sufficiently released.
and
– the vehicle speed is less than ap-
proximately 7 mph (3 km/h).
In all vehicles, the warning light

on the instrument panel is lit when the
engine is on standby.
The vehicle equipment remain opera-
tional while the engine is stopped.
This system enables a reduced fuel
consumption and lower greenhouse
gas emissions.
The system is activated automatically
when the vehicle is started.
While driving, the system stops the
engine (standby) when the vehicle is
at a standstill (traffic jam, traffic lights,
etc).
Conditions for engine
standby
The vehicle has set off from where it
was parked;
For automatic or sequential gear-
box:
– the box is in position D or N ;
and
– the brake pedal is depressed (suffi-
ciently hard);
and
– the accelerator pedal is not de-
pressed;
and
– the speed is zero for around
1 second.
The engine remains on standby if posi-
tion P is selected, or if position N is se-
lected with the handbrake engaged and
the brake pedal released.
Do not drive off when the
engine is on standby (warn-
ing light
 is displayed
on the instrument panel).
Before getting out of the
vehicle, you must switch off
the ignition (please see sec-
tion on “Starting, stopping
the engine”).
If you get out of the vehicle, a beep
notifies you that the engine is on
standby and has not been switched
off.
If the engine stalls while the system
is in operation, pressing the clutch
pedal right down will start it again.
Engine on standby - braking
assistance is no longer ope-
rational.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

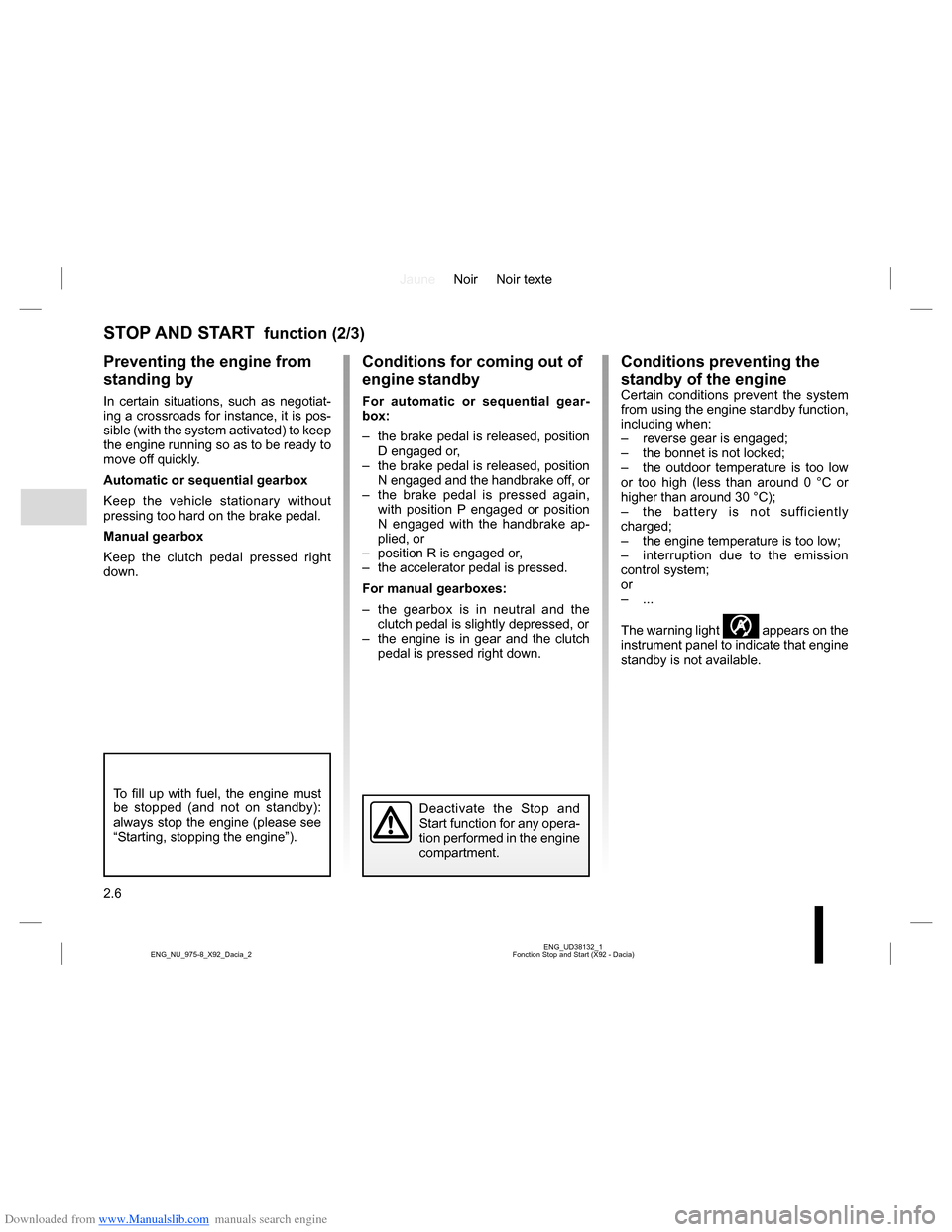

2.6
ENG_UD38132_1
Fonction Stop and Start (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
STOP AND START function (2/3)
Conditions preventing the
standby of the engine
Certain conditions prevent the system
from using the engine standby function,
including when:
– reverse gear is engaged;
– the bonnet is not locked;
– the outdoor temperature is too low
or too high (less than around 0 °C or
higher than around 30 °C);
– the battery is not sufficiently
charged;
– the engine temperature is too low;
– interruption due to the emission
control system;
or
– ...
The warning light
 appears on the
instrument panel to indicate that engine
standby is not available.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.
Preventing the engine from
standing by
In certain situations, such as negotiat-
ing a crossroads for instance, it is pos-
sible (with the system activated) to keep
the engine running so as to be ready to
move off quickly.
Automatic or sequential gearbox
Keep the vehicle stationary without
pressing too hard on the brake pedal.
Manual gearbox
Keep the clutch pedal pressed right
down.
Conditions for coming out of
engine standby
For automatic or sequential gear-
box:
– the brake pedal is released, position
D engaged or,
– the brake pedal is released, position
N engaged and the handbrake off, or
– the brake pedal is pressed again,
with position P engaged or position
N engaged with the handbrake ap-
plied, or
– position R is engaged or,
– the accelerator pedal is pressed.
For manual gearboxes:
– the gearbox is in neutral and the
clutch pedal is slightly depressed, or
– the engine is in gear and the clutch
pedal is pressed right down.
To fill up with fuel, the engine must
be stopped (and not on standby):
always stop the engine (please see
“Starting, stopping the engine”).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

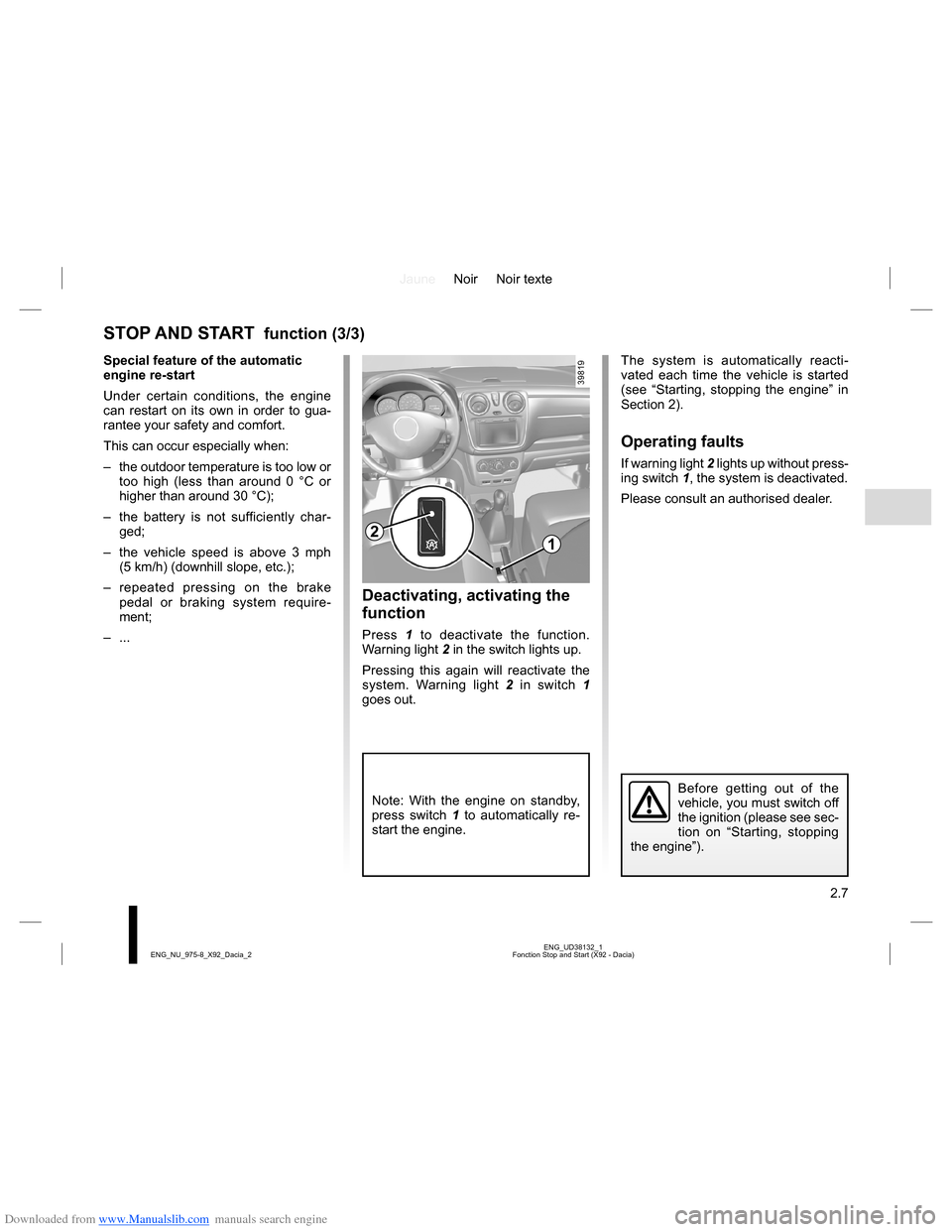

2.7
ENG_UD38132_1
Fonction Stop and Start (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Deactivating, activating the
function
Press 1 to deactivate the function.
Warning light 2 in the switch lights up.
Pressing this again will reactivate the
system. Warning light 2 in switch 1
goes out.
STOP AND START function (3/3)
The system is automatically reacti-
vated each time the vehicle is started
(see “Starting, stopping the engine” in
Section 2).
Operating faults
If warning light 2 lights up without press-
ing switch 1, the system is deactivated.
Please consult an authorised dealer.
Before getting out of the
vehicle, you must switch off
the ignition (please see sec-
tion on “Starting, stopping
the engine”).Note: With the engine on standby,
press switch 1 to automatically re-
start the engine.
Special feature of the automatic
engine re-start
Under certain conditions, the engine
can restart on its own in order to gua-
rantee your safety and comfort.
This can occur especially when:
– the outdoor temperature is too low or
too high (less than around 0 °C or
higher than around 30 °C);
– the battery is not sufficiently char-
ged;
– the vehicle speed is above 3 mph
(5 km/h) (downhill slope, etc.);
– repeated pressing on the brake
pedal or braking system require-
ment;
– ...
12

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.8
ENG_UD10826_1
Particularités des versions essence (X95 - J95 - R95 - Renault) ENG_NU_975-8_X92_Dacia_2

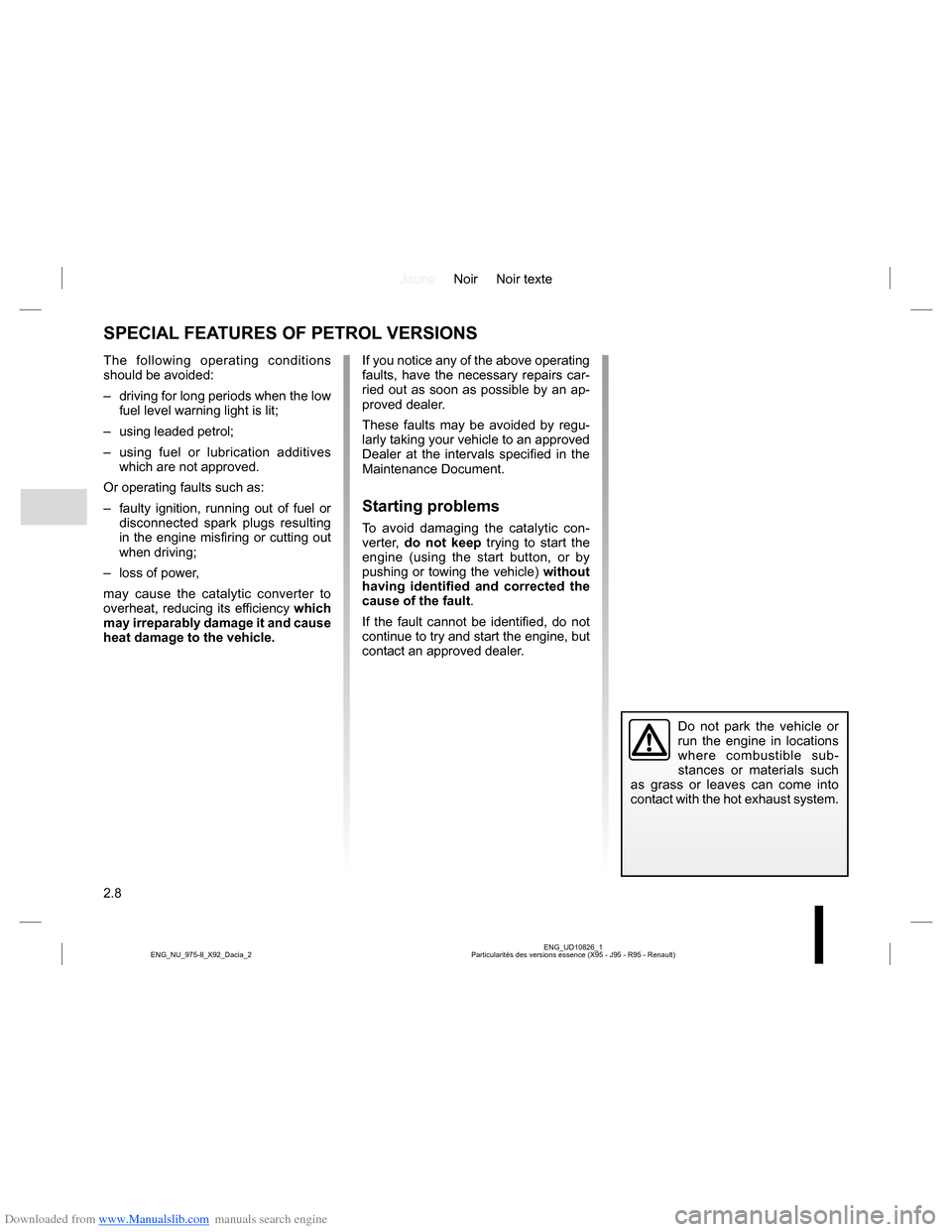

SPECIAL FEATURES OF PETROL VERSIONS
Do not park the vehicle or
run the engine in locations
where combustible sub-
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
The following operating conditions
should be avoided:
– driving for long periods when the low
fuel level warning light is lit;
– using leaded petrol;
– using fuel or lubrication additives
which are not approved.
Or operating faults such as:
– faulty ignition, running out of fuel or
disconnected spark plugs resulting
in the engine misfiring or cutting out
when driving;
– loss of power,
may cause the catalytic converter to
overheat, reducing its efficiency which
may irreparably damage it and cause
heat damage to the vehicle.If you notice any of the above operating
faults, have the necessary repairs car-
ried out as soon as possible by an ap-
proved dealer.
These faults may be avoided by regu-
larly taking your vehicle to an approved
Dealer at the intervals specified in the
Maintenance Document.
Starting problems
To avoid damaging the catalytic con-
verter, do not keep trying to start the
engine (using the start button, or by
pushing or towing the vehicle) without
having identified and corrected the
cause of the fault.
If the fault cannot be identified, do not
continue to try and start the engine, but
contact an approved dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.9
ENG_UD24431_1
Particularités des versions diesel (X92 - Renault) ENG_NU_975-8_X92_Dacia_2

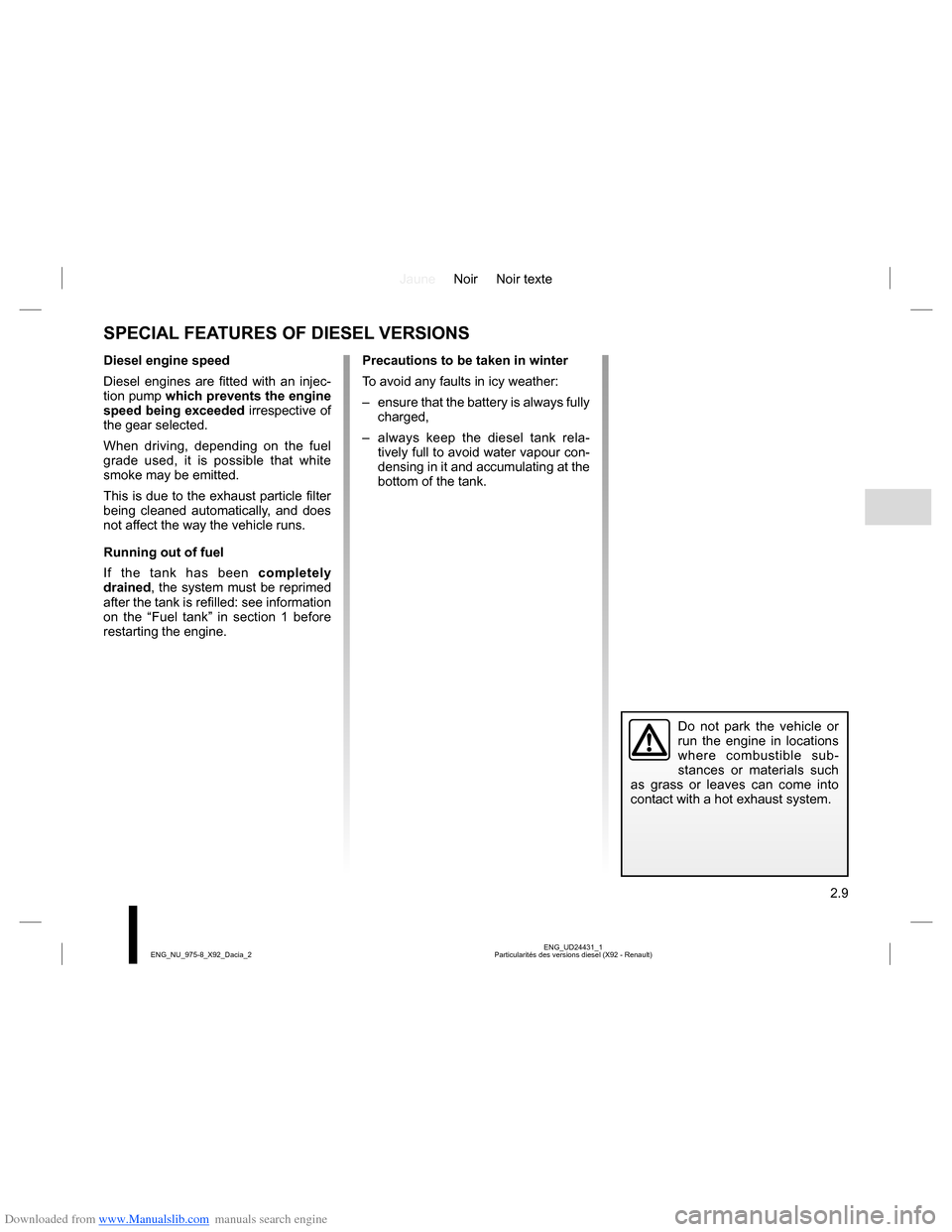

SPECIAL FEATURES OF DIESEL VERSIONS
Diesel engine speed
Diesel engines are fitted with an injec-
tion pump which prevents the engine
speed being exceeded irrespective of
the gear selected.
When driving, depending on the fuel
grade used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Running out of fuel
If the tank has been completely
drained, the system must be reprimed
after the tank is refilled: see information
on the “Fuel tank” in section 1 before
restarting the engine.Precautions to be taken in winter
To avoid any faults in icy weather:
– ensure that the battery is always fully
charged,
– always keep the diesel tank rela-
tively full to avoid water vapour con-
densing in it and accumulating at the
bottom of the tank.
Do not park the vehicle or
run the engine in locations
where combustible sub-
stances or materials such
as grass or leaves can come into
contact with a hot exhaust system.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.10
ENG_UD38217_2

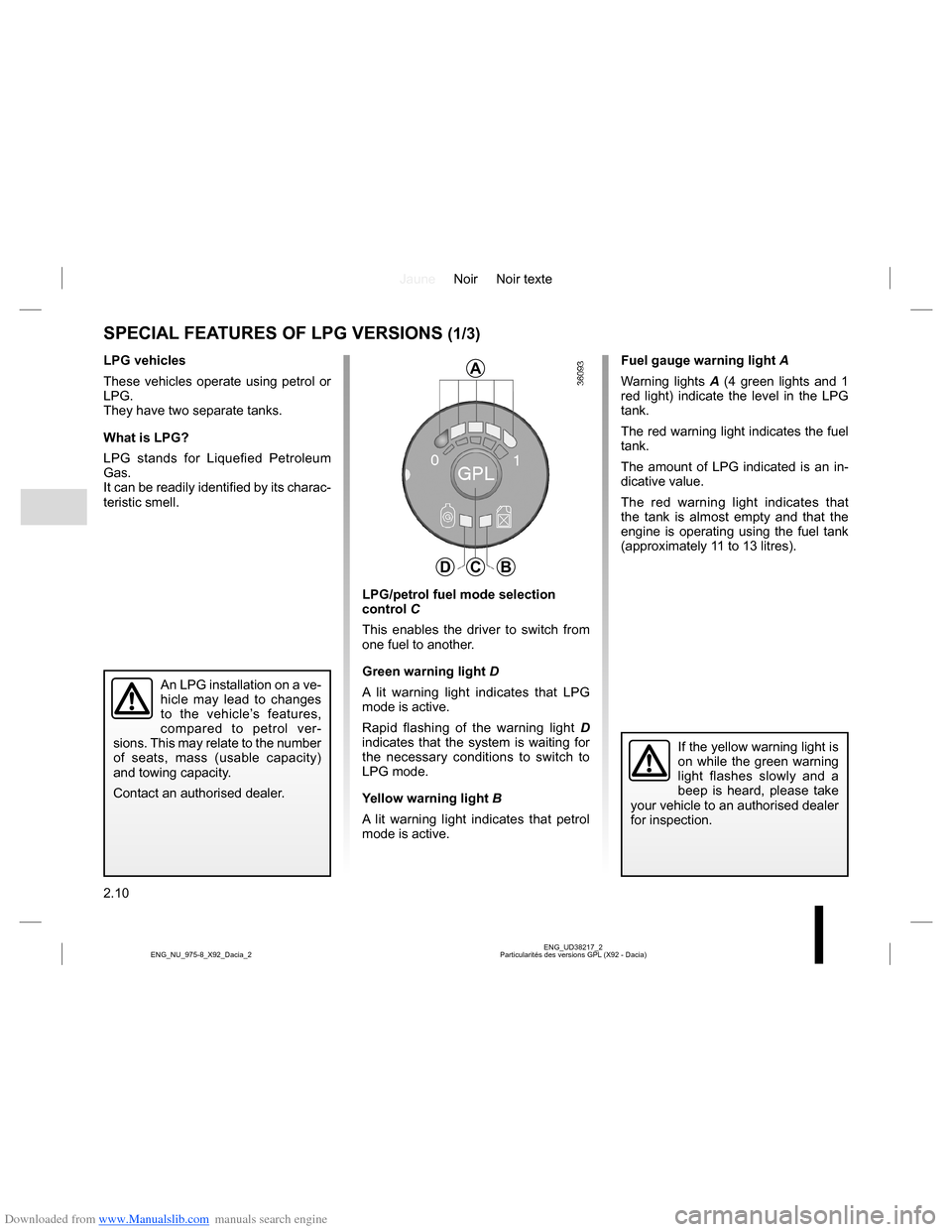

Particularités des versions GPL (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Fuel gauge warning light A
Warning lights A (4 green lights and 1
red light) indicate the level in the LPG
tank.
The red warning light indicates the fuel
tank.
The amount of LPG indicated is an in-
dicative value.
The red warning light indicates that
the tank is almost empty and that the
engine is operating using the fuel tank
(approximately 11 to 13 litres).
SPECIAL FEATURES OF LPG VERSIONS (1/3)
LPG vehicles
These vehicles operate using petrol or
LPG.
They have two separate tanks.
What is LPG?
LPG stands for Liquefied Petroleum
Gas.
It can be readily identified by its charac-
teristic smell.
An LPG installation on a ve-
hicle may lead to changes
to the vehicle’s features,
compared to petrol ver-
sions. This may relate to the number
of seats, mass (usable capacity)
and towing capacity.
Contact an authorised dealer.
LPG/petrol fuel mode selection
control C
This enables the driver to switch from
one fuel to another.
Green warning light D
A lit warning light indicates that LPG
mode is active.
Rapid flashing of the warning light D
indicates that the system is waiting for
the necessary conditions to switch to
LPG mode.
Yellow warning light B
A lit warning light indicates that petrol
mode is active.
If the yellow warning light is
on while the green warning
light flashes slowly and a
beep is heard, please take
your vehicle to an authorised dealer
for inspection.
A
DCB
