DACIA SANDERO STEPWAY 2016 2.G Owners Manual

lights:reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
Jaune NoirNoir texte
5.17
ENG_UD17929_4
Feux arrière : remplacement des lampes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Turn the bulb holder 9 a quarter of a
turn, release it and take out the bulb.
Bulb type: P 21 W.
REAR LIGHTS: changing bulbs (2/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
High-level brake light 7The bulb for the high-level brake light 7
may be accessed through the luggage
compartment.
Carefully unclip the bulb holder by
pressing on the tabs

8
. Number plate light 10
Release it using a flat-blade screw-
driver tool or similar.
Unclip the lens 11 from the bulb holder
to gain access to the bulb.
Bulb type: W 5 W.
7
89
11
10

5.18
ENG_UD17931_4
Répétiteurs latéraux : remplacement des lampes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Side indicator lights
INDICATOR LIGHTS: changing bulbs
Unclip the indicator light 1 (using a flat-
blade screwdriver or similar). T
urn bulb holder 2 a quarter of a turn
and take out the bulb.
Bulb type with white indicator light:
WY5W.
Bulb type with orange indicator
light: W5W.
1
2

changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.19
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Interior lights
INTERIOR LIGHTS: changing bulbs (1/3)
12
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Courtesy light
Unclip lens 1 using a flat-blade screw-
driver or similar.
Remove the bulb concerned .Remove the bulb concerned.
Bulb type
2: W5W.

5.20
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Jaune NoirNoir texte
INTERIOR LIGHTS: changing bulbs (2/3)
Press tab 4 to release lens 6 and
access bulb 5 .
Bulb type: W5W.
4
3
Glove box light(depending on vehicle)
Unclip light 3 using a flat-blade screw-
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light.
56

JauneNoirNoir texte
5.21
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
INTERIOR LIGHTS: changing bulbs (3/3)
Press tab 7 to release lens 9 and
access bulb 8 .
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
7
6
89
Luggage compartment light
Unclip light 6 using a flat-blade screw-
driver or similar, by pressing on the tab
to move the light towards the inside of
the luggage compartment.

fuses ..................................................... (up to the end of the DU)
advice on antipollution .......................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
5.22
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Jaune NoirNoir texte
Fuses
FUSES (1/3)
1
A
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap
A using notch 1 to help you.
Use the fuse allocation label on the
back of flap
A to identify the fuses.
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Tweezers 2
D isconnect the fuse using tweezers
2,
on the back of flap

A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question and replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit
B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
B2

JauneNoirNoir texte
5.23
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
FUSES (2/3)
Allocation of fuses(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
Symbol Allocation
nABS
îRadio
ßBrake lights
àAir conditioning
GFront fog lights
aInstrument panel
Injection
fWindscreen wiper
Symbol Allocation
]Central locking of doors
and tailgate
CRear screen de-icing
ÙNot used
ÌHorn
ôMain power supply
ñHeated seats
sHeated door mirrors
Symbol Allocation
ḽElectric front windows
ZInterior lighting
eElectric door mirror
àHeating
àNot used
ÅAir bag
PRight-hand main beam
headlight

5.24
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
FUSES (3/3)
Allocation of fuses
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
Symbol Allocation
QLeft-hand main beam
headlight
LLeft-hand dipped beam
headlight
TRight-hand dipped
beam headlight
VRight-hand side light
YLeft-hand side light
FRear fog light
ḼElectric rear windows
Symbol Allocation
qEngine immobiliser
ËReversing light
uPower-assisted steering
iAutomatic gearbox
GAS fuel

batterytroubleshooting ............................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
5.25
ENG_UD17938_1
Batterie : dépannage (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
Battery

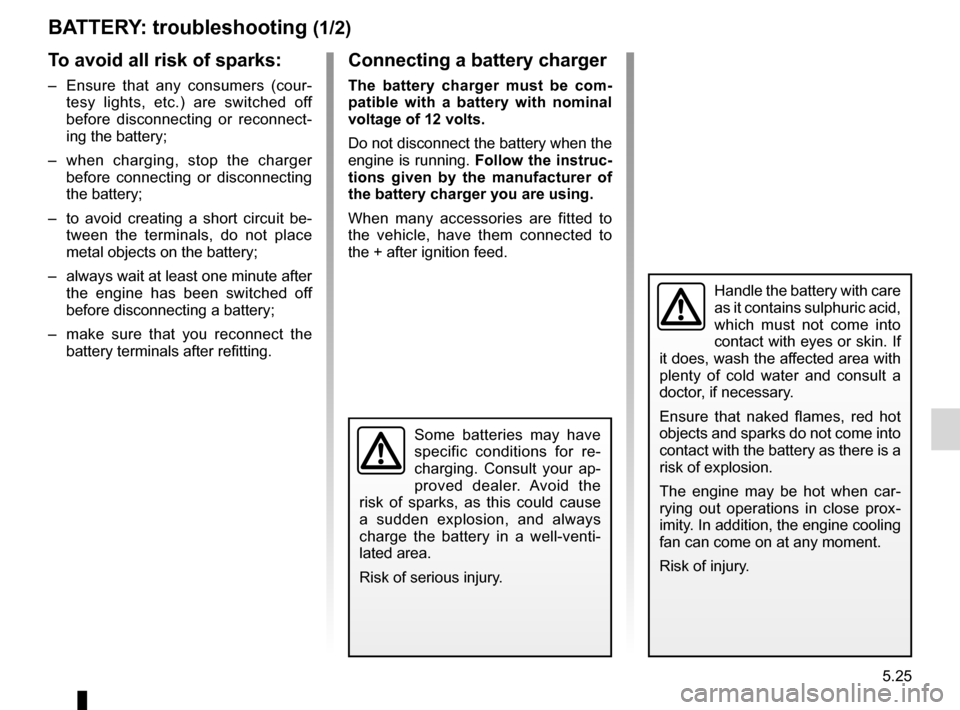

BATTERY: troubleshooting (1/2)
To avoid all risk of sparks:
– Ensure that any consumers (cour- tesy lights, etc.) are switched off
before disconnecting or reconnect-
ing the battery;
–

w
hen charging, stop the charger
before connecting or disconnecting
the battery;
–

t
o avoid creating a short circuit be-
tween the terminals, do not place
metal objects on the battery;
–

always
wait at least one minute after
the engine has been switched off
before disconnecting a battery;
–

m
ake sure that you reconnect the
battery terminals after refitting.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water and consult a
doctor, if necessary.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car-
rying out operations in close prox-
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Connecting a battery charger
The battery charger must be com-
patible with a battery with nominal
voltage of 12 volts.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
When many accessories are fitted to
the vehicle, have them connected to
the + after ignition feed.
Some batteries may have
specific conditions for re-
charging. Consult your ap-
proved dealer. Avoid the
risk of sparks, as this could cause
a sudden explosion, and always
charge the battery in a well-venti-
lated area.
Risk of serious injury.

5.26
ENG_UD17938_1
Batterie : dépannage (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5
BATTERY: troubleshooting (2/2)
Connect the positive (+) lead A to (+)
terminal 1
of the discharged battery,
then to (+) terminal
2 of the battery sup-
plying the current.
Connect the negative (–) lead
B

to (–)
terminal
3

of the battery supplying the
current and then to (–) terminal
4 of the
discharged battery.
Start the engine as normal. As soon as
it is running, disconnect leads
A and B
in the reverse order (4-3-2-1)
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed.
Check that there is no con-
tact between leads
A and B
and that the positive lead
A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of serious injury and/or damage
to the vehicle.
14
B
A2
3
