Page 151 of 174
JauneNoirNoir texte
5.37
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-10_B90_Dacia_5
OPERATING FAULTS (4/5)
On the road POSSIBLE CAUSES WHAT TO DO
Whistling Roof aerial poorly positioned. Position the aerial.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and
check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change. Reset the warning after changing the oil;
refer to the information on “Resetting the
warning after an oil change” in Section 4.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.
Page 152 of 174
5.38
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-10_B90_Dacia_5
OPERATING FAULTS (5/5)
Electrical equipment POSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly. Bulb blown.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved dealer
Traces of condensation in the lights. This is not a fault. Traces of condensa- tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.
Page 153 of 174
6.1
ENG_UD26898_12
Sommaire 6 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4
Dimensions
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
W
eights/Towing weights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6
Replacement parts and repairs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7
Service sheets
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.8
Anti-corrosion check
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.14
Page 154 of 174
technical specifications ......................... (up to the end of the DU)
vehicle identification ............................. (up to the end of the DU)
paintwork reference .......................................................... (current page)
vehicle identification plates ................... (up to the end of the DU)
6.2
ENG_UD26578_7
Plaques identification (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Jaune NoirNoir texte
Vehicle identification plates
Quote the details given on identifica-
tion plate A on all letters or orders.
The presence and location of the in-
formation depends on the vehicle.
Vehicle identification plate
A
1
V
ehicle type and chassis number.
2
M
A M ( M a x i m u m A u t h o r i s e d
Mass).
3
GTW
(Gross train weight = vehicle
fully loaded, with trailer).
4
M
PAW (Maximum permissible
all-up weight) front axle.
5
M
aximum permissible weight on
rear axle.
6
T
echnical specifications of vehicle. 7 V ehicle paint reference. 8
Equipment l evel.
9
V
ehicle type.
10
T
rim code.
1
1
A
dditional equipment specifica-
tion.
12
Fabrication
number.
13
Interior trim code.
A
6
7
8
9
10
11
12
13
XXXXX
xxx1
2
3
4
5
A
VEHICLE IDENTIFICATION PLATES
Page 155 of 174
JauneNoirNoir texte
6.3
ENG_UD26578_7
Plaques identification (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6

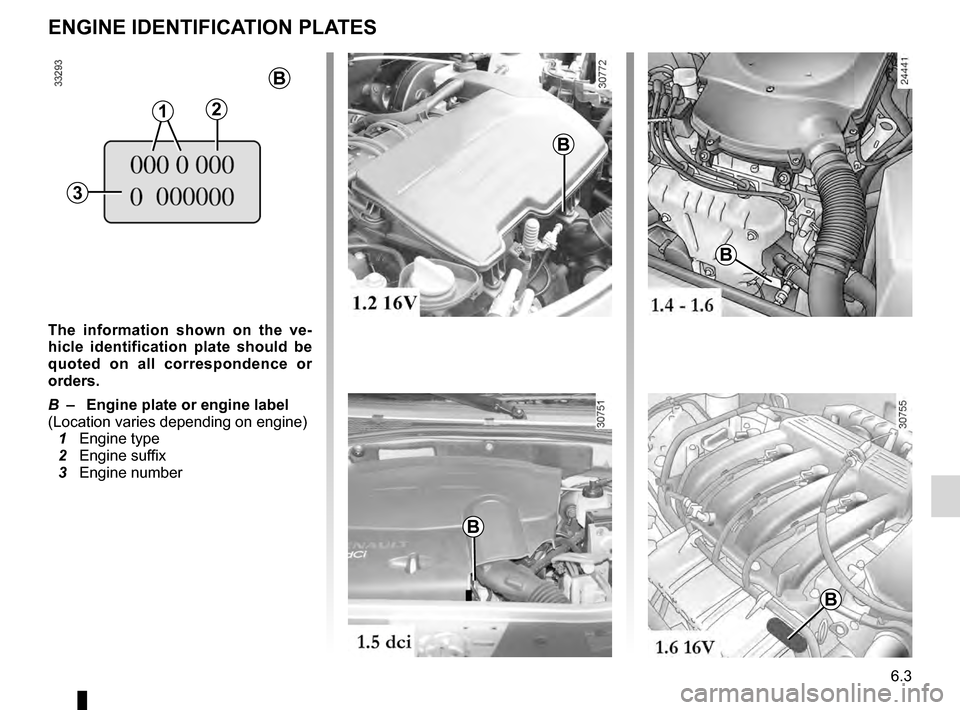

ENGINE IDENTIFICATION PLATES
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
B
–
Engine pla
te or engine label
(Location varies depending on engine)
1
Engine type 2
Engine suf
fix
3
Engine num
ber
B
B
B
B
B
3
21
Page 156 of 174
engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD18029_4
Caractéristiques moteur (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Engine specifications
ENGINE SPECIFICATIONS
Versions 1.2 16V1.41.61.6 16V 1.5 dCi
Engine type
(see engine plate) D4F
K7JK7M K4M K9K Turbo
Cubic capacity (cc) 1,1491,390 1,5981,461
Type of fuel
Octane rating It is
essential that you use unleaded petrol of the octane rating stated on
the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
–
with an octane rating of 91 for a label with the ratings 95 or 98
;
–
with an octane rating of 87 for a label showing 91, 95 or 98. Diesel.
The label
located in the fuel filler flap
indicates the
authorised fuels.
Spark plugs Only use the spark plugs specified for your vehicle’
s engine.
The type should be marked on a label affixed inside the engine compart-
ment. If it is not, contact an approved dealer.
Fitting spark plugs which are not to specification may damage the engine.
Page 157 of 174
technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD22590_5
Dimensions (en mètres) (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Dimensions
1.470 - 1.483
1.480 - 1.494
1.746 - 1.753
0.781
0.785 2.589
2.5880.650
0.651
4.020 - 4.024
(*) Unladen
DIMENSIONS (in metres)
1.534(*)
1.546(*)
Page 158 of 174
technical specifications ......................... (up to the end of the DU)
weight ................................................... (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
6.6
ENG_UD26579_7
Masses (en kg) (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Weights/Towing weights
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Consult your approved Dealer.
Maximum permissible all-up weight (MMAC)
Maximum permissible all-up weight (MMTA)
Total train weight (MTR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* obtained by calculating: MTR - MMAC
Unbraked Trailer Weight* 525
Permissible nose weight* 60
Maximum permissible load on roof 80
kg (including carrying device)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the identification plate.
–
It
is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
–
When
towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
–
the Maximum permissible wei
ght at the rear may be exceeded by no more than 15%,
–
the maximum permissible all-
up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In
either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must
be increased by 0.2 bar (3 PSI).
–
The
engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer on (except utility version) depending on local laws
If the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be transferred to the braked trailer,
within the limits of the Gross Train Weight.
Page 159 of 174
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD18209_6
Pièces de rechange et réparations (B90 - U90 - L90 Ph2 - F90 Ph2 \
- R90 Ph2 - H79 - Dacia)
ENG_NU_817-10_B90_Dacia_6
Replacement parts and repairs
SPARE PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
Page 160 of 174
6.8
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - \
X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L4\
7 - X33 - X47 - X43 - X38 - H79
ENG_NU_817-10_B90_Dacia_6
Jaune NoirNoir texte

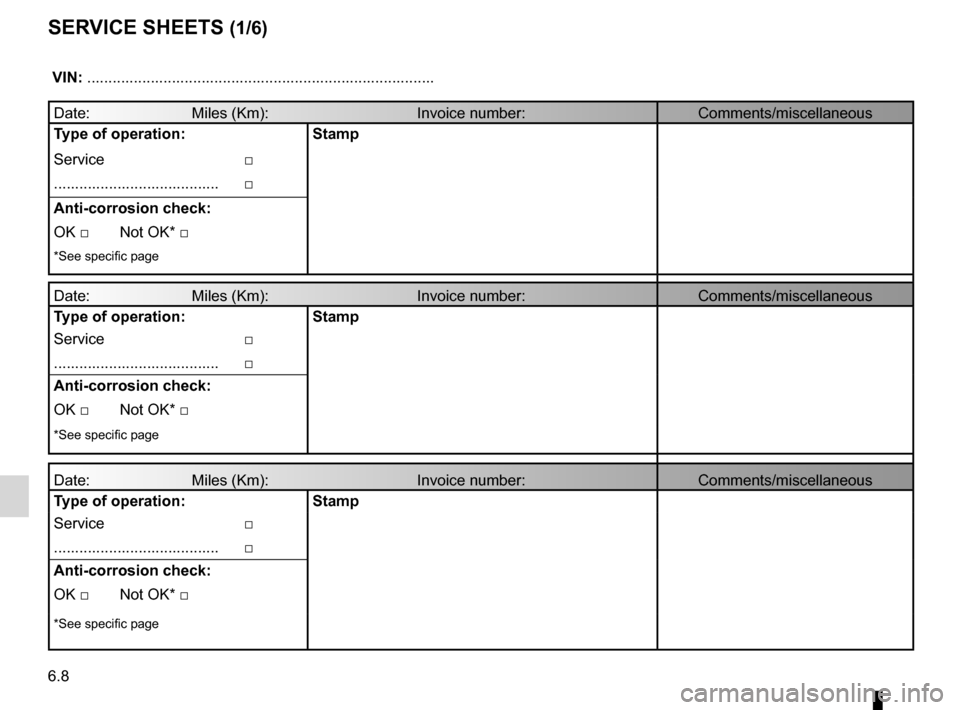

Service sheets
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
VIN: .......................................................................\
...........
SERVICE SHEETS (1/6)
