ELECTRICAL WIRING DIAGRAMSW5–21
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

5–22WELECTRICAL WIRING DIAGRAMS
3. ECM (ENGINE CONTROL MODULE) : HV – 240
1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM & CKP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G104EngineUnder Start Motor
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P008

ELECTRICAL WIRING DIAGRAMSW5–23
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S101

5–24WELECTRICAL WIRING DIAGRAMS

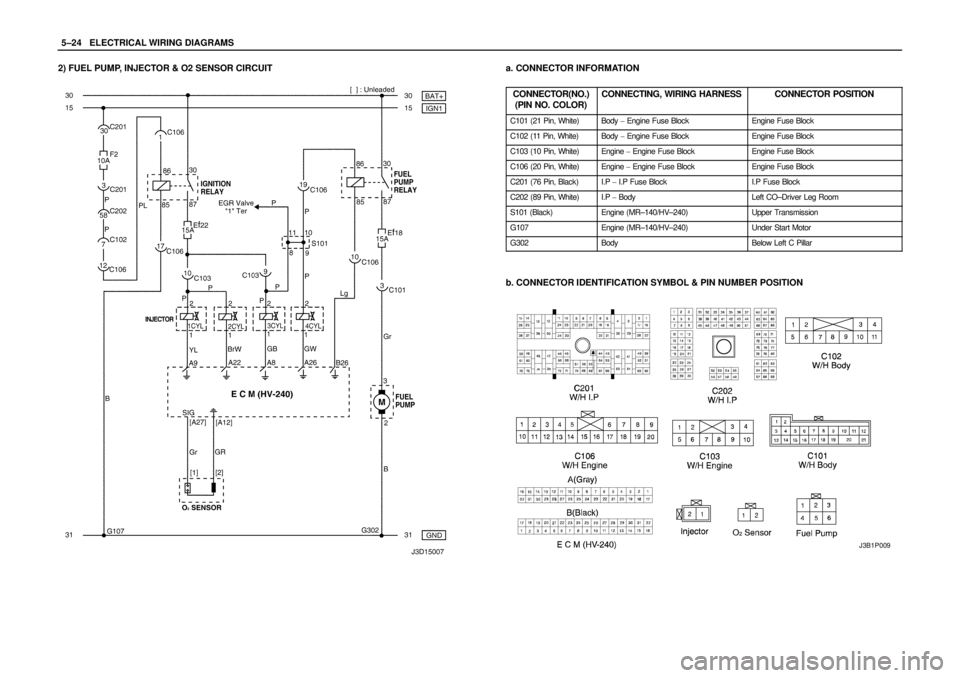

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G107Engine (MR–140/HV–240)Under Start Motor
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P009

ELECTRICAL WIRING DIAGRAMSW5–25
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
d. SPLICE PACK
S101

5–26WELECTRICAL WIRING DIAGRAMS

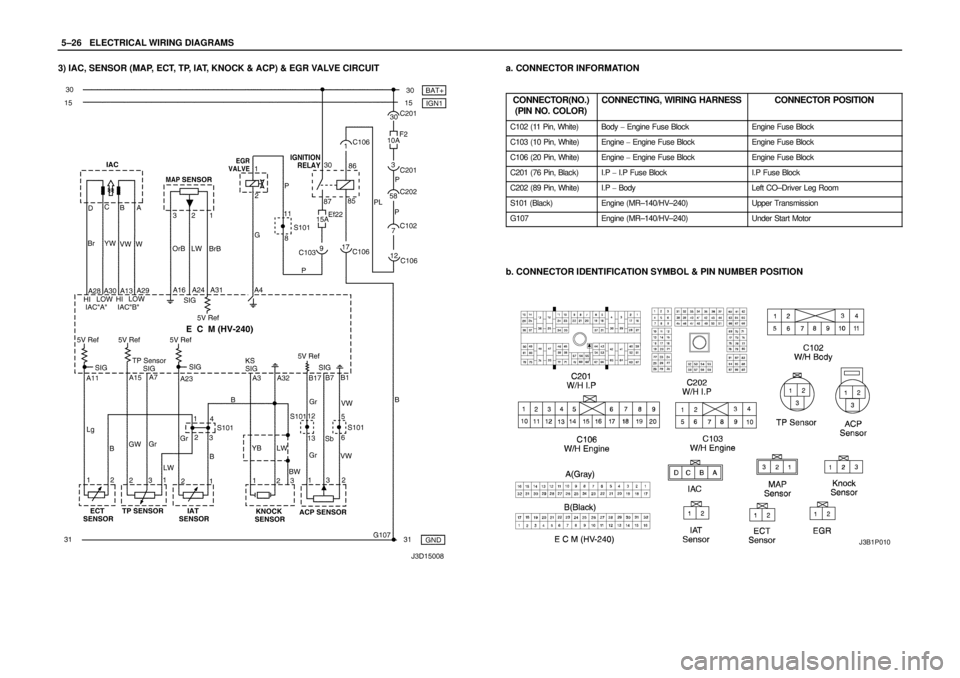

3) IAC, SENSOR (MAP, ECT, TP, IAT, KNOCK & ACP) & EGR VALVE CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P010

ELECTRICAL WIRING DIAGRAMSW5–27
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
d. SPLICE PACK
S101

5–28WELECTRICAL WIRING DIAGRAMS

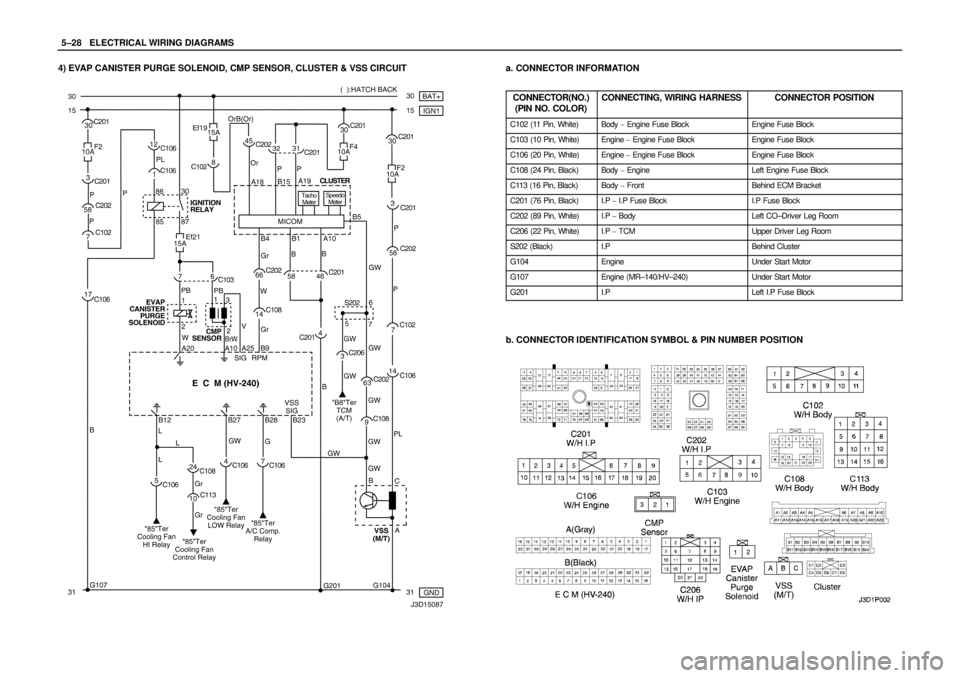

4) EVAP CANISTER PURGE SOLENOID, CMP SENSOR, CLUSTER & VSS CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
G104EngineUnder Start Motor
G107Engine (MR–140/HV–240)Under Start Motor
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–29
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S202

5–30WELECTRICAL WIRING DIAGRAMS

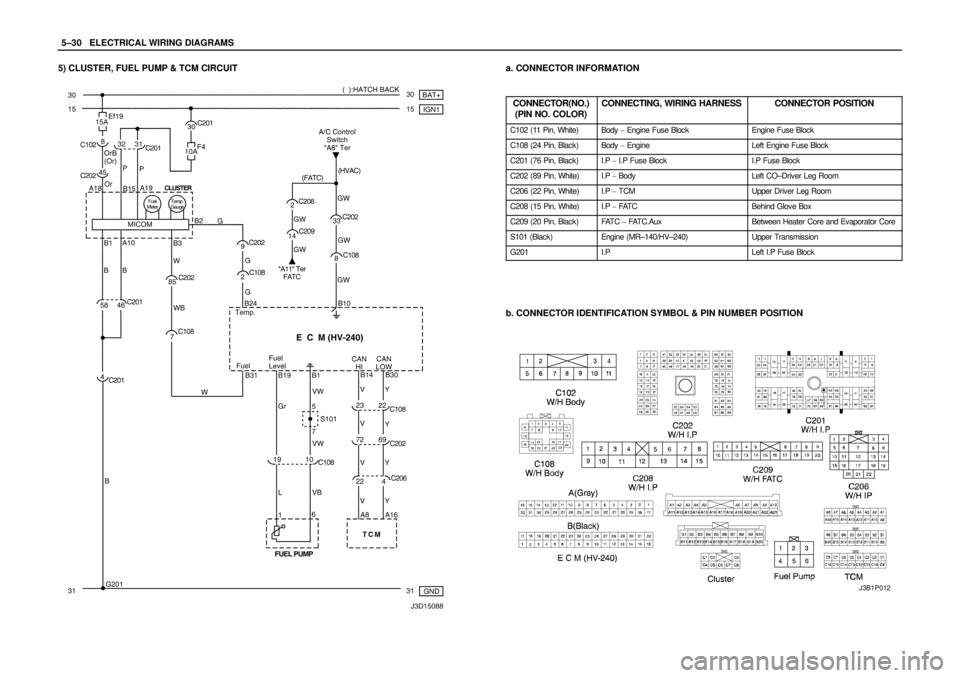

5) CLUSTER, FUEL PUMP & TCM CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P012
