DAEWOO LACETTI 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–11
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ECT Sensor ”2” Ter
TP Sensor ”1” Ter
Knock Sensor ”2” TerIAT Sensor ”1” TerLEGR ”2” Ter ECM ”M48” Ter
ECM ”M51” Ter ECM ”M35” Ter ECM ”M64” TerMAP Sensor ”3” Ter
ECM ”M1” Ter B
B
B
B
GW GW
GWOrB
OrB
OrB
EI System ”3” Ter
EI System ”1” TerSb Sb Sb
ECM ”M33” Ter
J3B1S001

5–12WELECTRICAL WIRING DIAGRAMS
2) FUEL PUMP, INJECTOR & HEATED O2 SENSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C109 (4 Pin, White)Engine
FrontUnder Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G107Engine (MR–140/HV–240)Under Start Motor
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P003

ELECTRICAL WIRING DIAGRAMSW5–13
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

5–14WELECTRICAL WIRING DIAGRAMS
3) IAC, SENSOR (MAP, ECT, TP, IAT, KNOCK, ACP & ROUGH ROAD) & LEGR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P004
LEGR

ELECTRICAL WIRING DIAGRAMSW5–15
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
d. SPLICE PACK
S101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ECT Sensor ”2” Ter
TP Sensor ”1” Ter
Knock Sensor ”2” TerIAT Sensor ”1” TerLEGR ”2” Ter ECM ”M48” Ter
ECM ”M51” Ter ECM ”M35” Ter ECM ”M64” TerMAP Sensor ”3” Ter
ECM ”M1” Ter B
B
B
B
GW GW
GWOrB
OrB
OrB
EI System ”3” Ter
EI System ”1” TerSb Sb Sb
ECM ”M33” Ter
J3B1S001

5–16WELECTRICAL WIRING DIAGRAMS
4) EVAP CANISTER PURGE SOLENOID, CMP SENSOR, CLUSTER & VSS CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
G104EngineUnder Start Motor
G107Engine (MR–140/HV–240)Under Start Motor
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–17
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S202

5–18WELECTRICAL WIRING DIAGRAMS

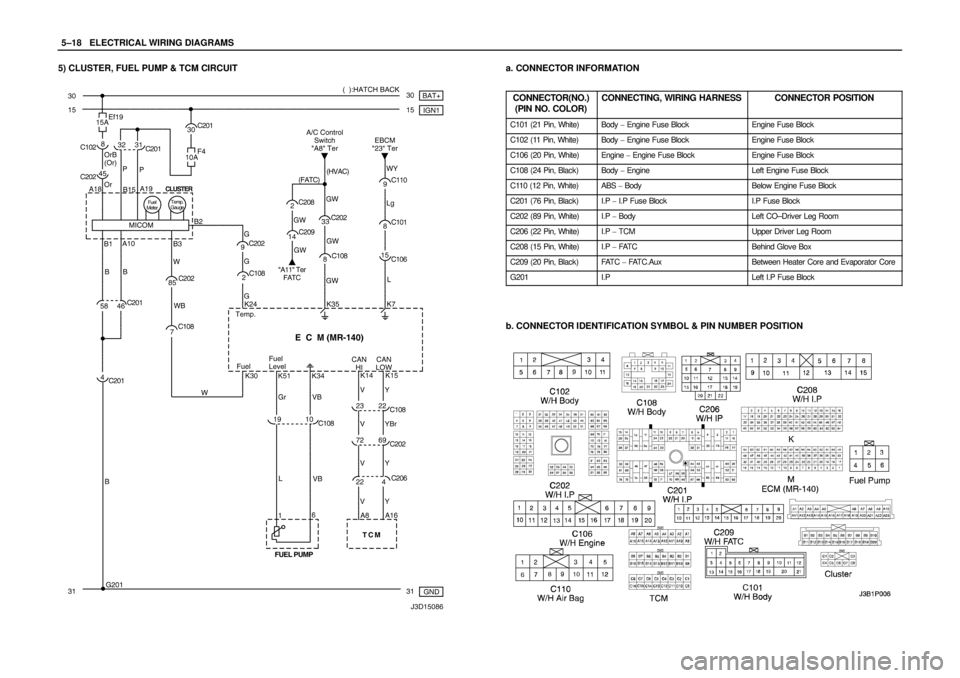

5) CLUSTER, FUEL PUMP & TCM CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–19
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H TCM

5–20WELECTRICAL WIRING DIAGRAMS

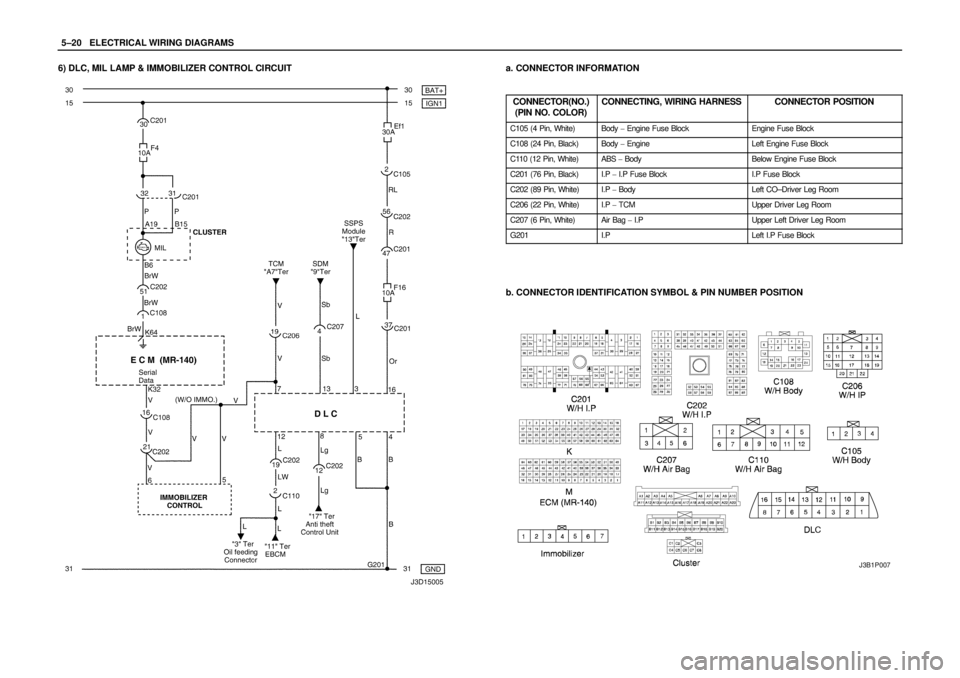

6) DLC, MIL LAMP & IMMOBILIZER CONTROL CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C207 (6 Pin, White)Air Bag
I.PUpper Left Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P007
