ELECTRICAL WIRING DIAGRAMSW5–51
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TCM
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S205
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TCM ”B15” TerC206 ”11” TerTCM ”B6” Ter
PNP S/W ”3” Ter
C206 ”2” Ter
PNP S/W ”5” Ter
BW BW BW BW
PNP S/W ”4” Ter
LgB
LgB
LgB
PNP S/W ”10” Ter
TCM ”B13” Ter
TCM ”B12” Ter
C206 ”6” Ter RL
RL
RL
PNP S/W ”2” Ter
PNP S/W ”1” Ter
C206 ”12” Ter
TCM ”C15” Ter
TCM ”C16” Ter
P P P P LgRLgR LgRLRLR LR
TCM ”B11” Ter
C206 ”7” Ter C206 ”16” Ter
TCM ”C1” Ter
J3B1S007

5–52WELECTRICAL WIRING DIAGRAMS
2) SENSOR (INPUT SPEED, OUTPUT SPEED & TRANSMISSION FLUID TEMP.), CLUSTER, DLC,
ECM & HOLD MODE SWITCH CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C210 (6 Pin, White)I.P
ConsoleBelow Console Box
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–53
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TCM
d. SPLICE PACK
S202
S203
S204

5–54WELECTRICAL WIRING DIAGRAMS

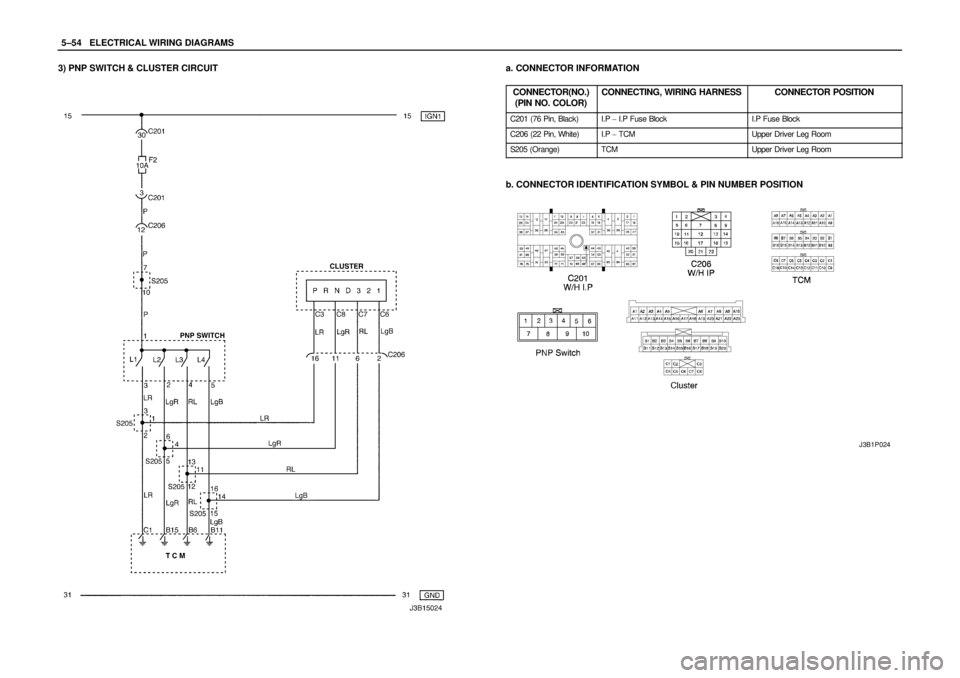

3) PNP SWITCH & CLUSTER CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S205 (Orange)TCMUpper Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P024

ELECTRICAL WIRING DIAGRAMSW5–55
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TCM
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S205
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TCM ”B15” TerC206 ”11” TerTCM ”B6” Ter
PNP S/W ”3” Ter
C206 ”2” Ter
PNP S/W ”5” Ter
BW BW BW BW
PNP S/W ”4” Ter
LgB
LgB
LgB
PNP S/W ”10” Ter
TCM ”B13” Ter
TCM ”B12” Ter
C206 ”6” Ter RL
RL
RL
PNP S/W ”2” Ter
PNP S/W ”1” Ter
C206 ”12” Ter
TCM ”C15” Ter
TCM ”C16” Ter
P P P P LgRLgR LgRLRLR LR
TCM ”B11” Ter
C206 ”7” Ter C206 ”16” Ter
TCM ”C1” Ter
J3B1S007

5–56WELECTRICAL WIRING DIAGRAMS

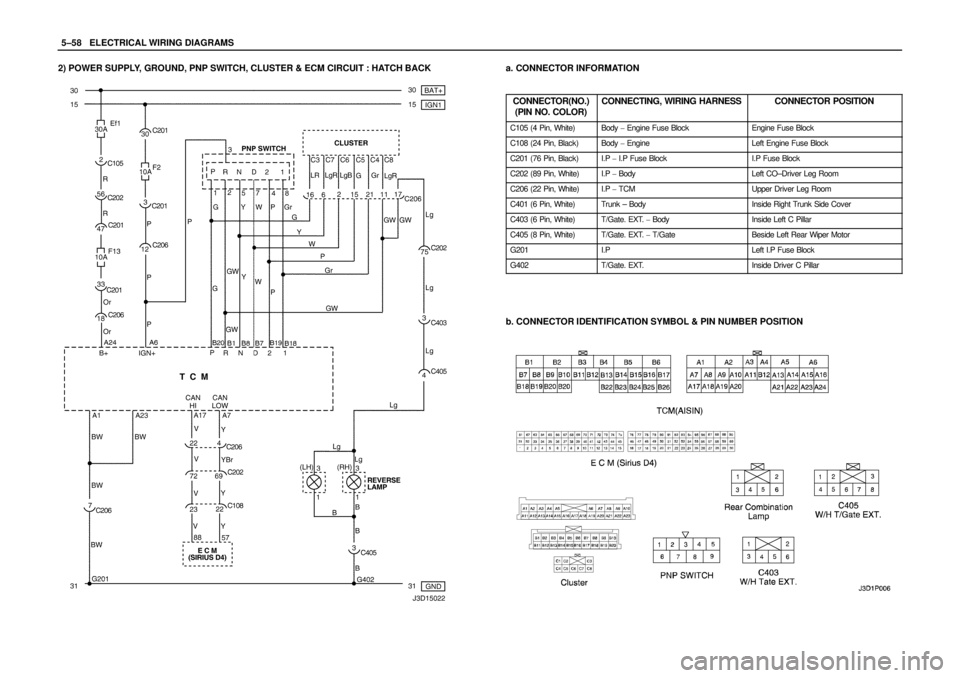

6. TCM (TRANSMISSION CONTROL MODULE) : SIRIUS D4

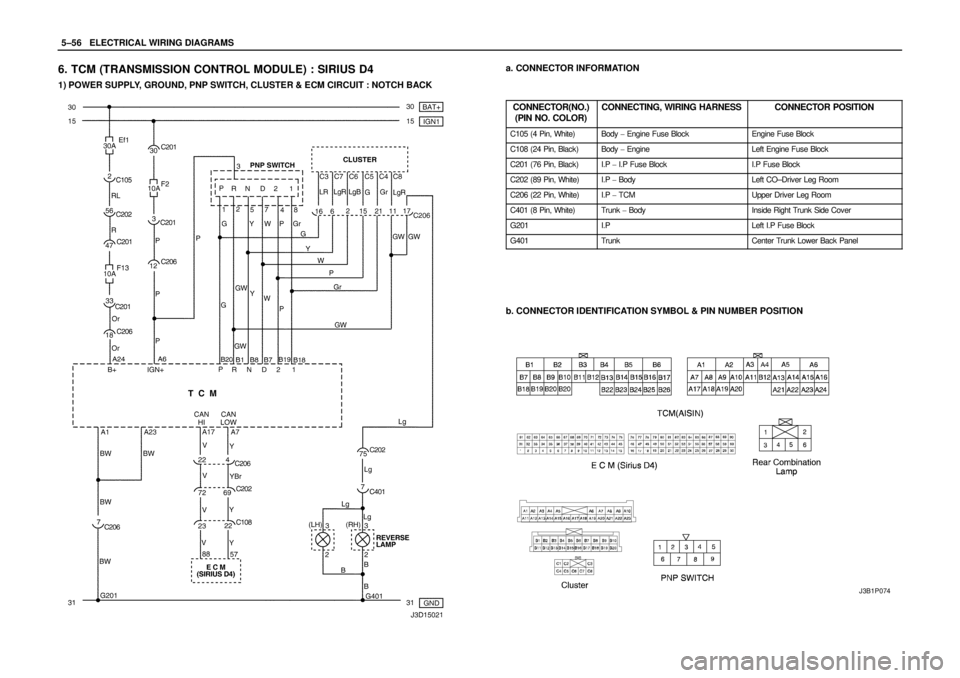

1) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
G201I.PLeft I.P Fuse Block
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P074

ELECTRICAL WIRING DIAGRAMSW5–57
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TCM
S W/H INSTRUMENT PANEL

5–58WELECTRICAL WIRING DIAGRAMS
2) POWER SUPPLY, GROUND, PNP SWITCH, CLUSTER & ECM CIRCUIT : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G201I.PLeft I.P Fuse Block
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–59
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TCM
S W/H INSTRUMENT PANEL

5–60WELECTRICAL WIRING DIAGRAMS

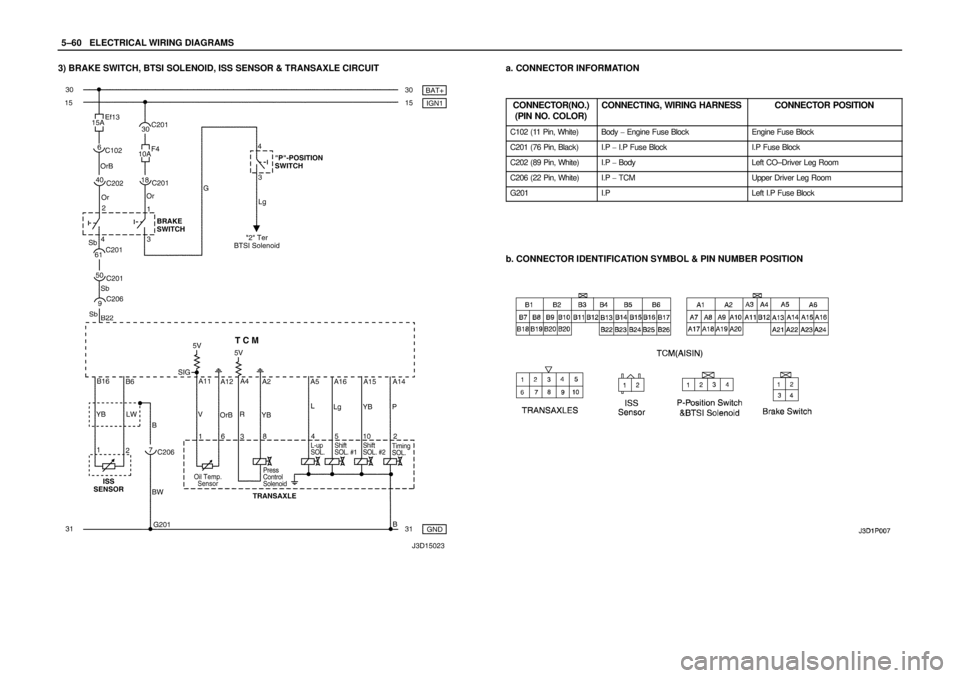

3) BRAKE SWITCH, BTSI SOLENOID, ISS SENSOR & TRANSAXLE CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
