Page 81 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1C1 – 38I1.4L/1.6L DOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
OIL PAN
Removal Procedure
1.  Disconnect the negative battery cable.
2.  Drain the Engine oil from the engine crankcase.
3.  Remove the c

Page 82 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1.4L/1.6L DOHC ENGINE MECHANICAL  1C1 – 39
DAEWOO V–121 BL4
Cleaning Procedure
1.  Clean the oil pan sealing surface.
2.  Clean the engine block sealing surface.
3.  Clean the oil pan retaining bo

Page 83 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1C1 – 40I1.4L/1.6L DOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
OIL PUMP
Tools Required
KM–498–B Pressure Gauge
KM–135 Adapter
Engine Oil Pressure Inspection Procedure
1.  Remove the right front

Page 84 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1.4L/1.6L DOHC ENGINE MECHANICAL  1C1 – 41
DAEWOO V–121 BL4
6.  Remove the oil pan. Refer to ”Oil Pan”  in this sec-
tion.
7.  Remove the oil suction pipe and support bracket
bolts.
8.  Remove

Page 85 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1C1 – 42I1.4L/1.6L DOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
7.  Clean the oil pump housing and all the oil pump
parts.
8.  Inspect all the oil pump parts for signs of wear. Re-
fer to ”Engine Spe

Page 86 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1.4L/1.6L DOHC ENGINE MECHANICAL  1C1 – 43
DAEWOO V–121 BL4
4.  Coat the threads of the oil suction pipe and support
bracket bolts with Loctite® 242.
5.  Install the oil suction pipe and bolts.
T

Page 87 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1C1 – 44I1.4L/1.6L DOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
5.  Remove the engine mount attaching bolts/nuts.
6.  Remove the engine mount.
Installation  Procedure
1.  Install the engine mount.
2.

Page 88 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1.4L/1.6L DOHC ENGINE MECHANICAL  1C1 – 45
DAEWOO V–121 BL4
CAMSHAFT GEARS
Removal Procedure
1.  Disconnect the negative battery cable.
2.  Remove the engine cover.
3.  Remove the timing belt. Ref

Page 89 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1C1 – 46I1.4L/1.6L DOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
3.  Install the exhaust camshaft gear.
4.  While holding the exhaust camshaft firmly in place,
install the exhaust camshaft gear bolt.
Ti

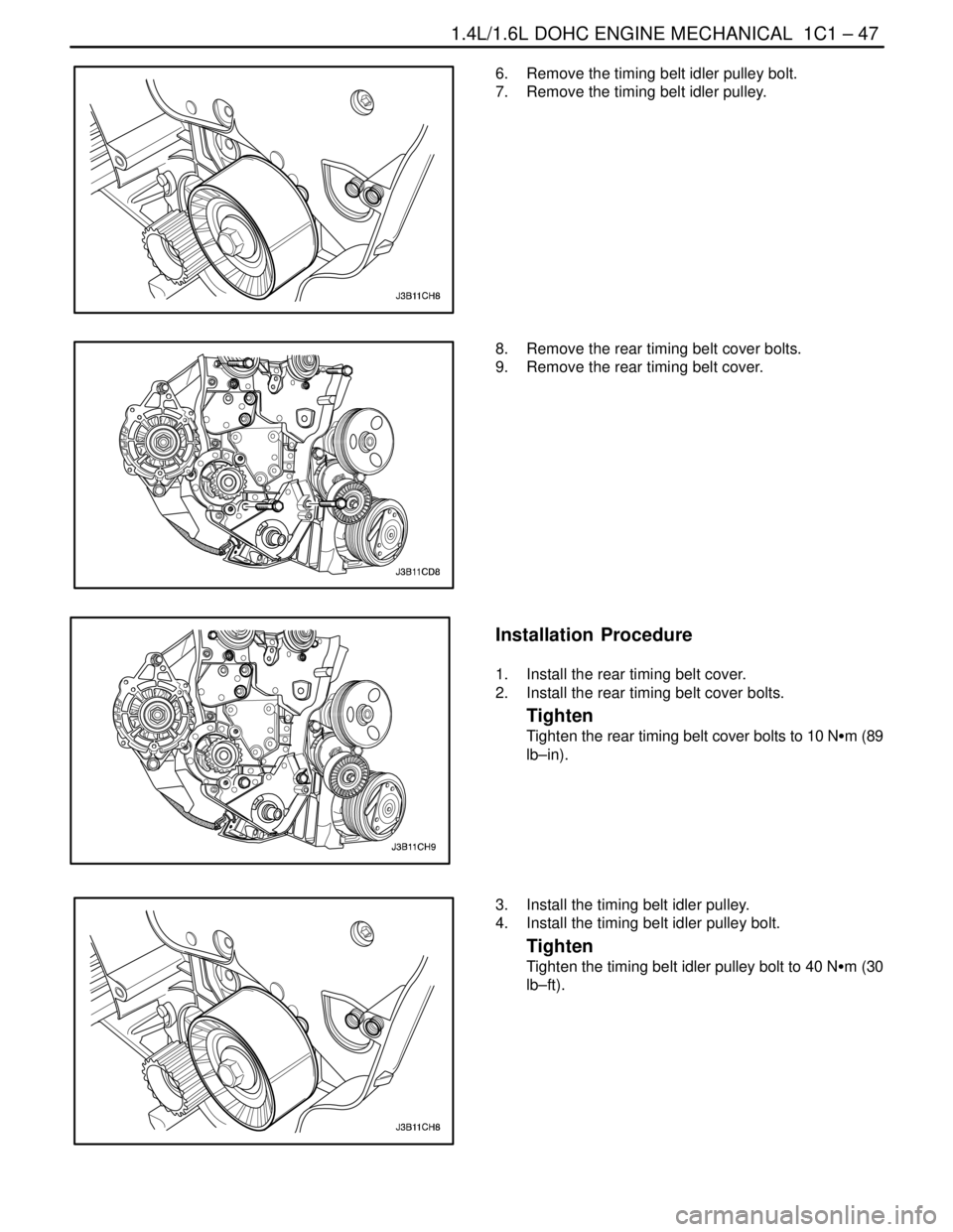

Page 90 of 2643

DAEWOO LACETTI 2004  Service Manual Online 1.4L/1.6L DOHC ENGINE MECHANICAL  1C1 – 47
DAEWOO V–121 BL4
6.  Remove the timing belt idler pulley bolt.
7.  Remove the timing belt idler pulley.
8.  Remove the rear timing belt cover bolts.
9.
