ENGINE CONTROLS 1F–133
DAEWOO M-150 BL2
The injector resistance tested at the ECM connection is
slightly more than it tested directly at the injector be-cause it includes resistance of the harness wires. The
normal value is about 13.5Ω.
DTC P0268 – Injector 3 High Voltage
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Is the system check complete?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
With the engine start?
–
Go to Step 3
Go to
“Engine Crank
but will not
Run”
3
1. Install a scan tool and clear the Diagnostic
Trouble Codes (DTCs).
2. Idle the engine for one minuet.
Does DTC P0268 reset?
–
Go to Step 5Go to Step 4
4
1. Review the Freeze Frame data with the ignition
ON and the engine OFF and note the
parameters.
2. Operate the vehicle within the Freeze Frame
conditions as notes.
Does DTC P0268 reset?
–
Go to Step 5
Go to
“Diagnostic
Aids”
5
1. Turn the ignition switch to Lock.
2. Check for an open or short to battery voltage in
the wire between the injector 3 connector terminal
1 and ECM connector terminal 89.
Is the problem found?
–
Go to Step 7Go to Step 6
6
1. Turn the ignition switch to Lock.
2. Check for short to battery voltage in the wire
between the injector 3 connector terminal 2 and
battery positive.
Is the problem found?
–
Go to Step 7Go to Step 8
7
1. Repair the wire or the connector terminal as
needed.
2. Clear any DTCs from ECM.
3. Perform the Diagnostic System Check.
Is the repair complete?
–
System OK
–
8
1. Replace the injector valve.
2. Clear any DTCs from ECM.
3. Perform the Diagnostic System Check.
Does DTC P0268 reset?
–
Go to Step 9System OK
9
1. Turn the ignition switch to LOCK.
2. Replace the ECM.
3. Perform the Diagnostic System Check.
Is the repair complete?
–
Go to Step 10
–
10
Check if any additional DTCs are set.
Are any DTCs displaced that have not been
diagnosed?
–
Go to
applicable DTC
table
System OK
Page 232 of 1184
1F–134 ENGINE CONTROLS
DAEWOO M-150 BL2
MAA1F160
Page 233 of 1184
ENGINE CONTROLS 1F–135
DAEWOO M-150 BL2
DIAGNOSTIC TROUBLE CODE (DTC) – P0300 MULTIPLE CYLINDER MISFIRE
System Description
The Engine Control Module (ECM) monitors the crank-
shaft and camshaft positions to detect if the engine is
misfiring. The ECM looks for a quick drop in crankshaft
speed. This test is executed in blocks of 100 engine rev-
olution tests. It may take between one to several tests to
store a Diagnostic Trouble Code (DTC) and illuminate
the Malfunction Indicator Lamp (MIL). Under light misfire
conditions, it may also take more than one trip to set a
DTC. Severe misfire will flash the MIL, indicating that
catalyst damage is possible.
Conditions for Setting the DTC
Emission threshold is 3.0% for manual transaxle.
20 engine cycles have occurred since cranking has
started.
A/C compressor clutch has not just engaged or disen-
gaged.
Engine load and engine speed are in a detectable re-
gion and are at or above zero torque.
Camshaft Position (CMP) sensor is in synchroniza-
tion.
Electric Exhaust Gas Recirculation (EEGR) flow
diagnostic is not in progress.
Fuel level is greater than or equal to 20% of rated
tank capacity.
Decel Fuel Cutoff (DFCO) not active.
Fuel is not shutoff from high engine speed of 6500
rpm for manual transaxle vehicle.
Fuel is not shutoff at 255 km/h (158 mph).
Throttle position change is less than 3% per 125 ms.
Vehicle has not encountered an abusive engine
speed of 7000 rpm.Crankshaft speed patters are normal.
Throttle position is less than 4% when vehicle speed
is greater than 10 km/h (6 mph).
Engine speed is between 800 and 4500 rpm.
Vehicle voltage is between 11 and 16 volts.
Engine Coolant Temperature (ECT) is between –7°C
(20°F) and 120°C (248°F).
The engine speed is less than or equal to 1800 rpm or
the crank angle sensing error has not been learned.
There is the correct ratio between Crankshaft Posi-
tion (CKP) sensor pulses and CMP sensor pulses.
DTCs P0106, P0107, P0108, P0117, P0118, P0122,
P0123, P0320, P0337, P0341, P0342 and P0502 are
not set.
Action Taken when the DTC Sets
The malfunction Indicator Lamp (MIL) will blinking.
The ECM will record operating conditions at the time
the diagnostic fails. The information will be stored in
the Freeze Frame and failure records buffers.
A history DTC is stored.
Conditions for Clearing the MIL/DTC
A history DTC will clear after 40 consecutive warm up
cycles without a fault.
DTC(s) can be cleared by using the scan tool.
Diagnostic Aids
An intermittent can also be the result of a defective re-
luctor wheel. Remove the CKP sensor and inspect the
reluctor wheel through the sensor mount hole. Check for
porosity and the condition of wheel. If the DTC is inter-
mittent refer to “Symptoms Diagnosis” in this section.
DTC P0300 – Multiple Cylinder Misfire
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Was the check performed?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
1. Install a scan tool to the Data Link Connector
(DLC).
2. Turn the ignition ON, with the engine OFF.
3. Request Diagnostic Trouble Codes (DTCs)
Are DTCs P0201, P0202, P0203, P0204 set?
–Go to
Applicable DTC
table
Go to Step 3
3
Perform a visual/physical inspection.
Make any repairs that are necessary.
Is the repair complete?–
Go to Step 27Go to Step 4
4Start the engine and allow it to idle.
Are any Misfire Current counters incrementing?–
Go to Step 5Go to Step 6
5Are all counters equal (within a percentage of each
other)?–Go to Step 7Go to Step 11
Page 234 of 1184
1F–136 ENGINE CONTROLS
DAEWOO M-150 BL2
DTC P0300 – Multiple Cylinder Misfire (Cont’d)
StepActionValue(s)YesNo
6
1. Turn the ignition ON, with the engine OFF.
2. Review the Freeze Frame data, and note the
parameters.
3. Operate the vehicle within the Freeze Frame
conditions and conditions for setting this DTC as
noted.
Are any Misfire Current counters incrementing?
–
Go to Step 5
Go to
“Diagnostic
Aids”
7
1. Turn the engine OFF.
2. Install a fuel pressure gauge to the fuel rail.
3. Observe the fuel pressure with the engine
running.
Is the fuel pressure within the specified value?
284–325 kPa
(41–47 psi)Go to Step 8
Go to
“Fuel System
Diagnosis”
8Check the fuel for contamination.
Is the fuel OK?–Go to Step 9Go to Step 10
9
Check for a basic engine problem and repair as
necessary.
Is the repair complete?
–
Go to Step 27
–
10Replace the contaminated fuel.
Is the repair complete?–Go to Step 27–
11
1. Turn the engine OFF.
2. Disconnect the fuel injector harness connector.
3. Install a spark tester on cylinder #1 spark plug
cable.
4. Crank the engine and check for spark.
5. Repeat the above procedure on cylinders #2, #3.
Is a spark observed on all four spark plug cables?
–
Go to Step 12Go to Step 20
12
Replace any malfunctioning spark plugs if
necessary.
Is the repair complete?
–
Go to Step 27Go to Step 13
13
1. Turn the engine OFF.
2. Disconnect the fuel injector connectors from the
injectors.
3. Install an injector test light on the injector harness
connector for the cylinders that had misfired.
4. Crank the engine and note the test light.
Does the injector test light blink?
–
Go to Step 14Go to Step 15
14Perform the Fuel Injector Balance Test.
Are the fuel injectors OK?–Go to Step 9Go to Step 16
15
1. Disconnect the injector test light.
2. With a test light connected to ground, probe the
ignition feed terminal 1 of the injector harness
connector for each cylinder that had misfire.
3. Crank the engine.
Does the test light illuminate?
–
Go to Step 17Go to Step 19
16Replace any malfunctioning fuel injectors.
Is the repair complete?–Go to Step 27–
17
Check the affected fuel injector driver circuit at
terminals 90, 58 and 89 for an open, short, or short
to voltage.
Is a problem found?
–
Go to Step 18Go to Step 24
Page 235 of 1184
ENGINE CONTROLS 1F–137
DAEWOO M-150 BL2

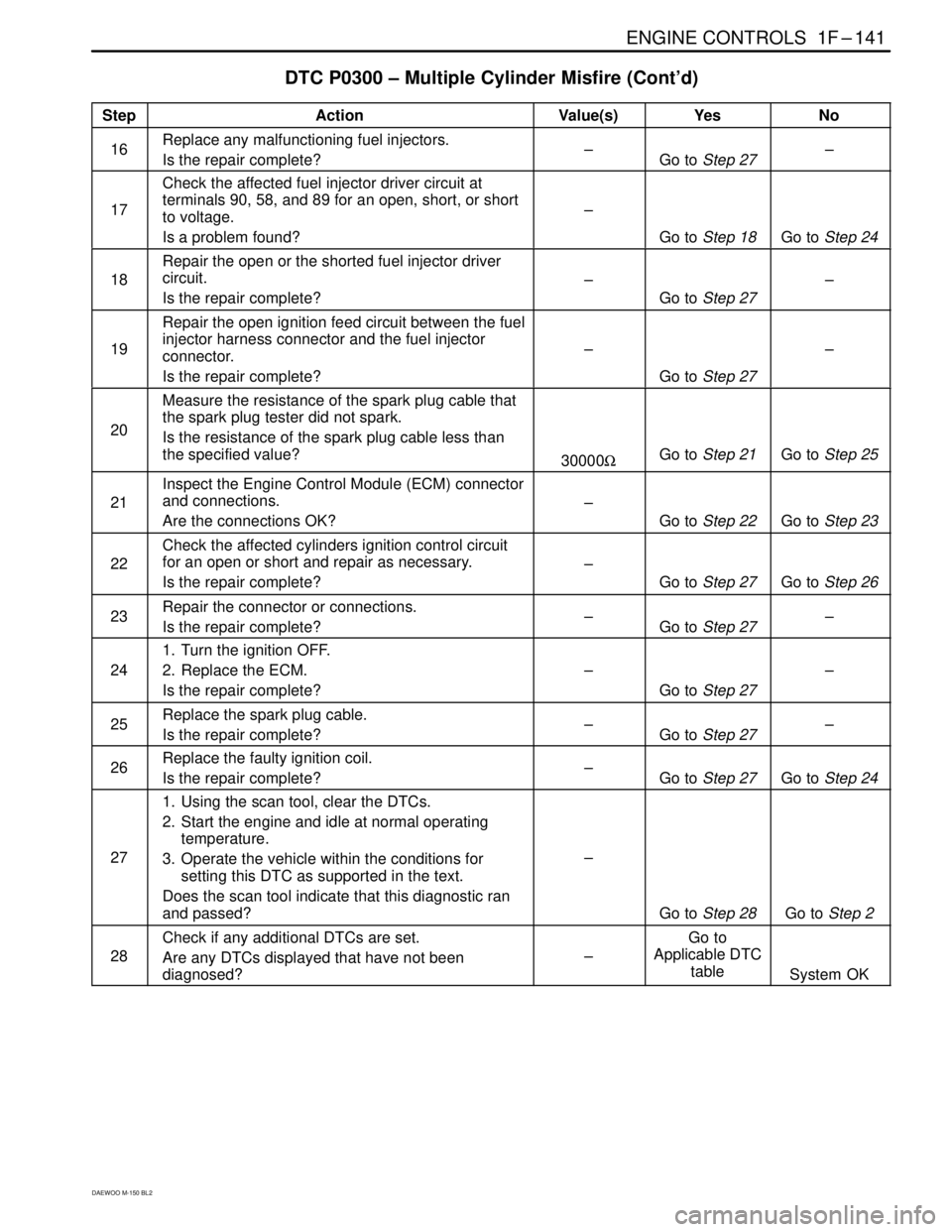

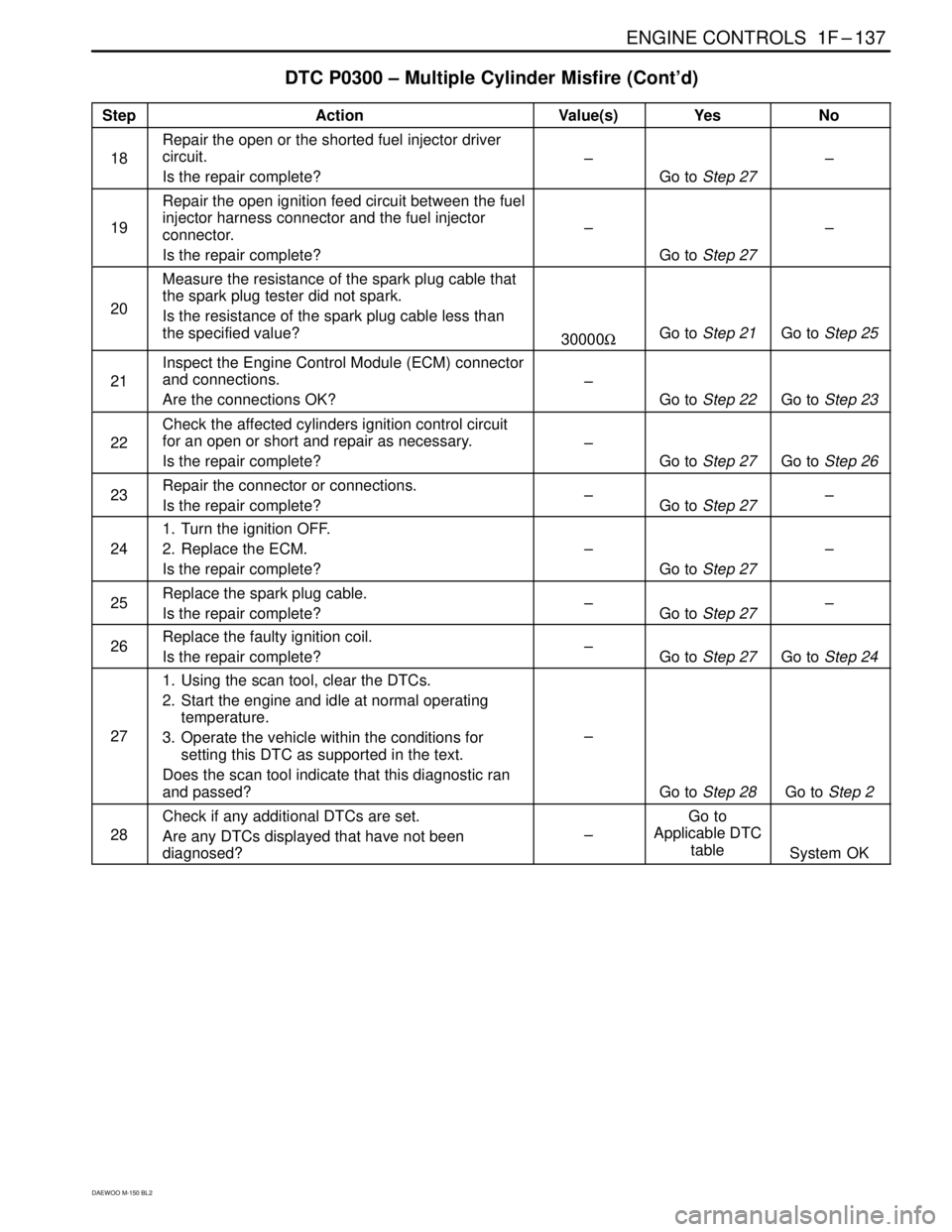

DTC P0300 – Multiple Cylinder Misfire (Cont’d)
StepActionValue(s)YesNo
18
Repair the open or the shorted fuel injector driver
circuit.
Is the repair complete?
–
Go to Step 27
–
19
Repair the open ignition feed circuit between the fuel
injector harness connector and the fuel injector
connector.
Is the repair complete?
–
Go to Step 27
–
20
Measure the resistance of the spark plug cable that
the spark plug tester did not spark.
Is the resistance of the spark plug cable less than
the specified value?
30000ΩGo to Step 21Go to Step 25
21
Inspect the Engine Control Module (ECM) connector
and connections.
Are the connections OK?
–
Go to Step 22Go to Step 23
22
Check the affected cylinders ignition control circuit
for an open or short and repair as necessary.
Is the repair complete?
–
Go to Step 27Go to Step 26
23Repair the connector or connections.
Is the repair complete?–Go to Step 27–
24
1. Turn the ignition OFF.
2. Replace the ECM.
Is the repair complete?
–
Go to Step 27
–
25Replace the spark plug cable.
Is the repair complete?–Go to Step 27–
26Replace the faulty ignition coil.
Is the repair complete?–Go to Step 27Go to Step 24
27
1. Using the scan tool, clear the DTCs.
2. Start the engine and idle at normal operating
temperature.
3. Operate the vehicle within the conditions for
setting this DTC as supported in the text.
Does the scan tool indicate that this diagnostic ran
and passed?
–
Go to Step 28Go to Step 2
28
Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?
–
Go to
Applicable DTC
table
System OK
Page 236 of 1184
1F–138 ENGINE CONTROLS
DAEWOO M-150 BL2
MAA1F160
Page 237 of 1184
ENGINE CONTROLS 1F–139
DAEWOO M-150 BL2
DIAGNOSTIC TROUBLE CODE (DTC) – P0300 MULTIPLE CYLINDER MISFIRE
System Description
The Engine Control Module (ECM) monitors the crank-
shaft and camshaft positions to detect if the engine is
misfiring. The ECM looks for a quick drop in crankshaft
speed. This test is executed in blocks of 100 engine rev-
olution tests. It may take between one to several tests to
store a Diagnostic Trouble Code (DTC) and illuminate
the Malfunction Indicator Lamp (MIL). Under light misfire
conditions, it may also take more than one trip to set a
DTC. Severe misfire will flash the MIL, indicating that
catalyst damage is possible.
Conditions for Setting the DTC
Emission threshold is 3.0% for automatic transaxle
and 3.0% for manual transaxle.
20 engine cycles have occurred since cranking has
started.
A/C compressor clutch has not just engaged or disen-
gaged.
Engine load and engine speed are in a detectable re-
gion and are at or above zero torque.
Camshaft Position (CMP) sensor is in synchroniza-
tion.
Electric Exhaust Gas Recirculation (EEGR) flow
diagnostic is not in progress.
Fuel level is greater than or equal to 20% of rated
tank capacity.
Decel Fuel Cutoff (DFCO) not active.
Fuel is not shutoff from high engine speed of 6500
rpm for manual transaxle vehicle or 6500 rpm in drive
and 6250 rpm in park for automatic transaxle ve-
hicles.
Fuel is not shutoff at 255 km/h (158 mph).
An automatic transmission is not shifting.
Throttle position change is less than 3% per 125 ms.
Vehicle has not encountered an abusive engine
speed of 7000 rpm.
Crankshaft speed patters are normal.Throttle position is less than 4% when vehicle speed
is greater than 10 km/h (6 mph).
Engine speed is between 600 and 4500 rpm.
Vehicle voltage is between 11 and 16 volts.
Engine Coolant Temperature (ECT) is between –7°C
(20°F) and 120°C (248°F).
The engine speed is less than or equal to 1800 rpm or
the crank angle sensing error has not been learned.
There is the correct ratio between Crankshaft Posi-
tion (CKP) sensor pulses and CMP sensor pulses.
DTCs P0106, P0107, P0108, P0117, P0118, P0122,
P0123, P0320, P0337, P0341, P0342 and P0502 are
not set.
Action Taken when the DTC Sets
Emission related.
“Armed” after two trip with a fail.
“Disarmed” after one trip with a pass.
MIL on if failure is detected in three consecutive trips.
Stores a History DTC on the third consecutive with a
fail (The DTC will be armed after the second fail).
Stores a Freeze Frame on the third consecutive trip
with a fail (if empty).
Conditions for Clearing the MIL/DTC
The MIL will turn off after four consecutive ignition
cycles in which the diagnostic runs without a fault.
A history DTC will clear after 40 consecutive warm up
cycles without a fault.
DTC(s) can be cleared by using the scan tool.
Disconnecting the ECM battery feed for 10 seconds.
Diagnostic Aids
An intermittent can also be the result of a defective re-
luctor wheel. Remove the CKP sensor and inspect the
reluctor wheel through the sensor mount hole. Check for
porosity and the condition of wheel. If the DTC is inter-
mittent refer to “Symptoms Diagnosis” in this section.
DTC P0300 – Multiple Cylinder Misfire
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Was the check performed?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
1. Install a scan tool to the Data Link Connector
(DLC).
2. Turn the ignition ON, with the engine OFF.
3. Request Diagnostic Trouble Codes (DTCs)
Are DTCs P0201, P0202, P0203, P0204 set?
–Go to
Applicable DTC
table
Go to Step 3
Page 238 of 1184
1F–140 ENGINE CONTROLS
DAEWOO M-150 BL2
DTC P0300 – Multiple Cylinder Misfire (Cont’d)
StepActionValue(s)YesNo
3
Perform a visual/physical inspection.
Make any repairs that are necessary.
Is the repair complete?–
Go to Step 27Go to Step 4
4Start the engine and allow it to idle.
Are any Misfire Current counters incrementing?–
Go to Step 5Go to Step 6
5Are all counters equal (within a percentage of each
other)?–Go to Step 7Go to Step 11
6
1. Turn the ignition ON, with the engine OFF.
2. Review the Freeze Frame data, and note the
parameters.
3. Operate the vehicle within the Freeze Frame
conditions and conditions for setting this DTC as
noted.
Are any Misfire Current counters incrementing?
–
Go to Step 5
Go to
“Diagnostic
Aids”
7
1. Turn the engine OFF.
2. Install a fuel pressure gauge to the fuel rail.
3. Observe the fuel pressure with the engine
running.
Is the fuel pressure within the specified value?
284–325 kPa
(41–47 psi)Go to Step 8
Go to
“Fuel System
Diagnosis”
8Check the fuel for contamination.
Is the fuel OK?–Go to Step 9Go to Step 10
9
Check for a basic engine problem and repair as
necessary.
Is the repair complete?
–
Go to Step 27
–
10Replace the contaminated fuel.
Is the repair complete?–Go to Step 27–
11
1. Turn the engine OFF.
2. Disconnect the fuel injector harness connector.
3. Install a spark tester on cylinder #1 spark plug
cable.
4. Crank the engine and check for spark.
5. Repeat the above procedure on cylinders #2, #3.
Is a spark observed on all four spark plug cables?
–
Go to Step 12Go to Step 20
12
Replace any malfunctioning spark plugs if
necessary.
Is the repair complete?
–
Go to Step 27Go to Step 13
13
1. Turn the engine OFF.
2. Disconnect the fuel injector connectors from the
injectors.
3. Install an injector test light on the injector harness
connector for the cylinders that had misfired.
4. Crank the engine and note the test light.
Does the injector test light blink?
–
Go to Step 14Go to Step 15
14Perform the Fuel Injector Balance Test.
Are the fuel injectors OK?–Go to Step 9Go to Step 16
15
1. Disconnect the injector test light.
2. With a test light connected to ground, probe the
ignition feed terminal 1 of the injector harness
connector for each cylinder that had misfire.
3. Crank the engine.
Does the test light illuminate?
–
Go to Step 17Go to Step 19
Page 239 of 1184
ENGINE CONTROLS 1F–141
DAEWOO M-150 BL2
DTC P0300 – Multiple Cylinder Misfire (Cont’d)
StepActionValue(s)YesNo
16Replace any malfunctioning fuel injectors.
Is the repair complete?–Go to Step 27–
17
Check the affected fuel injector driver circuit at
terminals 90, 58, and 89 for an open, short, or short
to voltage.
Is a problem found?
–
Go to Step 18Go to Step 24
18
Repair the open or the shorted fuel injector driver
circuit.
Is the repair complete?
–
Go to Step 27
–
19
Repair the open ignition feed circuit between the fuel
injector harness connector and the fuel injector
connector.
Is the repair complete?
–
Go to Step 27
–
20
Measure the resistance of the spark plug cable that
the spark plug tester did not spark.
Is the resistance of the spark plug cable less than
the specified value?
30000ΩGo to Step 21Go to Step 25
21
Inspect the Engine Control Module (ECM) connector
and connections.
Are the connections OK?
–
Go to Step 22Go to Step 23
22
Check the affected cylinders ignition control circuit
for an open or short and repair as necessary.
Is the repair complete?
–
Go to Step 27Go to Step 26
23Repair the connector or connections.
Is the repair complete?–Go to Step 27–
24
1. Turn the ignition OFF.
2. Replace the ECM.
Is the repair complete?
–
Go to Step 27
–
25Replace the spark plug cable.
Is the repair complete?–Go to Step 27–
26Replace the faulty ignition coil.
Is the repair complete?–Go to Step 27Go to Step 24
27
1. Using the scan tool, clear the DTCs.
2. Start the engine and idle at normal operating
temperature.
3. Operate the vehicle within the conditions for
setting this DTC as supported in the text.
Does the scan tool indicate that this diagnostic ran
and passed?
–
Go to Step 28Go to Step 2
28
Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?
–
Go to
Applicable DTC
table
System OK
Page 240 of 1184
1F–142 ENGINE CONTROLS
DAEWOO M-150 BL2
DIAGNOSTIC TROUBLE CODE (DTC) – P1320 CRANKSHAFT SEGMENT
PERIOD SEGMENT ADAPTATION AT LIMIT
Circuit Description
The 58X reference signal is produced by the Crankshaft
Position (CKP) sensor. During one crankshaft revolu-
tion, 58 crankshaft pulses will be produced. The Engine
Control Module (ECM) uses the 58X reference signal to
calculate engine rpm and CKP. The ECM constantly
monitors the number of pulses on the 58X reference cir-
cuit and compares them to the number of Camshaft
Position (CMP) signal pulses being received. If the ECM
receives and incorrect number of pulses on the 58X ref-
erence circuit, Diagnostic Trouble Code (DTC) P0320
will set.
Conditions for Setting the DTC
Engine is running.
Number of extra or missing teeth is greater than or
equal to 2 per revolution.
Above condition is detected in 10 of 100 crankshaft
rotations.
Action Taken When the DTC Sets
The Malfunction Indicator Lamp (MIL) will illuminate.
The ECM will record operating conditions at the time
the diagnostic fails. This information will be stored in
the Freeze Frame and Failure Records buffers.
A history DTC is stored.Conditions for Clearing the MIL/DTC
The MIL will turn off after four consecutive ignition
cycles in which the diagnostic runs without a fault.
A history DTC will clear after 40 consecutive warm-up
cycles without a fault.
DTC(s) can be cleared by using the scan tool.
Diagnostic Aids
An intermittent may be caused by a poor connection,
rubbed-through wire insulation or a wire broken inside
the insulation. Check for:
Poor connection – Inspect the ECM harness and con-
nectors for improper mating, broken locks, improperly
formed or damaged terminals, and poor terminal-to-
wire connections.
Damaged harness – Inspect the wiring harness for
damage. If the harness appears to be OK, disconnect
the ECM, turn the ignition ON and observe a voltme-
ter connected to the 58X reference circuit at the ECM
harness connector while moving the connectors and
the wiring harnesses related to the ECM. A change in
voltage will indicate the location of the fault.
Reviewing the Failure Records vehicle mileage since
the diagnostic test last failed may help determine how
often the condition that caused the DTC to be set oc-
curs. This may assist in diagnosing the condition.
