DAEWOO NUBIRA 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–31
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H TCM
d. SPLICE PACK
S101

5–32WELECTRICAL WIRING DIAGRAMS

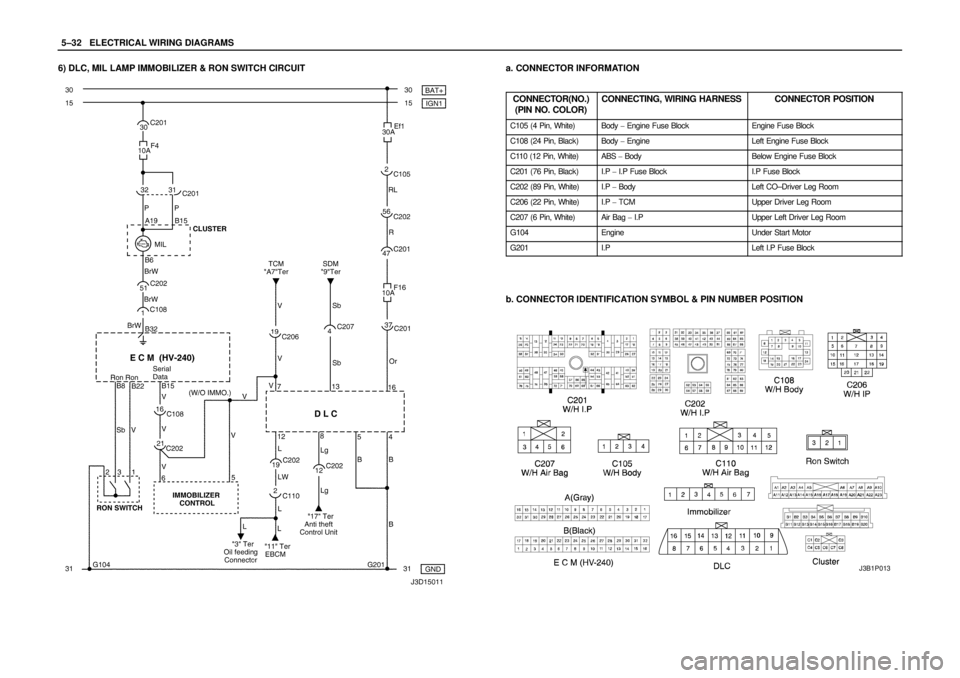

6) DLC, MIL LAMP IMMOBILIZER & RON SWITCH CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C207 (6 Pin, White)Air Bag
I.PUpper Left Driver Leg Room
G104EngineUnder Start Motor
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P013

ELECTRICAL WIRING DIAGRAMSW5–33
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

5–34WELECTRICAL WIRING DIAGRAMS
4. ECM (ENGINE CONTROL MODULE) : SIRIUS D4

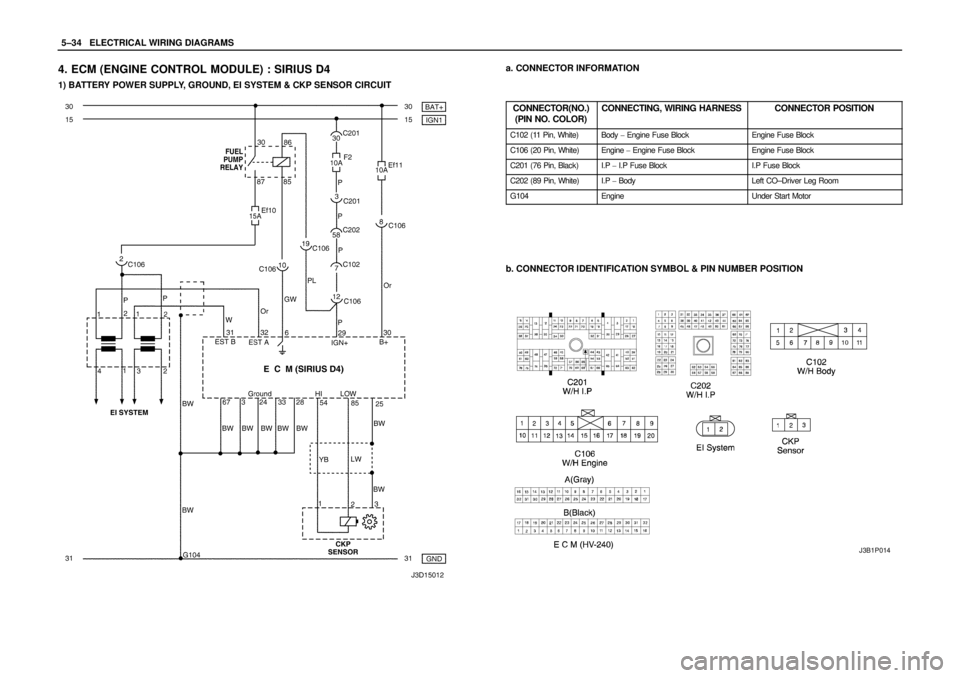

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM & CKP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G104EngineUnder Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P014

ELECTRICAL WIRING DIAGRAMSW5–35
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

5–36WELECTRICAL WIRING DIAGRAMS

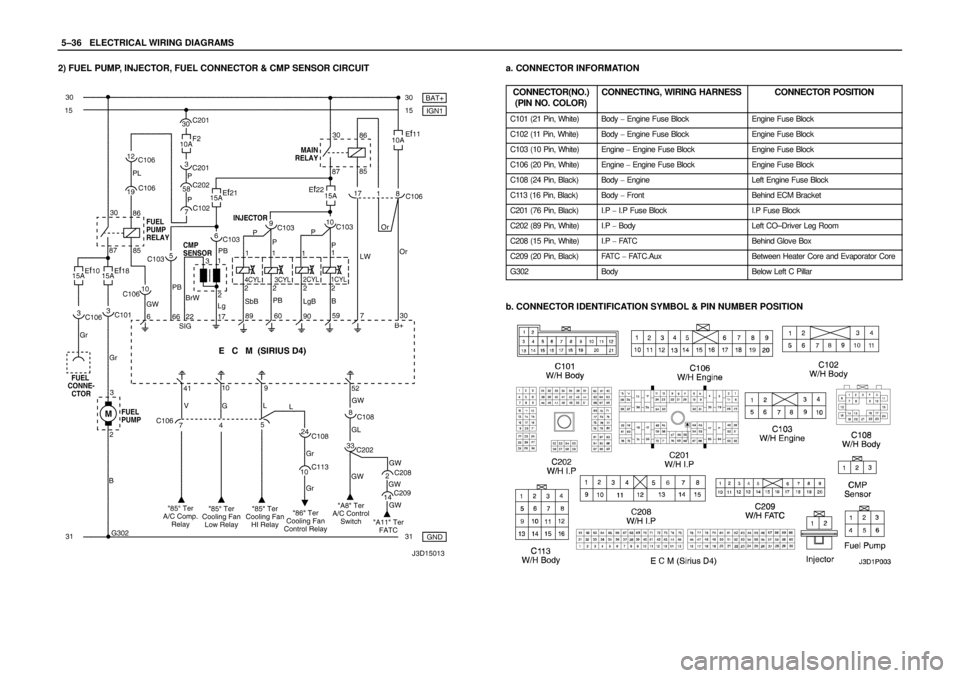

2) FUEL PUMP, INJECTOR, FUEL CONNECTOR & CMP SENSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–37
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT

5–38WELECTRICAL WIRING DIAGRAMS

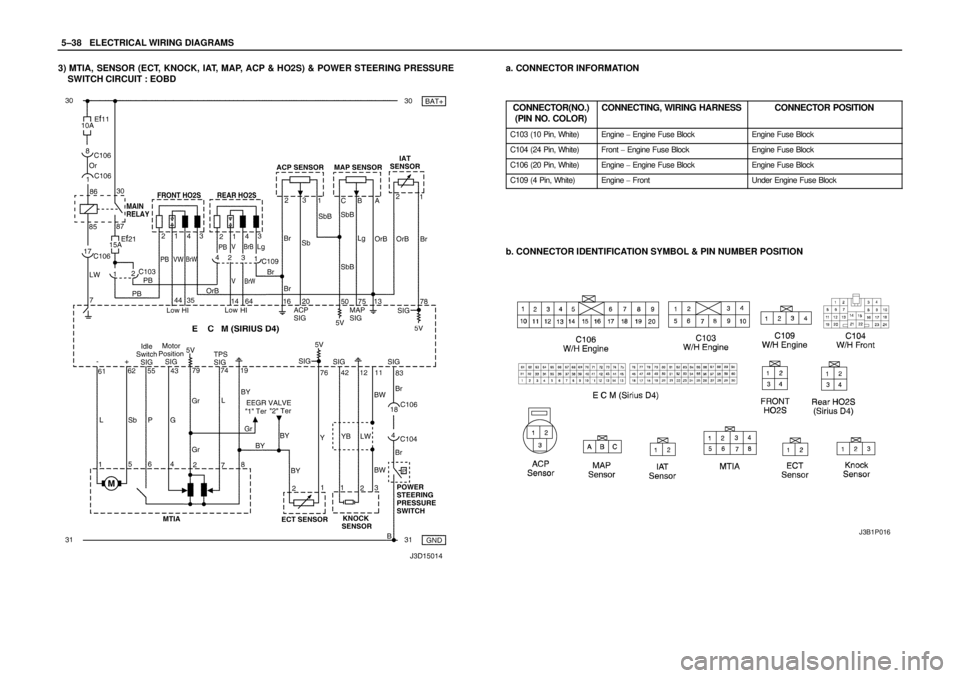

3) MTIA, SENSOR (ECT, KNOCK, IAT, MAP, ACP & HO2S) & POWER STEERING PRESSURE
SWITCH CIRCUIT : EOBDa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C109 (4 Pin, White)Engine
FrontUnder Engine Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P016

ELECTRICAL WIRING DIAGRAMSW5–39
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE

5–40WELECTRICAL WIRING DIAGRAMS

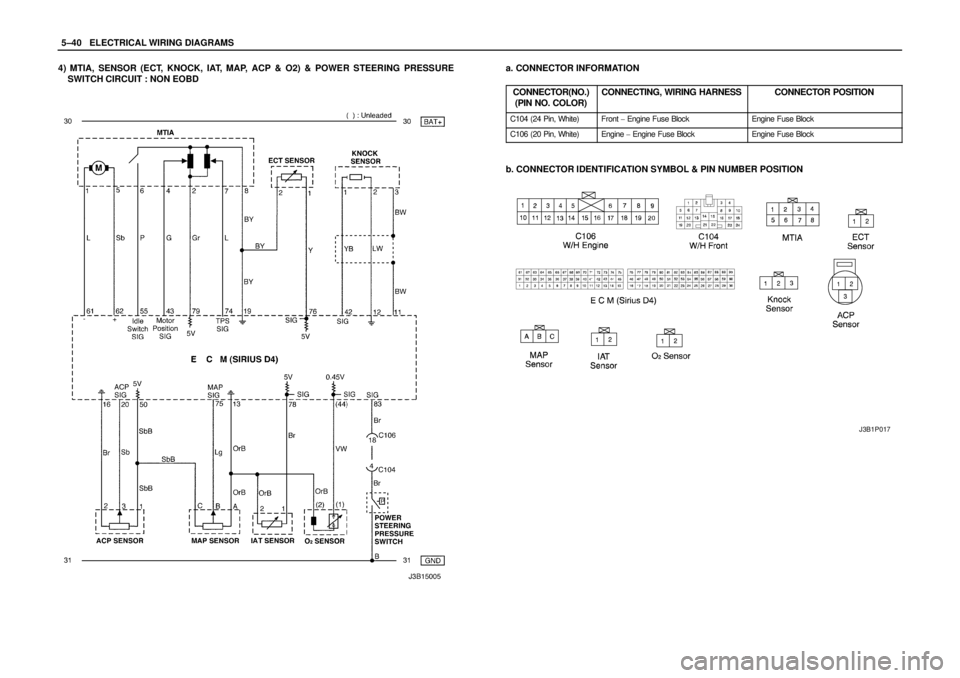

4) MTIA, SENSOR (ECT, KNOCK, IAT, MAP, ACP & O2) & POWER STEERING PRESSURE
SWITCH CIRCUIT : NON EOBDa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P017
