DAEWOO NUBIRA 2004 Service Repair Manual ELECTRICAL WIRING DIAGRAMSW5–21
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

ELECTRICAL WIRING DIAGRAMSW5–21
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H INSTRUMENT PANEL

Page 1182 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 5–22WELECTRICAL WIRING DIAGRAMS
3. ECM (ENGINE CONTROL MODULE) : HV – 240

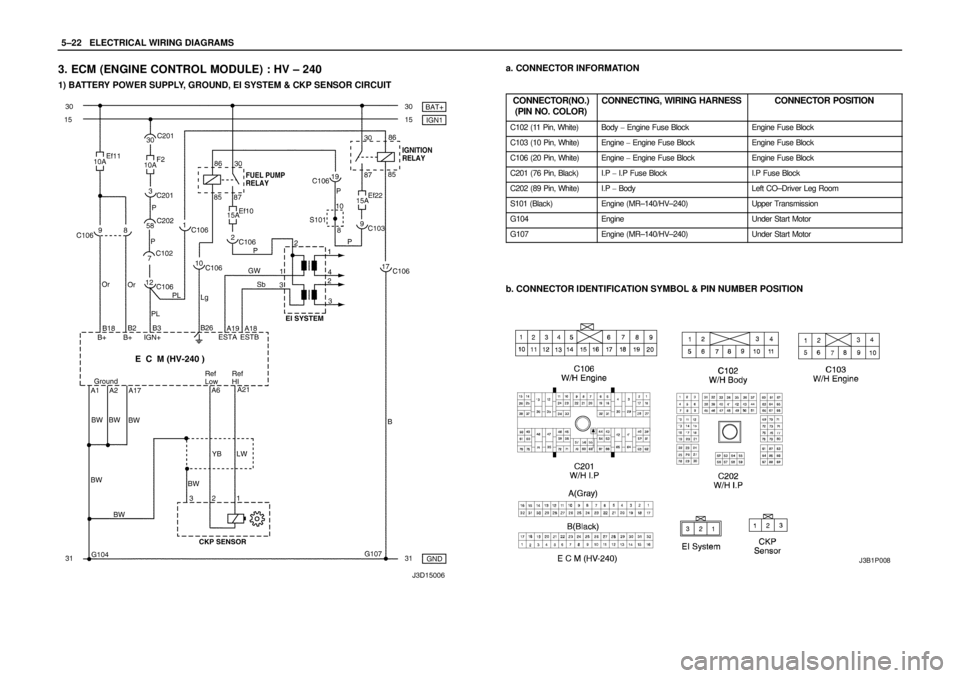

1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM & CKP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CO

5–22WELECTRICAL WIRING DIAGRAMS
3. ECM (ENGINE CONTROL MODULE) : HV – 240
1) BATTERY POWER SUPPLY, GROUND, EI SYSTEM & CKP SENSOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G104EngineUnder Start Motor
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P008

Page 1183 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual ELECTRICAL WIRING DIAGRAMSW5–23
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S101

ELECTRICAL WIRING DIAGRAMSW5–23
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S101

Page 1184 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 5–24WELECTRICAL WIRING DIAGRAMS

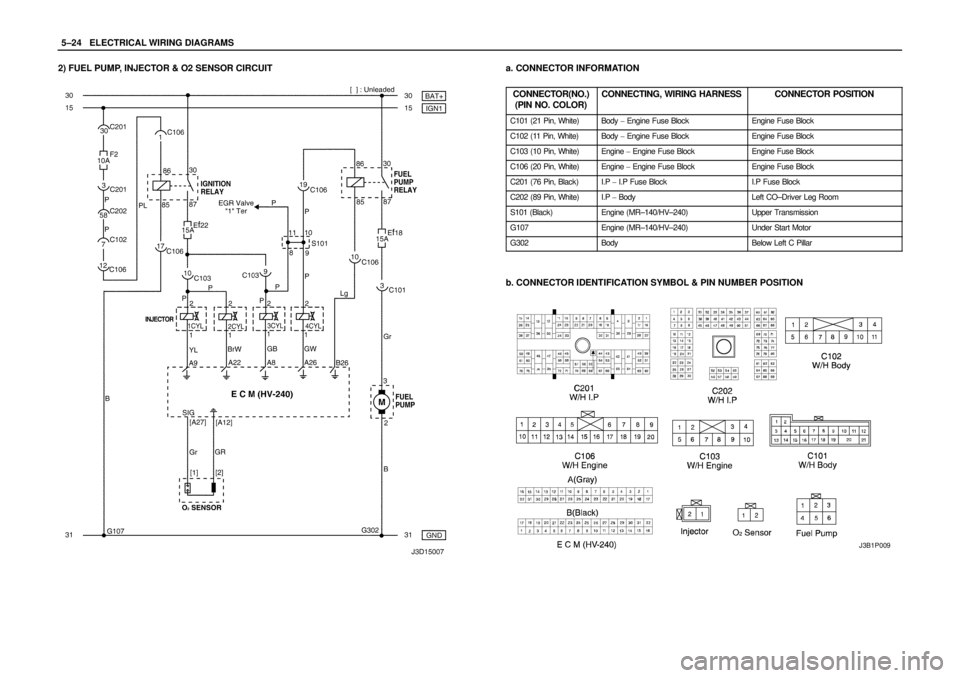

2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Bod

5–24WELECTRICAL WIRING DIAGRAMS
2) FUEL PUMP, INJECTOR & O2 SENSOR CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G107Engine (MR–140/HV–240)Under Start Motor
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P009

Page 1185 of 2643

ELECTRICAL WIRING DIAGRAMSW5–25
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
d. SPLICE PACK
S101

Page 1186 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 5–26WELECTRICAL WIRING DIAGRAMS

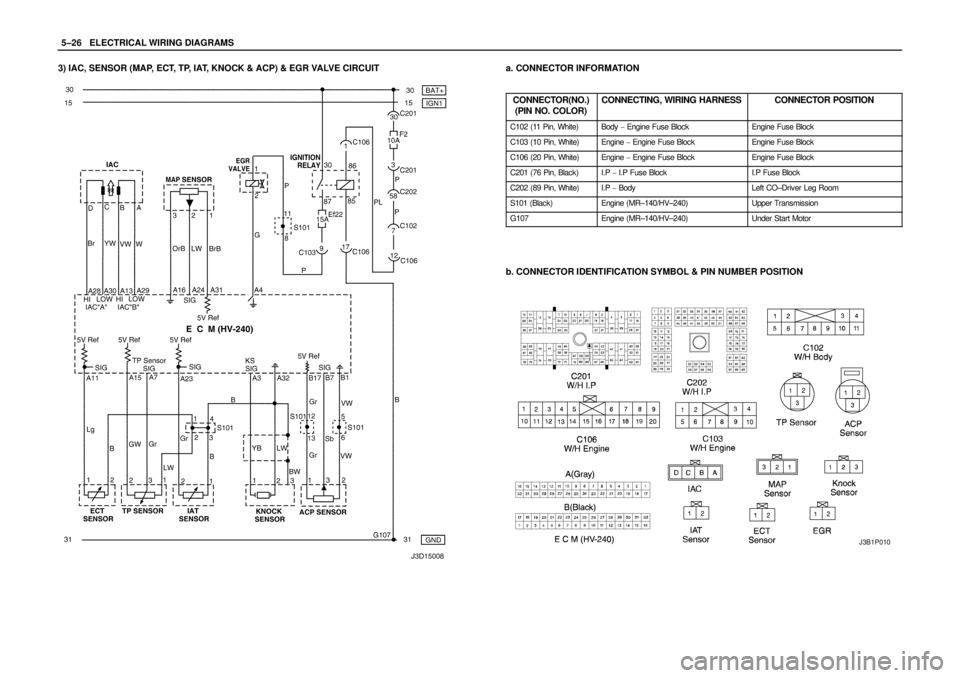

3) IAC, SENSOR (MAP, ECT, TP, IAT, KNOCK & ACP) & EGR VALVE CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITIO

5–26WELECTRICAL WIRING DIAGRAMS
3) IAC, SENSOR (MAP, ECT, TP, IAT, KNOCK & ACP) & EGR VALVE CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P010

Page 1187 of 2643

ELECTRICAL WIRING DIAGRAMSW5–27
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
d. SPLICE PACK
S101

Page 1188 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 5–28WELECTRICAL WIRING DIAGRAMS

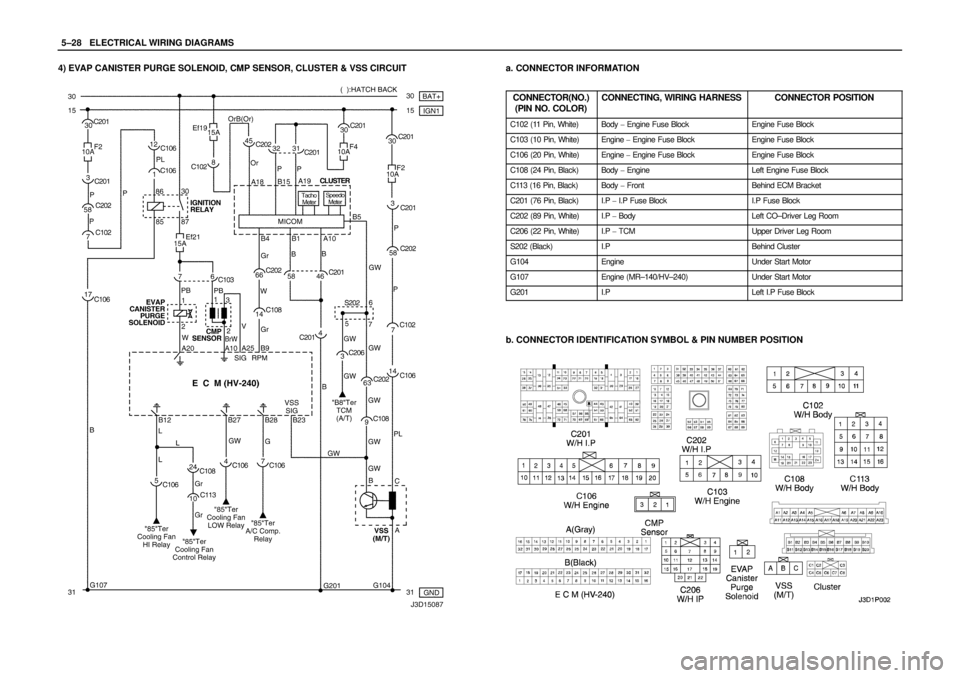

4) EVAP CANISTER PURGE SOLENOID, CMP SENSOR, CLUSTER & VSS CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION

5–28WELECTRICAL WIRING DIAGRAMS
4) EVAP CANISTER PURGE SOLENOID, CMP SENSOR, CLUSTER & VSS CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C103 (10 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
G104EngineUnder Start Motor
G107Engine (MR–140/HV–240)Under Start Motor
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Page 1189 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual ELECTRICAL WIRING DIAGRAMSW5–29
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S202

ELECTRICAL WIRING DIAGRAMSW5–29
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT
d. SPLICE PACK
S202

Page 1190 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 5–30WELECTRICAL WIRING DIAGRAMS

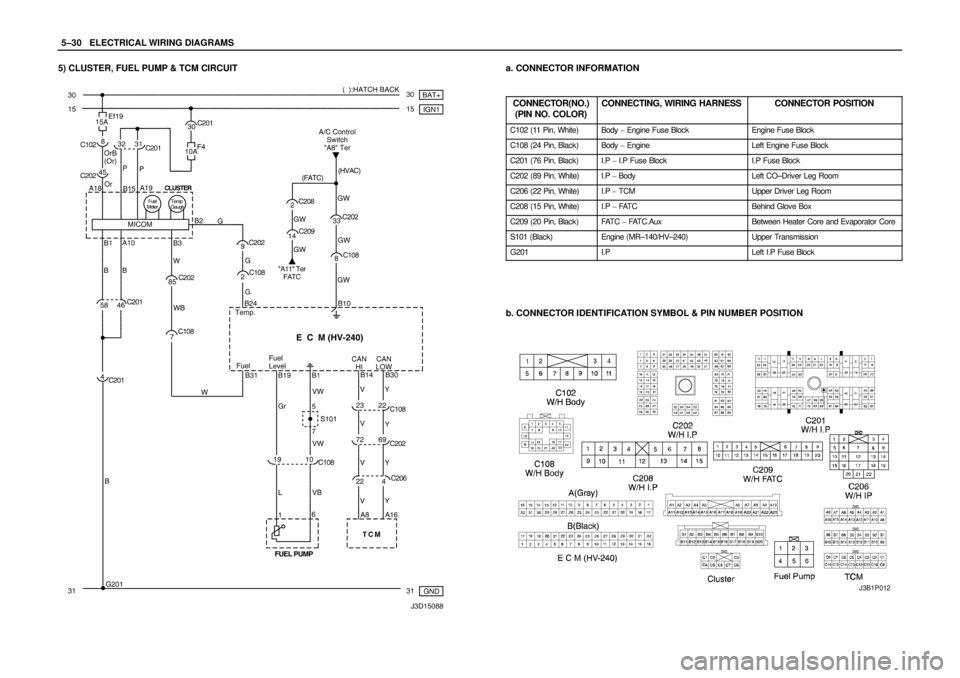

5) CLUSTER, FUEL PUMP & TCM CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Eng

5–30WELECTRICAL WIRING DIAGRAMS
5) CLUSTER, FUEL PUMP & TCM CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C FAT C . A u xBetween Heater Core and Evaporator Core
S101 (Black)Engine (MR–140/HV–240)Upper Transmission
G201I.PLeft I.P Fuse Block
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P012
