ELECTRICAL WIRING DIAGRAMSW5–101
c. POSITION OF CONNECTORS AND GROUNDS
S W/H FRONT
d. SPLICE PACK
S202
S203
S204
S302

5–102WELECTRICAL WIRING DIAGRAMS
14. STOP LAMP, CENTER HIGH MOUNT STOP LAMP (CHMSL) &
REVERSE LAMP CIRCUIT
1) MR–140/HV–240 : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
S203 (Red)I.PBehind Audio Mounting
S205 (Orange)TCMUpper Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G302BodyBelow Left C Pillar
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–103
c. POSITION OF CONNECTORS AND GROUNDS
S W/H BODY
d. SPLICE PACK
S203
S205
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TCM ”B15” TerC206 ”11” TerTCM ”B6” Ter
PNP S/W ”3” Ter
C206 ”2” Ter
PNP S/W ”5” Ter
BW BW BW BW
PNP S/W ”4” Ter
LgB
LgB
LgB
PNP S/W ”10” Ter
TCM ”B13” Ter
TCM ”B12” Ter
C206 ”6” Ter RL
RL
RL
PNP S/W ”2” Ter
PNP S/W ”1” Ter
C206 ”12” Ter
TCM ”C15” Ter
TCM ”C16” Ter
P P P P LgRLgR LgRLRLR LR
TCM ”B11” Ter
C206 ”7” Ter C206 ”16” Ter
TCM ”C1” Ter
J3B1S007
S301

5–104WELECTRICAL WIRING DIAGRAMS
2) MR–140/HV–240 : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
S203 (Red)I.PBehind Audio Mounting
S205 (Orange)TCMUpper Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G302BodyBelow Left C Pillar
G401TrunkCenter Trunk Lower Back Panel
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–105
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
d. SPLICE PACK
S203
S205
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TCM ”B15” TerC206 ”11” TerTCM ”B6” Ter
PNP S/W ”3” Ter
C206 ”2” Ter
PNP S/W ”5” Ter
BW BW BW BW
PNP S/W ”4” Ter
LgB
LgB
LgB
PNP S/W ”10” Ter
TCM ”B13” Ter
TCM ”B12” Ter
C206 ”6” Ter RL
RL
RL
PNP S/W ”2” Ter
PNP S/W ”1” Ter
C206 ”12” Ter
TCM ”C15” Ter
TCM ”C16” Ter
P P P P LgRLgR LgRLRLR LR
TCM ”B11” Ter
C206 ”7” Ter C206 ”16” Ter
TCM ”C1” Ter
J3B1S007
S301

5–106WELECTRICAL WIRING DIAGRAMS

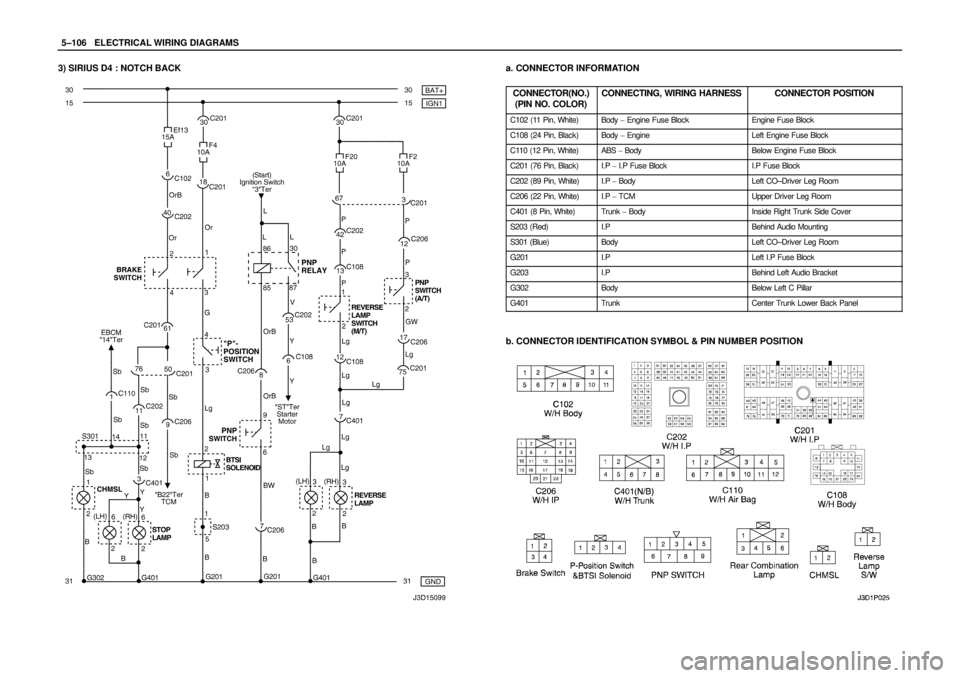

3) SIRIUS D4 : NOTCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
S203 (Red)I.PBehind Audio Mounting
S301 (Blue)BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G302BodyBelow Left C Pillar
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–107
c. POSITION OF CONNECTORS AND GROUNDS
S W/H BODY
d. SPLICE PACK
S203
S301

5–108WELECTRICAL WIRING DIAGRAMS
4) SIRIUS D4 : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
C402 (6 Pin, White)Trunk LID – BodyInside Right Trunk Side Cover
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
S203 (Red)I.PBehind Audio Mounting
S301 (Blue)BodyLeft CO–Driver Leg Room
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G302BodyBelow Left C Pillar
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–109
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
d. SPLICE PACK
S203
S301

5–110WELECTRICAL WIRING DIAGRAMS

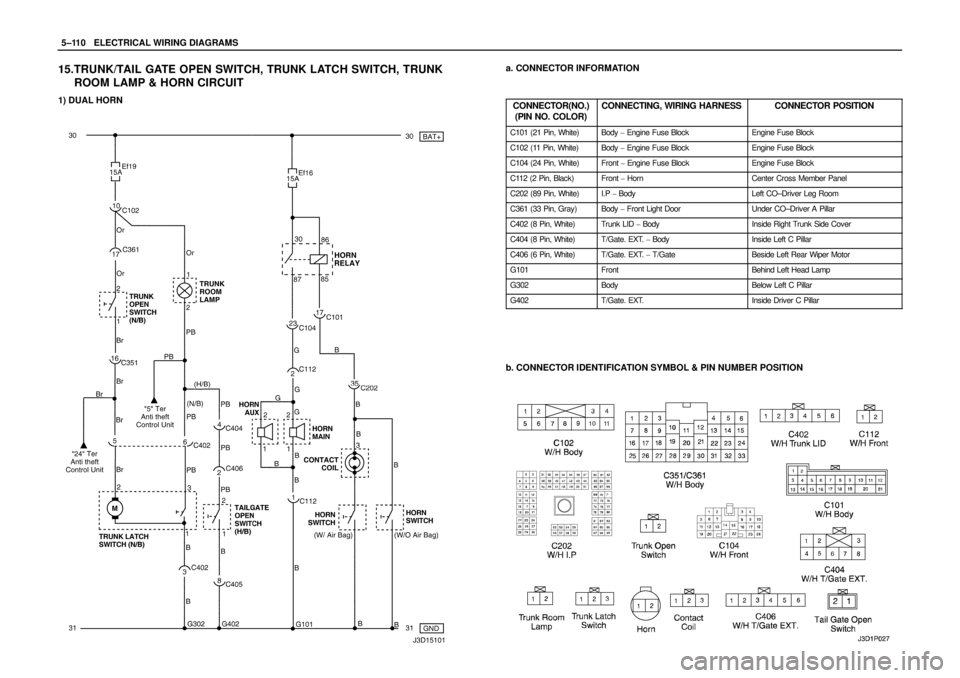

15.TRUNK/TAIL GATE OPEN SWITCH, TRUNK LATCH SWITCH, TRUNK
ROOM LAMP & HORN CIRCUIT
1) DUAL HORN
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C112 (2 Pin, Black)Front
HornCenter Cross Member Panel
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C361 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C402 (8 Pin, White)Trunk LID
BodyInside Right Trunk Side Cover
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C406 (6 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G101FrontBehind Left Head Lamp
G302BodyBelow Left C Pillar
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
