DAEWOO NUBIRA 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–111
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TRUNK
S W/H FRONT
S W/H DRIVE DOOR
S W/H INSTRUMENT PANEL

5–112WELECTRICAL WIRING DIAGRAMS

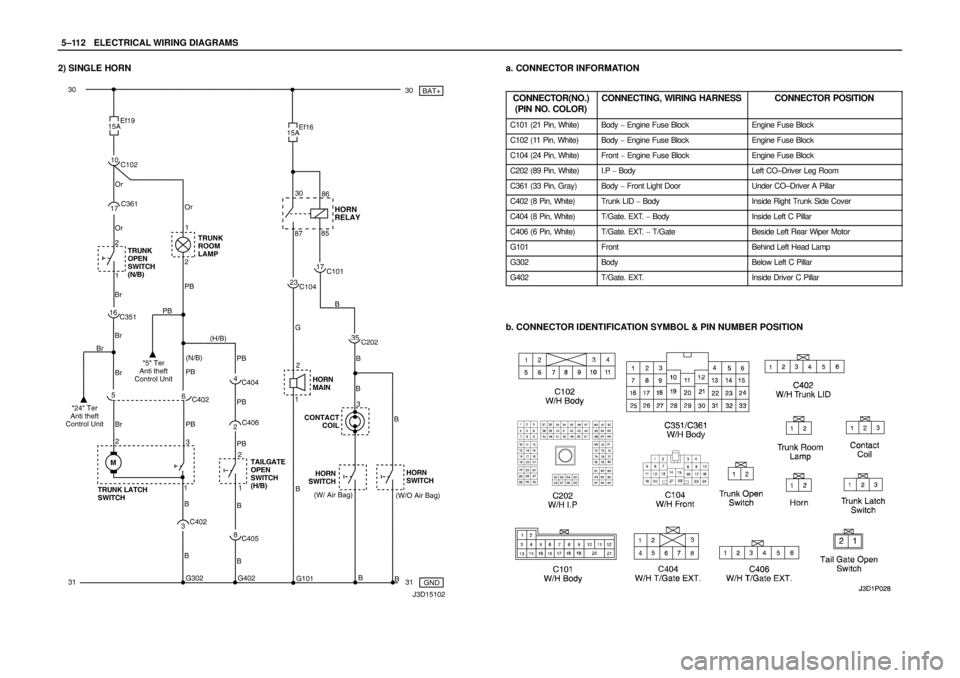

2) SINGLE HORNa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C361 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C402 (8 Pin, White)Trunk LID
BodyInside Right Trunk Side Cover
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C406 (6 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G101FrontBehind Left Head Lamp
G302BodyBelow Left C Pillar
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–113
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
S W/H FRONT
S W/H DRIVE DOOR
S W/H INSTRUMENT PANEL

5–114WELECTRICAL WIRING DIAGRAMS

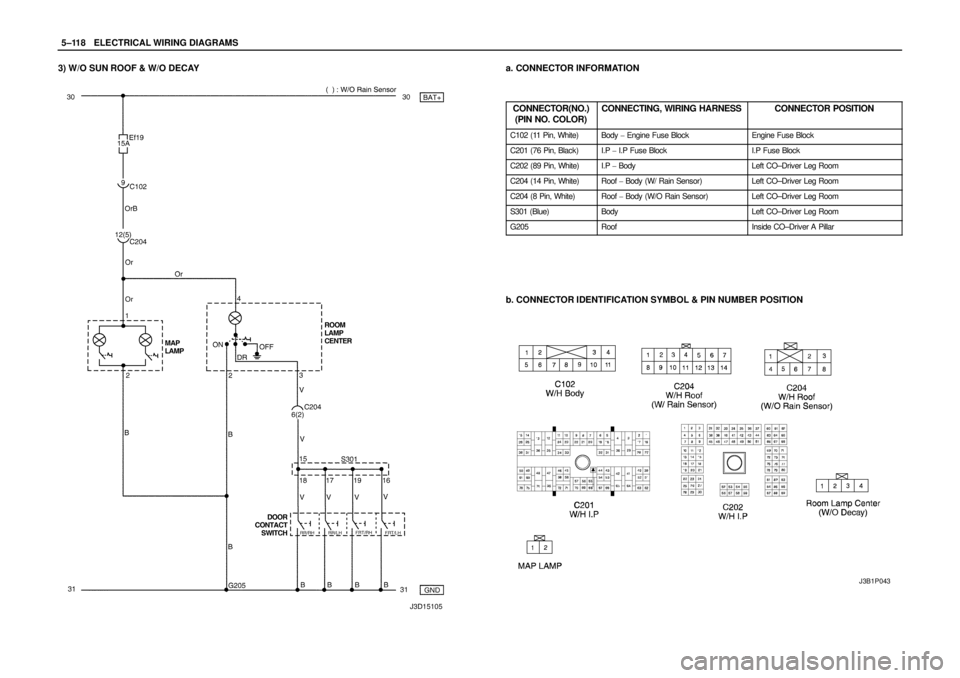

16. LAMP (MAP & ROOM) CIRCUIT
1) W/O SUN ROOF & W/ DECAY
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G205RoofInside CO–Driver A Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P041

ELECTRICAL WIRING DIAGRAMSW5–115

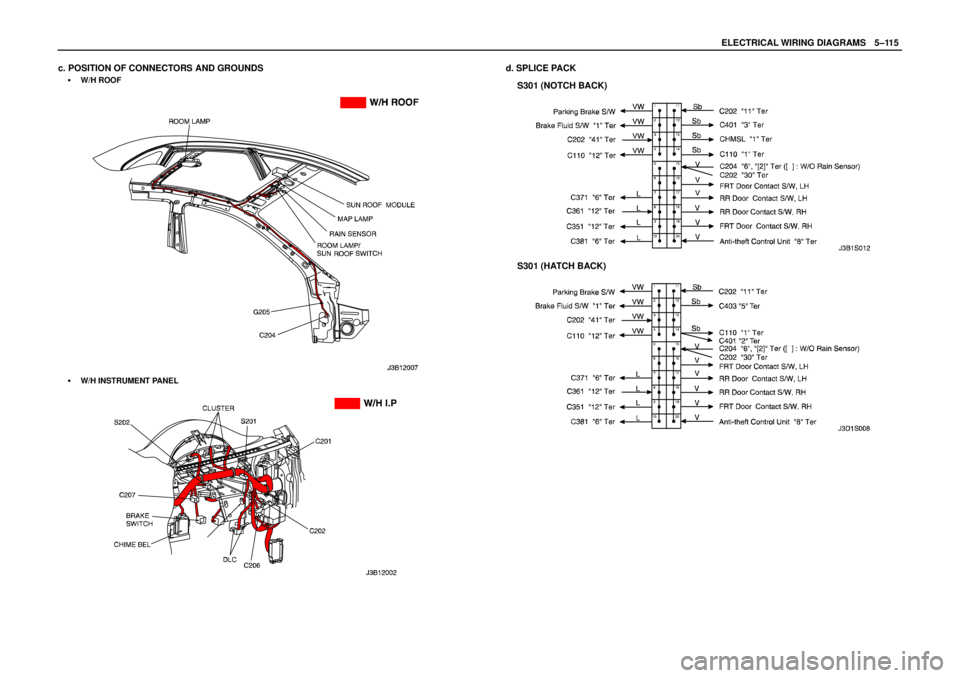

c. POSITION OF CONNECTORS AND GROUNDS
S W/H ROOF
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–116WELECTRICAL WIRING DIAGRAMS

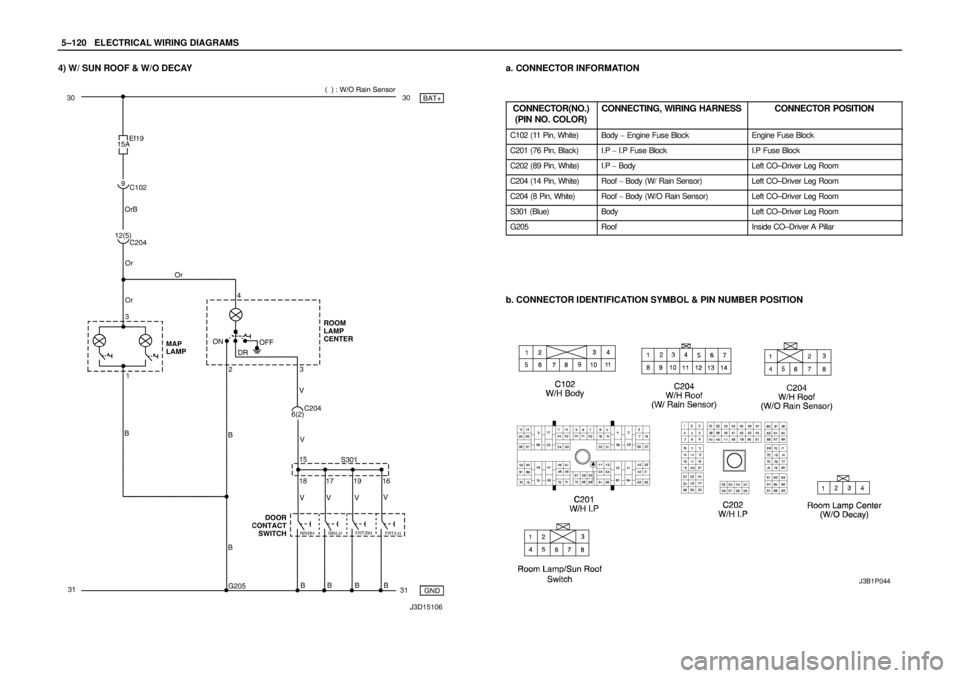

2) W/ SUN ROOF & W/ DECAYa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G205RoofInside CO–Driver A Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P042

ELECTRICAL WIRING DIAGRAMSW5–117
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ROOF
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–118WELECTRICAL WIRING DIAGRAMS

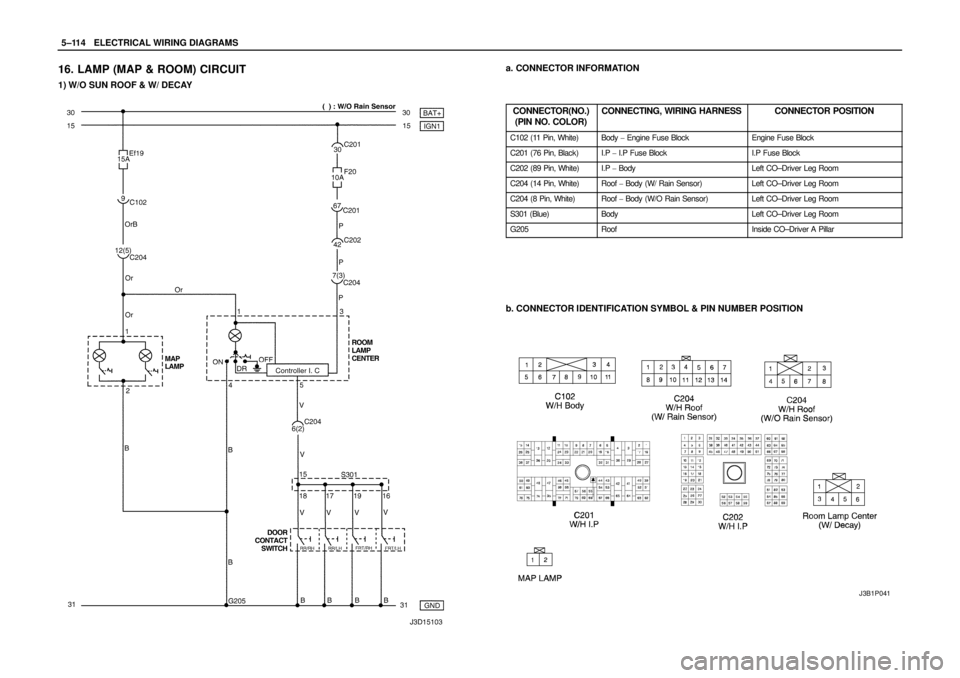

3) W/O SUN ROOF & W/O DECAYa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G205RoofInside CO–Driver A Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P043

ELECTRICAL WIRING DIAGRAMSW5–119
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ROOF
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–120WELECTRICAL WIRING DIAGRAMS
4) W/ SUN ROOF & W/O DECAYa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G205RoofInside CO–Driver A Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P044
