DAEWOO NUBIRA 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–131
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
S W/H INSTRUMENT PANEL
S W/H BODY

5–132WELECTRICAL WIRING DIAGRAMS
3) W/ RAIN SENSOR & AIR CONDITIONER : NOTCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G205RoofInside CO–Driver A Pillar
G303BodyBelow Left CO–Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–133
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H BODY

5–134WELECTRICAL WIRING DIAGRAMS
4) W/ RAIN SENSOR & AIR CONDITIONER : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G205RoofInside CO–Driver A Pillar
G303BodyBelow Left CO–Driver Leg Room
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–135
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
S W/H INSTRUMENT PANEL
S W/H BODY

5–136WELECTRICAL WIRING DIAGRAMS

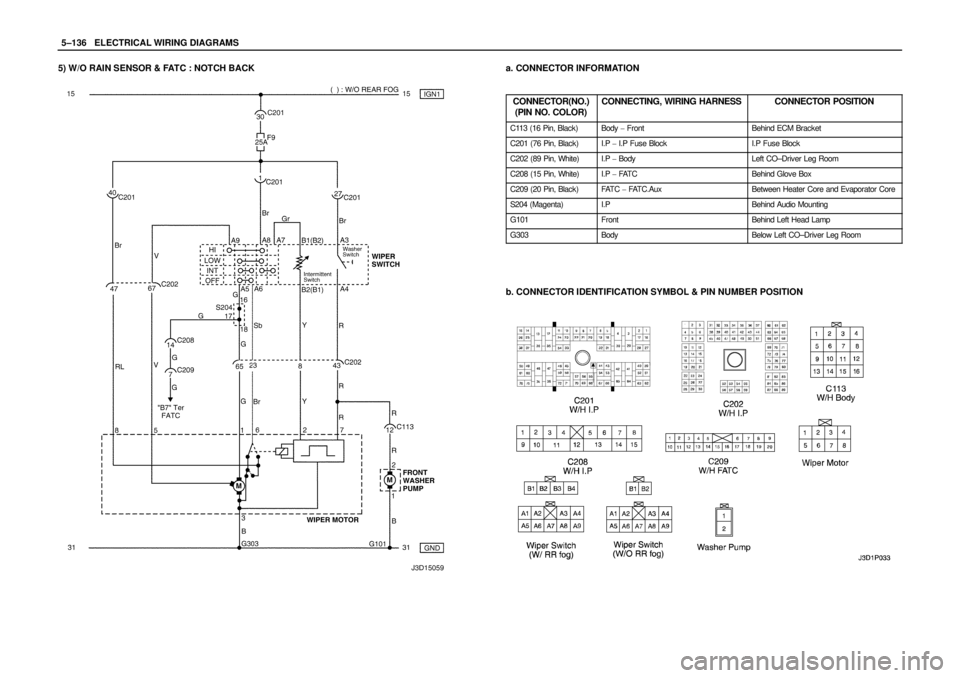

5) W/O RAIN SENSOR & FATC : NOTCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G303BodyBelow Left CO–Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–137
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S204

5–138WELECTRICAL WIRING DIAGRAMS
6) W/O RAIN SENSOR & FATC : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
S204 (Magenta)I.PBehind Audio Mounting
G303BodyBelow Left CO–Driver Leg Room
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–139
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TAIL GATE
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S204

5–140WELECTRICAL WIRING DIAGRAMS

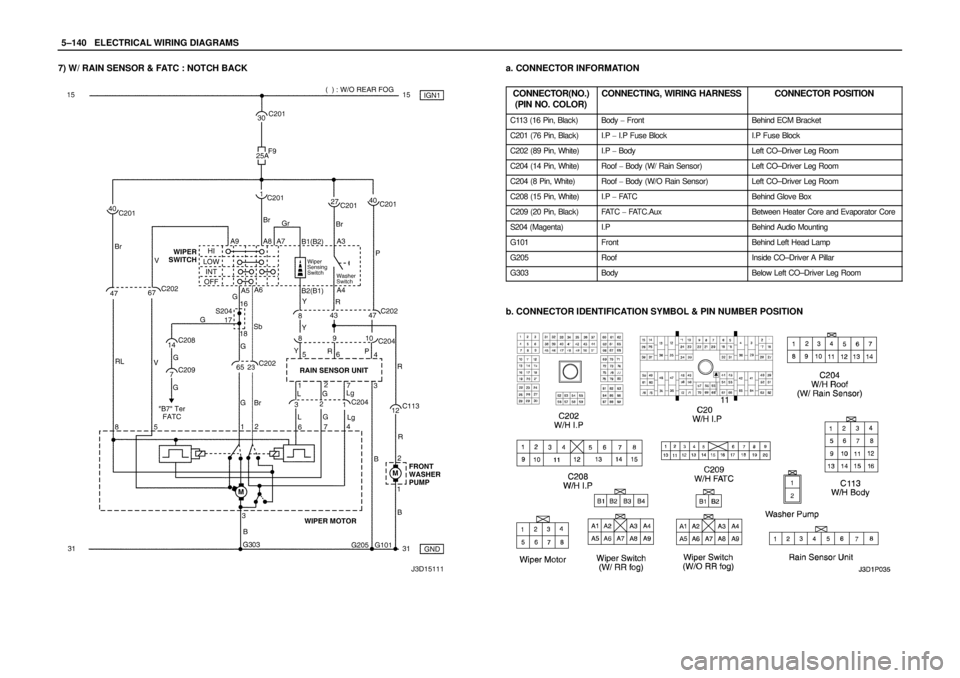

7) W/ RAIN SENSOR & FATC : NOTCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (14 Pin, White)Roof
Body (W/ Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G205RoofInside CO–Driver A Pillar
G303BodyBelow Left CO–Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
