DODGE AVENGER 2009 2.G Owners Manual

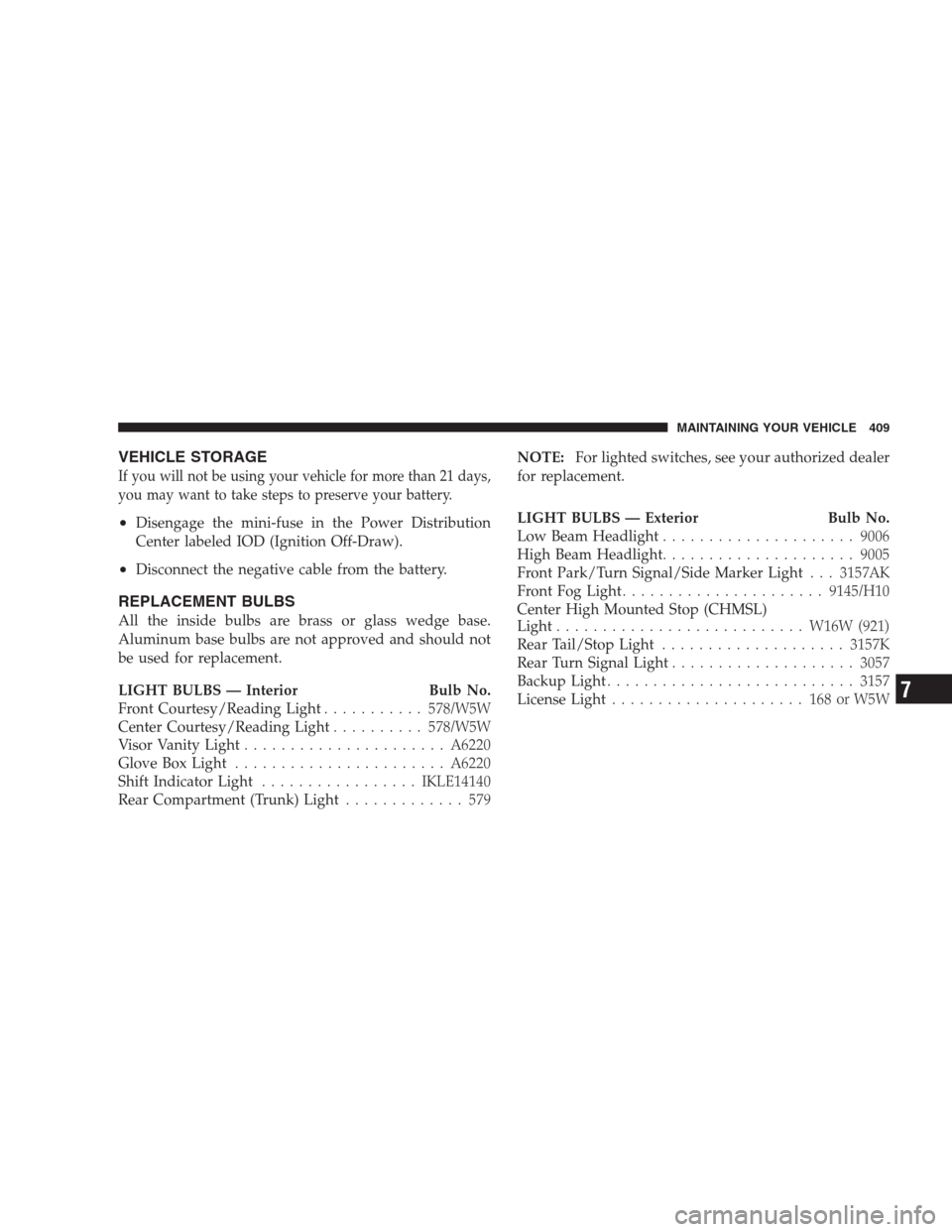

VEHICLE STORAGE
If you will not be using your vehicle for more than 21 days,
you may want to take steps to preserve your battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb No.
Front Courtesy/Reading Light...........578/W5W
Center Courtesy/Reading Light..........578/W5W
Visor Vanity Light......................A6220
Glove Box Light.......................A6220
Shift Indicator Light.................IKLE14140
Rear Compartment (Trunk) Light............. 579NOTE:For lighted switches, see your authorized dealer
for replacement.
LIGHT BULBS — Exterior Bulb No.
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Signal/Side Marker Light. . . 3157AK
Front Fog Light......................9145/H10
Center High Mounted Stop (CHMSL)
Light...........................W16W (921)
Rear Tail/Stop Light....................3157K
Rear Turn Signal Light....................3057
Backup Light...........................3157
License Light..................... 168orW5W
MAINTAINING YOUR VEHICLE 409
7

BULB REPLACEMENT
Headlight
1. Raise the hood and locate the connector behind the
headlamp.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlight
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
410 MAINTAINING YOUR VEHICLE

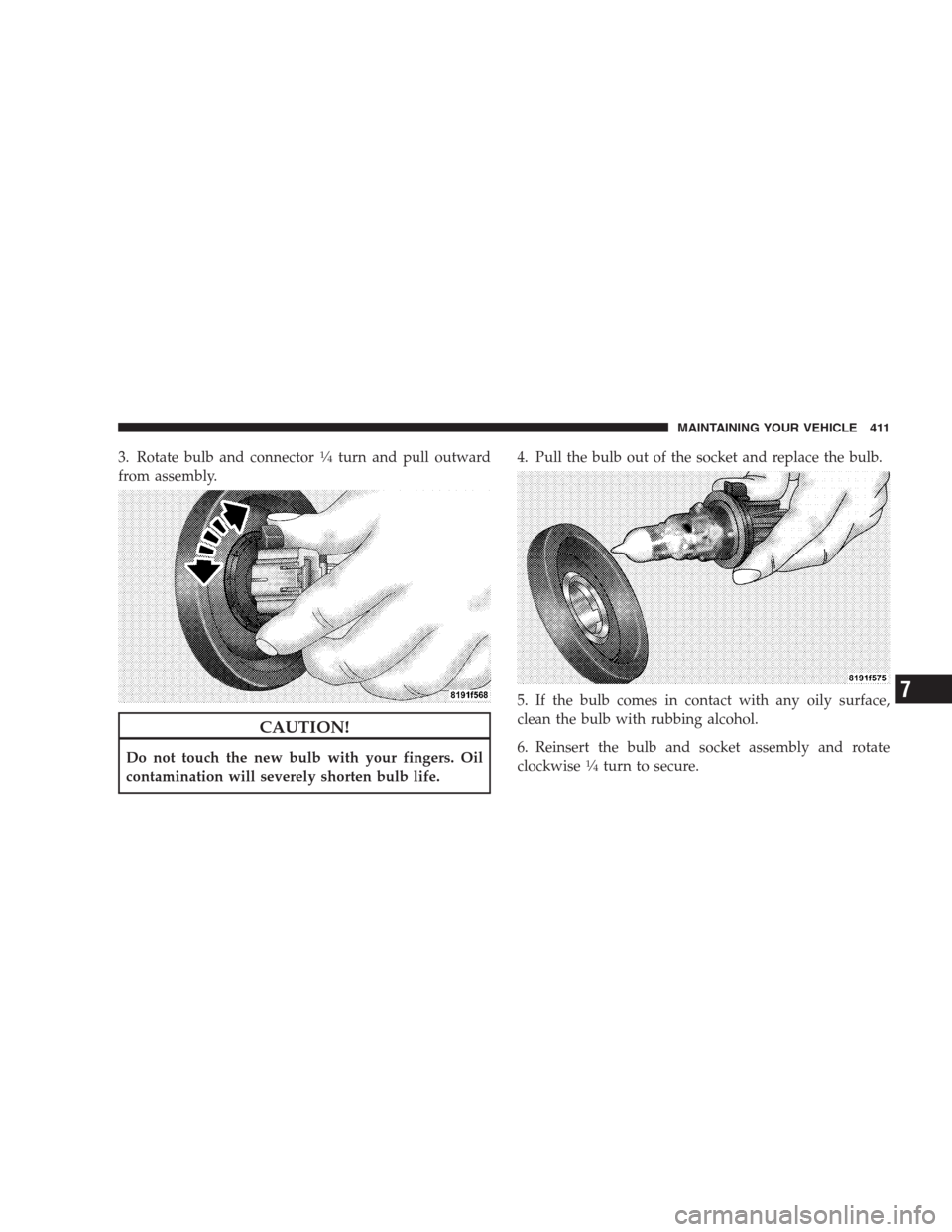

3. Rotate bulb and connector14turn and pull outward
from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise14turn to secure.
MAINTAINING YOUR VEHICLE 411
7

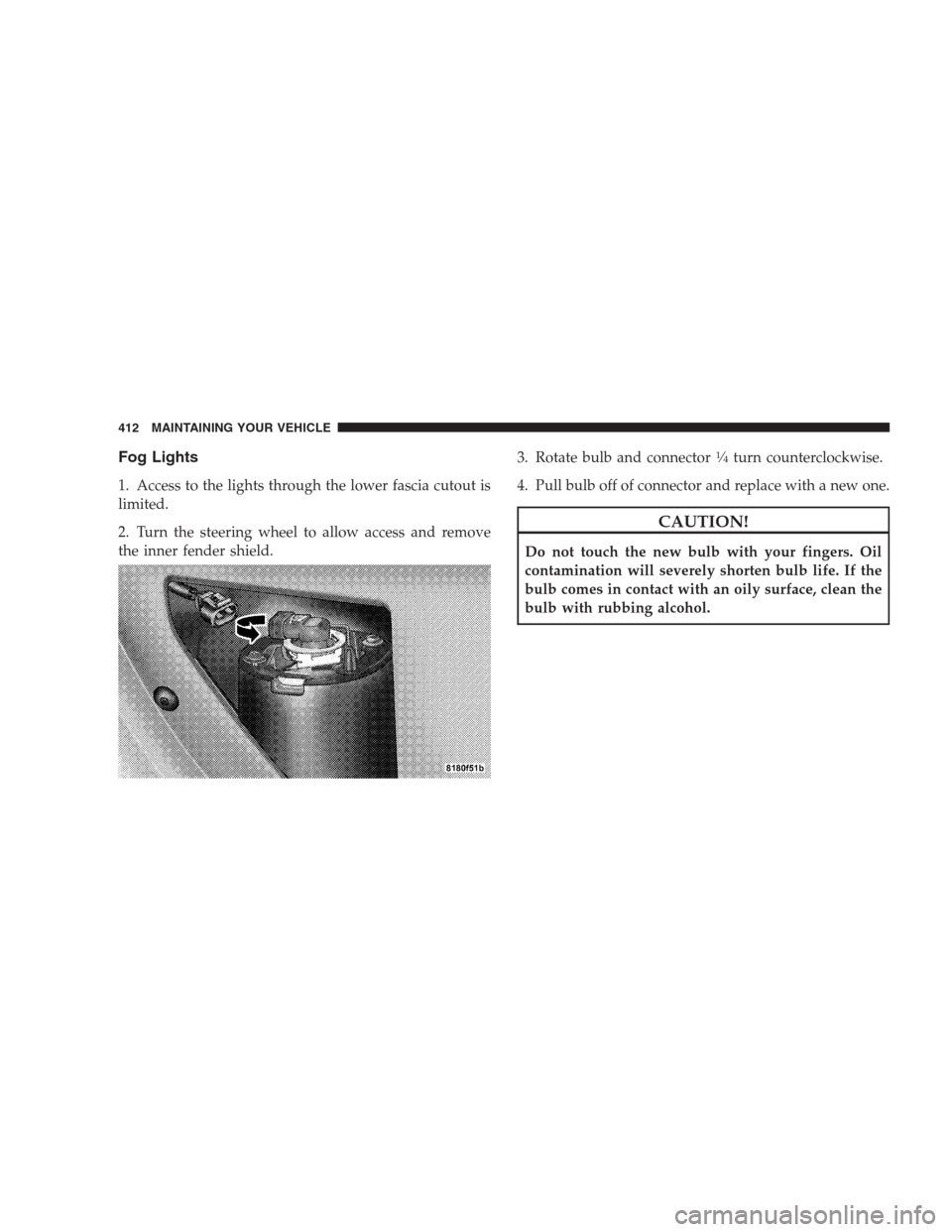

Fog Lights
1. Access to the lights through the lower fascia cutout is
limited.
2. Turn the steering wheel to allow access and remove
the inner fender shield.3. Rotate bulb and connector
14turn counterclockwise.
4. Pull bulb off of connector and replace with a new one.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
412 MAINTAINING YOUR VEHICLE

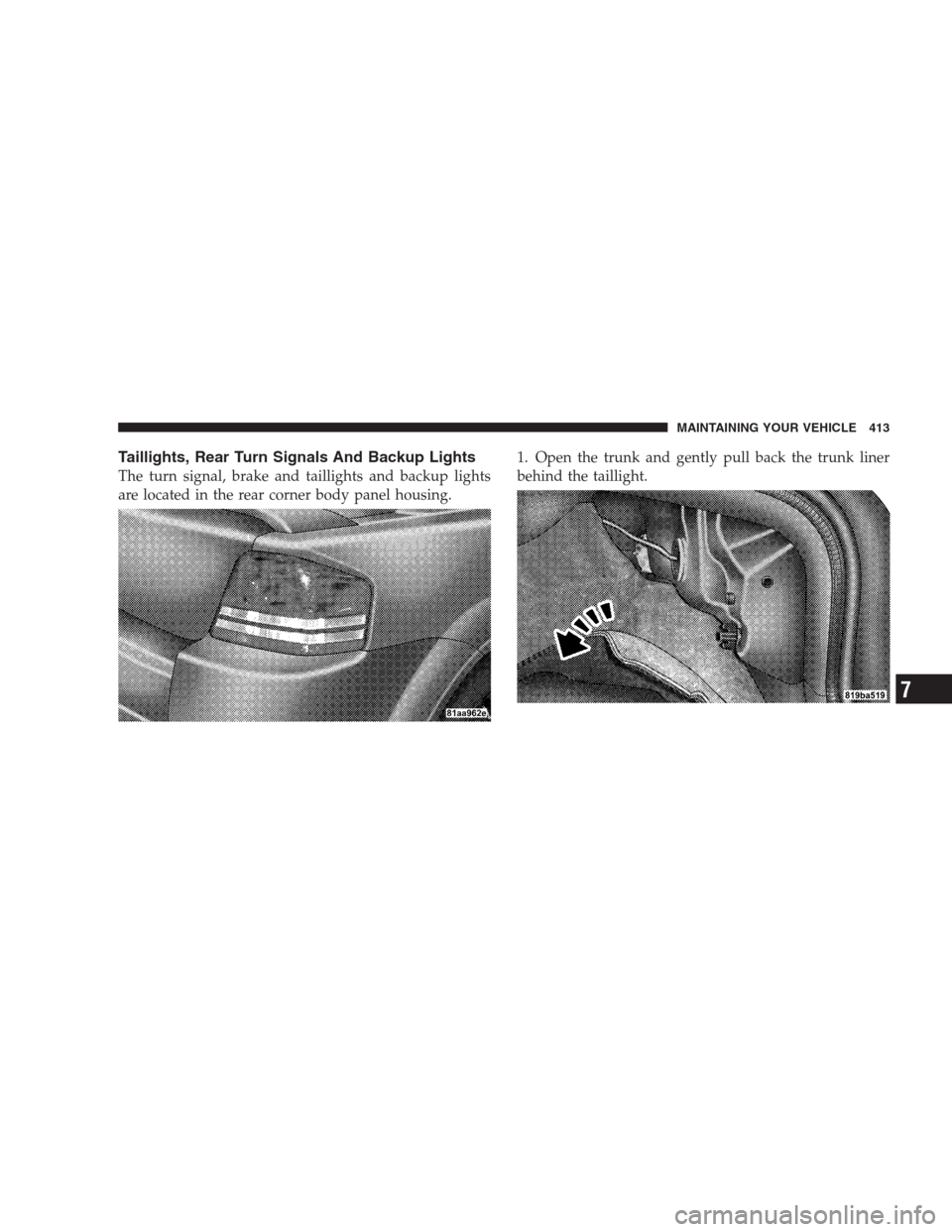

Taillights, Rear Turn Signals And Backup Lights
The turn signal, brake and taillights and backup lights
are located in the rear corner body panel housing.1. Open the trunk and gently pull back the trunk liner
behind the taillight.
MAINTAINING YOUR VEHICLE 413
7

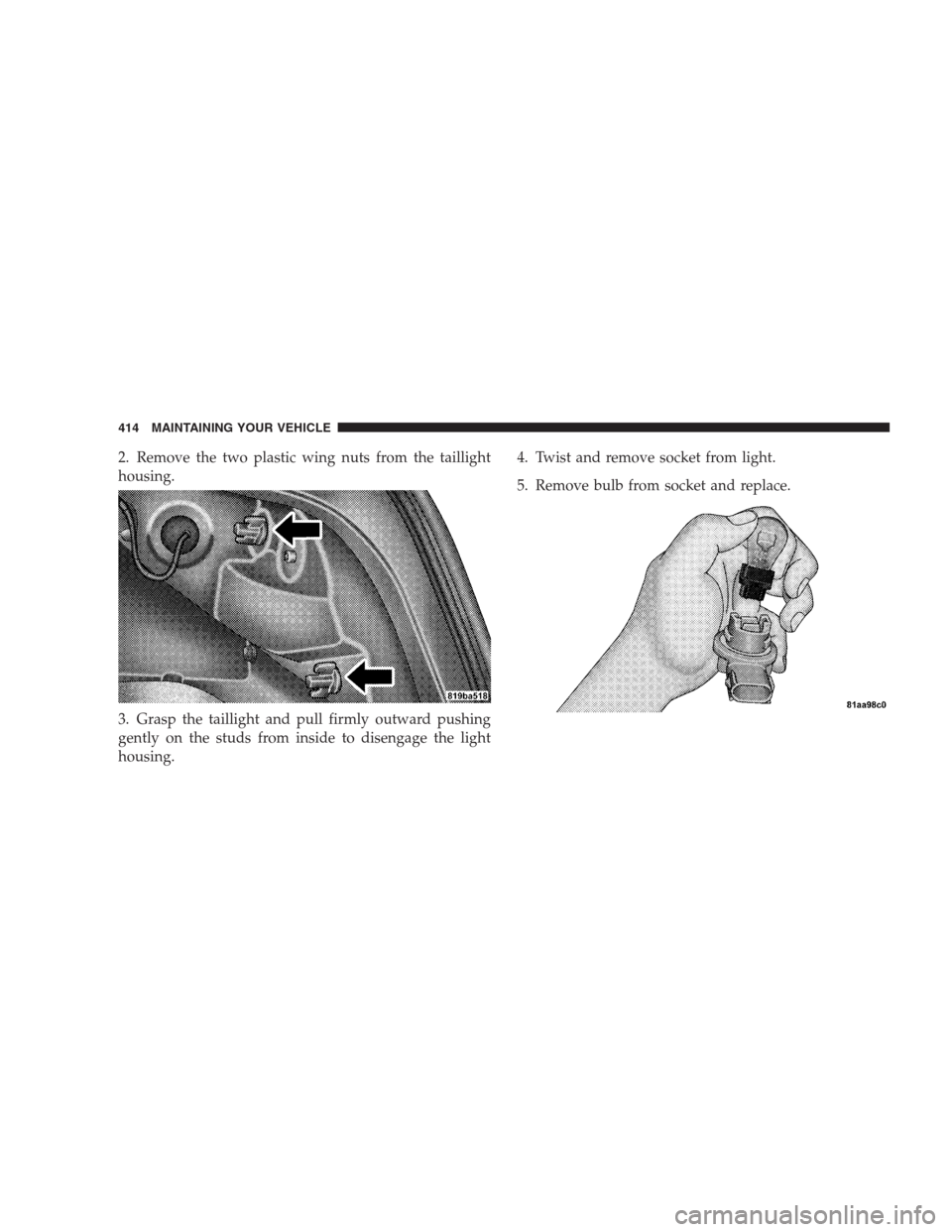

2. Remove the two plastic wing nuts from the taillight
housing.
3. Grasp the taillight and pull firmly outward pushing
gently on the studs from inside to disengage the light
housing.4. Twist and remove socket from light.
5. Remove bulb from socket and replace.
414 MAINTAINING YOUR VEHICLE

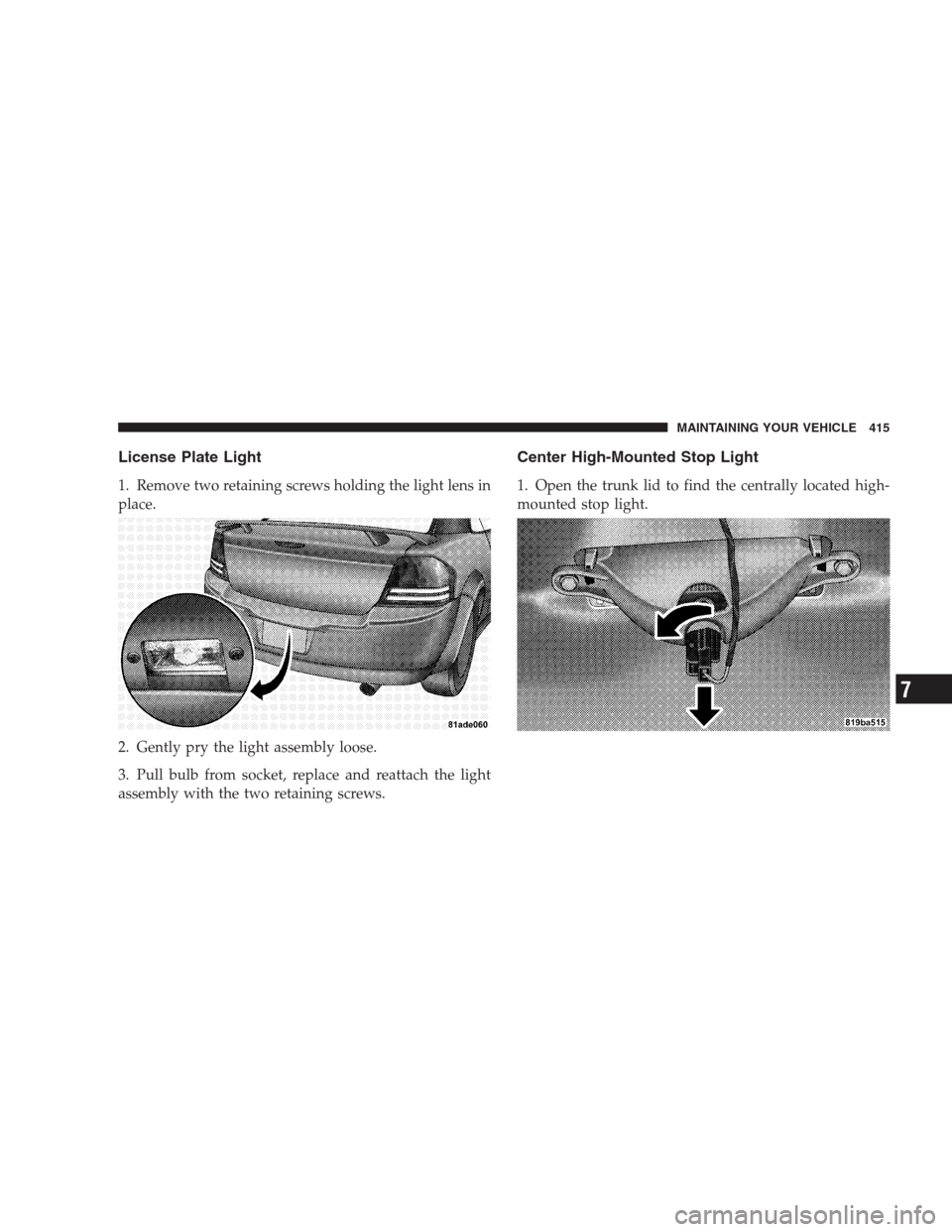

License Plate Light
1. Remove two retaining screws holding the light lens in
place.
2. Gently pry the light assembly loose.
3. Pull bulb from socket, replace and reattach the light
assembly with the two retaining screws.
Center High-Mounted Stop Light
1. Open the trunk lid to find the centrally located high-
mounted stop light.
MAINTAINING YOUR VEHICLE 415
7

2. Twist and remove socket from the back of the light
housing.3. Replace the bulb and reinstall the socket into the
housing by locking it in place with a twist.
416 MAINTAINING YOUR VEHICLE

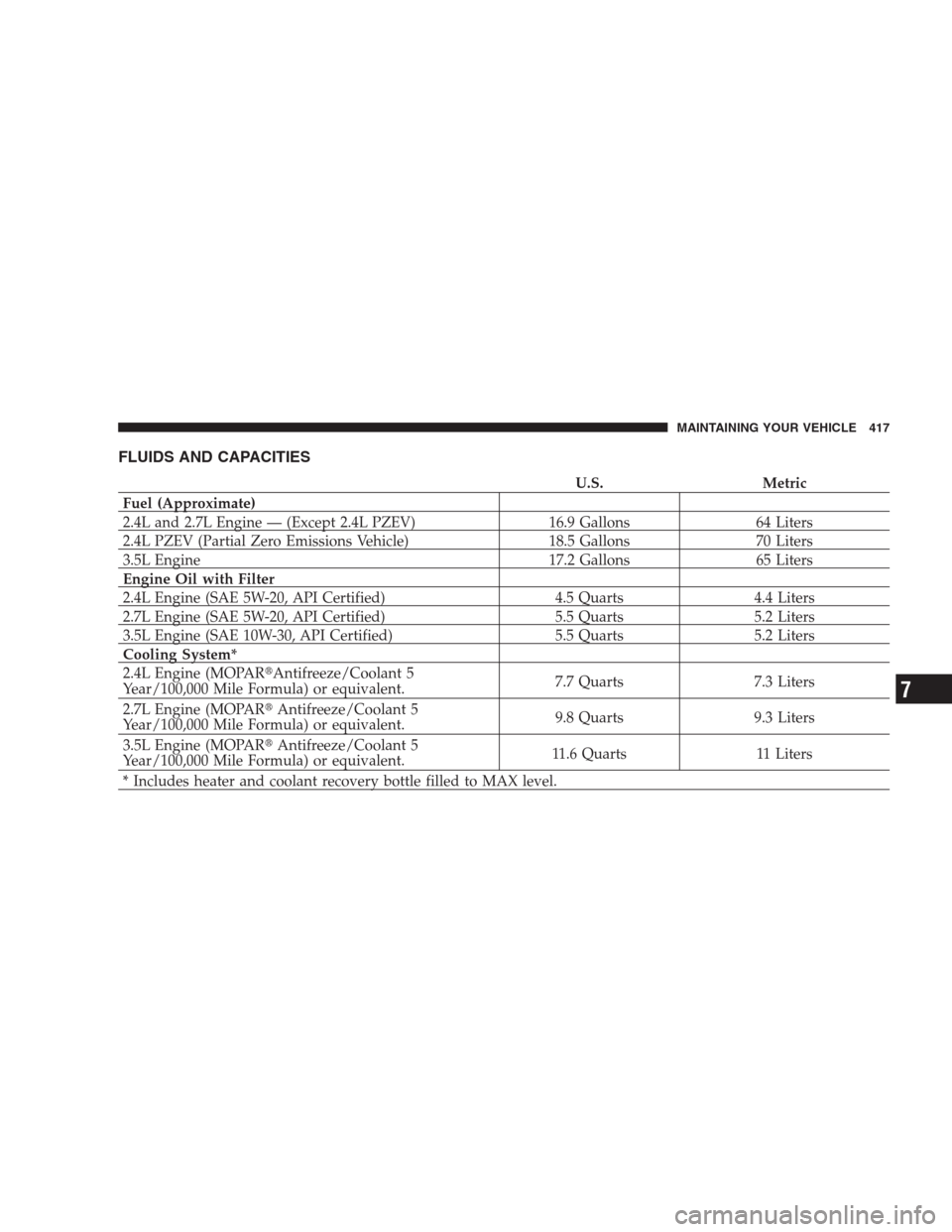

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)
2.4L and 2.7L Engine — (Except 2.4L PZEV) 16.9 Gallons 64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons 70 Liters
3.5L Engine 17.2 Gallons 65 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.4 Liters
2.7L Engine (SAE 5W-20, API Certified) 5.5 Quarts 5.2 Liters
3.5L Engine (SAE 10W-30, API Certified) 5.5 Quarts 5.2 Liters
Cooling System*
2.4L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.7.7 Quarts 7.3 Liters
2.7L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.9.8 Quarts 9.3 Liters
3.5L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.11.6 Quarts 11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 417
7

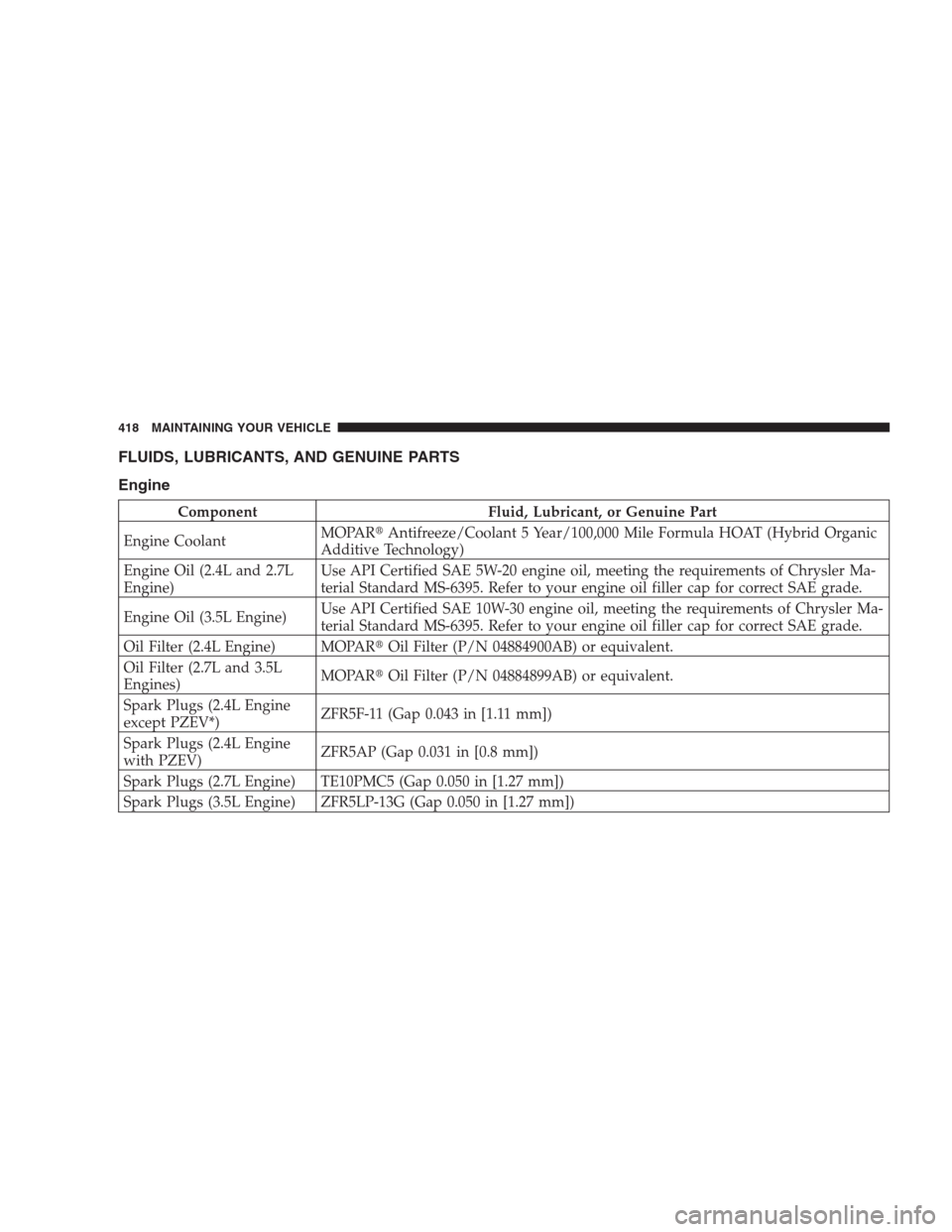

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine CoolantMOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic
Additive Technology)
Engine Oil (2.4L and 2.7L
Engine)Use API Certified SAE 5W-20 engine oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil (3.5L Engine)Use API Certified SAE 10W-30 engine oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Oil Filter (2.4L Engine) MOPAROil Filter (P/N 04884900AB) or equivalent.
Oil Filter (2.7L and 3.5L
Engines)MOPAROil Filter (P/N 04884899AB) or equivalent.
Spark Plugs (2.4L Engine
except PZEV*)ZFR5F-11 (Gap 0.043 in [1.11 mm])
Spark Plugs (2.4L Engine
with PZEV)ZFR5AP (Gap 0.031 in [0.8 mm])
Spark Plugs (2.7L Engine) TE10PMC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP-13G (Gap 0.050 in [1.27 mm])
418 MAINTAINING YOUR VEHICLE
