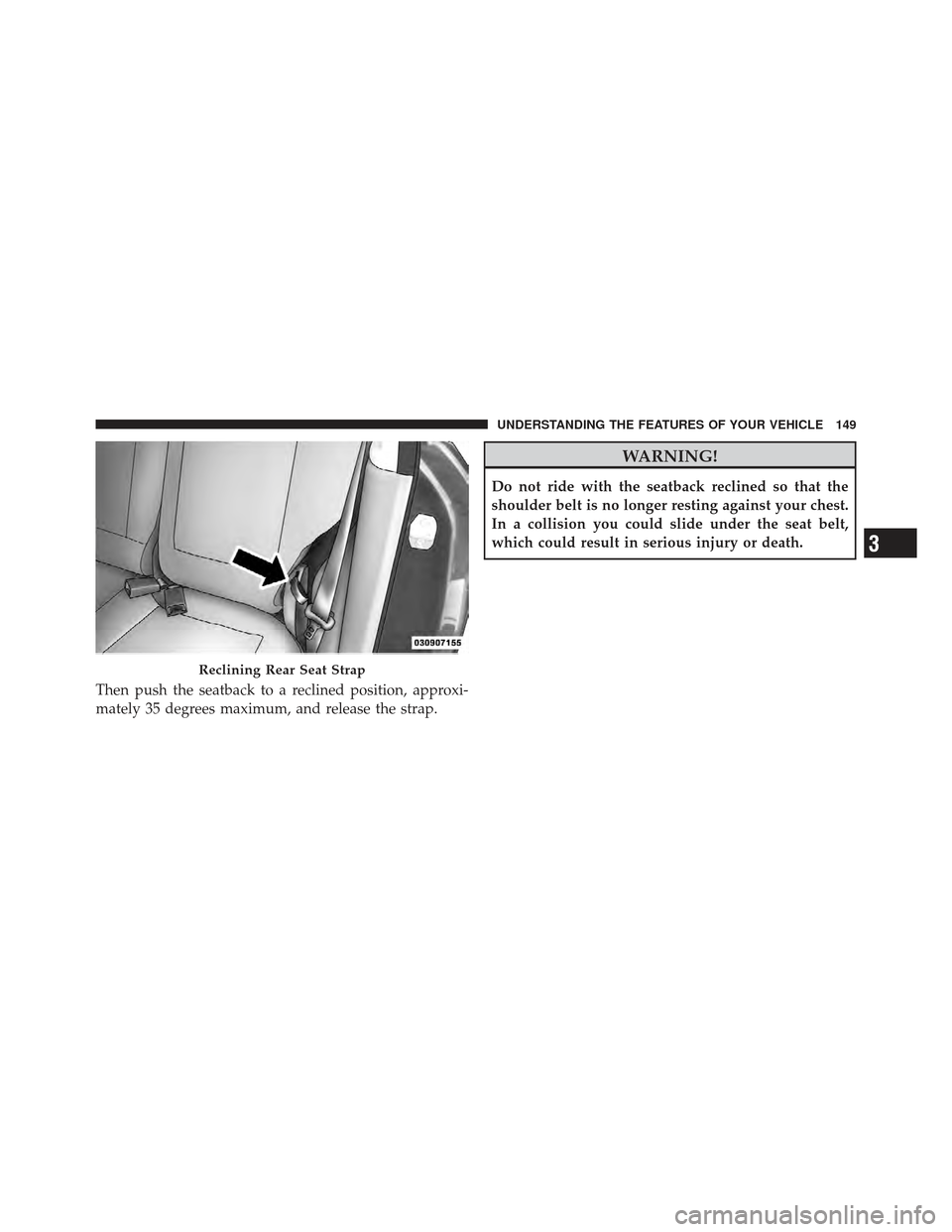

Then push the seatback to a reclined position, approxi-
mately 35 degrees maximum, and release the strap.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Reclining Rear Seat Strap
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located on the left kick
panel.2. Move the safety catch located under the front edge of
the hood, near the center and raise the hood.
Hood Release Lever
Safety Catch
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lift the hood prop rod, clipped to the right side (left side
when standing in front of hood) of the engine compart-
ment, to secure the hood in the open position. Place the
hood prop at the location stamped into the inner hood
surface.CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approxi-
mately 8 in (20 cm) and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Hood Prop Rod
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

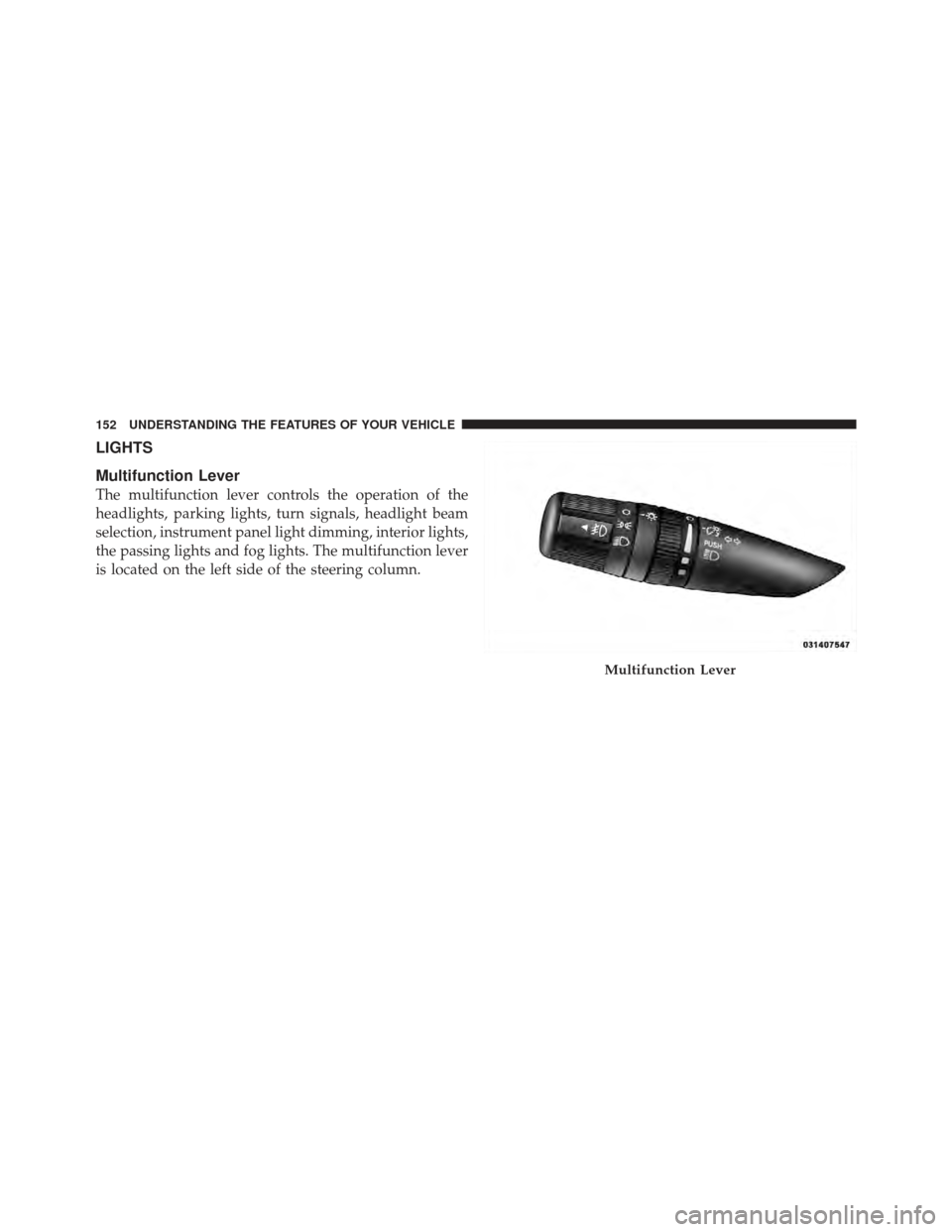

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection, instrument panel light dimming, interior lights,
the passing lights and fog lights. The multifunction lever
is located on the left side of the steering column.
Multifunction Lever
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

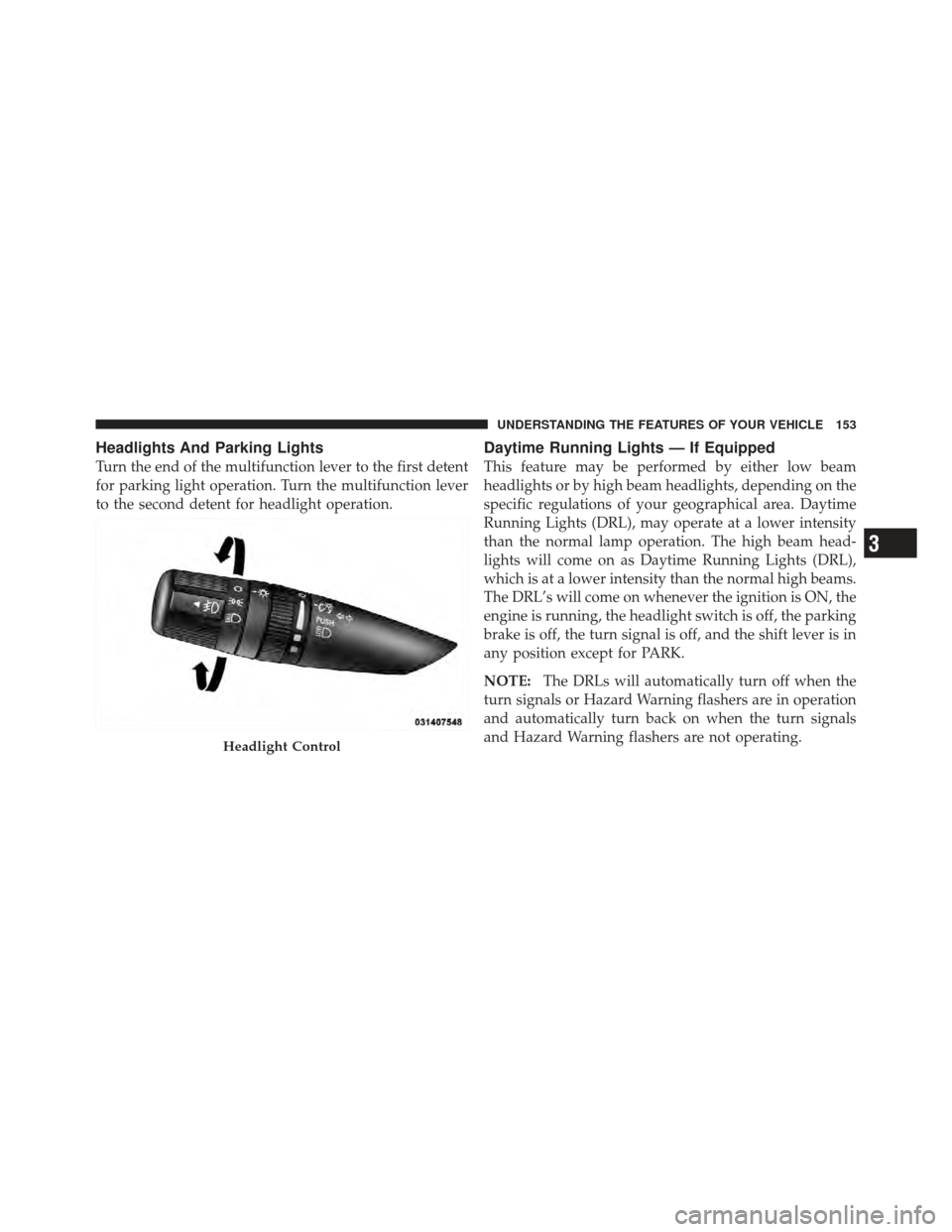

Headlights And Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn the multifunction lever
to the second detent for headlight operation.
Daytime Running Lights — If Equipped
This feature may be performed by either low beam
headlights or by high beam headlights, depending on the
specific regulations of your geographical area. Daytime
Running Lights (DRL), may operate at a lower intensity
than the normal lamp operation. The high beam head-
lights will come on as Daytime Running Lights (DRL),
which is at a lower intensity than the normal high beams.
The DRL’s will come on whenever the ignition is ON, the
engine is running, the headlight switch is off, the parking
brake is off, the turn signal is off, and the shift lever is in
any position except for PARK.
NOTE:The DRLs will automatically turn off when the
turn signals or Hazard Warning flashers are in operation
and automatically turn back on when the turn signals
and Hazard Warning flashers are not operating.
Headlight Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

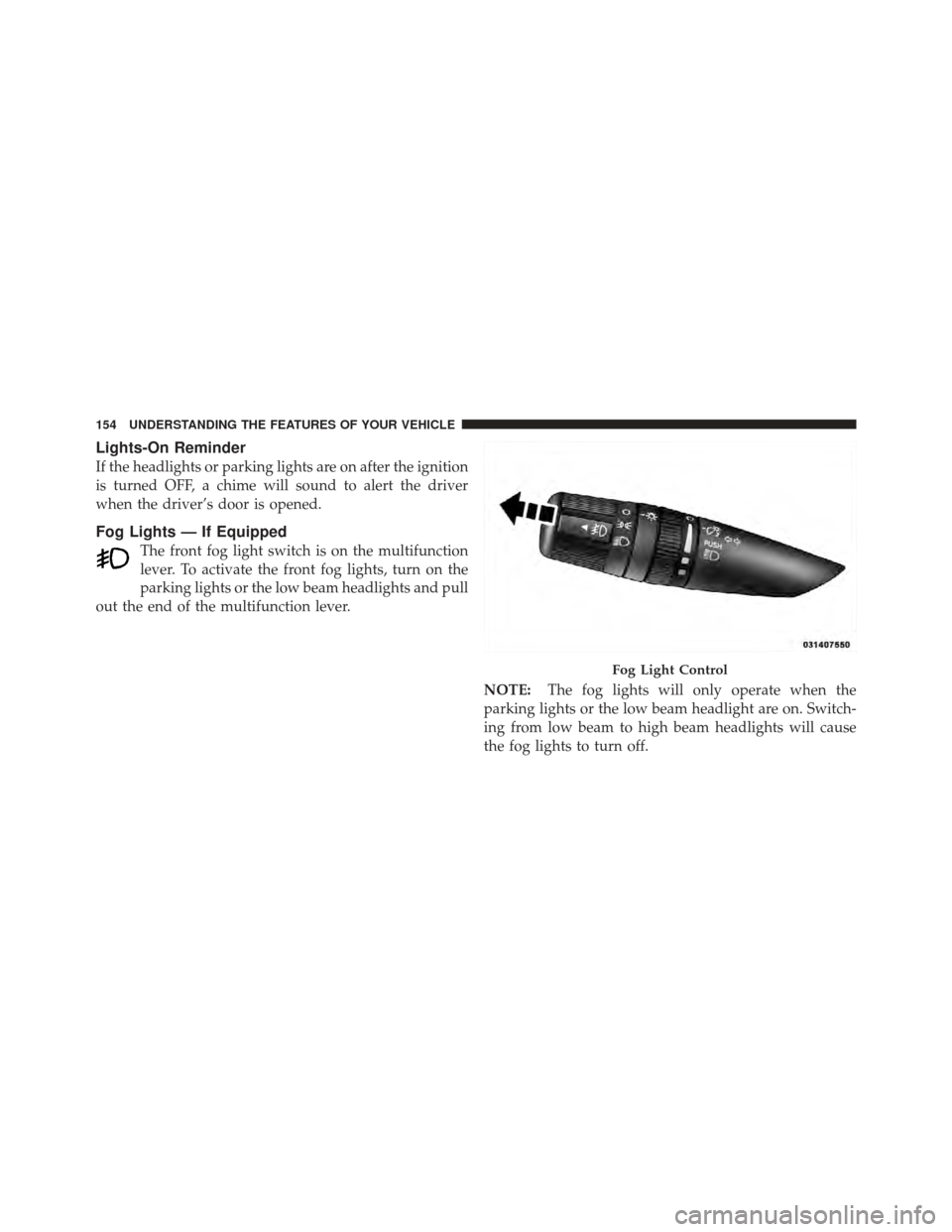

Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever.
NOTE:The fog lights will only operate when the
parking lights or the low beam headlight are on. Switch-
ing from low beam to high beam headlights will cause
the fog lights to turn off.
Fog Light Control
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

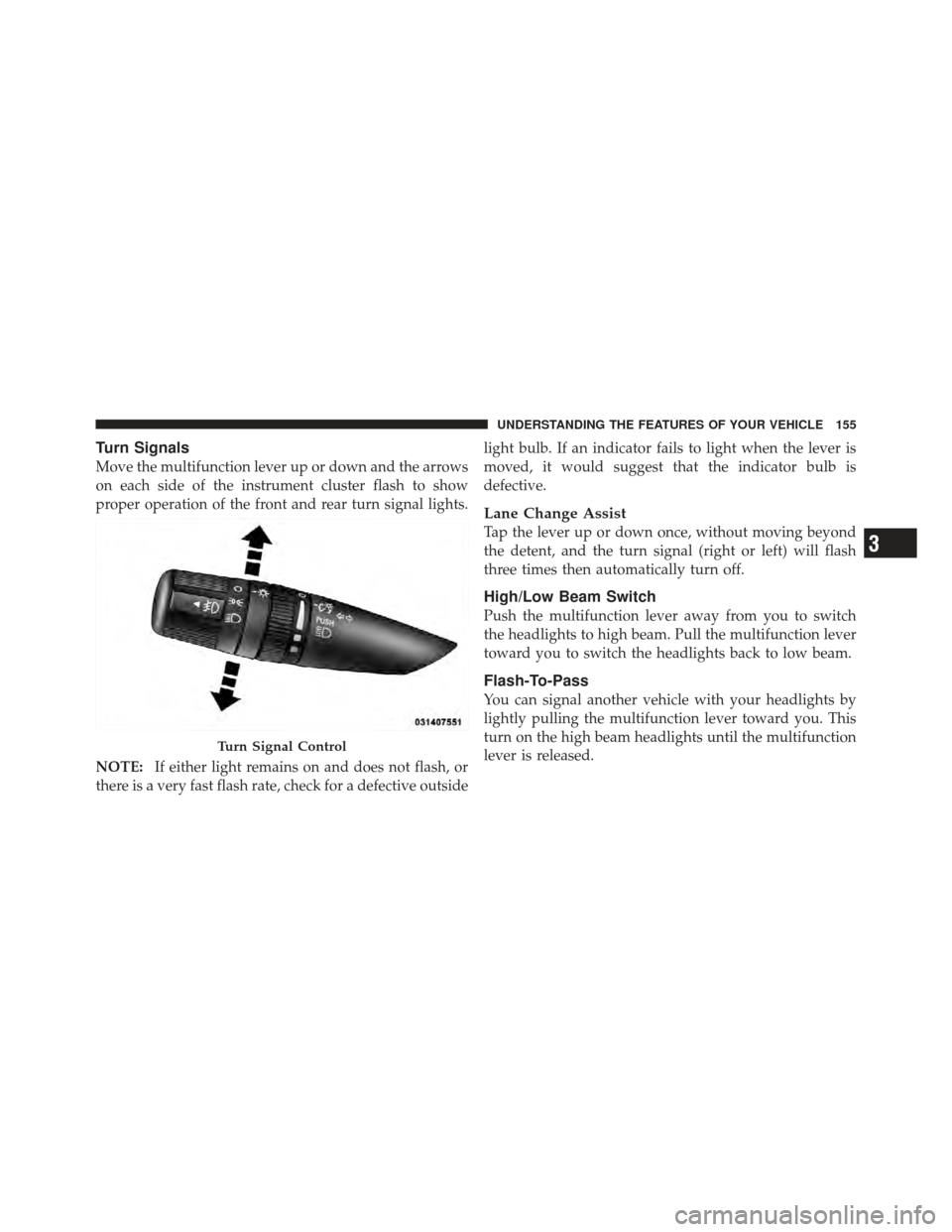

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
turn on the high beam headlights until the multifunction
lever is released.
Turn Signal Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 30 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.

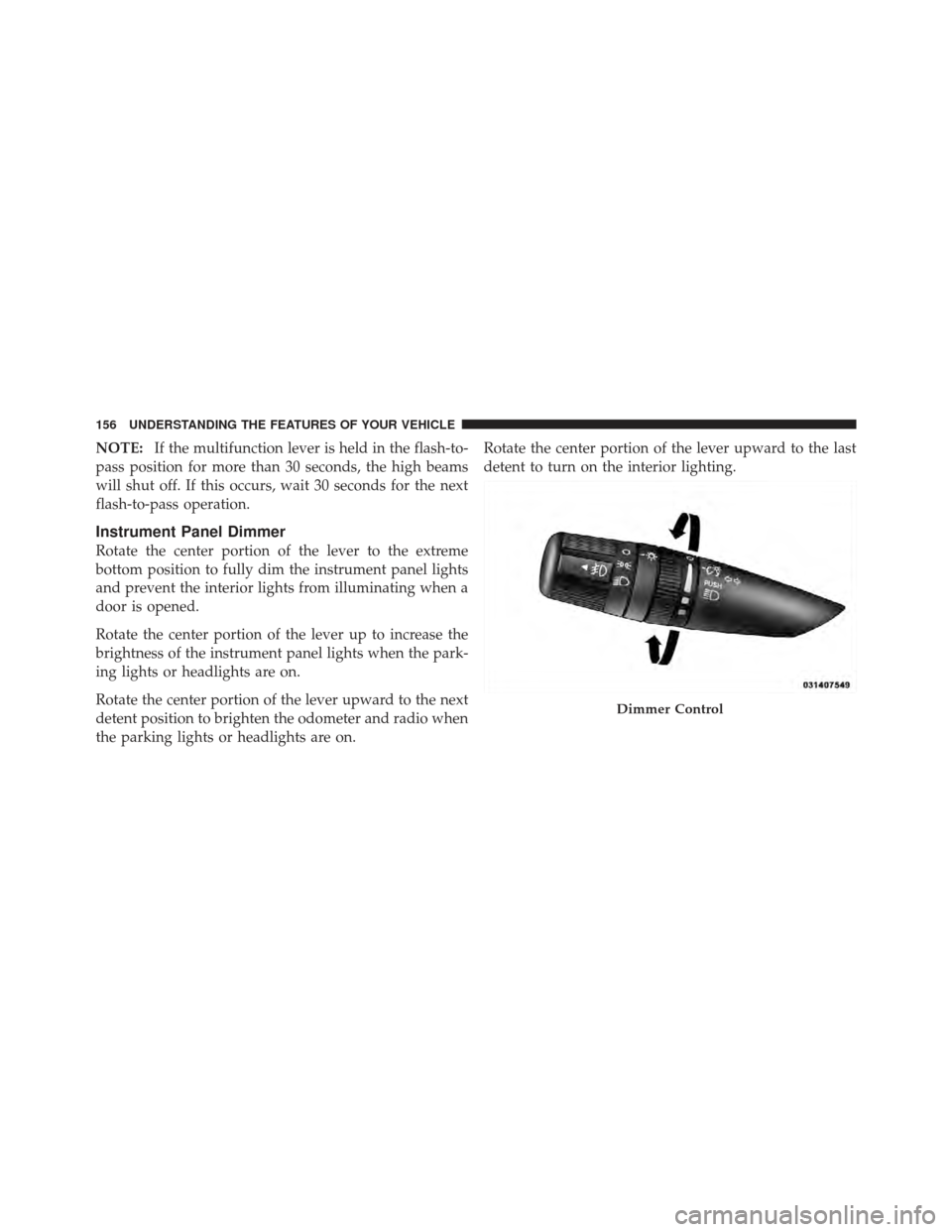

Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on. Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Dimmer Control
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

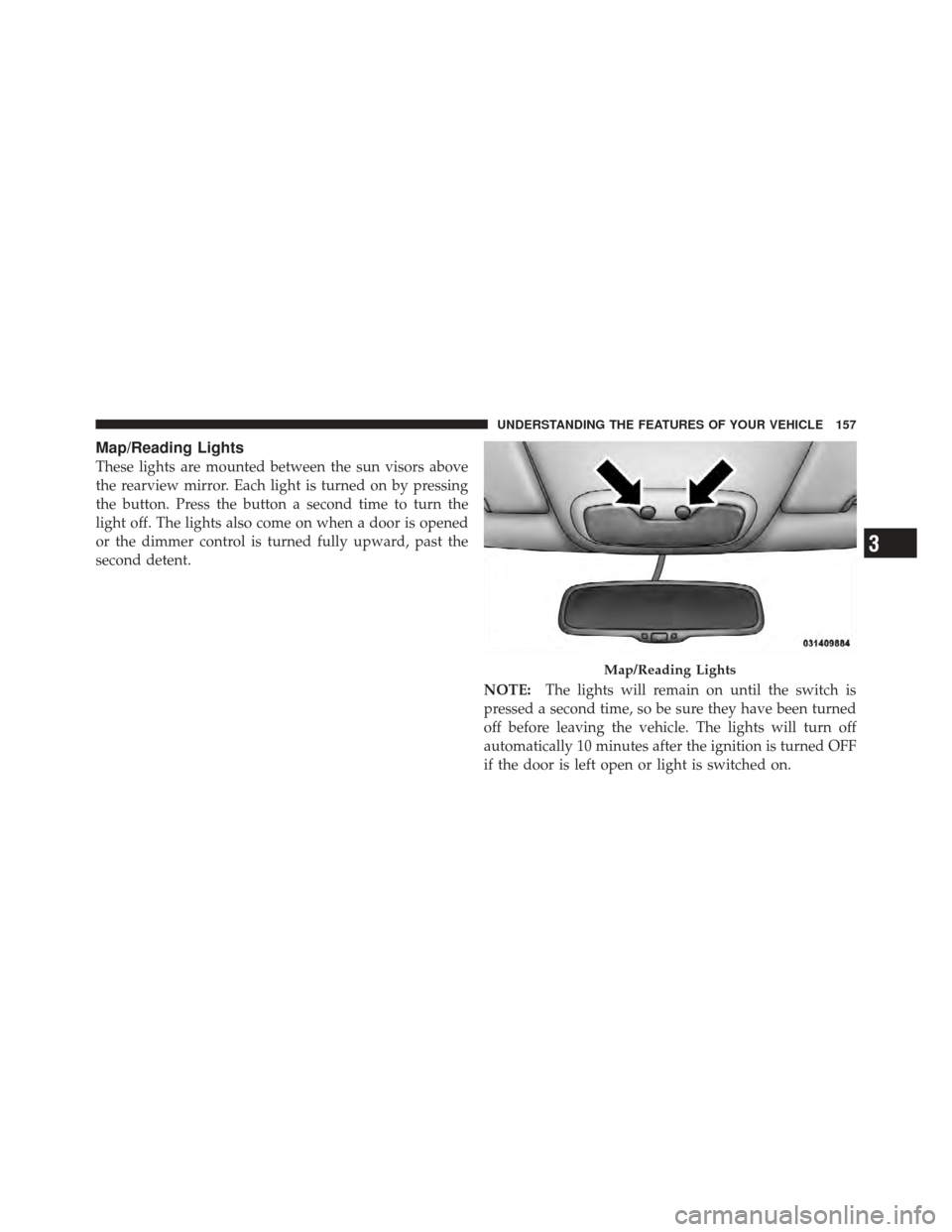

Map/Reading Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light is turned on by pressing
the button. Press the button a second time to turn the
light off. The lights also come on when a door is opened
or the dimmer control is turned fully upward, past the
second detent.NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. The lights will turn off
automatically 10 minutes after the ignition is turned OFF
if the door is left open or light is switched on.
Map/Reading Lights
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

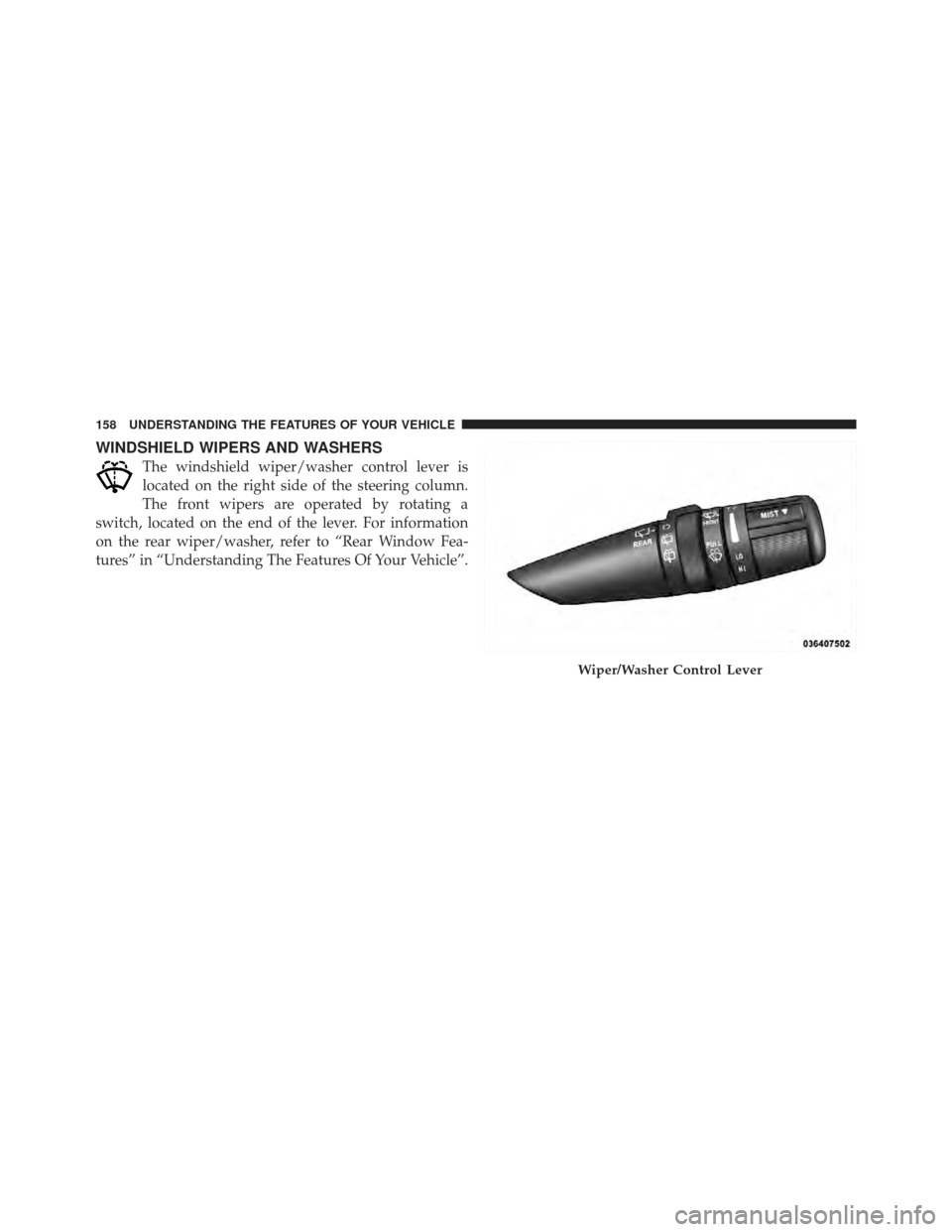

WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is
located on the right side of the steering column.
The front wipers are operated by rotating a
switch, located on the end of the lever. For information
on the rear wiper/washer, refer to “Rear Window Fea-
tures” in “Understanding The Features Of Your Vehicle”.
Wiper/Washer Control Lever
