DODGE CHALLENGER 2008 Owners Manual

WARNING!
•You should not try to start your vehicle by pushing
or towing.
•Do not connect the cable to the negative post of the
discharged battery. The resulting electrical spark
could cause the battery to explode.
•During cold weather when temperatures are be-
low the freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought above the
freezing point before attempting jump-start.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between RE-
VERSE and DRIVE. Usually, the least accelerator pedal
pressure to maintain the rocking motion without spin-
ning the wheels is most effective.
NOTE: Turn off the Electronic Stability Program (ESP)
before rocking the vehicle. Refer to “Electronic Stability
Program,” or “Traction Control” in Section 5.
WHAT TO DO IN EMERGENCIES 289
6
ProCarManuals.com

CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween “1st” and REVERSE, do not spin the wheels
faster than 15 mph (24 km/h), or drivetrain damage
may result.
•Racing the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 35 mph (55 km/h).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure some-
one. Do not spin your vehicle’s wheels faster than 35
mph (55 km/h) when you are stuck, and don’t let
anyone near a spinning wheel, no matter what the
speed.
290 WHAT TO DO IN EMERGENCIES
ProCarManuals.com

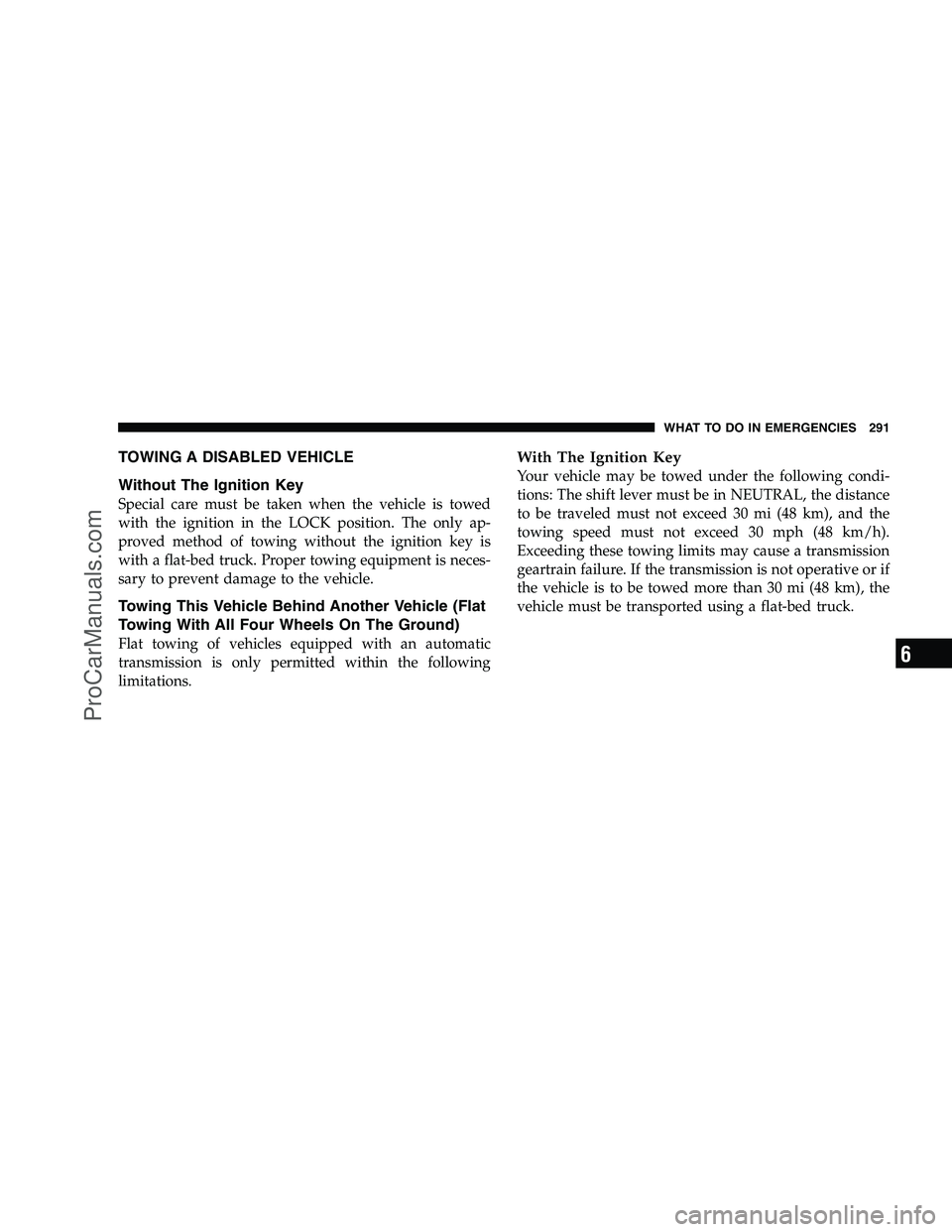

TOWING A DISABLED VEHICLE
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. The only ap-
proved method of towing without the ignition key is
with a flat-bed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
Towing This Vehicle Behind Another Vehicle (Flat
Towing With All Four Wheels On The Ground)
Flat towing of vehicles equipped with an automatic
transmission is only permitted within the following
limitations.
With The Ignition Key
Your vehicle may be towed under the following condi-
tions: The shift lever must be in NEUTRAL, the distance
to be traveled must not exceed 30 mi (48 km), and the
towing speed must not exceed 30 mph (48 km/h).
Exceeding these towing limits may cause a transmission
geartrain failure. If the transmission is not operative or if
the vehicle is to be towed more than 30 mi (48 km), the
vehicle must be transported using a flat-bed truck.
WHAT TO DO IN EMERGENCIES 291
6
ProCarManuals.com

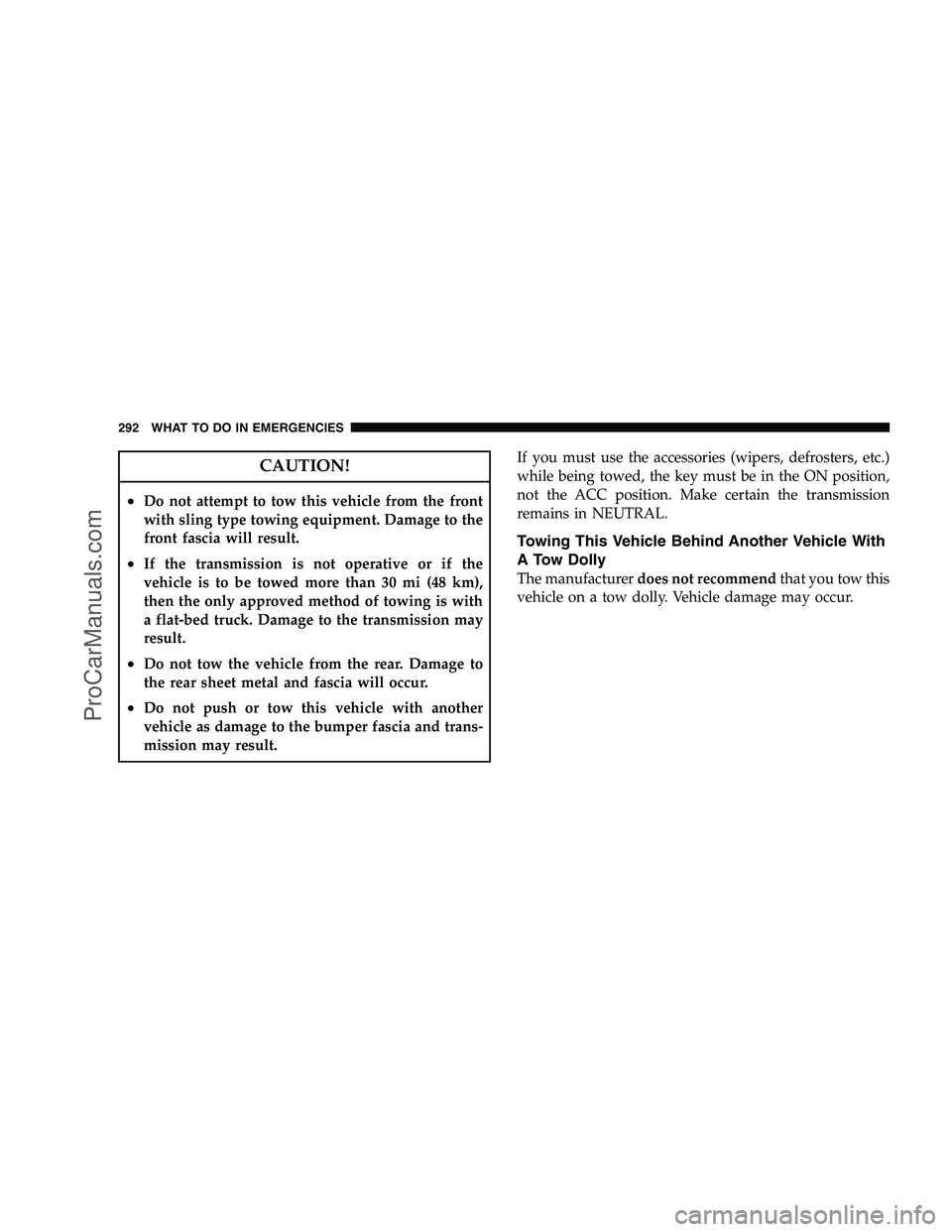

CAUTION!
•Do not attempt to tow this vehicle from the front
with sling type towing equipment. Damage to the
front fascia will result.
•If the transmission is not operative or if the
vehicle is to be towed more than 30 mi (48 km),
then the only approved method of towing is with
a flat-bed truck. Damage to the transmission may
result.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal and fascia will occur.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transmission
remains in NEUTRAL.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
The manufacturer
does not recommend that you tow this
vehicle on a tow dolly. Vehicle damage may occur.
292 WHAT TO DO IN EMERGENCIES
ProCarManuals.com

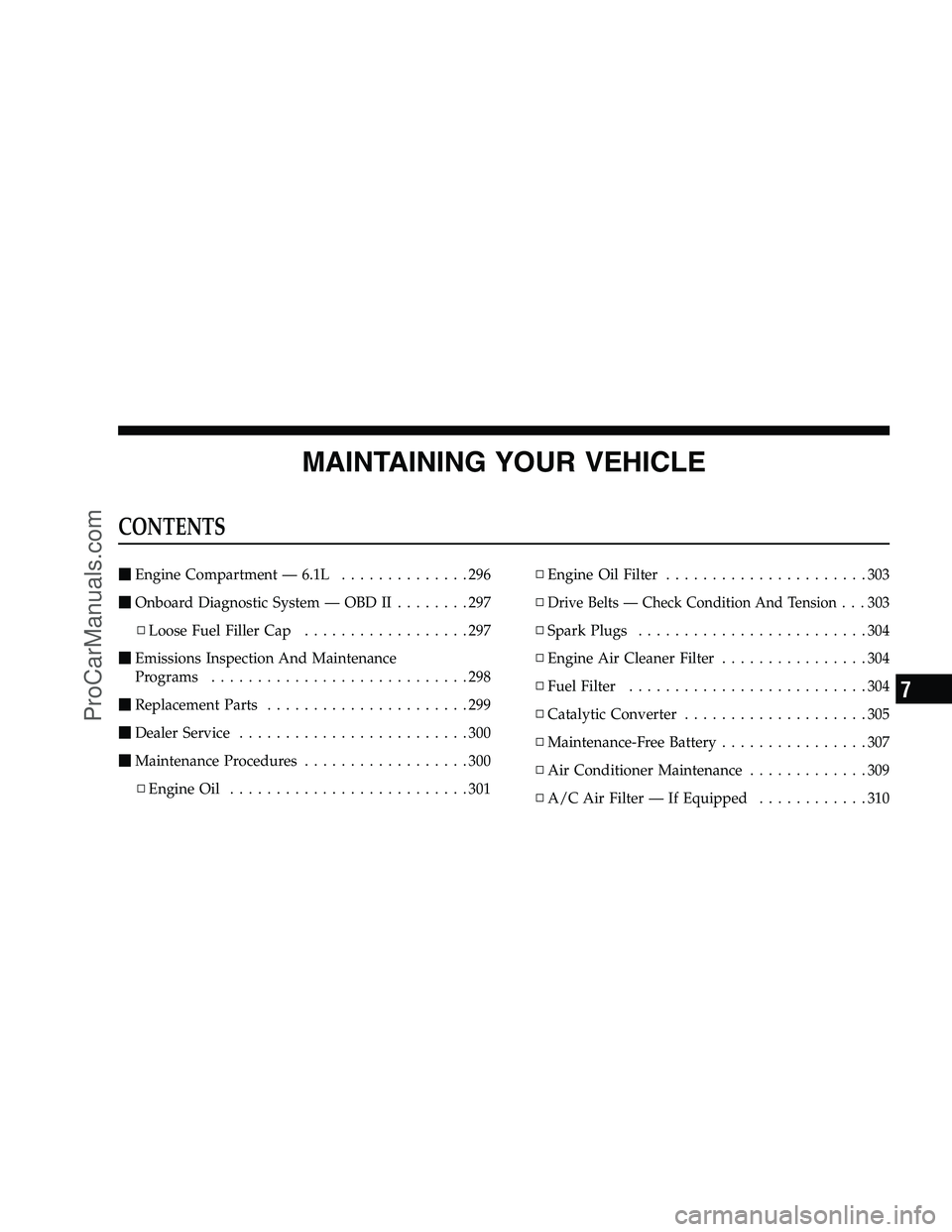

MAINTAINING YOUR VEHICLE
CONTENTS

Engine Compartment — 6.1L ..............296

Onboard Diagnostic System — OBD II ........297
▫ Loose Fuel Filler Cap ..................297

Emissions Inspection And Maintenance
Programs ............................298

Replacement Parts ......................299

Dealer Service .........................300

Maintenance Procedures ..................300
▫ Engine Oil ..........................301 ▫
Engine Oil Filter ......................303
▫
Drive Belts — Check Condition And Tension...303
▫ Spark Plugs .........................304
▫ Engine Air Cleaner Filter ................304
▫ Fuel Filter ..........................304
▫ Catalytic Converter ....................305
▫ Maintenance-Free Battery ................307
▫ Air Conditioner Maintenance .............309
▫ A/C Air Filter — If Equipped ............310
7
ProCarManuals.com

▫Power Steering — Fluid Check ............310
▫ Front And Rear Suspension Ball Joints ......311
▫ Steering Linkage ......................311
▫ Body Lubrication .....................311
▫ Windshield Wiper Blades ................312
▫ Windshield Washers ...................312
▫ Exhaust System ......................313
▫ Cooling System .......................314
▫ Hoses And Vacuum/Vapor Harnesses .......319
▫ Fuel System .........................319
▫ Brake System ........................320
▫ Automatic Transmission ................322
▫ Front And Rear Wheel Bearings ...........324▫
Appearance Care And Protection From
Corrosion ...........................324
▫ Cleaning The Center Console Cupholders ....328

Fuses ...............................329
▫ Integrated Power Module (IPM) ...........329
▫ Rear Power Distribution Center ...........331

Vehicle Storage ........................335

Replacement Light Bulbs .................336

Bulb Replacement ......................337
▫ Low Beam Headlight, High Beam Headlight,
And Park/Turn Light — Models With High
Intensity Discharge (HID) Headlights .......337
▫ Front/Rear Side Marker Light ............338
▫ Tail/Turn/Stop Light ..................338
294 MAINTAINING YOUR VEHICLE
ProCarManuals.com

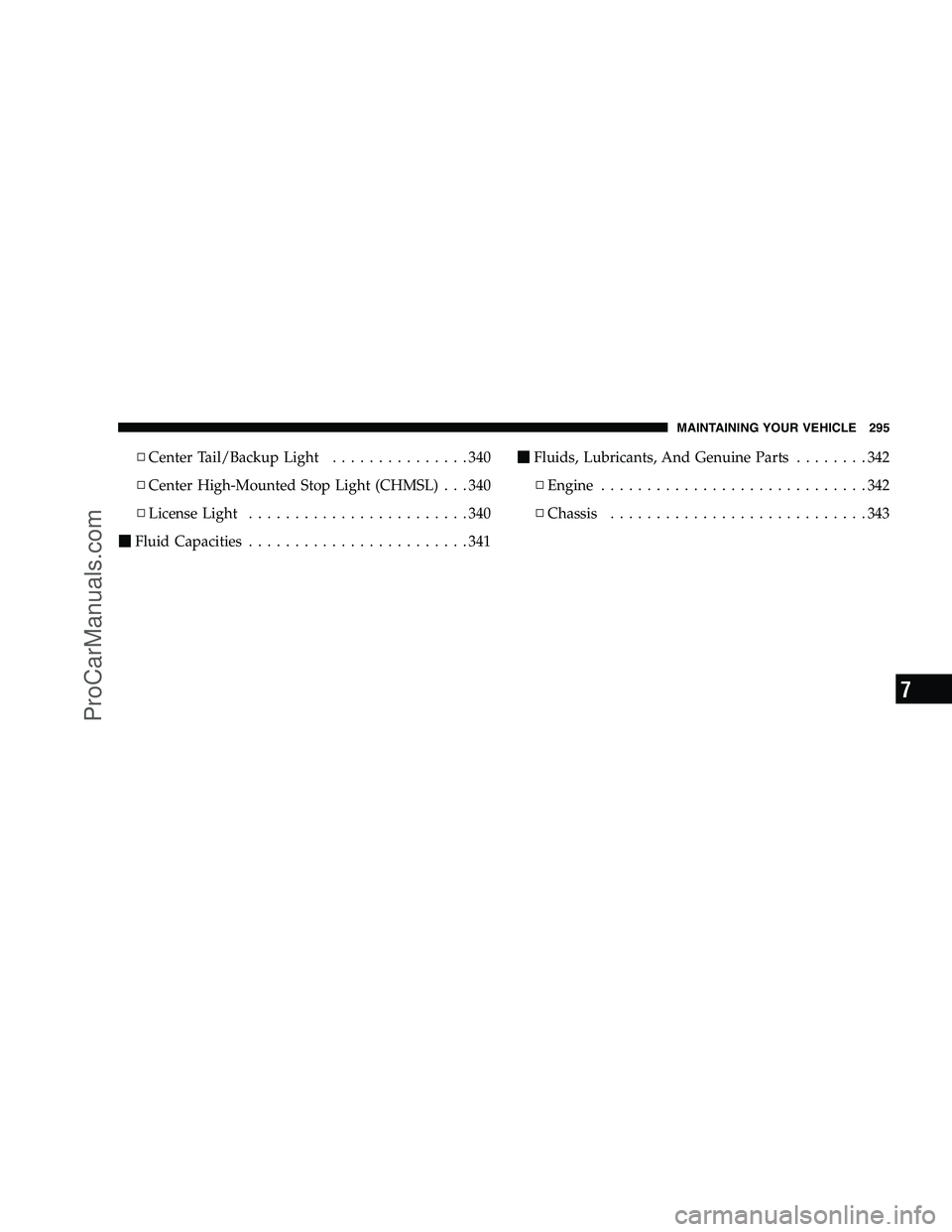

▫Center Tail/Backup Light ...............340
▫ Center High-Mounted Stop Light (CHMSL) . . . 340
▫ License Light ........................340

Fluid Capacities ........................341

Fluids, Lubricants, And Genuine Parts ........342
▫ Engine .............................342
▫ Chassis ............................343
MAINTAINING YOUR VEHICLE 295
7
ProCarManuals.com

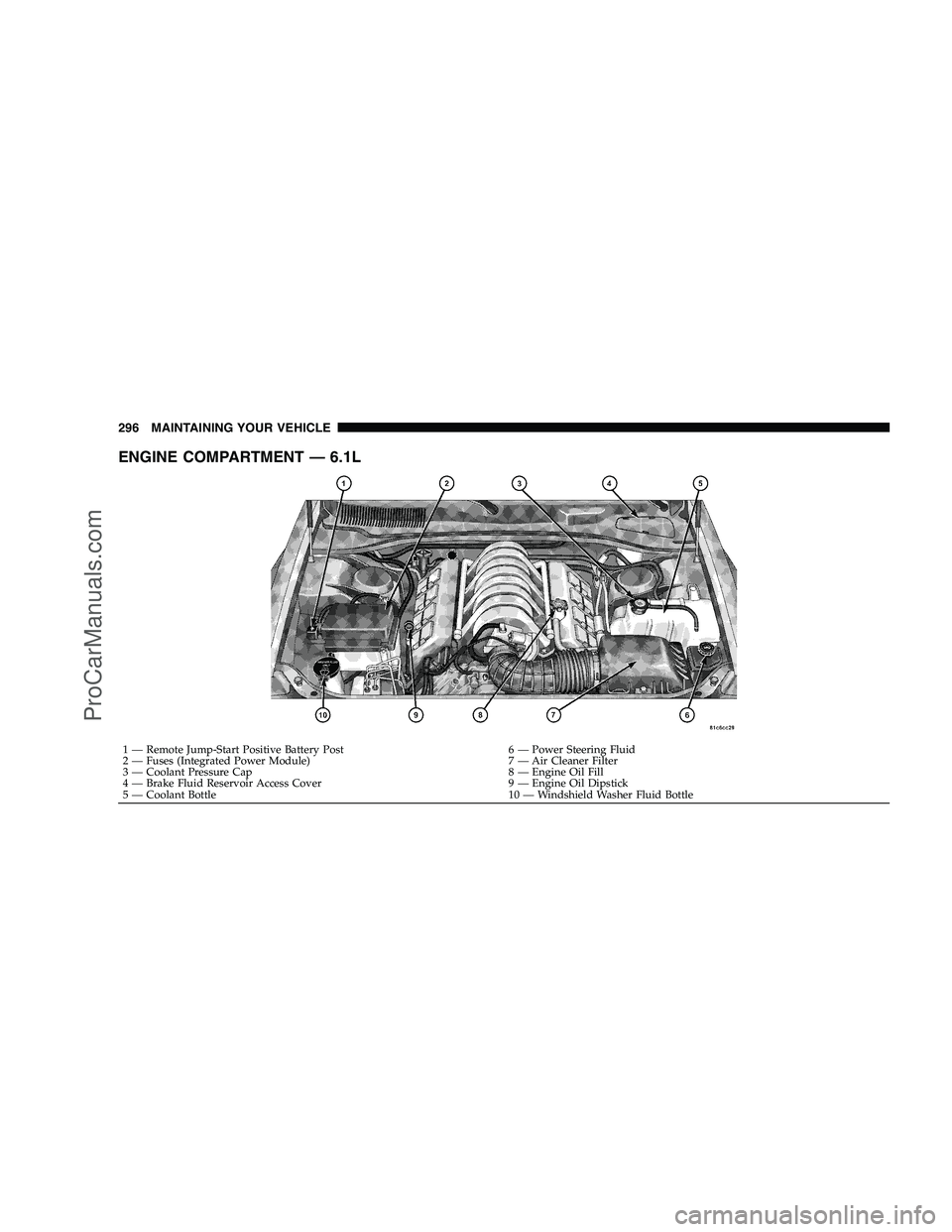

ENGINE COMPARTMENT — 6.1L
1 — Remote Jump-Start Positive Battery Post 6 — Power Steering Fluid
2 — Fuses (Integrated Power Module) 7 — Air Cleaner Filter
3 — Coolant Pressure Cap 8 — Engine Oil Fill
4 — Brake Fluid Reservoir Access Cover 9 — Engine Oil Dipstick
5 — Coolant Bottle 10 — Windshield Washer Fluid Bottle
296 MAINTAINING YOUR VEHICLE
ProCarManuals.com

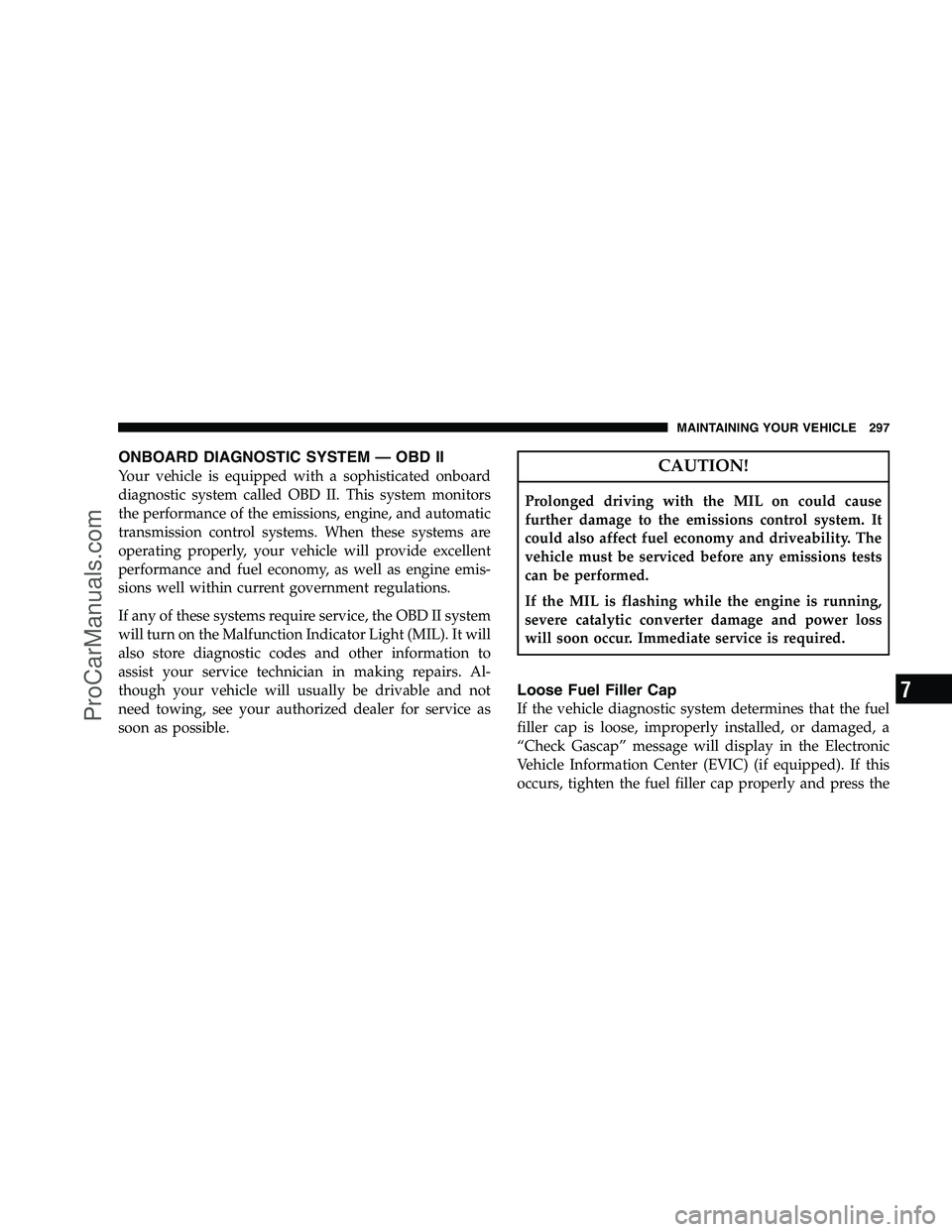

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the Malfunction Indicator Light (MIL). It will
also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
Prolonged driving with the MIL on could cause
further damage to the emissions control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any emissions tests
can be performed.
If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC) (if equipped). If this
occurs, tighten the fuel filler cap properly and press the
MAINTAINING YOUR VEHICLE 297
7
ProCarManuals.com

Trip Odometer button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of this vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if the vehicle was recently serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, the vehicle may fail the test.
This vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if this vehicle’s OBD II system is ready, you must
do the following:
1. Insert the ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn the ignition key to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
