DODGE CHALLENGER 2008 Owners Manual

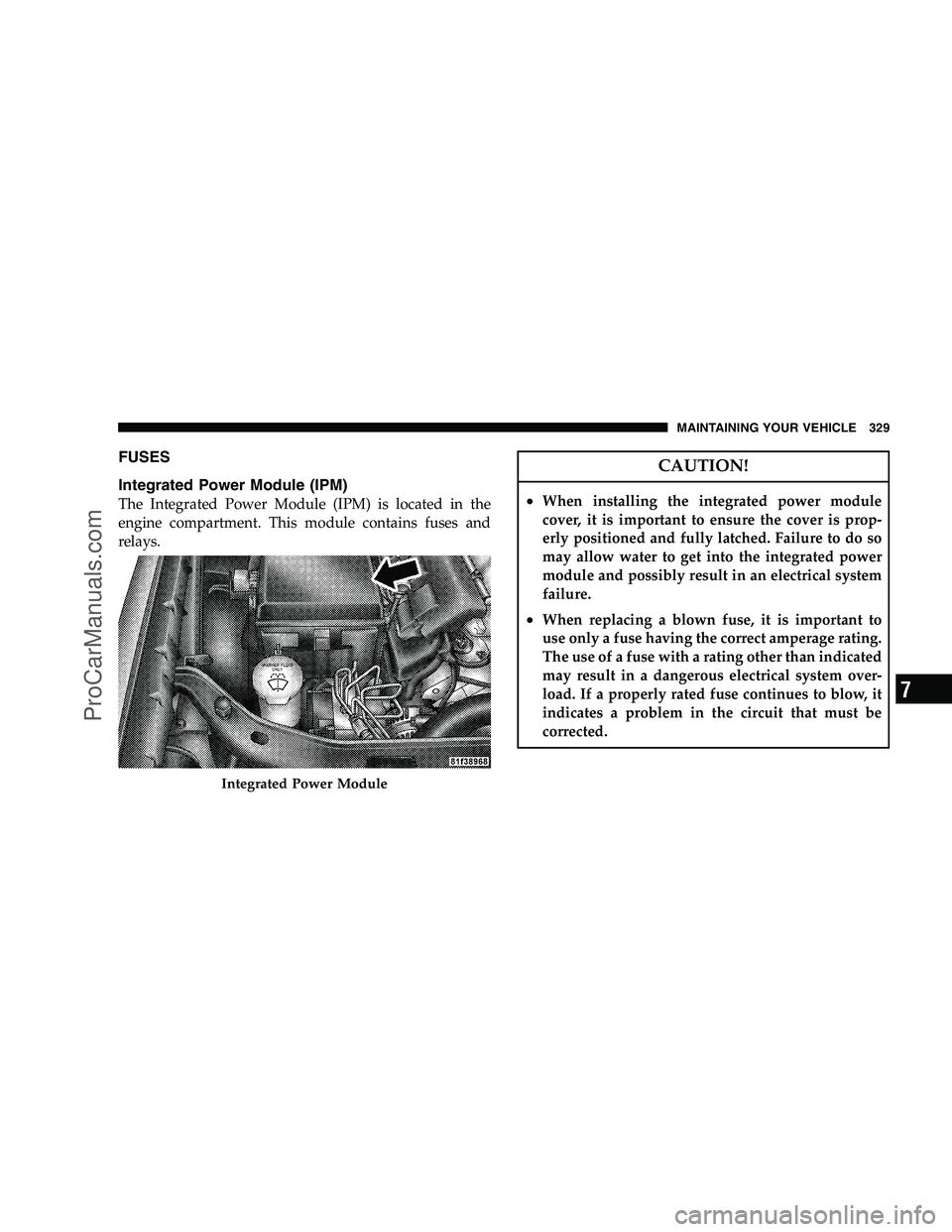

FUSES
Integrated Power Module (IPM)
The Integrated Power Module (IPM) is located in the
engine compartment. This module contains fuses and
relays.
CAUTION!
•When installing the integrated power module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the integrated power
module and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Integrated Power Module
MAINTAINING YOUR VEHICLE 329
7
ProCarManuals.com

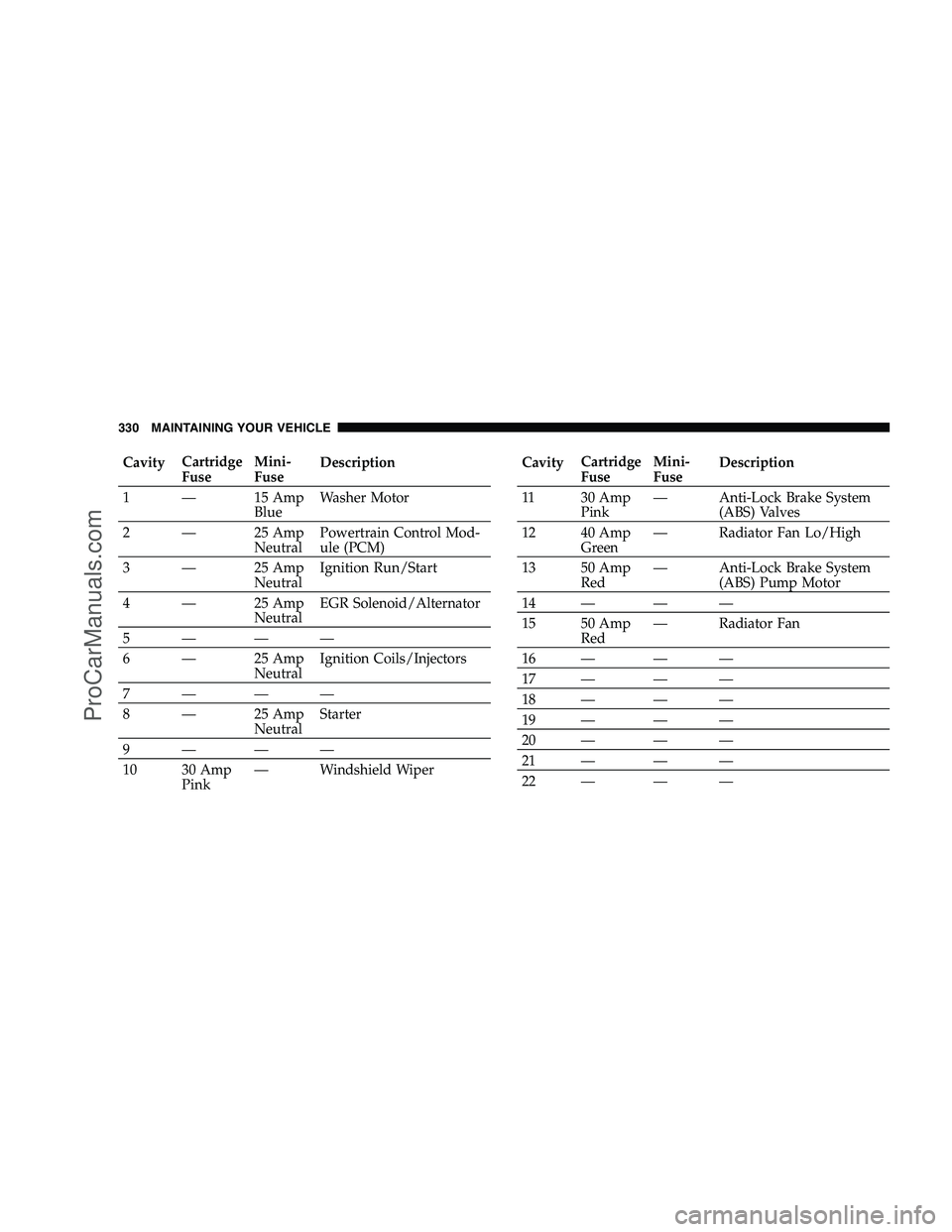

CavityCartridge
Fuse Mini-
Fuse
Description
1 — 15 Amp BlueWasher Motor
2 — 25 Amp NeutralPowertrain Control Mod-
ule (PCM)
3 — 25 Amp NeutralIgnition Run/Start
4 — 25 Amp NeutralEGR Solenoid/Alternator
5— ——
6 — 25 Amp NeutralIgnition Coils/Injectors
7— ——
8 — 25 Amp NeutralStarter
9— ——
10 30 Amp Pink — Windshield WiperCavity
Cartridge
Fuse Mini-
Fuse
Description
11 30 Amp Pink — Anti-Lock Brake System
(ABS) Valves
12 40 Amp Green — Radiator Fan Lo/High
13 50 Amp Red — Anti-Lock Brake System
(ABS) Pump Motor
14 — — —
15 50 Amp Red — Radiator Fan
16 — — —
17 — — —
18 — — —
19 — — —
20 — — —
21 — — —
22 — — —
330 MAINTAINING YOUR VEHICLE
ProCarManuals.com

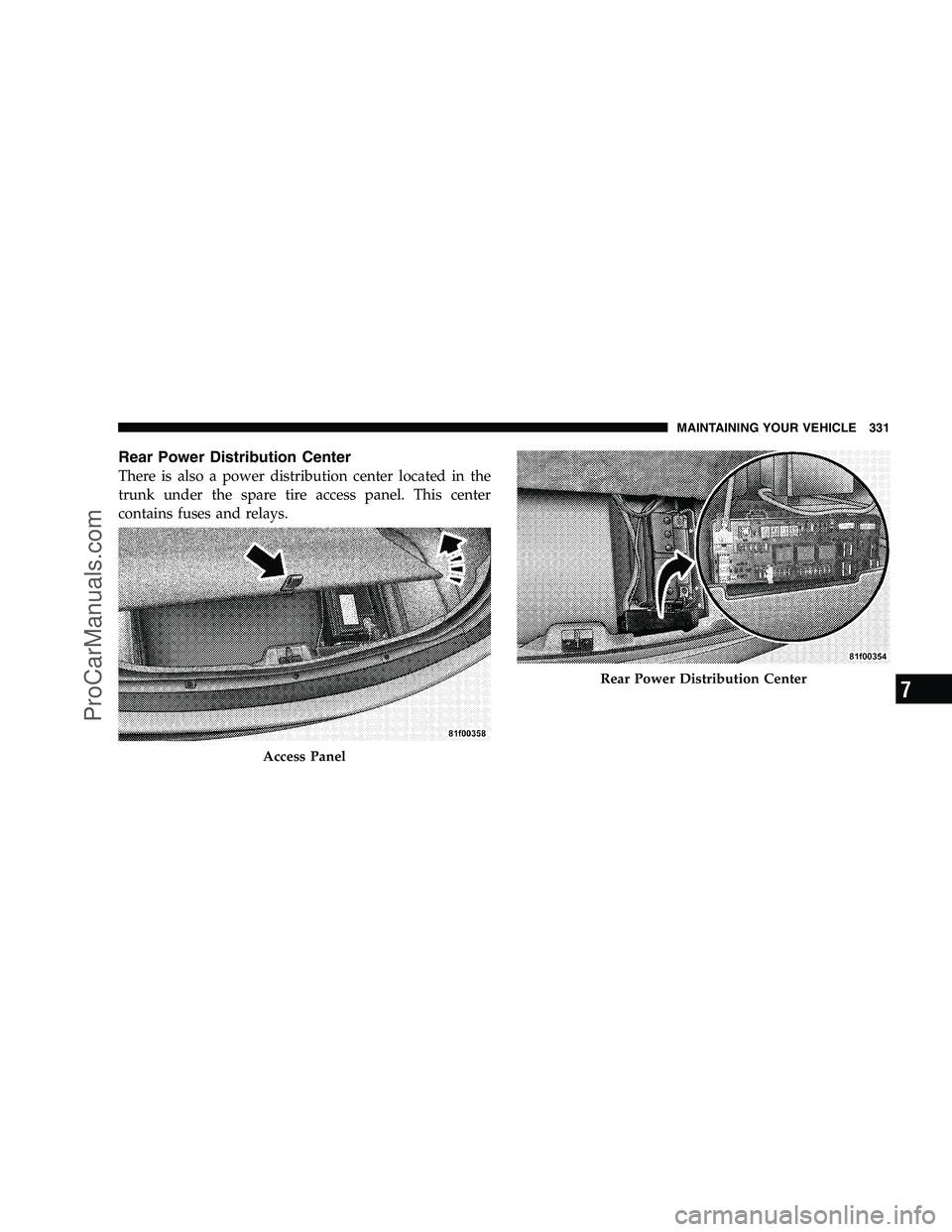

Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Access Panel
Rear Power Distribution Center
MAINTAINING YOUR VEHICLE 331
7
ProCarManuals.com

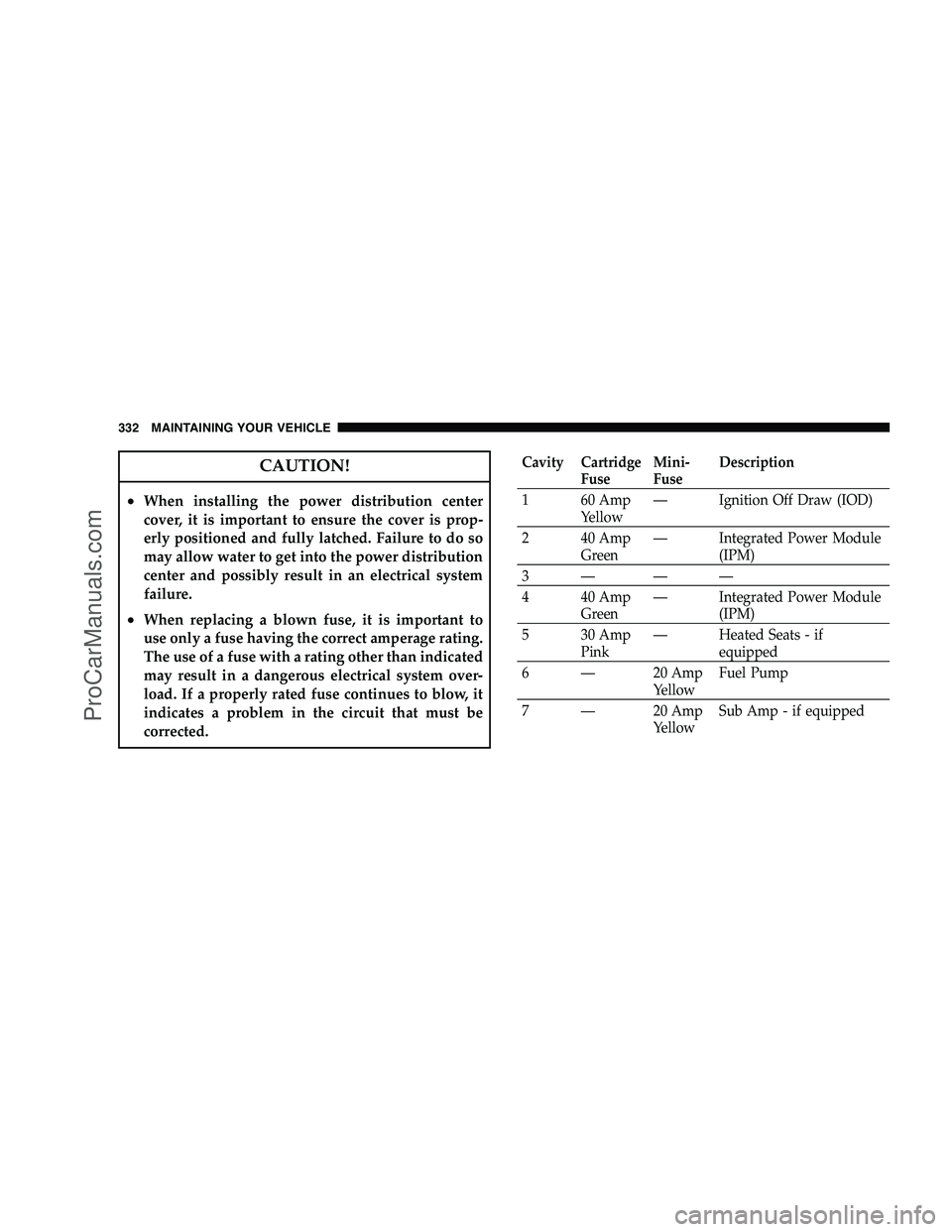

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Cavity Cartridge Fuse Mini-
FuseDescription
1 60 Amp Yellow — Ignition Off Draw (IOD)
2 40 Amp Green — Integrated Power Module
(IPM)
3— ——
4 40 Amp Green — Integrated Power Module
(IPM)
5 30 Amp Pink — Heated Seats - if
equipped
6 — 20 Amp YellowFuel Pump
7 — 20 Amp YellowSub Amp - if equipped
332 MAINTAINING YOUR VEHICLE
ProCarManuals.com

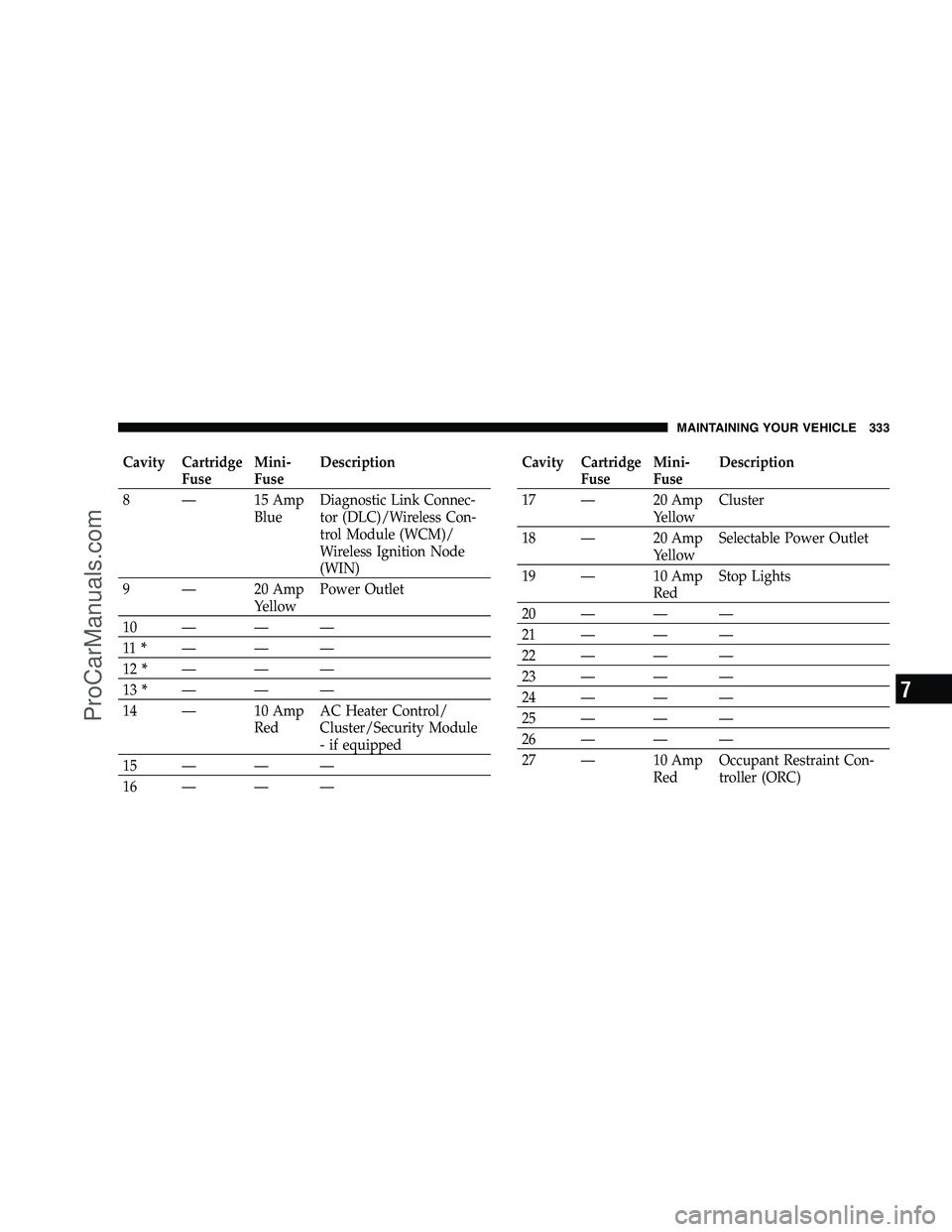

Cavity CartridgeFuse Mini-
FuseDescription
8 — 15 Amp BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp YellowPower Outlet
10 — — —
11 * ———
12 * ———
13 * ———
14 — 10 Amp RedAC Heater Control/
Cluster/Security Module
- if equipped
15 — — —
16 — — —Cavity Cartridge Fuse Mini-
FuseDescription
17 — 20 Amp YellowCluster
18 — 20 Amp YellowSelectable Power Outlet
19 — 10 Amp RedStop Lights
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
25 — — —
26 — — —
27 — 10 Amp RedOccupant Restraint Con-
troller (ORC)
MAINTAINING YOUR VEHICLE 333
7
ProCarManuals.com

Cavity CartridgeFuse Mini-
FuseDescription
28 — 10 Amp RedIgnition Run
29 — 5 Amp OrangeCluster/Electronic Stabil-
ity Program (ESP)/
Powertrain Control Mod-
ule (PCM)/STOP LIGHT
Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/Steering Control
Module (SCM)
31 — — —
32 — — —
33 — — —
34 — — —
35 — 5 Amp OrangeAntenna Module - if
equipped/Power MirrorsCavity Cartridge
Fuse Mini-
FuseDescription
36 — 20 Amp YellowHands-Free Phone - if
equipped//Radio
37 — 15 Amp BlueTransmission
38 — 10 Amp RedCargo Light/Vehicle In-
formation Module - if
equipped
39 — 10 Amp RedHeated Mirrors - if
equipped
40 — 5 Amp OrangeAuto Inside Rearview
Mirror/Heated Seats - if
equipped/Switch Bank
41 — 10 Amp RedAC Heater Control/
Headlights/Tire Pressure
Monitoring - if equipped
42 30 Amp Pink — Front Blower Motor
334 MAINTAINING YOUR VEHICLE
ProCarManuals.com

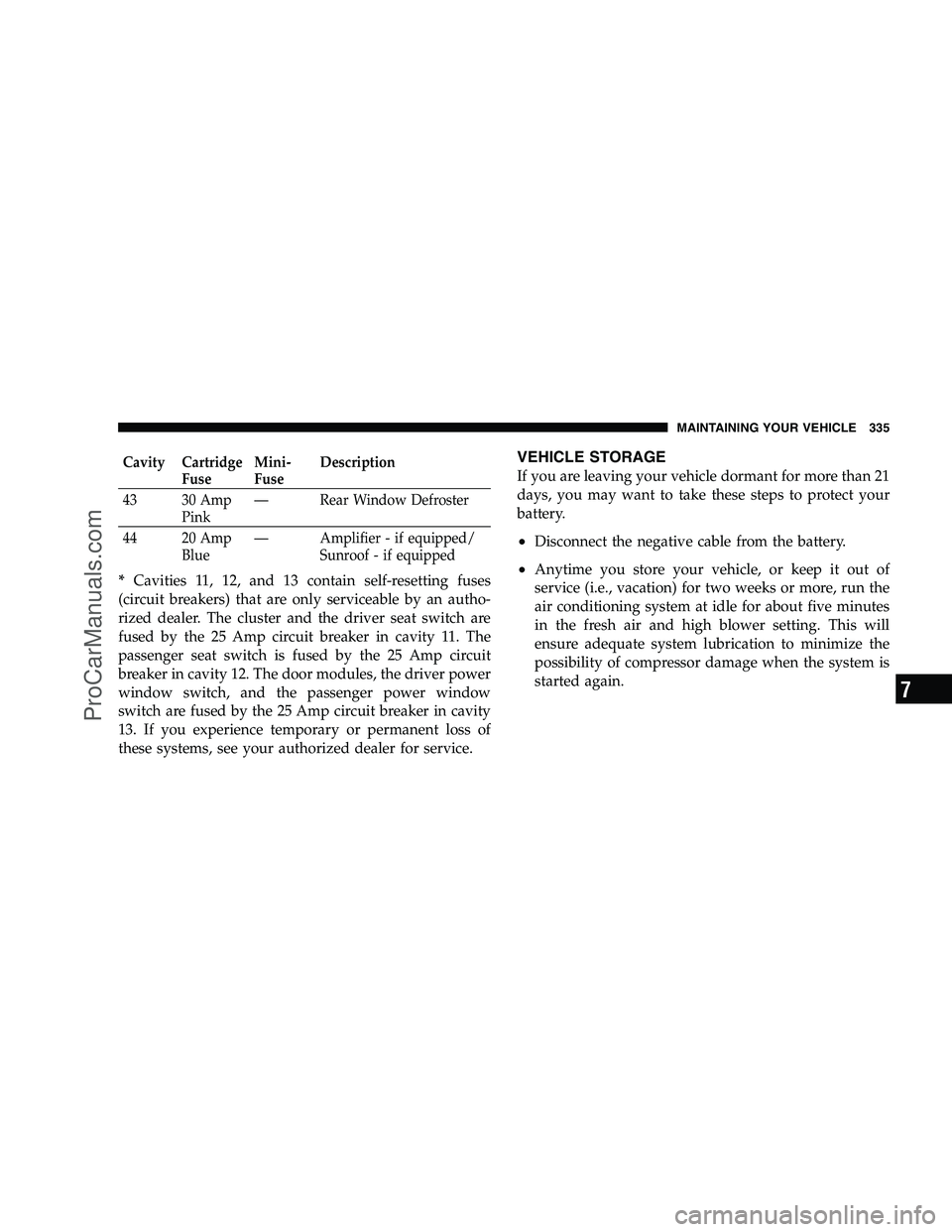

Cavity CartridgeFuse Mini-
FuseDescription
43 30 Amp Pink — Rear Window Defroster
44 20 Amp Blue — Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch are
fused by the 25 Amp circuit breaker in cavity 11. The
passenger seat switch is fused by the 25 Amp circuit
breaker in cavity 12. The door modules, the driver power
window switch, and the passenger power window
switch are fused by the 25 Amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
MAINTAINING YOUR VEHICLE 335
7
ProCarManuals.com

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light ............. 562
Overhead Console Reading Lights ............. 578
Visor Vanity Lights ..................... A6220
Glove Box Light ......................... 194
Door Courtesy .......................... 562
Shift Indicator Light ................. J KLE14140
Optional Door Map Pocket /
Cupholder Lighting ...................... LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. LIGHT BULBS — Exterior Bulb Number
Low Beam Headlight –
High Intensity Discharge (HID)
.............. D1S
(Serviced at Authorized Dealer)
High Beam Headlight ..................... 9005
Front Park/Turn Light ................... 3157A
Front Fog Light ...................... 9145/H10
(Serviced at Authorized Dealer)
Front Side Marker ........................ 168
Tail Light ............................ 3057K
Tail/Stop/Turn Light .................... 3057K
Rear Side Marker ........................ 168
Backup Light ........................... 921
Center High-Mount Stop Light
(CHMSL) ............................. LED
(Serviced at Authorized Dealer)
License ................................ 168
336 MAINTAINING YOUR VEHICLE
ProCarManuals.com

BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight, and
Park/Turn Light — Models with High Intensity
Discharge (HID) Headlights
HID Headlights
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
HEADLIGHT switch off and the key removed.Because
of this, you should not attempt to service a headlight
bulb yourself. If a headlight bulb fails, take your
vehicle to an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
HID headlights when the HEADLIGHT switch is
turned ON. It may cause serious electrical shock or
electrocution if not serviced properly. See your au-
thorized dealer for service.
NOTE: On vehicles equipped with HID headlights,
when the headlights are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
MAINTAINING YOUR VEHICLE 337
7
ProCarManuals.com

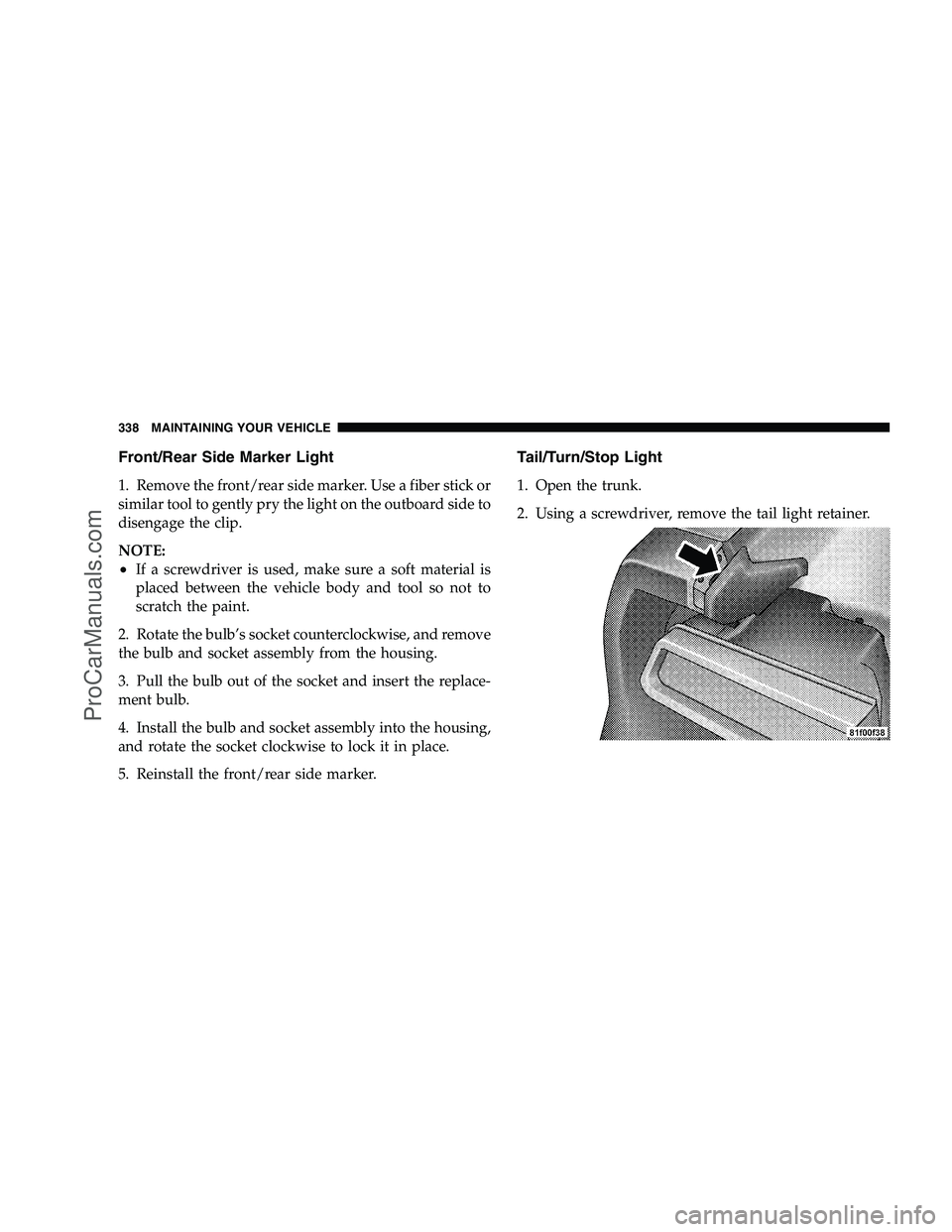

Front/Rear Side Marker Light
1. Remove the front/rear side marker. Use a fiber stick or
similar tool to gently pry the light on the outboard side to
disengage the clip.
NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
2. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb out of the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the front/rear side marker.
Tail/Turn/Stop Light
1. Open the trunk.
2. Using a screwdriver, remove the tail light retainer.
338 MAINTAINING YOUR VEHICLE
