DODGE CHALLENGER 2015 3.G User Guide

7. Air Filter Cleaner
8. Power Steering Fluid Reservoir
9. Remote Jump Start Negative Terminal
10. Engine Oil Dipstick
11. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
179

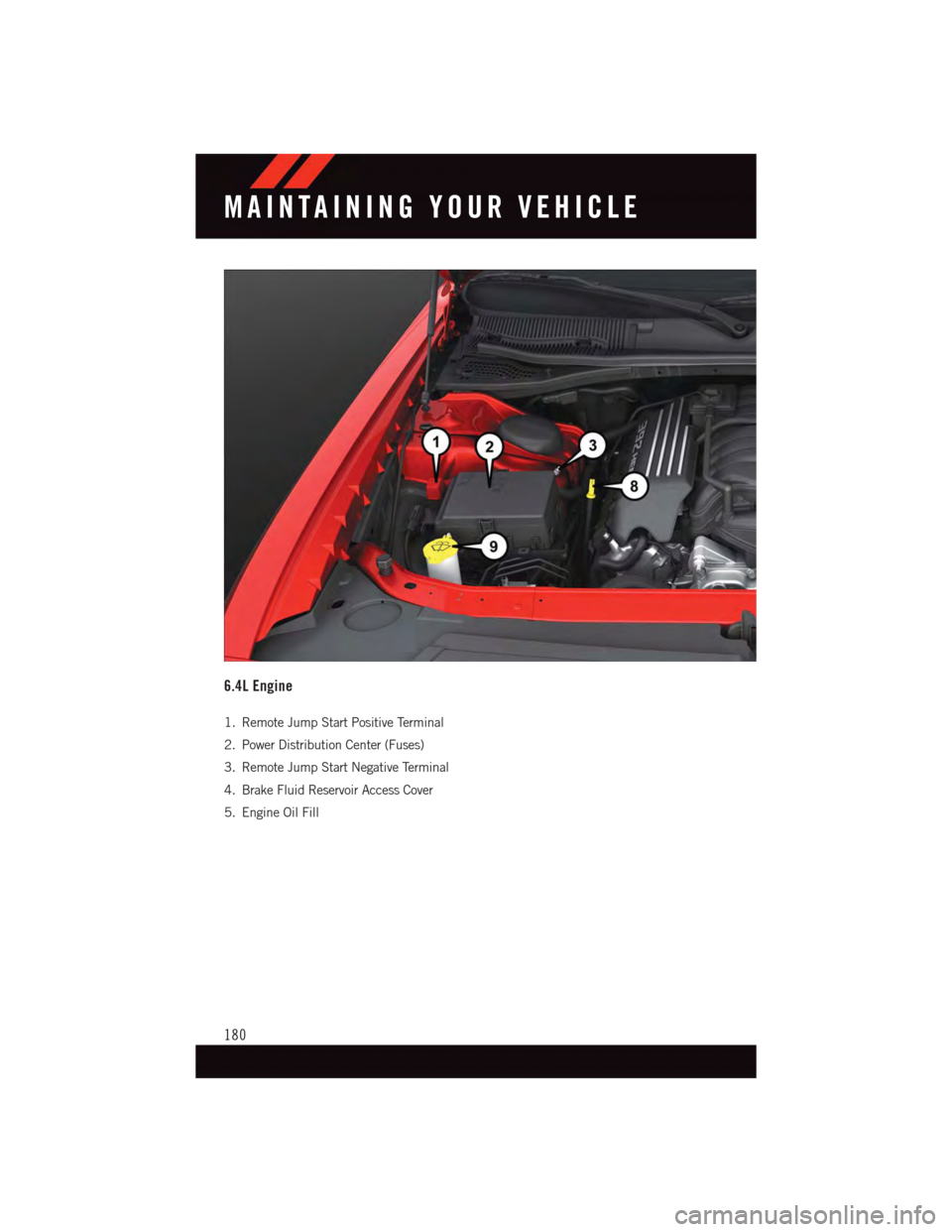

6.4L Engine
1. Remote Jump Start Positive Terminal
2. Power Distribution Center (Fuses)
3. Remote Jump Start Negative Terminal
4. Brake Fluid Reservoir Access Cover
5. Engine Oil Fill
MAINTAINING YOUR VEHICLE
180

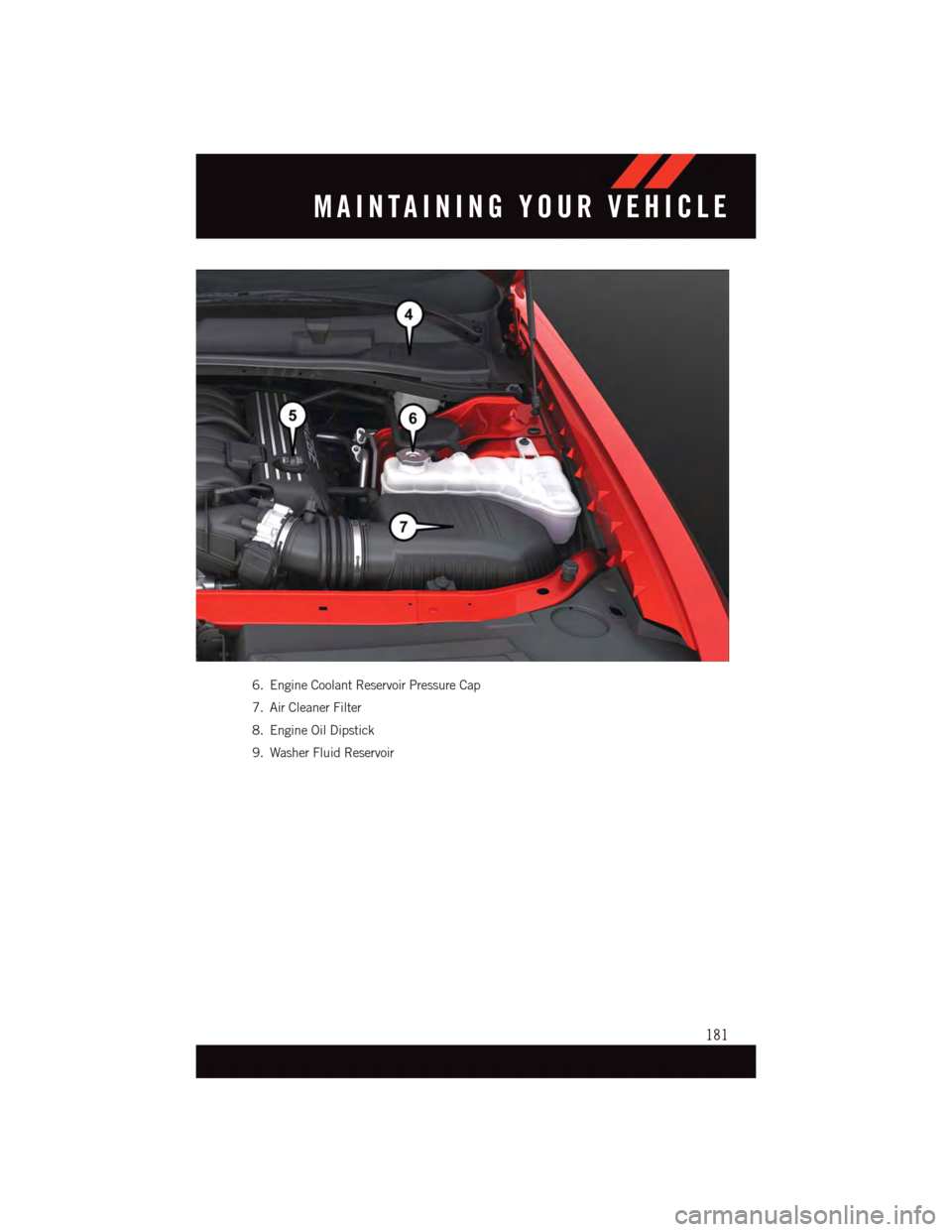

6. Engine Coolant Reservoir Pressure Cap
7. Air Cleaner Filter
8. Engine Oil Dipstick
9. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
181

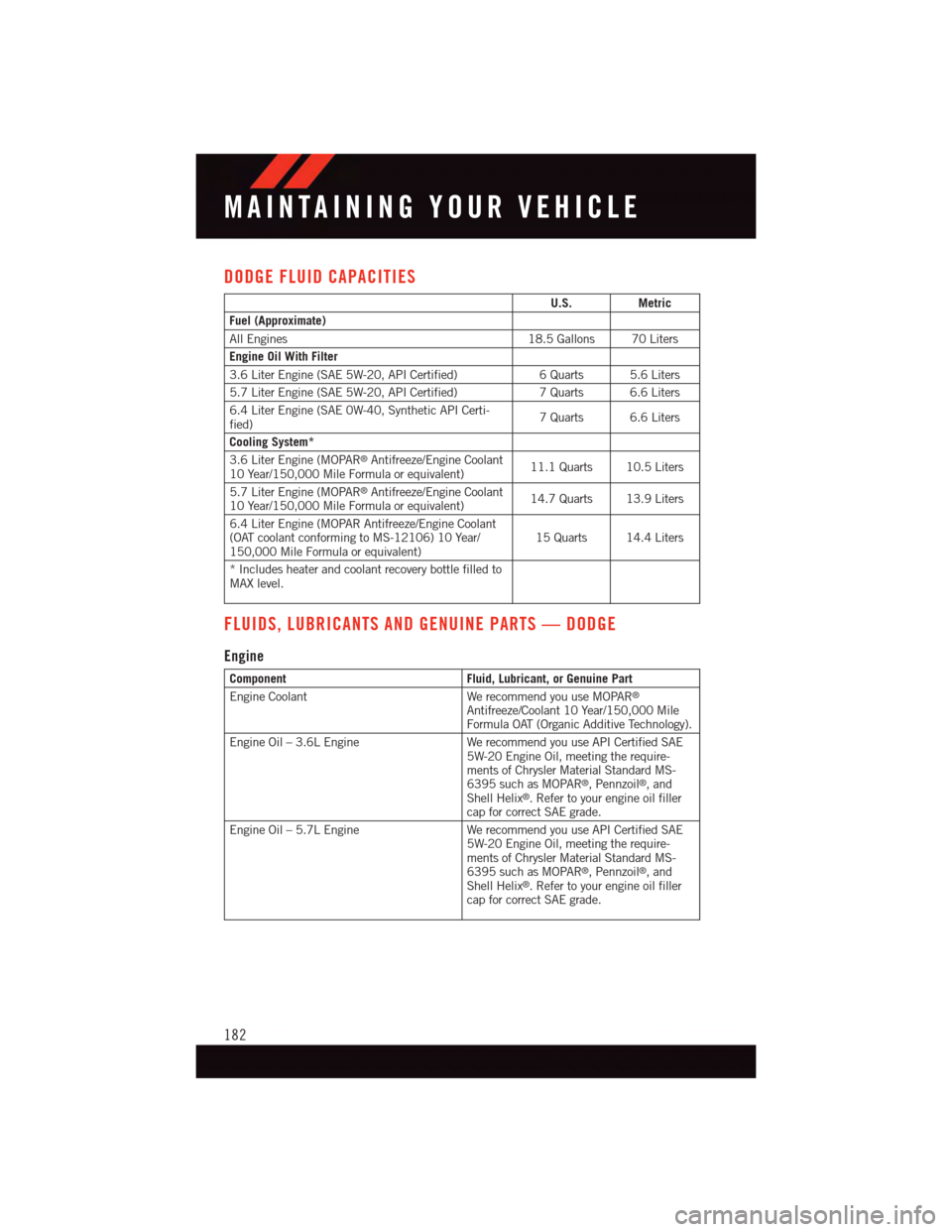

DODGE FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines18.5 Gallons 70 Liters
Engine Oil With Filter
3.6 Liter Engine (SAE 5W-20, API Certified)6Quarts 5.6Liters
5.7 Liter Engine (SAE 5W-20, API Certified)7Quarts 6.6Liters
6.4 Liter Engine (SAE 0W-40, Synthetic API Certi-fied)7Quarts 6.6Liters
Cooling System*
3.6 Liter Engine (MOPAR®Antifreeze/Engine Coolant10 Year/150,000 Mile Formula or equivalent)11.1 Quarts 10.5 Liters
5.7 Liter Engine (MOPAR®Antifreeze/Engine Coolant10 Year/150,000 Mile Formula or equivalent)14.7 Quarts 13.9 Liters
6.4 Liter Engine (MOPAR Antifreeze/Engine Coolant(OAT coolant conforming to MS-12106) 10 Year/150,000 Mile Formula or equivalent)15 Quarts 14.4 Liters
*IncludesheaterandcoolantrecoverybottlefilledtoMAX level.
FLUIDS, LUBRICANTS AND GENUINE PARTS — DODGE
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR®
Antifreeze/Coolant 10 Year/150,000 MileFormula OAT (Organic Additive Technology).
Engine Oil – 3.6L Engine We recommend you use API Certified SAE5W-20 Engine Oil, meeting the require-ments of Chrysler Material Standard MS-6395 such as MOPAR®,Pennzoil®,andShell Helix®.Refertoyourengineoilfillercap for correct SAE grade.
Engine Oil – 5.7L Engine We recommend you use API Certified SAE5W-20 Engine Oil, meeting the require-ments of Chrysler Material Standard MS-6395 such as MOPAR®,Pennzoil®,andShell Helix®.Refertoyourengineoilfillercap for correct SAE grade.
MAINTAINING YOUR VEHICLE
182

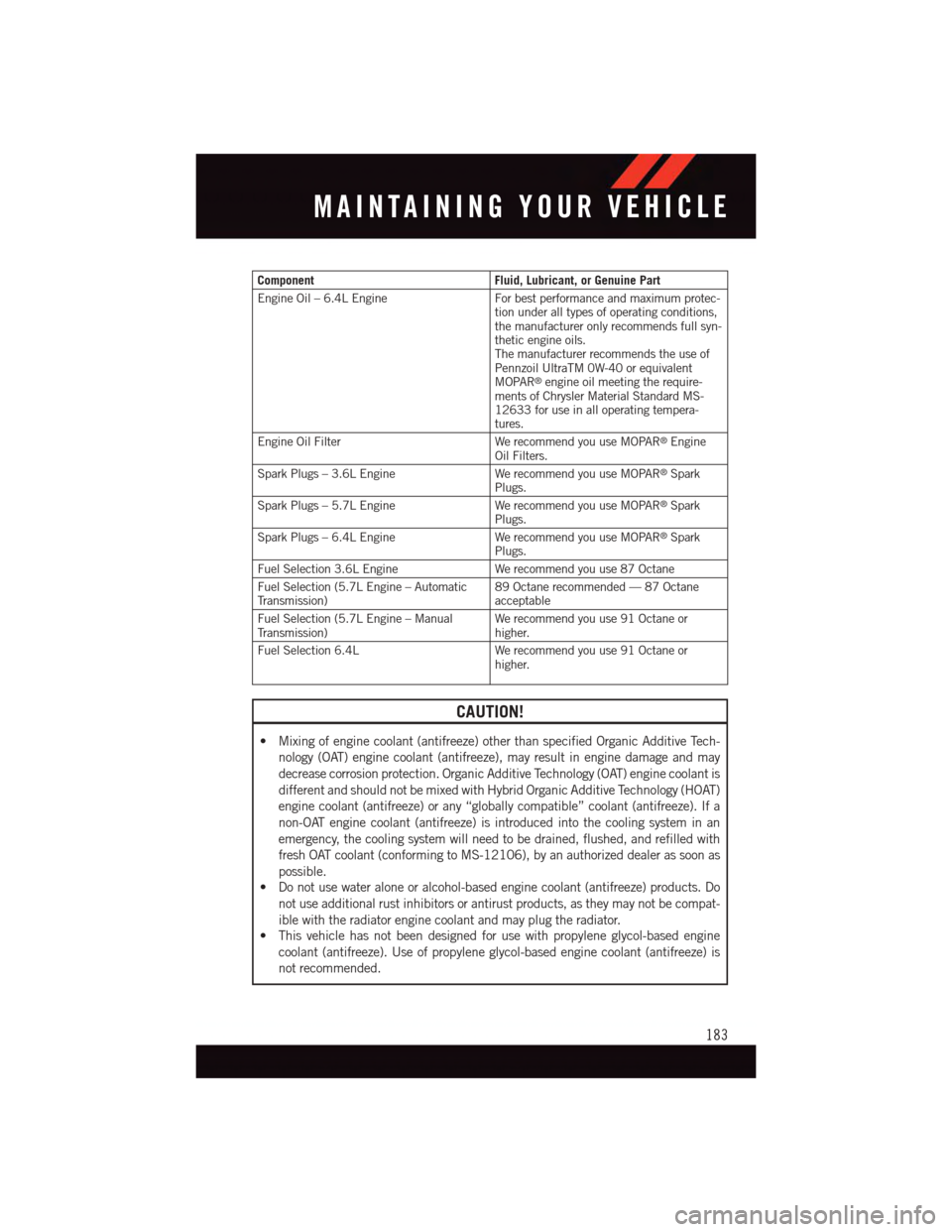

ComponentFluid, Lubricant, or Genuine Part
Engine Oil – 6.4L EngineFor best performance and maximum protec-tion under all types of operating conditions,the manufacturer only recommends full syn-thetic engine oils.The manufacturer recommends the use ofPennzoil UltraTM 0W-40 or equivalentMOPAR®engine oil meeting the require-ments of Chrysler Material Standard MS-12633 for use in all operating tempera-tures.
Engine Oil Filter We recommend you use MOPAR®EngineOil Filters.
Spark Plugs – 3.6L Engine We recommend you use MOPAR®SparkPlugs.
Spark Plugs – 5.7L Engine We recommend you use MOPAR®SparkPlugs.
Spark Plugs – 6.4L Engine We recommend you use MOPAR®SparkPlugs.
Fuel Selection 3.6L Engine We recommend you use 87 Octane
Fuel Selection (5.7L Engine – AutomaticTr a n s m i s s i o n )89 Octane recommended — 87 Octaneacceptable
Fuel Selection (5.7L Engine – ManualTr a n s m i s s i o n )We recommend you use 91 Octane orhigher.
Fuel Selection 6.4L We recommend you use 91 Octane orhigher.
CAUTION!
•Mixingofenginecoolant(antifreeze)otherthanspecifiedOrganicAdditiveTech-
nology (OAT) engine coolant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is
different and should not be mixed with Hybrid Organic Additive Technology (HOAT)
engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an
emergency, the cooling system will need to be drained, flushed, and refilled with
fresh OAT coolant (conforming to MS-12106), by an authorized dealer as soon as
possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.Do
not use additional rust inhibitors or antirust products, as they may not be compat-
ible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
MAINTAINING YOUR VEHICLE
183

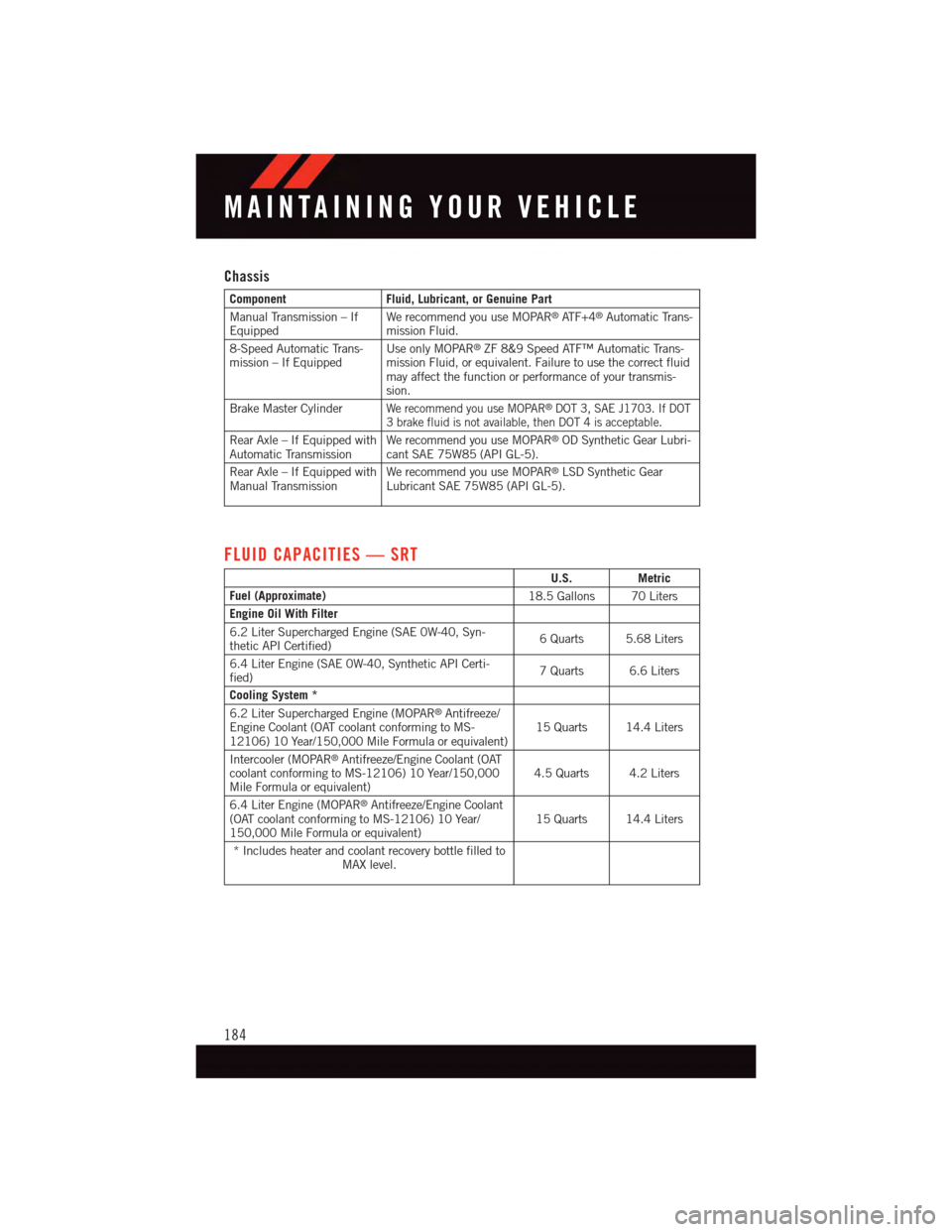

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – IfEquippedWe recommend you use MOPAR®AT F + 4®Automatic Trans-mission Fluid.
8-Speed Automatic Trans-mission – If EquippedUse only MOPAR®ZF 8&9 Speed ATF™ Automatic Trans-mission Fluid, or equivalent. Failure to use the correct fluidmay affect the function or performance of your transmis-sion.
Brake Master CylinderWe recommend you use MOPAR®DOT 3, SAE J1703. If DOT3brakefluidisnotavailable,thenDOT4isacceptable.
Rear Axle – If Equipped withAutomatic TransmissionWe recommend you use MOPAR®OD Synthetic Gear Lubri-cant SAE 75W85 (API GL-5).
Rear Axle – If Equipped withManual TransmissionWe recommend you use MOPAR®LSD Synthetic GearLubricant SAE 75W85 (API GL-5).
FLUID CAPACITIES — SRT
U.S.Metric
Fuel (Approximate)18.5 Gallons 70 Liters
Engine Oil With Filter
6.2 Liter Supercharged Engine (SAE 0W-40, Syn-thetic API Certified)6Quarts 5.68Liters
6.4 Liter Engine (SAE 0W-40, Synthetic API Certi-fied)7Quarts 6.6Liters
Cooling System *
6.2 Liter Supercharged Engine (MOPAR®Antifreeze/Engine Coolant (OAT coolant conforming to MS-12106) 10 Year/150,000 Mile Formula or equivalent)15 Quarts 14.4 Liters
Intercooler (MOPAR®Antifreeze/Engine Coolant (OATcoolant conforming to MS-12106) 10 Year/150,000Mile Formula or equivalent)4.5 Quarts 4.2 Liters
6.4 Liter Engine (MOPAR®Antifreeze/Engine Coolant(OAT coolant conforming to MS-12106) 10 Year/150,000 Mile Formula or equivalent)15 Quarts 14.4 Liters
*IncludesheaterandcoolantrecoverybottlefilledtoMAX level.
MAINTAINING YOUR VEHICLE
184

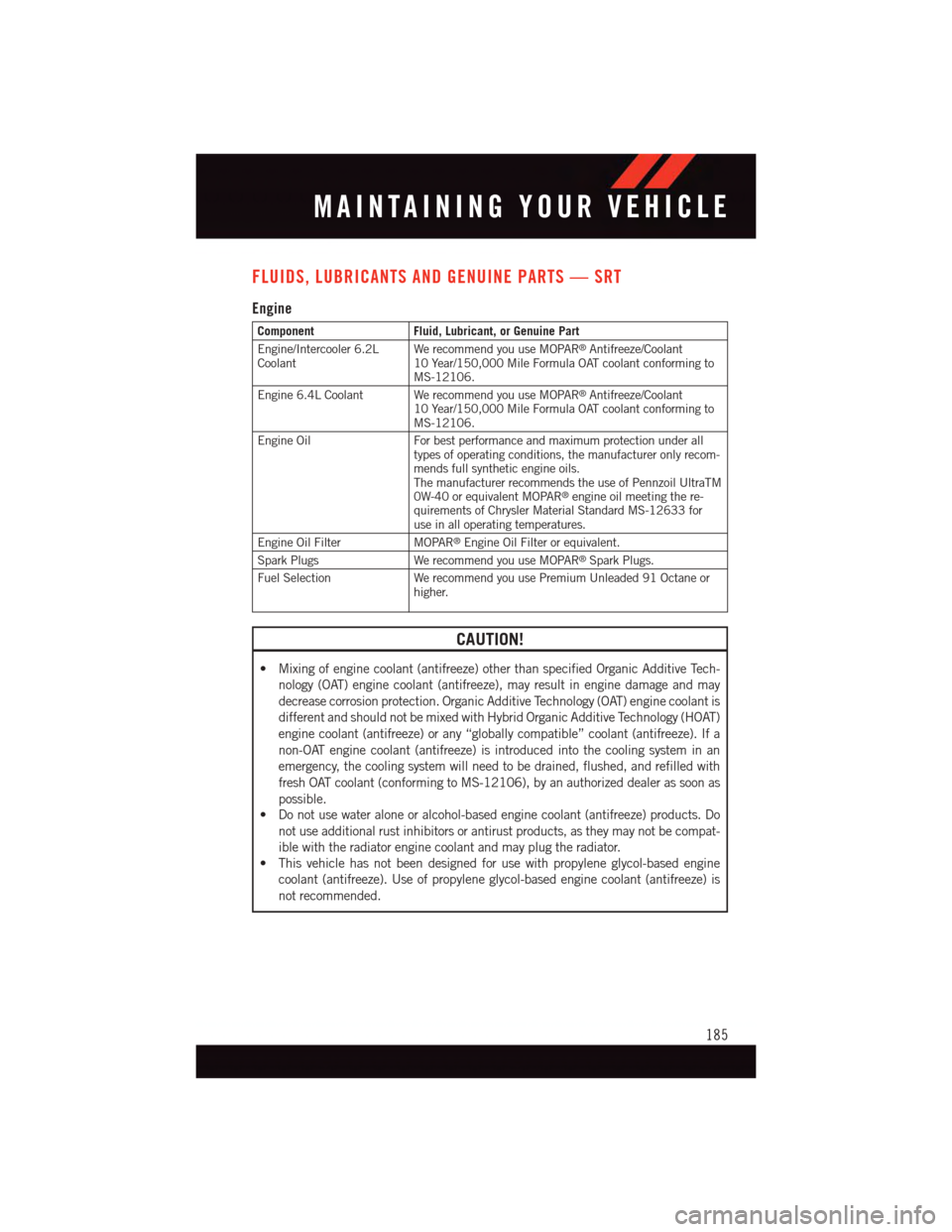

FLUIDS, LUBRICANTS AND GENUINE PARTS — SRT
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine/Intercooler 6.2LCoolantWe recommend you use MOPAR®Antifreeze/Coolant10 Year/150,000 Mile Formula OAT coolant conforming toMS-12106.
Engine 6.4L Coolant We recommend you use MOPAR®Antifreeze/Coolant10 Year/150,000 Mile Formula OAT coolant conforming toMS-12106.
Engine Oil For best performance and maximum protection under alltypes of operating conditions, the manufacturer only recom-mends full synthetic engine oils.The manufacturer recommends the use of Pennzoil UltraTM0W-40 or equivalent MOPAR®engine oil meeting the re-quirements of Chrysler Material Standard MS-12633 foruse in all operating temperatures.
Engine Oil Filter MOPAR®Engine Oil Filter or equivalent.
Spark PlugsWe recommend you use MOPAR®Spark Plugs.
Fuel SelectionWe recommend you use Premium Unleaded 91 Octane orhigher.
CAUTION!
•Mixingofenginecoolant(antifreeze)otherthanspecifiedOrganicAdditiveTech-
nology (OAT) engine coolant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is
different and should not be mixed with Hybrid Organic Additive Technology (HOAT)
engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an
emergency, the cooling system will need to be drained, flushed, and refilled with
fresh OAT coolant (conforming to MS-12106), by an authorized dealer as soon as
possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.Do
not use additional rust inhibitors or antirust products, as they may not be compat-
ible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
MAINTAINING YOUR VEHICLE
185

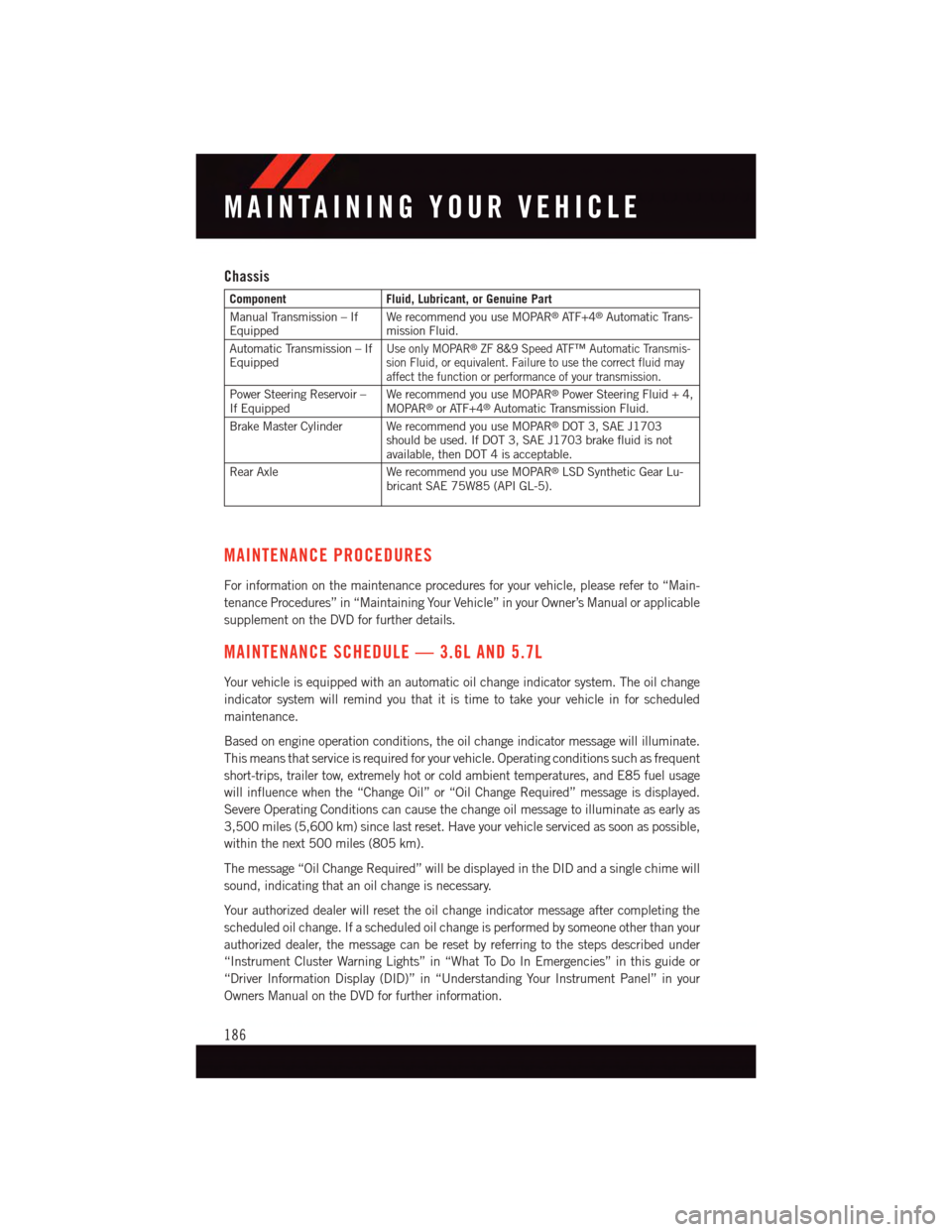

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – IfEquippedWe recommend you use MOPAR®AT F + 4®Automatic Trans-mission Fluid.
Automatic Transmission – IfEquippedUse only MOPAR®ZF 8&9 Speed ATF™ Automatic Transmis-sion Fluid, or equivalent. Failure to use the correct fluid mayaffect the function or performance of your transmission.
Power Steering Reservoir –If EquippedWe recommend you use MOPAR®Power Steering Fluid + 4,MOPAR®or ATF+4®Automatic Transmission Fluid.
Brake Master Cylinder We recommend you use MOPAR®DOT 3, SAE J1703should be used. If DOT 3, SAE J1703 brake fluid is notavailable, then DOT 4 is acceptable.
Rear Axle We recommend you use MOPAR®LSD Synthetic Gear Lu-bricant SAE 75W85 (API GL-5).
MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to “Main-
tenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or applicable
supplement on the DVD for further details.
MAINTENANCE SCHEDULE — 3.6L AND 5.7L
Yo u r v e h i c l e i s e q u i p p e d w i t h a n a u t o m a t i c o i l c h a n g e i n d i c a t o r s y s t e m . T h e o i l c h a n g e
indicator system will remind you that it is time to take your vehicle in for scheduled
maintenance.
Based on engine operation conditions, the oil change indicator message will illuminate.
This means that service is required for your vehicle. Operating conditions such as frequent
short-trips, trailer tow, extremely hot or cold ambient temperatures, and E85 fuel usage
will influence when the “Change Oil” or “Oil Change Required” message is displayed.
Severe Operating Conditions can cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).
The message “Oil Change Required” will be displayed in the DID and a single chime will
sound, indicating that an oil change is necessary.
Yo u r a u t h o r i z e d d e a l e r w i l l r e s e t t h e o i l c h a n g e i n d i c a t o r m e s s a g e a f t e r c o m p l e t i n g t h e
scheduled oil change. If a scheduled oil change is performed by someone other than your
authorized dealer, the message can be reset by referring to the steps described under
“Instrument Cluster Warning Lights” in “What To Do In Emergencies” in this guide or
“Driver Information Display (DID)” in “Understanding Your Instrument Panel” in your
Owners Manual on the DVD for further information.
MAINTAINING YOUR VEHICLE
186

NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km)
or twelve months, whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle is operated in a dusty and off
road environment. This type of vehicle use is considered Severe Duty
Once A Month Or Before A Long Trip:
•Checkengineoillevel
•Checkwindshieldwasherfluidlevel
•Checktirepressureandlookforunusualwearordamage.Rotatetiresatthefirstsign
of irregular wear, even if it occurs before your next scheduled service.
•Checkthefluidlevelsofthecoolantreservoir,brakemastercylinder,andpower
steering and fill as needed.
•Checkfunctionofallinteriorandexteriorlights
Required Maintenance Intervals.
Refer to the maintenance schedules on the following page for the required maintenance
intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter
•Rotatethetires.Rotate at the first sign of irregular wear, even if it occurs before your next
scheduled service
•Inspect battery and clean and tighten terminals as required
•Inspect brake pads, shoes, rotors, drums, hoses and park brake
•Inspect engine cooling system protection and hoses
•Inspect exhaust system
•Inspect engine air cleaner if using in dusty or off-road conditions
MAINTAINING YOUR VEHICLE
187

Maintenance Chart — 3.6L And 5.7LMileage or time passed (whichever comes
first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional InspectionsInspect the CV joints. X X X X XInspect front suspension, tie rod ends, bootseals and replace if necessary.
XXX X X X X
Inspect the rear axle fluid. X X X XInspect the manual transmission fluid (ifequipped), add as necessary.
XX X X
Inspect the brake linings, replace as neces-sary.
XXX X X X X
Adjust park brake on vehicles equippedwith four wheel disc brakes.
XXX X X X X
Additional MaintenanceReplace engine air filter. X X X X XReplace cabin/air conditioning filter. X X X X X X XReplace spark plugs (3.6L engine). ** XReplace spark plugs (5.7L engine). ** XFlush and replace the engine coolant at 10years or 150,000 miles (240,000 km)whichever comes first.
XX
