G-Force
When selected, this screen displays all four G-Force
values (two lateral and two longitudinal) as well as
steering angle.When G-Force is selected, the following features will be
available:
•
Lateral G-Force Left and Right
The lateral g-force measures the (sideways) left and right
force of the vehicle.
• Longitudinal G-Force Fore and Aft
The longitudinal g-force measures the acceleration and
braking force of the vehicle.
• Peak G-Forces Fore Aft, Left and Right
This shows the maximum g-forces that have been
achieved since the last reset from the DID. Peak values
are maintained through ignition cycles by the DID until
they are cleared by the driver.
SRT Performance Pages — G-Force
4
UNDERSTANDING YOUR INSTRUMENT PANEL 309

•Vehicle Speed
Vehicle Speed measures the current speed of the vehicle
in either mph or km/h, starting at 0 with no maximum
value.
• Steering Wheel Angle
Steering Wheel Angle utilizes the steering angle sensor to
measure the degree of the steering wheel relative to zero.
The zero degree measurement indicates a steering wheel
straight ahead position. When the steering angle value is
negative, this indicates a turn to the left, and when the
steering angle value is positive, a turn to the right.
When a force greater than zero is measured, the display
will update the value as it climbs. As the G-Force falls,
the peak forces will continue to display.Engine
SRT Performance Pages — Engine (6.4L Automatic Transmission)
310 UNDERSTANDING YOUR INSTRUMENT PANEL

When selected, this screen displays the following values:
•Vehicle Speed
Shows the actual vehicle speed. •
Instantaneous Horsepower/Kilowatts
Shows the instantaneous horsepower.
• Instantaneous Torque
Shows the instantaneous torque.
• Oil Pressure (6.4L Only)
Shows the actual oil pressure.
• Gear (Automatic Transmission Only)
Shows the current (or pending) operating gear of the
vehicle.
• Boost Pressure (6.2L Only)
Shows the actual boost pressure.
SRT Performance Pages — Engine (6.2L Automatic Transmission)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 311

SRT DRIVE MODES
Key FOB 6.2L Supercharged Engine — If Equipped
If your vehicle is equipped with the 6.2L supercharged
engine, it will support an additional engine power level
configuration as part of SRT Drive Modes. Use of theRED key FOB unlocks the full potential of the engine’s
output, and allows the driver to select from two power
levels within Drive Modes Set-Up.
Use of the BLACK key FOB limits the driver to a reduced
engine output. This information is also available within
Red Key FOBBlack Key FOB
312 UNDERSTANDING YOUR INSTRUMENT PANEL

the SRT Drive Modes interface, and can be accessed by
pressing the “KEY FOB” button on the touchscreen in the
SRT Drive Modes menu.
Drive ModesYour SRT vehicle is equipped with a Drive Modes feature
which allows for coordinating the operation of various
vehicle systems depending upon the type of driving
behavior desired. The Drive Modes feature is controlled
through the Uconnect radio and may be accessed by
performing any of the following:
•
Pushing the SRT button on the instrument panel
switch bank.
• Selecting “Drive Modes” from the “Apps” menu.
• Selecting “Drive Modes” from within the Performance
Pages menu.
NOTE: Not all options listed in this manual are available
on every vehicle. Refer to the chart below for all available
Drive Mode vehicle configurations.
Drive Modes
4
UNDERSTANDING YOUR INSTRUMENT PANEL 313

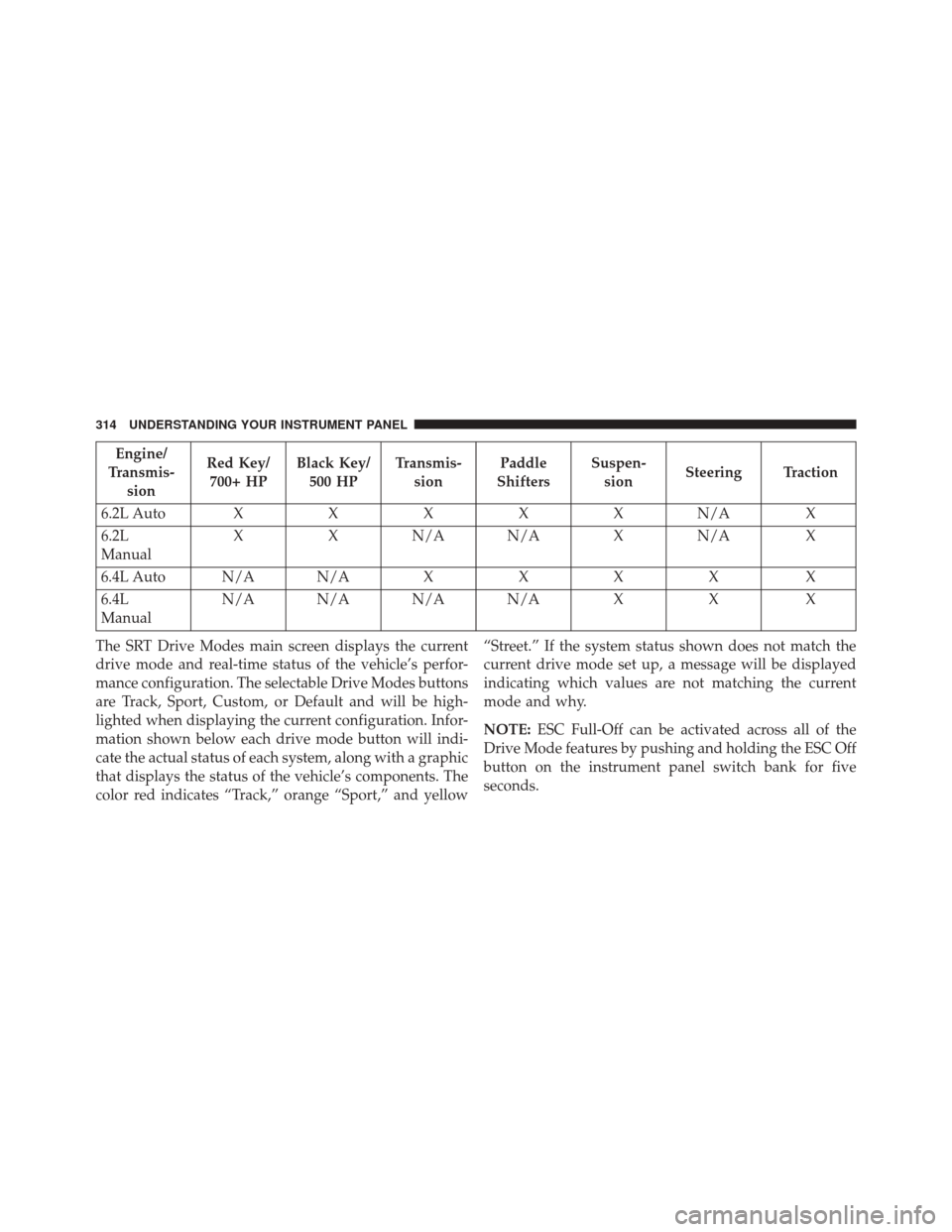

Engine/
Transmis- sion Red Key/
700+ HP Black Key/
500 HP Transmis-
sion Paddle
Shifters Suspen-
sion Steering Traction
6.2L Auto XXXXXN /AX
6.2L
Manual X
XN/A N/A XN/A X
6.4L Auto N/A N/A XXXX X
6.4L
Manual N/A N/A N/A N/A
XX X
The SRT Drive Modes main screen displays the current
drive mode and real-time status of the vehicle’s perfor-
mance configuration. The selectable Drive Modes buttons
are Track, Sport, Custom, or Default and will be high-
lighted when displaying the current configuration. Infor-
mation shown below each drive mode button will indi-
cate the actual status of each system, along with a graphic
that displays the status of the vehicle’s components. The
color red indicates “Track,” orange “Sport,” and yellow “Street.” If the system status shown does not match the
current drive mode set up, a message will be displayed
indicating which values are not matching the current
mode and why.
NOTE:
ESC Full-Off can be activated across all of the
Drive Mode features by pushing and holding the ESC Off
button on the instrument panel switch bank for five
seconds.
314 UNDERSTANDING YOUR INSTRUMENT PANEL

Listed below are the available Drive Modes:
Track Mode
Pressing the “Track” button on the touchscreen will
activate the configuration for typical track driving. TheTransmission, Traction, Steering, and Suspension systems
are all set to their “Track” settings highlighted in red. The
Paddle Shifters are enabled.
Drive Modes (Track)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 315

Sport Mode
Pressing the “Sport” button on the touchscreen will
activate the configuration for typical enthusiast driving.The Traction, Transmission, Steering, and Suspension
systems are all set to their “Sport” settings highlighted in
orange. The Paddle Shifters are enabled.
Drive Modes (Sport)
316 UNDERSTANDING YOUR INSTRUMENT PANEL

Default Mode
The vehicle will start in Default Mode unless Valet or
ECO mode (if equipped) is active. This mode is for
typical driving conditions where the Traction and Trans-
mission will be operating in their Street settings, whichcannot be changed while in this mode. The Steering and
Suspension can be configured in either the “Street,”
“Sport,” or “Track” modes and the Paddle Shifters may
be enabled or disabled while in this mode.
Drive Modes (Default)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 317

Custom Mode
The Custom Mode may be selected quickly by pushing
the SRT button on the instrument panel switch bank two
times, or pressing the “Custom” button on the touch-
screen. Custom Mode allows the you to create a customconfiguration that is saved for quick selection of your
favorite settings. While in Custom Mode, the Power,
Traction, Transmission, Steering, Suspension, and Paddle
Shifter settings are shown in their current configuration.
While in the Custom Drive Mode screen, press the
“Custom Set-Up” button on the touchscreen to access the
Custom Mode
Custom Mode Set-Up — 6.2L Example
318 UNDERSTANDING YOUR INSTRUMENT PANEL
