DODGE DAKOTA 2010 3.G Owner's Manual

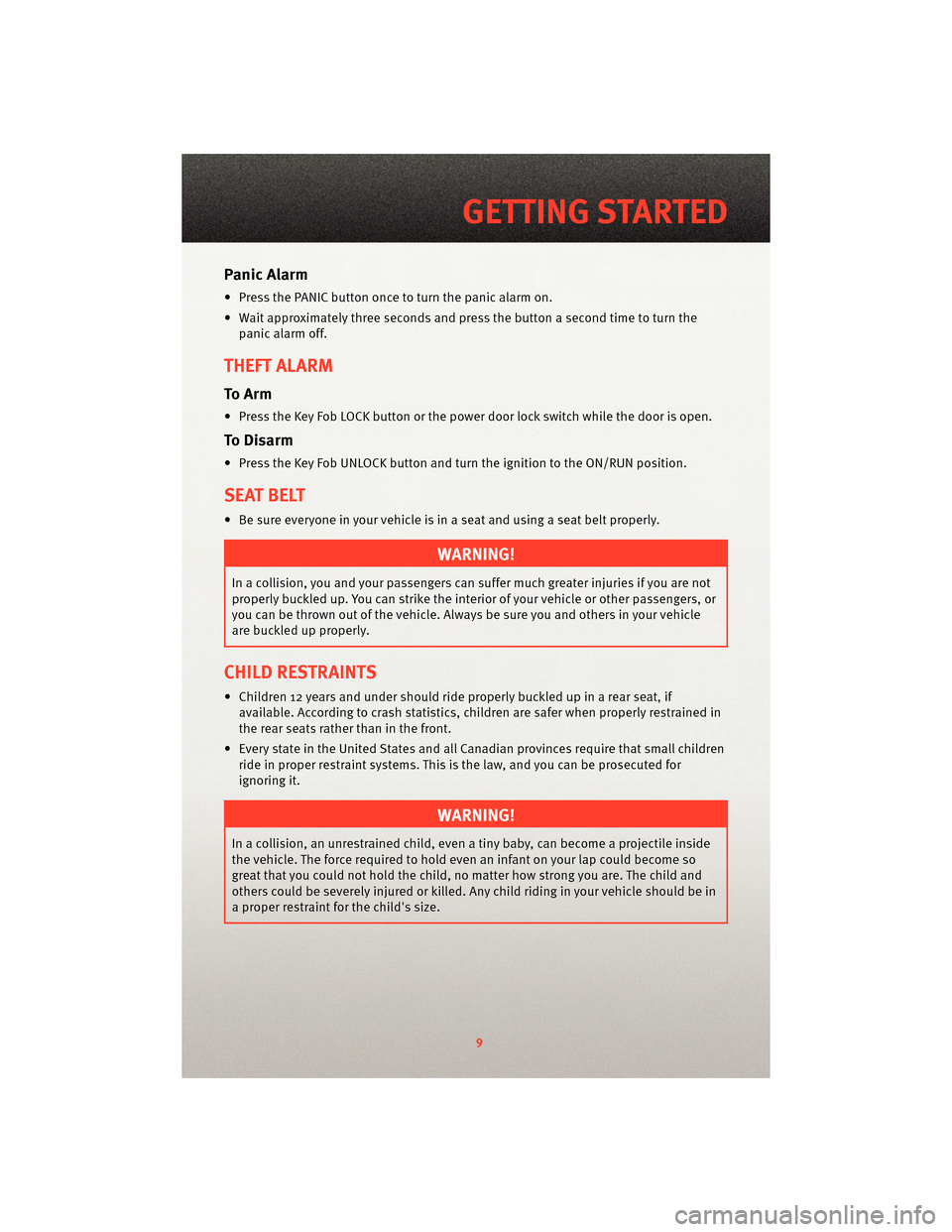

Panic Alarm
• Press the PANIC button once to turn the panic alarm on.
• Wait approximately three seconds and press the button a second time to turn the
panic alarm off.
THEFT ALARM
To Arm
• Press the Key Fob LOCK button or the power door lock switch while the door is open.
To Disarm
• Press the Key Fob UNLOCK button and turn the ignition to the ON/RUN position.
SEAT BELT
• Be sure everyone in your vehicle is in a seat and using a seat belt properly.
WARNING!
In a collision, you and your passengers can suffer much greater injuries if you are not
properly buckled up. You can strike the interior of your vehicle or other passengers, or
you can be thrown out of the vehicle. Always be sure you and others in your vehicle
are buckled up properly.
CHILD RESTRAINTS
• Children 12 years and under should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in
the rear seats rather than in the front.
• Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for
ignoring it.
WARNING!
In a collision, an unrestrained child, even a tiny baby, can become a projectile inside
the vehicle. The force required to hold even an infant on your lap could become so
great that you could not hold the child, no matter how strong you are. The child and
others could be severely injured or killed. An y child riding in your vehicle should be in
a proper restraint for the child's size.
9
GETTING STARTED

Installing The LATCH - Compatible Child Restraint System
• Your vehicle is equipped with the child restraint anchorage system called LATCH,which stands for Lower Anchors and Tether for CHildren.
Extended Cab
• The Extended Cab front and right rear (if equipped with a rear seat) passenger seating
positions have lower anchorages that are capable of accommodating LATCH
compatible child seats having flexible, webbing mounted lower attachments.
• Loosen the adjusters on the lower strapsand tether straps so that you can attach the
hook or connector to the lower and tether
anchorages more easily.
• Attach the lower hooks or connectors over the top of the anchorage bars, pushing
aside the seat cover material. You will easily
feel the anchorage bars if you run your
finger along the intersection of the seatback
and seat cushion surfaces.
Tether Strap at the Front Passenger Seat (Extended Cab)
• Route the child restraint tether strap up and over the front passenger seatback, and
under the head restraint.
• Connect the tether strap to the lower anchor located at the bottom rear of the seat.
• Remove the slack in the tether strap so that it is pulled tight.
Tether Straps at the Rear Passenger Seat (Extended Cab)
• Route the child restraint tether strap through the routing loop, located directly behind
the child restraint. The routing loops are located behind the flip-down door on the cab
back panel (padded bolster).
• Route the tether strap across to the centertether anchorage. The center tether is
located behind the slide door in the center
of the vehicle, between the two seating
positions.
• Remove the slack in the tether strap so that the anchor strap is pulled tight.
GETTING STARTED
10

Crew Cab
• The Crew Cab second row seat has lower anchorages that are capable ofaccommodating LATCH compatible child seats having flexible, webbing mounted
lower attachments at all three seating positions.
• Child seats with fixed lower attachmentsmust be installed in the outboard positions
only.
• Never install LATCH-compatible child seats
such that two seats share a common lower
anchorage.
• Loosen the adjusters on the lower straps and tether straps so that you can attach the
hook or connector to the lower and tether
anchorages more easily.
• Attach the lower hooks or connectors over the top of the anchorage bars, pushing aside the seat cover material. You will easily feel the anchorage bars if you run your
finger along the intersection of the seatback and seat cushion surfaces.
Tether Straps at the Rear Passenger Seat (Crew Cab)
• Route the child restraint tether strap over the seatback and under the head restraint(for outboard seating position only) and thr ough the anchor strap outer loop (webbing
material loop) located directly behind the child restraint.
• Connect the tether strap hook to the anchorstrap inner metal ring in the ADJACENT
seating position.
• Remove the slack in the tether strap so that both anchor straps are pulled tight.
11
GETTING STARTED

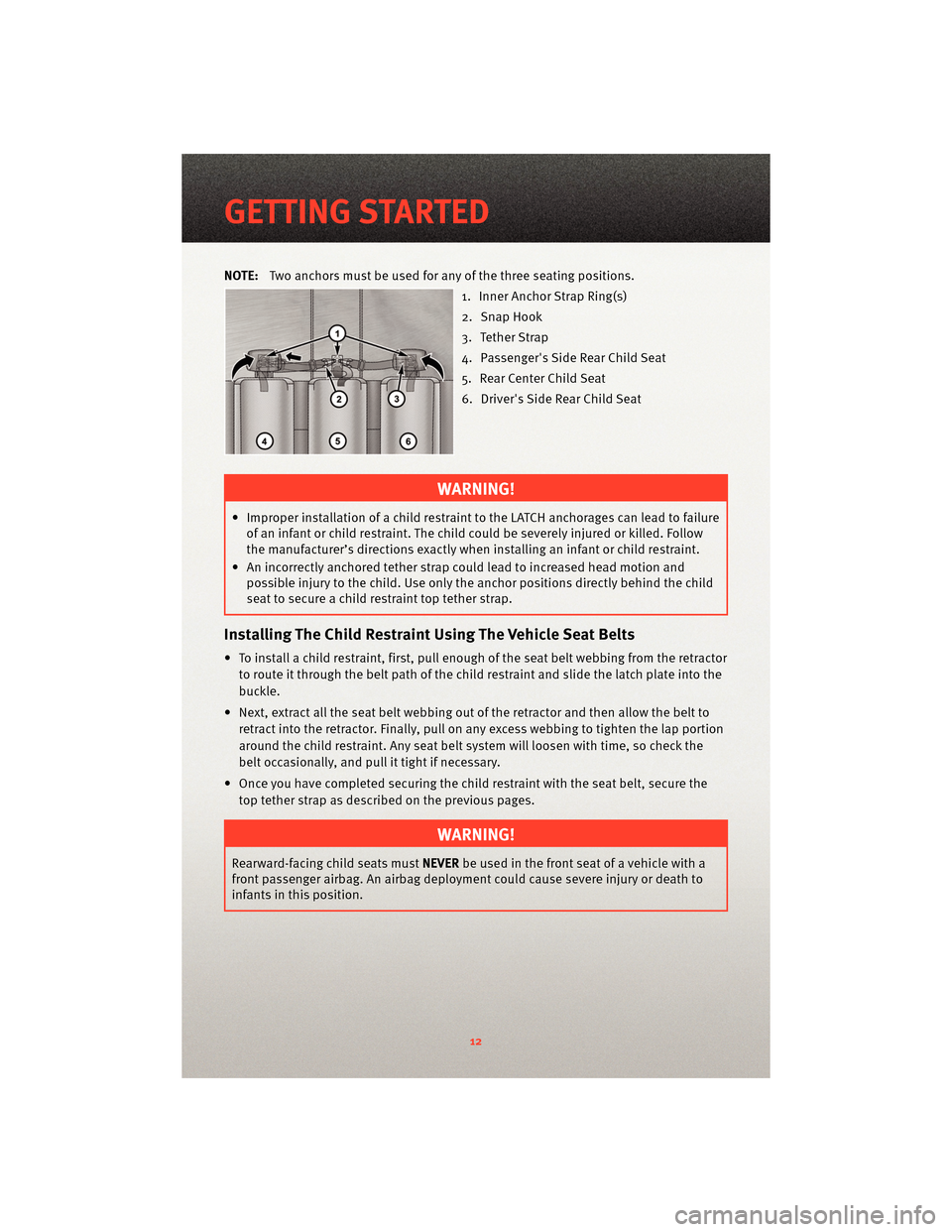

NOTE:Two anchors must be used for any of the three seating positions.
1. Inner Anchor Strap Ring(s)
2. Snap Hook
3. Tether Strap
4. Passenger's Side Rear Child Seat
5. Rear Center Child Seat
6. Driver's Side Rear Child Seat
WARNING!
• Improper installation of a child restraint to the LATCH anchorages can lead to failureof an infant or child restraint. The child could be severely injured or killed. Follow
the manufacturer’s directions exactly when installing an infant or child restraint.
• An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child
seat to secure a child restraint top tether strap.
Installing The Child Restraint Using The Vehicle Seat Belts
• To install a child restraint, first, pull enough of the seat belt webbing from the retractor
to route it through the belt path of the child restraint and slide the latch plate into the
buckle.
• Next, extract all the seat belt webbing out of the retractor and then allow the belt to retract into the retractor. Finally, pull on any excess webbing to tighten the lap portion
around the child restraint. Any seat belt system will loosen with time, so check the
belt occasionally, and pull it tight if necessary.
• Once you have completed securing the child restraint with the seat belt, secure the top tether strap as described on the previous pages.
WARNING!
Rearward-facing child seats must NEVERbe used in the front seat of a vehicle with a
front passenger airbag. An airbag deployment could cause severe injury or death to
infants in this position.
GETTING STARTED
12

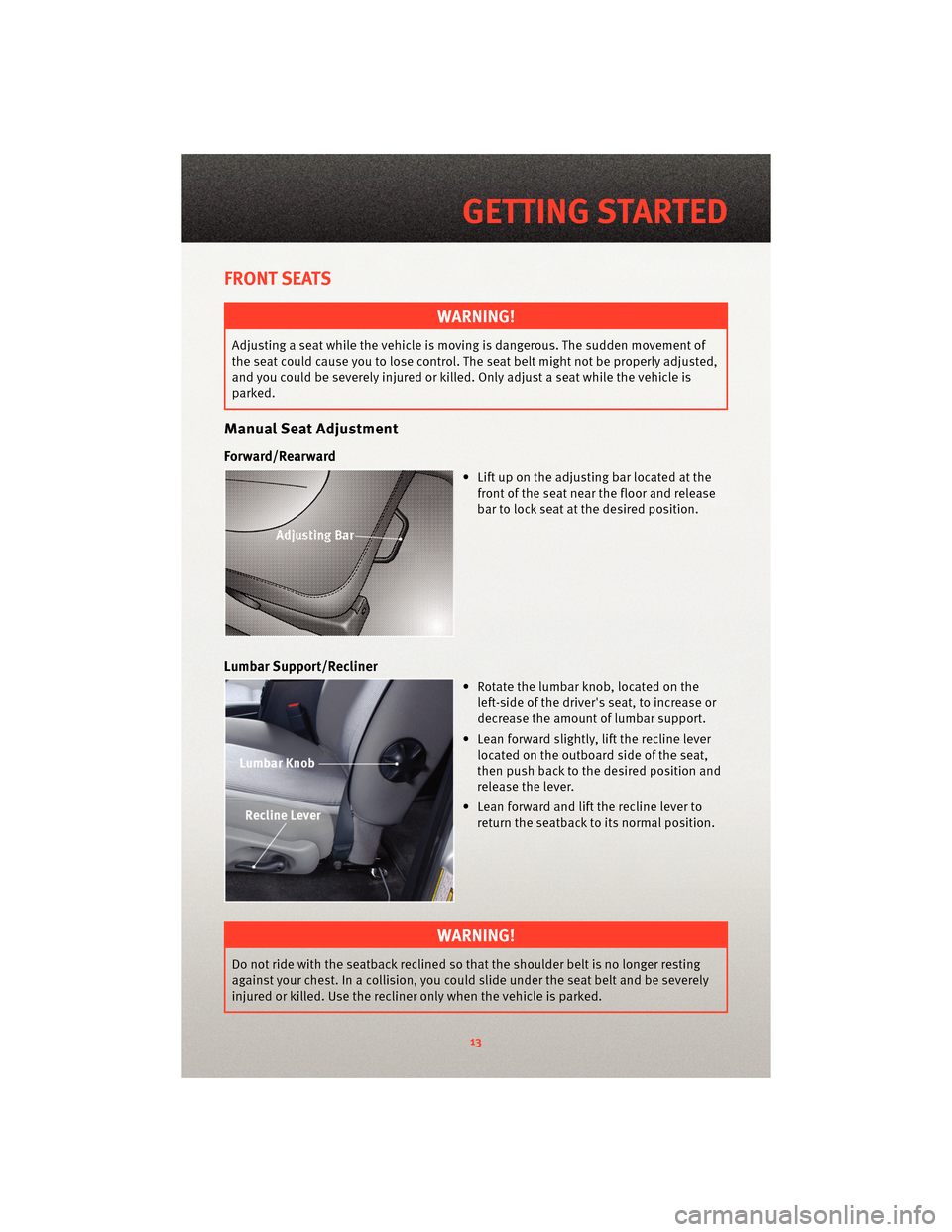

FRONT SEATS
WARNING!
Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of
the seat could cause you to lose control. The seat belt might not be properly adjusted,
and you could be severely injured or killed. Only adjust a seat while the vehicle is
parked.
Manual Seat Adjustment
Forward/Rearward
• Lift up on the adjusting bar located at the front of the seat near the floor and release
bar to lock seat at the desired position.
Lumbar Support/Recliner
• Rotate the lumbar knob, located on theleft-side of the driver's seat, to increase or
decrease the amount of lumbar support.
• Lean forward slightly, lift the recline lever located on the outboard side of the seat,
then push back to the desired position and
release the lever.
• Lean forward and lift the recline lever to return the seatback to its normal position.
WARNING!
Do not ride with the seatback reclined so that the shoulder belt is no longer resting
against your chest. In a collision, you could slide under the seat belt and be severely
injured or killed. Use the recliner only when the vehicle is parked.
13
GETTING STARTED

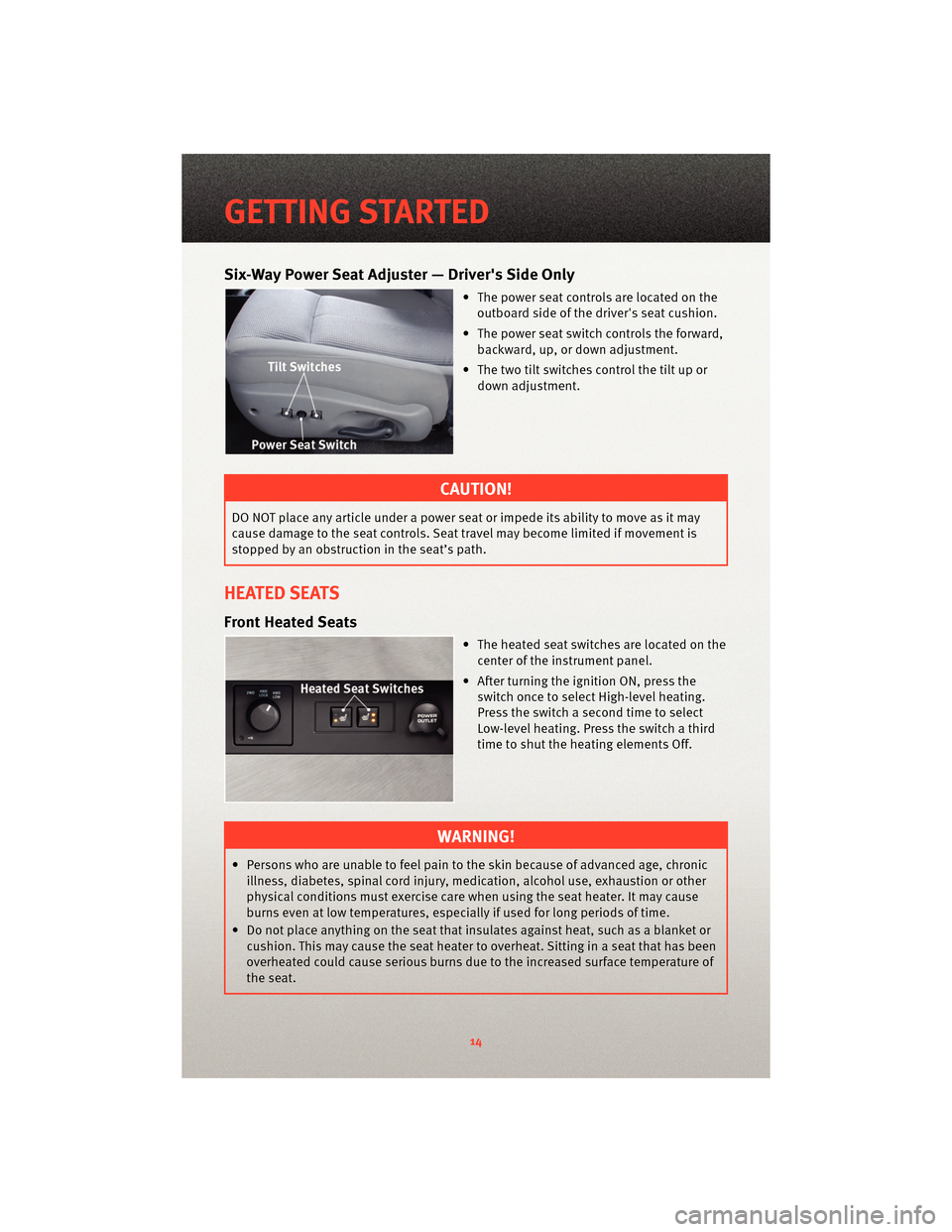

Six-Way Power Seat Adjuster — Driver's Side Only
• The power seat controls are located on theoutboard side of the driver's seat cushion.
• The power seat switch controls the forward, backward, up, or down adjustment.
• The two tilt switches control the tilt up or down adjustment.
CAUTION!
DO NOT place any article under a power seat or impede its ability to move as it may
cause damage to the seat controls. Seat travel may become limited if movement is
stopped by an obstruction in the seat’s path.
HEATED SEATS
Front Heated Seats
• The heated seat switches are located on thecenter of the instrument panel.
• After turning the ignition ON, press the switch once to select High-level heating.
Press the switch a second time to select
Low-level heating. Press the switch a third
time to shut the heating elements Off.
WARNING!
• Persons who are unable to feel pain to the skin because of advanced age, chronicillness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other
physical conditions must exercise care when using the seat heater. It may cause
burns even at low temperatures, especially if used for long periods of time.
• Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been
overheated could cause serious burns due to the increased surface temperature of
the seat.
GETTING STARTED
14

CAUTION!
Repeated overheating of the seat could damage the heating element and/or degrade
the material of the seat.

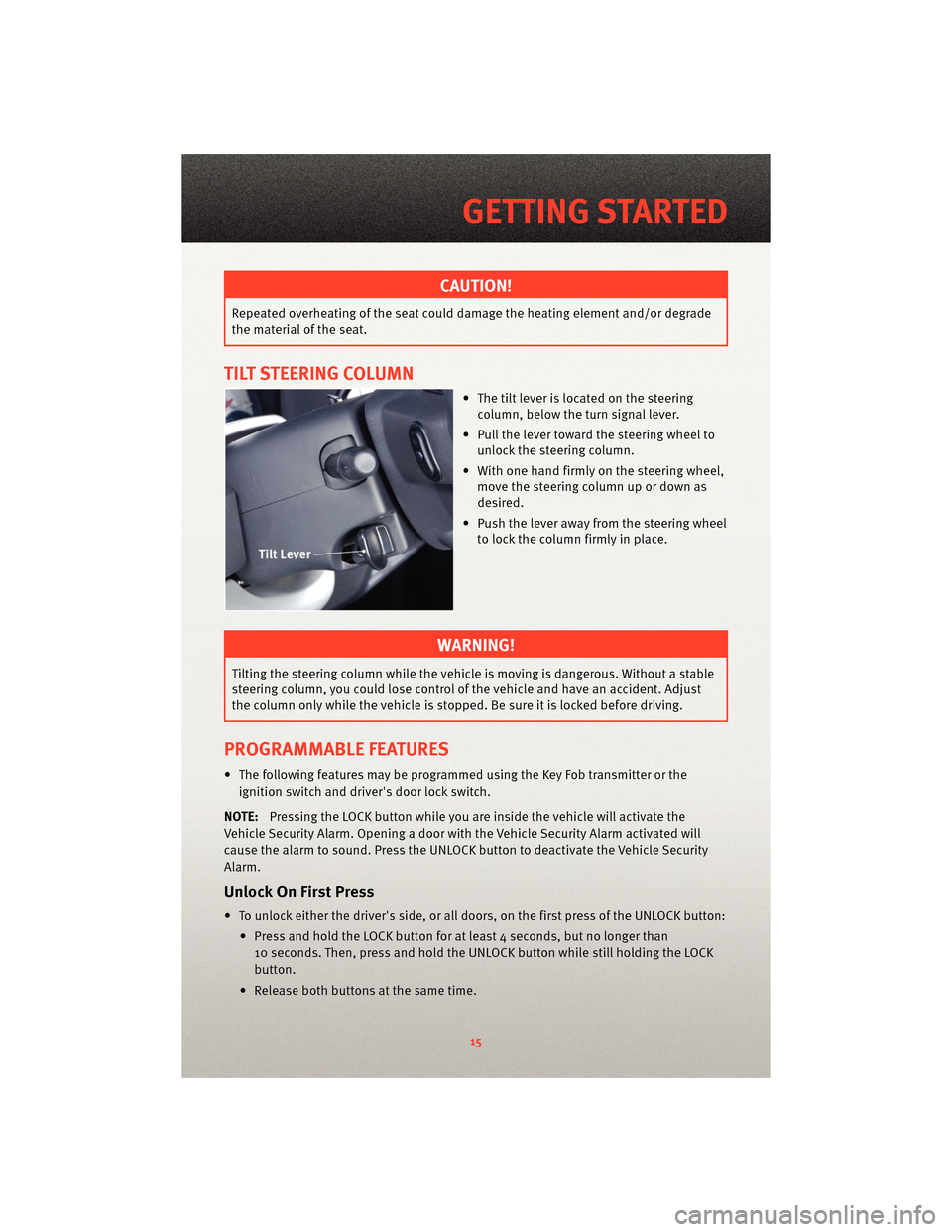

TILT STEERING COLUMN
• The tilt lever is located on the steeringcolumn, below the turn signal lever.
• Pull the lever toward the steering wheel to unlock the steering column.
• With one hand firmly on the steering wheel, move the steering column up or down as
desired.
• Push the lever away from the steering wheel to lock the column firmly in place.
WARNING!
Tilting the steering column while the vehicle is moving is dangerous. Without a stable
steering column, you could lose control of the vehicle and have an accident. Adjust
the column only while the vehicle is stopped. Be sure it is locked before driving.
PROGRAMMABLE FEATURES
• The following features may be programmed using the Key Fob transmitter or the
ignition switch and driver's door lock switch.
NOTE: Pressing the LOCK button while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security
Alarm.
Unlock On First Press
• To unlock either the driver's side, or all doors, on the first press of the UNLOCK button:
• Press and hold the LOCK button for at least 4 seconds, but no longer than10 seconds. Then, press and hold the UNLOCK button while still holding the LOCK
button.
• Release both buttons at the same time.
15
GETTING STARTED

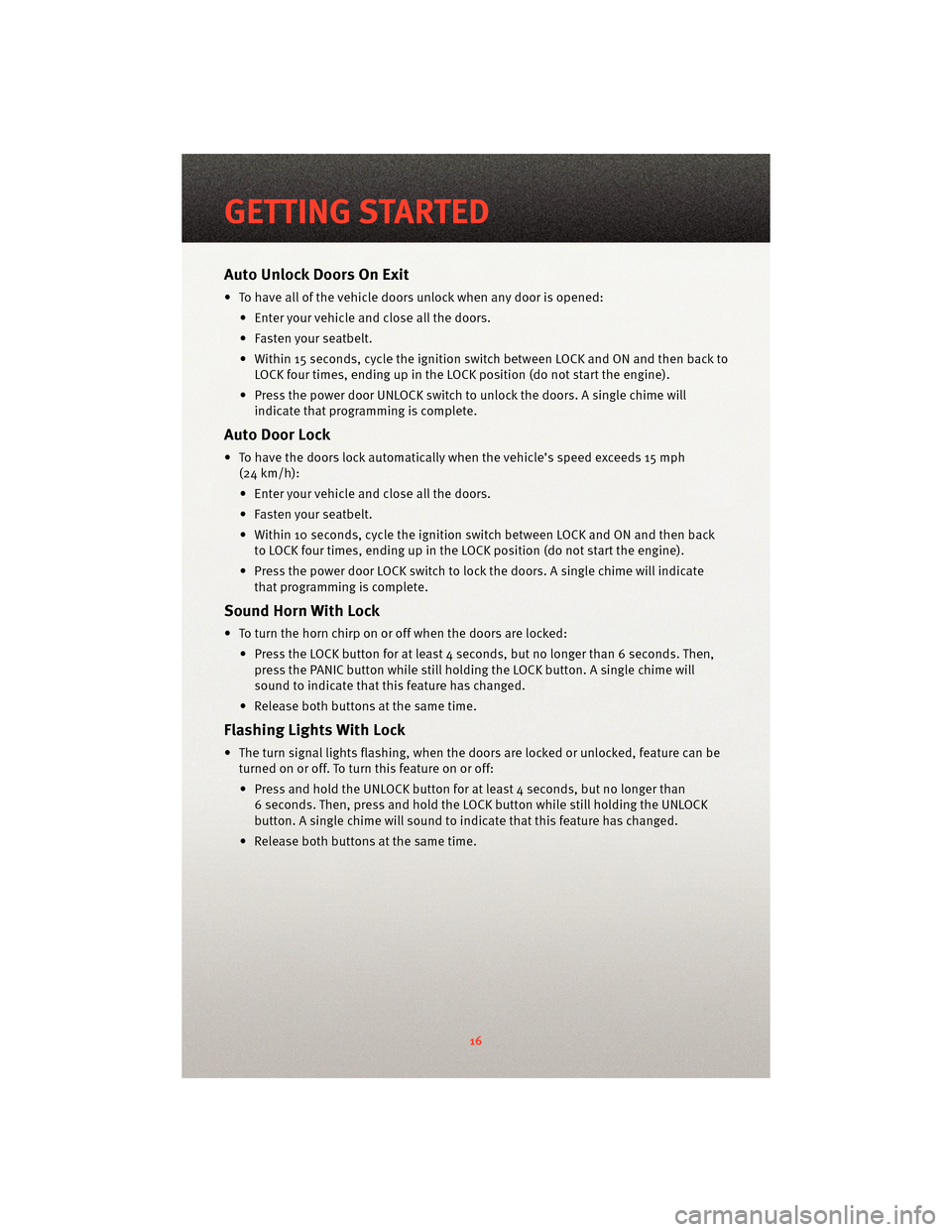

Auto Unlock Doors On Exit
• To have all of the vehicle doors unlock when any door is opened:• Enter your vehicle and close all the doors.
• Fasten your seatbelt.
• Within 15 seconds, cycle the ignition switch between LOCK and ON and then back toLOCK four times, ending up in the LOCK position (do not start the engine).
• Press the power door UNLOCK switch to unlock the doors. A single chime will indicate that programming is complete.
Auto Door Lock
• To have the doors lock automatically when the vehicle’s speed exceeds 15 mph
(24 km/h):
• Enter your vehicle and close all the doors.
• Fasten your seatbelt.
• Within 10 seconds, cycle the ignition switch between LOCK and ON and then back to LOCK four times, ending up in the LOCK position (do not start the engine).
• Press the power door LOCK switch to lock the doors. A single chime will indicate that programming is complete.
Sound Horn With Lock
• To turn the horn chirp on or off when the doors are locked:
• Press the LOCK button for at least 4 seconds, but no longer than 6 seconds. Then,press the PANIC button while still hol ding the LOCK button. A single chime will
sound to indicate that this feature has changed.
• Release both buttons at the same time.
Flashing Lights With Lock
• The turn signal lights flashing, when the doors are locked or unlocked, feature can be turned on or off. To turn this feature on or off:
• Press and hold the UNLOCK button for at least 4 seconds, but no longer than 6 seconds. Then, press and hold the LOCK button while still holding the UNLOCK
button. A single chime will sound to indic ate that this feature has changed.
• Release both buttons at the same time.
GETTING STARTED
16

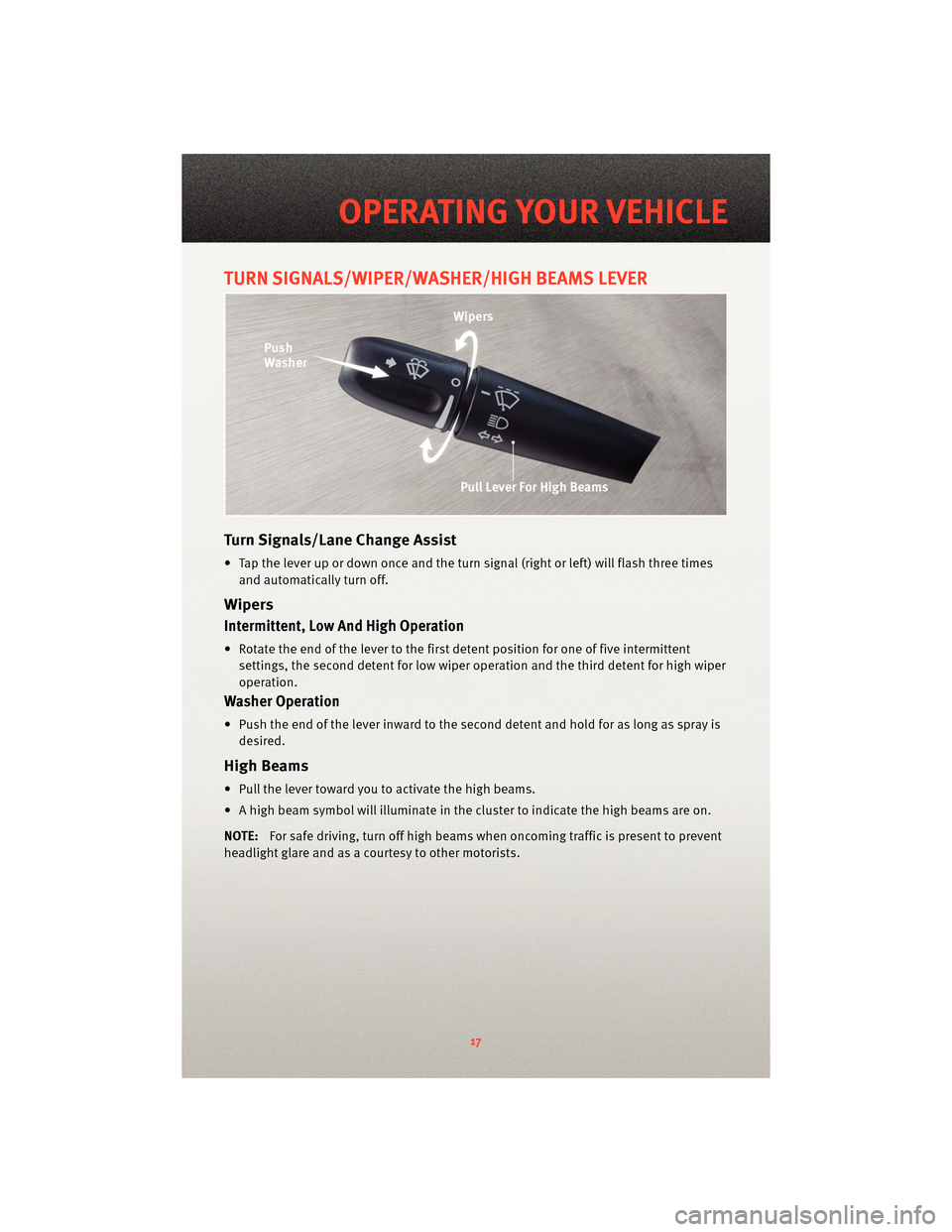

TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER
Turn Signals/Lane Change Assist
• Tap the lever up or down once and the turn signal (right or left) will flash three times
and automatically turn off.
Wipers
Intermittent, Low And High Operation
• Rotate the end of the lever to the first detent position for one of five intermittent
settings, the second detent for low wiper operation and the third detent for high wiper
operation.
Washer Operation
• Push the end of the lever inward to the second detent and hold for as long as spray is desired.
High Beams
• Pull the lever toward you to activate the high beams.
• A high beam symbol will illuminate in the cluster to indicate the high beams are on.
NOTE: For safe driving, turn off high beams when oncoming traffic is present to prevent
headlight glare and as a courtesy to other motorists.
17
OPERATING YOUR VEHICLE

HEADLIGHT SWITCH
Automatic Headlights/Parking
Lights/Headlights
• Rotate the headlight switch, located on theinstrument panel to the left of the steering
wheel, to the first detent for parking lights
and to the second detent for headlights.
• Rotate the headlight switch to “A” for AUTO headlights.
• When set to “A” (AUTO), the system automatically turns the headlights on or off
based on ambient light levels.
Instrument Panel Dimmer
• Rotate the dimmer control to the extreme bottom position to fully dim the instrument
panel lights and prevent the interior lights from illuminating when a door is opened.
• Rotate the dimmer control up to increase the brightness of the instrument panel when the parking lights or headlights are on.
• Rotate the dimmer control up to the next detent position to fully brighten the odometer and radio when the parking lights or he adlights are on. Refer to your Media
Center/Radio User Manual on the DVD for display dimming.
• Rotate the dimmer control up to the last detent position to turn on the interior lighting.
Cargo Light
• The cargo light is strategically placed lighting that helps illuminate the bed area of the truck. A cargo light symbol will illuminate in the cluster to indicate the light is on.
• Push the button to turn ON/OFF the cargo lighting.
OPERATING YOUR VEHICLE
18
