DODGE DART 2014 PF / 1.G Owners Manual

Cargo Tie-Downs
The rear cargo area is equipped with cargo tie-downs,
located on either side of the rear cargo area.
Ski Pass-Through
There is a ski pass-through door located behind the rear
seat armrest that allows longer items, such as snow skis,
to be stored in the rear cargo area. Lower the armrest and
pull downward on the latch to open the ski pass-through
door.
Cargo Tie-Downs
Ski Pass-Through
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on
the climate control. Press this button to turn on the
rear window defroster and the heated outside mirrors (if
equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately 15
minutes. For an additional 15 minutes of operation, press
the button a second time.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

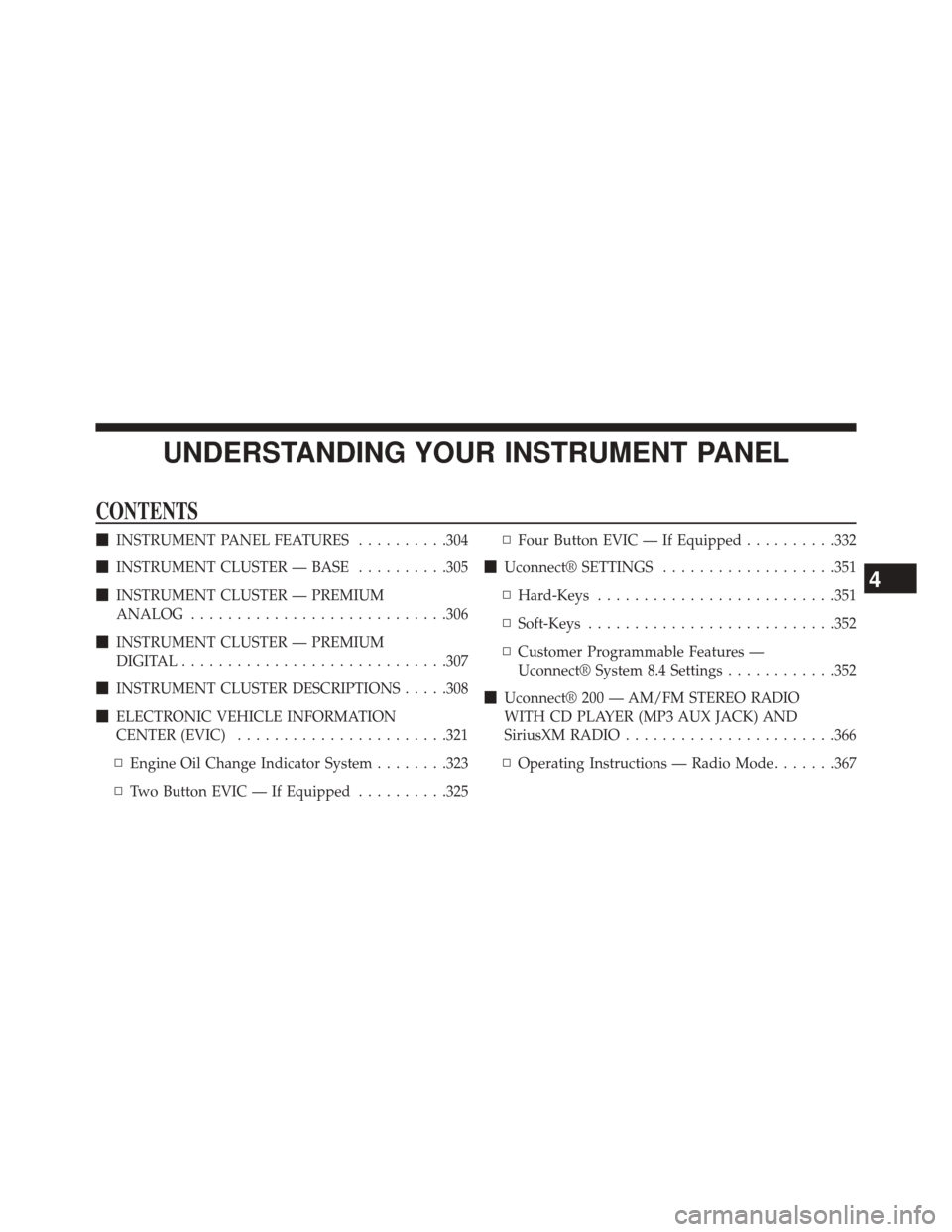

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........304
 INSTRUMENT CLUSTER — BASE ..........305
 INSTRUMENT CLUSTER — PREMIUM
ANALOG ............................306
 INSTRUMENT CLUSTER — PREMIUM
DIGITAL ............................ .307
 INSTRUMENT CLUSTER DESCRIPTIONS .....308
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) .......................321
▫ Engine Oil Change Indicator System ........323
▫ Two Button EVIC — If Equipped ..........325▫
Four Button EVIC — If Equipped ..........332
 Uconnect® SETTINGS ...................351
▫ Hard-Keys ..........................351
▫ Soft-Keys .......................... .352
▫ Customer Programmable Features —
Uconnect® System 8.4 Settings ............352
 Uconnect® 200 — AM/FM STEREO RADIO
WITH CD PLAYER (MP3 AUX JACK) AND
SiriusXM RADIO .......................366
▫ Operating Instructions — Radio Mode .......367
4

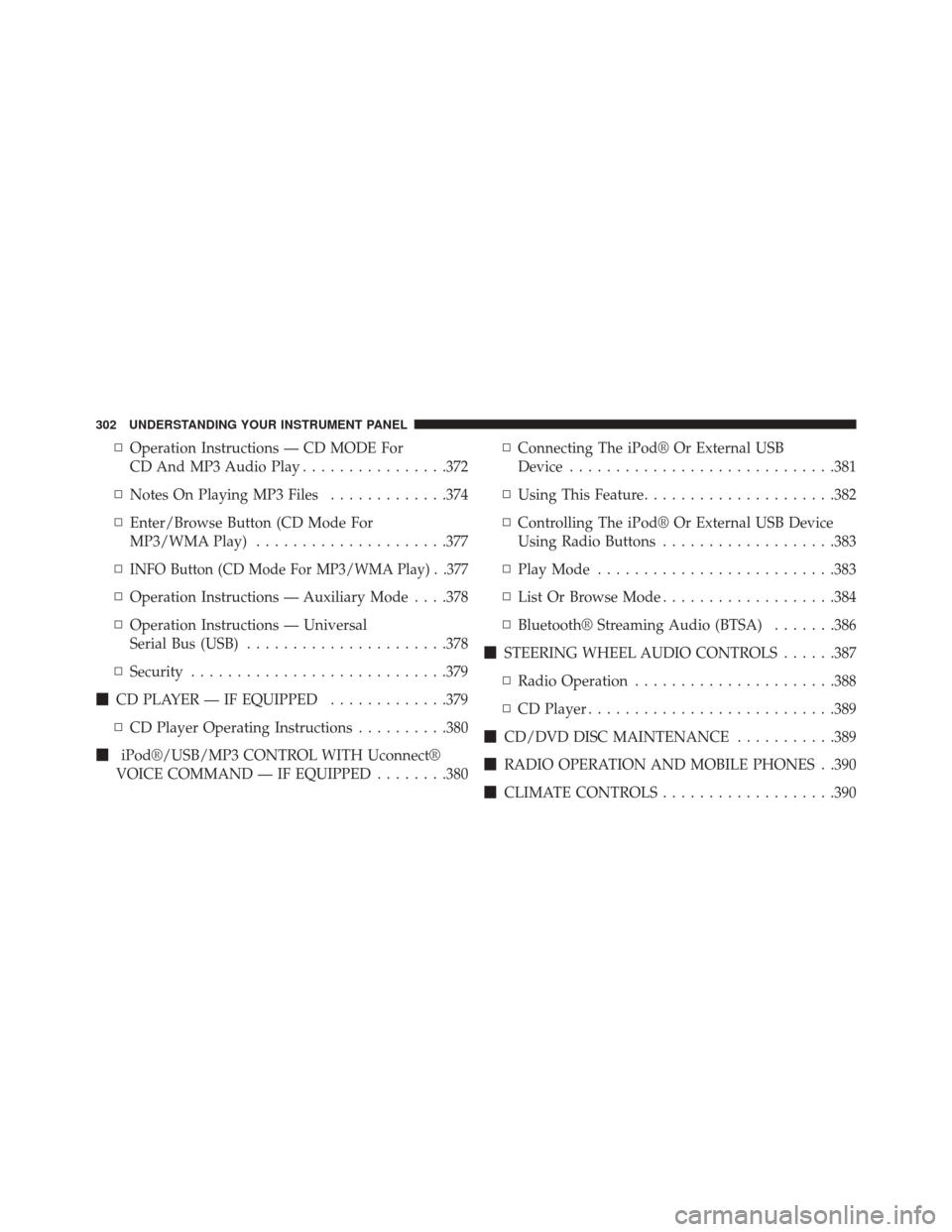

▫Operation Instructions — CD MODE For
CD And MP3 Audio Play ................372
▫ Notes On Playing MP3 Files .............374
▫ Enter/Browse Button (CD Mode For
MP3/WMA Play) .....................377
▫
INFO Button (CD Mode For MP3/WMA Play) . .377
▫ Operation Instructions — Auxiliary Mode . . . .378
▫ Operation Instructions — Universal
Serial Bus (USB) ..................... .378
▫ Security ............................379
 CD PLAYER — IF EQUIPPED .............379
▫ CD Player Operating Instructions ..........380
 iPod®/USB/MP3 CONTROL WITH Uconnect®
VOICE COMMAND — IF EQUIPPED ........380▫
Connecting The iPod® Or External USB
Device ............................ .381
▫ Using This Feature .....................382
▫ Controlling The iPod® Or External USB Device
Using Radio Buttons ...................383
▫ Play Mode ..........................383
▫ List Or Browse Mode ...................384
▫ Bluetooth® Streaming Audio (BTSA) .......386
 STEERING WHEEL AUDIO CONTROLS ......387
▫ Radio Operation ..................... .388
▫ CD Player .......................... .389
 CD/DVD DISC MAINTENANCE ...........389
 RADIO OPERATION AND MOBILE PHONES . .390
 CLIMATE CONTROLS ...................390
302 UNDERSTANDING YOUR INSTRUMENT PANEL

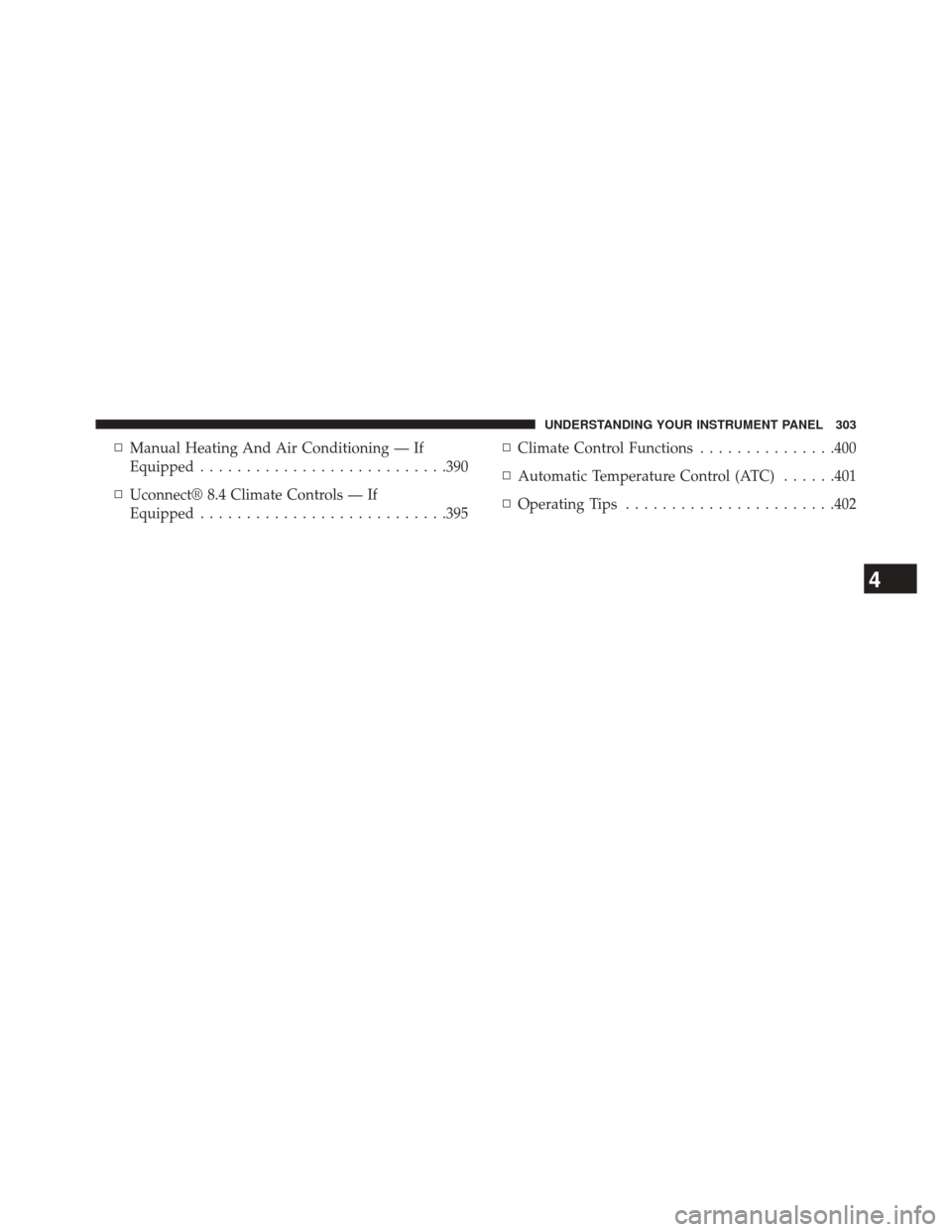

▫Manual Heating And Air Conditioning — If
Equipped .......................... .390
▫ Uconnect® 8.4 Climate Controls — If
Equipped .......................... .395▫
Climate Control Functions ...............400
▫ Automatic Temperature Control (ATC) ......401
▫ Operating Tips .......................402
4
UNDERSTANDING YOUR INSTRUMENT PANEL 303

INSTRUMENT PANEL FEATURES
1 — Air Demister5 — Glove Compartment9 — Trunk Release
2 — Outlet 6 — Climate Control Hard Controls/
Uconnect® System Hard Controls10 — Hood Release
3 — Instrument Cluster 7 — Power Outlet11 — Dimmer Control
4 — Radio/Uconnect® System 8 — Ignition Switch12 — Headlight Switch
304 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — BASE
4
UNDERSTANDING YOUR INSTRUMENT PANEL 305

INSTRUMENT CLUSTER — PREMIUM ANALOG
306 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — PREMIUM DIGITAL
4
UNDERSTANDING YOUR INSTRUMENT PANEL 307

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
This gauge measures engine revolutions-per-minute
(RPM x 1000).
2.
Tire Pressure Monitoring Telltale Light — If Equipped
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.) As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver ’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
308 UNDERSTANDING YOUR INSTRUMENT PANEL
