POWER DISTRIBUTION CENTER (FUSE/RELAY)
Your vehicle is equipped with two electrical power
distribution centers located next to each other in the left
side of the engine compartment.
The power distribution centers house new plug-in
“Maxi” fuses which replace all the in-line fusible links
previously used. The power distribution centers also
contain “Mini”fuses and plug-in “ISO” relays. A label
inside the latching cover of the Power Distribution Cen-
ters identifies each component for ease of replacement, if
necessary. These fuses and relays can be obtained from
your dealer.
FUSE BLOCK
CAUTION!
When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it suggests a
problem in the circuit that must be corrected.
NOTE:If you are leaving your vehicle dormant for
longer than 21 days you may want to take steps to protect
your battery. You may do this by disconnecting the
battery or by disconnecting the two ignition-off draw
(I.O.D.) fuses located in the Auxiliary Power Distribution
Center (PDC) located in the engine compartment. The
I.O.D. cavities include a snap-in retainer that allows the
MAINTAINING YOUR VEHICLE 341
7

fuse to be disconnected, without removing it from the
fuse block. Pressing the I.O.D. fuse back into the cavity
reconnects it.
Interior Fuses
The fuse block contains blade-type mini-fuses, relays,
and circuit breakers for high-current circuits. It is located
in the left kick panel. It is accessible through a snap-in
cover.
342 MAINTAINING YOUR VEHICLE

Cavity Fuse/Color Description
F1 15 Amp BlueInstrument Clus-
ter Battery Feed
F 2 10 Amp RedOccupant Classi-
fication Module
(OCM) Battery
Feed
F3 10 Amp RedIgnition Run/
Start for Control-
ler (NGC), Inte-
grated Power
Module (IPM),
AC Relay and
Fuel Pump Re-
lay
F4 10 Amp RedDoor Node and
Non-Memory
Power Mirror
Switch Battery
Feed
Fuse Block
MAINTAINING YOUR VEHICLE 343
7

F5 (2) 10 Amp RedAirbags (2 Fuses
in Yellow
Holder)
F6 10 Amp RedIgnition Run/
Start Unlock
F7 25 Amp NaturalRadio Battery
Feed
F8 10 Amp RedIgnition Run/
Start fro
Cluster/Transfer
Case/Seat Sw.
Back lighting
F9 10 Amp RedSDAR/DVD Bat-
tery Feed
F10 10 Amp Red Spare
F11 10 Amp Red Heated Mirrors
F12 20 Amp YellowCluster Battery
Feed
F13 10 Amp RedIgnition Run
HVAC Module/
Heated Rear
Glass (EBL) Re-
lay
F14 10 Amp RedABS Module Ig-
nition Run
F15 15 Amp BlueBattery Feed
Blue Tooth,
Compass/Trip
Computer
(CMTC), Sentry
Key Diagnostics
F16 20 Amp YellowReconfigurable
Power Outlets
F17 20 Amp YellowCigar Lighter
Ignition
F18 10 Amp Red Spare Fuse
344 MAINTAINING YOUR VEHICLE

F19 15 Amp BlueHeating & Air
Conditioning
w/ATC Only
Battery Feed
F20 25 Amp NaturalAmplifier Bat-
tery Feed
Underhood Fuses (Power Distribution Center)
Cavity Fuse/Color Description
1 40 Amp
GreenHVAC Blower
2 30 Amp Pink Power Outlets
3 30 Amp Pink Rr Wiper/Ign R/O
4 30 Amp Pink ABS Pump
5 50 Amp Red Cabin Htr 1 (Diesel Only)
6 50 Amp Red ASD
7 30 Amp Pink Rr HVAC (XK)
Cavity Fuse/Color Description
8 40 Amp
GreenAcc Delay/Seats
9 Spare
10 40 Amp
GreenStarter/JB Power
11 30 Amp Pink Cig Ltr/T-Tow
12 40 Amp
GreenEBL/Htd Mirror
13 40 Amp
GreenJB Power
14 50 Amp Red Cabin Htr 2 (Diesel Only)
15 50 Amp Red Cabin Htr 3 (Diesel Only)
16 25 Amp
NaturalIPM/Coils
17 Spare
18 20 Amp Yel-
lowTCM/AC Clutch
MAINTAINING YOUR VEHICLE 345
7

Cavity Fuse/Color Description
19 20 Amp Yel-
lowIgn Sw
20 20 Amp Yel-
lowPCM Batt (Gasoline Only)
21 30 Amp Pink ABS Valves
22 Spare
23 20 Amp Yel-
lowFDCM
24 20 Amp Yel-
lowFuel Pump
25 20 Amp Yel-
lowFDCM/E-Diff.
26 15 Amp Lt.
BlueHyd/PCM (Diesel Only)
27 15 Amp Lt.
BlueBrake/Stop LampsCavity Fuse/Color Description
28 25 Amp
NaturalNGC/Injectors
29 Spare
30 Spare
31 Mini Relay Cabin Htr 1 Rly (Diesel
Only)
32 Micro Relay TCM Rly (Gasoline Only)
33 Micro Relay Starter Rly
34 Micro Relay AC Clutch Rly
35 Micro Relay Fuel Pump Rly
36 Mini Relay Cabin Htr 3 Rly (Diesel
Only)
38 Mini Relay Cabin Htr 2 Rly (Diesel
Only)
39 Mini Relay HVAC Blower Rly
40 Mini Relay ASD Rly
346 MAINTAINING YOUR VEHICLE

Underhood Fuses (Integrated Power Module)
Cavity Fuse/Color Description
1 Micro Relay Wiper On/Off Rly
2 Micro Relay Wiper Hi/Lo Rly
3 Micro Relay Horn Rly
4 Micro Relay Rear Fog Rly (BUX Only)
5 Micro Relay Lt T-Tow Stop/Turn Rly
6 Micro Relay Rt T-Tow Stop/Turn Rly
7 Micro Relay Park Lamps Rly
8 10 Amp Red Lt Park Lamps
9 10 Amp Red T-Tow Park Lamps
10 10 Amp Red Rt Park Lamps
11 Mini Relay Rad Fan Hi Rly
12 20 Amp Yel-
lowFCM Batt #4
13 20 Amp Yel-
lowFCM Batt #2
Cavity Fuse/Color Description
14 20 Amp Yel-
lowAdjustable Pedal
15 20 Amp Yel-
lowFt Fog Lamps
16 20 Amp Yel-
lowHorn
17 20 Amp Yel-
lowRear Fogs
18 20 Amp Yel-
lowFCM Batt #1
19 20 Amp Yel-
lowLt T-Tow Stop/Turn
20 20 Amp Yel-
lowFCM Batt #3
21 20 Amp Yel-
lowRt T-Tow Stop/Turn
22 30 Amp Pink FDCM Mod
MAINTAINING YOUR VEHICLE 347
7

Cavity Fuse/Color Description
23 50 Amp Red Rad Fan
24 Mini Relay Rad Fan Lo Rly
25 Micro Relay Ft Fog Lamps Rly
26 Micro Relay Adjustable Pedal Rly
27 15 Amp Lt.
BlueIOD #1
28 20 Amp Yel-
lowIOD #2 (Audio)
29 10 Amp Red ORC (Ign R/.S)
30 10 Amp Red ORC (Ign R/O)
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light........................WL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2AReading Light.......................WL212–2
Visor Vanity Lights............... NotServiceable
LIGHT BULBS — Outside Bulb No.
Headlight............................. H13
Front Park/Turn/Sidemarker.............3457AK
Front Auxilliary Park...................... 194
Back-Up..............................3057
Center High Mounted Stoplight.............. 921
Fog Lamp...........................9006LL
Rear Sidemarker......................... 168
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal.................3057
348 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Headlights/Parking/Turn Signal
1. Remove the two bolts attaching the headlight to the
inner fender panel.2. Remove one nut that attaches the headlight to the
inner fender panel. Access to the nut is possible by
removing the fender panel access door which is located
in the wheel liner.
3. Grasp the headlight and pull firmly to disengage the
headlight from the fender panel.
4. While firmly holding the headlight in your hands
disconnect all connectors by following the procedure
described in step number 5 below.
5. Remove the bulb connector from the headlight making
sure to pull and release the red tab on all connectors.
Loosen the connector by pressing down on the black
and/or green release which is located below or above the
red tab. The green release is located above the red tab on
the 9008, the black release is located above the 3457AK
red tab, and the black release is located below the 194 red
tab.
MAINTAINING YOUR VEHICLE 349
7

6. Twist and remove socket from lamp.
7. Remove bulb from socket and replace.
NOTE:These are Halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up which reduces bulb
life.
Rear Side Marker, Tail Lights, Turn Signals And
Backup Lights — Replacement

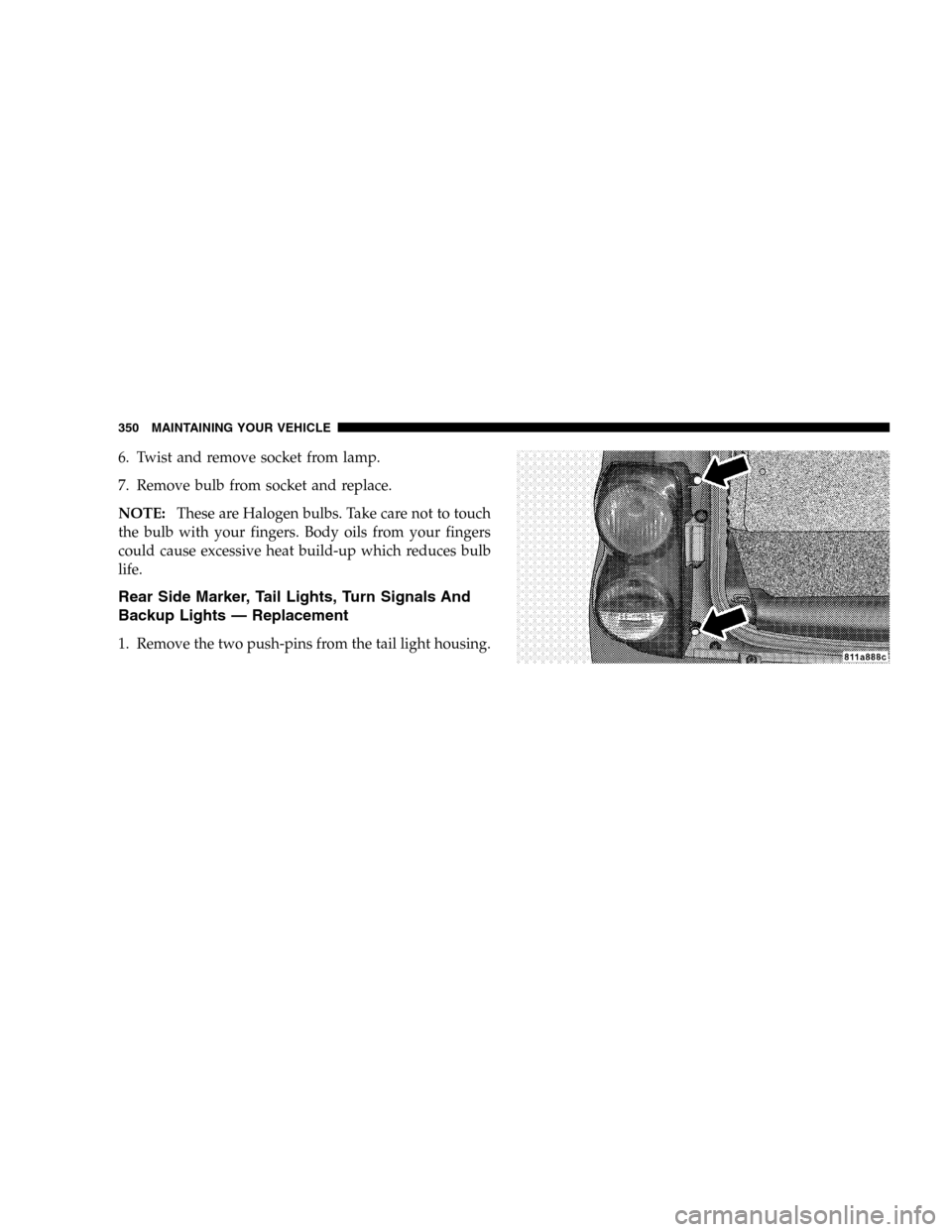

1. Remove the two push-pins from the tail light housing.
350 MAINTAINING YOUR VEHICLE
