DODGE DURANGO 2005 2.G Owners Manual

2. Rotate the light to the outboard side of the vehicle and
remove.
MAINTAINING YOUR VEHICLE 351
7

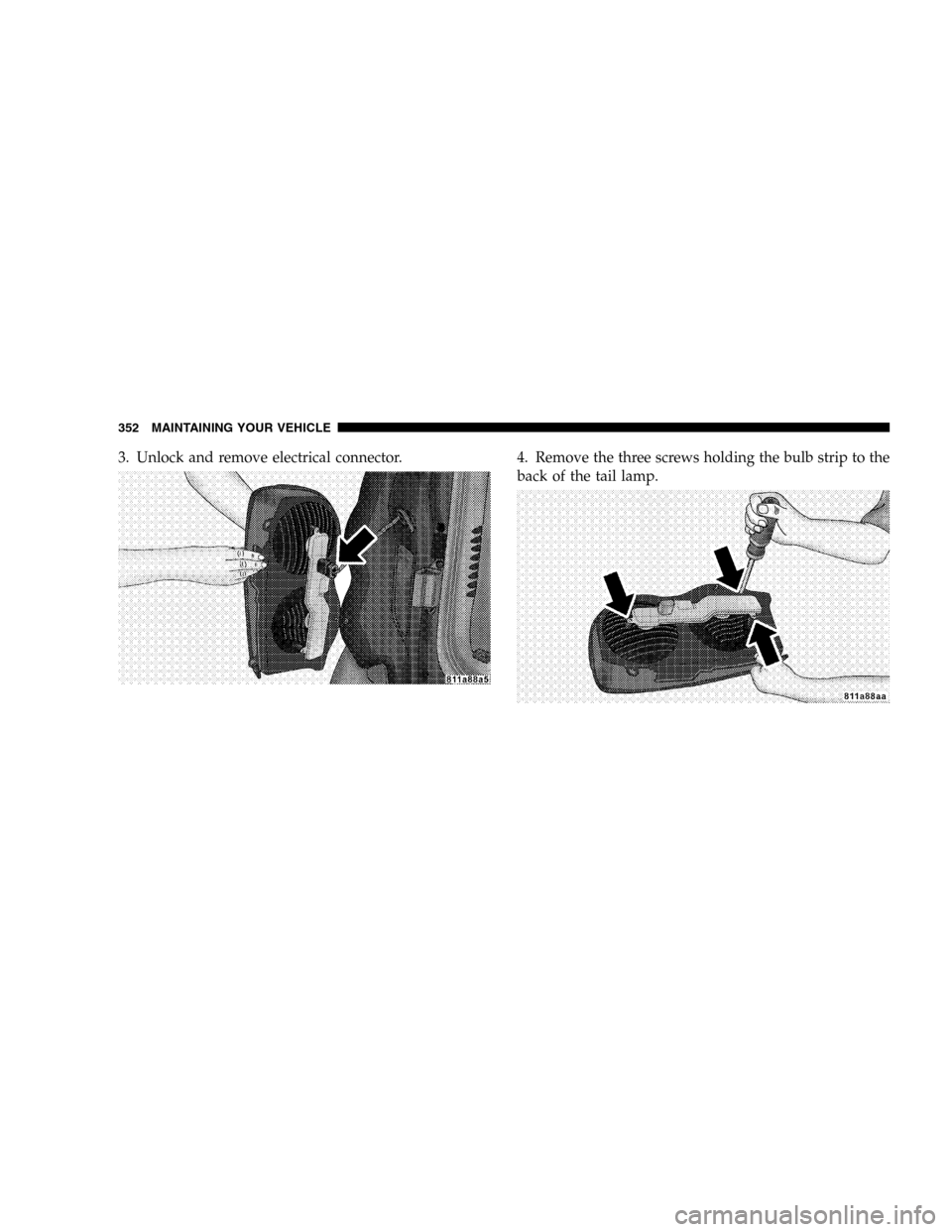

3. Unlock and remove electrical connector. 4. Remove the three screws holding the bulb strip to the
back of the tail lamp.
352 MAINTAINING YOUR VEHICLE

5. Remove the bulb strip from the tail light lens. 6. Remove bulbs from bulb strip by pulling the bulb
straight out.
MAINTAINING YOUR VEHICLE 353
7

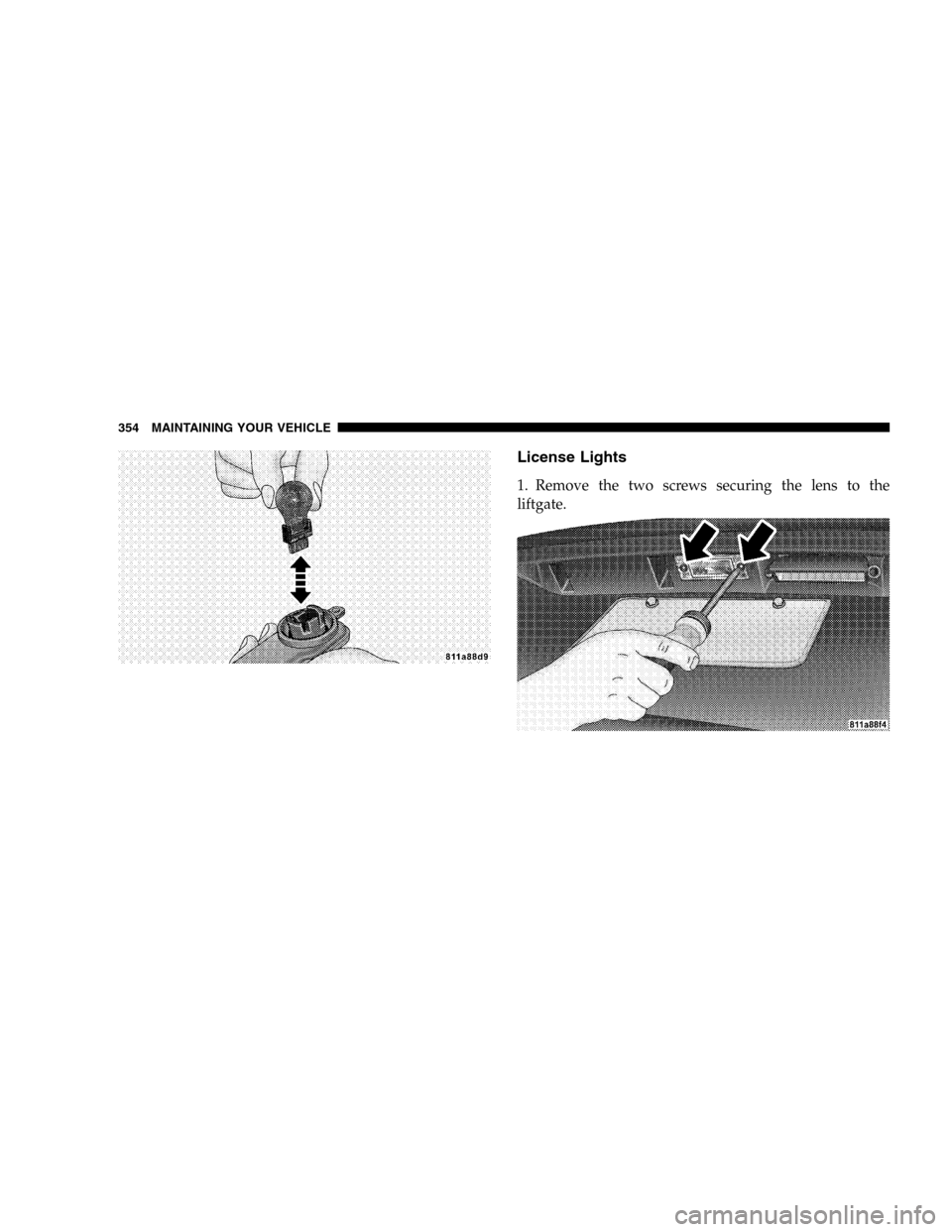

License Lights
1. Remove the two screws securing the lens to the
liftgate.
354 MAINTAINING YOUR VEHICLE

2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.Center High-Mounted Stoplight
1. Remove two screws securing stoplight housing assem-
bly to the liftgate.
MAINTAINING YOUR VEHICLE 355
7

2. Turn socket 1/4 counterclockwise and free from hous-
ing.
3. Pull bulb straight from socket to remove.Fog Lights
1. Rotate bulb and connector 1/4 turn counterclockwise.
2. Pull bulb off of connector.
NOTE:For foglights ensure that the takeout push-
fasteners are relocated back in their positions; one in the
foglight molding and the other in the hydroform.
356 MAINTAINING YOUR VEHICLE

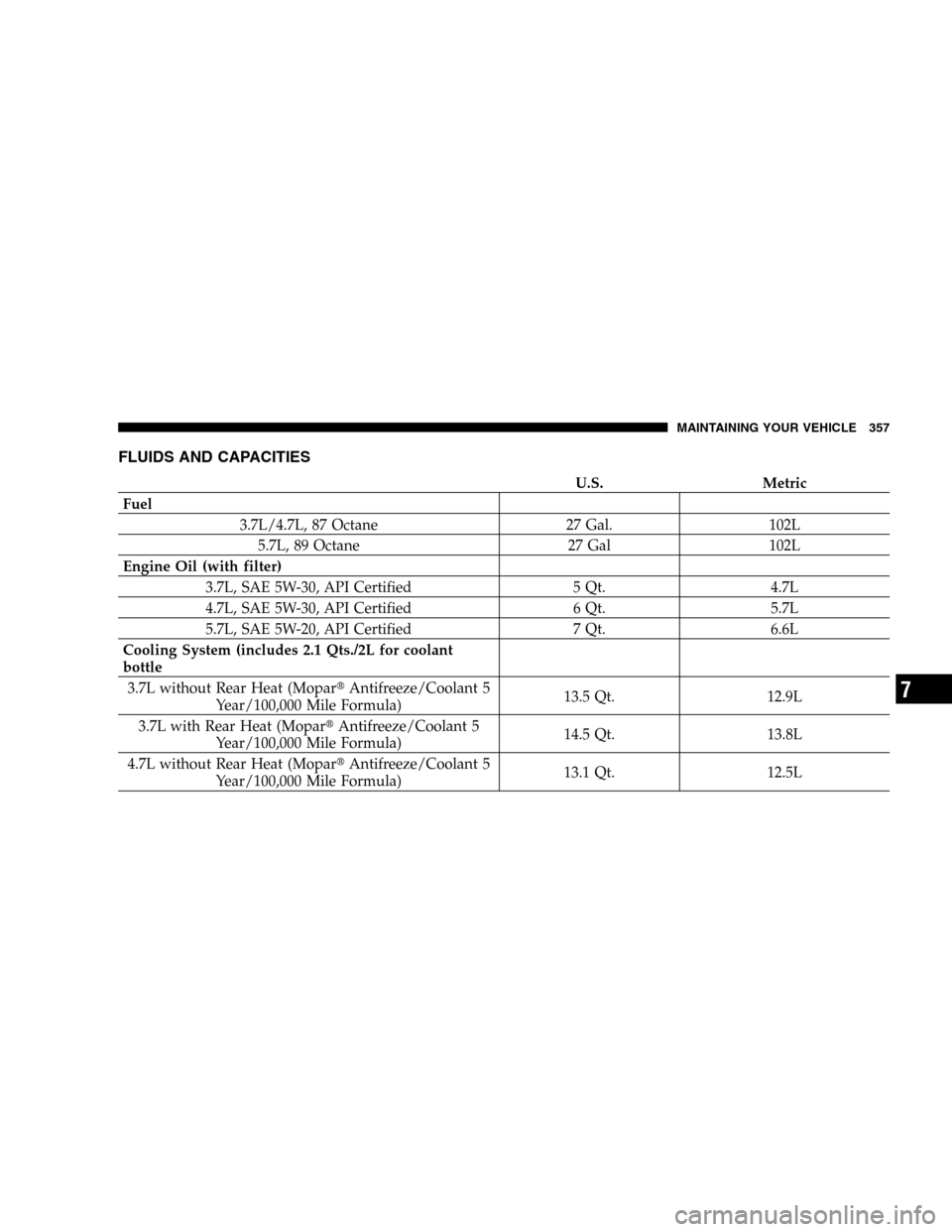

FLUIDS AND CAPACITIES
U.S. Metric
Fuel
3.7L/4.7L, 87 Octane 27 Gal. 102L
5.7L, 89 Octane 27 Gal 102L
Engine Oil (with filter)
3.7L, SAE 5W-30, API Certified 5 Qt. 4.7L
4.7L, SAE 5W-30, API Certified 6 Qt. 5.7L
5.7L, SAE 5W-20, API Certified 7 Qt. 6.6L
Cooling System (includes 2.1 Qts./2L for coolant
bottle
3.7L without Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)13.5 Qt. 12.9L
3.7L with Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)14.5 Qt. 13.8L
4.7L without Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)13.1 Qt. 12.5L
MAINTAINING YOUR VEHICLE 357
7

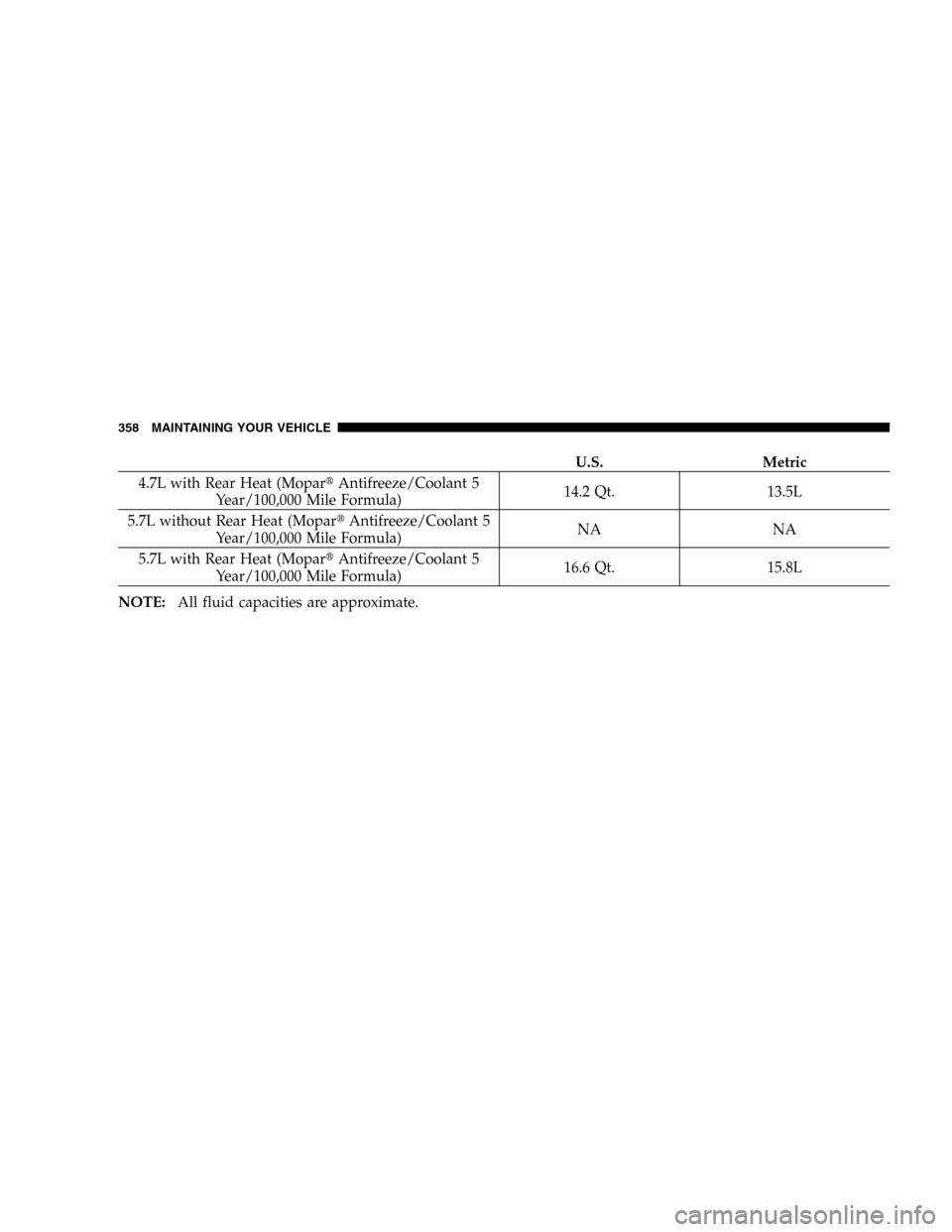

U.S. Metric
4.7L with Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)14.2 Qt. 13.5L
5.7L without Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)NA NA
5.7L with Rear Heat (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula)16.6 Qt. 15.8L
NOTE:All fluid capacities are approximate.
358 MAINTAINING YOUR VEHICLE

RECOMMENDED FLUIDS, LUBRICANTS AND
GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant MoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) P/N 5011764AB or equivalent.
3.7/4.7L Engine Oil Use SAE 5W-30, API Certified, meeting material standard MS-6395 or equiva-
lent.
5.7L Engine Oil Use SAE 5W-20, API Certified, meeting material standard MS-6395 or equiva-
lent.
Engine Oil Filter MoparEngine Oil Filter, P/N 5281090 or equivalent.
Spark Plugs Refer to the Vehicle Emission Control Information label in the engine com-
partment.
Fuel Selection 3.7L/4.7L 87 Octane, (R+M)/2 Method
Fuel Selection 5.7L 89 Octane, (R+M)/2 Method
MAINTAINING YOUR VEHICLE 359
7

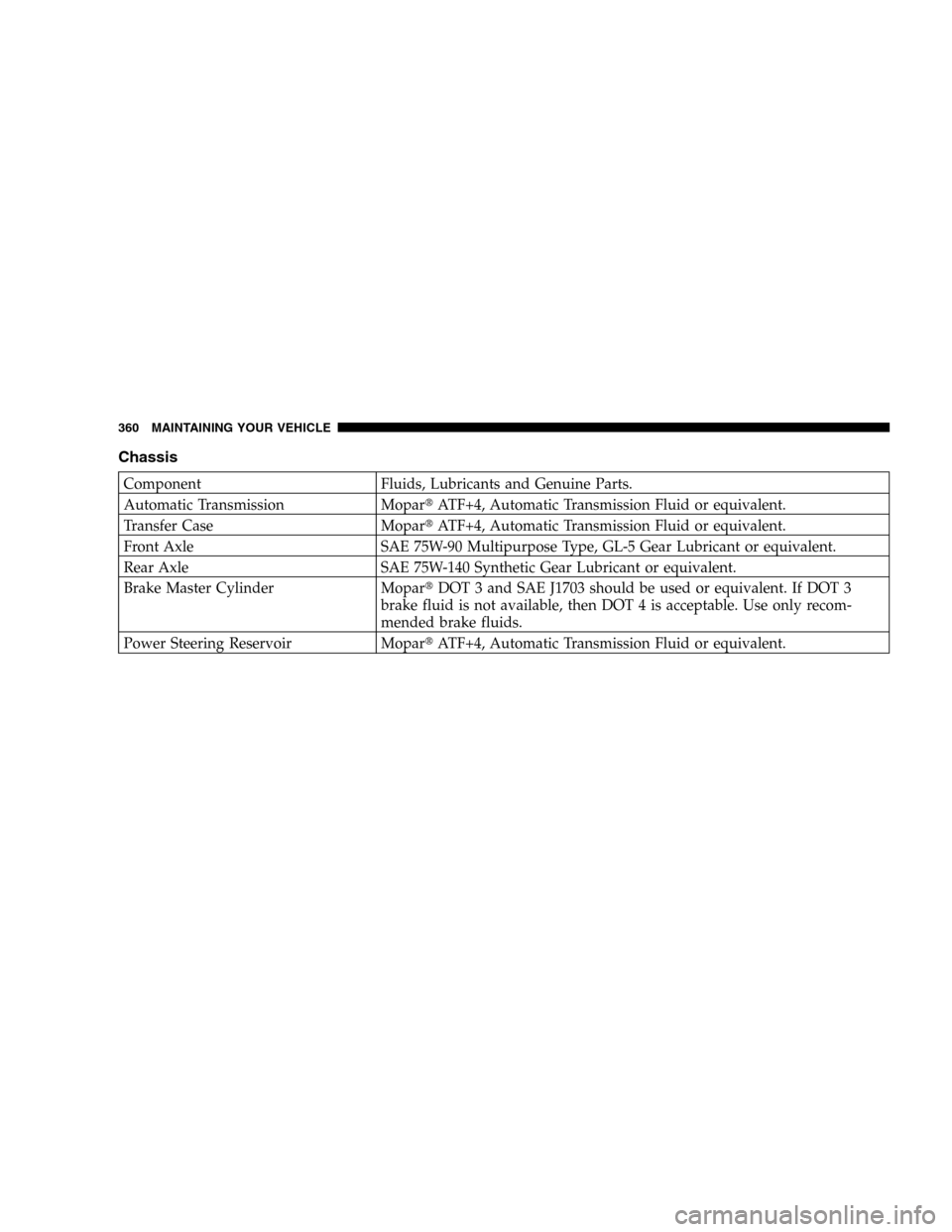

Chassis
Component Fluids, Lubricants and Genuine Parts.
Automatic Transmission MoparATF+4, Automatic Transmission Fluid or equivalent.
Transfer Case MoparATF+4, Automatic Transmission Fluid or equivalent.
Front Axle SAE 75W-90 Multipurpose Type, GL-5 Gear Lubricant or equivalent.
Rear Axle SAE 75W-140 Synthetic Gear Lubricant or equivalent.
Brake Master Cylinder MoparDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MoparATF+4, Automatic Transmission Fluid or equivalent.
360 MAINTAINING YOUR VEHICLE
