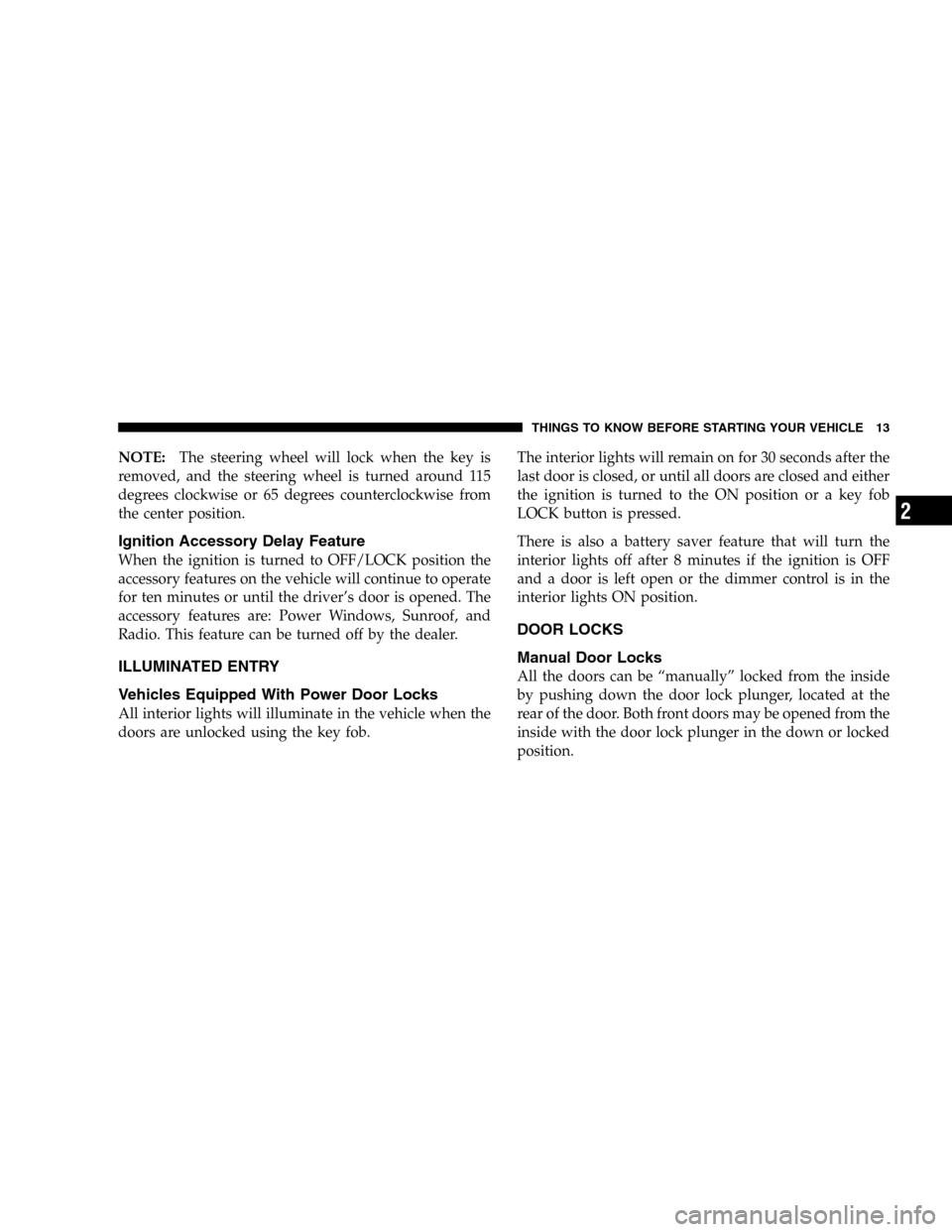

NOTE:The steering wheel will lock when the key is
removed, and the steering wheel is turned around 115
degrees clockwise or 65 degrees counterclockwise from
the center position.
Ignition Accessory Delay Feature
When the ignition is turned to OFF/LOCK position the
accessory features on the vehicle will continue to operate
for ten minutes or until the driver’s door is opened. The
accessory features are: Power Windows, Sunroof, and
Radio. This feature can be turned off by the dealer.
ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the key fob.The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a key fob
LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after 8 minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
DOOR LOCKS
Manual Door Locks
All the doors can be “manually” locked from the inside
by pushing down the door lock plunger, located at the
rear of the door. Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

INSTRUMENT PANEL AND CONTROLS
CONTENTS

Instruments And Controls.................162

Instrument Cluster......................163

Instrument Cluster Description.............164

Radio Reception Information...............172
▫AM Reception.......................172
▫FM Reception........................172

Electronic Digital Clock..................172
▫Clock Setting Procedure.................172
Sales Code REF — AM/FM/CD (Single Disc) Radio
With Optional Hands Free Phone Capability....173
▫Operating Instructions - Radio Mode.......174
▫Operation Instructions - CD Mode.........177
▫Operating Instructions - Hands Free Phone — If
Equipped...........................179

Sales Code RAQ – AM/FM/CD (6-Disc) Radio With
Optional Satellite Radio, Hands Free Phone, And
Video Capabilities......................179
▫Operating Instructions - Radio Mode.......1794

33. Odometer/Trip Odometer Button
Press this button to toggle between the odometer and the
trip odometer display. Holding the button in resets the
trip odometer reading.
RADIO RECEPTION INFORMATION
AM Reception
AM radio signals usually travel longer distances than FM
signals, especially at night. These longer distance AM
signals can cause AM stations to interfere with one
another. Noise from storms and power lines can also
interfere with AM reception. Reducing the treble can
reduce some of the noise.
FM Reception
FM Stereo signals produce better sound quality than AM
signals. However, FM signals will only travel approxi-
mately 10 to 40 miles (16 to 64 km). Tall structures or hills
can cause interference with FM signals causing the sound
to cut out.
ELECTRONIC DIGITAL CLOCK
The clock and radio each use the display panel built into
the radio. A digital readout shows the frequency and/or
time in hours and minutes (depending on your radio
model) whenever the ignition switch is in the “ON” or
“ACC” position.
When the ignition switch is in the “OFF” position, or
when the radio frequency is being displayed, time keep-
ing is accurately maintained.
On the RAQ radio the time button alternates the location
of the time and frequency on the display. On the REF only
one of the two, time or frequency is displayed at a time.
Clock Setting Procedure
1. Press and hold the time button until the hours blink.
2. Adjust the hours by turning the right side Tune /
Audio control.
172 INSTRUMENT PANEL AND CONTROLS

LOAD / EJECT - Eject
Press the LOAD/ EJECT button and the push-
button with the corresponding number where
the CD was loaded and the disc will unload
and move to the entrance for easy removal.
Radio display will showEJECTING DISCwhen the disc
is being ejected and prompt the user to remove the disc.
Press and hold the LOAD/ EJECT button to eject all discs
in the radio.
If you have ejected a disc and have not removed it within
15 seconds, it will be reloaded. If the CD is not removed,
the radio will continue to play the non-removed CD. If
the CD is removed and there are other CD’s in the radio,
the radio will play the next CD. If the CD is removed and
there are no other CD’s in the radio, the radio will remain
in CD mode and displayNO DISC LOADED. The disc
can be ejected with the radio and ignition OFF.
TIME Button (CD MODE For CD Audio Play)
Press this button to change the display from a large CD
playing time display and small clock time display to a
large clock time display and small CD playing time
display.
RW/FF (CD MODE For CD Audio Play)
Press FF (Fast Forward) once and the CD player will
begin to fast forward until FF is pressed again or RW or
another CD button is pressed. The RW (Reverse) button
works in a similar manner.
TUNE Control (CD MODE For CD Audio Play)
Pressing the TUNE control allows the setting of the Tone,
Fade, and Balance. See Radio Mode.
AM/FM Button (CD MODE For CD Audio Play)
Switches the Radio to the Radio mode.
INSTRUMENT PANEL AND CONTROLS 185
4

Air Conditioning Operation
To turn the air conditioning On or Off perform the
following steps:
•Position the mode control button to the desired airflow
setting.
•Set the front blower control to any desired speed.
•Press the Snowflake (A/C) button which is located to
the right of the temperature control slide. An indicator
light on the Snowflake (A/C) button shows that the air
conditioning is On.
•Press the Snowflake (A/C) button a second time to
turn the air conditioning Off.
NOTE:The compressor will not engage until the engine
has been running for several seconds. Slight changes inengine speed or power may be noticed when the com-
pressor is on. This is a normal occurrence since the
compressor will cycle on and off to maintain comfort and
improve fuel economy.
Front Blower Control
The Front Blower controls the
amount of air delivered to the
passenger compartment.
There are four blower speeds.
The fan speed increases as
you move the control clock-
wise. When the front blower
control is turned to OFF, the
blower will be turned off and
the system will be positioned
in recirculation mode.
198 INSTRUMENT PANEL AND CONTROLS

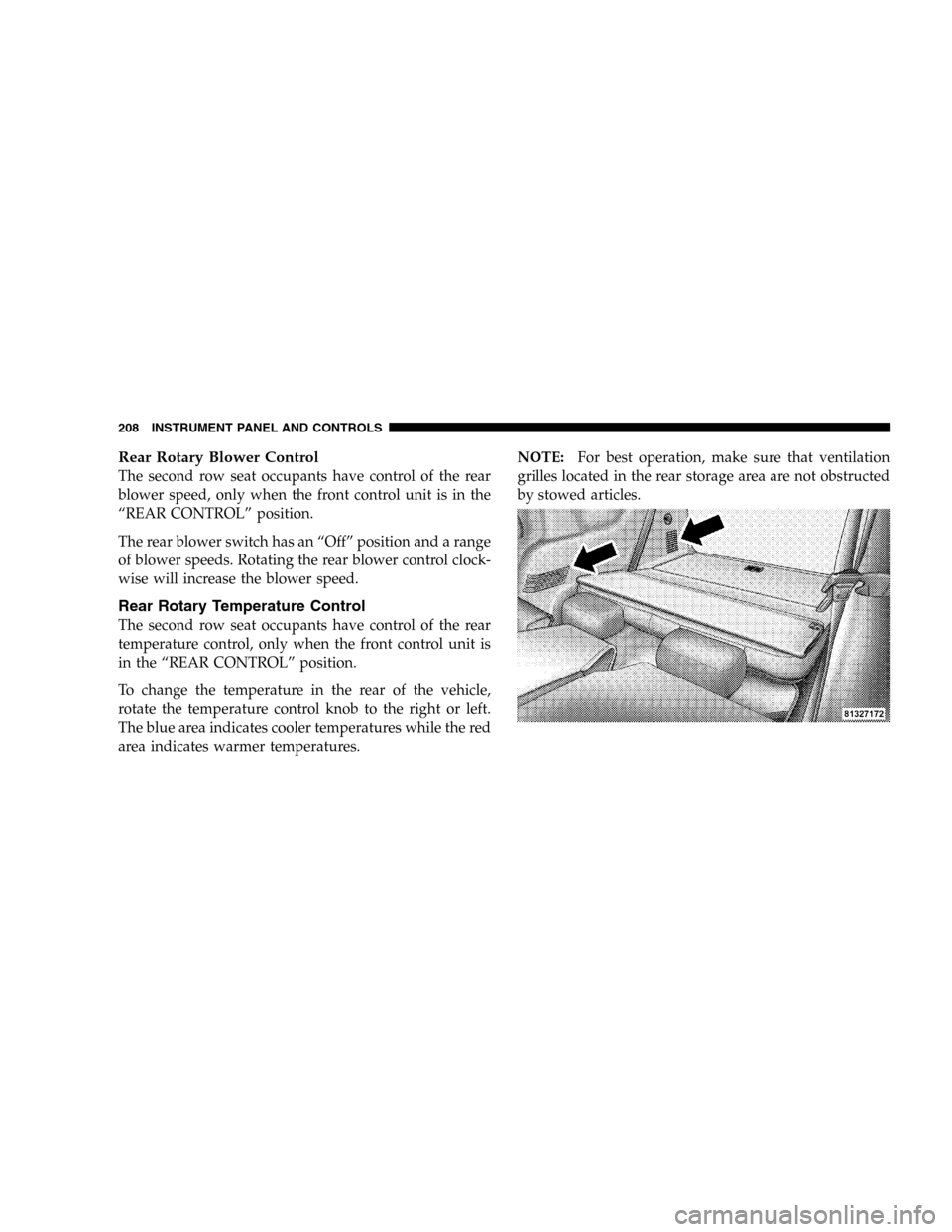

Rear Rotary Blower Control
The second row seat occupants have control of the rear
blower speed, only when the front control unit is in the
“REAR CONTROL” position.
The rear blower switch has an “Off” position and a range
of blower speeds. Rotating the rear blower control clock-
wise will increase the blower speed.
Rear Rotary Temperature Control
The second row seat occupants have control of the rear
temperature control, only when the front control unit is
in the “REAR CONTROL” position.
To change the temperature in the rear of the vehicle,
rotate the temperature control knob to the right or left.
The blue area indicates cooler temperatures while the red
area indicates warmer temperatures.NOTE:For best operation, make sure that ventilation
grilles located in the rear storage area are not obstructed
by stowed articles.
208 INSTRUMENT PANEL AND CONTROLS

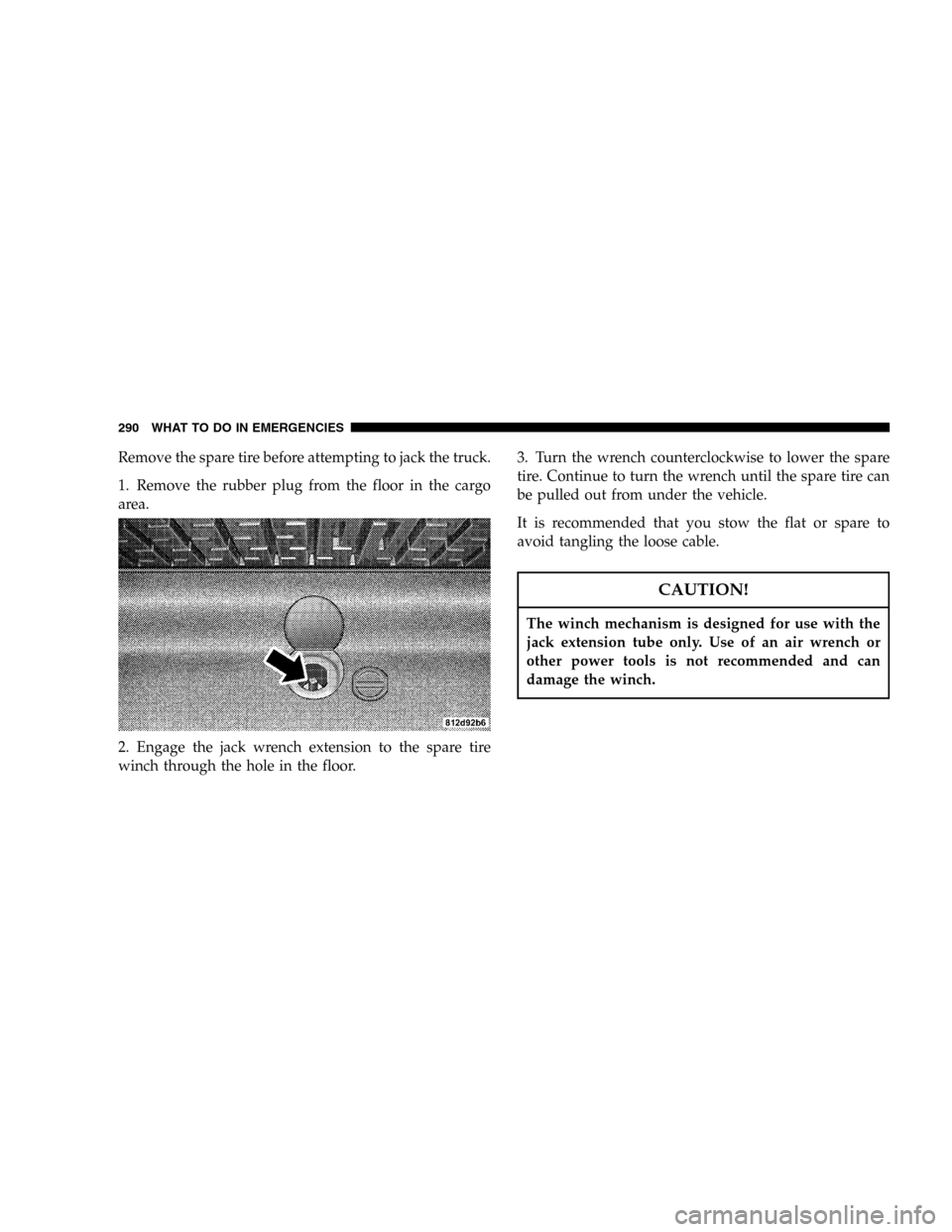

Remove the spare tire before attempting to jack the truck.
1. Remove the rubber plug from the floor in the cargo
area.
2. Engage the jack wrench extension to the spare tire
winch through the hole in the floor.3. Turn the wrench counterclockwise to lower the spare
tire. Continue to turn the wrench until the spare tire can
be pulled out from under the vehicle.
It is recommended that you stow the flat or spare to
avoid tangling the loose cable.
CAUTION!
The winch mechanism is designed for use with the
jack extension tube only. Use of an air wrench or
other power tools is not recommended and can
damage the winch.
290 WHAT TO DO IN EMERGENCIES

•Block both the front and rear
of the wheel diagonally oppo-
site the jacking position. For
example, if the right front
wheel is being changed, block
the left rear wheel.
•Passengers should not remain in the vehicle when the
vehicle is being jacked.
Instructions
1. Remove the spare wheel, jack, and tools from storage.
2. Using the wheel wrench, loosen, but do not remove,
the wheel nuts by turning them counterclockwise one
turn while the wheel is still on the ground.
3. When changing a front wheel, place the jack under the
frame rail behind the wheel. Locate the jack as far
forward as possible on the straight part of the frame(prior to inboard transition. Operate the jack using the
jack drive tube and the wheel wrench - the tube exten-
sion, may be used but is not required.
When changing a rear wheel, assemble the jack drive
tube to the jack and connect the drive tube to the
extension tube. Place the jack under the axle as close to
Front Jacking Location
292 WHAT TO DO IN EMERGENCIES

the tire as posssible with the drive tubes extending to the
rear. Connect the jack tube extension and wheel wrench.
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
4. By rotating the wheel wrench clockwise, raise the
vehicle until the wheel just clears the surface.
Rear Left Jacking Location
Rear Right Jacking Location
WHAT TO DO IN EMERGENCIES 293
6

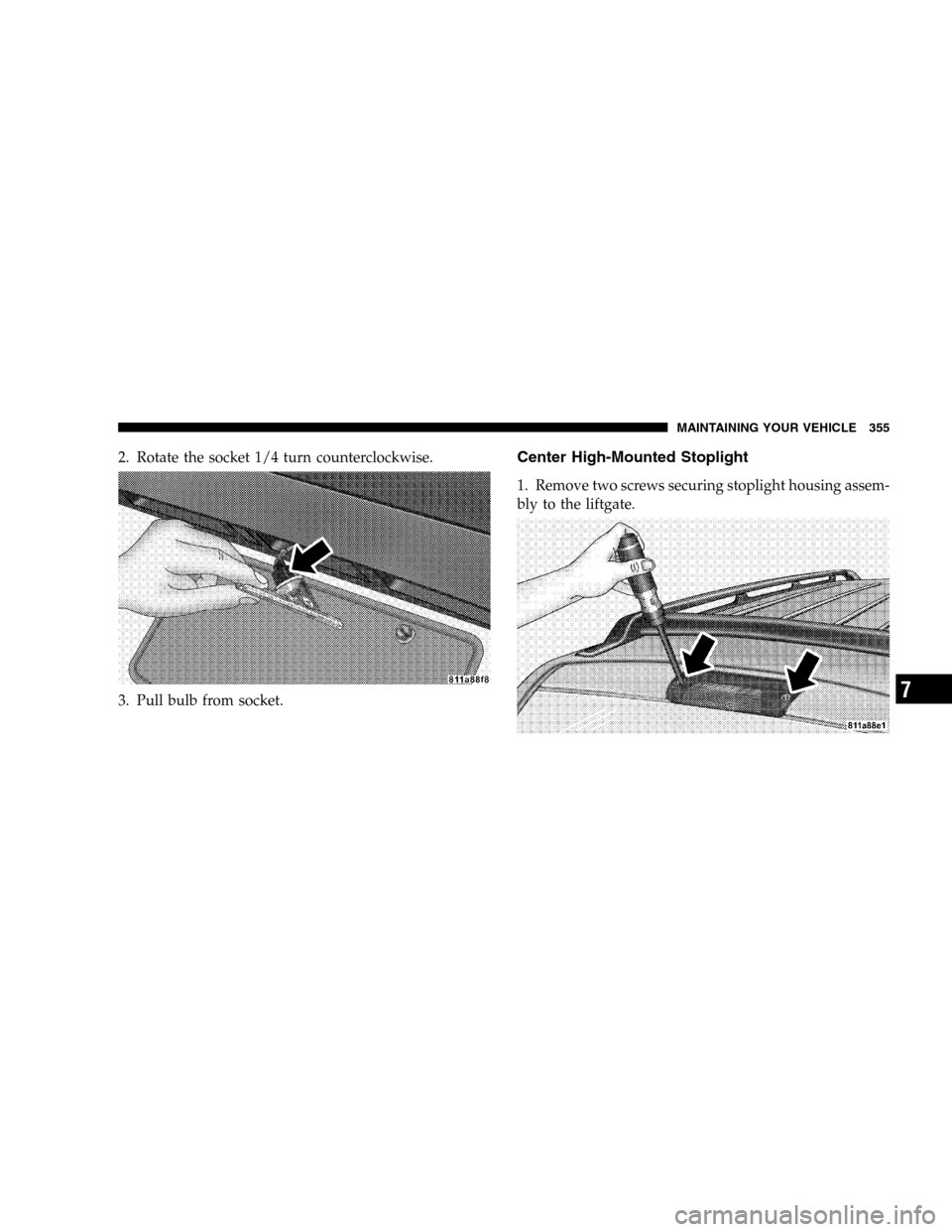

2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.Center High-Mounted Stoplight
1. Remove two screws securing stoplight housing assem-
bly to the liftgate.
MAINTAINING YOUR VEHICLE 355
