DODGE DURANGO 2006 2.G Owners Manual

North American English
Primary Alternate(s)
Zero Oh
Add location Add new
All All of them
Confirmation prompts Confirmations prompts
Delete a name Delete
Language Select language
List names List all
List paired phones List phones
Pager Beeper
Phone pairing Pairing
Phonebook Phone book
Return to main menu Return. Main menu
Select phone select
Set up Phone settings phone set
upSEATS
Front Seat Manual Seat Adjustment
The adjusting lever is at the front of the seat, near the
floor. Lift the lever and move the seat to the desired
position. Release the bar to lock the seat into position.
Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Front Seats Manual Seat Recliners
The bucket seats are equipped with recliners. The reclin-
ing mechanism is operated by a lever located on the right
side of the passenger’s seat and the left side of the driver
seat. To recline, lean forward slightly before lifting the
lever, then push back to the desired position and release
the lever. Lean forward and lift the lever to return the
seatback to its normal position. Using body pressure, lean
forward and rearward on the seat to be sure the seatback
is locked.
Manual Seat Adjuster
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Lumbar Support Adjustment — If
Equipped
The manual lumbar support adjustment lever is located
on the right side of the driver seat and on the left side of
the passenger’s seat. Moving the lumbar control lever
fore and aft increases or decreases the lumbar support.
Adjustable Head Restraints — All Seating
Positions
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull up or push down
on the restraints so that the upper edge is as high as
practical, at least to the level of the ears.
Lumbar Support Adjustment Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3

To lower the head restraint, depress the release button
located at the base of the head restraint and push down
on the head restraint.8 - Way Driver’s Power Seat — If Equipped
The driver power seat switches are located on the left
side of the driver seat lower side trim. The bottom switch
controls up/down, forward/rearward, and tilt adjust-
ment. The top switch controls the seatback recline adjust-
ment.
Head Restraint Adjustment
Power Seat Switch Location
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4 - Way Passenger’s Power Seat — If Equipped
The front passenger’s power seat switches are located on
the right side of the passenger seat lower side trim. The
bottom switch controls forward/rearward adjustment.
The top switch controls the seatback recline adjustment.
NOTE:The 4 - way seat does not have an up/down
adjustment.
Front Heated Seats — If Equipped
This feature heats the driver and front passenger seats.
The controls for the front heated seats are located on the
center of the instrument panel, below the climate con-
trols. The heated seat system allows the driver and front
Heated Seat Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

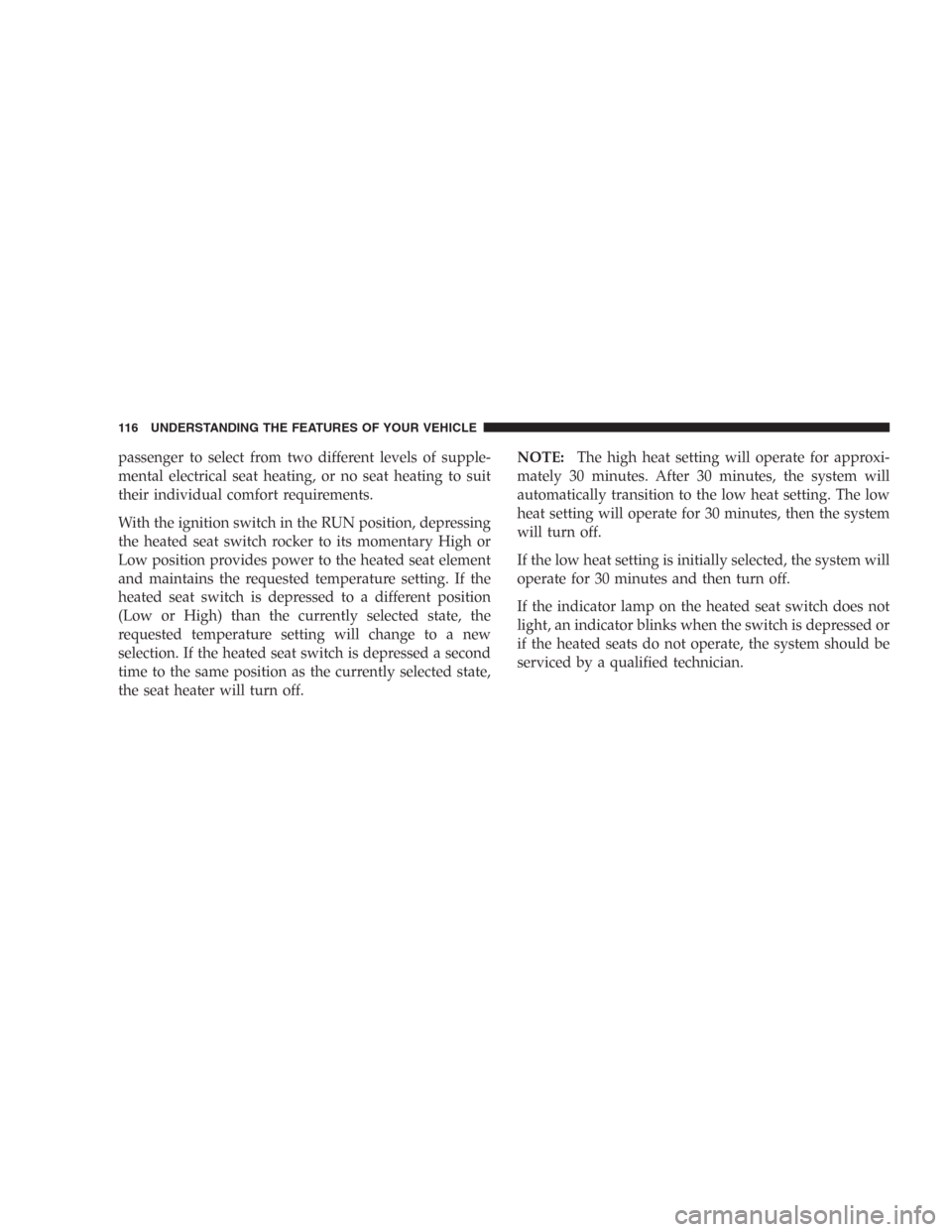

passenger to select from two different levels of supple-
mental electrical seat heating, or no seat heating to suit
their individual comfort requirements.
With the ignition switch in the RUN position, depressing
the heated seat switch rocker to its momentary High or
Low position provides power to the heated seat element
and maintains the requested temperature setting. If the
heated seat switch is depressed to a different position
(Low or High) than the currently selected state, the
requested temperature setting will change to a new
selection. If the heated seat switch is depressed a second
time to the same position as the currently selected state,
the seat heater will turn off.NOTE:The high heat setting will operate for approxi-
mately 30 minutes. After 30 minutes, the system will
automatically transition to the low heat setting. The low
heat setting will operate for 30 minutes, then the system
will turn off.
If the low heat setting is initially selected, the system will
operate for 30 minutes and then turn off.
If the indicator lamp on the heated seat switch does not
light, an indicator blinks when the switch is depressed or
if the heated seats do not operate, the system should be
serviced by a qualified technician.
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This may
cause the seat heater to overheat.
Second Row 40/20/40 Seat — Fold and Tumble
The 40/20/40 seat configuration is standard on all mod-
els. This seat is equipped with a unique fold-and-tumble
feature. The 40% seatbacks have spring loaded hinges
which assist with the folding of the seatbacks.Second row leather seats have seatback recliners at the
40% seating positions. Raising the lever allows the seat-
back to be reclined an additional 11 degrees.
To Fold the 40% seatbacks fully raise the lever on the side
of the seat to release the seatback. The seatback can nowFold, Tumble, and Recline Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

be folded into the down position for use as a cargo floor,
or the seat can now be tumbled forward to allow access
to the rear of the vehicle.
To fold the 20% seatback, pull the strap forward to release
the seatback. Fold the seatback down for use as an
armrest or to carry cargo. When returning the seatback to
the upright position, push the seatback rearward to latch
the seatback. Pull the seatback forward to ensure that it is
locked in the upright position.
WARNING!
The 20% seatback contains the center shoulder belt.
A 20% seatback that is not fully latched in the
upright position will not protect you properly.
To Tumble the 40% seat, fully raise the lever on the side
of the seat to release the floor latches and tumble the seat.
Fold, Tumble, and Recline Lever
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not drive the vehicle with the outer 40% second
row seats in the tumbled position. The outer 40%
second row seats are only intended to be tumbled for
entry and exit to the third row seat. Failure to follow
these instructions could result in personal injury.
NOTE:The seatback must be fully folded into the down
position to allow the lever to be raised enough to release
the floor latches.
To Fold and Tumble the 2nd row 40% seats from the 3rd
row, fully raise the lever at the rear of the seat to fold the
seatback. Continue raising the lever to release the floor
latches to tumble the seat.
NOTE:The head restraints must be lowered but do not
have to be removed to fold and tumble the seats.
Tumble Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

Third Row Seat Bench — If Equipped
To Fold The Seats
Folding the third seat occurs in two stages: First the
cushion is lifted and moved forward from the pockets at
the front of the cushion. The cushion will rest onto the
floor directly behind the second row seat. Second, the top
of the back is folded forward and rests onto the cushion.
The back will not fold unless the cushion has been folded
forward first.
Seat Cushion Pockets
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
