DODGE DURANGO 2006 2.G Manual Online

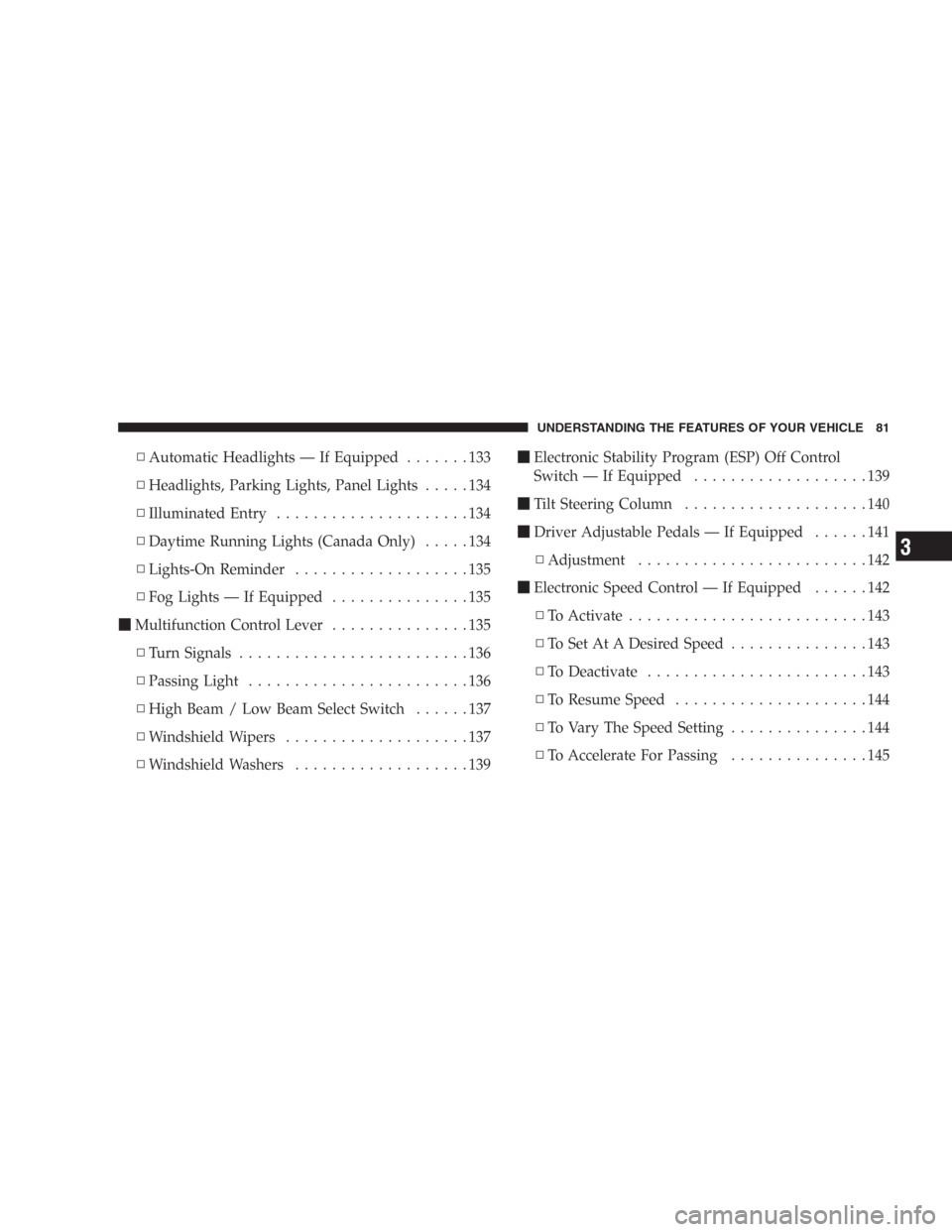

▫Automatic Headlights — If Equipped.......133
▫Headlights, Parking Lights, Panel Lights.....134
▫Illuminated Entry.....................134
▫Daytime Running Lights (Canada Only).....134
▫Lights-On Reminder...................135
▫Fog Lights — If Equipped...............135
Multifunction Control Lever...............135
▫Turn Signals.........................136
▫Passing Light........................136
▫High Beam / Low Beam Select Switch......137
▫Windshield Wipers....................137
▫Windshield Washers...................139Electronic Stability Program (ESP) Off Control
Switch — If Equipped...................139
Tilt Steering Column....................140
Driver Adjustable Pedals — If Equipped......141
▫Adjustment.........................142
Electronic Speed Control — If Equipped......142
▫To Activate..........................143
▫To Set At A Desired Speed...............143
▫To Deactivate........................143
▫To Resume Speed.....................144
▫To Vary The Speed Setting...............144
▫To Accelerate For Passing...............145
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

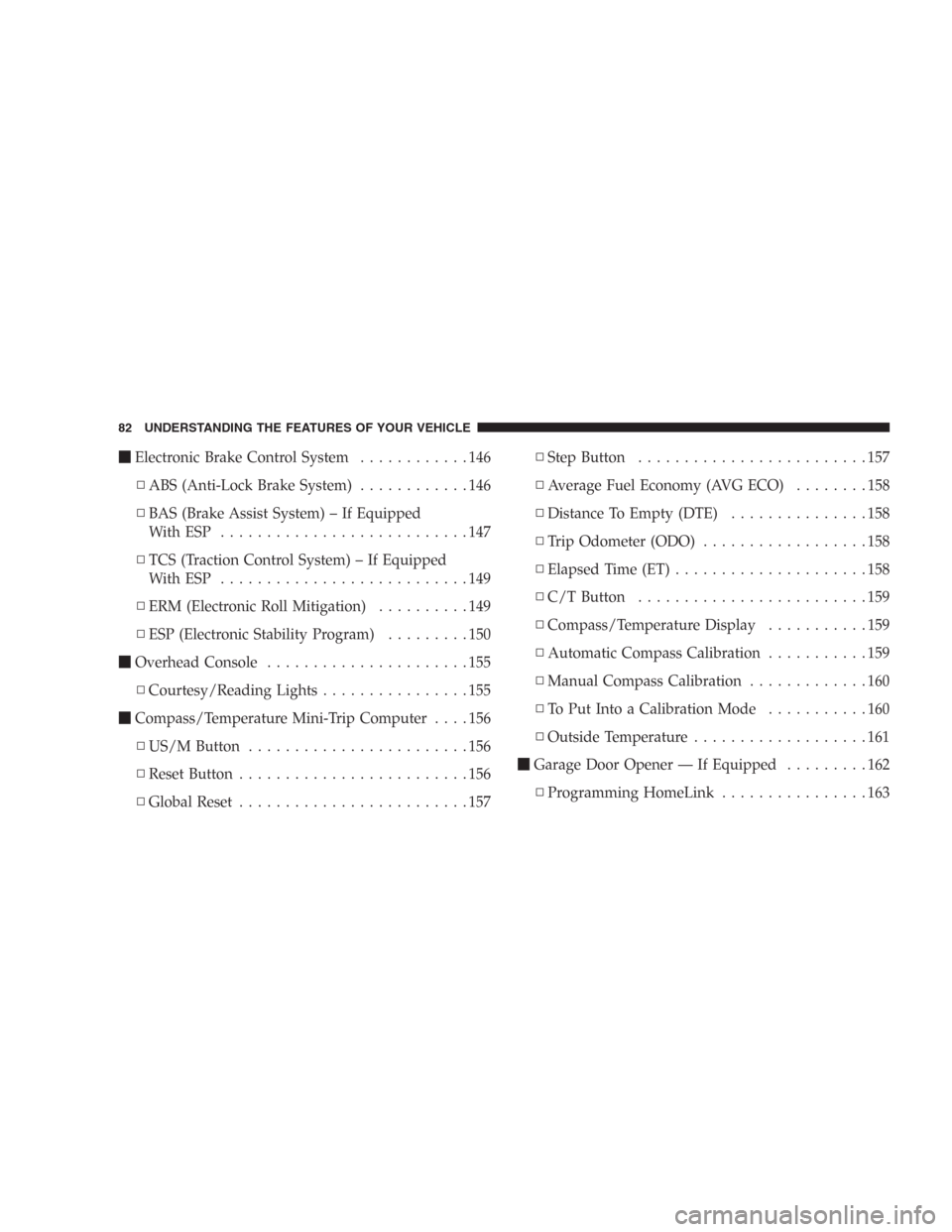

Electronic Brake Control System............146
▫ABS (Anti-Lock Brake System)............146
▫BAS (Brake Assist System) – If Equipped
WithESP ...........................147
▫TCS (Traction Control System) – If Equipped
WithESP ...........................149
▫ERM (Electronic Roll Mitigation)..........149
▫ESP (Electronic Stability Program).........150
Overhead Console......................155
▫Courtesy/Reading Lights................155
Compass/Temperature Mini-Trip Computer....156
▫US/M Button........................156
▫Reset Button.........................156
▫Global Reset.........................157▫Step Button.........................157
▫Average Fuel Economy (AVG ECO)........158
▫Distance To Empty (DTE)...............158
▫Trip Odometer (ODO)..................158
▫Elapsed Time (ET).....................158
▫C/T Button.........................159
▫Compass/Temperature Display...........159
▫Automatic Compass Calibration...........159
▫Manual Compass Calibration.............160
▫To Put Into a Calibration Mode...........160
▫Outside Temperature...................161
Garage Door Opener — If Equipped.........162
▫Programming HomeLink................163
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

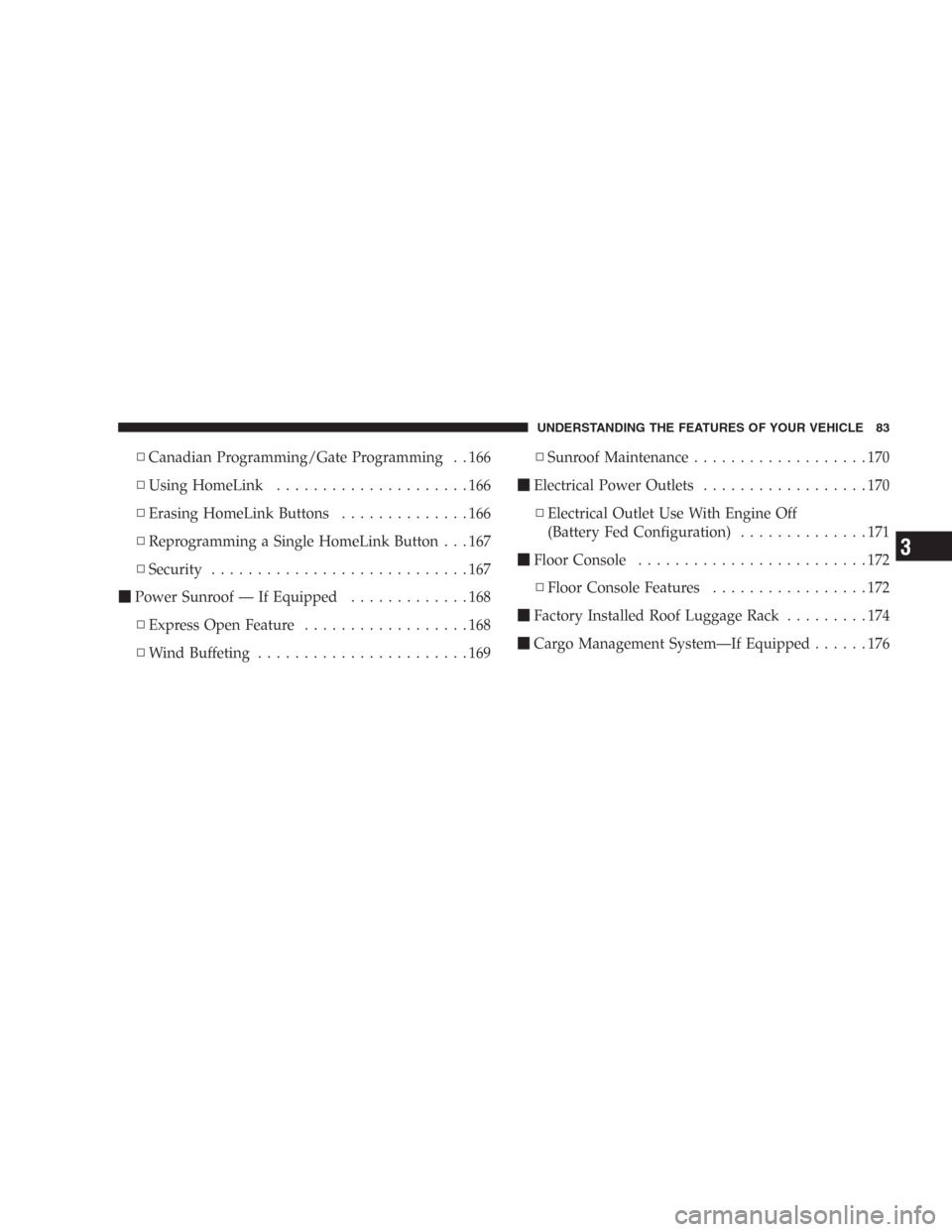

▫Canadian Programming/Gate Programming . . 166
▫Using HomeLink.....................166
▫Erasing HomeLink Buttons..............166
▫Reprogramming a Single HomeLink Button . . . 167
▫Security............................167
Power Sunroof — If Equipped.............168
▫Express Open Feature..................168
▫Wind Buffeting.......................169▫Sunroof Maintenance...................170
Electrical Power Outlets..................170
▫Electrical Outlet Use With Engine Off
(Battery Fed Configuration)..............171
Floor Console.........................172
▫Floor Console Features.................172
Factory Installed Roof Luggage Rack.........174
Cargo Management System—If Equipped......176
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

MIRRORS
Inside Day/Night Mirror
The mirror should be adjusted to center on the view
through the rear window. A two-point pivot system
allows for horizontal and vertical adjustment of the
mirror.Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of truck). The mirror should be adjusted
while set in the day position (toward windshield).
Automatic Dimming Mirror — If Equipped
This mirror will automatically adjust for annoying head-
light glare from vehicles behind you. You can turn the
feature on or off by pressing the button at the base of the
mirror. A light in the button will indicate when the
dimming feature is activated. This option also controls
the driver side mirror when it is equipped with auto
dimming glass.
Day/Night Mirror
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Exterior Mirrors Folding Feature — If Equipped
Folding exterior mirrors are hinged and may be moved
either forward or rearward to resist damage.
Automatic Dimming Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

Electric Remote-Control Mirrors
The controls for the power mirrors are located on the
driver’s door trim panel.
To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.
Remote Control Mirrors Switch
Mirror Directions
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your right
side mirror could cause you to collide with another
vehicle or other object. Use your inside mirror when
judging the size or distance of a vehicle seen in the
right side mirror.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the light.
Heated Mirrors — If Equipped
Heated mirrors are automatically activated when you
depress the rear window defroster switch located on the
instrument panel. The light will illuminate to indicate
Lighted Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

that the heating elements are ON. Turning Off the rear
window defroster or the ignition will deactivate the
heated mirrors.
Automatic Dimming Driver’s Exterior Mirror — If
Equipped
This mirror will automatically adjust for annoying light
glare from vehicles behind you. This feature is controlled
by the inside mirror and can be turned off by pressing the
button at the base of the inside mirror.
HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED
UConnect™ is a voice-activated, hands-free, in- vehicle
communications system. UConnect™ allows you to dial
a phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect™ system.
NOTE:The UConnect™ system use requires a cellular
phone equipped with the BluetoothHands-Free Profile,
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro-
phone for private conversation.
The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32 name phonebook accessible only in that
language. This system is driven through your Blue-
tooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

that enables different electronic devices to connect to
each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.
The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

Headset Profile), you may not be able to use any UCon-
nect™ features. Refer to your cellular service provider or
the phone manufacturer for details.
The UConnect™ system is fully integrated with the
vehicle’s audio system. The volume of the UConnect™
system can either be adjusted from the radio volume
control knob, or from the steering wheel radio control
(right switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect™ system such asCELLor caller ID on
certain radios.
Operations
Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most
UConnect™ system prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the voice on beep, which follows theReadyprompt
or another prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For
example, you can either use the combined form voice
commandPhonebook New Entry,or you can break
the combined form command into two voice com-
mands:PhonebookandNew Entry.Please remem-
ber, the UConnect™ system works best when you talk
in a normal conversational tone, as if speaking to some
one sitting eight feet away from you.
