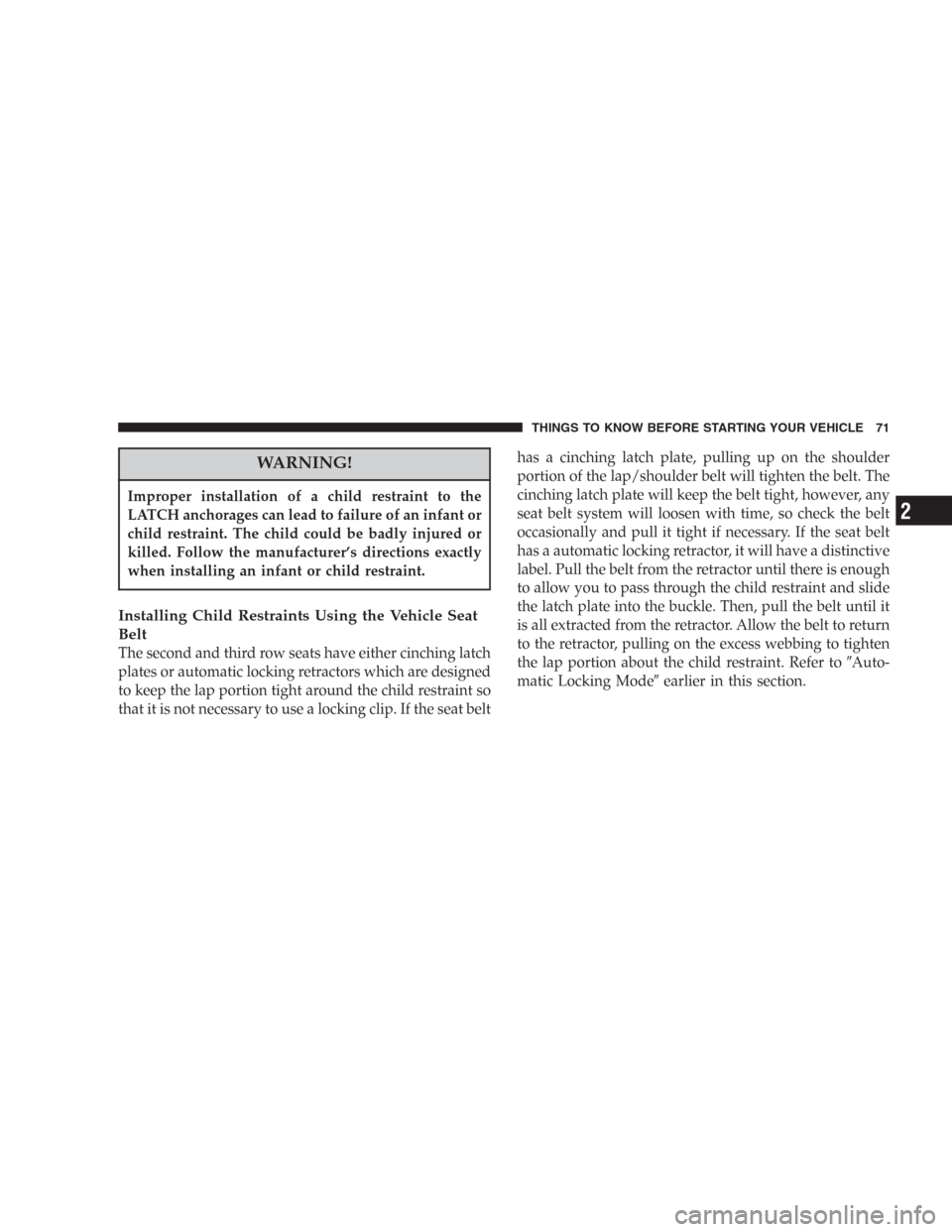

WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Installing Child Restraints Using the Vehicle Seat
Belt
The second and third row seats have either cinching latch
plates or automatic locking retractors which are designed
to keep the lap portion tight around the child restraint so
that it is not necessary to use a locking clip. If the seat belthas a cinching latch plate, pulling up on the shoulder
portion of the lap/shoulder belt will tighten the belt. The
cinching latch plate will keep the belt tight, however, any
seat belt system will loosen with time, so check the belt
occasionally and pull it tight if necessary. If the seat belt
has a automatic locking retractor, it will have a distinctive
label. Pull the belt from the retractor until there is enough
to allow you to pass through the child restraint and slide
the latch plate into the buckle. Then, pull the belt until it
is all extracted from the retractor. Allow the belt to return
to the retractor, pulling on the excess webbing to tighten
the lap portion about the child restraint. Refer toAuto-
matic Locking Modeearlier in this section.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2

Second Row Seat Tether Anchors
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

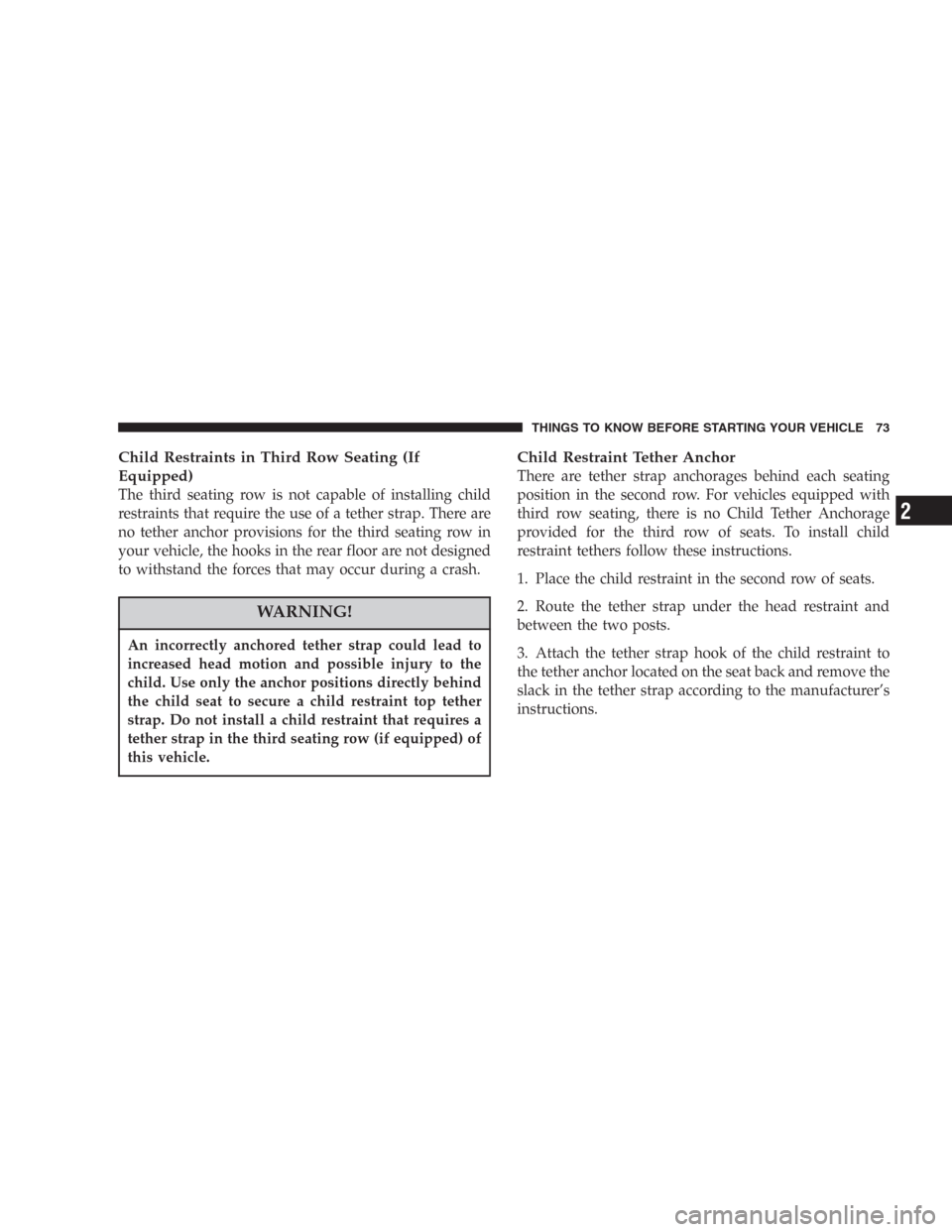

Child Restraints in Third Row Seating (If
Equipped)
The third seating row is not capable of installing child
restraints that require the use of a tether strap. There are
no tether anchor provisions for the third seating row in
your vehicle, the hooks in the rear floor are not designed
to withstand the forces that may occur during a crash.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap. Do not install a child restraint that requires a
tether strap in the third seating row (if equipped) of
this vehicle.
Child Restraint Tether Anchor
There are tether strap anchorages behind each seating
position in the second row. For vehicles equipped with
third row seating, there is no Child Tether Anchorage
provided for the third row of seats. To install child
restraint tethers follow these instructions.
1. Place the child restraint in the second row of seats.
2. Route the tether strap under the head restraint and
between the two posts.
3. Attach the tether strap hook of the child restraint to
the tether anchor located on the seat back and remove the
slack in the tether strap according to the manufacturer’s
instructions.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2

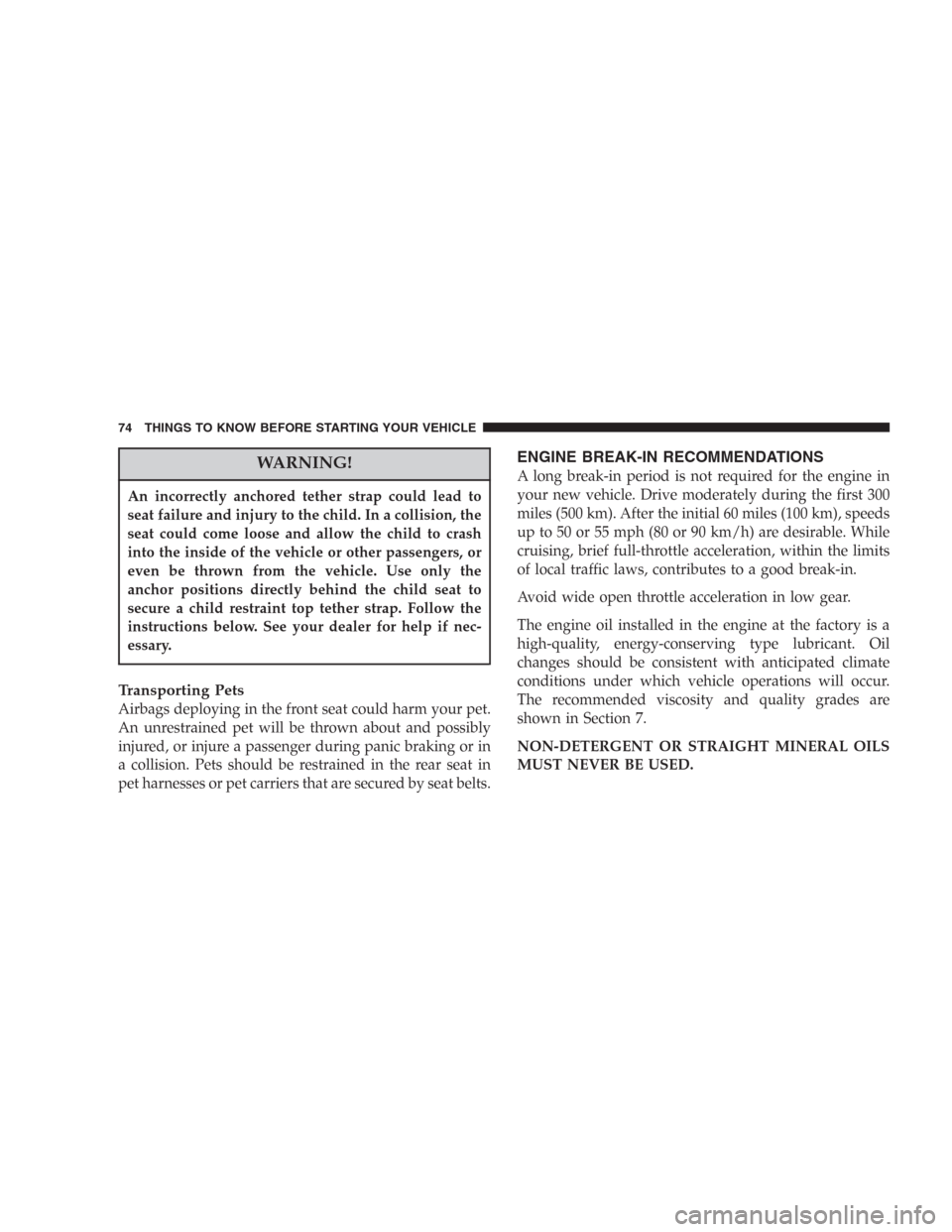

WARNING!
An incorrectly anchored tether strap could lead to
seat failure and injury to the child. In a collision, the
seat could come loose and allow the child to crash
into the inside of the vehicle or other passengers, or
even be thrown from the vehicle. Use only the
anchor positions directly behind the child seat to
secure a child restraint top tether strap. Follow the
instructions below. See your dealer for help if nec-
essary.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your new vehicle. Drive moderately during the first 300
miles (500 km). After the initial 60 miles (100 km), speeds
up to 50 or 55 mph (80 or 90 km/h) are desirable. While
cruising, brief full-throttle acceleration, within the limits
of local traffic laws, contributes to a good break-in.
Avoid wide open throttle acceleration in low gear.
The engine oil installed in the engine at the factory is a
high-quality, energy-conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
The recommended viscosity and quality grades are
shown in Section 7.
NON-DETERGENT OR STRAIGHT MINERAL OILS
MUST NEVER BE USED.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

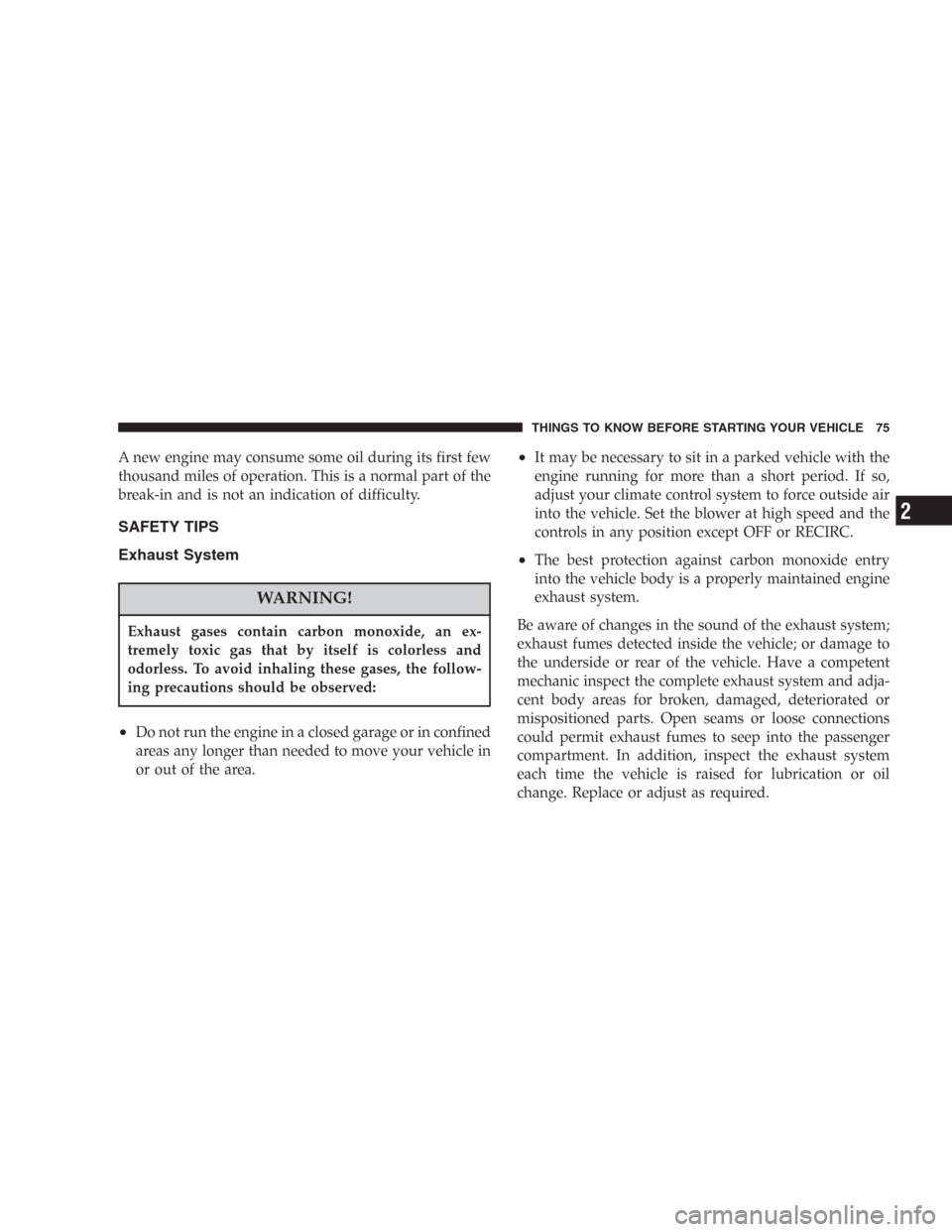

A new engine may consume some oil during its first few
thousand miles of operation. This is a normal part of the
break-in and is not an indication of difficulty.
SAFETY TIPS
Exhaust System
WARNING!
Exhaust gases contain carbon monoxide, an ex-
tremely toxic gas that by itself is colorless and
odorless. To avoid inhaling these gases, the follow-
ing precautions should be observed:
•Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.
•It may be necessary to sit in a parked vehicle with the
engine running for more than a short period. If so,
adjust your climate control system to force outside air
into the vehicle. Set the blower at high speed and the
controls in any position except OFF or RECIRC.
•The best protection against carbon monoxide entry
into the vehicle body is a properly maintained engine
exhaust system.
Be aware of changes in the sound of the exhaust system;
exhaust fumes detected inside the vehicle; or damage to
the underside or rear of the vehicle. Have a competent
mechanic inspect the complete exhaust system and adja-
cent body areas for broken, damaged, deteriorated or
mispositioned parts. Open seams or loose connections
could permit exhaust fumes to seep into the passenger
compartment. In addition, inspect the exhaust system
each time the vehicle is raised for lubrication or oil
change. Replace or adjust as required.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2

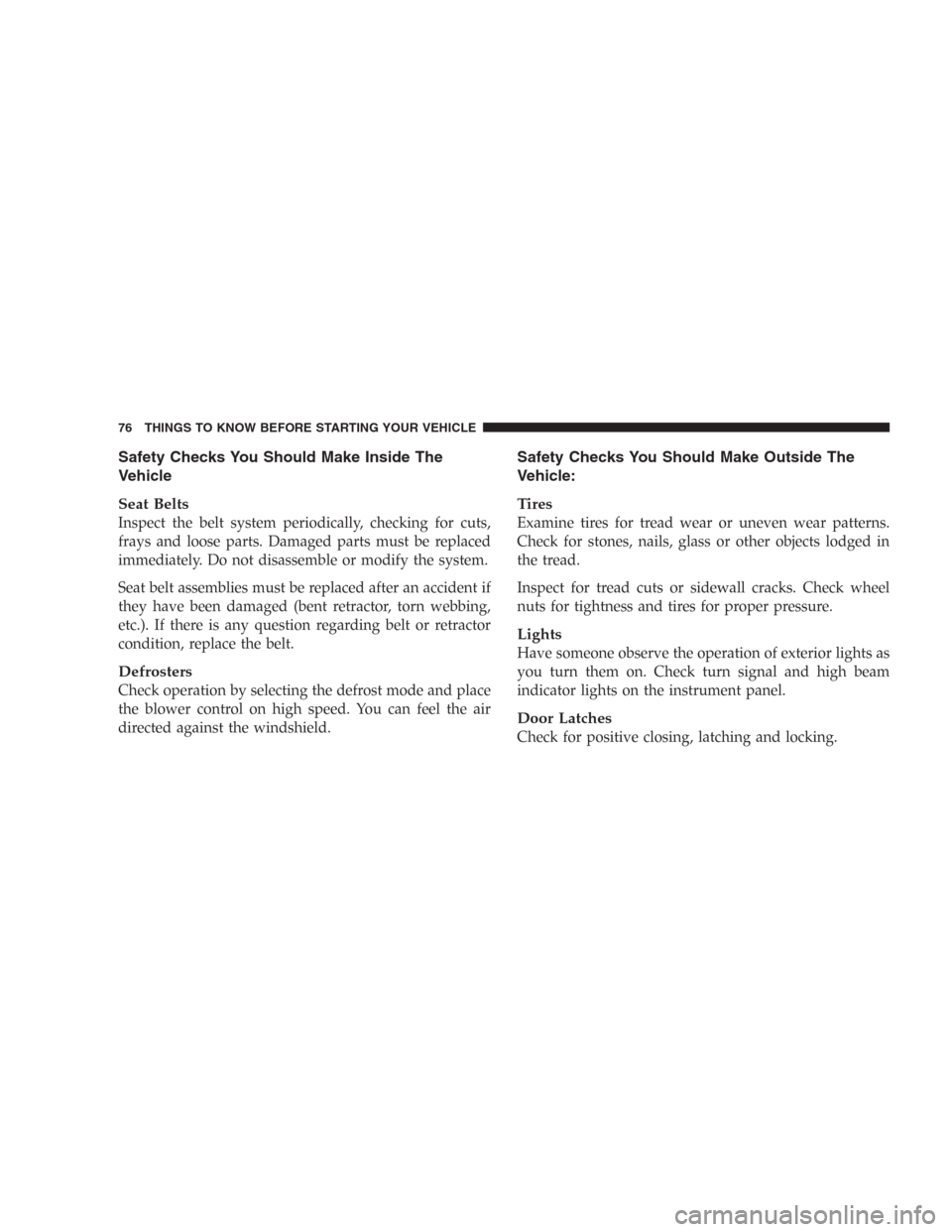

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding belt or retractor
condition, replace the belt.
Defrosters
Check operation by selecting the defrost mode and place
the blower control on high speed. You can feel the air
directed against the windshield.
Safety Checks You Should Make Outside The
Vehicle:
Tires
Examine tires for tread wear or uneven wear patterns.
Check for stones, nails, glass or other objects lodged in
the tread.
Inspect for tread cuts or sidewall cracks. Check wheel
nuts for tightness and tires for proper pressure.
Lights
Have someone observe the operation of exterior lights as
you turn them on. Check turn signal and high beam
indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching and locking.
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fluid Leaks
Check the area under vehicle after overnight parking for
fuel, water, oil, or other fluid leaks. Also, if gasoline
fumes are detected, the cause should be located and
corrected.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77
2

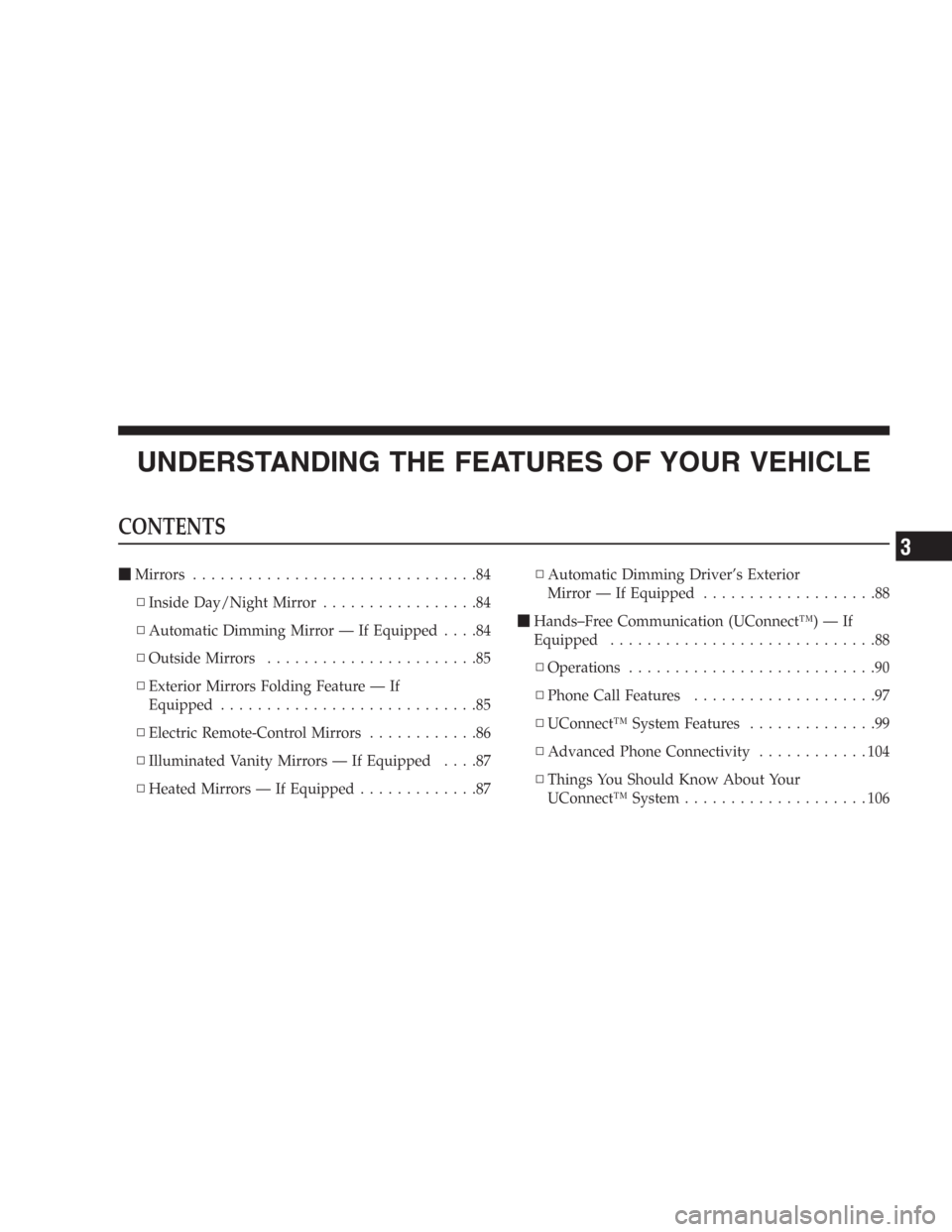

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors...............................84
▫Inside Day/Night Mirror.................84
▫Automatic Dimming Mirror — If Equipped....84
▫Outside Mirrors.......................85
▫Exterior Mirrors Folding Feature — If
Equipped............................85
▫Electric Remote-Control Mirrors............86
▫Illuminated Vanity Mirrors — If Equipped....87
▫Heated Mirrors — If Equipped.............87▫Automatic Dimming Driver’s Exterior
Mirror — If Equipped...................88
Hands–Free Communication (UConnect™) — If
Equipped.............................88
▫Operations...........................90
▫Phone Call Features....................97
▫UConnect™ System Features..............99
▫Advanced Phone Connectivity............104
▫Things You Should Know About Your
UConnect™ System....................106
3

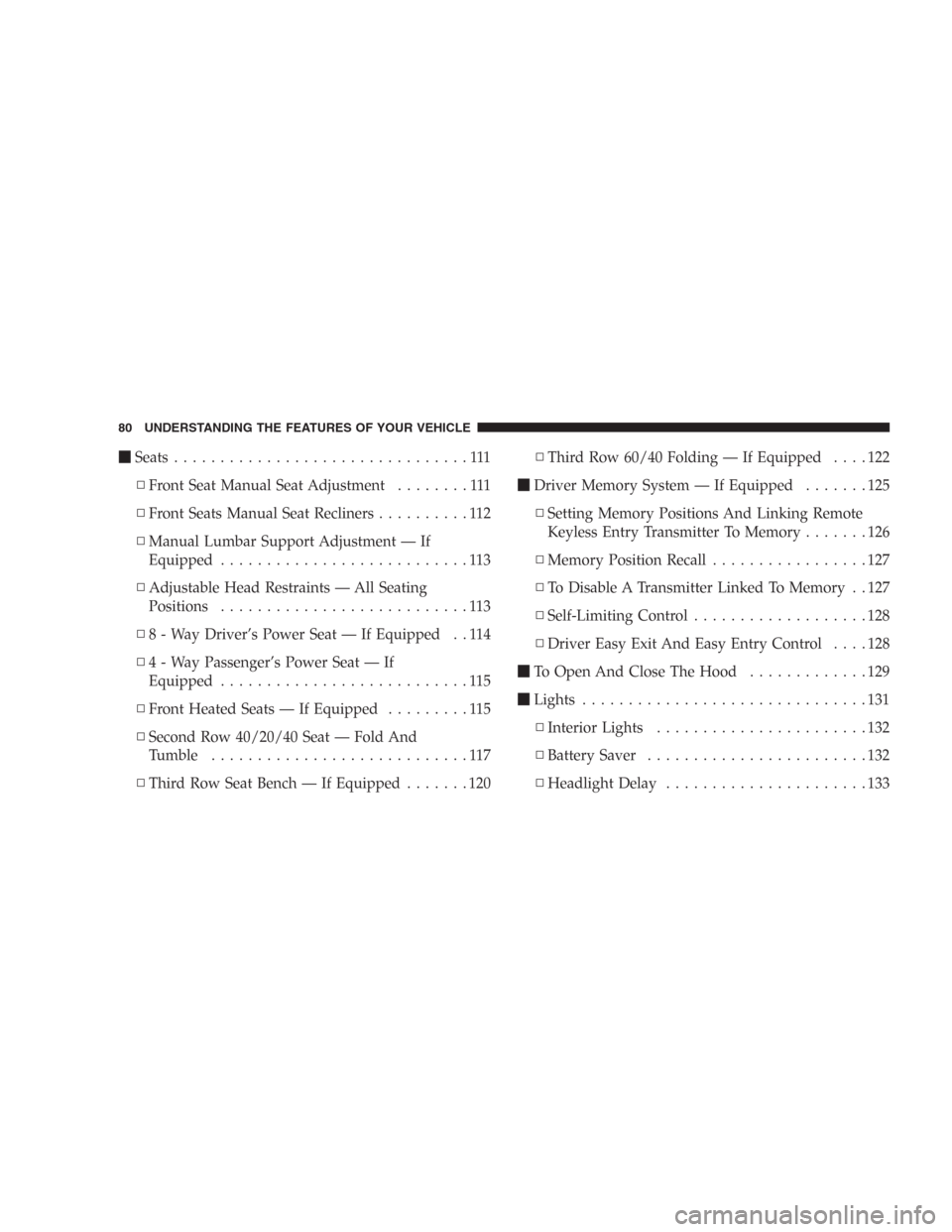

Seats................................111
▫Front Seat Manual Seat Adjustment........111
▫Front Seats Manual Seat Recliners..........112
▫Manual Lumbar Support Adjustment — If
Equipped...........................113
▫Adjustable Head Restraints — All Seating
Positions...........................113
▫8 - Way Driver’s Power Seat — If Equipped . . 114
▫4 - Way Passenger’s Power Seat — If
Equipped...........................115
▫Front Heated Seats — If Equipped.........115
▫Second Row 40/20/40 Seat — Fold And
Tumble............................117
▫Third Row Seat Bench — If Equipped.......120▫Third Row 60/40 Folding — If Equipped....122
Driver Memory System — If Equipped.......125
▫Setting Memory Positions And Linking Remote
Keyless Entry Transmitter To Memory.......126
▫Memory Position Recall.................127
▫To Disable A Transmitter Linked To Memory . . 127
▫Self-Limiting Control...................128
▫Driver Easy Exit And Easy Entry Control....128
To Open And Close The Hood.............129
Lights...............................131
▫Interior Lights.......................132
▫Battery Saver........................132
▫Headlight Delay......................133
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
