Underhood Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the left side of the engine
compartment.This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
1 — Power Distribution CenterMAINTAINING YOUR VEHICLE 4297

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
6 30 Amp
PinkRun Remote Relay
Feed
7 40 Amp
GreenBlower Motor Relay
Feed
8 40 Amp
GreenJB Feed Acc Delay
9 Spare
10 30 Amp
PinkASD
11 40 Amp
GreenPower Liftgate ( If
Equipped)
12 40 Amp
GreenJB Feed / Heated Rear
Glass (EBL)/T-Case
Brake
13 30 Amp
PinkJB Feed RRCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
14 40 Amp
GreenESP Pump
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS Batt
430 MAINTAINING YOUR VEHICLE

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 SpareCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
32 Relay Starter
33 Relay Electronic Automatic
Transaxle (EATX)
34 Relay AC Clutch
35 Relay Fuel Pump Rly
36 Spare
37 Relay Stop Lamp Switch
38 Spare
39 Relay Blower Motor
40 Relay Auto Shut Down
(ASD) Rly
MAINTAINING YOUR VEHICLE 431
7

Underhood Fuses (Integrated Power Module)
An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
1 — Integrated Power Module 432 MAINTAINING YOUR VEHICLE

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
10 10 Amp
RedRt Park Lamps
11 Relay Radiator Fan Hi Rly
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
17 20 Amp
YellowRear WiperCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFront Control Module
(FCM) BATT # 5
23 40 Amp
GreenRadiator Fan
24 Relay Radiator Fan Lo Rly
25 Relay Ft Fog Lamps Rly
26 Relay Adjustable Pedal Rly
MAINTAINING YOUR VEHICLE 433
7

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
27 30 Amp
GreenIgnition Off Draw
(IOD) #1
28 30 Amp
GreenIgnition Off Draw
(IOD) #2
29 Spare
30 Spare
VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
•The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
•As an alternative to the above steps you may discon-
nect the negative cable from the battery.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light.................... NotServiceable
Liftgate Lamp........................... 567
Overhead Console Lights........... NotServiceable
Reading Light................... NotServiceable
Visor Vanity Lights............... NotServiceable
LIGHT BULBS — Exterior Bulb No.
Headlight............................. H13
Front Park/Turn......................3457AK
Backup...............................3057
Center High-Mounted Stop Light............. 921
434 MAINTAINING YOUR VEHICLE

Front Side Marker........................ 168
Fog Lamp.............................9145
License Plate Light....................... 168
Rear Tail, Stop, and Turn Signal............3057K
Rear Side Marker........................ 168
BULB REPLACEMENT
Headlights/Parking/Turn Signal
1. Remove the two bolts attaching the headlight to the
upper fender reinforcement. (Hood must be open to
access bolts).
MAINTAINING YOUR VEHICLE 435
7

2. Remove one nut that attaches the headlight to the
inner fender panel. Access to the nut is possible by
opening the fender panel access door which is located in
the wheel liner.
3. Grasp the headlight and pull firmly to disengage the
headlight from the fender panel.4. While firmly holding the headlight in your hands,
disconnect all connectors by following the procedure
described in Step 5 below.
5. Remove the bulb connector from the headlight, mak-
ing sure to pull and release the red tab on all connectors.
Loosen the connector by pressing down on the black
and/or green release which is located below or above the
red tab. The green release is located above the red tab on
the H13; the black release is located above the 3457AK
red tab.
6. Twist and remove socket from lamp.
7. Remove bulb from socket and replace.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up which reduces bulb
life.
436 MAINTAINING YOUR VEHICLE

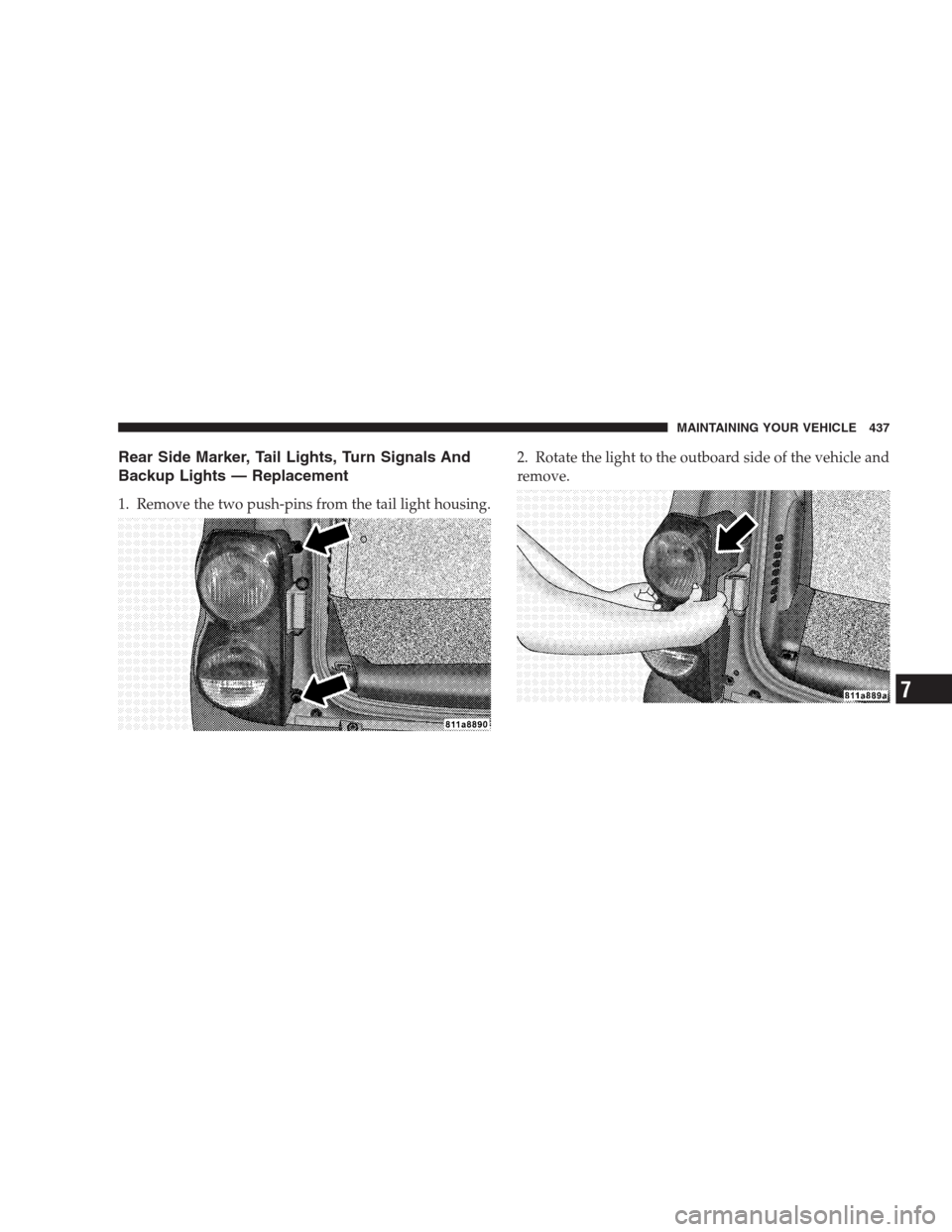

Rear Side Marker, Tail Lights, Turn Signals And
Backup Lights — Replacement
1. Remove the two push-pins from the tail light housing.2. Rotate the light to the outboard side of the vehicle and
remove.
MAINTAINING YOUR VEHICLE 437
7

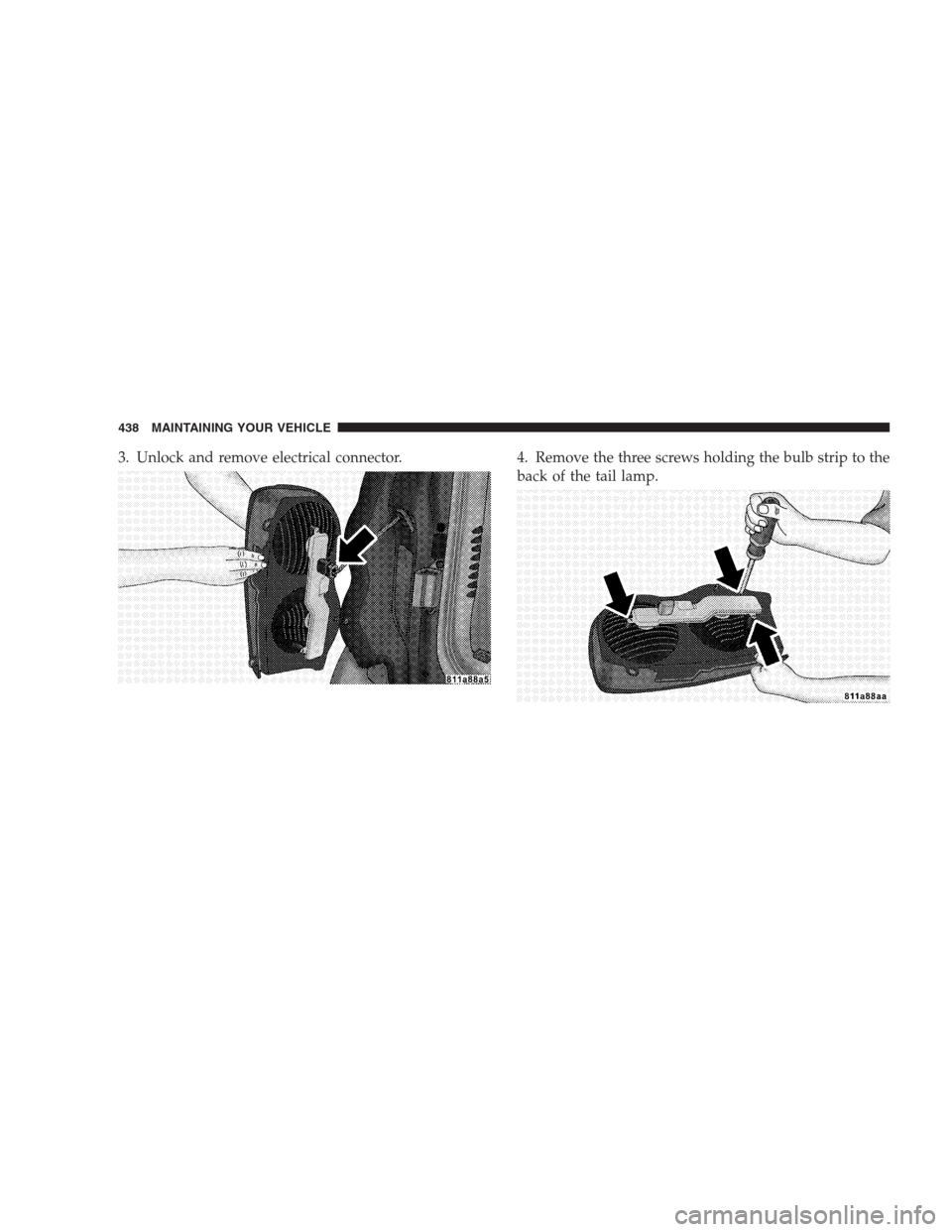

3. Unlock and remove electrical connector. 4. Remove the three screws holding the bulb strip to the
back of the tail lamp.
438 MAINTAINING YOUR VEHICLE
