to use a locking clip. The ALR will make a ratcheting
noise if you extract the entire belt from the retractor and
then allow the belt to retract into the retractor. For
additional information on ALR, refer to “Automatic
Locking Mode” in this section.
To install a child restraint, first, pull enough of the seat
belt webbing from the retractor to route it through the
belt path of the child restraint and slide the latch plate
into the buckle. Next, extract all the seat belt webbing out
of the retractor and then allow the belt to retract into the
retractor. Finally, pull on any excess webbing to tighten
the lap portion around the child restraint. Any seat belt
system will loosen with time, so check the belt occasion-
ally, and pull it tight if necessary.
Child Restraints in Third Row Seating (If
Equipped)
For vehicles equipped with third row split bench (60/40)
seating, the tether strap anchorage is located on the
Second Row Seat Tether Anchors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2

seatback behind the center seating position. The hooks in
the rear floor areNOTdesigned to withstand the forces
that may occur during a crash.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap. Children and infants are safer when properly
restrained in a child restraint system secured in a rear
seating position.
Child Restraint Tether Anchor
There are tether strap anchorages behind each seating
position in the second row and behind the center seating
position in the case of the third row seat (60/40) split
bench, if equipped. To install child restraint tether an-
chors, follow these instructions:1. Place the child restraint in the center seating position
of the third row of seats.
2. Route the tether strap under the head restraint and
between the two headrest posts.Third Row Seat Tether Anchor
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Attach the tether strap hook of the child restraint to
the tether anchor located on the seatback and remove the
slack in the tether strap according to the manufacturer ’s
instructions.
WARNING!
An incorrectly anchored tether strap could lead to
seat failure and injury to the child. In a collision, the
seat could come loose and allow the child to crash
into the inside of the vehicle or other passengers, or
even be thrown from the vehicle. Use only the anchor
positions directly behind the child seat to secure a
child restraint top tether strap. For instructions, refer
to “Child Restraint Tether Anchor” in this section.
See your authorized dealer for help if necessary.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possiblyinjured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2

The recommended viscosity and quality grades are
shown under “Engine Oil”, under “Maintenance Proce-
dures” in section 7 of this manual. NON-DETERGENT
OR STRAIGHT MINERAL OILS MUST NEVER BE
USED.
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow these safety tips:
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors.............................. 82
▫Inside Day/Night Mirror................ 82
▫Automatic Dimming Mirror — If Equipped . . . 82
▫Outside Mirrors...................... 83
▫Outside Folding Mirrors — If Equipped..... 83
▫Power Mirrors....................... 83
▫Automatic Dimming Driver’s Outside
Mirror — If Equipped.................. 85
▫Heated Mirrors — If Equipped............ 85▫Illuminated Vanity Mirrors — If Equipped . . . 86
uconnectphone — If Equipped............ 86
▫Operation.......................... 88
▫Phone Call Features................... 96
▫uconnectphone Features............... 99
▫Advanced Phone Connectivity........... 104
▫Things You Should Know About Your
uconnectphone..................... 106
▫General Information.................. 115
3

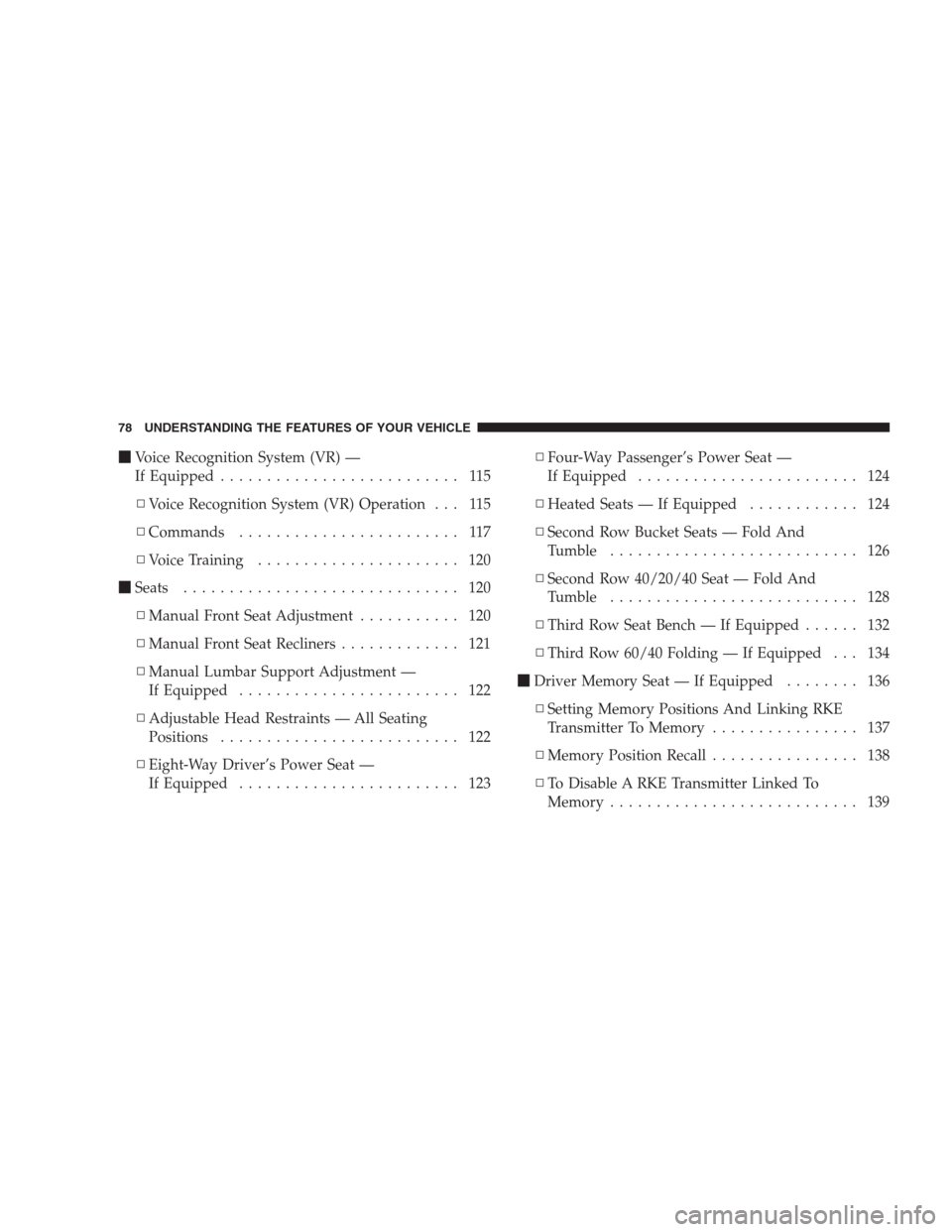

Voice Recognition System (VR) —
If Equipped.......................... 115
▫Voice Recognition System (VR) Operation . . . 115
▫Commands........................ 117
▫Voice Training...................... 120
Seats.............................. 120
▫Manual Front Seat Adjustment........... 120
▫Manual Front Seat Recliners............. 121
▫Manual Lumbar Support Adjustment —
If Equipped........................ 122
▫Adjustable Head Restraints — All Seating
Positions.......................... 122
▫Eight-Way Driver’s Power Seat —
If Equipped........................ 123▫Four-Way Passenger’s Power Seat —
If Equipped........................ 124
▫Heated Seats — If Equipped............ 124
▫Second Row Bucket Seats — Fold And
Tumble........................... 126
▫Second Row 40/20/40 Seat — Fold And
Tumble........................... 128
▫Third Row Seat Bench — If Equipped...... 132
▫Third Row 60/40 Folding — If Equipped . . . 134
Driver Memory Seat — If Equipped........ 136
▫Setting Memory Positions And Linking RKE
Transmitter To Memory................ 137
▫Memory Position Recall................ 138
▫To Disable A RKE Transmitter Linked To
Memory........................... 139
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
