DODGE DURANGO 2013 3.G Owners Manual

Position the crossbars across the roof making sure the
letters on the crossbars align with the matching letters on
the side rail.Slide the cross bar into to the deploy position by moving
it towards the matching letter in the side rail. Be sure the
crossbar is fully deployed with the crossbar pushed as far
into the slot as possible. Once the crossbar is in place,
tighten both thumb screws completely.
Positioning Crossbars
Installing Crossbars
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

Deploy and tighten the second crossbar to complete the
deployment of the crossbars.Stowing the Crossbars
Starting with one crossbar, completely loosen the thumb
screws at both ends. Slide the crossbar away from the
matching letter to remove it from the deployed position.
Repeat with the other crossbar.
CAUTION!
Be careful when handling the crossbars to prevent
damage to the vehicle.
Deployed Crossbars
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Starting with the one crossbar, bend up the pivot sup-
ports at each end.Then, position the crossbar along the correct side rail.
Make sure the letters on the crossbar align with the
matching letters on the side rail.
Crossbar Pivot
Stowing Crossbars
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

Slide the crossbar outward, away from the center of the
roof. The crossbar will nest fully within the side rail.
Once the driver ’s side crossbar is in place, tighten the
thumb screws completely.Repeat the procedure to stow the second crossbar on the
opposite side.
Crossbar To Side Rail
Tightening Crossbar
302 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•To help control wind noise, stow the crossbars in the
side rails when they are not in use. •
If any metallic object is placed over the satellite radio
antenna (if equipped), you may experience interrup-
tion of satellite radio reception.
CAUTION!
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed. The load should be secured
and placed on top of the crossbars, not directly on
the roof. If it is necessary to place the load on the
roof, place a blanket or other protective layer
between the load and the roof surface.
• To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropri-
ately.
(Continued)
Stowed Crossbars
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 303

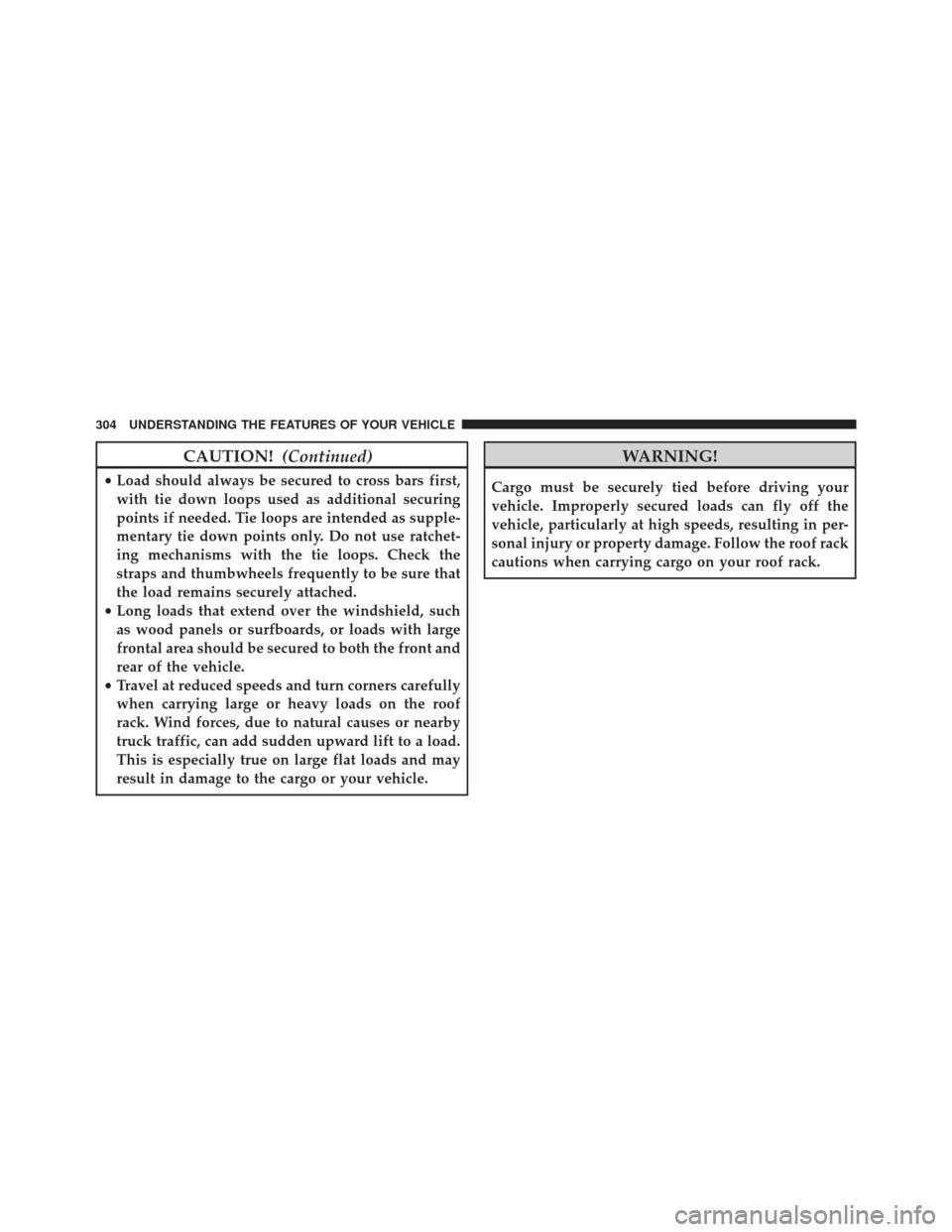

CAUTION!(Continued)
•Load should always be secured to cross bars first,
with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratchet-
ing mechanisms with the tie loops. Check the
straps and thumbwheels frequently to be sure that
the load remains securely attached.
• Long loads that extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
304 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

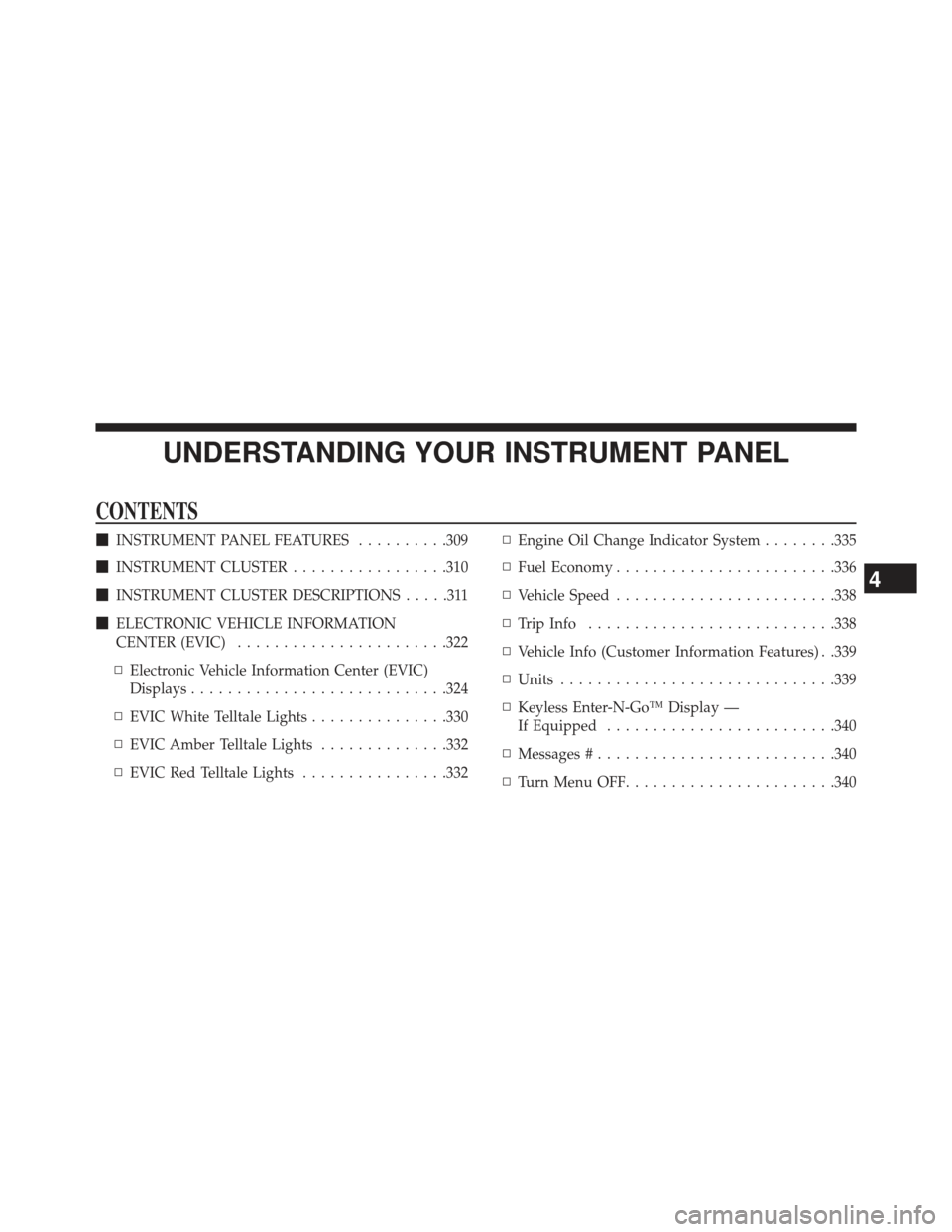

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........309
 INSTRUMENT CLUSTER .................310
 INSTRUMENT CLUSTER DESCRIPTIONS .....311
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................... .322
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... .324
▫ EVIC White Telltale Lights ...............330
▫ EVIC Amber Telltale Lights ..............332
▫ EVIC Red Telltale Lights ................332 ▫
Engine Oil Change Indicator System ........335
▫ Fuel Economy ....................... .336
▫ Vehicle Speed ....................... .338
▫ Trip Info .......................... .338
▫ Vehicle Info (Customer Information Features) . .339
▫ Units ............................. .339
▫ Keyless Enter-N-Go™ Display —
If Equipped ........................ .340
▫ Messages # ......................... .340
▫ Turn Menu OFF ...................... .340
4

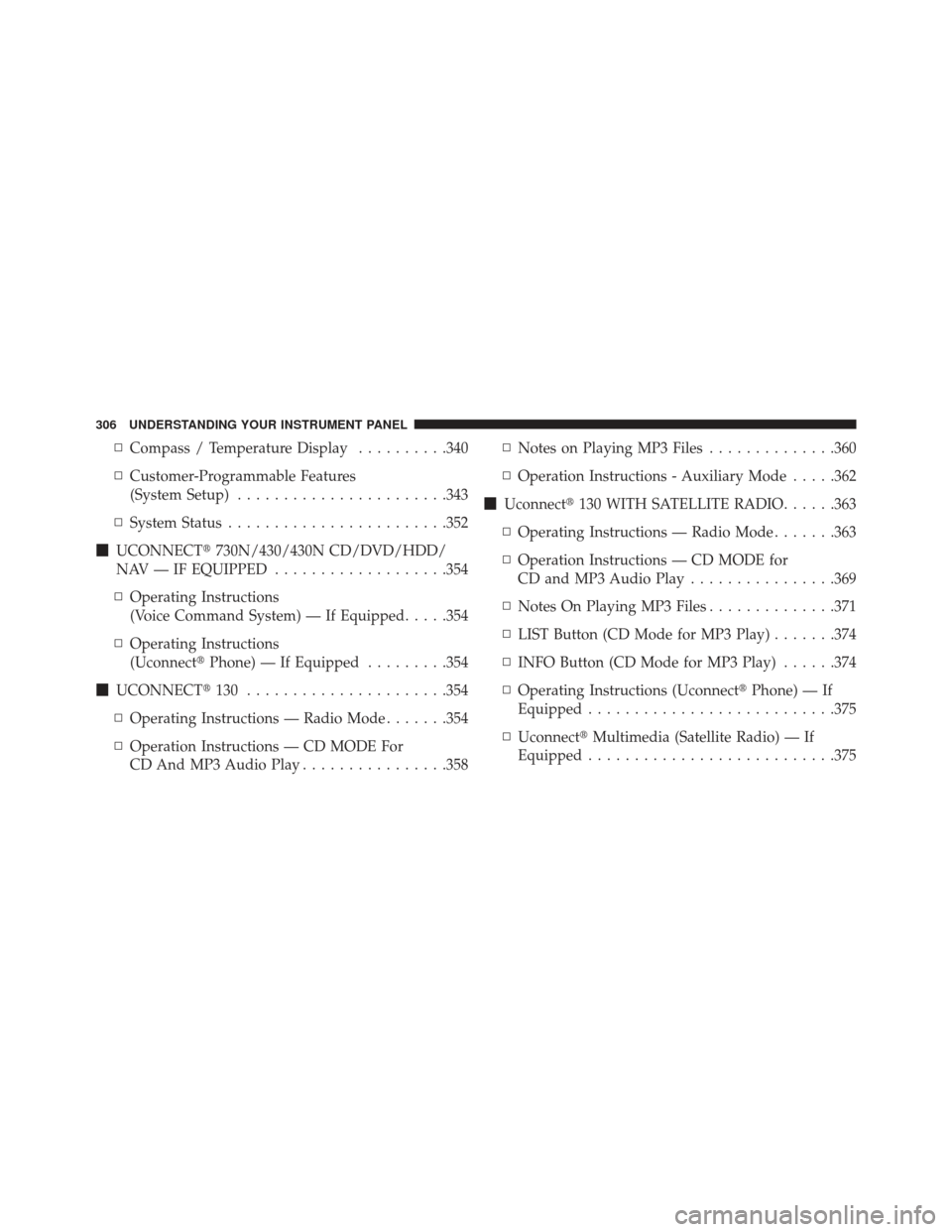

▫Compass / Temperature Display ..........340
▫ Customer-Programmable Features
(System Setup) ...................... .343
▫ System Status ....................... .352
 UCONNECT 730N/430/430N CD/DVD/HDD/
NAV — IF EQUIPPED ...................354
▫ Operating Instructions
(Voice Command System) — If Equipped .....354
▫ Operating Instructions
(Uconnect Phone) — If Equipped .........354
 UCONNECT 130 ..................... .354
▫ Operating Instructions — Radio Mode .......354
▫ Operation Instructions — CD MODE For
CD And MP3 Audio Play ................358 ▫
Notes on Playing MP3 Files ..............360
▫ Operation Instructions - Auxiliary Mode .....362
 Uconnect 130 WITH SATELLITE RADIO ......363
▫ Operating Instructions — Radio Mode .......363
▫ Operation Instructions — CD MODE for
CD and MP3 Audio Play ................369
▫ Notes On Playing MP3 Files ..............371
▫ LIST Button (CD Mode for MP3 Play) .......374
▫ INFO Button (CD Mode for MP3 Play) ......374
▫ Operating Instructions (Uconnect Phone) — If
Equipped .......................... .375
▫ Uconnect Multimedia (Satellite Radio) — If
Equipped .......................... .375
306 UNDERSTANDING YOUR INSTRUMENT PANEL

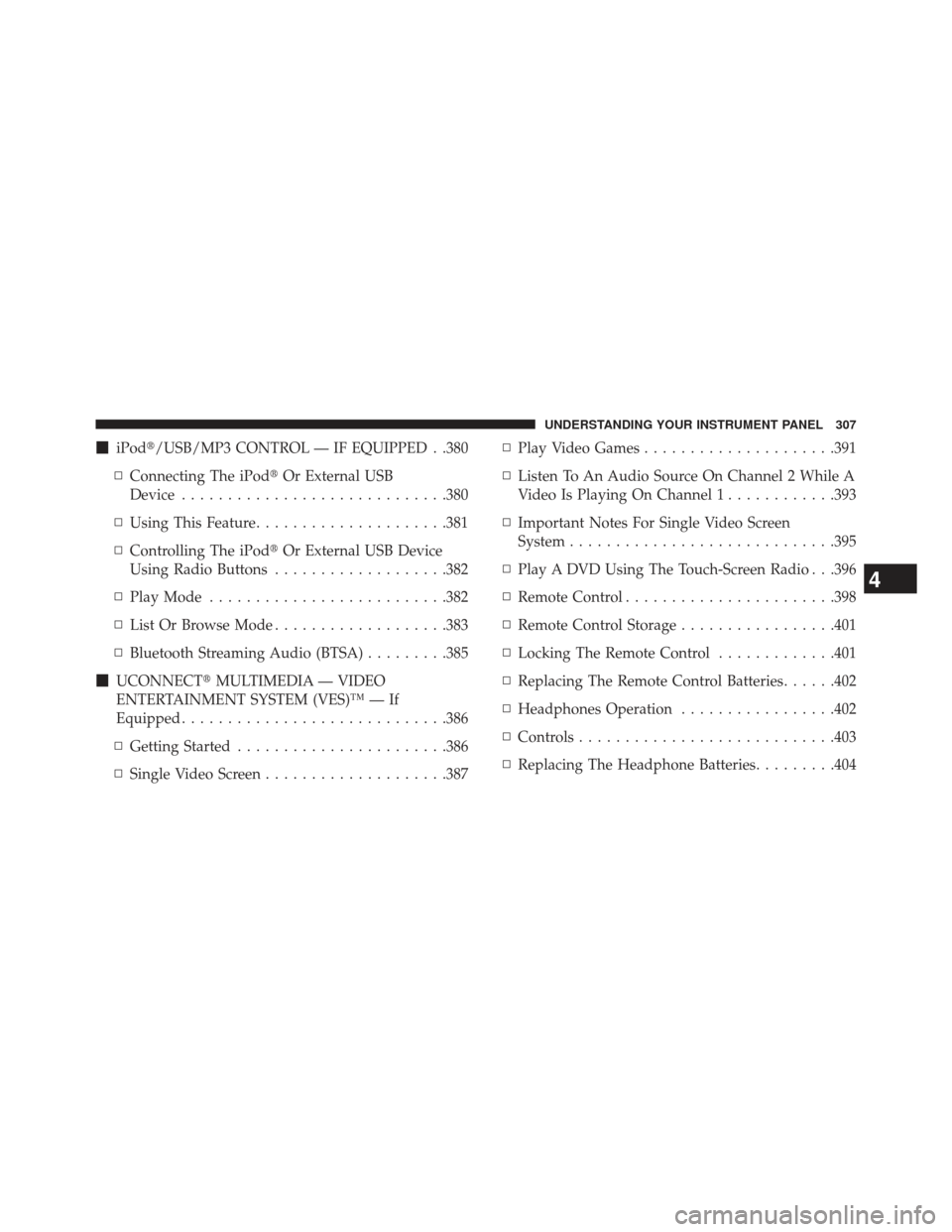

iPod/USB/MP3 CONTROL — IF EQUIPPED . .380
▫ Connecting The iPod Or External USB
Device ............................ .380
▫ Using This Feature .....................381
▫ Controlling The iPod Or External USB Device
Using Radio Buttons ...................382
▫ Play Mode ......................... .382
▫ List Or Browse Mode ...................383
▫ Bluetooth Streaming Audio (BTSA) .........385
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES)™ — If
Equipped ............................ .386
▫ Getting Started ...................... .386
▫ Single Video Screen ....................387 ▫
Play Video Games .....................391
▫ Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1 ............393
▫ Important Notes For Single Video Screen
System ............................ .395
▫ Play A DVD Using The Touch-Screen Radio . . .396
▫ Remote Control ...................... .398
▫ Remote Control Storage .................401
▫ Locking The Remote Control .............401
▫ Replacing The Remote Control Batteries ......402
▫ Headphones Operation .................402
▫ Controls ........................... .403
▫ Replacing The Headphone Batteries .........404
4
UNDERSTANDING YOUR INSTRUMENT PANEL 307

▫Unwired Stereo Headphone Lifetime Limited
Warranty .......................... .404
▫ System Information ....................406
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .420
▫ Radio Operation ..................... .421
▫ CD Player .......................... .421
 CD/DVD DISC MAINTENANCE ...........422
 RADIO OPERATION AND MOBILE PHONES . .422
CLIMATE CONTROLS ...................423
▫ Dual-Zone Automatic Temperature Control (ATC)
— If Equipped ...................... .423
▫ Rear Climate Control — If Equipped .......430
▫ Operating Tips ...................... .432
▫ Window Fogging .....................432
▫ Summer Operation ....................432
▫ Winter Operation ..................... .433
▫ Vacation Storage ..................... .433
▫ Operating Tips Chart ...................434
308 UNDERSTANDING YOUR INSTRUMENT PANEL
