DODGE DURANGO 2013 3.G Owners Manual

When lifted forward there is access to the lower storage
compartment.
Storage Compartment Rear Push ButtonLower Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

NOTE:When the lower storage compartment is accessed
it allows the armrest to flip forward for “fold flat mode”.
Fold flat mode allows the console armrest to be lowered
below fold flat seat plane and protect the armrest vinyl
from damage when using the vehicle to haul cargo.Open storage areas, or cubby bins with removable liners,
are located rearward of the cupholders and in the lower
front of the console.
Rear Mini Center Console (If Equipped)
An open storage area, or cubby bin with removable liner,
is located in the front of the console.Fold Flat Mode
Console Cubby Bins
290 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the left side of
the cargo area. The flashlight snaps out of the bezel when
needed. The flashlight features two bright LED lightbulbs and is powered by rechargeable lithium batteries
that recharge when snapped back into place.
Press in on the flashlight to release it.
Console Cubby Bin
Press And Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 291

To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.Cargo Storage
There is a removable storage bin located on the left side
of the rear cargo area.
Additional storage can be found in the load floor. To
access the lower storage, lift the handle and raise the
storage lid.
Retractable Cargo Area Cover — If Equipped
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
To cover the cargo area:
1. Grasp the cover at the center handle. Pull it over the cargo area.
2. Insert the pins on the ends of the cover into the slots in the pillar trim cover.
Three-Press Switch
292 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

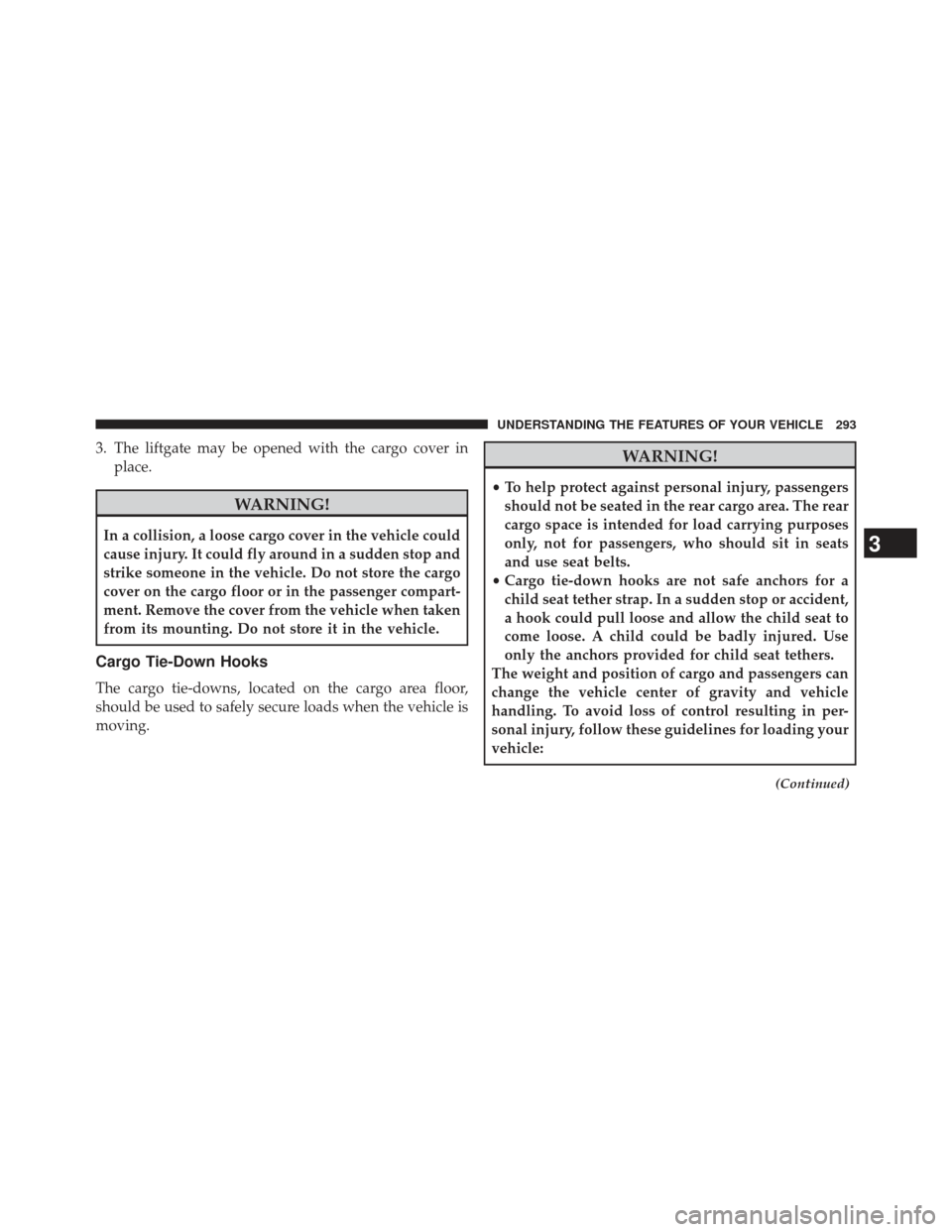

3. The liftgate may be opened with the cargo cover inplace.
WARNING!
In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.
Cargo Tie-Down Hooks
The cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.
• Cargo tie-down hooks are not safe anchors for a
child seat tether strap. In a sudden stop or accident,
a hook could pull loose and allow the child seat to
come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 293

WARNING!(Continued)
•Do not carry loads which exceed the load limits
described on the label attached to the left door or
left door center pillar.
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
accident.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer controls are located on the mul-
tifunction lever on the left side of the steering column.
The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.
Rear Wiper/Washer Control
294 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper operation.
Rotating the center portion upward once more
will activate the washer pump which will con-
tinue to operate as long as the switch is held. Upon
release of the switch, the wipers will resume the continu-
ous rear wiper operation. When this rotary control is in
the OFF position, rotating it downward will activate the
rear washer pump which will continue to operate as long
as the switch is held. Once the switch is released it will
return to the OFF position and the wipers will cycle
several times before returning to the parked position.
NOTE: As a protective measure, the pump will stop if
the switch is held for more than 20 seconds. Once the
switch is released the pump will resume normal opera-
tion. If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position.
Rear Window Defroster
The rear window defroster button is located on
the climate control panel. Press this button to turn
on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 295

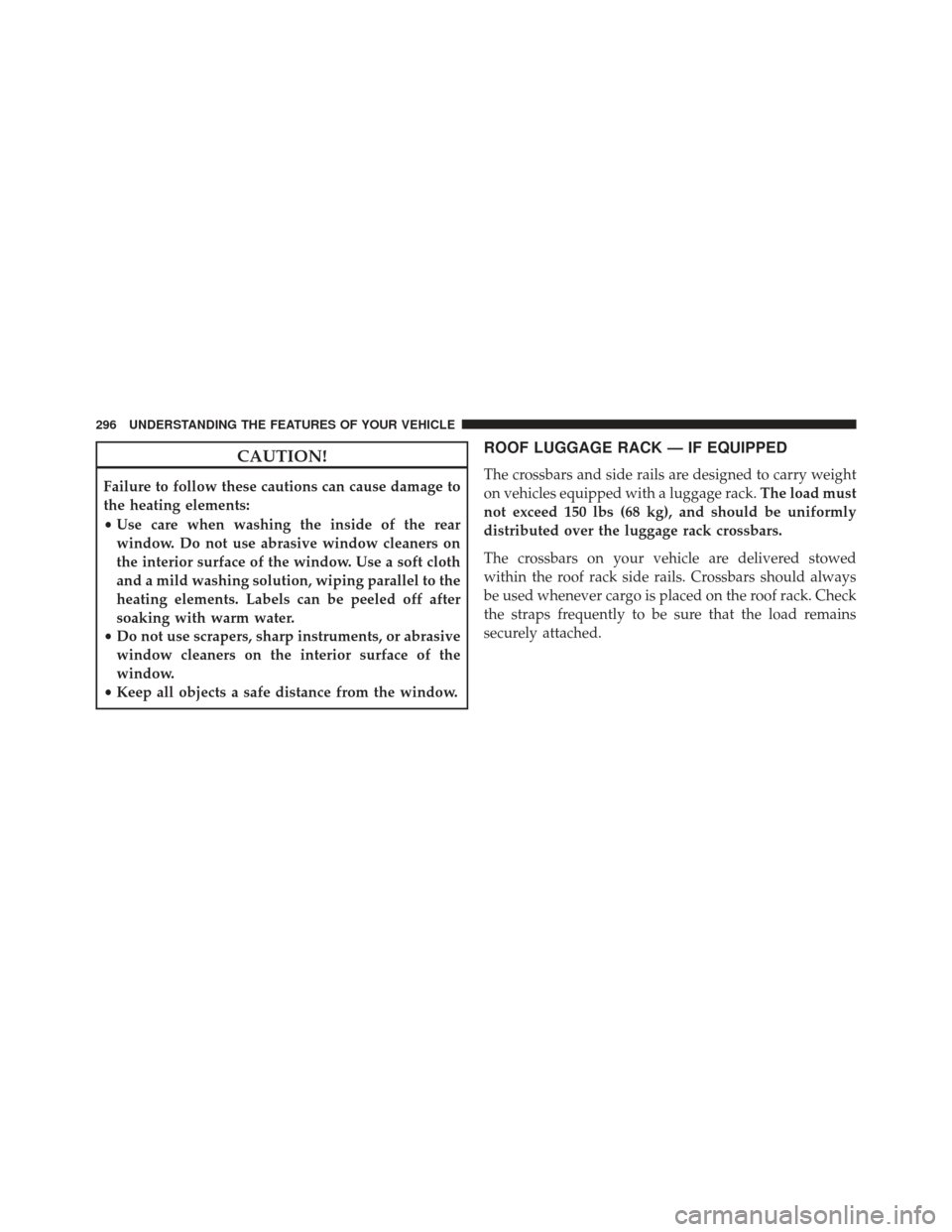

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and side rails are designed to carry weight
on vehicles equipped with a luggage rack. The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.
The crossbars on your vehicle are delivered stowed
within the roof rack side rails. Crossbars should always
be used whenever cargo is placed on the roof rack. Check
the straps frequently to be sure that the load remains
securely attached.
296 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
Deploying the Crossbars
Starting with one crossbar, completely loosen the thumb
screws at both ends of the crossbar.
NOTE:The thumb screws cannot be fully removed.
1 — Side Rail
2 — Crossbar
Thumb Screw
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 297

Remove the crossbar from the stowed position by sliding
the crossbar towards the center of the roof. Repeat with
crossbar on the opposite side.CAUTION!
Be careful when handling the crossbars to prevent
damage to the vehicle.
Starting with one crossbar, bend down the pivot supports
at each end.
Removing Crossbars
Bending Pivot
298 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
