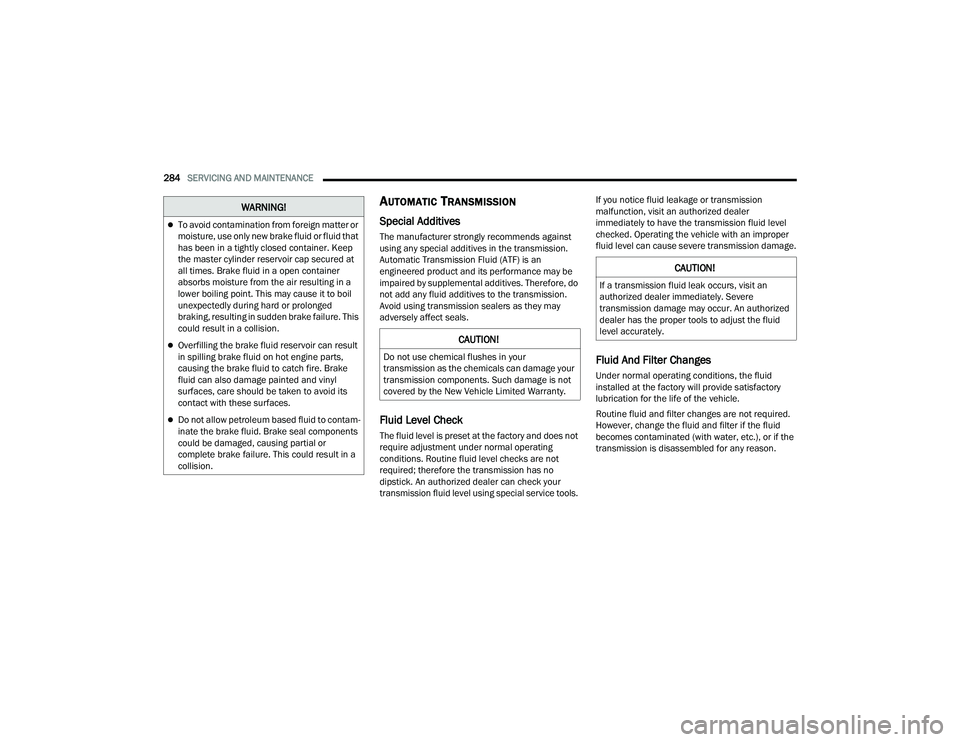

284SERVICING AND MAINTENANCE
AUTOMATIC TRANSMISSION
Special Additives
The manufacturer strongly recommends against
using any special additives in the transmission.
Automatic Transmission Fluid (ATF) is an
engineered product and its performance may be
impaired by supplemental additives. Therefore, do
not add any fluid additives to the transmission.
Avoid using transmission sealers as they may
adversely affect seals.
Fluid Level Check
The fluid level is preset at the factory and does not
require adjustment under normal operating
conditions. Routine fluid level checks are not
required; therefore the transmission has no
dipstick. An authorized dealer can check your
transmission fluid level using special service tools. If you notice fluid leakage or transmission
malfunction, visit an authorized dealer
immediately to have the transmission fluid level
checked. Operating the vehicle with an improper
fluid level can cause severe transmission damage.
Fluid And Filter Changes
Under normal operating conditions, the fluid
installed at the factory will provide satisfactory
lubrication for the life of the vehicle.
Routine fluid and filter changes are not required.
However, change the fluid and filter if the fluid
becomes contaminated (with water, etc.), or if the
transmission is disassembled for any reason.
To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that
has been in a tightly closed container. Keep
the master cylinder reservoir cap secured at
all times. Brake fluid in a open container
absorbs moisture from the air resulting in a
lower boiling point. This may cause it to boil
unexpectedly during hard or prolonged
braking, resulting in sudden brake failure. This
could result in a collision.
Overfilling the brake fluid reservoir can result
in spilling brake fluid on hot engine parts,
causing the brake fluid to catch fire. Brake
fluid can also damage painted and vinyl
surfaces, care should be taken to avoid its
contact with these surfaces.
Do not allow petroleum based fluid to contam
-
inate the brake fluid. Brake seal components
could be damaged, causing partial or
complete brake failure. This could result in a
collision.
WARNING!
CAUTION!
Do not use chemical flushes in your
transmission as the chemicals can damage your
transmission components. Such damage is not
covered by the New Vehicle Limited Warranty.
CAUTION!
If a transmission fluid leak occurs, visit an
authorized dealer immediately. Severe
transmission damage may occur. An authorized
dealer has the proper tools to adjust the fluid
level accurately.

21_WD_OM_EN_USC_t.book Page 284

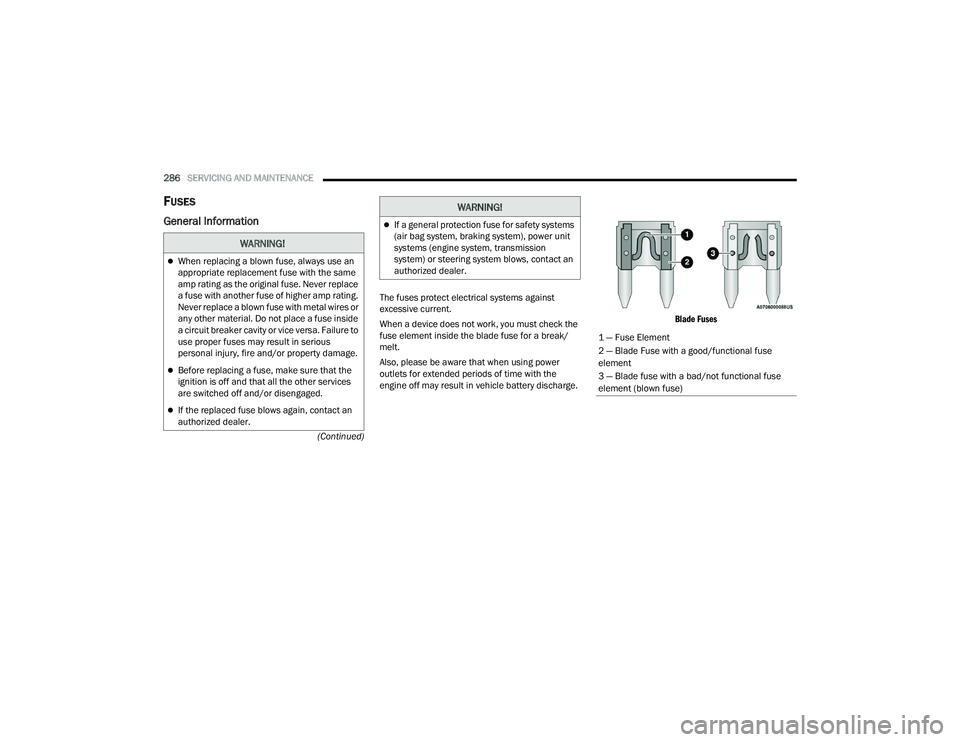

286SERVICING AND MAINTENANCE
(Continued)
FUSES
General Information
The fuses protect electrical systems against
excessive current.
When a device does not work, you must check the
fuse element inside the blade fuse for a break/
melt.
Also, please be aware that when using power
outlets for extended periods of time with the
engine off may result in vehicle battery discharge.
Blade Fuses

WARNING!
When replacing a blown fuse, always use an
appropriate replacement fuse with the same
amp rating as the original fuse. Never replace
a fuse with another fuse of higher amp rating.
Never replace a blown fuse with metal wires or
any other material. Do not place a fuse inside
a circuit breaker cavity or vice versa. Failure to
use proper fuses may result in serious
personal injury, fire and/or property damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.
If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety systems
(air bag system, braking system), power unit
systems (engine system, transmission
system) or steering system blows, contact an
authorized dealer.
WARNING!
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse
element
3 — Blade fuse with a bad/not functional fuse
element (blown fuse)

21_WD_OM_EN_USC_t.book Page 286

318TECHNICAL SPECIFICATIONS
Inspect the wheel mounting surface prior to
mounting the tire and remove any corrosion or
loose particles.

Wheel Mounting Surface

Tighten the lug nuts/bolts in a star pattern until
each nut/bolt has been tightened twice. Ensure
that the socket is fully engaged on the lug nut/bolt
(do not insert it half way).
NOTE:If in doubt about the correct tightness, have them
checked with a torque wrench by an authorized
dealer or service station.
After 25 miles (40 km), check the lug nut/bolt
torque to be sure that all the lug nuts/bolts are
properly tightened.
Torque Patterns

FUEL REQUIREMENTS
While operating on gasoline with the required
octane number, hearing a light knocking sound
from the engine is not a cause for concern.
However, if the engine is heard making a heavy
knocking sound, see a dealer immediately. Use of
gasoline with a lower than recommended octane
number can cause engine failure and may void the
New Vehicle Limited Warranty.Poor quality gasoline can cause problems such as
hard starting, stalling, and hesitations. If you
experience these symptoms, try another brand of
gasoline before considering service for the vehicle.
3.6L ENGINE
Do not use E-85 flex fuel or ethanol blends greater
than 15% in this engine.
This engine is designed to meet all
emissions regulations and provide
optimum fuel economy and performance
when using high quality unleaded regular
gasoline having a posted octane number of 87 as
specified by the (R+M)/2 method. The use of
higher octane premium gasoline is not required, as
it will not provide any benefit over regular gasoline
in these engines.
5.7L ENGINE
Do not use E-85 flex fuel or ethanol blends greater
than 15% in this engine.
This engine is designed to meet all
emissions regulations and provide
satisfactory fuel economy and
performance when using high-quality
unleaded gasoline having an octane range of 87 to
89 as specified by the (R+M)/2 method. The use of
89 octane plus gasoline is recommended for
optimum performance and fuel economy.
WARNING!
To avoid the risk of forcing the vehicle off the
jack, do not tighten the lug nuts/bolts fully until
the vehicle has been lowered. Failure to follow
this warning may result in personal injury.

21_WD_OM_EN_USC_t.book Page 318

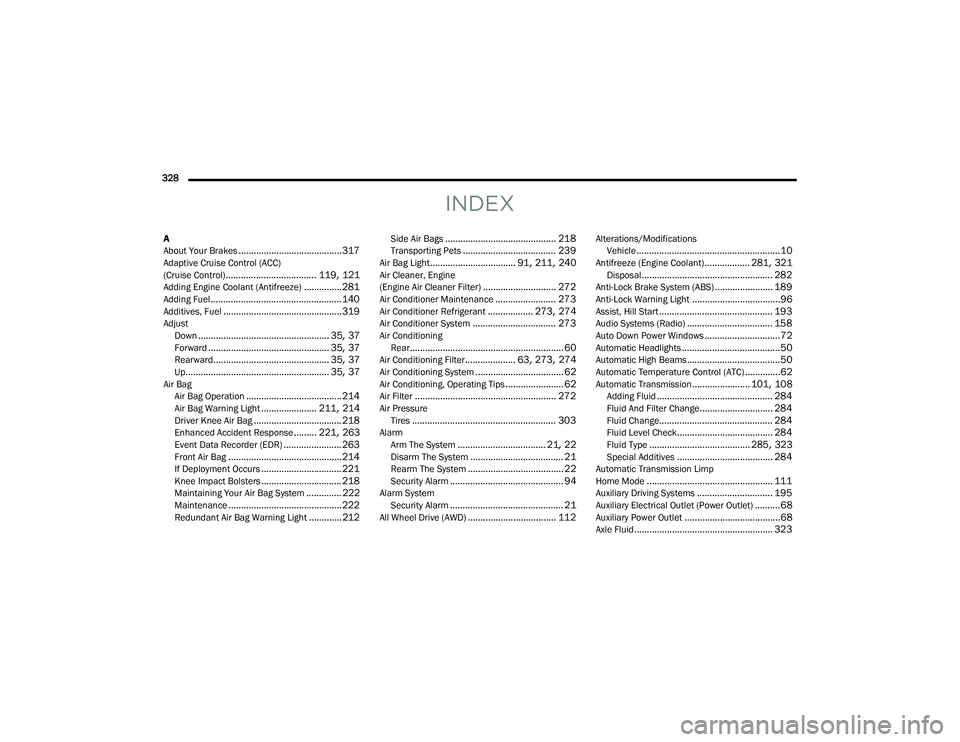

328
INDEX
A
About Your Brakes......................................... 317Adaptive Cruise Control (ACC)
(Cruise Control).................................... 119, 121Adding Engine Coolant (Antifreeze)............... 281Adding Fuel.................................................... 140Additives, Fuel............................................... 319AdjustDown.................................................... 35, 37Forward................................................ 35, 37Rearward.............................................. 35, 37Up......................................................... 35, 37Air BagAir Bag Operation...................................... 214Air Bag Warning Light...................... 211, 214Driver Knee Air Bag................................... 218Enhanced Accident Response......... 221, 263Event Data Recorder (EDR)....................... 263Front Air Bag............................................. 214If Deployment Occurs................................ 221Knee Impact Bolsters................................ 218Maintaining Your Air Bag System.............. 222Maintenance............................................. 222Redundant Air Bag Warning Light.............212
Side Air Bags............................................ 218Transporting Pets..................................... 239Air Bag Light.................................. 91, 211, 240Air Cleaner, Engine
(Engine Air Cleaner Filter)............................. 272Air Conditioner Maintenance........................ 273Air Conditioner Refrigerant.................. 273, 274Air Conditioner System................................. 273Air ConditioningRear............................................................. 60Air Conditioning Filter.................... 63, 273, 274Air Conditioning System................................... 62Air Conditioning, Operating Tips....................... 62Air Filter........................................................ 272Air PressureTires......................................................... 303AlarmArm The System................................... 21, 22Disarm The System..................................... 21Rearm The System...................................... 22Security Alarm............................................. 94Alarm SystemSecurity Alarm............................................. 21All Wheel Drive (AWD)................................... 112
Alterations/ModificationsVehicle.........................................................10Antifreeze (Engine Coolant).................. 281, 321Disposal.................................................... 282Anti-Lock Brake System (ABS)....................... 189Anti-Lock Warning Light...................................96Assist, Hill Start............................................. 193Audio Systems (Radio).................................. 158Auto Down Power Windows..............................72Automatic Headlights.......................................50Automatic High Beams.....................................50Automatic Temperature Control (ATC)..............62Automatic Transmission....................... 101, 108Adding Fluid.............................................. 284Fluid And Filter Change............................. 284Fluid Change............................................. 284Fluid Level Check...................................... 284Fluid Type........................................ 285, 323Special Additives...................................... 284Automatic Transmission Limp
Home Mode.................................................. 111Auxiliary Driving Systems.............................. 195Auxiliary Electrical Outlet (Power Outlet)..........68Auxiliary Power Outlet......................................68Axle Fluid....................................................... 323

21_WD_OM_EN_USC_t.book Page 328

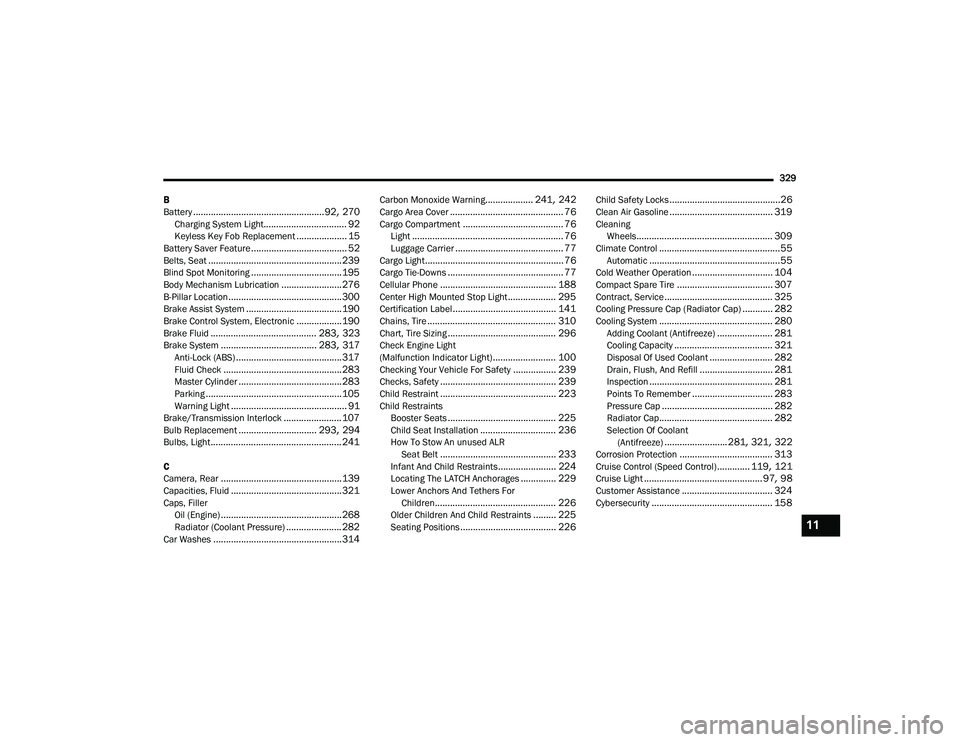

329
B
Battery
.................................................... 92, 270Charging System Light................................. 92Keyless Key Fob Replacement.................... 15Battery Saver Feature...................................... 52Belts, Seat..................................................... 239Blind Spot Monitoring.................................... 195Body Mechanism Lubrication........................ 276B-Pillar Location............................................. 300Brake Assist System...................................... 190Brake Control System, Electronic.................. 190Brake Fluid.......................................... 283, 323Brake System...................................... 283, 317Anti-Lock (ABS).......................................... 317Fluid Check............................................... 283Master Cylinder......................................... 283Parking...................................................... 105Warning Light.............................................. 91Brake/Transmission Interlock....................... 107Bulb Replacement............................... 293, 294Bulbs, Light.................................................... 241
C
Camera, Rear................................................ 139Capacities, Fluid............................................ 321Caps, Filler Oil (Engine)................................................ 268Radiator (Coolant Pressure)...................... 282Car Washes................................................... 314
Carbon Monoxide Warning................... 241, 242Cargo Area Cover............................................. 76Cargo Compartment........................................ 76Light............................................................ 76Luggage Carrier........................................... 77Cargo Light....................................................... 76Cargo Tie-Downs.............................................. 77Cellular Phone.............................................. 188Center High Mounted Stop Light................... 295Certification Label......................................... 141Chains, Tire................................................... 310Chart, Tire Sizing........................................... 296Check Engine Light
(Malfunction Indicator Light)......................... 100Checking Your Vehicle For Safety................. 239Checks, Safety.............................................. 239Child Restraint.............................................. 223Child RestraintsBooster Seats........................................... 225Child Seat Installation.............................. 236How To Stow An unused ALR Seat Belt.............................................. 233Infant And Child Restraints....................... 224Locating The LATCH Anchorages.............. 229Lower Anchors And Tethers For Children................................................ 226Older Children And Child Restraints......... 225Seating Positions...................................... 226
Child Safety Locks............................................26Clean Air Gasoline......................................... 319CleaningWheels...................................................... 309Climate Control................................................55Automatic....................................................55Cold Weather Operation................................ 104Compact Spare Tire...................................... 307Contract, Service........................................... 325Cooling Pressure Cap (Radiator Cap)............ 282Cooling System............................................. 280Adding Coolant (Antifreeze)...................... 281Cooling Capacity....................................... 321Disposal Of Used Coolant......................... 282Drain, Flush, And Refill............................. 281Inspection................................................. 281Points To Remember................................ 283Pressure Cap............................................ 282Radiator Cap............................................. 282Selection Of Coolant (Antifreeze)......................... 281, 321, 322Corrosion Protection..................................... 313Cruise Control (Speed Control)............. 119, 121Cruise Light............................................... 97, 98Customer Assistance.................................... 324Cybersecurity................................................ 158
11

21_WD_OM_EN_USC_t.book Page 329

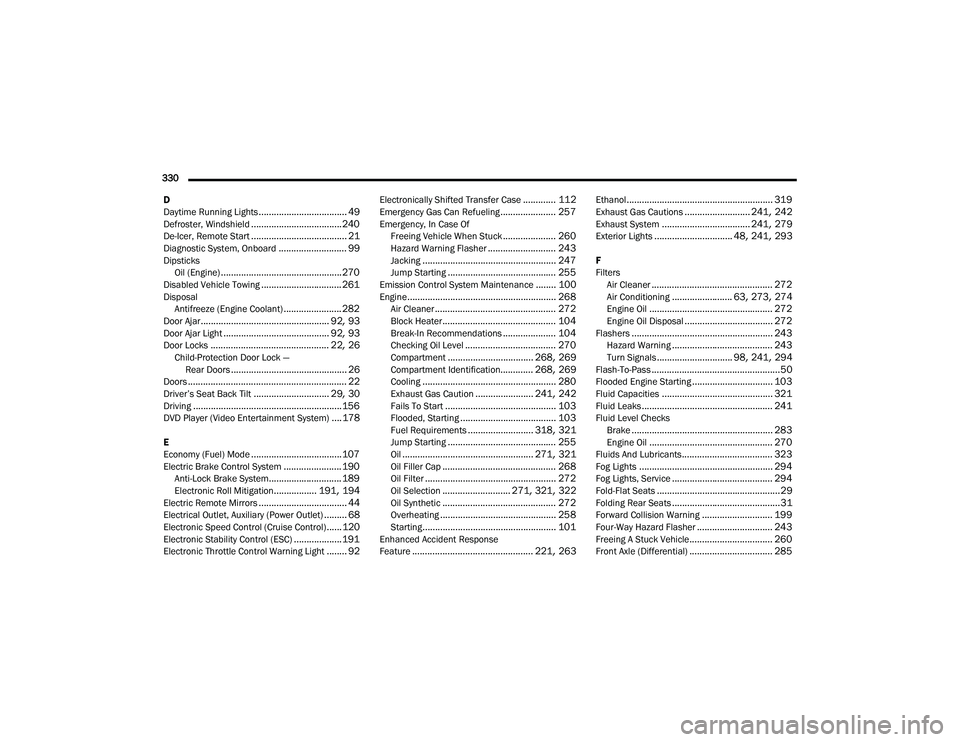

330 D
Daytime Running Lights
................................... 49Defroster, Windshield.................................... 240De-Icer, Remote Start...................................... 21Diagnostic System, Onboard........................... 99Dipsticks Oil (Engine)................................................ 270Disabled Vehicle Towing................................ 261DisposalAntifreeze (Engine Coolant)....................... 282Door Ajar................................................... 92, 93Door Ajar Light.......................................... 92, 93Door Locks............................................... 22, 26Child-Protection Door Lock —Rear Doors.............................................. 26Doors............................................................... 22Driver’s Seat Back Tilt.............................. 29, 30Driving........................................................... 156DVD Player (Video Entertainment System).... 178
E
Economy (Fuel) Mode.................................... 107Electric Brake Control System....................... 190Anti-Lock Brake System............................. 189Electronic Roll Mitigation................. 191, 194Electric Remote Mirrors................................... 44Electrical Outlet, Auxiliary (Power Outlet)......... 68Electronic Speed Control (Cruise Control)...... 120Electronic Stability Control (ESC)...................191Electronic Throttle Control Warning Light........ 92
Electronically Shifted Transfer Case............. 112Emergency Gas Can Refueling...................... 257Emergency, In Case OfFreeing Vehicle When Stuck..................... 260Hazard Warning Flasher........................... 243Jacking..................................................... 247Jump Starting........................................... 255Emission Control System Maintenance........ 100Engine........................................................... 268Air Cleaner................................................ 272Block Heater............................................. 104Break-In Recommendations..................... 104Checking Oil Level.................................... 270Compartment.................................. 268, 269Compartment Identification............. 268, 269Cooling..................................................... 280Exhaust Gas Caution....................... 241, 242Fails To Start............................................ 103Flooded, Starting...................................... 103Fuel Requirements.......................... 318, 321Jump Starting........................................... 255Oil.................................................... 271, 321Oil Filler Cap............................................. 268Oil Filter.................................................... 272Oil Selection........................... 271, 321, 322Oil Synthetic............................................. 272Overheating.............................................. 258Starting..................................................... 101Enhanced Accident Response
Feature................................................ 221, 263
Ethanol.......................................................... 319Exhaust Gas Cautions.......................... 241, 242Exhaust System................................... 241, 279Exterior Lights............................... 48, 241, 293
F
FiltersAir Cleaner
................................................ 272Air Conditioning........................ 63, 273, 274Engine Oil................................................. 272Engine Oil Disposal................................... 272Flashers........................................................ 243Hazard Warning........................................ 243Turn Signals.............................. 98, 241, 294Flash-To-Pass...................................................50Flooded Engine Starting................................ 103Fluid Capacities............................................ 321Fluid Leaks.................................................... 241Fluid Level ChecksBrake........................................................ 283Engine Oil................................................. 270Fluids And Lubricants.................................... 323Fog Lights..................................................... 294Fog Lights, Service........................................ 294Fold-Flat Seats.................................................29Folding Rear Seats...........................................31Forward Collision Warning............................ 199Four-Way Hazard Flasher.............................. 243Freeing A Stuck Vehicle................................. 260Front Axle (Differential)................................. 285

21_WD_OM_EN_USC_t.book Page 330

332 J
Jack Location
................................................. 248Jack Operation............................................... 251Jacking And Tire Changing Instructions......... 247Jacking Instructions....................................... 251Jump Starting................................................ 255
K
Key Fob........................................................... 14Arm The System.......................................... 21Disarm The System..................................... 21Programming Additional Key Fobs.............. 16Key Fob Battery Service
(Remote Keyless Entry)................................... 15Key Fob Programming
(Remote Keyless Entry)................................... 16Keyless Enter 'n Go™ Passive Entry............................................... 23Passive Entry Programming......................... 23Keys................................................................. 14Replacement............................................... 16Sentry (Immobilizer).................................... 16
L
Lane Change Assist......................................... 51LaneSense.................................................... 136Lap/Shoulder Belts....................................... 206Latches.......................................................... 241Hood........................................................... 74Lead Free Gasoline........................................ 318
Leaks, Fluid.................................................. 241Life Of Tires................................................... 305Liftgate............................................................ 75Liftgate Window Wiper/Washer....................... 55Light Bulbs.................................................... 241Lights............................................................ 241Adaptive Cruise Control............................... 97Air Bag...................................... 91, 211, 240All Wheel Drive............................................ 97Automatic Headlights.................................. 50Brake Assist Warning............................... 193Brake Warning............................................. 91Bulb Replacement........................... 293, 294Cargo........................................................... 76Center Mounted Stop............................... 295Cruise................................................... 97, 98Daytime Running......................................... 49Dimmer Switch, Headlight........................... 48Electric Power Steering Fault....................... 92Electronic Stability Control........................... 94Electronic Stability Program(ESP)Indicator.................................................. 93Exterior...............................................48, 241Fog.....................................................97, 294Forward Collision Warning........................... 97Hazard Warning Flasher........................... 243Headlights On With Wipers.......................... 50High Beam................................................... 98High Beam/Low Beam Select...................... 49Hood Open.................................................. 93
Interior.........................................................52LaneSense............................................ 97, 98Lights On Reminder.....................................51Low Fuel......................................................96Low Washer Fluid........................................95Malfunction Indicator (Check Engine)..........94NEUTRAL.....................................................97Oil Temperature...........................................93Park......................................................50, 97Passing........................................................50Reading.......................................................52Rear Servicing.......................................... 294Rear Tail Lamps........................................ 294Seat Belt Reminder.....................................91Security Alarm.............................................94Service............................................. 293, 294Service Adaptive Cruise Control...................96Service AWD................................................96Service Forward Collision Warning...............96Service Stop Start System...........................96Side Marker.............................................. 294Snow Mode..................................................97Sport Mode..................................................98Stop Start Active..........................................98Tow Mode....................................................98Traction Control........................................ 193Trailer Brake Disconnected.........................93Transmission Temperature..........................93Turn Signals....................... 48, 98, 241, 294Vanity Mirror................................................43

21_WD_OM_EN_USC_t.book Page 332

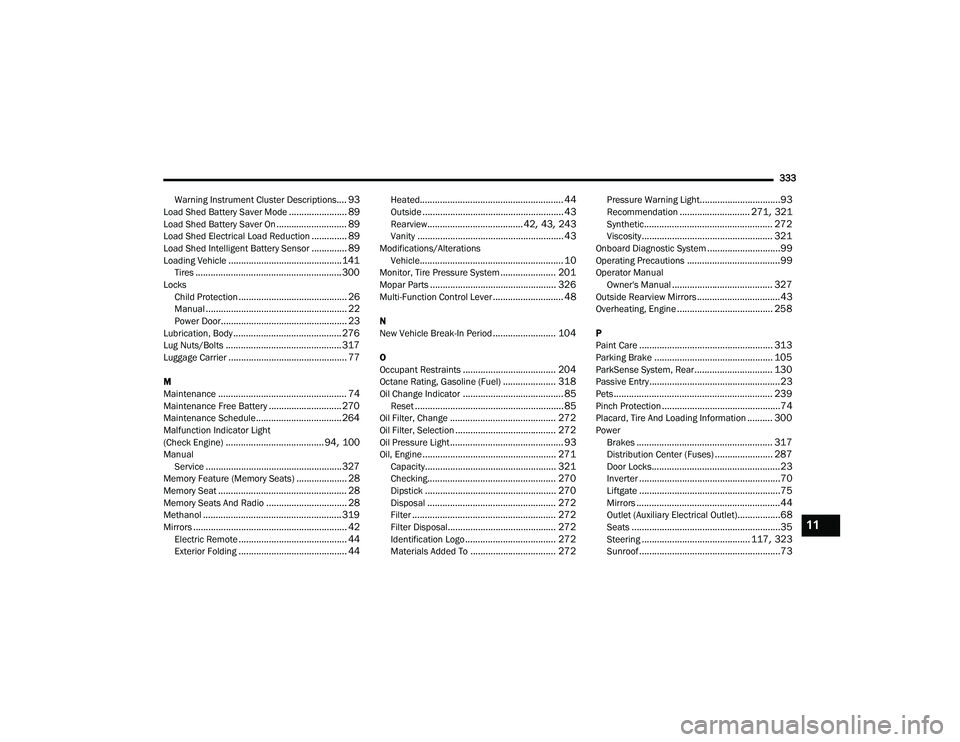

333
Warning Instrument Cluster Descriptions
.... 93Load Shed Battery Saver Mode....................... 89Load Shed Battery Saver On............................ 89Load Shed Electrical Load Reduction.............. 89Load Shed Intelligent Battery Sensor.............. 89Loading Vehicle............................................. 141Tires.......................................................... 300Locks Child Protection........................................... 26Manual........................................................ 22Power Door.................................................. 23Lubrication, Body........................................... 276Lug Nuts/Bolts.............................................. 317Luggage Carrier............................................... 77
M
Maintenance................................................... 74Maintenance Free Battery............................. 270Maintenance Schedule.................................. 264Malfunction Indicator Light
(Check Engine)....................................... 94, 100ManualService...................................................... 327Memory Feature (Memory Seats).................... 28Memory Seat................................................... 28Memory Seats And Radio................................ 28Methanol....................................................... 319Mirrors............................................................. 42Electric Remote........................................... 44Exterior Folding........................................... 44
Heated......................................................... 44Outside........................................................ 43Rearview......................................42, 43, 243Vanity.......................................................... 43Modifications/AlterationsVehicle......................................................... 10Monitor, Tire Pressure System...................... 201Mopar Parts.................................................. 326Multi-Function Control Lever............................ 48
N
New Vehicle Break-In Period......................... 104
O
Occupant Restraints..................................... 204Octane Rating, Gasoline (Fuel)..................... 318Oil Change Indicator........................................ 85Reset........................................................... 85Oil Filter, Change.......................................... 272Oil Filter, Selection........................................ 272Oil Pressure Light............................................. 93Oil, Engine..................................................... 271Capacity.................................................... 321Checking................................................... 270Dipstick.................................................... 270Disposal................................................... 272Filter......................................................... 272Filter Disposal........................................... 272Identification Logo.................................... 272Materials Added To.................................. 272
Pressure Warning Light................................93Recommendation............................ 271, 321Synthetic................................................... 272Viscosity.................................................... 321Onboard Diagnostic System.............................99Operating Precautions.....................................99Operator ManualOwner's Manual........................................ 327Outside Rearview Mirrors.................................43Overheating, Engine...................................... 258
P
Paint Care..................................................... 313Parking Brake............................................... 105ParkSense System, Rear............................... 130Passive Entry....................................................23Pets............................................................... 239Pinch Protection...............................................74Placard, Tire And Loading Information.......... 300PowerBrakes...................................................... 317Distribution Center (Fuses)....................... 287Door Locks...................................................23Inverter........................................................70Liftgate........................................................75Mirrors.........................................................44Outlet (Auxiliary Electrical Outlet).................68Seats...........................................................35Steering........................................... 117, 323Sunroof........................................................73
11

21_WD_OM_EN_USC_t.book Page 333
