DODGE INTREPID 2004 2.G Owners Manual

5. Connect the other cable, first to the negative jump start
attachment of the booster battery and then to the engine
of the vehicle with the discharged battery. Make sure you
have a good contact on the engine.
6. Start the engine in the vehicle which has the booster
battery, let the engine idle a few minutes, then start the
engine in the vehicle with the discharged battery.
7. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
DRIVING ON SLIPPERY SURFACES
Acceleration
Rapid acceleration on snow covered, wet, or other slip-
pery surfaces may cause the front wheels to pull errati-
cally to the right or left. This phenomenon occurs when
there is a difference in the surface traction under the front
(driving) wheels.
WARNING!
Rapid acceleration on slippery surfaces is danger-
ous. Unequal traction can cause sudden pulling of
the front wheels. You could lose control of the
vehicle and possibly have an accident. Accelerate
slowly and carefully whenever there is likely to be
poor traction (ice, snow, wet, mud, loose sand, etc.).
Traction
When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is known as hydroplaning and may cause
partial or complete loss of vehicle control and stopping
ability. To reduce this possibility, the following precau-
tions should be observed:
WHAT TO DO IN EMERGENCIES 161
6

1. Slow down during rainstorms or when roads are
slushy.
2. Slow down if road has standing water or puddles.
3. Replace tires when tread wear indicators first become
visible.
4. Keep tires properly inflated.
5. Maintain sufficient distance between your vehicle and
the vehicle in front of you to avoid a collision in a sudden
stop.
NOTE:If so equipped, turn on the Traction Control
System to accelerate on slippery surfaces.
FREEING A STUCK VEHICLE
If your vehicle is equipped with Traction Control, turn
the system off before attempting to “rock” the vehicle.
If your vehicle becomes stuck in mud, sand or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between Reverse
and Drive. Usually the least accelerator pedal pressure to
maintain the rocking motion without spinning the
wheels is most effective.
CAUTION!
Racing the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h).
162 WHAT TO DO IN EMERGENCIES

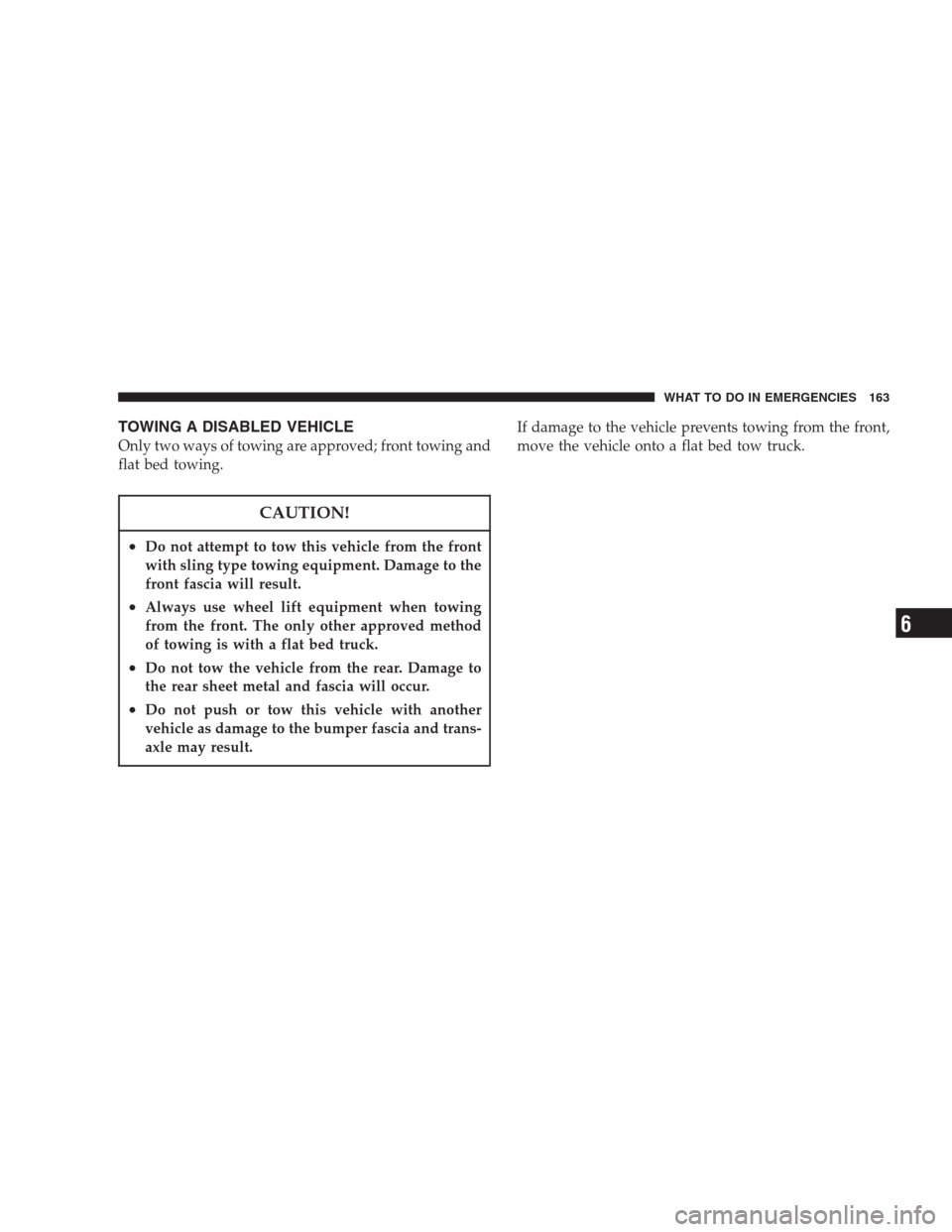

TOWING A DISABLED VEHICLE
Only two ways of towing are approved; front towing and
flat bed towing.
CAUTION!
•Do not attempt to tow this vehicle from the front
with sling type towing equipment. Damage to the
front fascia will result.
•Always use wheel lift equipment when towing
from the front. The only other approved method
of towing is with a flat bed truck.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal and fascia will occur.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
axle may result.
If damage to the vehicle prevents towing from the front,
move the vehicle onto a flat bed tow truck.
WHAT TO DO IN EMERGENCIES 163
6

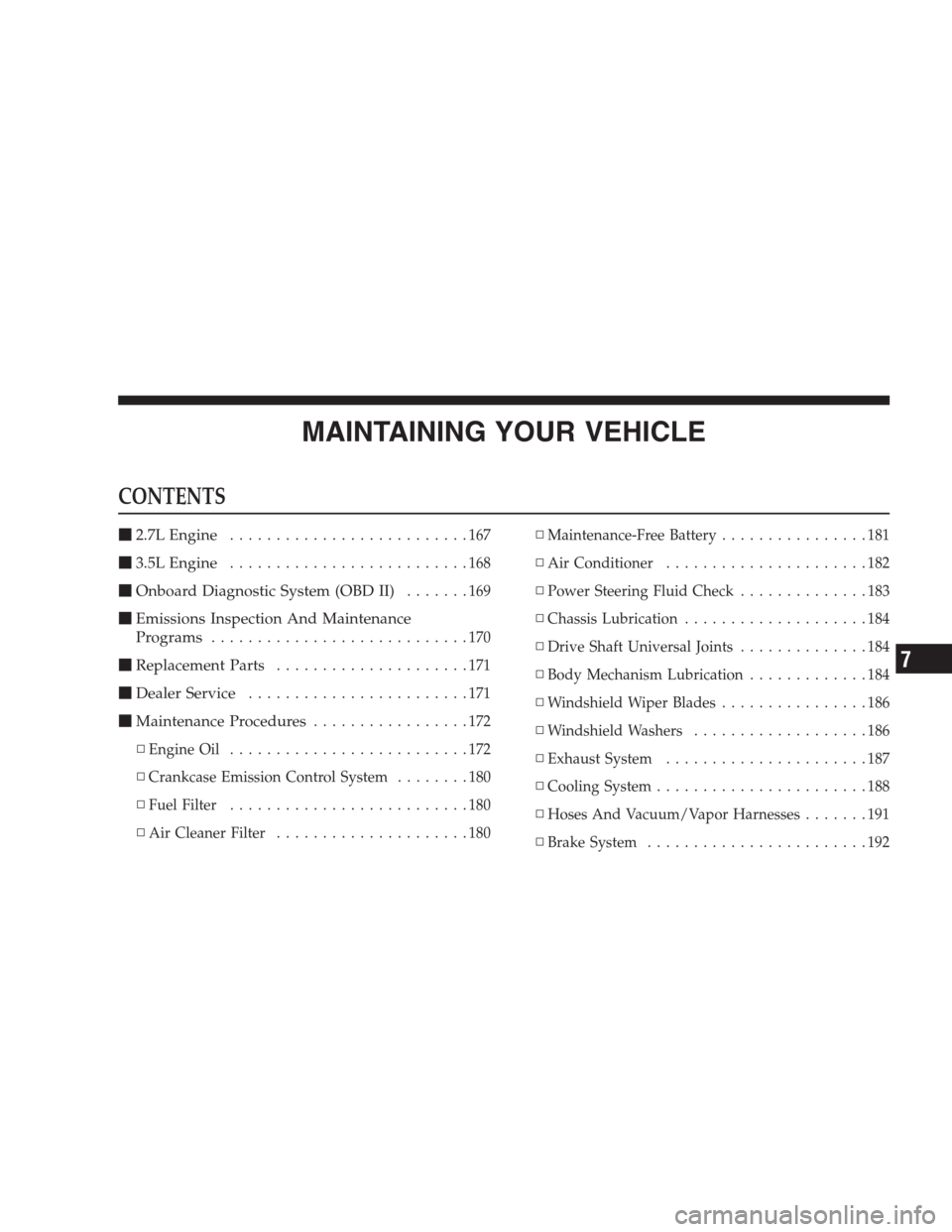

MAINTAINING YOUR VEHICLE
CONTENTS
2.7L Engine..........................167
3.5L Engine..........................168
Onboard Diagnostic System (OBD II).......169
Emissions Inspection And Maintenance
Programs
............................170
Replacement Parts.....................171
Dealer Service........................171
Maintenance Procedures.................172
▫Engine Oil..........................172
▫Crankcase Emission Control System........180
▫Fuel Filter..........................180
▫Air Cleaner Filter.....................180▫Maintenance-Free Battery................181
▫Air Conditioner......................182
▫Power Steering Fluid Check..............183
▫Chassis Lubrication....................184
▫Drive Shaft Universal Joints..............184
▫Body Mechanism Lubrication.............184
▫Windshield Wiper Blades................186
▫Windshield Washers...................186
▫Exhaust System......................187
▫Cooling System.......................188
▫Hoses And Vacuum/Vapor Harnesses.......191
▫Brake System........................192
7

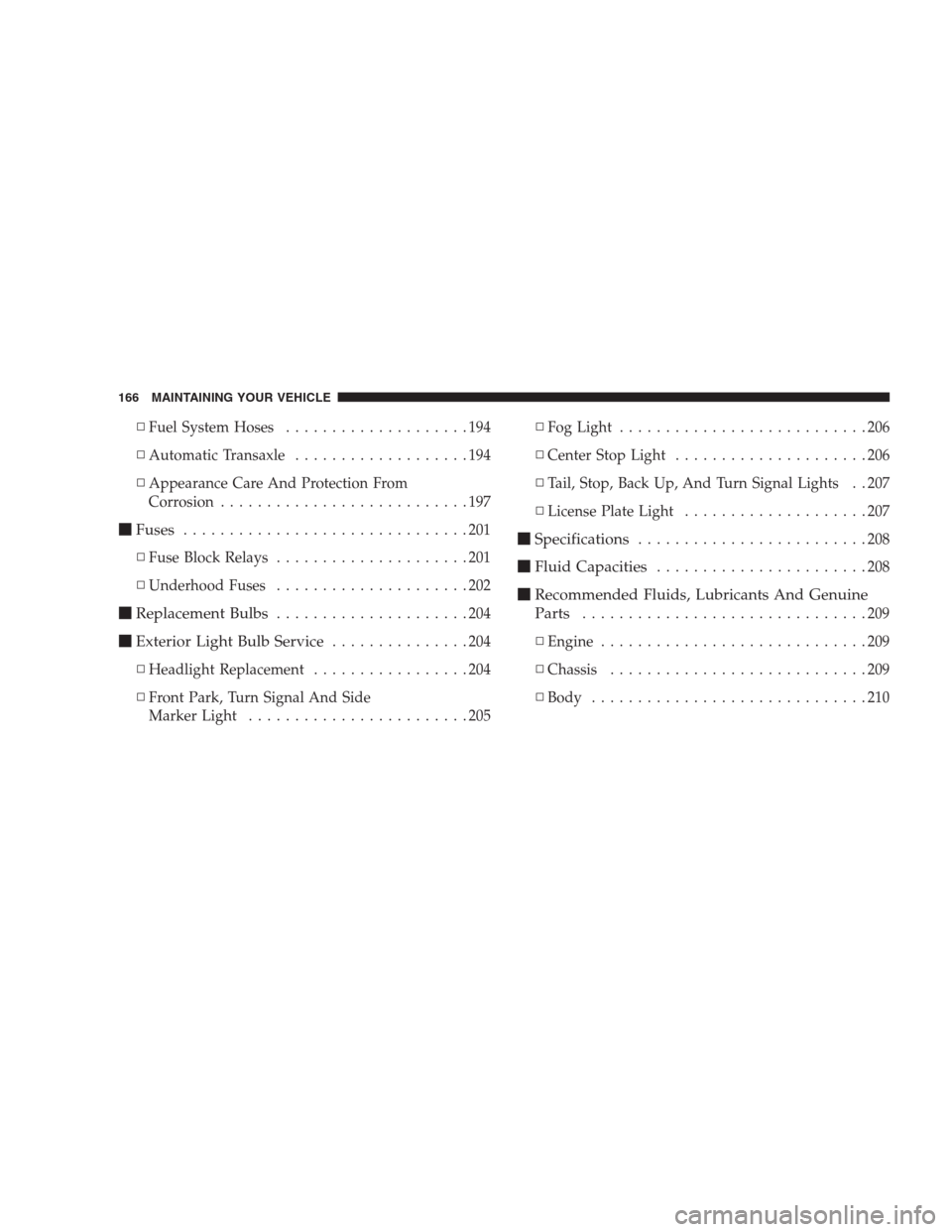

▫Fuel System Hoses....................194
▫Automatic Transaxle...................194
▫Appearance Care And Protection From
Corrosion...........................197
Fuses...............................201
▫Fuse Block Relays.....................201
▫Underhood Fuses.....................202
Replacement Bulbs.....................204
Exterior Light Bulb Service...............204
▫Headlight Replacement.................204
▫Front Park, Turn Signal And Side
Marker Light........................205▫Fog Light...........................206
▫Center Stop Light.....................206
▫Tail, Stop, Back Up, And Turn Signal Lights . . 207
▫License Plate Light....................207
Specifications.........................208
Fluid Capacities.......................208
Recommended Fluids, Lubricants And Genuine
Parts
...............................209
▫Engine.............................209
▫Chassis............................209
▫Body..............................210
166 MAINTAINING YOUR VEHICLE

2.7L ENGINE
MAINTAINING YOUR VEHICLE 167
7

3.5L ENGINE
168 MAINTAINING YOUR VEHICLE

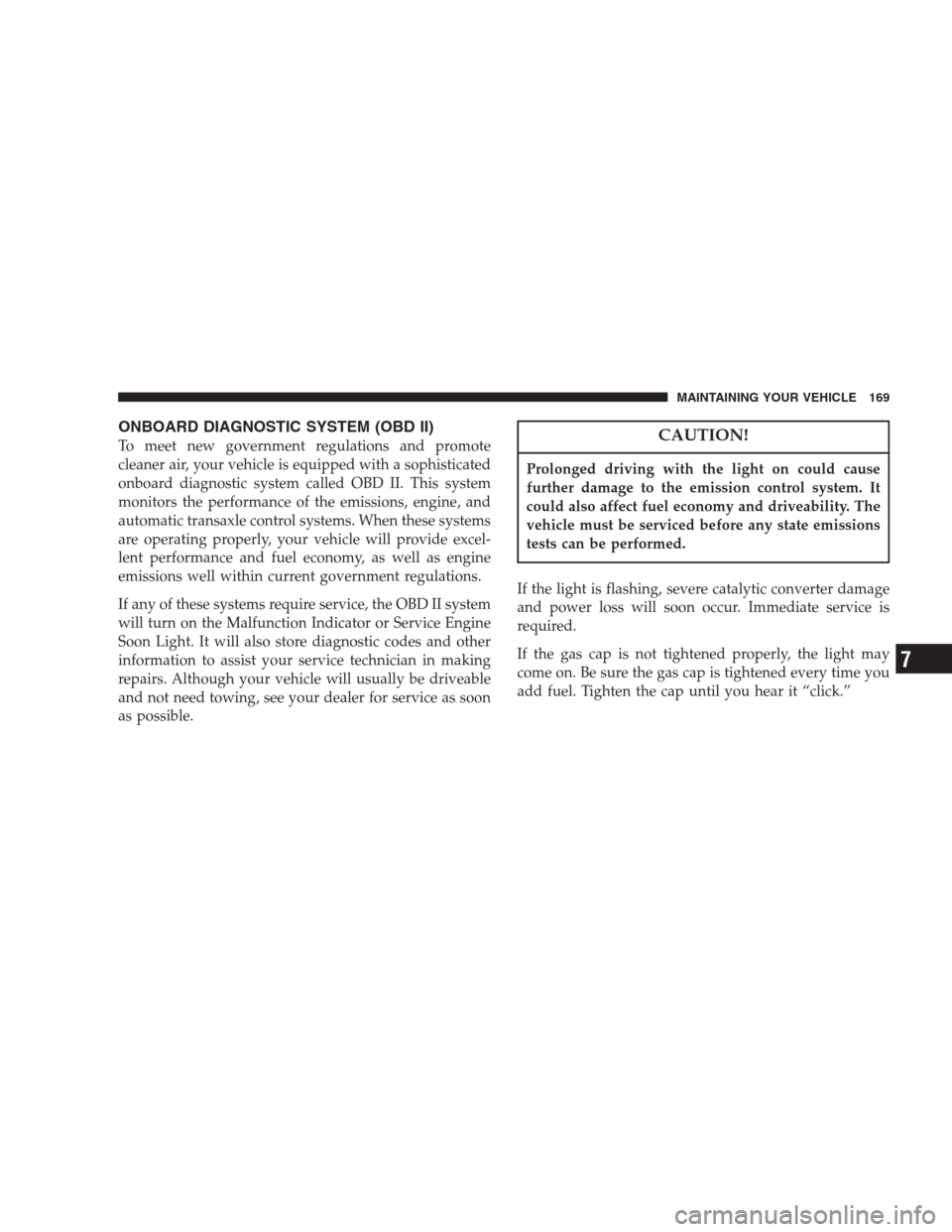

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
To meet new government regulations and promote
cleaner air, your vehicle is equipped with a sophisticated
onboard diagnostic system called OBD II. This system
monitors the performance of the emissions, engine, and
automatic transaxle control systems. When these systems
are operating properly, your vehicle will provide excel-
lent performance and fuel economy, as well as engine
emissions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the Malfunction Indicator or Service Engine
Soon Light. It will also store diagnostic codes and other
information to assist your service technician in making
repairs. Although your vehicle will usually be driveable
and not need towing, see your dealer for service as soon
as possible.CAUTION!
Prolonged driving with the light on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any state emissions
tests can be performed.
If the light is flashing, severe catalytic converter damage
and power loss will soon occur. Immediate service is
required.
If the gas cap is not tightened properly, the light may
come on. Be sure the gas cap is tightened every time you
add fuel. Tighten the cap until you hear it “click.”
MAINTAINING YOUR VEHICLE 169
7

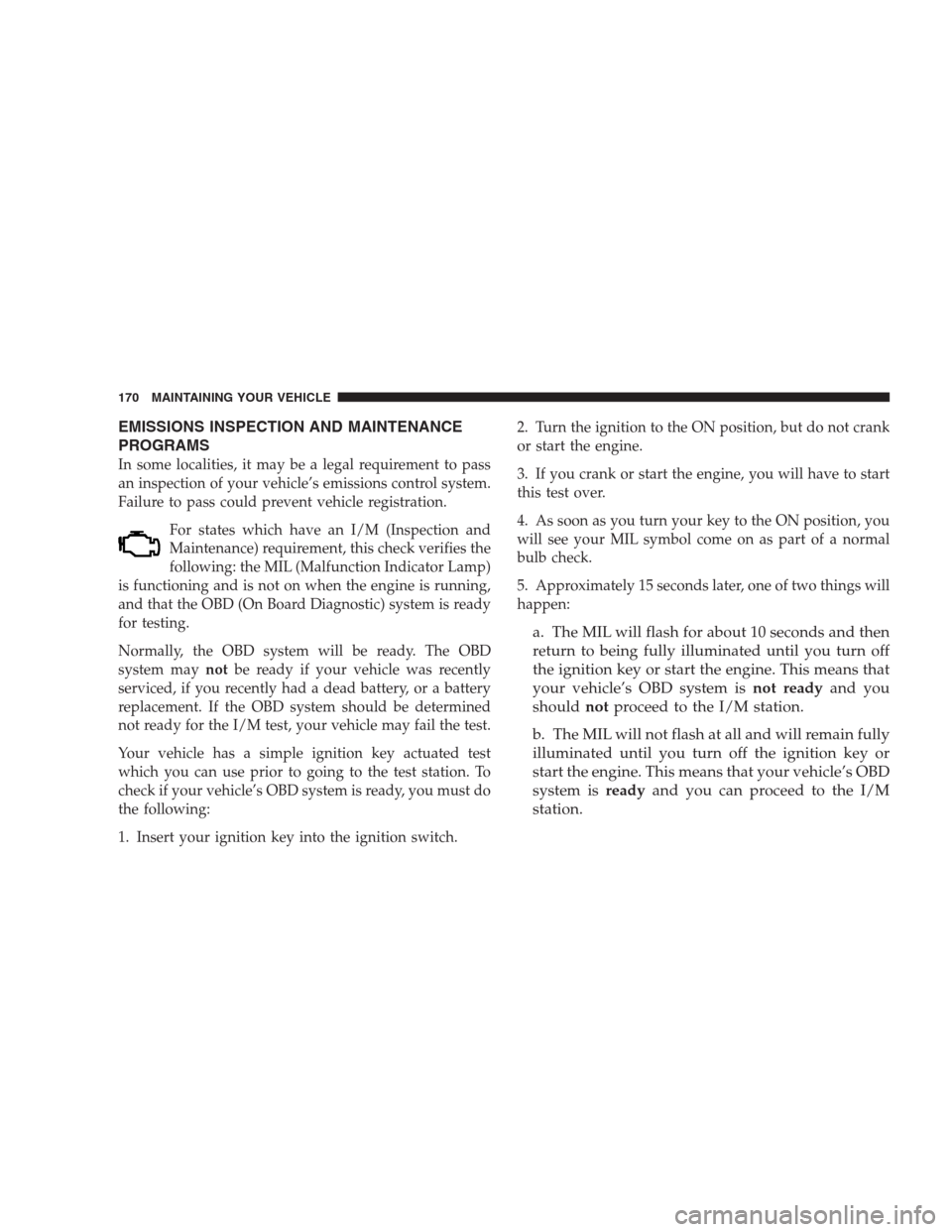

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states which have an I/M (Inspection and
Maintenance) requirement, this check verifies the
following: the MIL (Malfunction Indicator Lamp)
is functioning and is not on when the engine is running,
and that the OBD (On Board Diagnostic) system is ready
for testing.
Normally, the OBD system will be ready. The OBD
system maynotbe ready if your vehicle was recently
serviced, if you recently had a dead battery, or a battery
replacement. If the OBD system should be determined
not ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key actuated test
which you can use prior to going to the test station. To
check if your vehicle’s OBD system is ready, you must do
the following:
1. Insert your ignition key into the ignition switch.2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see your MIL symbol come on as part of a normal
bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn off
the ignition key or start the engine. This means that
your vehicle’s OBD system isnot readyand you
shouldnotproceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn off the ignition key or
start the engine. This means that your vehicle’s OBD
system isreadyand you can proceed to the I/M
station.
170 MAINTAINING YOUR VEHICLE
