DODGE INTREPID 2004 2.G Owners Manual

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
•Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
•Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the
vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
FUSES
The fuse block is behind the end cover at the left side of
the instrument panel. Pull the cover straight away from
the instrument panel for access to the fuses.
Fuse Block Relays
The location and identification of fuse block relays can be
found on the inside of the instrument panel end cover.
MAINTAINING YOUR VEHICLE 201
7

Underhood Fuses
A Power Distribution center is located in the engine
compartment. This center contains fuses and relays for
circuits that operate only under the hood. A label which
identifies these components is located on the underside
of the cover.CAUTION!
When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
Interior Fuses
Cavity Fuse Circuits
1 10 Amp Red Transmission Controller,
Gauges, Autostick
2 10 Amp Red Right High Beam Headlight
3 10 Amp Red Left High Beam Headlight
4 10 Amp Red Radio, CD Player
5 10 Amp Red Washer Motor
6 15 Amp Lt. Blue Power Outlet
7 20 Amp Yellow Tail, License, Parking, Illu-
mination Lights, Instru-
ment Cluster
202 MAINTAINING YOUR VEHICLE

Cavity Fuse Circuits
8 10 Amp Red Airbag
9 10 Amp Red Turn Signal Lights, Turn
Signal/Hazard Indicator
10 15 Amp Lt. Blue Right Low Beam
11 20 Amp Yellow High Beam Relay, High
Beam Indicator, High Beam
Switch
12 15 Amp Lt. Blue Left Low Beam Headlight
13 10 Amp Red Fuel Pump Relay, Power
Train Control Module
14 10 Amp Red Cluster, Day/Night Mirror,
Sunroof, Overhead Console,
Garage Door Opener, Body
Control Module
15 10 Amp Red Daytime Running Light
Module (Canada)
16 20 Amp Yellow Fog Light Indicator
17 10 Amp Red ABS Control, Back Up
Lights, Daytime Running
Lights, A/C Heater Con-
trol,Cavity Fuse Circuits
18 20 Amp Yellow Power Amplifier, Horn
19 15 Amp Lt. Blue Overhead Console, Garage
Door Opener, Trunk, Over-
head, Rear Reading, and
Visor Vanity Lights, Trunk
Release Solenoid, Power
Mirrors, Power Door Locks,
Body Control Module, As-
pirator Motor
20 20 Amp Yellow Brake Lights
21 10 Amp Red Leak Detection Pump, Low
Rad Relay, High Rad Relay,
A/C Clutch Relay
22 10 Amp Red Airbag
23 30 Amp Green Blower Motor, ATC Power
Module
24 20 Amp
C/BRKRPower Window Motors
25 20 Amp
C/BRKRPower Door Lock Motors,
Power Seats
MAINTAINING YOUR VEHICLE 203
7

REPLACEMENT BULBS
Interior Light Bulbs Bulb No.
Cluster Illumination.....................PC194
Turn Signal...........................PC194
Climate Control.......................... 330
Overhead Console, Front Reading, Courtesy, Grab
Handle................................ 192
Trunk................................. 906
Exterior Light Bulbs Bulb No.
Low Beam Headlights....................9006
High Beam Headlights....................9005
Park, Turn, & Side Marker................3157A
Fog Light.............................. H-3
Center Stop Light........................ 922
Tail, Stop, & Turn........................3157
Rear Side Marker........................ 168
Back-Up..............................3157
License................................ 168
EXTERIOR LIGHT BULB SERVICE
Headlight Replacement
1. Open the hood and remove the headlight assembly
mounting screws.
2. Pull the headlight assembly forward to access the
bulbs.
3. Turn the bulb assembly retaining ring counterclock-
wise and pull the bulb and socket assembly from the
housing.
204 MAINTAINING YOUR VEHICLE

4. Remove the bulb from the socket and replace the bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
If the bulb comes into contact with any oily surface,
clean the bulbs with rubbing alcohol.
5. Reinsert the bulb and socket assembly and turn the
retaining ring clockwise to secure the bulb.
6. Reinstall the headlight assembly.
Front Park, Turn Signal and Side Marker Light
1. Open the hood and remove the headlight assembly
mounting screws.2. Pull the headlight assembly forward to access the
bulbs.
3. Turn the bulb and socket assembly counterclockwise
and remove it from the housing.
4. Pull the bulb from the socket, install the new bulb,
reinstall the bulb and socket assembly. Reinstall the
headlight assembly.
MAINTAINING YOUR VEHICLE 205
7

Fog Light
1. Remove the screw securing the fog light to the fascia
and pull the light away from the vehicle to expose the
bulb.
2. Remove the bulb by turning counter-clockwise. Pull
the bulb out of the light housing.
3. Remove the wiring connector from the bulb.
4. Insert the new bulb and turn clockwise.5. Connect the wiring connector to the new bulb and
reinstall the assembly.
Center Stop Light
1. Open the trunk and remove the trunk lid cover.
2. Turn the bulb socket counterclockwise and remove it
from the housing.
3. Pull the bulb from the socket and replace the bulb.
4. Reinstall the bulb and socket assembly and reattach
the trunk lid cover.
206 MAINTAINING YOUR VEHICLE

Tail, Stop, Back Up, and Turn Signal Lights
1. Open the trunk and remove the fasteners securing the
light housing to the body.
2. Pull the light housing from the body to expose the
wiring socket.
3. Turn the bulb socket counterclockwise to remove from
the housing. Pull the bulb from the socket.
4. Replace the bulb, reinstall the socket, and reattach the
light housing.
License Plate Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly and pull the
bulb from the socket.
3. Replace the bulb and reinstall the bulb and socket
assembly.
MAINTAINING YOUR VEHICLE 207
7

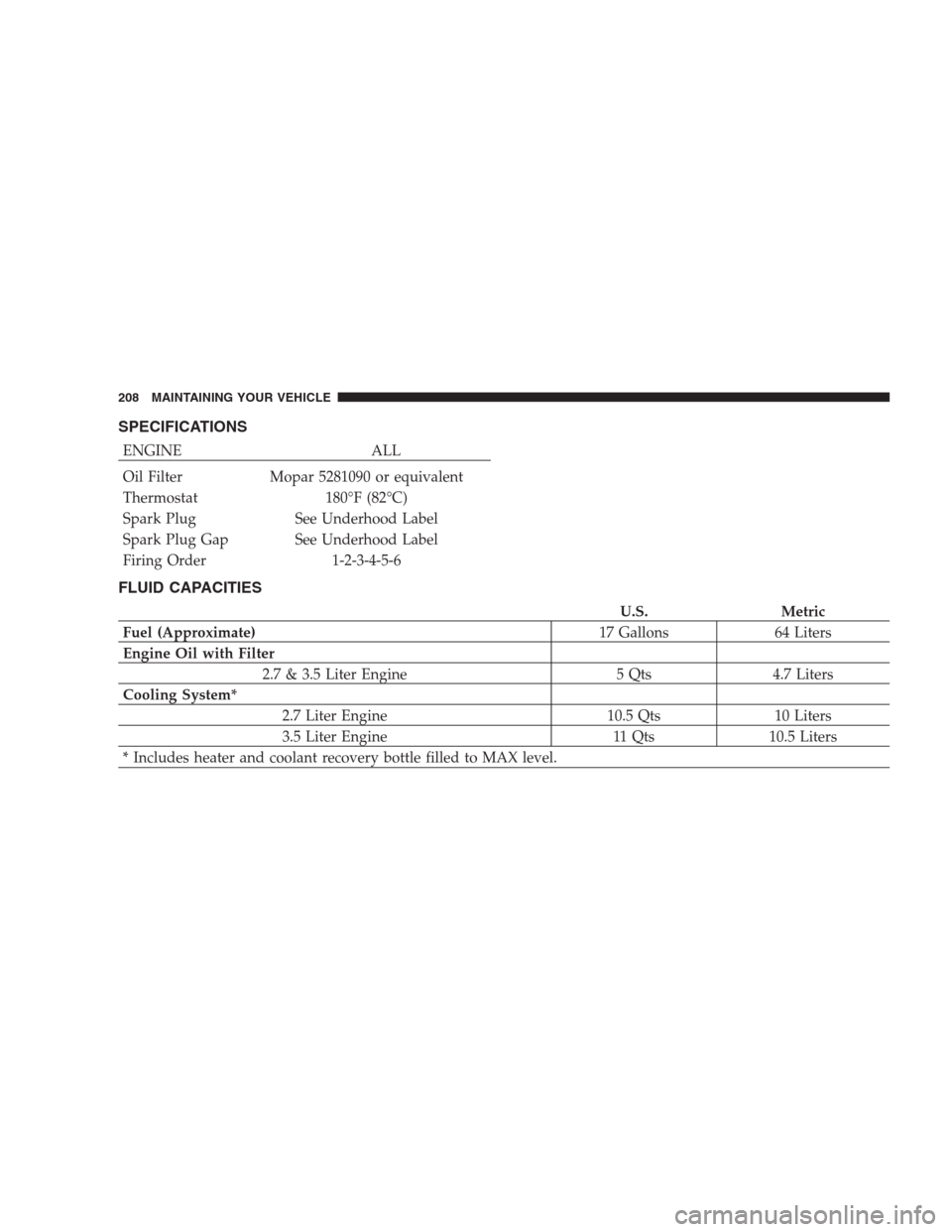

SPECIFICATIONS
ENGINE ALL
Oil Filter Mopar 5281090 or equivalent
Thermostat 180°F (82°C)
Spark Plug See Underhood Label
Spark Plug Gap See Underhood Label
Firing Order 1-2-3-4-5-6
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)17 Gallons 64 Liters
Engine Oil with Filter
2.7 & 3.5 Liter Engine 5 Qts 4.7 Liters
Cooling System*
2.7 Liter Engine 10.5 Qts 10 Liters
3.5 Liter Engine 11 Qts 10.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
208 MAINTAINING YOUR VEHICLE

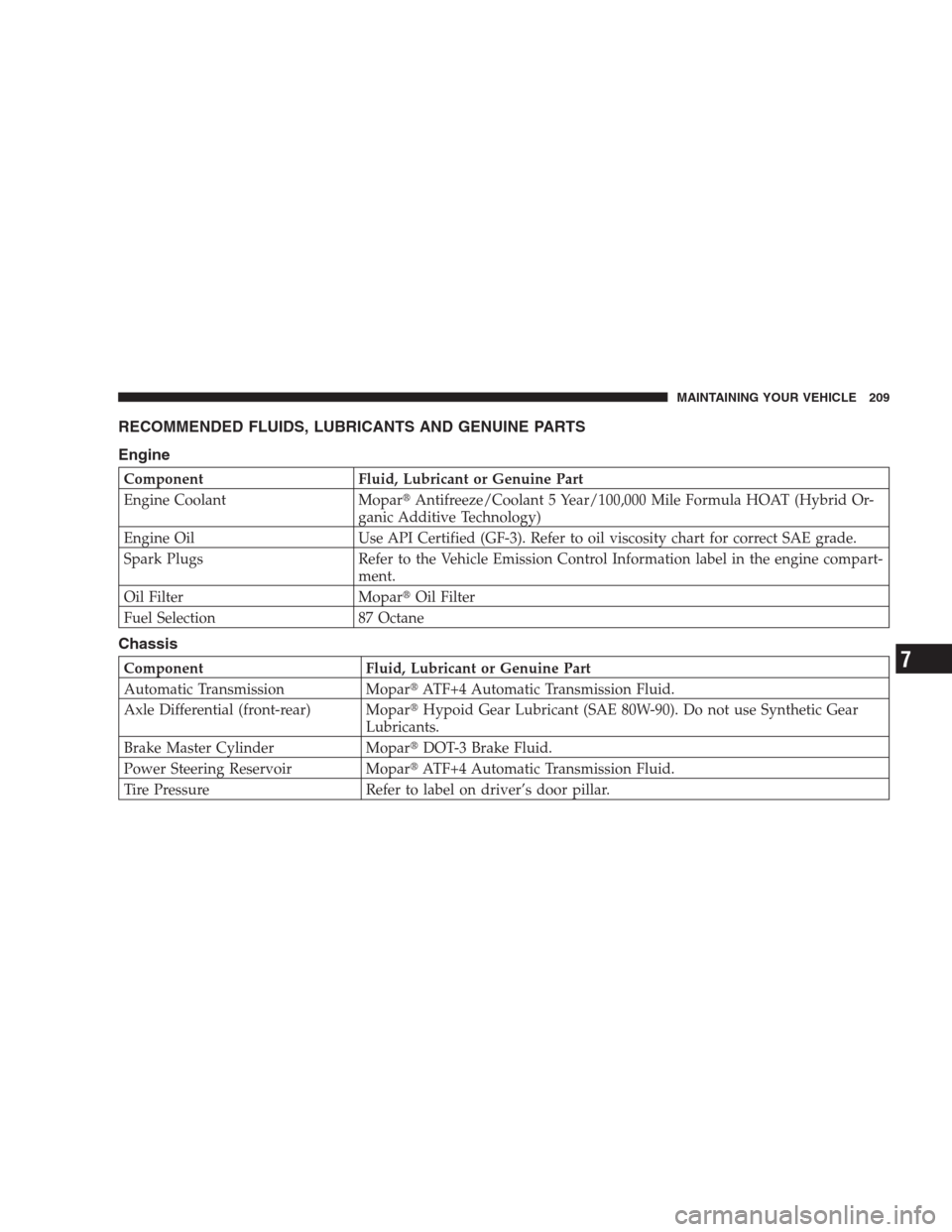

RECOMMENDED FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant or Genuine Part
Engine Coolant MoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology)
Engine Oil Use API Certified (GF-3). Refer to oil viscosity chart for correct SAE grade.
Spark Plugs Refer to the Vehicle Emission Control Information label in the engine compart-
ment.
Oil Filter MoparOil Filter
Fuel Selection 87 Octane
Chassis
Component Fluid, Lubricant or Genuine Part
Automatic Transmission MoparATF+4 Automatic Transmission Fluid.
Axle Differential (front-rear) MoparHypoid Gear Lubricant (SAE 80W-90). Do not use Synthetic Gear
Lubricants.
Brake Master Cylinder MoparDOT-3 Brake Fluid.
Power Steering Reservoir MoparATF+4 Automatic Transmission Fluid.
Tire Pressure Refer to label on driver’s door pillar.
MAINTAINING YOUR VEHICLE 209
7

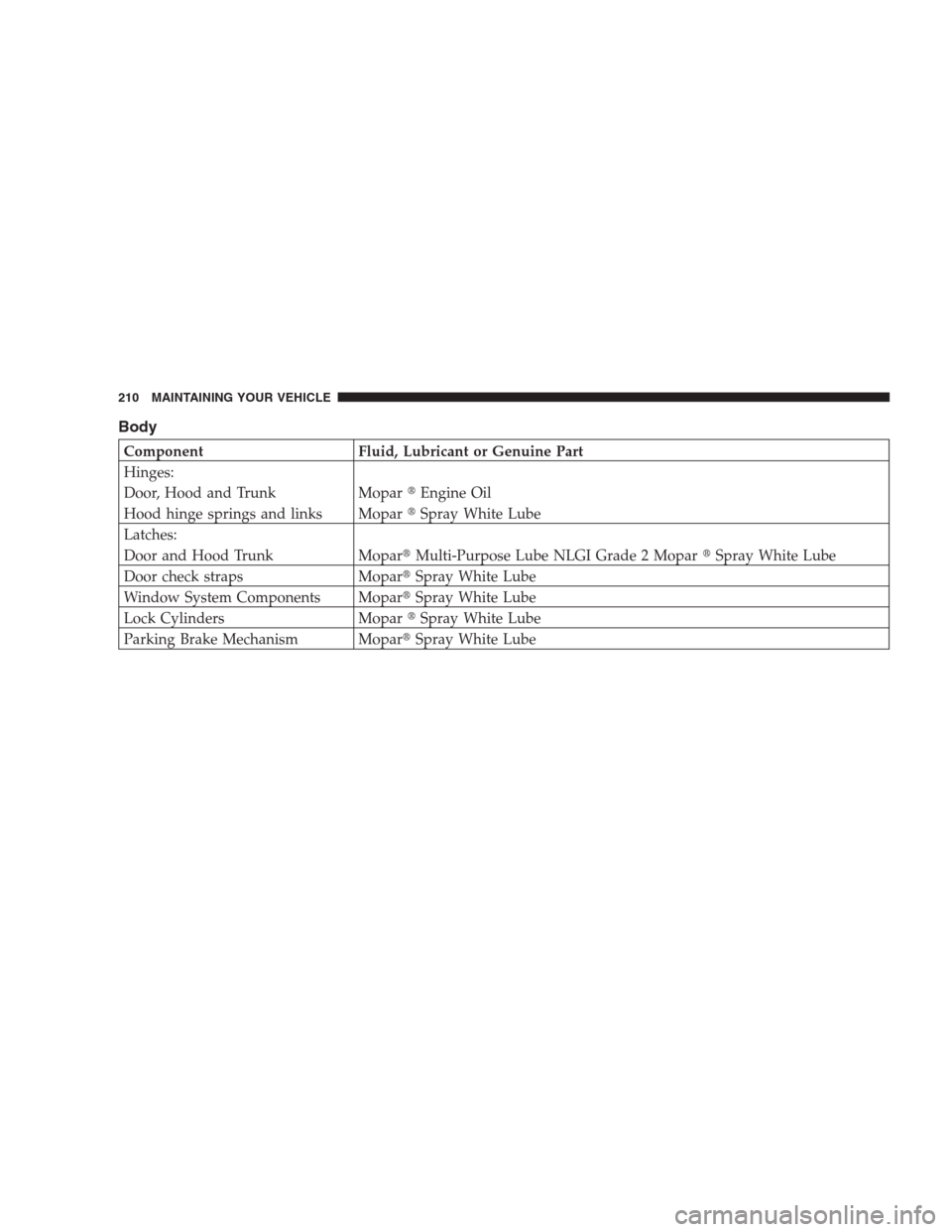

Body
Component Fluid, Lubricant or Genuine Part
Hinges:
Door, Hood and Trunk MoparEngine Oil
Hood hinge springs and links MoparSpray White Lube
Latches:
Door and Hood Trunk MoparMulti-Purpose Lube NLGI Grade 2 MoparSpray White Lube
Door check straps MoparSpray White Lube
Window System Components MoparSpray White Lube
Lock Cylinders MoparSpray White Lube
Parking Brake Mechanism MoparSpray White Lube
210 MAINTAINING YOUR VEHICLE
