DODGE JOURNEY 2010 1.G Owners Manual

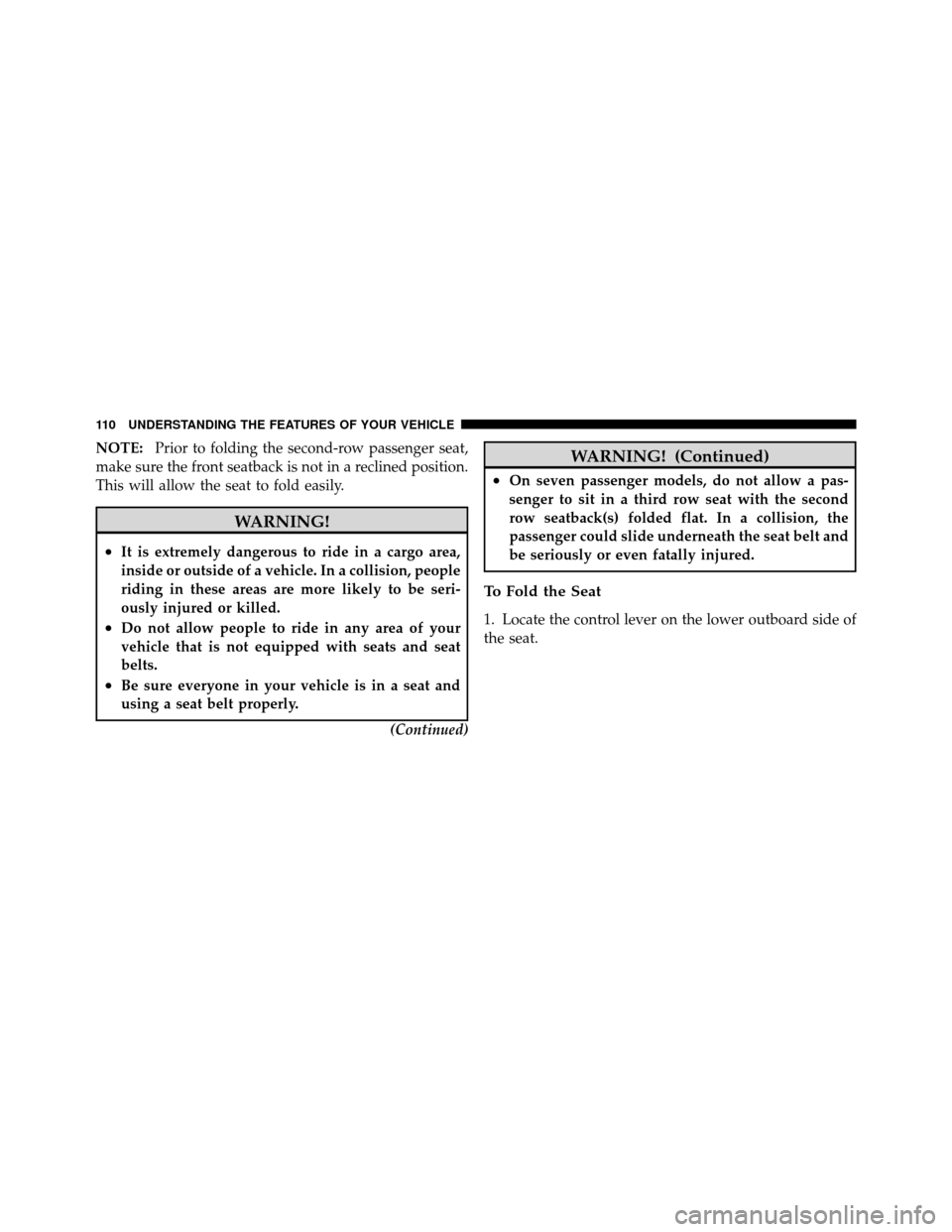

NOTE:Prior to folding the second-row passenger seat,
make sure the front seatback is not in a reclined position.
This will allow the seat to fold easily.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
(Continued)
WARNING! (Continued)
•On seven passenger models, do not allow a pas-
senger to sit in a third row seat with the second
row seatback(s) folded flat. In a collision, the
passenger could slide underneath the seat belt and
be seriously or even fatally injured.
To Fold the Seat
1. Locate the control lever on the lower outboard side of
the seat.
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Place one hand on the seatback and apply a gentle
pressure.
3. Lift the control lever with the other hand, allow the
seatback to move forward slightly, and then release the
lever.
WARNING!
To prevent personal injury or damage to objects,
keep your head, arms, and objects out of the folding
path of the seatback.
4. Gently guide the seatback into the folded position.
To Unfold the Seat
Raise the seatback and lock it in place.
WARNING!
Be certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for child seats and/or passengers. An

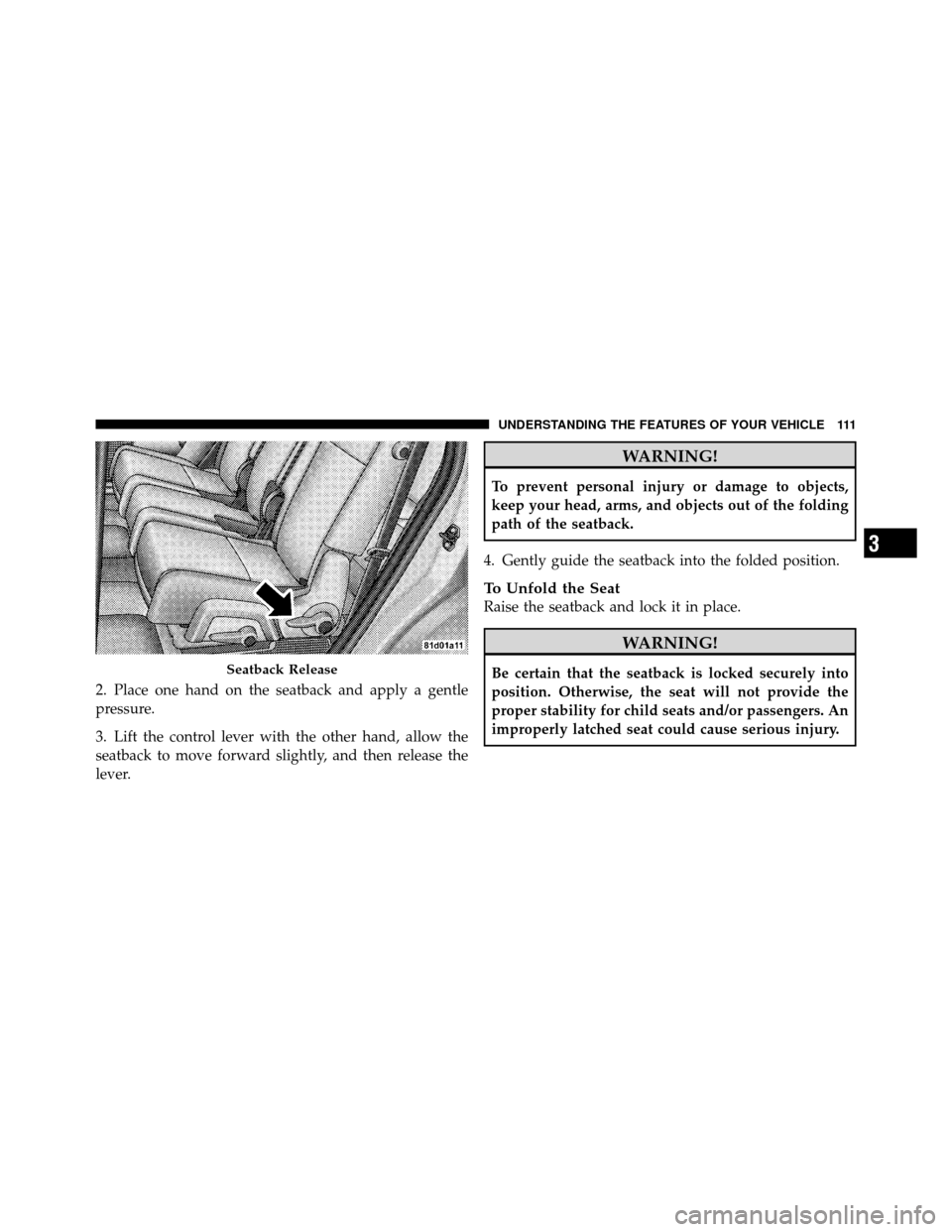

improperly latched seat could cause serious injury.Seatback Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

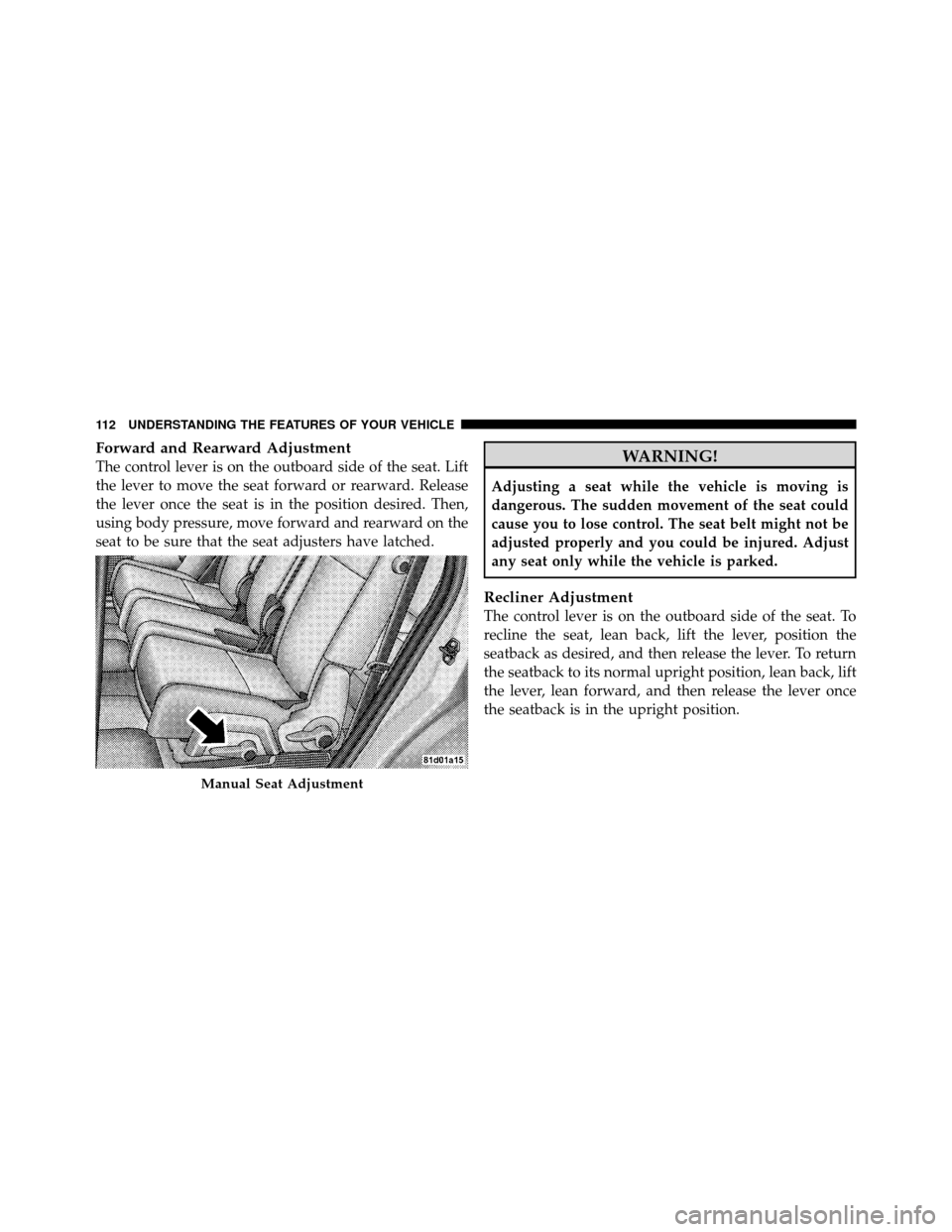

Forward and Rearward Adjustment
The control lever is on the outboard side of the seat. Lift
the lever to move the seat forward or rearward. Release
the lever once the seat is in the position desired. Then,
using body pressure, move forward and rearward on the
seat to be sure that the seat adjusters have latched.WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
any seat only while the vehicle is parked.
Recliner Adjustment
The control lever is on the outboard side of the seat. To
recline the seat, lean back, lift the lever, position the
seatback as desired, and then release the lever. To return
the seatback to its normal upright position, lean back, lift
the lever, lean forward, and then release the lever once
the seatback is in the upright position.
Manual Seat Adjustment
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be adjusted properly and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Seatback Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

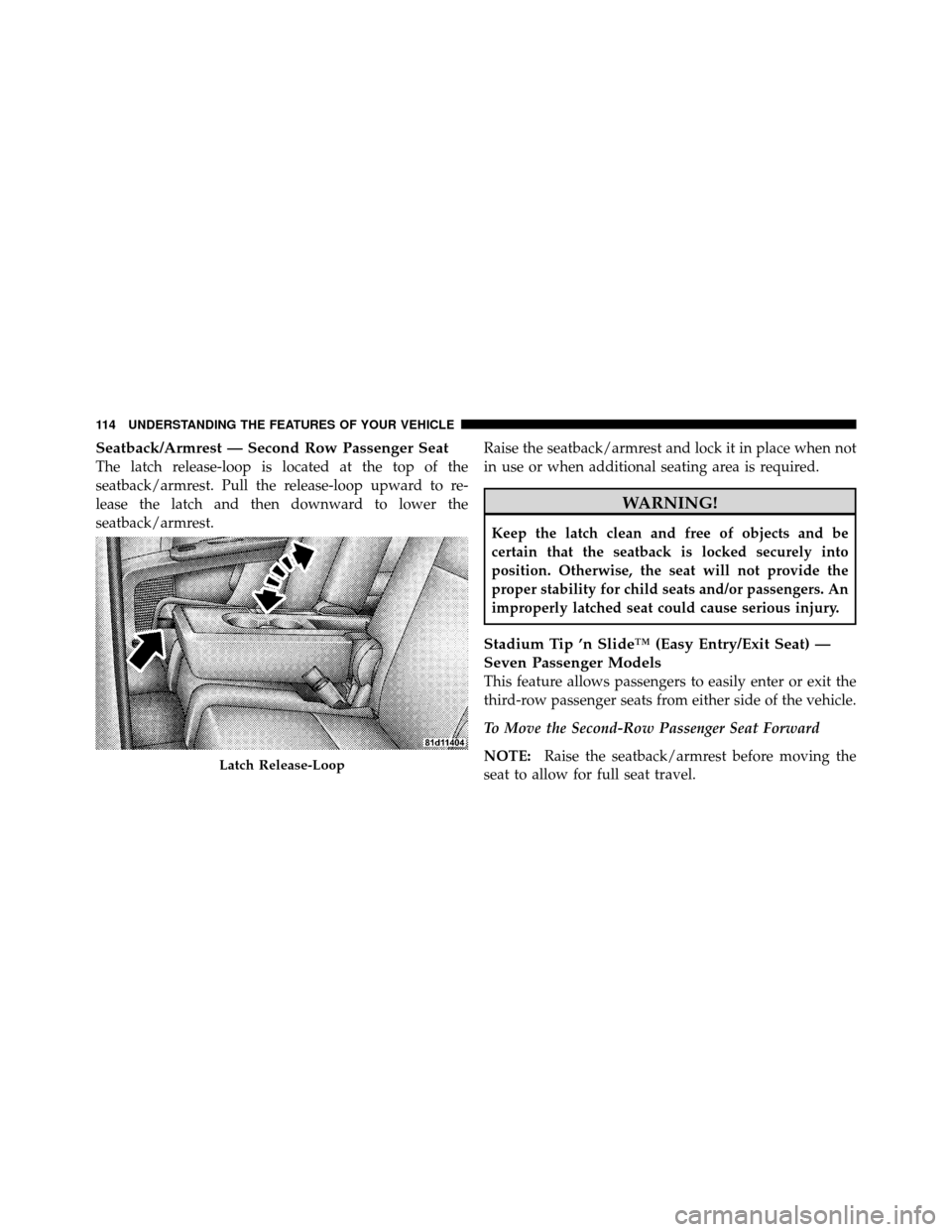

Seatback/Armrest — Second Row Passenger Seat
The latch release-loop is located at the top of the
seatback/armrest. Pull the release-loop upward to re-
lease the latch and then downward to lower the
seatback/armrest.Raise the seatback/armrest and lock it in place when not
in use or when additional seating area is required.
WARNING!
Keep the latch clean and free of objects and be
certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
Stadium Tip ’n Slide™ (Easy Entry/Exit Seat) —
Seven Passenger Models
This feature allows passengers to easily enter or exit the
third-row passenger seats from either side of the vehicle.
To Move the Second-Row Passenger Seat Forward
NOTE:
Raise the seatback/armrest before moving the
seat to allow for full seat travel.
Latch Release-Loop
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

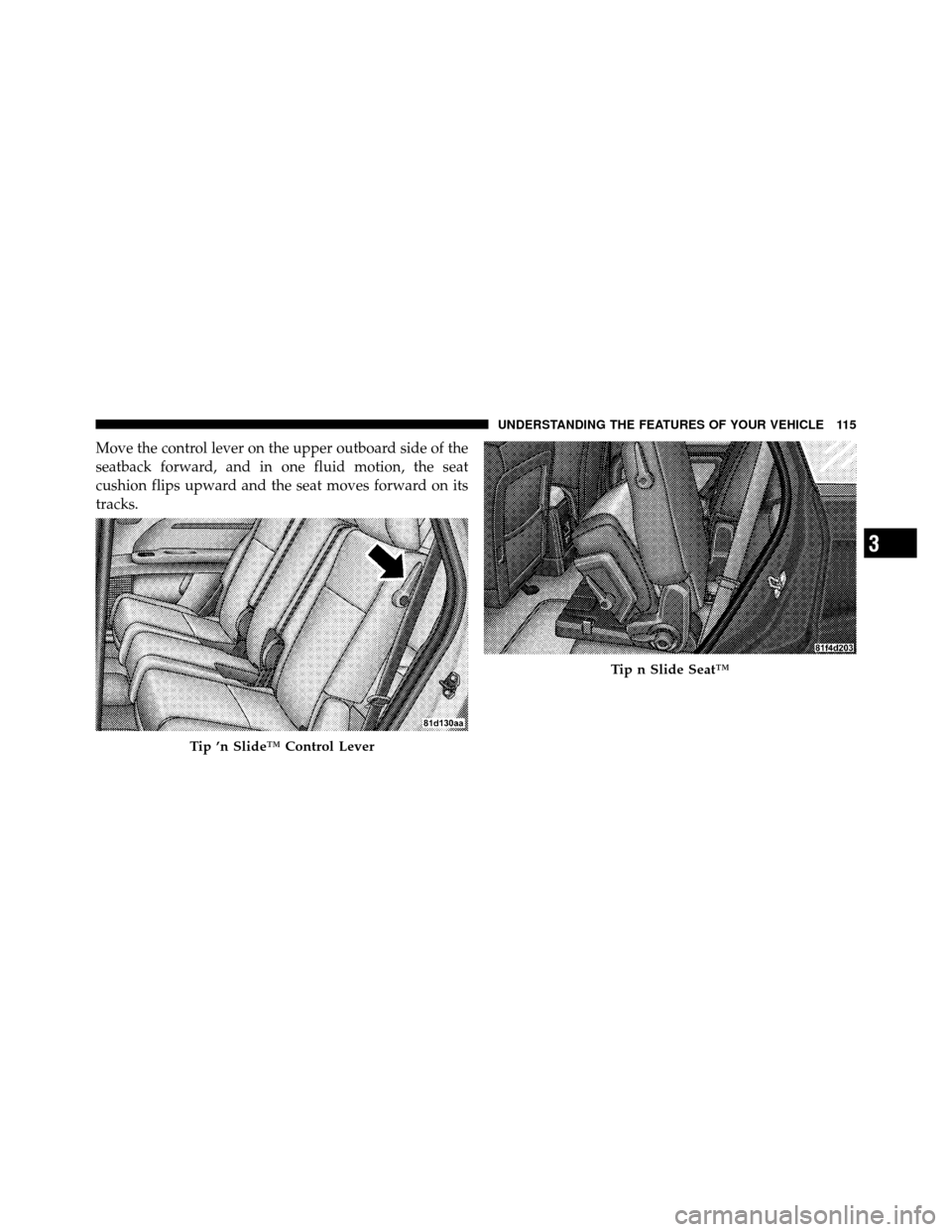

Move the control lever on the upper outboard side of the
seatback forward, and in one fluid motion, the seat
cushion flips upward and the seat moves forward on its
tracks.
Tip ’n Slide™ Control Lever
Tip n Slide Seat™
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

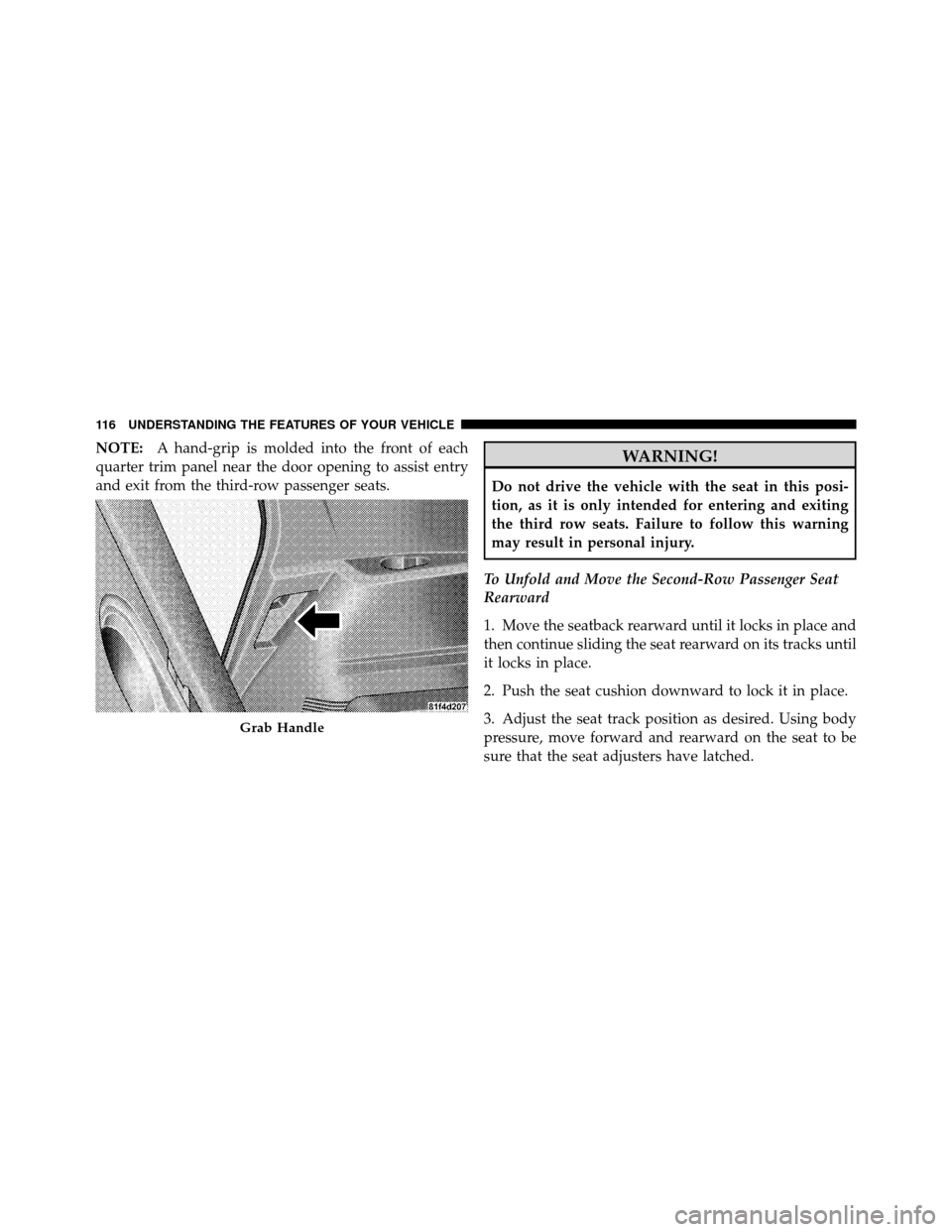

NOTE:A hand-grip is molded into the front of each
quarter trim panel near the door opening to assist entry
and exit from the third-row passenger seats.WARNING!
Do not drive the vehicle with the seat in this posi-
tion, as it is only intended for entering and exiting
the third row seats. Failure to follow this warning
may result in personal injury.
To Unfold and Move the Second-Row Passenger Seat
Rearward
1. Move the seatback rearward until it locks in place and
then continue sliding the seat rearward on its tracks until
it locks in place.
2. Push the seat cushion downward to lock it in place.
3. Adjust the seat track position as desired. Using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
Grab Handle
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Be certain that the seatback and seat are locked
securely into position. Otherwise, the seat will not
provide the proper stability for child seats and/or
passengers. An improperly latched seat could cause
serious injury.

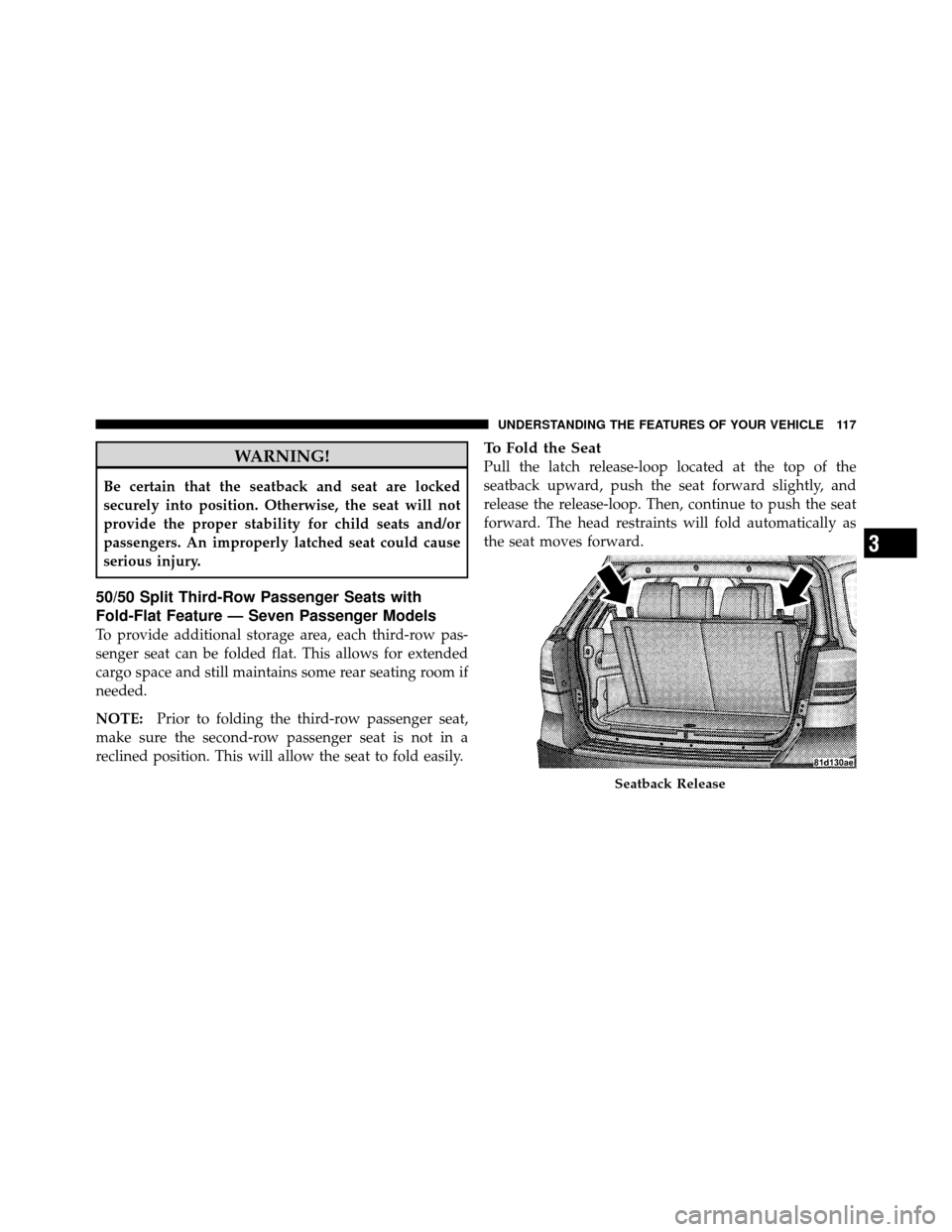

50/50 Split Third-Row Passenger Seats with
Fold-Flat Feature — Seven Passenger Models
To provide additional storage area, each third-row pas-
senger seat can be folded flat. This allows for extended
cargo space and still maintains some rear seating room if
needed.
NOTE:Prior to folding the third-row passenger seat,
make sure the second-row passenger seat is not in a
reclined position. This will allow the seat to fold easily.
To Fold the Seat
Pull the latch release-loop located at the top of the
seatback upward, push the seat forward slightly, and
release the release-loop. Then, continue to push the seat
forward. The head restraints will fold automatically as
the seat moves forward.
Seatback Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

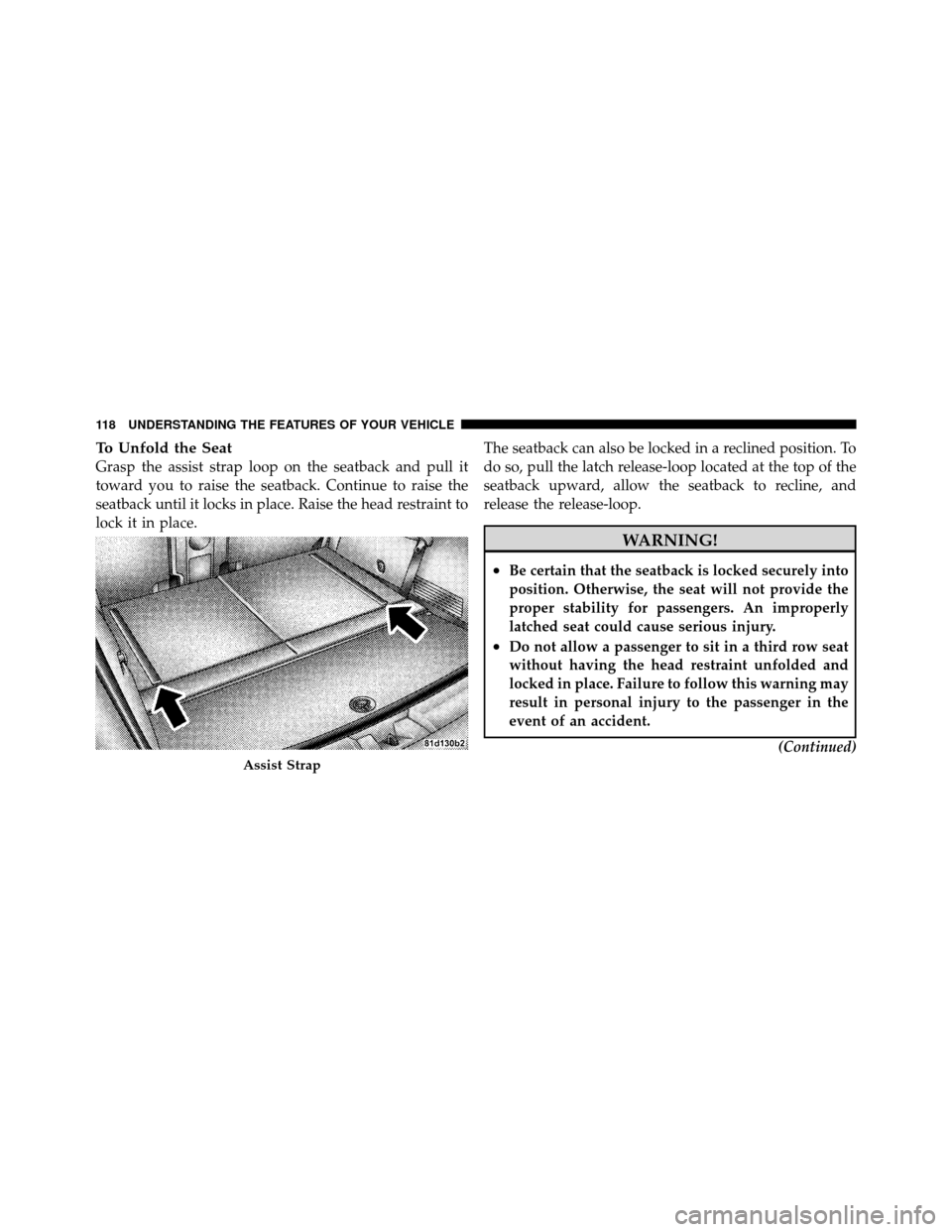

To Unfold the Seat
Grasp the assist strap loop on the seatback and pull it
toward you to raise the seatback. Continue to raise the
seatback until it locks in place. Raise the head restraint to
lock it in place.The seatback can also be locked in a reclined position. To
do so, pull the latch release-loop located at the top of the
seatback upward, allow the seatback to recline, and
release the release-loop.
WARNING!
•Be certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for passengers. An improperly
latched seat could cause serious injury.
•Do not allow a passenger to sit in a third row seat
without having the head restraint unfolded and
locked in place. Failure to follow this warning may
result in personal injury to the passenger in the
event of an accident.
(Continued)
Assist Strap
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

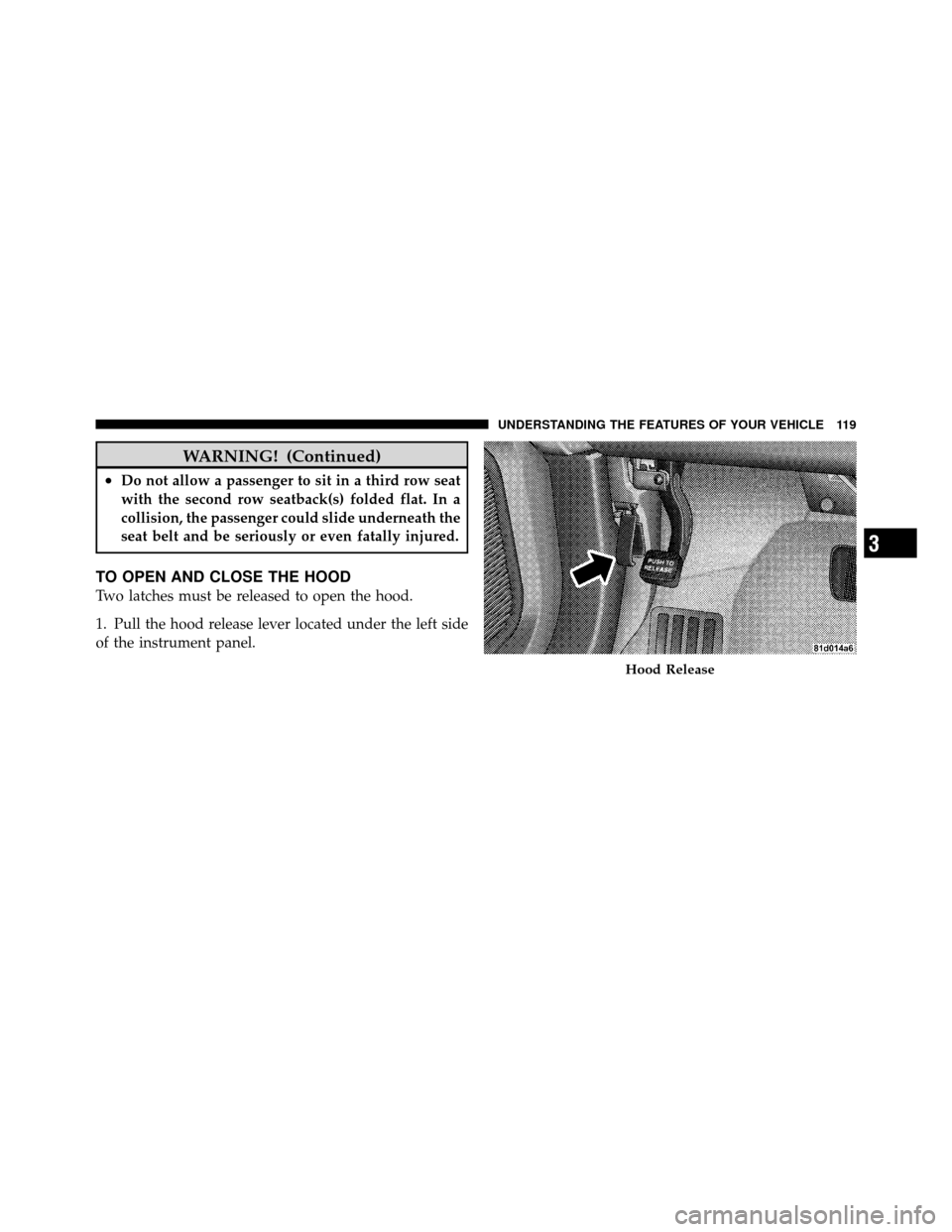

WARNING! (Continued)
•Do not allow a passenger to sit in a third row seat
with the second row seatback(s) folded flat. In a
collision, the passenger could slide underneath the
seat belt and be seriously or even fatally injured.
TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
