DODGE JOURNEY 2010 1.G Owners Manual

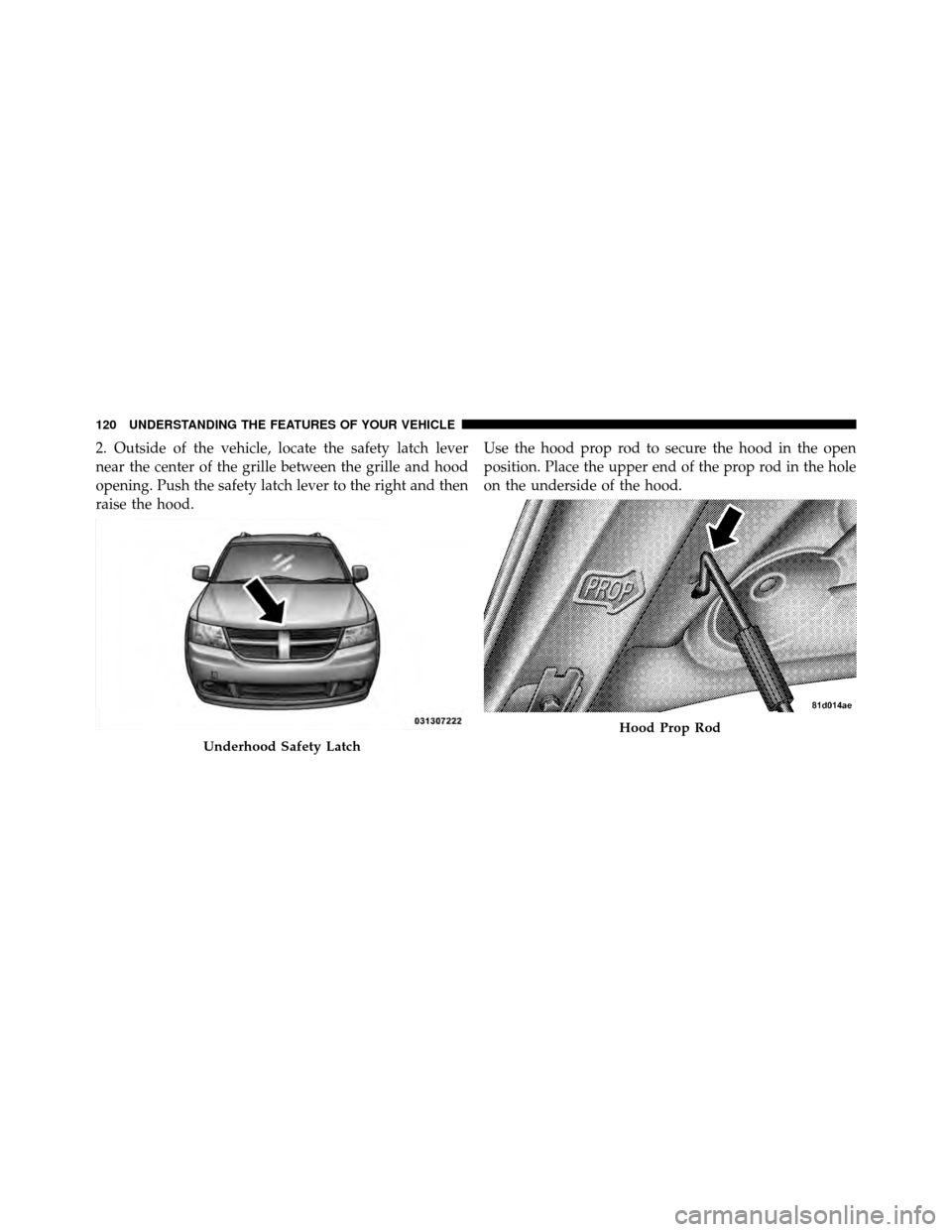

2. Outside of the vehicle, locate the safety latch lever
near the center of the grille between the grille and hood
opening. Push the safety latch lever to the right and then
raise the hood.Use the hood prop rod to secure the hood in the open
position. Place the upper end of the prop rod in the hole
on the underside of the hood.
Underhood Safety Latch
Hood Prop Rod
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To prevent possible damage:
•Before closing hood, make sure the hood prop rod
is fully seated into its storage retaining clips.
•Do not slam the hood to close it. Use a firm
downward push at the center front edge of the
hood to ensure that both latches engage. Never
drive your vehicle unless the hood is fully closed,
with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signal lights, instrument
panel lights, instrument panel light dimming, interior
lights and fog lights (if equipped). The multifunction
lever is located on the left side of the steering column.
Multifunction Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn the end of the lever to
the second detent for headlight operation.
Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
turn the end of the multifunction lever to the AUTO
position (third detent). When the system is on, the
headlight time delay feature is also on. This means the
headlights will stay on for up to 90 seconds after you turn
the ignition switch to the LOCK position. To turn the
Automatic System off, turn the end of the multifunction
lever out of the AUTO position.
Headlight Switch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The engine must be running before the head-
lights will turn on in the automatic mode.
Headlights with Wipers (Available with Automatic
Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the multifunction lever is placed in the AUTO position. In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.
The Headlights with Wipers feature can be turned on or
off through the Electronic Vehicle Information Center
(EVIC) (if equipped). Refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Customer-Programmable Fea-
tures” in “Understanding Your Instrument Panel” for
further information.
Headlight Time Delay — If Equipped
This feature is particularly useful when exiting your
vehicle in an unlit area. It provides the safety of headlight
illumination for up to 90 seconds after turning the
ignition switch to the LOCK position.
To activate the delay, turn the ignition switch to the
LOCK position while the headlights are still on. Then,
turn off the headlights within 45 seconds. The delay
interval begins when you turn off the headlights. Only
the headlights will illuminate during this time.Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

If you turn the headlights, or parking lights, or ignition
switch ON again, the system will cancel the delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
The headlight delay time is programmable on vehicles
equipped with the EVIC. Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.
Instrument Panel Dimmer
Rotate the center potion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Dimmer Control
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

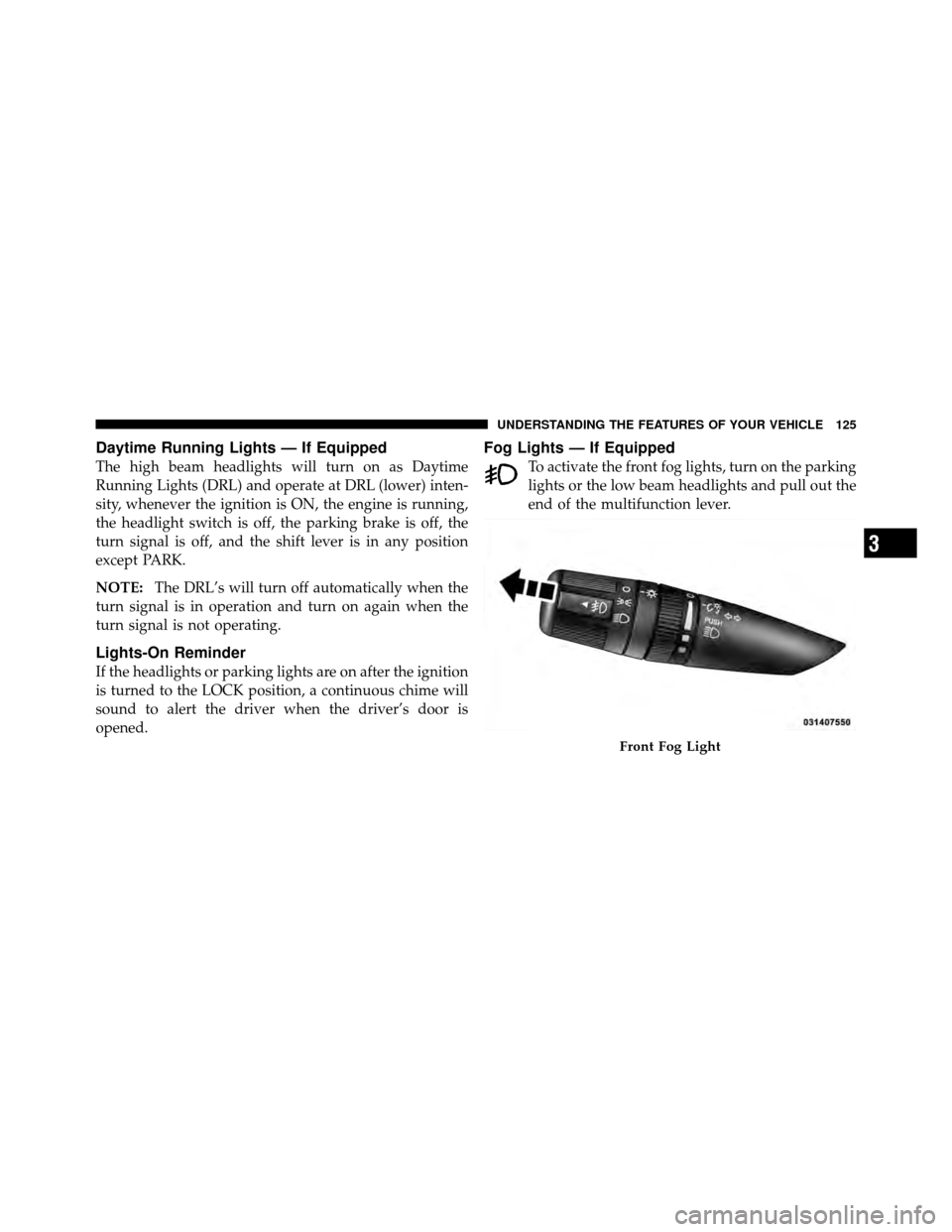

Daytime Running Lights — If Equipped
The high beam headlights will turn on as Daytime
Running Lights (DRL) and operate at DRL (lower) inten-
sity, whenever the ignition is ON, the engine is running,
the headlight switch is off, the parking brake is off, the
turn signal is off, and the shift lever is in any position
except PARK.
NOTE:The DRL’s will turn off automatically when the
turn signal is in operation and turn on again when the
turn signal is not operating.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned to the LOCK position, a continuous chime will
sound to alert the driver when the driver’s door is
opened.
Fog Lights — If Equipped
To activate the front fog lights, turn on the parking
lights or the low beam headlights and pull out the
end of the multifunction lever.
Front Fog Light
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

NOTE:The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Turn Signals
Move the multifunction lever upward or downward and
the corresponding turn signal indicator on the instru-
ment panel will flash to show proper operation of the
front and rear turn signal lights.
NOTE:If either turn signal indicator has a very fast
flash rate, check for an inoperative outside light bulb. If
an indicator fails to light when the lever is moved, see
your authorized dealer for service.
Turn Signal Control
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

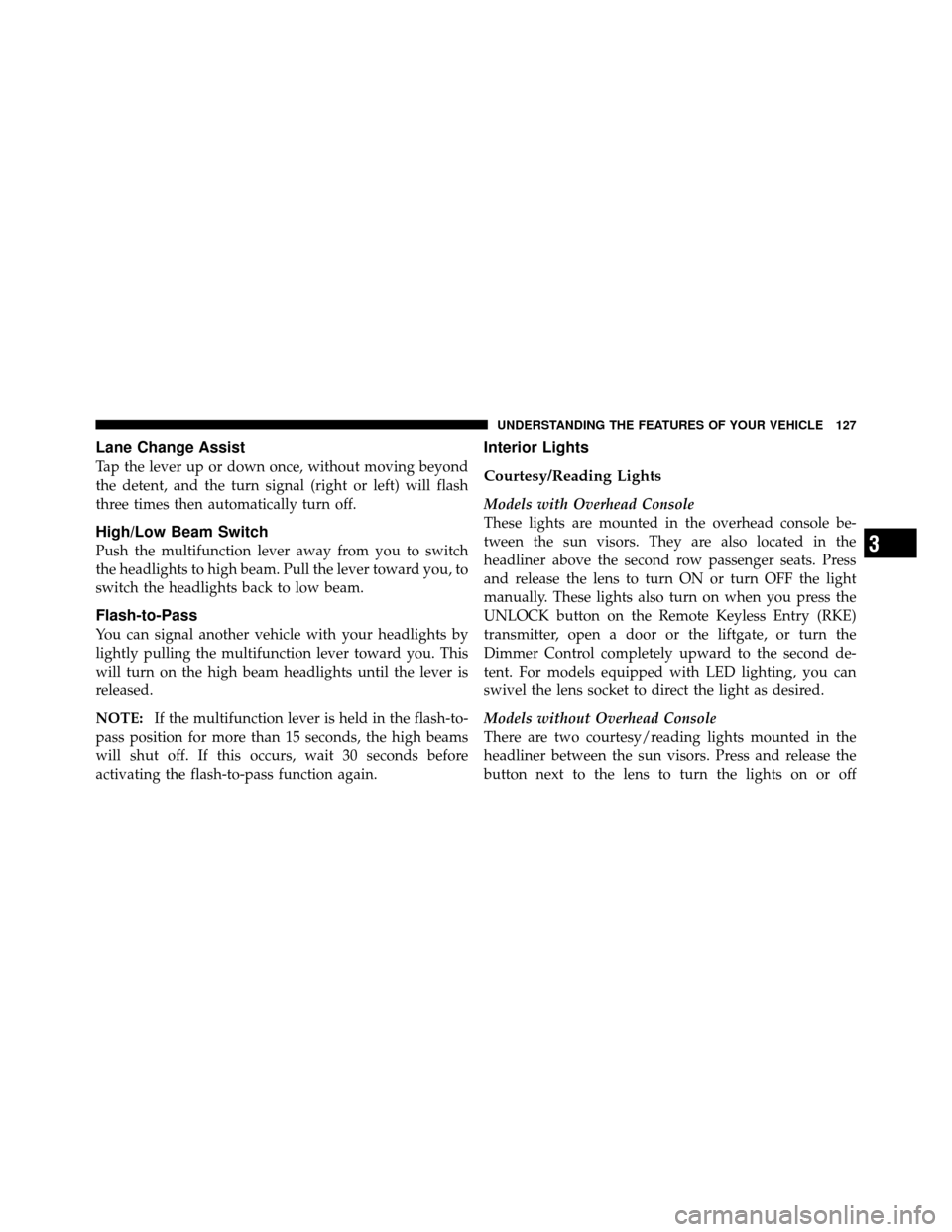

Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off. If this occurs, wait 30 seconds before
activating the flash-to-pass function again.
Interior Lights
Courtesy/Reading Lights
Models with Overhead Console
These lights are mounted in the overhead console be-
tween the sun visors. They are also located in the
headliner above the second row passenger seats. Press
and release the lens to turn ON or turn OFF the light
manually. These lights also turn on when you press the
UNLOCK button on the Remote Keyless Entry (RKE)
transmitter, open a door or the liftgate, or turn the
Dimmer Control completely upward to the second de-
tent. For models equipped with LED lighting, you can
swivel the lens socket to direct the light as desired.
Models without Overhead Console
There are two courtesy/reading lights mounted in the
headliner between the sun visors. Press and release the
button next to the lens to turn the lights on or off
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

manually. A courtesy light is also mounted in the head-
liner above the second row passenger seats. Press and
release the lens to turn ON or turn OFF the light
manually. These lights also turn on when you press the
UNLOCK button on the RKE transmitter, open a door or
the liftgate, or turn the dimmer control completely up-
ward to the second detent.
Battery Saver Feature
To protect the battery, the interior lights will turn off
automatically within 10 minutes of turning the ignition
switch to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open.
Cargo Light
This light is mounted in the liftgate trim panel. It turns on
when you press the UNLOCK button on the RKE trans-
mitter, open a door or the liftgate, or turn the dimmer
control completely upward to the second detent.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the right side of the steering column. The front wipers are
operated by rotating a switch, located at the end of the
lever. For information on using the rear window wiper/
washer, refer to “Rear Window Features” in “Under-
standing the Features of Your Vehicle”.

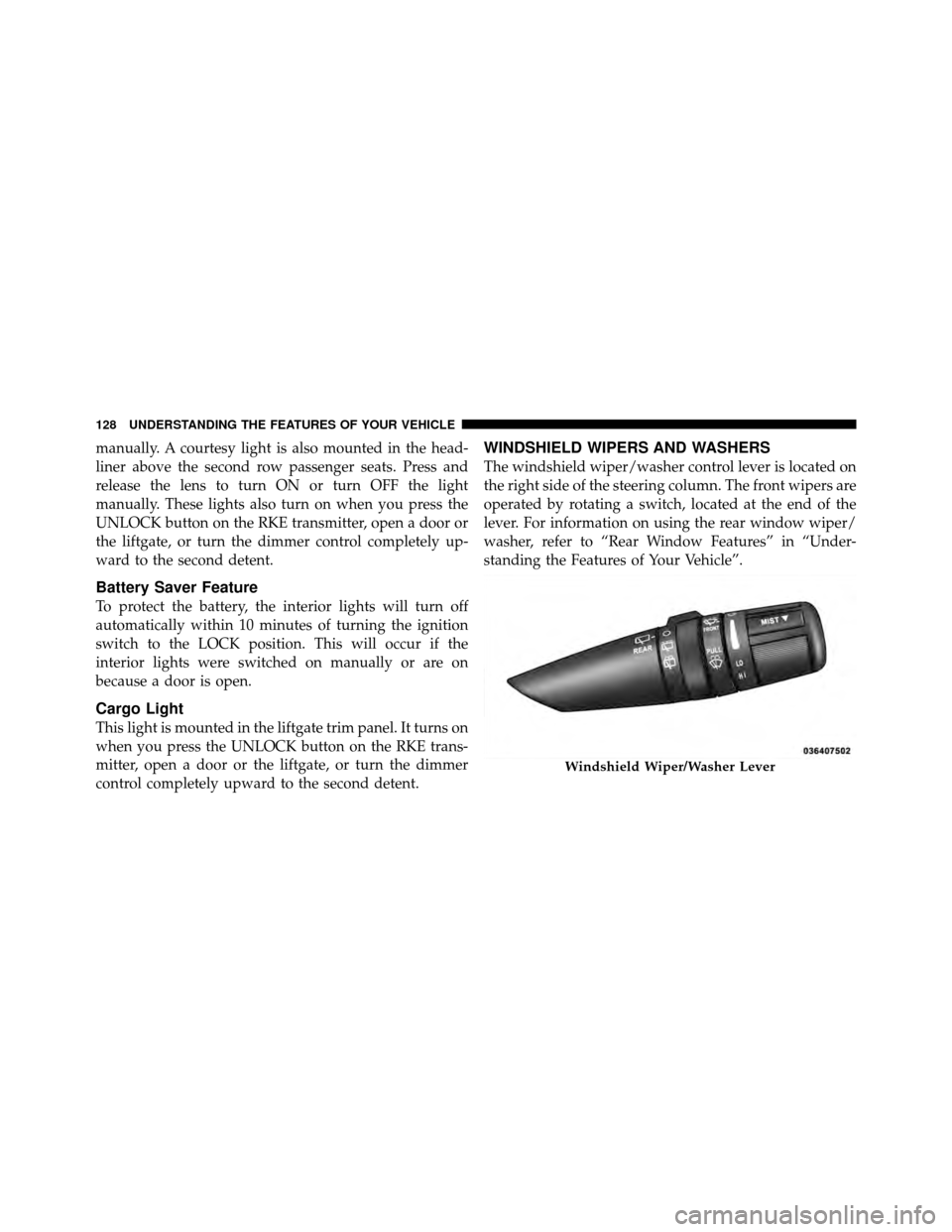

Windshield Wiper/Washer Lever
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

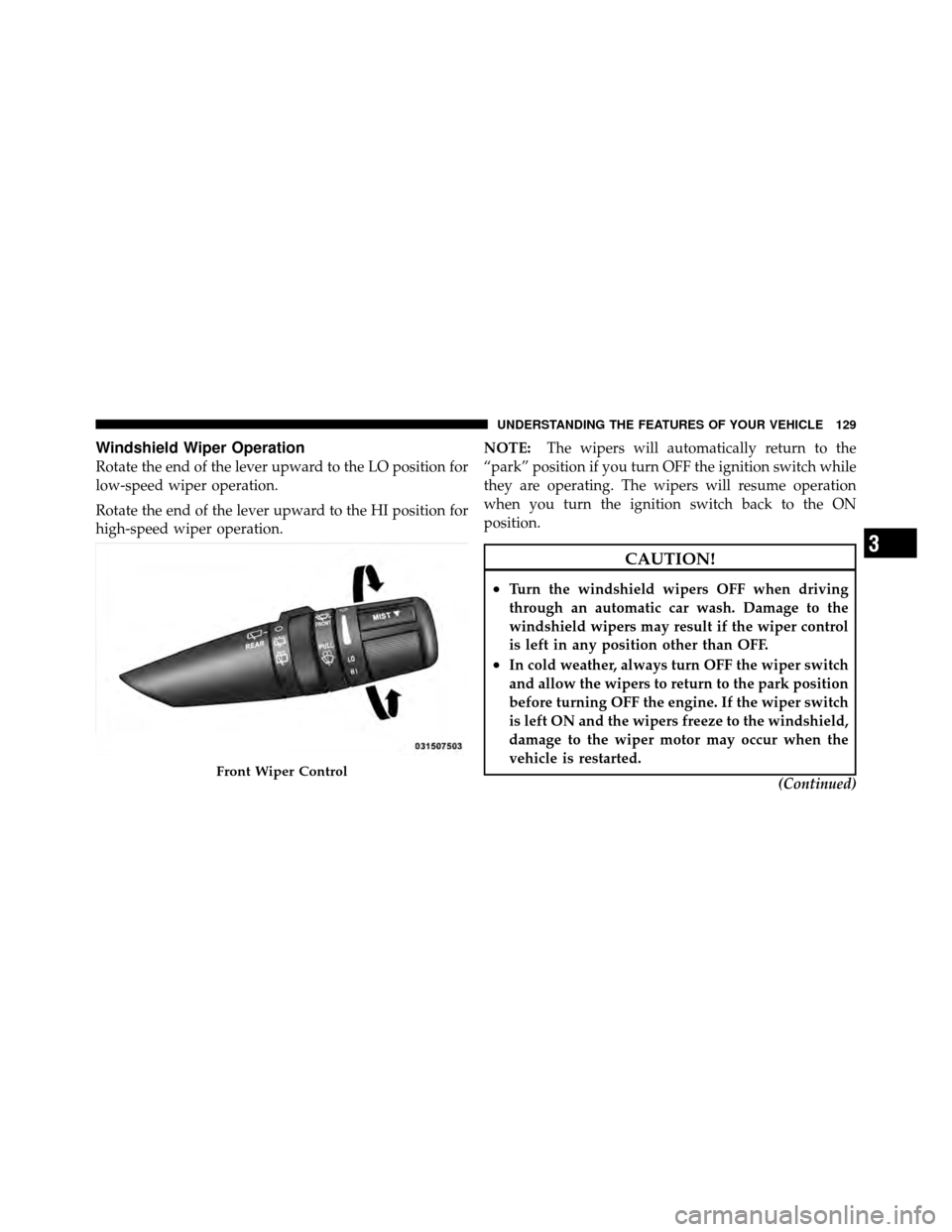

Windshield Wiper Operation
Rotate the end of the lever upward to the LO position for
low-speed wiper operation.
Rotate the end of the lever upward to the HI position for
high-speed wiper operation.NOTE:
The wipers will automatically return to the
“park” position if you turn OFF the ignition switch while
they are operating. The wipers will resume operation
when you turn the ignition switch back to the ON
position.
CAUTION!
•Turn the windshield wipers OFF when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than OFF.
•In cold weather, always turn OFF the wiper switch
and allow the wipers to return to the park position
before turning OFF the engine. If the wiper switch
is left ON and the wipers freeze to the windshield,
damage to the wiper motor may occur when the
vehicle is restarted.
(Continued)
Front Wiper Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
