DODGE JOURNEY 2010 1.G Owners Manual

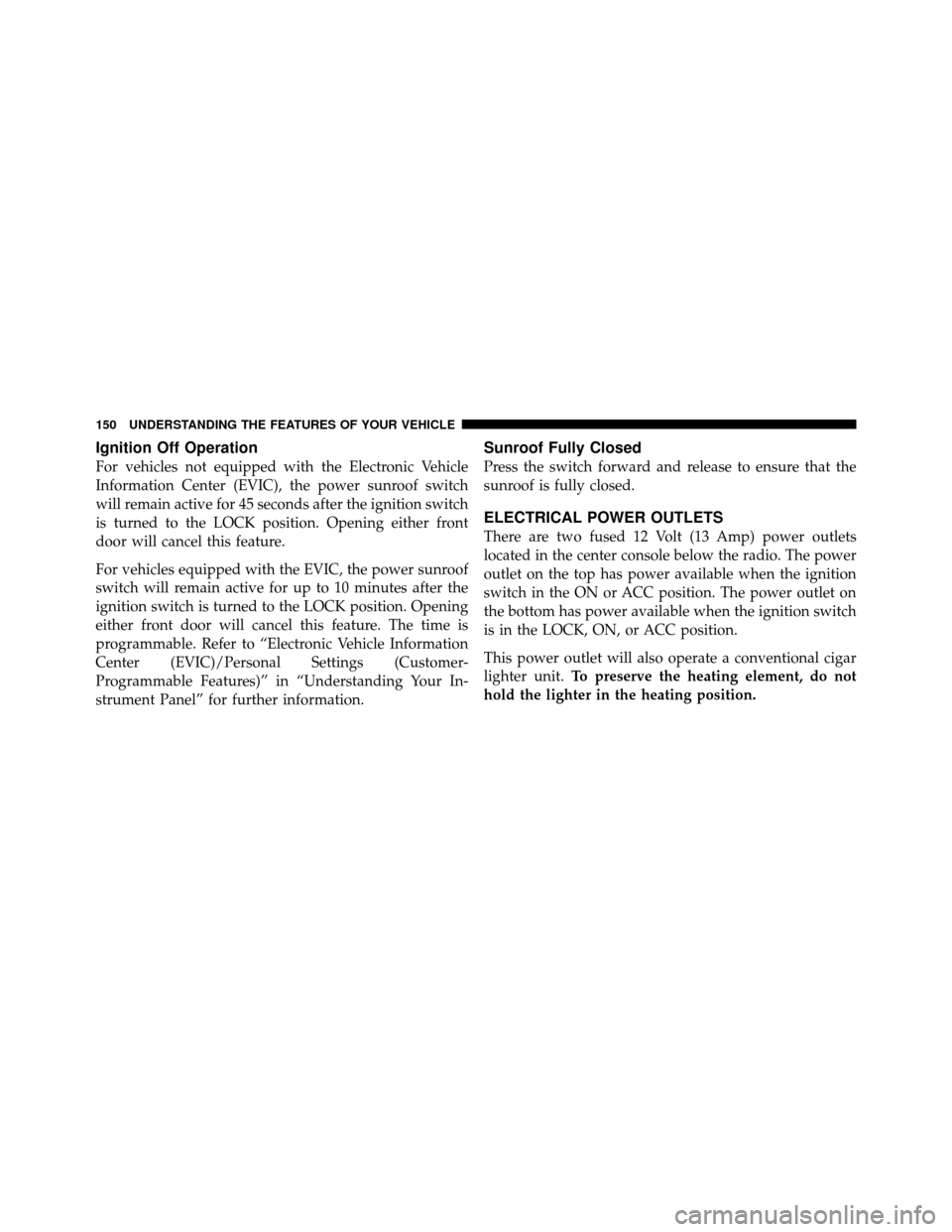

Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned to the LOCK position. Opening either front
door will cancel this feature.
For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to 10 minutes after the
ignition switch is turned to the LOCK position. Opening
either front door will cancel this feature. The time is
programmable. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Sunroof Fully Closed
Press the switch forward and release to ensure that the
sunroof is fully closed.
ELECTRICAL POWER OUTLETS
There are two fused 12 Volt (13 Amp) power outlets
located in the center console below the radio. The power
outlet on the top has power available when the ignition
switch in the ON or ACC position. The power outlet on
the bottom has power available when the ignition switch
is in the LOCK, ON, or ACC position.
This power outlet will also operate a conventional cigar
lighter unit.To preserve the heating element, do not
hold the lighter in the heating position.
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

A third fused 12 Volt power outlet is located on the back
of the center console. This power outlet has power
available when the ignition switch is in the LOCK, ON or
ACC position.

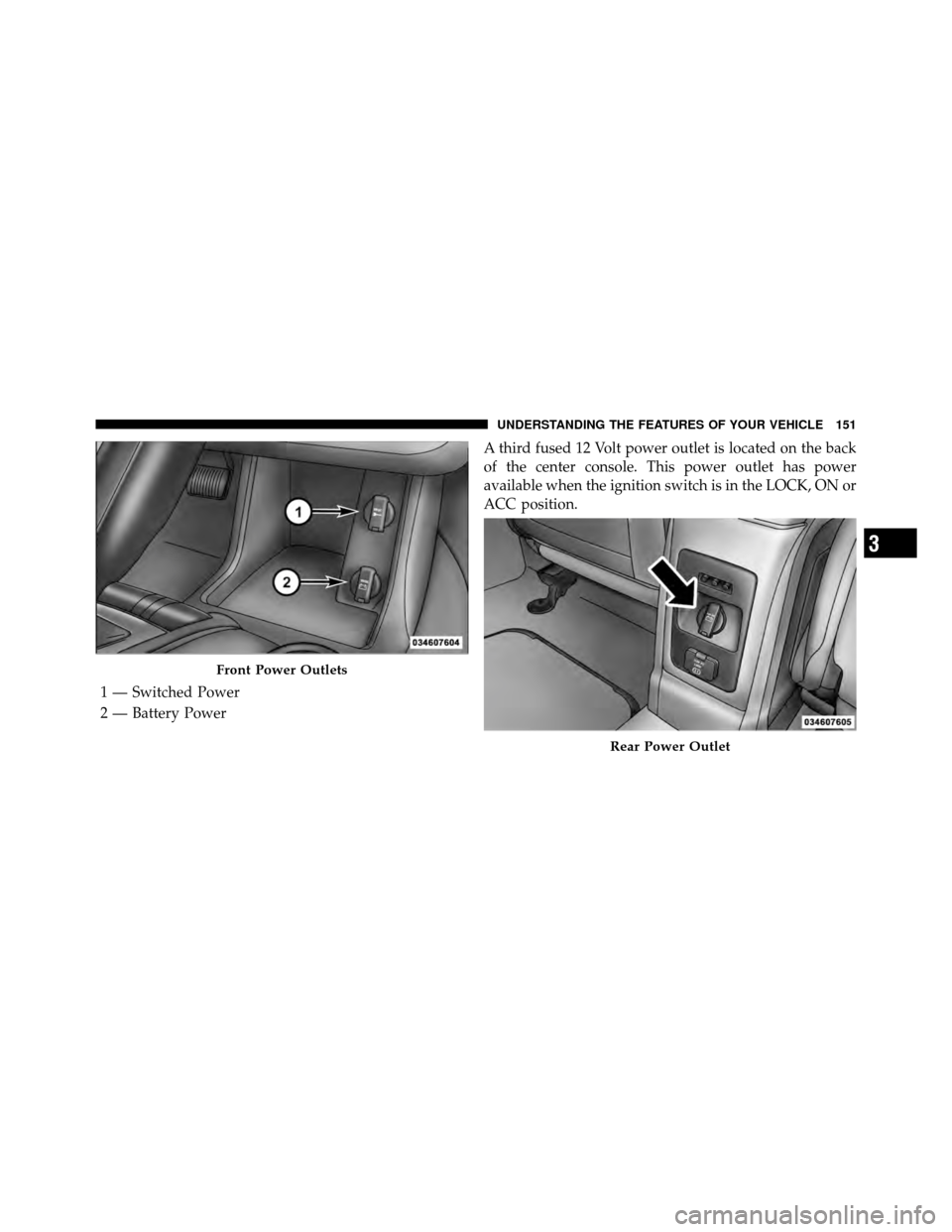

Front Power Outlets
1 — Switched Power
2 — Battery Power
Rear Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

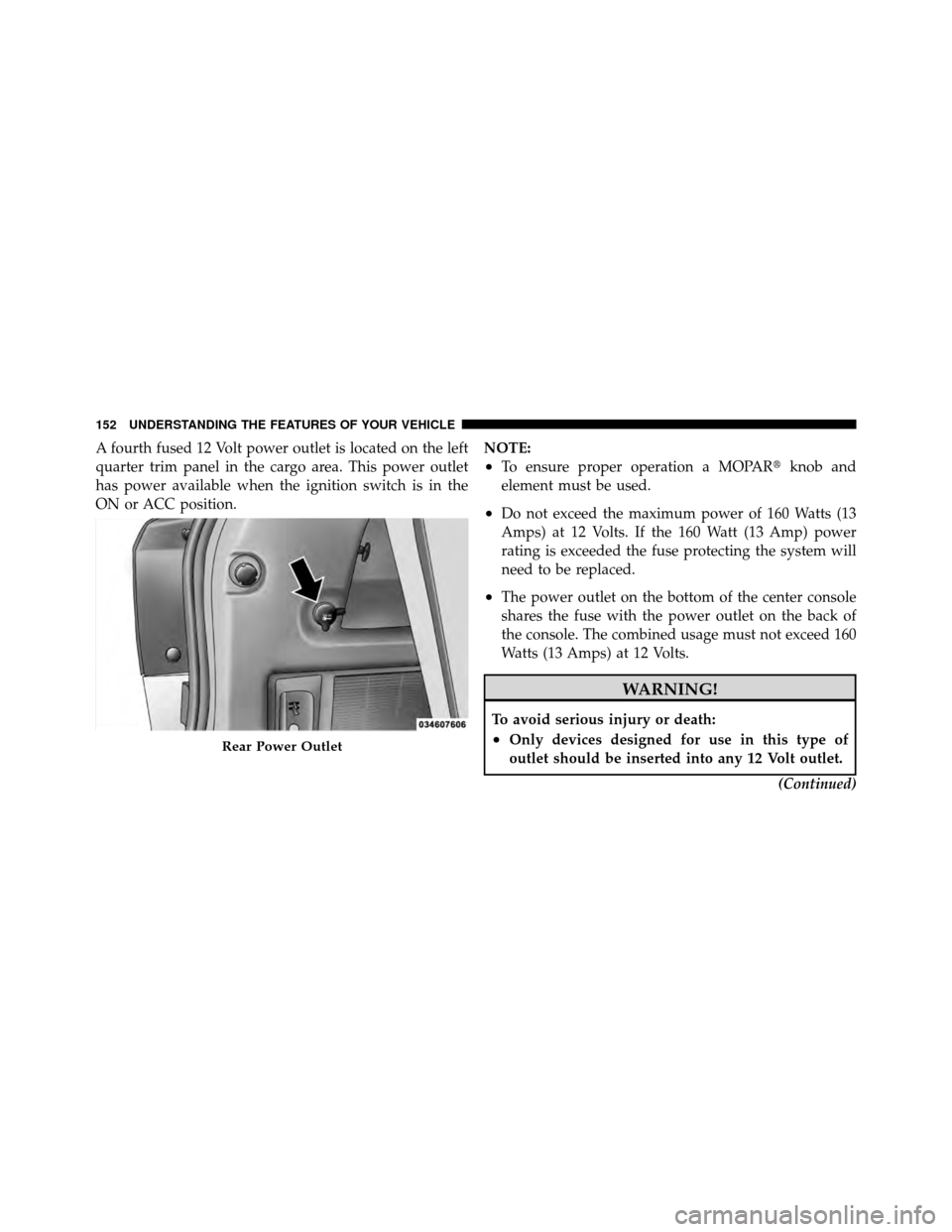

A fourth fused 12 Volt power outlet is located on the left
quarter trim panel in the cargo area. This power outlet
has power available when the ignition switch is in the
ON or ACC position.NOTE:
•To ensure proper operation a MOPAR
knob and
element must be used.
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
•The power outlet on the bottom of the center console
shares the fuse with the power outlet on the back of
the console. The combined usage must not exceed 160
Watts (13 Amps) at 12 Volts.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
(Continued)Rear Power Outlet
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

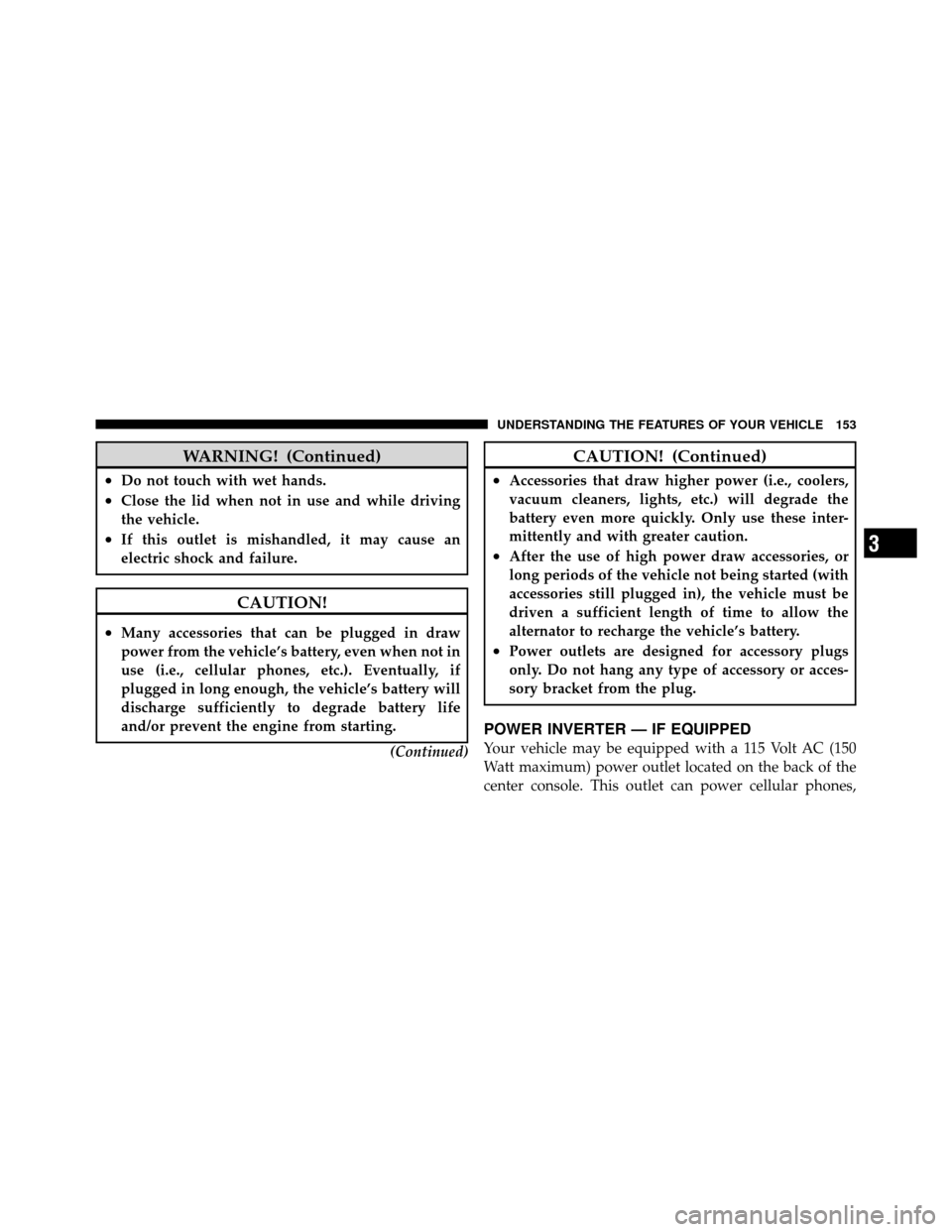

WARNING! (Continued)
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.(Continued)
CAUTION! (Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.
•Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or acces-
sory bracket from the plug.
POWER INVERTER — IF EQUIPPED
Your vehicle may be equipped with a 115 Volt AC (150
Watt maximum) power outlet located on the back of the
center console. This outlet can power cellular phones,
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

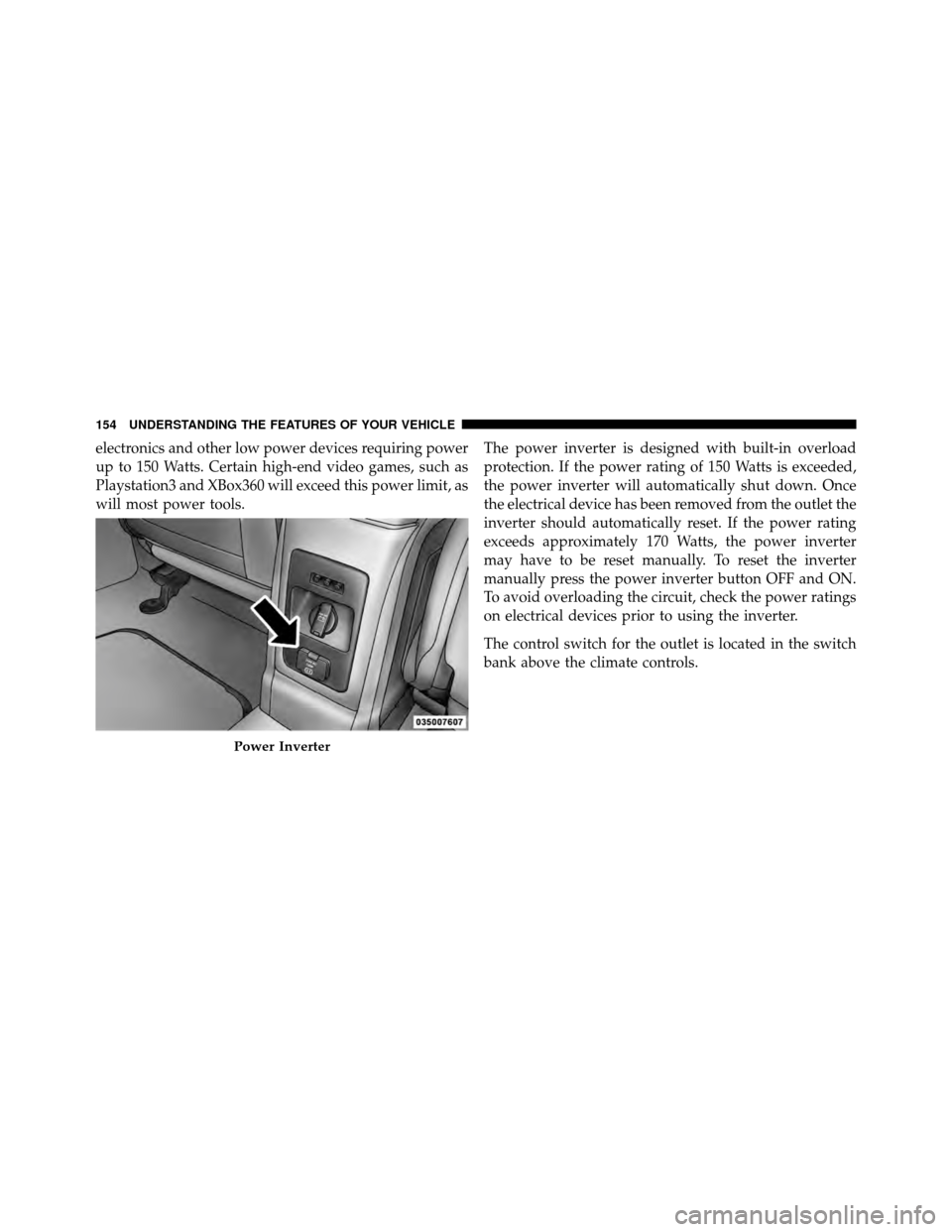

electronics and other low power devices requiring power
up to 150 Watts. Certain high-end video games, such as
Playstation3 and XBox360 will exceed this power limit, as
will most power tools.The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.
To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.
The control switch for the outlet is located in the switch
bank above the climate controls.
Power Inverter
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

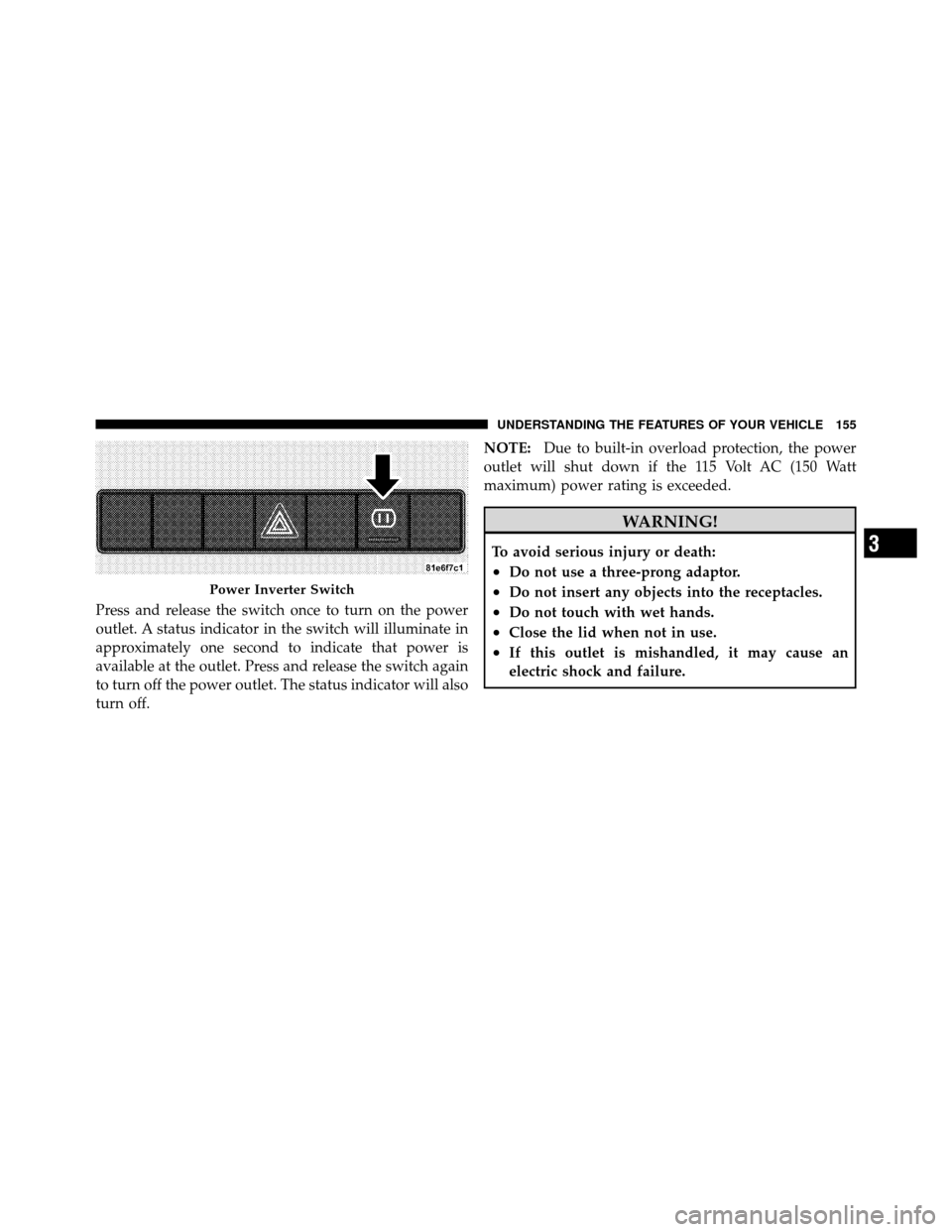

Press and release the switch once to turn on the power
outlet. A status indicator in the switch will illuminate in
approximately one second to indicate that power is
available at the outlet. Press and release the switch again
to turn off the power outlet. The status indicator will also
turn off.NOTE:
Due to built-in overload protection, the power
outlet will shut down if the 115 Volt AC (150 Watt
maximum) power rating is exceeded.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an
electric shock and failure.
Power Inverter Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

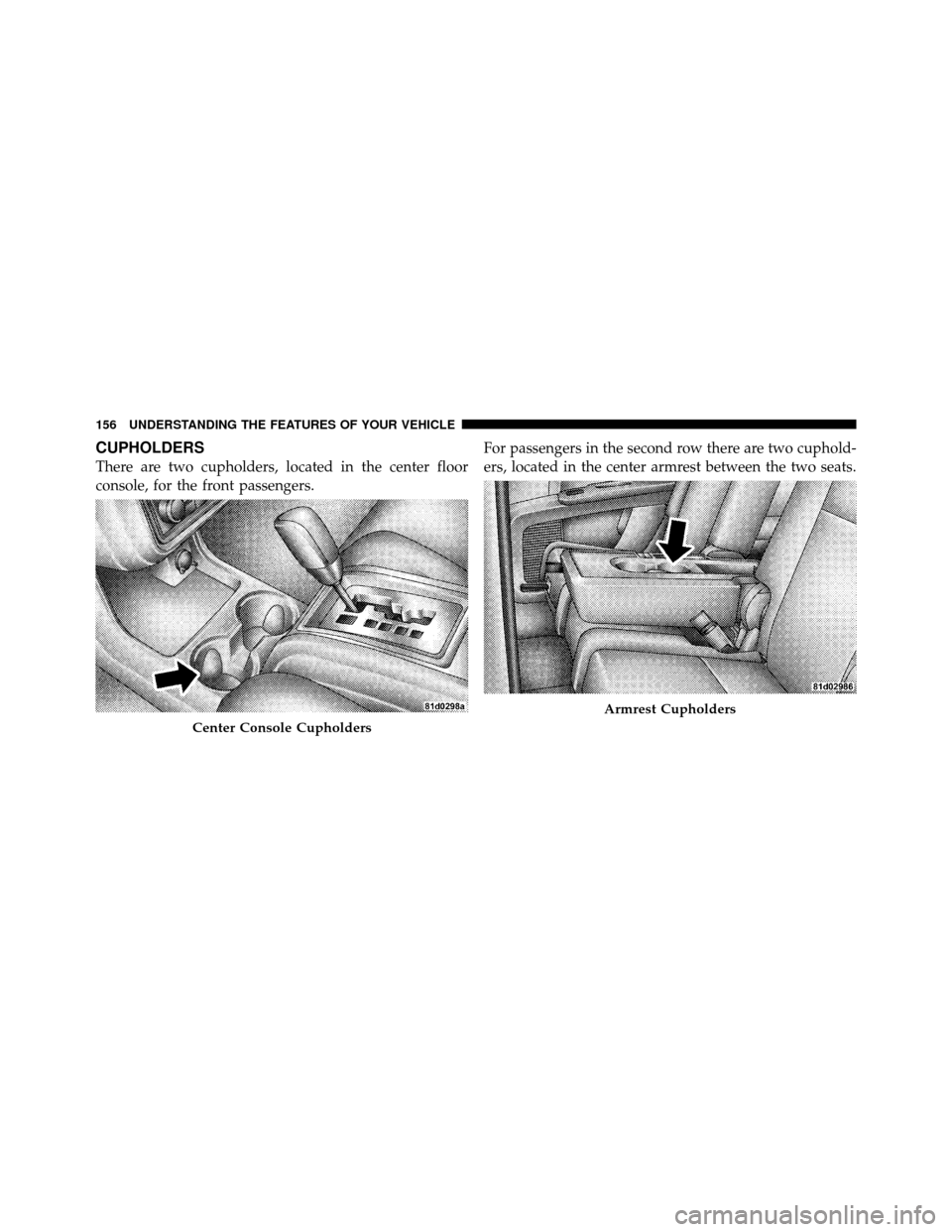

CUPHOLDERS
There are two cupholders, located in the center floor
console, for the front passengers.For passengers in the second row there are two cuphold-
ers, located in the center armrest between the two seats.
Center Console Cupholders
Armrest Cupholders
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

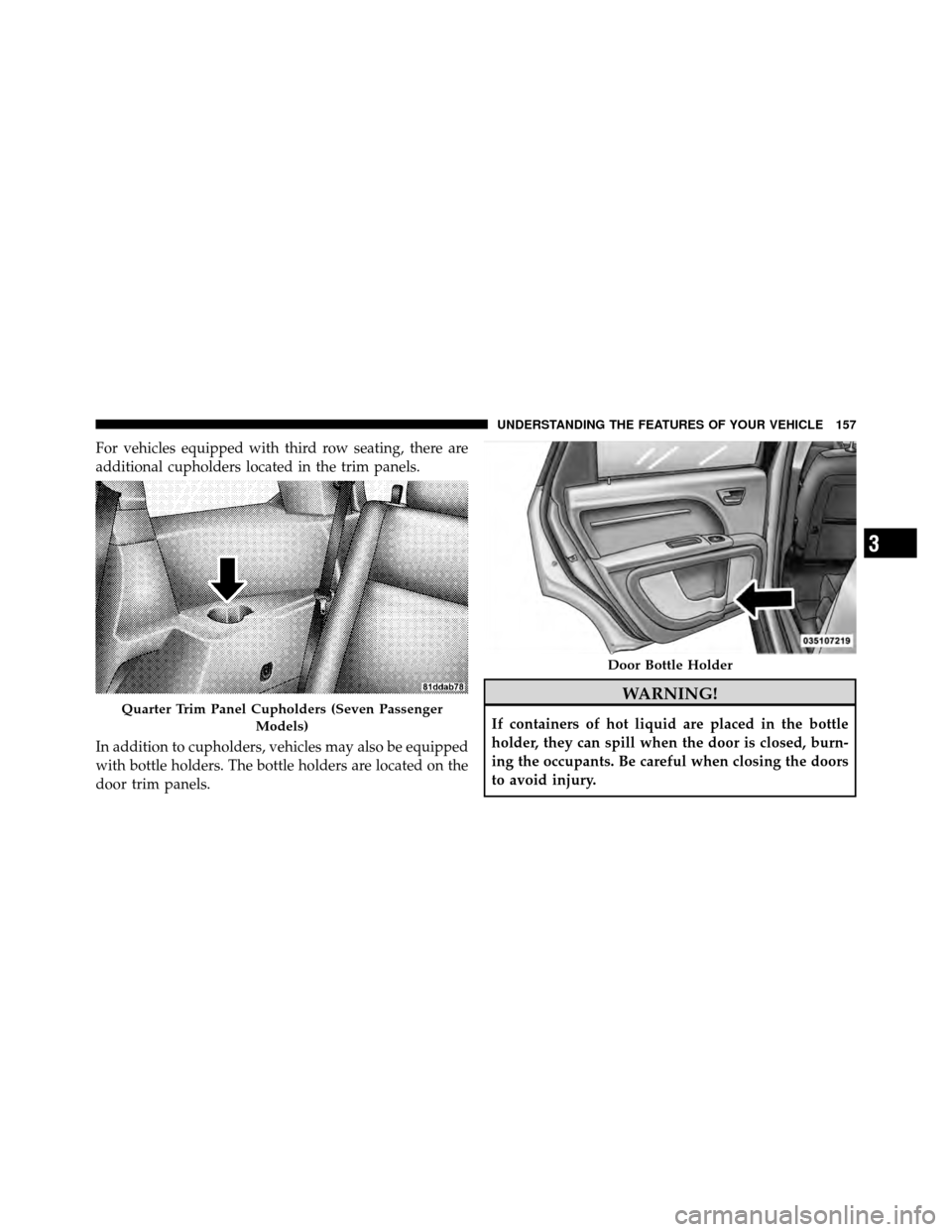

For vehicles equipped with third row seating, there are
additional cupholders located in the trim panels.
In addition to cupholders, vehicles may also be equipped
with bottle holders. The bottle holders are located on the
door trim panels.
WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.Quarter Trim Panel Cupholders (Seven PassengerModels)
Door Bottle Holder
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

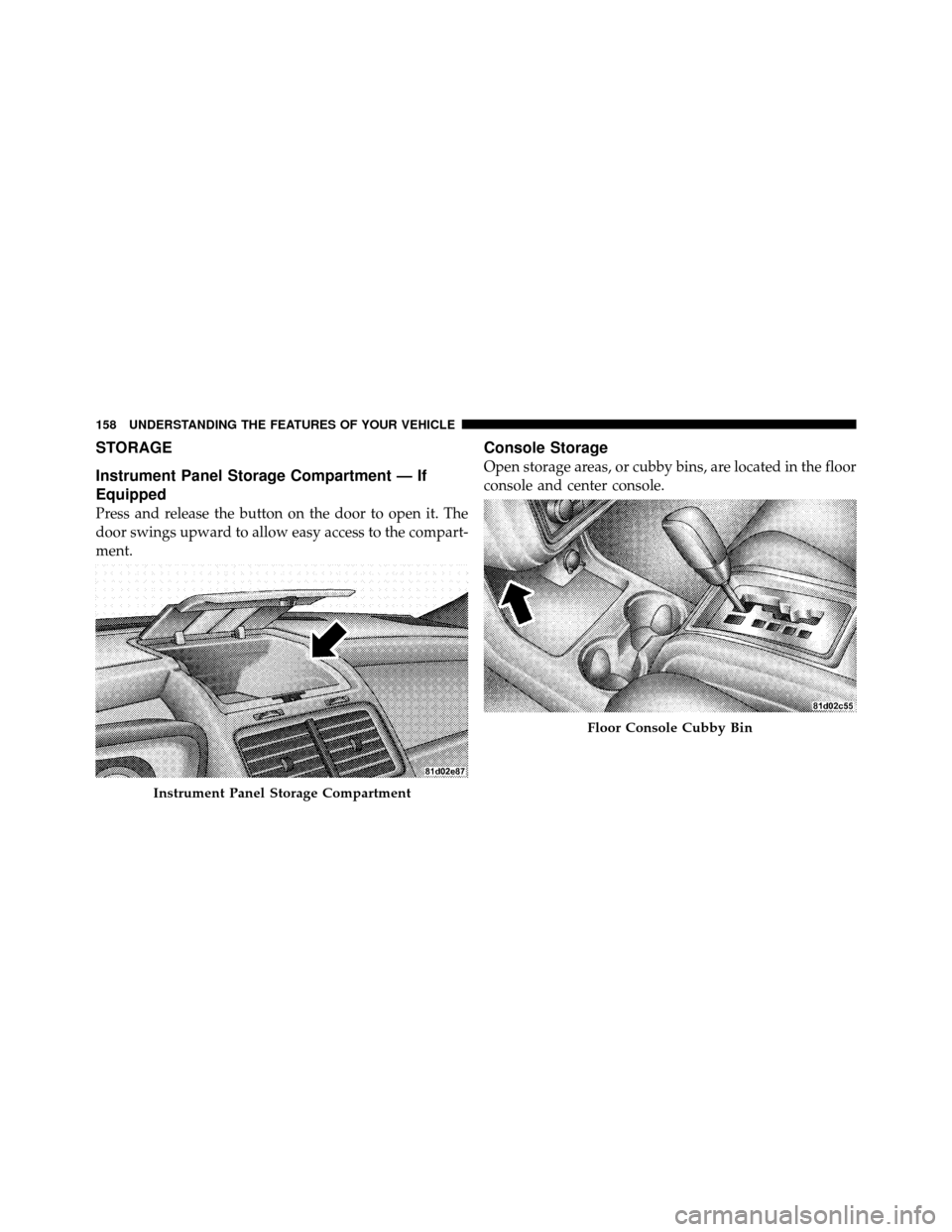

STORAGE
Instrument Panel Storage Compartment — If
Equipped
Press and release the button on the door to open it. The
door swings upward to allow easy access to the compart-
ment.
Console Storage
Open storage areas, or cubby bins, are located in the floor
console and center console.
Instrument Panel Storage Compartment
Floor Console Cubby Bin
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

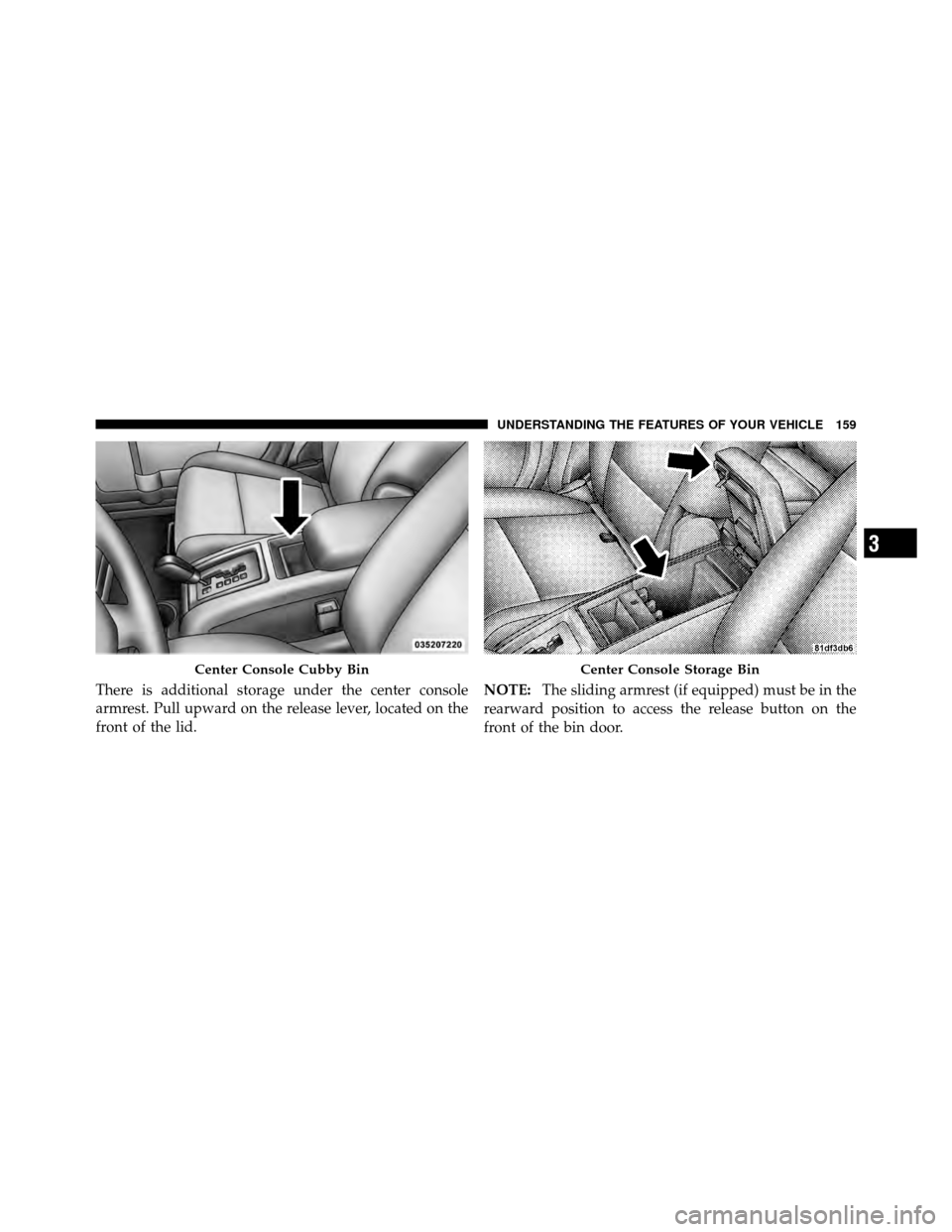

There is additional storage under the center console
armrest. Pull upward on the release lever, located on the
front of the lid.NOTE:
The sliding armrest (if equipped) must be in the
rearward position to access the release button on the
front of the bin door.
Center Console Cubby BinCenter Console Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
