DODGE JOURNEY 2010 1.G Owners Manual

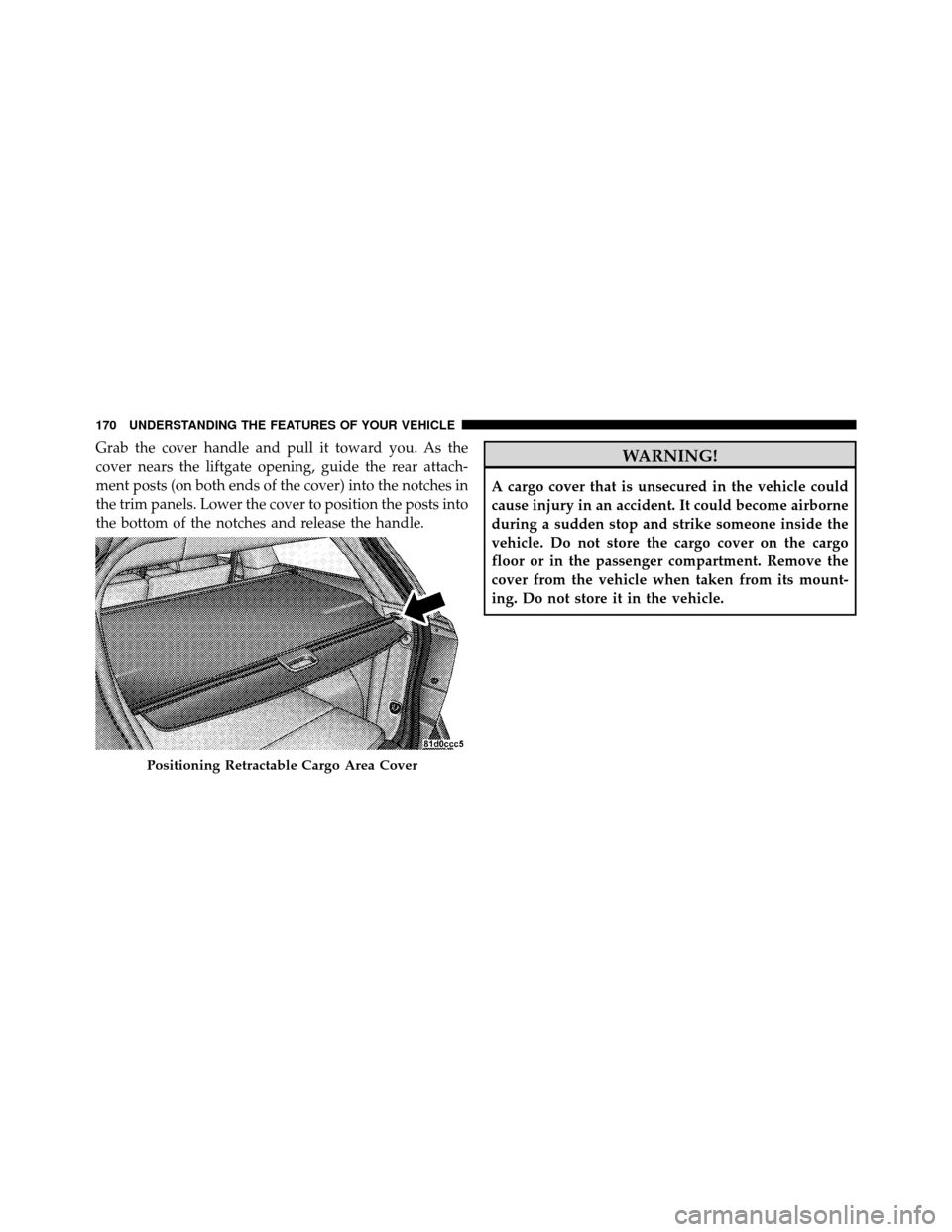

Grab the cover handle and pull it toward you. As the
cover nears the liftgate opening, guide the rear attach-
ment posts (on both ends of the cover) into the notches in
the trim panels. Lower the cover to position the posts into
the bottom of the notches and release the handle.WARNING!
A cargo cover that is unsecured in the vehicle could
cause injury in an accident. It could become airborne
during a sudden stop and strike someone inside the
vehicle. Do not store the cargo cover on the cargo
floor or in the passenger compartment. Remove the
cover from the vehicle when taken from its mount-
ing. Do not store it in the vehicle.
Positioning Retractable Cargo Area Cover
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear window wiper/washer control is located on the
right side of the steering column.Rotate the switch upward to the “On” position will
activate the rear wiper.
Rotate the switch upward to the “washer” position
will activate that rear washer. The washer pump
will continue to operate as long as the lever or ring
is engaged. Upon release, the wipers will cycle three
times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Window Wiper/Washer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

CAUTION!
•Turn the rear wiper off when driving through an
automatic car wash. Damage to the rear wiper may
result if the rear wiper switch is left in the on
position.
•In cold weather, always turn off the rear wiper
switch and allow the rear wiper to return to the
park position before turning off the engine. If the
rear wiper switch is left on and the rear wiper
freezes to the window, damage to the rear wiper
motor may occur when the vehicle is restarted.
•Always remove any buildup of snow that prevents
the rear wiper blade from returning to the park
position. If the rear wiper control is turned off and
the blade cannot return to the park position, dam-
age to the rear wiper motor may occur.
Rear Window Defroster
The rear window defroster button is located on the
climate control panel. Press this button to turn on
the rear window defroster and the heated outside mirrors
(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately
10 minutes.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

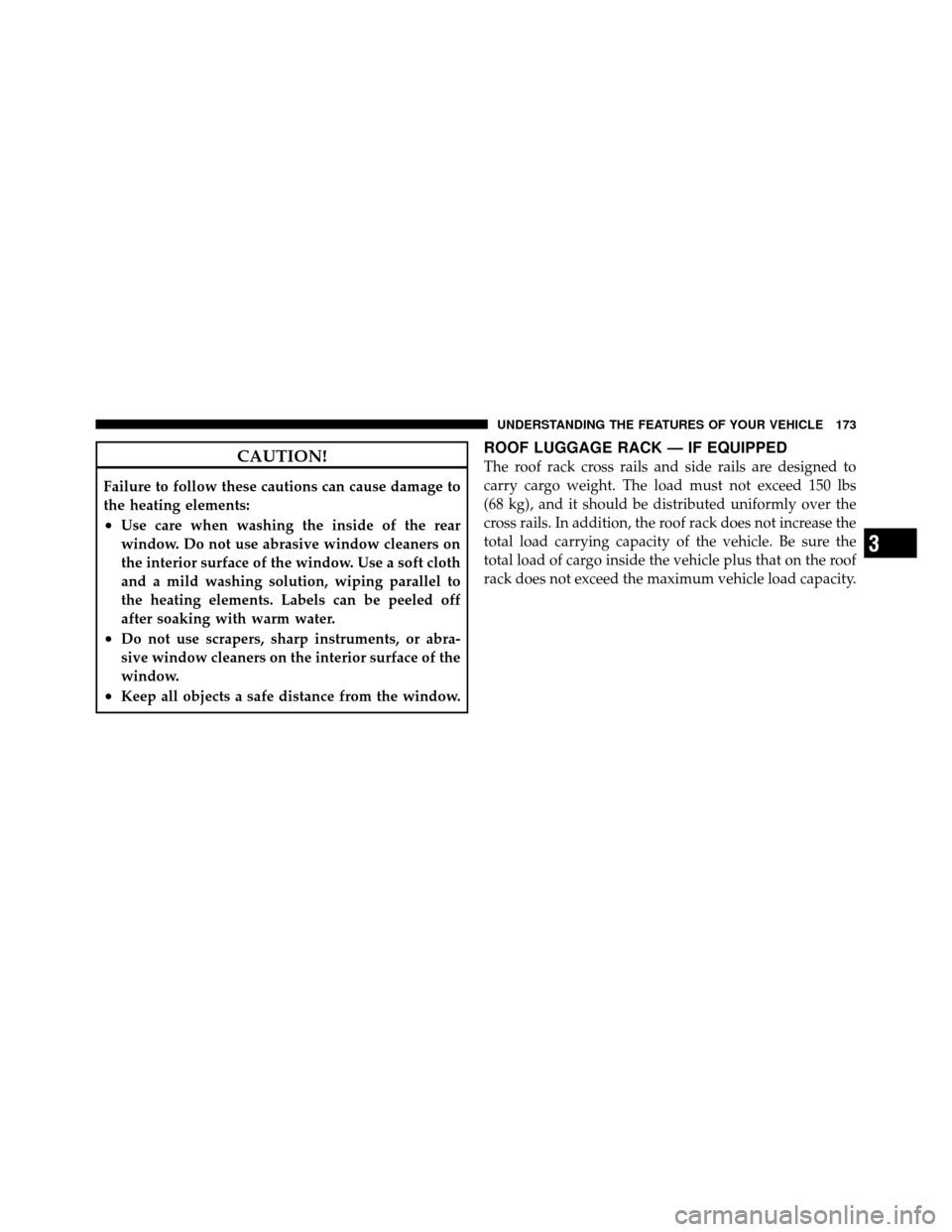

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The roof rack cross rails and side rails are designed to
carry cargo weight. The load must not exceed 150 lbs
(68 kg), and it should be distributed uniformly over the
cross rails. In addition, the roof rack does not increase the
total load carrying capacity of the vehicle. Be sure the
total load of cargo inside the vehicle plus that on the roof
rack does not exceed the maximum vehicle load capacity.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173

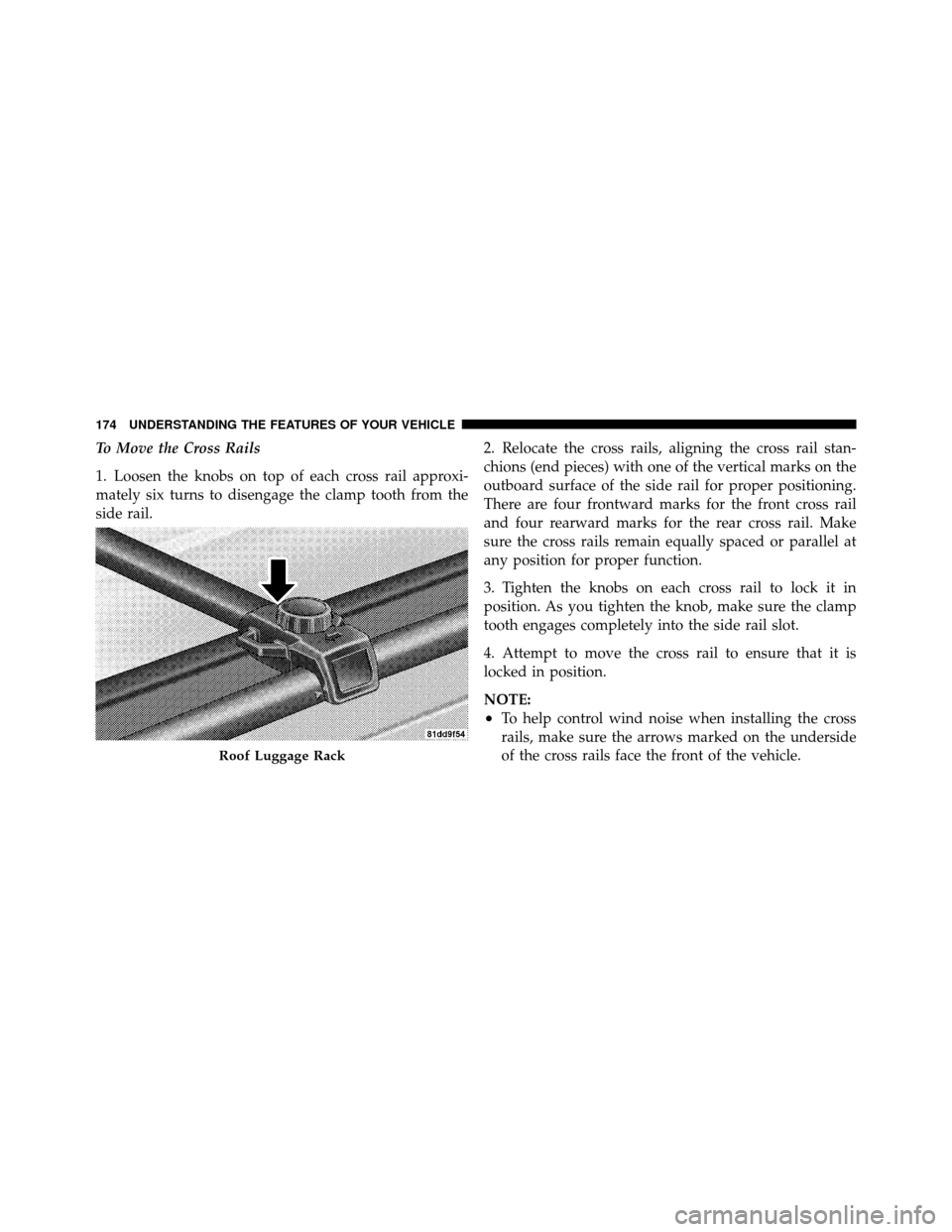

To Move the Cross Rails
1. Loosen the knobs on top of each cross rail approxi-
mately six turns to disengage the clamp tooth from the
side rail.2. Relocate the cross rails, aligning the cross rail stan-
chions (end pieces) with one of the vertical marks on the
outboard surface of the side rail for proper positioning.
There are four frontward marks for the front cross rail
and four rearward marks for the rear cross rail. Make
sure the cross rails remain equally spaced or parallel at
any position for proper function.
3. Tighten the knobs on each cross rail to lock it in
position. As you tighten the knob, make sure the clamp
tooth engages completely into the side rail slot.
4. Attempt to move the cross rail to ensure that it is
locked in position.
NOTE:
•To help control wind noise when installing the cross
rails, make sure the arrows marked on the underside
of the cross rails face the front of the vehicle.
Roof Luggage Rack
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

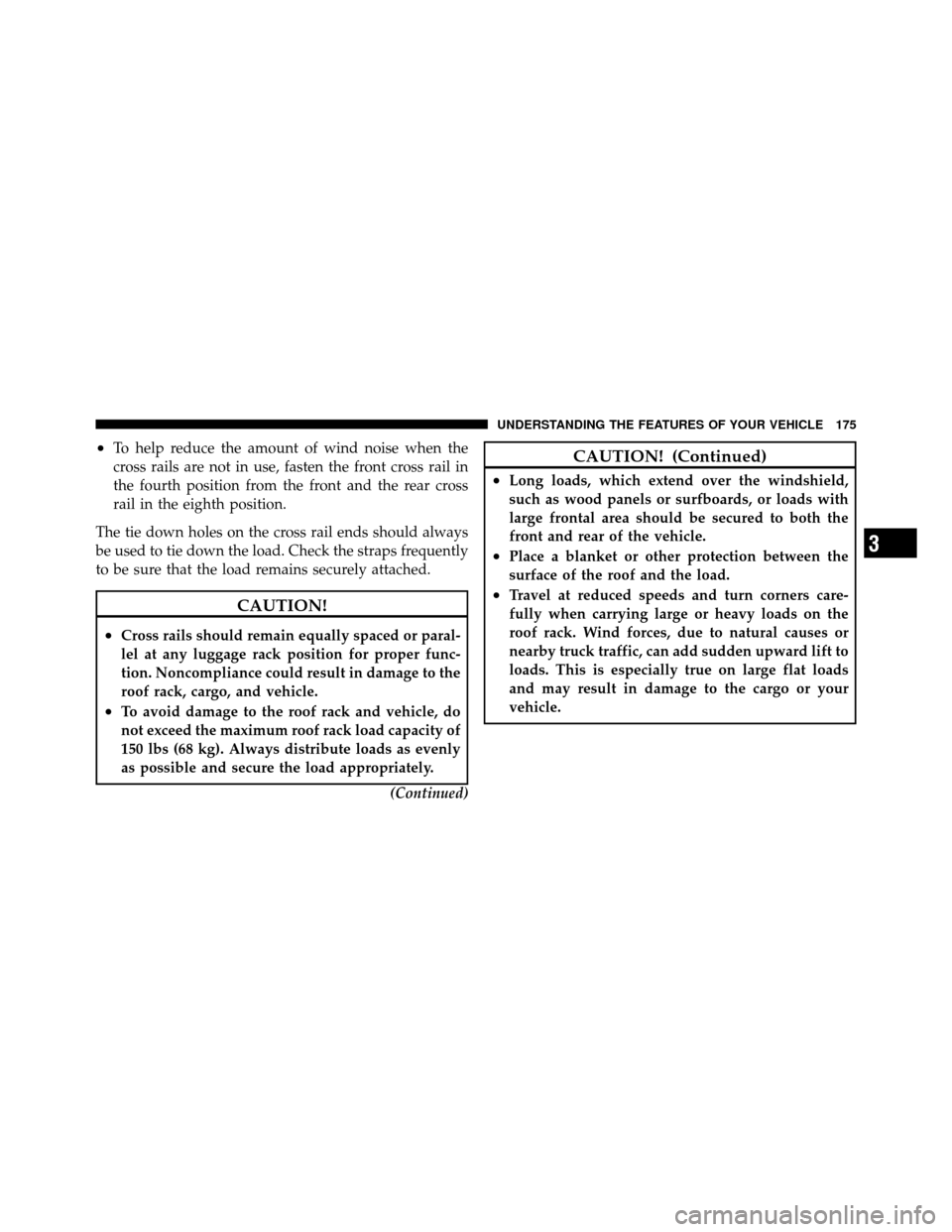

•To help reduce the amount of wind noise when the
cross rails are not in use, fasten the front cross rail in
the fourth position from the front and the rear cross
rail in the eighth position.
The tie down holes on the cross rail ends should always
be used to tie down the load. Check the straps frequently
to be sure that the load remains securely attached.
CAUTION!
•Cross rails should remain equally spaced or paral-
lel at any luggage rack position for proper func-
tion. Noncompliance could result in damage to the
roof rack, cargo, and vehicle.
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lbs (68 kg). Always distribute loads as evenly
as possible and secure the load appropriately. (Continued)
CAUTION! (Continued)
•Long loads, which extend over the windshield,
such as wood panels or surfboards, or loads with
large frontal area should be secured to both the
front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward lift to
loads. This is especially true on large flat loads
and may result in damage to the cargo or your
vehicle.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

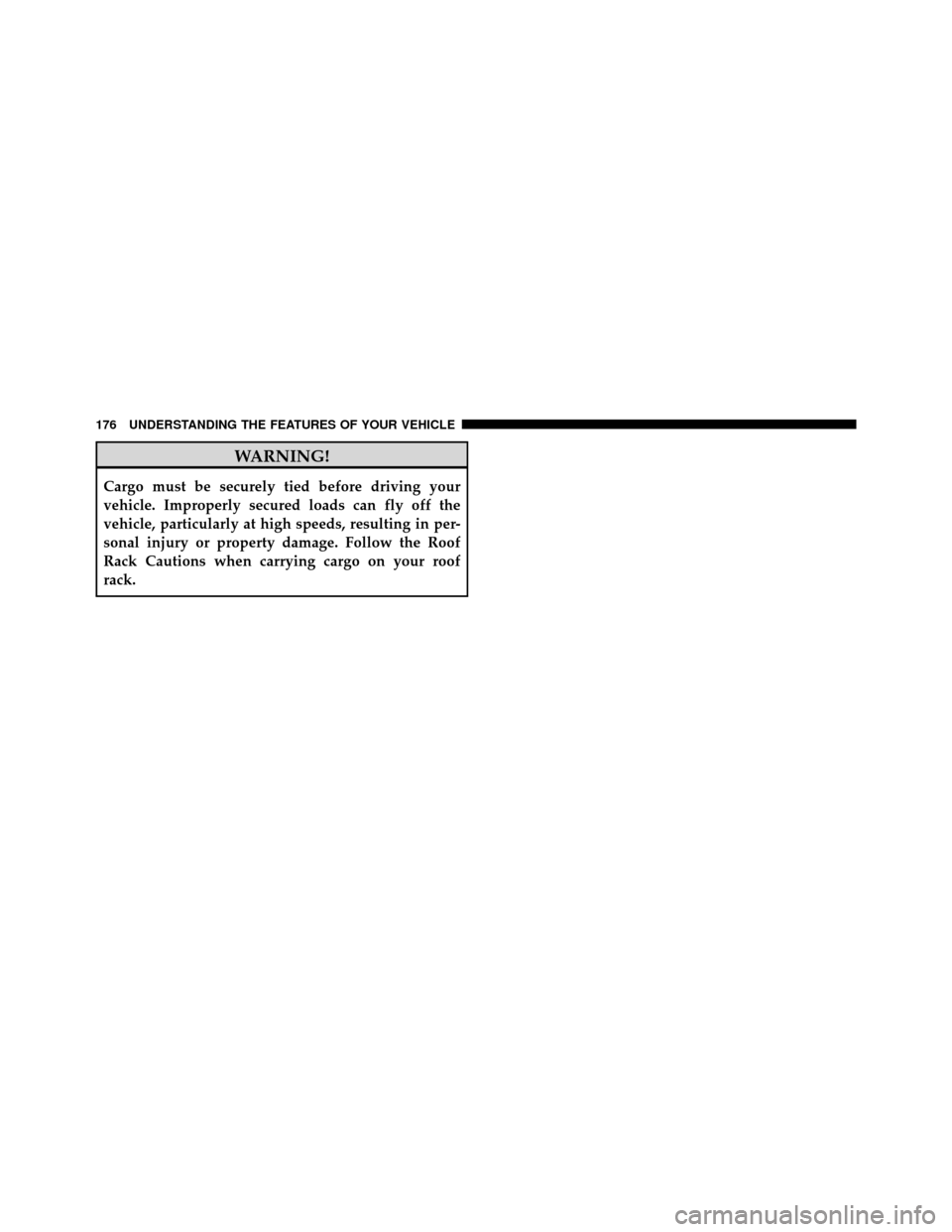

WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the Roof
Rack Cautions when carrying cargo on your roof
rack.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 181
 Instrument Cluster .................... 182
 Instrument Cluster Descriptions ........... 183
 Compass Mini-Trip Computer (CMTC) — If
Equipped ............................ 198
▫ CMTC Reset Buttons .................. 198
▫ Compass/Temperature Display .......... 200
 Electronic Vehicle Information Center
(EVIC) — If Equipped ................... 202 ▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... 204
▫ Oil Change Required .................. 205
▫ Trip Functions ...................... 206
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... 208
▫ Personal Settings (Customer-Programmable
Features) .......................... 210
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 214
4

▫Operating Instructions - Radio Mode ...... 214
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 222
▫ Notes On Playing MP3/WMA Files ....... 224
▫ List Button (Disc Mode For
MP3/WMA Play) .................... 227
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 227
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 230
▫ Operating Instructions — Radio Mode ..... 230
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 233
▫ Notes On Playing MP3 Files ............ 235
▫ Operation Instructions - Auxiliary Mode .... 238
Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 239
▫ Operating Instructions — Radio Mode ..... 239
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 245
▫ Notes On Playing MP3 Files ............ 247
▫ List Button (CD Mode For MP3 Play) ...... 250
▫ Info Button (CD Mode For MP3 Play) ...... 250
 Media Center 830N (REU) — AM/FM Stereo
Radio And 6–Disc CD/DVD/HDD/NAV
Changer — If Equipped .................. 251
▫ Operating Instructions — Uconnect™
Multimedia (Satellite Radio) ............. 252
178 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Operating Instructions —
Uconnect™ Phone .................... 252
▫ Clock Setting Procedure ............... 252
 Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/REQ/RER/RES/REU/RBZ
Radios Only) ......................... 256
▫ System Activation .................... 256
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 256
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 257
▫ Satellite Antenna ..................... 257
▫ Reception Quality .................... 257
▫ Operating Instructions — Uconnect™
Multimedia (Satellite) Mode ............. 258▫
Operating Instructions — Uconnect™ Phone
(If Equipped) ....................... 261
▫ Operating Instructions — Video
Entertainment System (VES)™
(If Equipped) ....................... 261
 Uconnect™ Multimedia
(Sirius Backseat TV™) — If Equipped ........ 261
 Video Entertainment System (VES)™ —
If Equipped .......................... 261
 Universal Consumer Interface (UCI) 0.5 —
If Equipped .......................... 263
▫ Connecting The iPod Device........... 263
▫ Controlling The iPod Using
Radio Buttons ....................... 263
▫ Play Mode ......................... 264
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179
