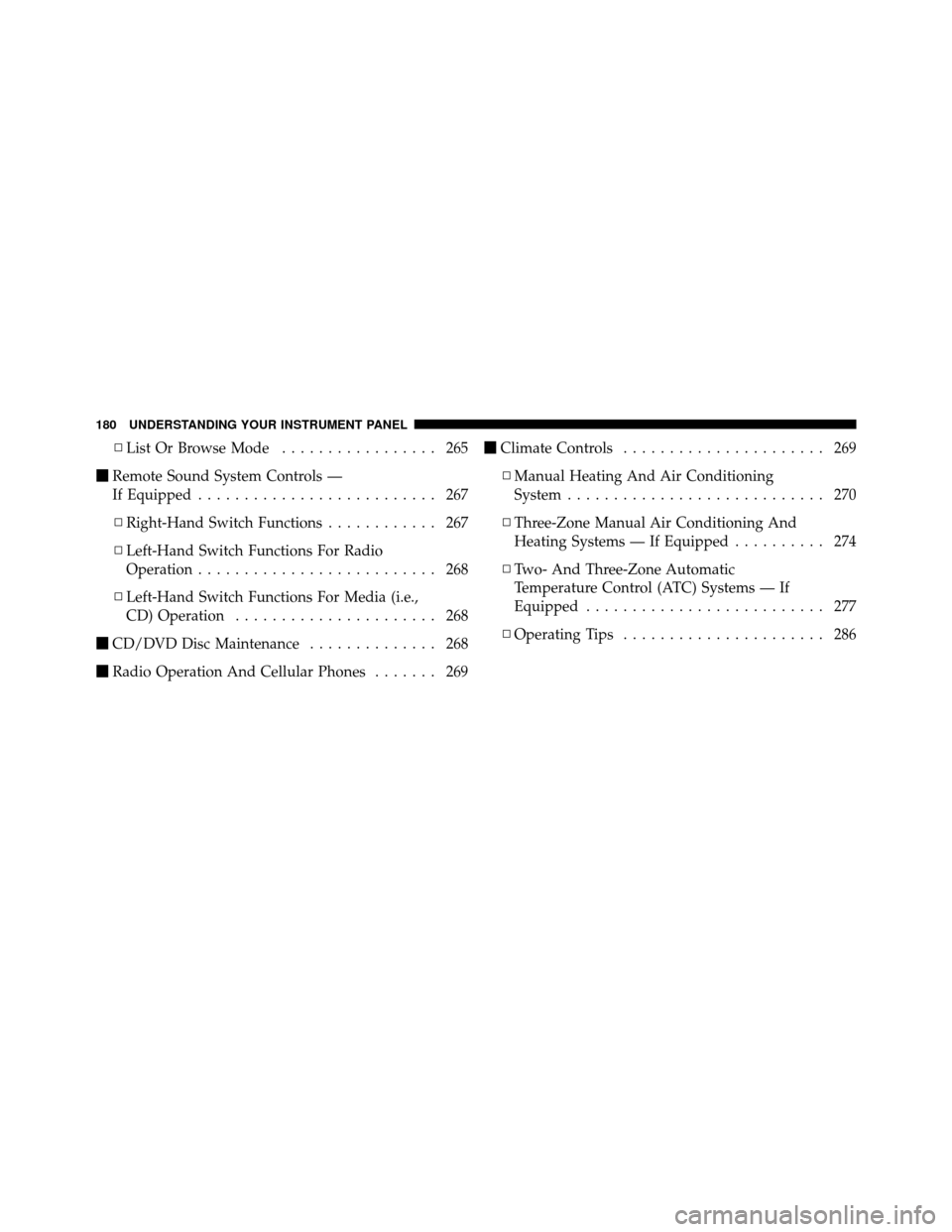

▫List Or Browse Mode ................. 265
 Remote Sound System Controls —
If Equipped .......................... 267
▫ Right-Hand Switch Functions ............ 267
▫ Left-Hand Switch Functions For Radio
Operation .......................... 268
▫ Left-Hand Switch Functions For Media (i.e.,
CD) Operation ...................... 268
 CD/DVD Disc Maintenance .............. 268
 Radio Operation And Cellular Phones ....... 269
Climate Controls ...................... 269
▫ Manual Heating And Air Conditioning
System ............................ 270
▫ Three-Zone Manual Air Conditioning And
Heating Systems — If Equipped .......... 274
▫ Two- And Three-Zone Automatic
Temperature Control (ATC) Systems — If
Equipped .......................... 277
▫ Operating Tips ...................... 286
180 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet5 — Hazard Switch9 — Climate Control
2 — Air Outlet 6 — Switch Bank10 — Radio
3 — Instrument Cluster 7 — Beverage Cooler/Storage Compartment* 11 — Ignition Switch
4 — Storage Compartment or Remote Display
Panel* 8 — Glove Box
* If Equipped
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

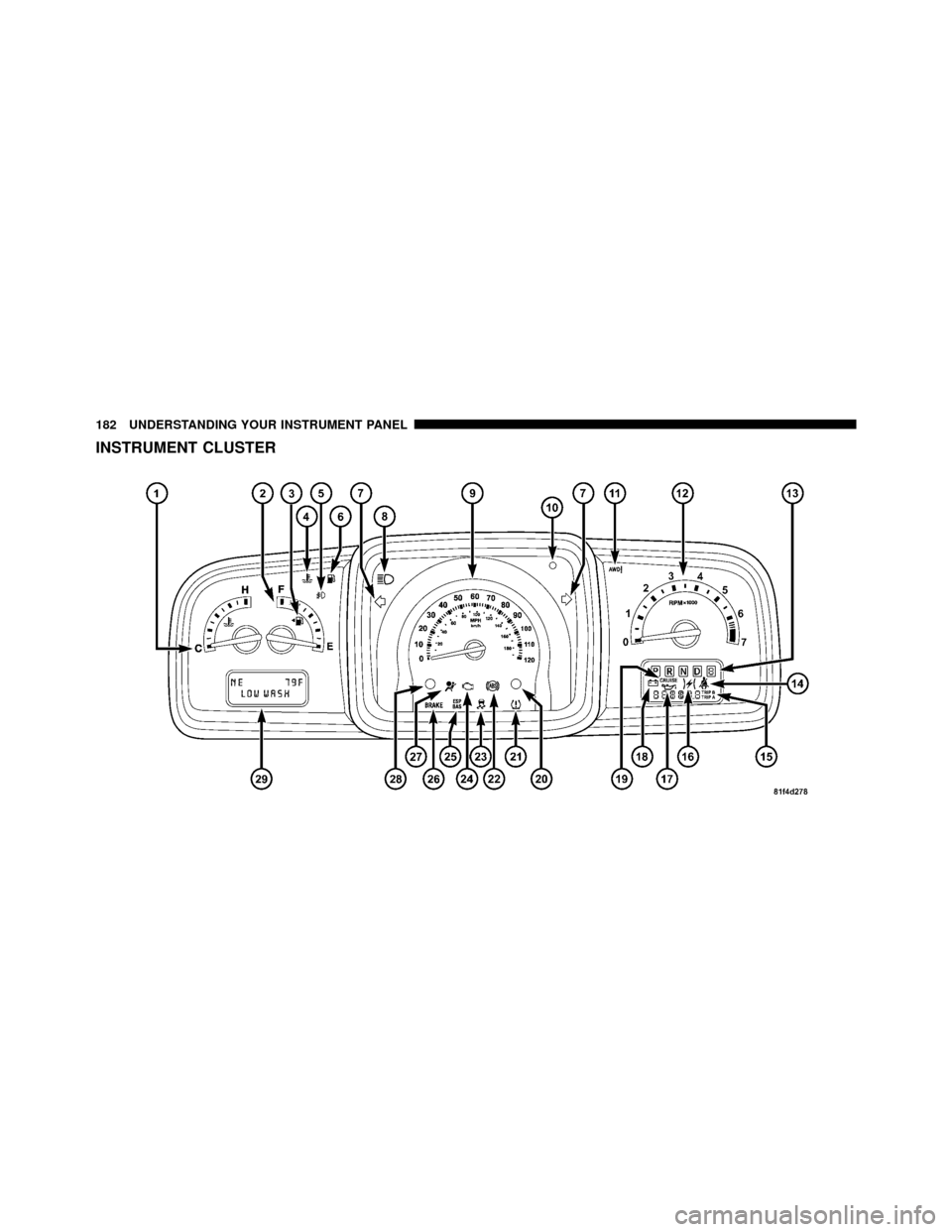

INSTRUMENT CLUSTER
182 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Coolant Temperature Gauge
The temperature gauge indicates engine coolant tem-
perature. Any reading within the normal range indicates
that the cooling system is operating satisfactorily. The
gauge pointer will likely indicate a high temperature
when driving in hot weather, up mountain grades, in
heavy traffic, or when towing a trailer. If the pointer rises
to the “H” mark, safely pull over and stop the vehicle. If
the Air Conditioning A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the needle remains on the “H” mark, turn the
engine OFF immediately and call for service.
NOTE:The gauge pointer will remain near its last
reading when the engine is turned off. It will return to a
true reading when the engine is restarted.
CAUTION!
Do not leave your vehicle unattended with the en-
gine running, as you would not be able to react to the
temperature indicator light if the engine overheats.
2. Fuel Gauge
The fuel gauge shows the level of fuel in the tank when
ignition switch is in the ON position.
3. Fuel Cap Indicator This symbol indicates the side of the vehicle
where the fuel filler cap is located.
4. Coolant Temperature Warning Light This light warns of an overheated engine condi-
tion. If the light turns on while driving, safely pull
over and stop the vehicle. If the A/C system is on,
turn it off. Also, shift the transmission into NEUTRAL
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

and idle the vehicle. If the temperature reading does not
return to normal, turn the engine off immediately and
call for service.
NOTE:As the coolant temperature gauge approaches
H, this indicator will illuminate and a single chime will
sound. Further overheating will cause the temperature
gauge to pass H.In this case, the indicator light will
flash continuously and a continuous chime will sound,
until the engine is allowed to cool.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
safely pull over and stop the vehicle. Idle the vehicle
with the A/C turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H,” and you hear continuous chimes, turn the en-
gine OFF immediately, and call for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, refer to “Maintaining Your Vehicle”
and follow the warnings under the Cooling System
Pressure Cap paragraph.
5. Front Fog Light Indicator — If Equipped This indicator will illuminate when the fog lights
are on.
6. Low Fuel Warning Light This indicator lights when the fuel level drops to
approximately one-eighth tank.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

7. Turn Signal Indicator LightThe left or right arrow will flash in unison with the
corresponding front and rear turn signal lights when
the turn signal switch is operated.
NOTE:
•A chime will sound if the vehicle is driven more than
1 mi (1.6 km) with either turn signal on.
•Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.
8. High Beam Indicator This light shows that the high beam headlights are
on. Pull the multifunction lever on the left side of
the steering column toward you to switch to low beam.
9. Speedometer
Shows the vehicle speed. 10. Vehicle Security Light — If Equipped
This light will flash rapidly for approximately
16 seconds when the vehicle Security system is
arming and then flash slowly when the system
is armed. The light will also turn on for about
three seconds when the ignition switch is first turned
ON.
11. All-Wheel Drive (AWD) Failure Indicator Light —
If Equipped This light monitors the All-Wheel-Drive
(AWD) system. The light will turn on for a bulb
check when the ignition switch is turned to the
ON position and may stay on for as long as
three seconds.
When lit solid: There is an AWD system fault. AWD
performance will be at a reduced level. Service the AWD
system soon.4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

When blinking:The AWD system is temporarily dis-
abled due to overload condition.
12. Tachometer
This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage.
13. Shift Lever Indicator
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
14. Seat Belt Reminder Light This light will turn on for several seconds after the
ignition switch is turned ON as a reminder to
“buckle up.” This light will remain on as long as
the driver’s seat belt remains unbuckled. Refer to “Occu-
pant Restraints” in “Things To Know Before Starting
Your Vehicle” for further information. 15. Odometer/Trip Odometer Display Area
The odometer shows the total distance the vehicle has
been driven. The trip odometer shows individual trip
mileage. Refer to “Trip Odometer button” for additional
information.
NOTE:
U.S. Federal regulations require that upon trans-
fer of vehicle ownership, the seller certify to the pur-
chaser the correct mileage that the vehicle has been
driven. If your odometer needs to be repaired or serviced,
the repair technician should leave the odometer reading
the same as it was before the repair or service. If s/he
cannot do so, then the odometer must be set at zero, and
a sticker must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero.
186 UNDERSTANDING YOUR INSTRUMENT PANEL

Vehicle Odometer Messages
When the appropriate conditions exist, the following
messages will display in the odometer:
ECO................... Fuel Saver Indicator Off
ECO-on ................. Fuel Saver Indicator On
door ............................. Door Ajar
gATE ........................... Liftgate Ajar
gASCAP ....................... Fuel Cap Fault
LoW tirE ..................... LowTirePr essure
noFUSE .......................... Fuse Fault
CHAngE OIL ............... Oil Change Required
LoCOOL ........................ Low Coolant
LoWASH .................... LowW asher Fluid
ESPOFF ...................... ESP Deactivated
NOTE: If the instrument cluster is equipped with the
optional Electronic Vehicle Information Center (EVIC),
then most warnings will display in the EVIC. For further information refer to “Electronic Vehicle Information Cen-
ter (EVIC)” in “Understanding Your Instrument Panel”.
ECO / ECO-on (Fuel Saver Indicator) — If Equipped
The ECO-on indicator will illuminate when you are
driving in a fuel efficient manner and can be used to
modify driving habits in order to increase fuel economy.
The ECO display will toggle between ECO and ECO-on
depending on driving habits and vehicle usage. Press the
Odometer / Trip Odometer / ECO (Fuel Saver Indicator)
button to change the display from odometer to either of
the two trip odometer settings or the “ECO” display.
gASCAP Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, the
word “gASCAP” will display in the odometer display
area. If this occurs, tighten the fuel filler cap until a
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

“clicking” sound is heard. Then press the TRIP ODOM-
ETER button to turn off the message. If the problem
persists, the message will appear the next time the
vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
LoW tirE
When the appropriate tire pressure is low, the odometer
display will toggle between LoW and tirE for three
cycles.
noFUSE
If the vehicle diagnostic system determines that the
Ignition Off Draw (IOD) fuse is improperly installed, or
damaged, a “noFUSE” message will display in the odom-
eter display area. For further information on fuses and
fuse locations refer to “Fuses” in “Maintaining Your
Vehicle”.CHAngE OIL Message (Base And Mid Line Clusters
Only)
Your vehicle is equipped with an engine oil change
indicator system. The “CHANgE OIL” message will flash
in the instrument cluster odometer for approximately
12 seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle based, which
means the engine oil change interval may fluctuate
dependent upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON position. To
turn off the message temporarily, press and release the
TRIP ODOMETER button on the instrument cluster. To
reset the oil change indicator system (after performing
the scheduled maintenance) perform the following pro-
cedure:
188 UNDERSTANDING YOUR INSTRUMENT PANEL

1. Turn the ignition switch to the ON position. (Do not
start the engine).
2. Fully depress the accelerator pedal slowly three
times within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
16. Electronic Throttle Control (ETC) Warning Light —
If Equipped This light will turn on briefly as a bulb check
when the ignition switch is turned ON. This
light will also turn on while the engine is
running if there is a problem with the Elec-
tronic Throttle Control (ETC) system.
If the light turns on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible, place the shift lever in PARK, and cycle the ignition key.
The light should turn off. If the light remains lit with the
engine running, your vehicle will usually be drivable.
However, see your authorized dealer for service as soon
as possible.
If the light is flashing when the engine is running,
immediate service is required. In this case, you may
experience reduced performance, an elevated/rough idle
or engine stall, and your vehicle may require towing.
Also, have the system checked by an authorized dealer if
the light does not turn on during starting.
17. Oil Pressure Warning Light
This light shows low engine oil pressure. The light
will turn on and remain on when the ignition
switch is turned from the LOCK or ACC position to the
ON position. The light will turn off after the engine is
started.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 189
