Page 491 of 557
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning The Cupholders
Clean with a damp cloth or towel using a mild detergent.
FUSES
Interior Fuses
The interior fuse panel is located on the passenger side
under the instrument panel.
CavityCartridge
Fuse Mini-
Fuse Description
F100 30 Amp
Pink 110V AC Inverter – If
Equipped
F101 10 Amp
Red Interior Lights
F102 20 Amp
Yellow Cigar Lighter in In-
strument Panel/Left
Rear Power Outlet
F103 20 Amp
Yellow Power Outlet in Con-
sole Bin/Power Out-
let in Rear of Console
F105 20 Amp
Yellow Heated Seats – If
Equipped
7
MAINTAINING YOUR VEHICLE 489

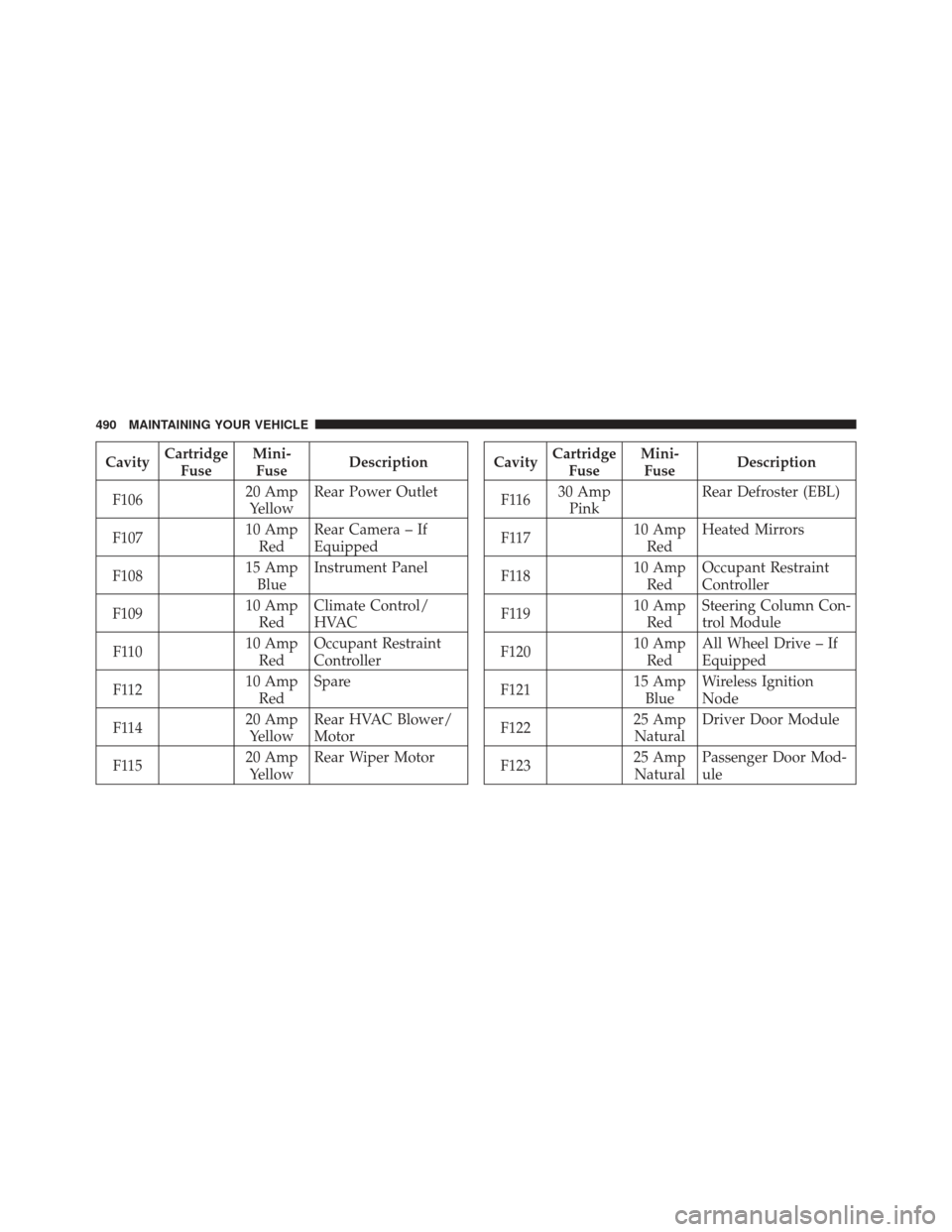

Page 492 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F106 20 Amp
Yellow Rear Power Outlet
F107 10 Amp
Red Rear Camera – If
Equipped
F108 15 Amp
Blue Instrument Panel
F109 10 Amp
Red Climate Control/
HVAC
F110 10 Amp
Red Occupant Restraint
Controller
F112 10 Amp
Red Spare
F114 20 Amp
Yellow Rear HVAC Blower/
Motor
F115 20 Amp
Yellow Rear Wiper MotorCavity
Cartridge
Fuse Mini-
Fuse Description
F116 30 Amp
Pink Rear Defroster (EBL)
F117 10 Amp
Red Heated Mirrors
F118 10 Amp
Red Occupant Restraint
Controller
F119 10 Amp
Red Steering Column Con-
trol Module
F120 10 Amp
Red All Wheel Drive – If
Equipped
F121 15 Amp
Blue Wireless Ignition
Node
F122 25 Amp
Natural Driver Door Module
F123 25 Amp
Natural Passenger Door Mod-
ule
490 MAINTAINING YOUR VEHICLE

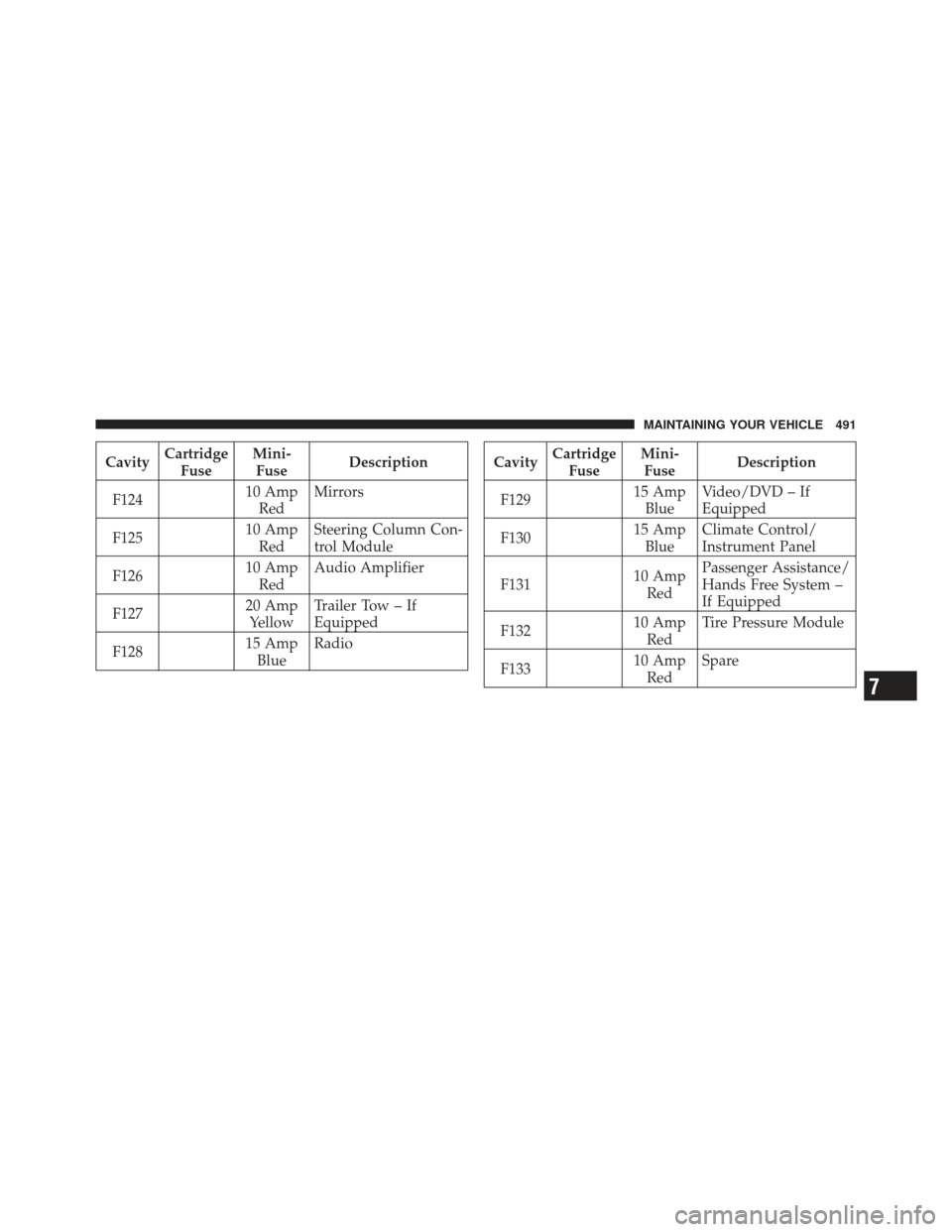

Page 493 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F124 10 Amp
Red Mirrors
F125 10 Amp
Red Steering Column Con-
trol Module
F126 10 Amp
Red Audio Amplifier
F127 20 Amp
Yellow Trailer Tow – If
Equipped
F128 15 Amp
Blue RadioCavity
Cartridge
Fuse Mini-
Fuse Description
F129 15 Amp
Blue Video/DVD – If
Equipped
F130 15 Amp
Blue Climate Control/
Instrument Panel
F131 10 Amp
Red Passenger Assistance/
Hands Free System –
If Equipped
F132 10 Amp
Red Tire Pressure Module
F133 10 Amp
Red Spare
7
MAINTAINING YOUR VEHICLE 491
Page 494 of 557
Underhood Fuses (Power Distribution Center)
The power distribution center is located in the engine
compartment.CavityCartridge
Fuse Mini-
Fuse Description
F101 60 Amp
Yellow Interior Power Distri-
bution Center Rail
F102 60 Amp
Yellow Interior Power Distri-
bution Center Rail
F103 60 Amp
Yellow Interior Power Distri-
bution Center Rail
F105 60 Amp
Yellow Interior Power Distri-
bution Center Rail
Ignition Run Relay
F106 60 Amp
Yellow Interior Power Distri-
bution Center Rail
Run/Accessory Relays
F139 40 Amp
Green Climate Control Sys-
tem Blower
F140 30 Amp
Pink Power Locks
492 MAINTAINING YOUR VEHICLE
Page 495 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F141 40 Amp
Green Anti-Lock Brake Sys-
tem
F142 40 Amp
Green Glow Plugs – If
Equipped
F143 40 Amp
Green Exterior Lights 1
F144 40 Amp
Green Exterior Lights 2
F145 30 Amp
Pink To Body Computer –
Lamp
F146 30 Amp
Pink Spare
F147 30 Amp
Pink Spare
F148 40 Amp
Green Radiator Fan MotorCavity
Cartridge
Fuse Mini-
Fuse Description
F149 30 Amp
Pink Starter Solenoid
F150 25 Amp
Natural Powertrain Control
Modules
F151 30 Amp
Pink Headlamp Washer
Motor – If Equipped
F152 25 Amp
Natural Diesel Fuel Heater – If
Equipped
F153 20 Amp
Yellow Fuel Pump
F156 10 Amp
Red Brake/Electronic Sta-
bility Control Module
F157 10 Amp
Red Transfer Case Module
– If Equipped
F158 10 Amp
Red Active Hood Module
– If Equipped
7
MAINTAINING YOUR VEHICLE 493

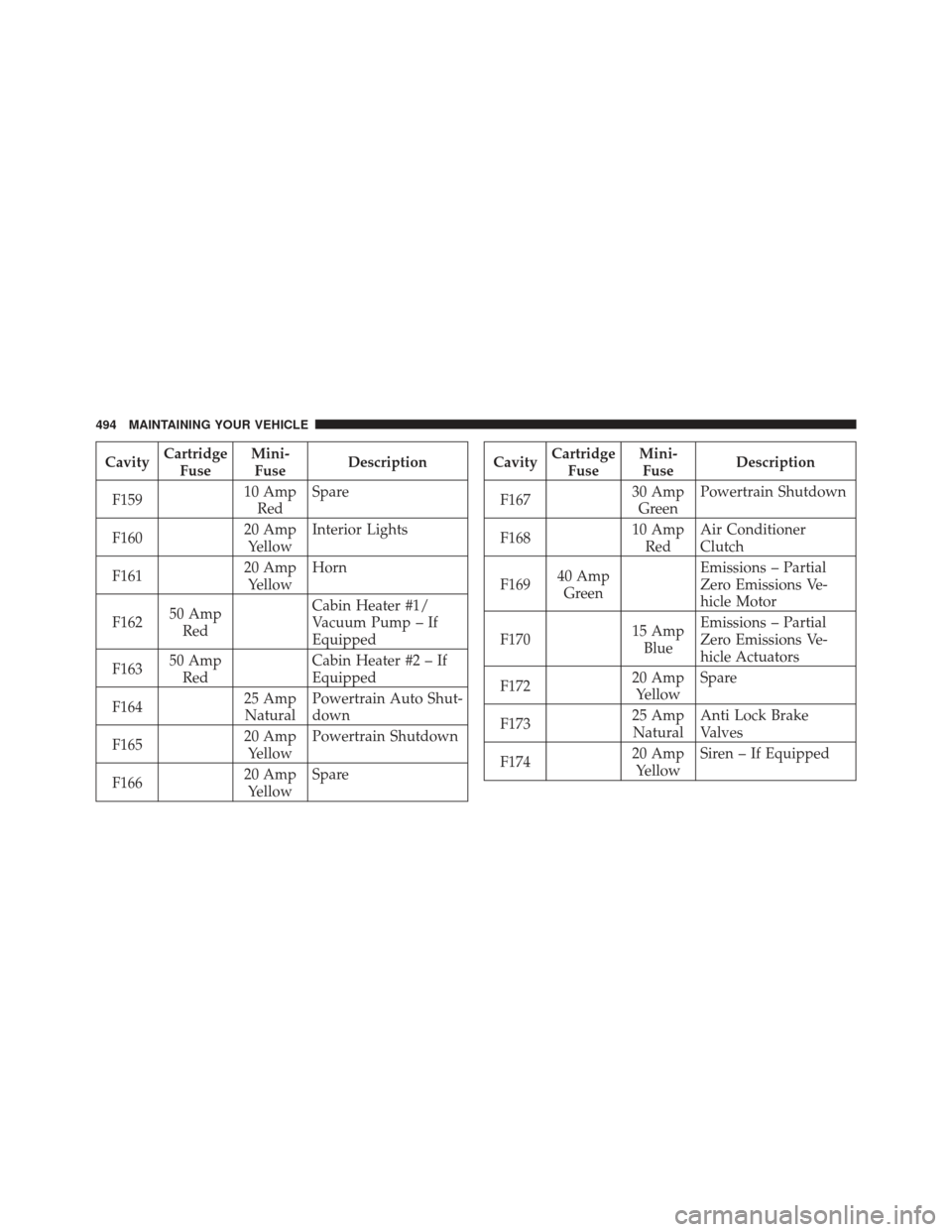

Page 496 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F159 10 Amp
Red Spare
F160 20 Amp
Yellow Interior Lights
F161 20 Amp
Yellow Horn
F162 50 Amp
Red Cabin Heater #1/
Vacuum Pump – If
Equipped
F163 50 Amp
Red Cabin Heater #2 – If
Equipped
F164 25 Amp
Natural Powertrain Auto Shut-
down
F165 20 Amp
Yellow Powertrain Shutdown
F166 20 Amp
Yellow SpareCavity
Cartridge
Fuse Mini-
Fuse Description
F167 30 Amp
Green Powertrain Shutdown
F168 10 Amp
Red Air Conditioner
Clutch
F169 40 Amp
Green Emissions – Partial
Zero Emissions Ve-
hicle Motor
F170 15 Amp
Blue Emissions – Partial
Zero Emissions Ve-
hicle Actuators
F172 20 Amp
Yellow Spare
F173 25 Amp
Natural Anti Lock Brake
Valves
F174 20 Amp
Yellow Siren – If Equipped
494 MAINTAINING YOUR VEHICLE
Page 497 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F175 30 Amp
Green Spare
F176 10 Amp
Red Powertrain Control
Modules
F177 20 Amp
Yellow All Wheel Drive Mod-
ule – If Equipped
F178 25 Amp
Natural Sunroof – If Equipped
F179 10 Amp
Red Battery Sensor
F181 100 Amp
Blue Electrohydraulic Steer-
ing (EHPS) – If
Equipped
F182 50 Amp
Red Cabin Heater #3 – If
Equipped
F184 30 Amp
Pink Front Wiper MotorVEHICLE STORAGE
If you will not be using your vehicle for more than
21 days you may want to take steps to preserve your
battery. You may:
•Remove the IOD (Ignition Off-Draw) mini-fuses from
the Totally Integrated Power Module located in the
engine compartment.
•Or, disconnect the battery negative cable.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
7
MAINTAINING YOUR VEHICLE 495
Page 498 of 557
LIGHT BULBS – InteriorBulb Number
Courtesy/Reading Lamps (Incandescent) ........ 578
Courtesy/Reading Lamps (Optional LED) ...... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Tail (Liftgate) Lamp .................. LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp .................WY21W
Backup Lamp ......................... W21W
License Lamp ........................... 168
496 MAINTAINING YOUR VEHICLE
Page 499 of 557
BULB REPLACEMENT
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly
1 4
turn counterclockwise and remove the assembly from the
headlamp housing.
3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
7
MAINTAINING YOUR VEHICLE 497
Page 500 of 557
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it
1 4turn clockwise to lock
it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
