DODGE JOURNEY 2016 1.G Owners Manual

Sliding Armrest
The center console armrest can also slide rearward for
easy access to the storage area.
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Flip ’n Stow Front Passenger Seat Storage — If
Equipped
The seat latch release-loop is located in the center of the
seat cushion between the seat cushion and the seatback.
Pull the loop upward to release the latch and then
forward to open the seat to the detent position.
Sliding Armrest
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

NOTE:Make sure that objects inside the bin do not
interfere with the latch before closing the seat. Push the
seat cushion downward after closing it to make sure it
latches to the base.
WARNING!
Be certain that the seat cushion is locked securely
into position before using the seat. Otherwise, the
seat will not provide the proper stability for passen-
gers. An improperly latched seat cushion could cause
serious injury.
Second-Row Map Pocket And Grocery Retainers
— If Equipped
A map storage pocket and grocery retainers are located
on the back of the drivers seatback.
Front Passenger Seat Storage Compartment
280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

In-Floor Storage Bin With Removable Liner
NOTE:Position the front seat to at least a mid-track
position to provide easier access to the storage bin.
An in-floor storage bin is located behind each front seat.
Each 1.6 gal (5.9L) bin can hold up to 12, 12 oz (0.35L) cans, plus ice, or other items. The removable bin liner
allows for easy filling, emptying, and cleaning.
To access the bin, position the floor mat aside (if
equipped). Pull the door latch release-loop upward to
release the latch and then forward to open the bin door.
The liner can be removed for easy cleaning.
Seat Storage And Grocery Retainers
In-Floor Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

CARGO AREA FEATURES
Rechargeable Flashlight — If Equipped
The rechargeable LED flashlight stores in its charging
station in the left rear quarter trim panel. To remove it,
push on the indent on the side of the flashlight and release.
To operate the flashlight, push the switch once for high,
twice for low, and a third time to return to off.
Removable LinerRechargeable Flashlight
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Be sure to return the flashlight to its charging
station when not in use to ensure it is ready for operation
the next time you need it.
Cargo Management System
Five Passenger System Features
• A raised load floor that sits on top of a large built-in
storage bin.
• A tri-fold door built into the load floor that allows easy
access to items in the built-in storage bin.
• 60/40 split second-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in “Understanding The Features Of Your
Vehicle” for further information.
• An optional front passenger seat with fold flat feature,
which extends cargo space even further. Refer to
“Seats” in “Understanding The Features Of Your Ve-
hicle” for further information.
• Cargo tie-downs.
• A retractable cargo area cover (if equipped).
Three-Push Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

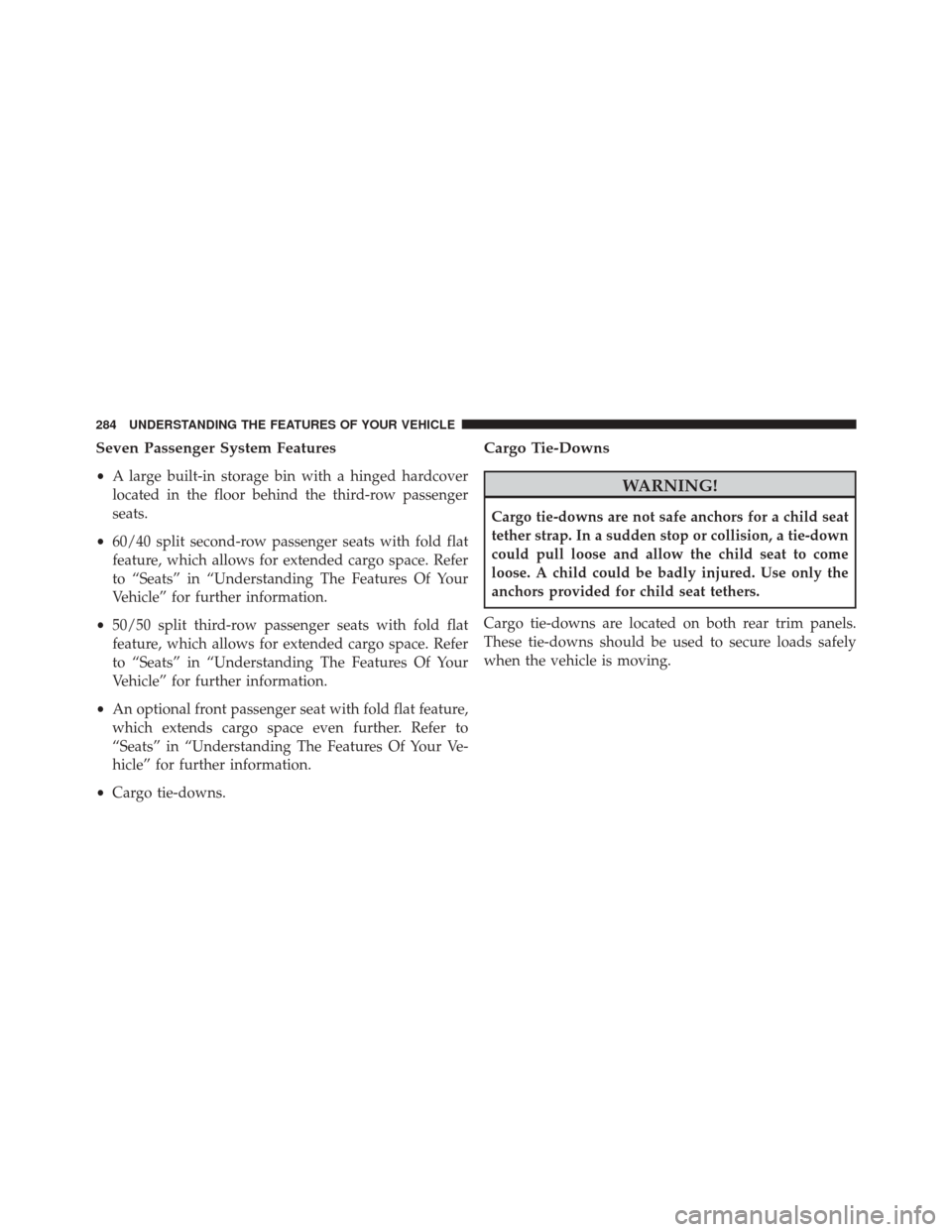

Seven Passenger System Features
•A large built-in storage bin with a hinged hardcover
located in the floor behind the third-row passenger
seats.
• 60/40 split second-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in “Understanding The Features Of Your
Vehicle” for further information.
• 50/50 split third-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in “Understanding The Features Of Your
Vehicle” for further information.
• An optional front passenger seat with fold flat feature,
which extends cargo space even further. Refer to
“Seats” in “Understanding The Features Of Your Ve-
hicle” for further information.
• Cargo tie-downs.
Cargo Tie-Downs
WARNING!
Cargo tie-downs are not safe anchors for a child seat
tether strap. In a sudden stop or collision, a tie-down
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.
Cargo tie-downs are located on both rear trim panels.
These tie-downs should be used to secure loads safely
when the vehicle is moving.
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
(Continued)
WARNING!(Continued)
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
• Do not carry loads that exceed the load limits de-
scribed on the label attached to the left door or left
door center pillar.
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the vehicle to
sway.
• Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
Cargo Tie-Downs
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

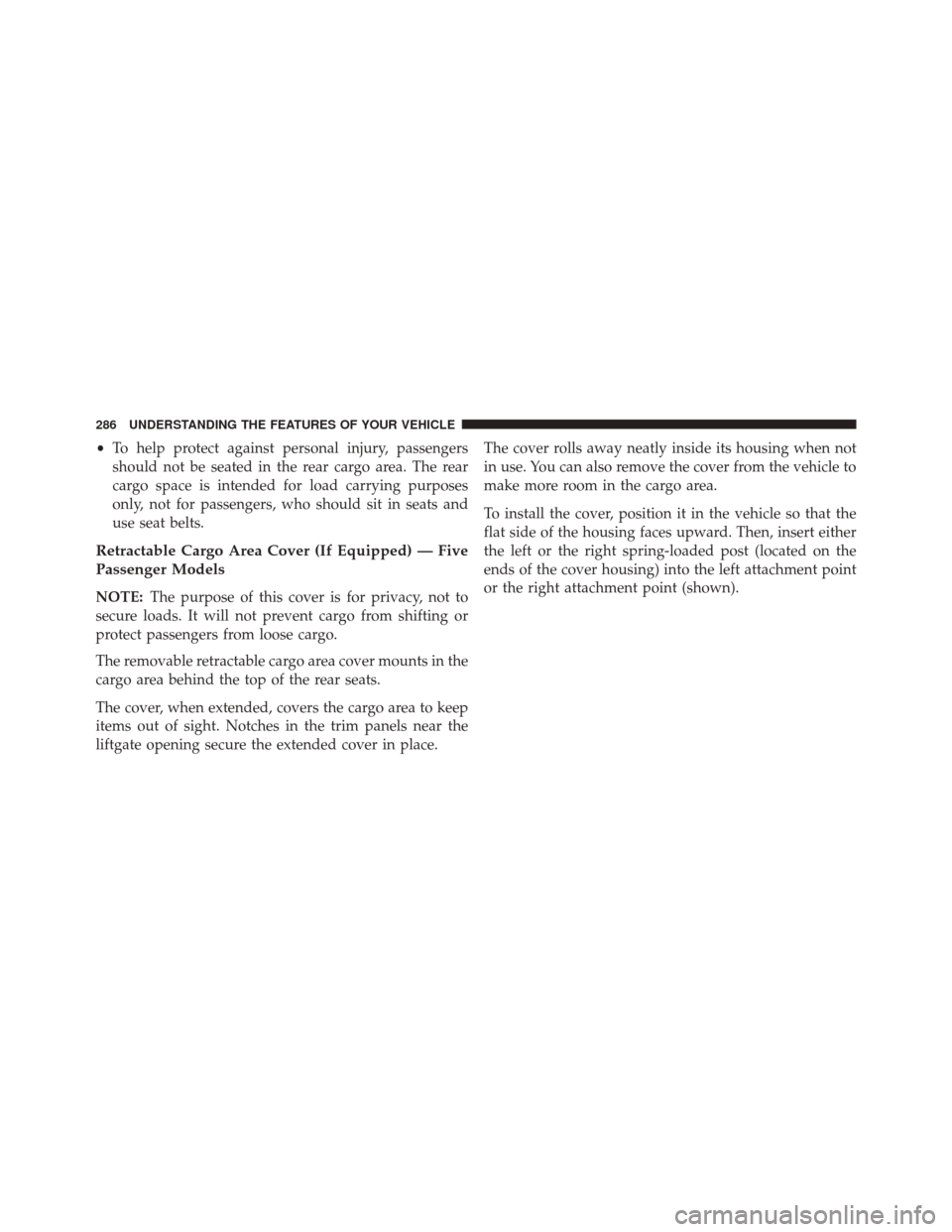

•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.
Retractable Cargo Area Cover (If Equipped) — Five
Passenger Models
NOTE: The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
The removable retractable cargo area cover mounts in the
cargo area behind the top of the rear seats.
The cover, when extended, covers the cargo area to keep
items out of sight. Notches in the trim panels near the
liftgate opening secure the extended cover in place. The cover rolls away neatly inside its housing when not
in use. You can also remove the cover from the vehicle to
make more room in the cargo area.
To install the cover, position it in the vehicle so that the
flat side of the housing faces upward. Then, insert either
the left or the right spring-loaded post (located on the
ends of the cover housing) into the left attachment point
or the right attachment point (shown).
286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Insert the spring-loaded post on the opposite end of the
cover housing into the attachment point on the opposite
side of the vehicle.
Grab the cover handle and pull it toward you. As the
cover nears the liftgate opening, guide the rear attach-
ment posts (on both ends of the cover) into the notches inthe trim panels. Lower the cover to position the posts into
the bottom of the notches and release the handle.
Installing Retractable Cargo Area Cover
Positioning Retractable Cargo Area Cover
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

WARNING!
A cargo cover that is unsecured in the vehicle could
cause injury in a collision. It could become airborne
during a sudden stop and strike someone inside the
vehicle. Do not store the cargo cover on the cargo
floor or in the passenger compartment. Remove the
cover from the vehicle when taken from its mount-
ing. Do not store it in the vehicle.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear window wiper/washer control is located on the
left side of the steering column.Rotate the switch upward to the first detent
position for rear wiper operation.
Rotate the switch upward past the first detent
position to activate the rear washer. The washer
Rear Wiper/Washer
288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
